Fig. 2: Boost Pressure Gauge Test Terminals (3000GT Turbo)
Courtesy of Mitsubishi Motor Sales of America
FUEL TANK SENDING UNIT
Resistance Test
Remove fuel tank sending unit from fuel tank. Check
resistance between appropriate terminals with fuel float in FULL and
EMPTY positions. See Fig. 3, 4, 5, 6, 7, 8 or 9. Compare resistance
reading to FUEL TANK SENDING UNIT RESISTANCE SPECIFICATIONS table. If
resistance is not as specified, replace fuel tank sending unit.
FUEL TANK SENDING UNIT RESISTANCE SPECIFICATIONS TABLE
\
\
\
\
\
\
Application Empty Full
Eclipse
AWD ( 1)
Main ............................ 56 ........... 1-3
Sub ............................ 49-51 ......... 1-3
FWD ........................... 105-119 ........ 2-6
Galant ............................ 105-119 ........ 2-6
Mirage ............................ 102-118 .... 0.9-5.1
Montero, Montero Sport & 3000GT ... 103-117 ........ 1-5
( 1) - Equipped with a main fuel sender and a sub fuel
sender.
\
\
\
\
\
\
FUEL GAUGE
CAUTION: Gauge coils can be damaged if wire is grounded for too long.
Perform test as quickly as possible.
Simple Test
1) Disconnect fuel gauge sending unit connector wire in
luggage compartment, in cargo space or at tank unit. Connect a 12-
volt, 3.4-watt bulb to harness side of connector between appropriate
terminals. See Fig. 3, 4, 5, 6, 7, 8 or 9.
2) Turn ignition switch to ON position. Ensure test bulb
flashes, or stays on, and fuel gauge needle moves. If bulb or gauge
needle does not function as described, repair fuel gauge circuit.
Page 826 of 1501

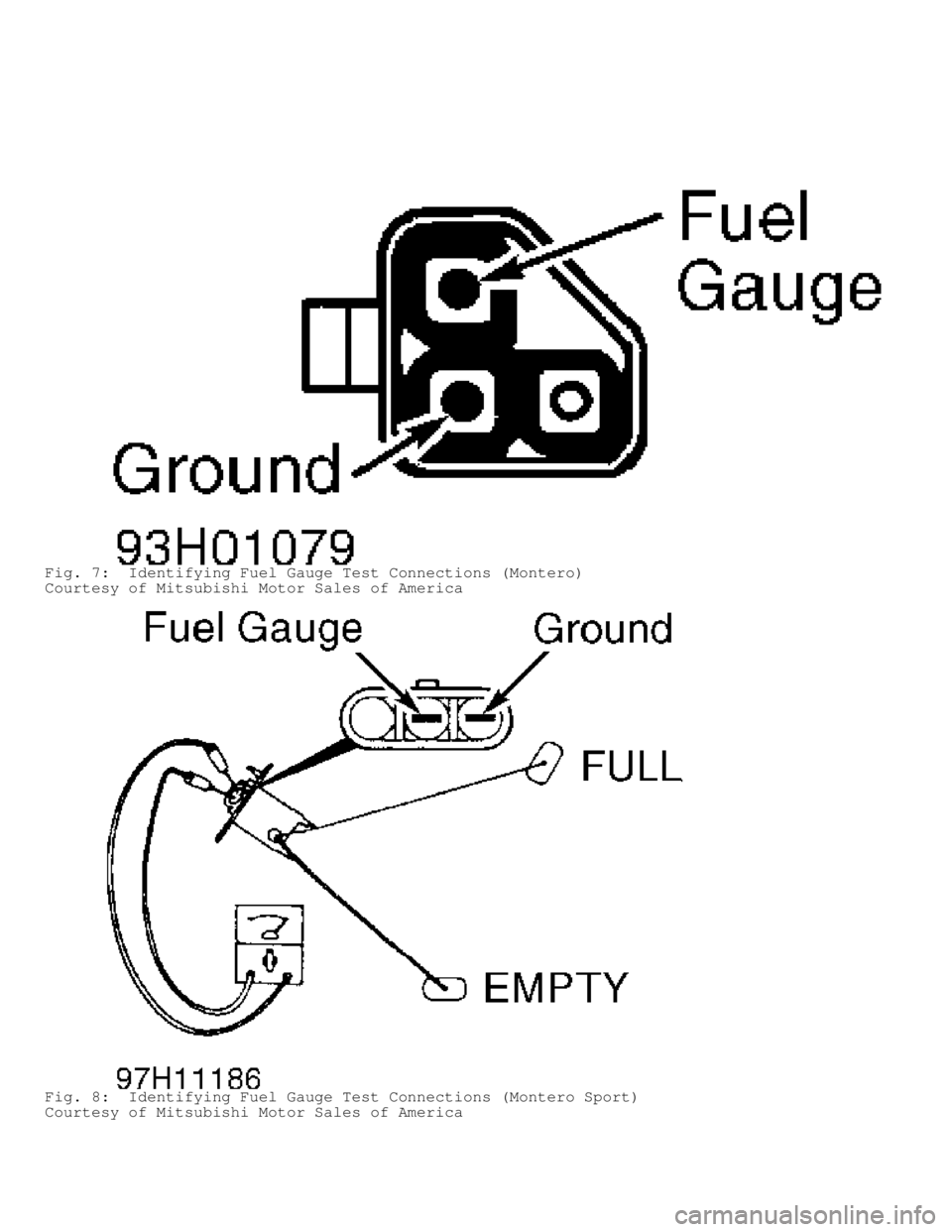

Fig. 3: Fuel Gauge Test Connections (Eclipse FWD & Galant)
Courtesy of Mitsubishi Motor Sales of America

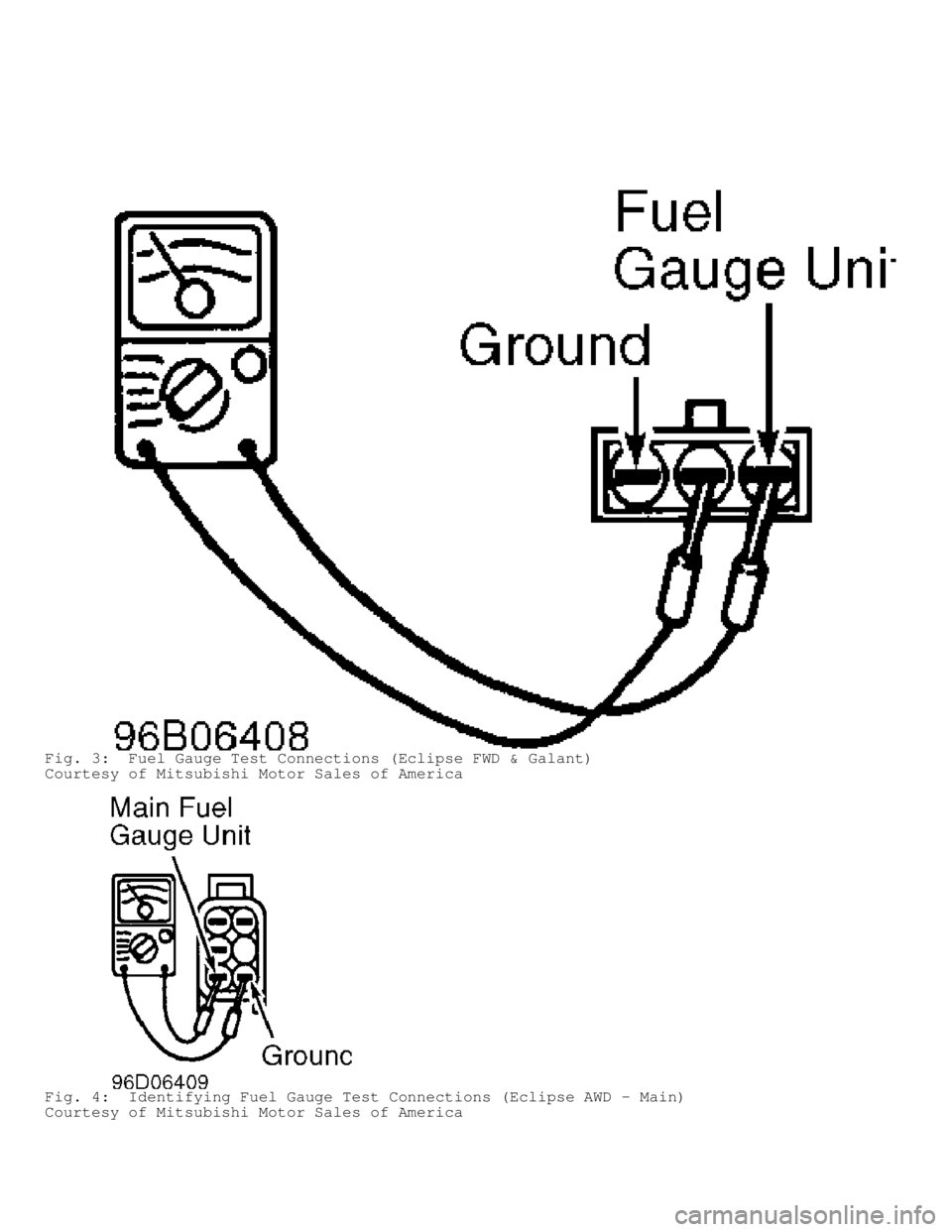

Fig. 4: Identifying Fuel Gauge Test Connections (Eclipse AWD - Main)
Courtesy of Mitsubishi Motor Sales of America
Page 827 of 1501

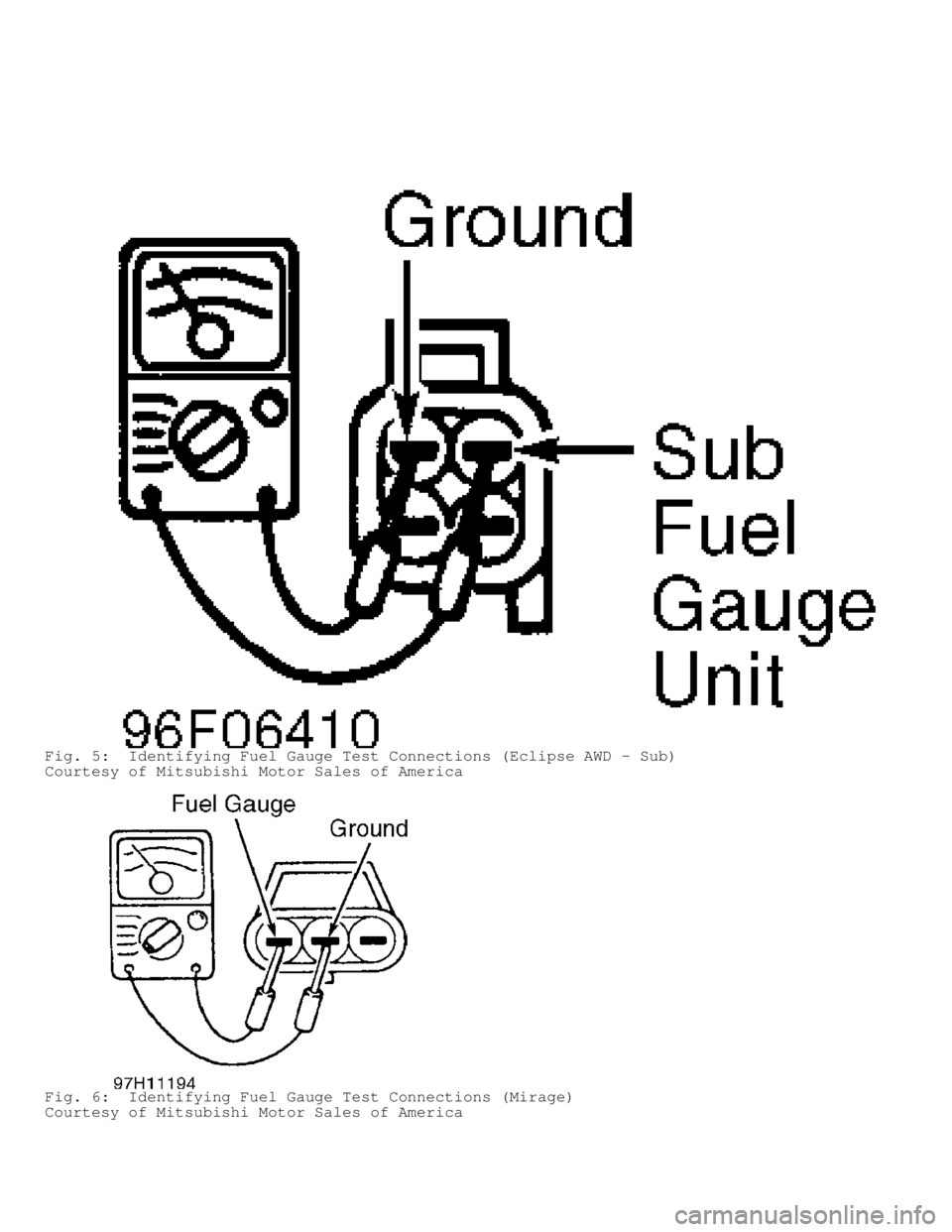

Fig. 5: Identifying Fuel Gauge Test Connections (Eclipse AWD - Sub)
Courtesy of Mitsubishi Motor Sales of America
Fig. 6: Identifying Fuel Gauge Test Connections (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Page 828 of 1501

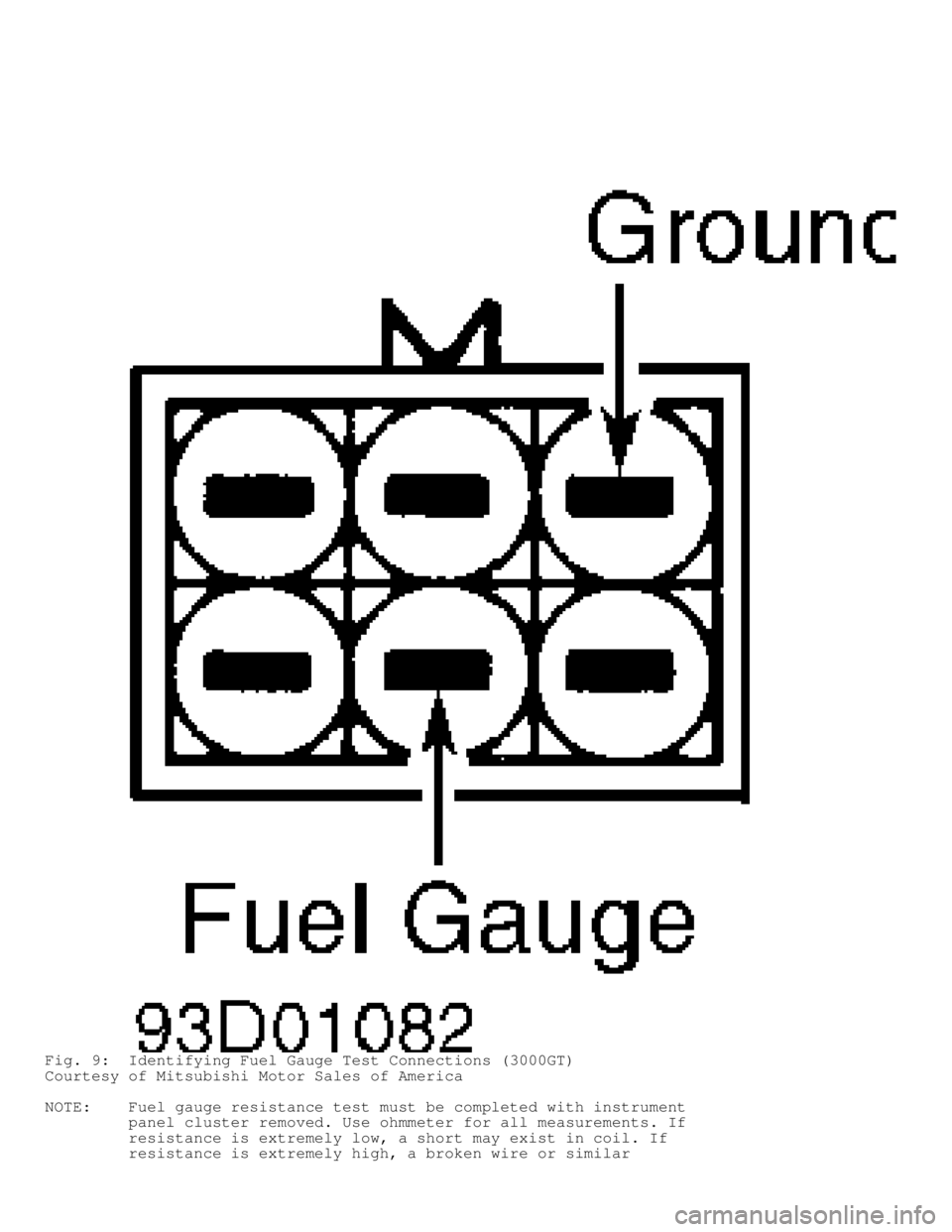

Fig. 7: Identifying Fuel Gauge Test Connections (Montero)
Courtesy of Mitsubishi Motor Sales of America
Fig. 8: Identifying Fuel Gauge Test Connections (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Page 829 of 1501
Fig. 9: Identifying Fuel Gauge Test Connections (3000GT)
Courtesy of Mitsubishi Motor Sales of America
NOTE: Fuel gauge resistance test must be completed with instrument
panel cluster removed. Use ohmmeter for all measurements. If
resistance is extremely low, a short may exist in coil. If
resistance is extremely high, a broken wire or similar
Page 830 of 1501

problem may exist in gauge.
Resistance Test
1) Remove instrument cluster. See INSTRUMENT CLUSTER under
REMOVAL & INSTALLATION. On 3000GT, remove air distribution duct and
combination gauges.
2) On all models, check resistance between appropriate
terminals of instrument cluster or combination gauges. See Fig. 10,
11, 12, 13, 14, 15 or 16. See FUEL GAUGE RESISTANCE SPECIFICATIONS
table. If resistance readings are not as specified, replace fuel
gauge.
FUEL GAUGE RESISTANCE SPECIFICATIONS TABLE
\
\
\
\
\
\
Application ( 1) Terminals Ohms
Eclipse ............... "A" & "B" .............. 219-279
Eclipse ............... "A" & "C" .............. 102-152
Eclipse ............... "B" & "C" .............. 112-132
Galant ................ "A" & "B" ................... 99
Galant ................ "A" & "C" .................. 262
Galant ................ "B" & "C" .................. 163
Mirage ................ "A" & "B" ................ 80-98
Mirage ................ "A" & "C" .............. 173-211
Mirage ................ "B" & "C" ............... 93-113
Montero ............... No. 4 & 8 .............. 104-127
Montero ............... No. 4 & 6 .............. 132-162
Montero ............... No. 6 & 8 ................ 71-87
Montero Sport ......... "A" & "B" ................... 85
Montero Sport ......... "A" & "C" .................. 107
Montero Sport ......... "B" & "C" .................. 192
3000GT ................ "A" & "B" .................. 254
3000GT ................ "A" & "C" .................. 101
3000GT ................ "B" & "C" .................. 153
( 1) - For terminal locations, see Fig. 10, 11, 12, 13, 14,
15 or 16.
\
\
\
\
\
\
Fig. 10: Identifying Instrument Panel Fuel Gauge Resistance Check
Terminals (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Page 831 of 1501

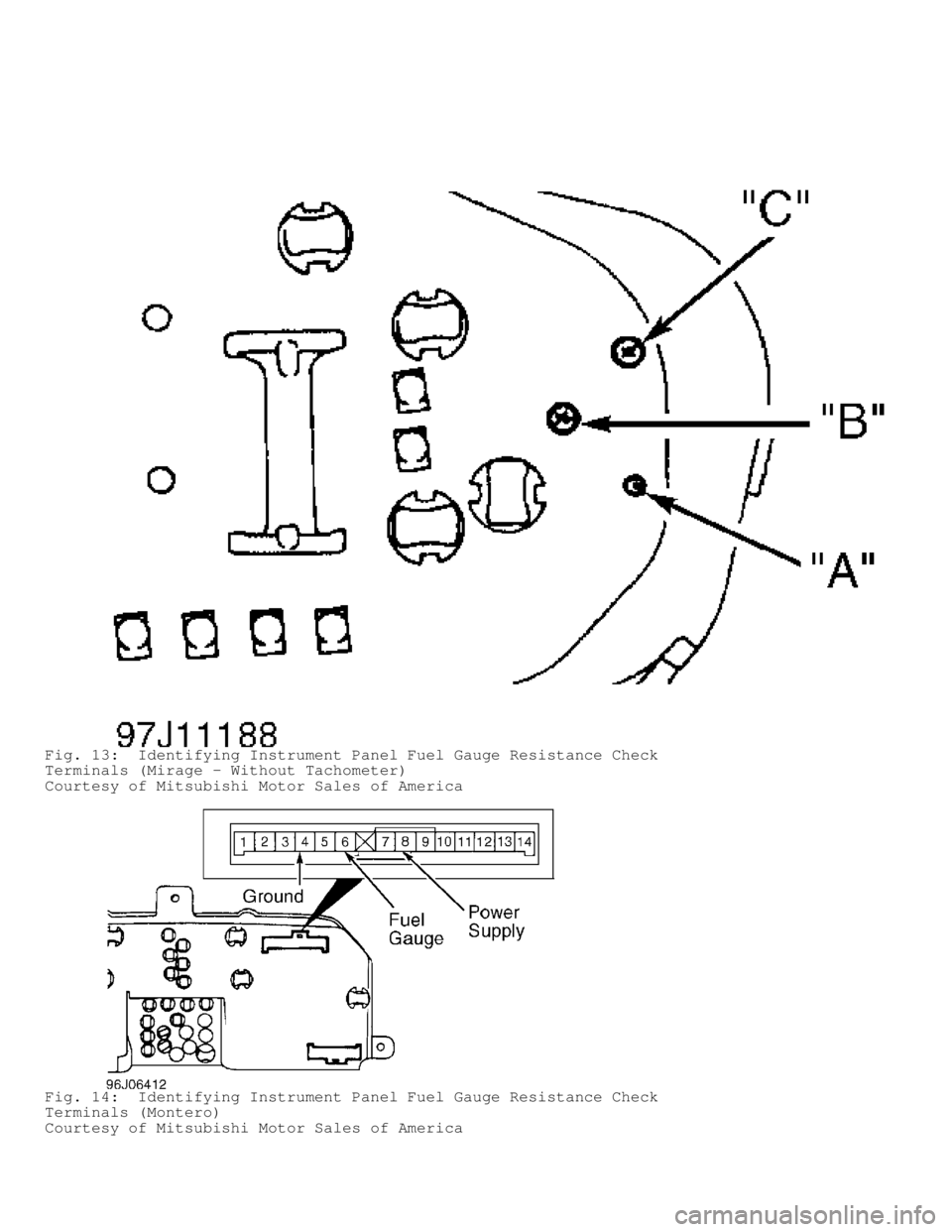

Fig. 11: Identifying Instrument Panel Fuel Gauge Resistance Check
Terminals (Galant)
Courtesy of Mitsubishi Motor Sales of America
Fig. 12: Identifying Instrument Panel Fuel Gauge Resistance Check
Terminals (Mirage - With Tachometer)
Courtesy of Mitsubishi Motor Sales of America
Page 832 of 1501

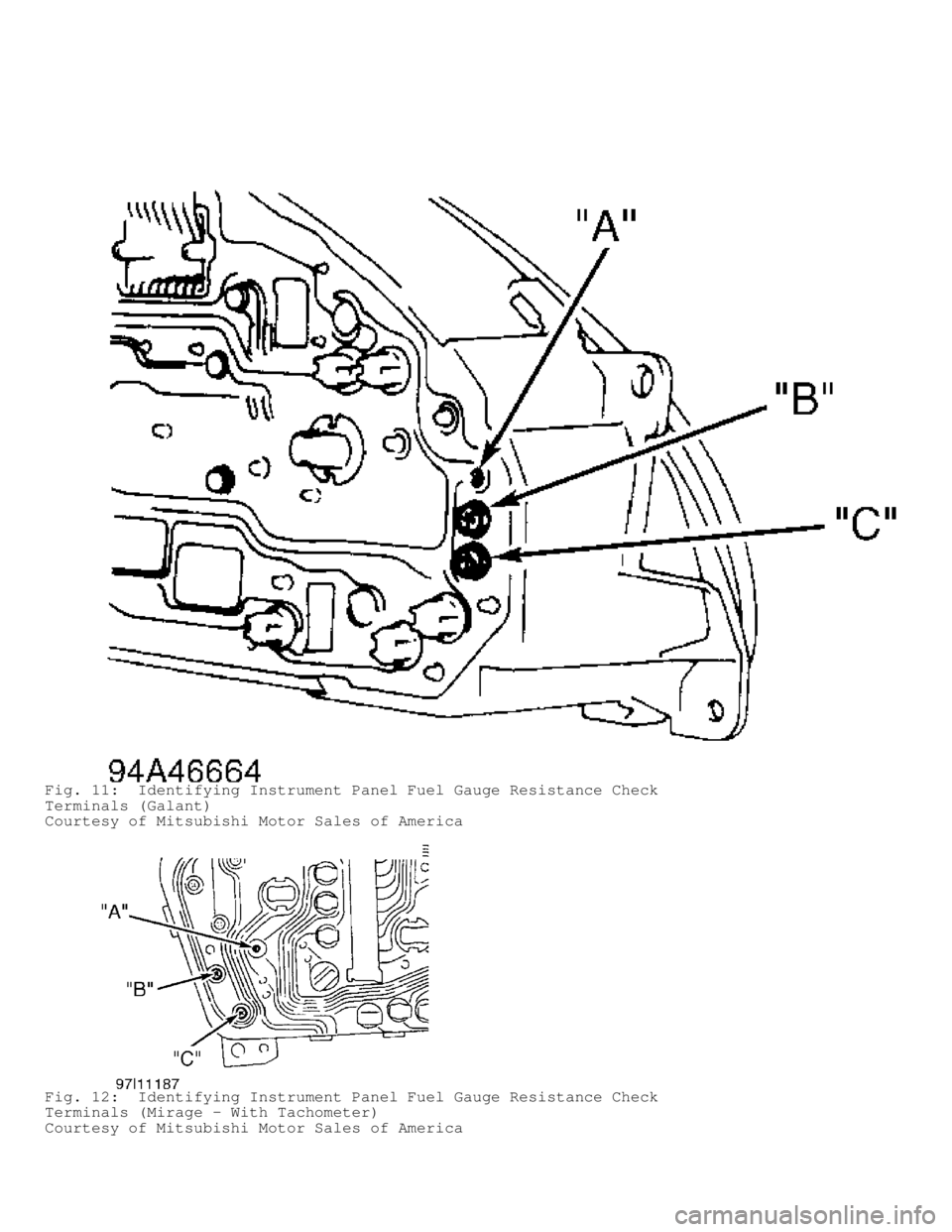

Fig. 13: Identifying Instrument Panel Fuel Gauge Resistance Check
Terminals (Mirage - Without Tachometer)
Courtesy of Mitsubishi Motor Sales of America
Fig. 14: Identifying Instrument Panel Fuel Gauge Resistance Check
Terminals (Montero)
Courtesy of Mitsubishi Motor Sales of America
