1998 MITSUBISHI MONTERO Service Manual

between specified terminals. See Figs. 6 and 8. If continuity is not
as specified, replace ignition switch.
Fig. 8: Testing Ignition Switch (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Key Reminder Switch Test
Disconnect key reminder switch connector. Check continuity
between specified terminals. See Figs. 6 and 9. If continuity is not
as specified, replace key reminder switch.

Fig. 9: Testing Key Reminder Switch (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 6 and 10. If
continuity is not as specified, replace wiper/washer switch.

Fig. 10: Testing Wiper/Washer Switch (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
GALANT
Ignition Switch Tests
Disconnect ignition switch harness connector. Check
continuity between specified terminals. See Figs. 11 and 12. If
continuity is not as specified, replace ignition or key reminder
switch.

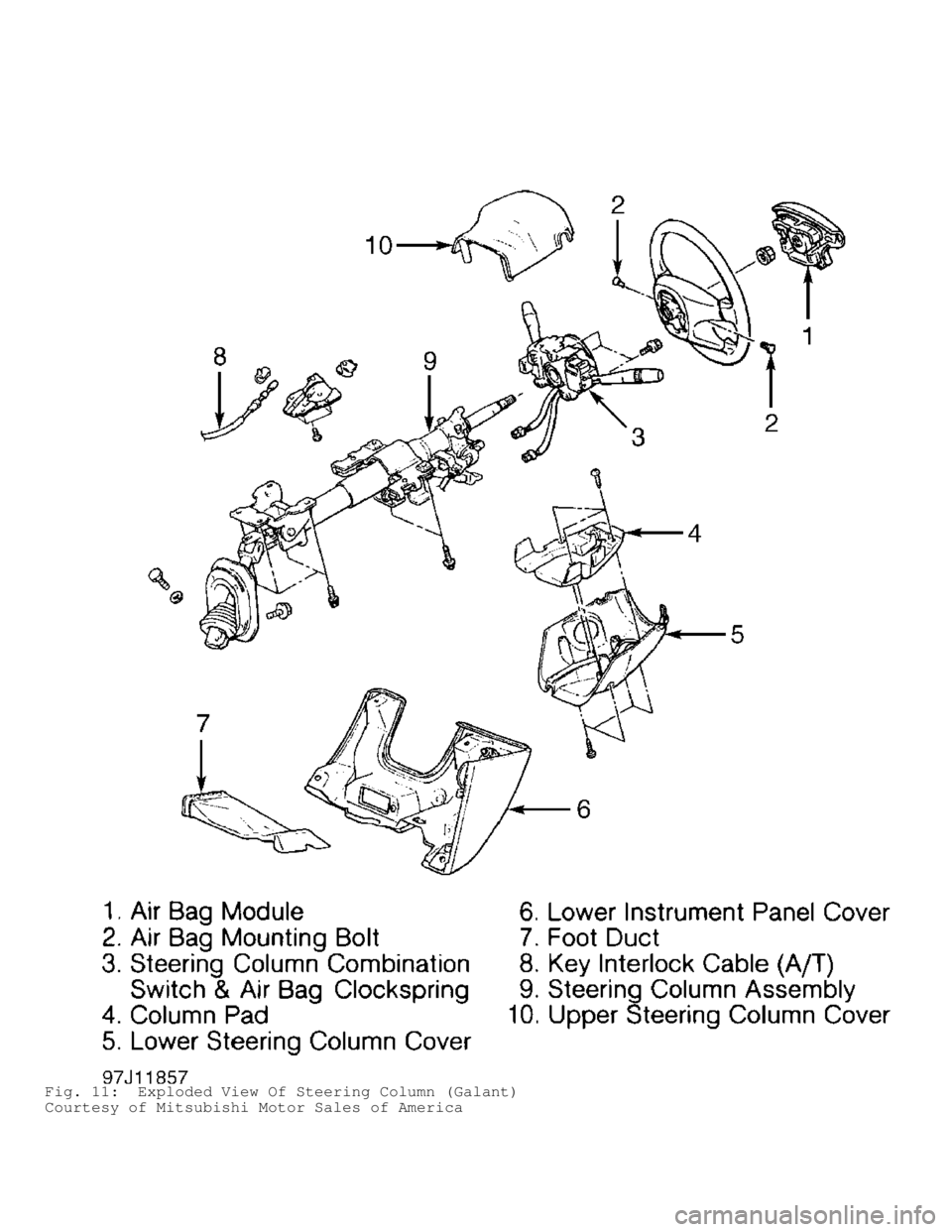

Fig. 11: Exploded View Of Steering Column (Galant)
Courtesy of Mitsubishi Motor Sales of America

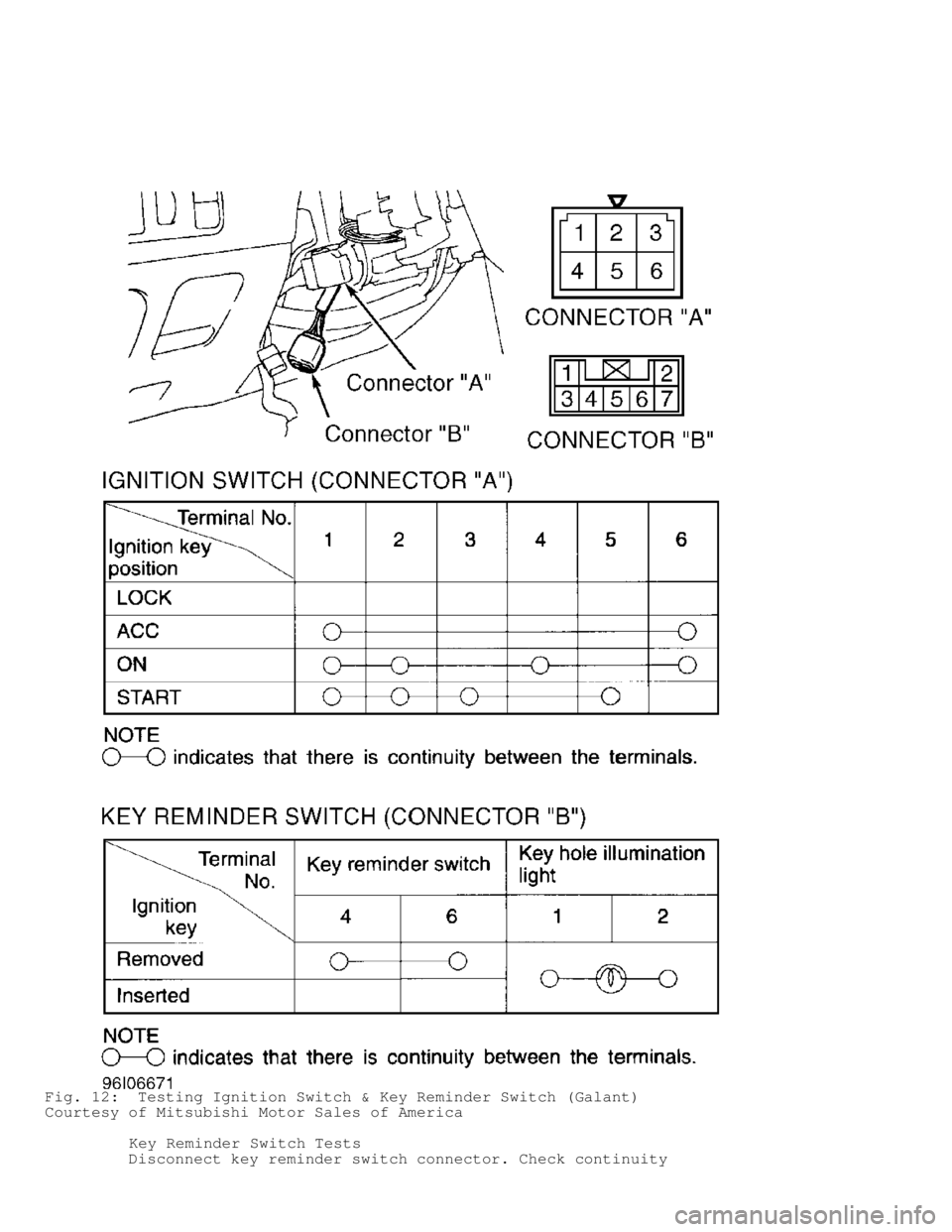

Fig. 12: Testing Ignition Switch & Key Reminder Switch (Galant)
Courtesy of Mitsubishi Motor Sales of America
Key Reminder Switch Tests
Disconnect key reminder switch connector. Check continuity

between specified terminals. See Fig. 12. If continuity is not as
specified, replace key reminder switch.
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT) .
See Figs. 11 and 13. If continuity is not as specified, replace
steering column combination switch.
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT)









\









\









\









\









\









\






Switch Check Continuity
& Position Between Terminals No.
Lights Switch
Headlight ON .............. ( 1) 1 & ( 2) 6; ( 2) 5 & ( 2) 7
Taillight ON ( 2) ................................. 5 & 7
Dimmer Switch ( 1)
Low Beam ......................................... 4 & 6
High Beam ........................................ 3 & 4
Passing
Low Beam ............................. 1, 2 & 6; 3 & 4
High Beam ............................ 1, 2 & 6; 4 & 6
Turn Signal Switch ( 2)
Left Turn ........................................ 3 & 8
Right Turn ....................................... 8 & 9
( 1) - Check at connector "A". See Fig. 13.
( 2) - Check at connector "B". See Fig. 13.









\









\









\









\









\









\






Fig. 13: Identifying Lighting & Turn Signal Switches (Galant)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.

Check continuity between specified terminals. See Figs. 11 and 14. If
continuity is not as specified, replace wiper/washer switch.

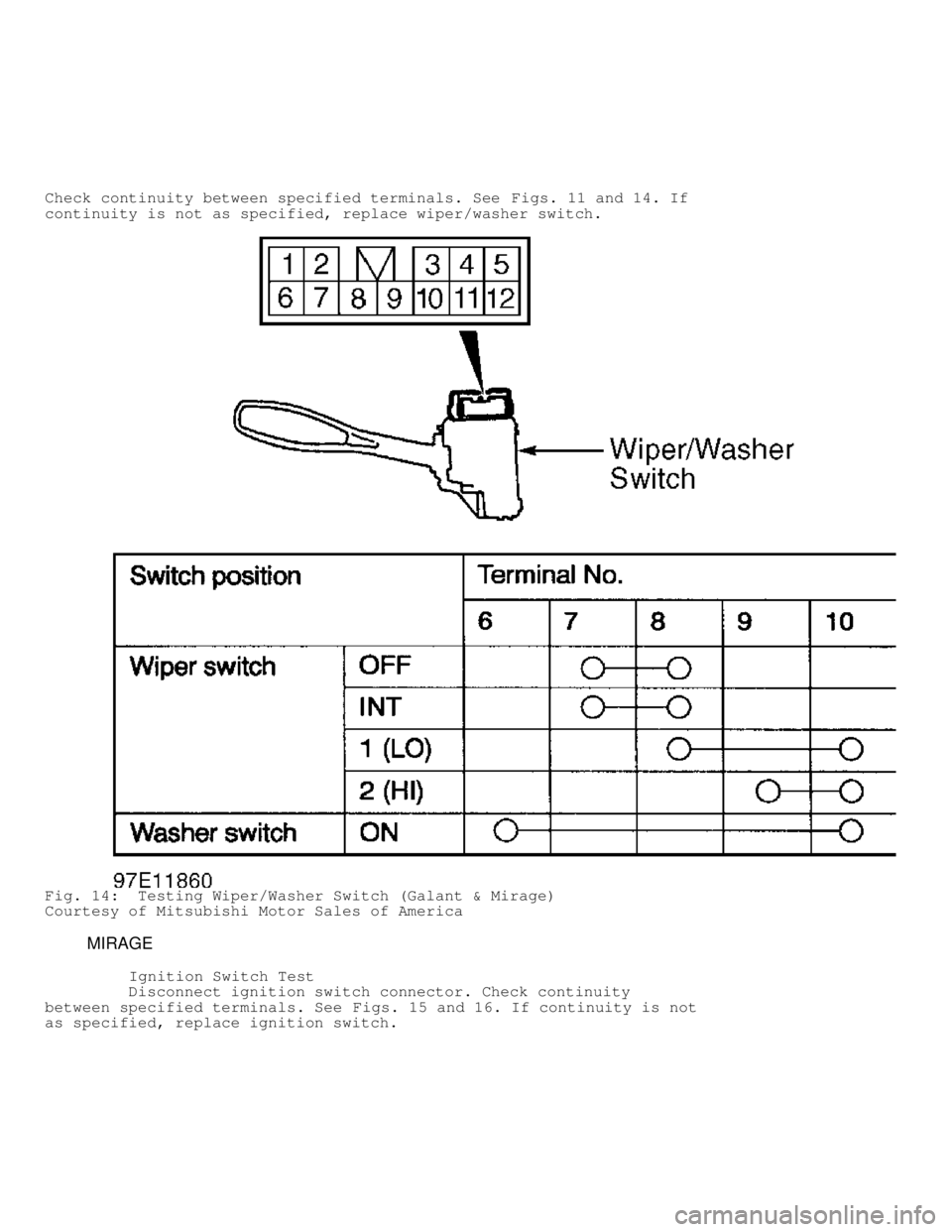

Fig. 14: Testing Wiper/Washer Switch (Galant & Mirage)
Courtesy of Mitsubishi Motor Sales of America
MIRAGE
Ignition Switch Test
Disconnect ignition switch connector. Check continuity
between specified terminals. See Figs. 15 and 16. If continuity is not
as specified, replace ignition switch.

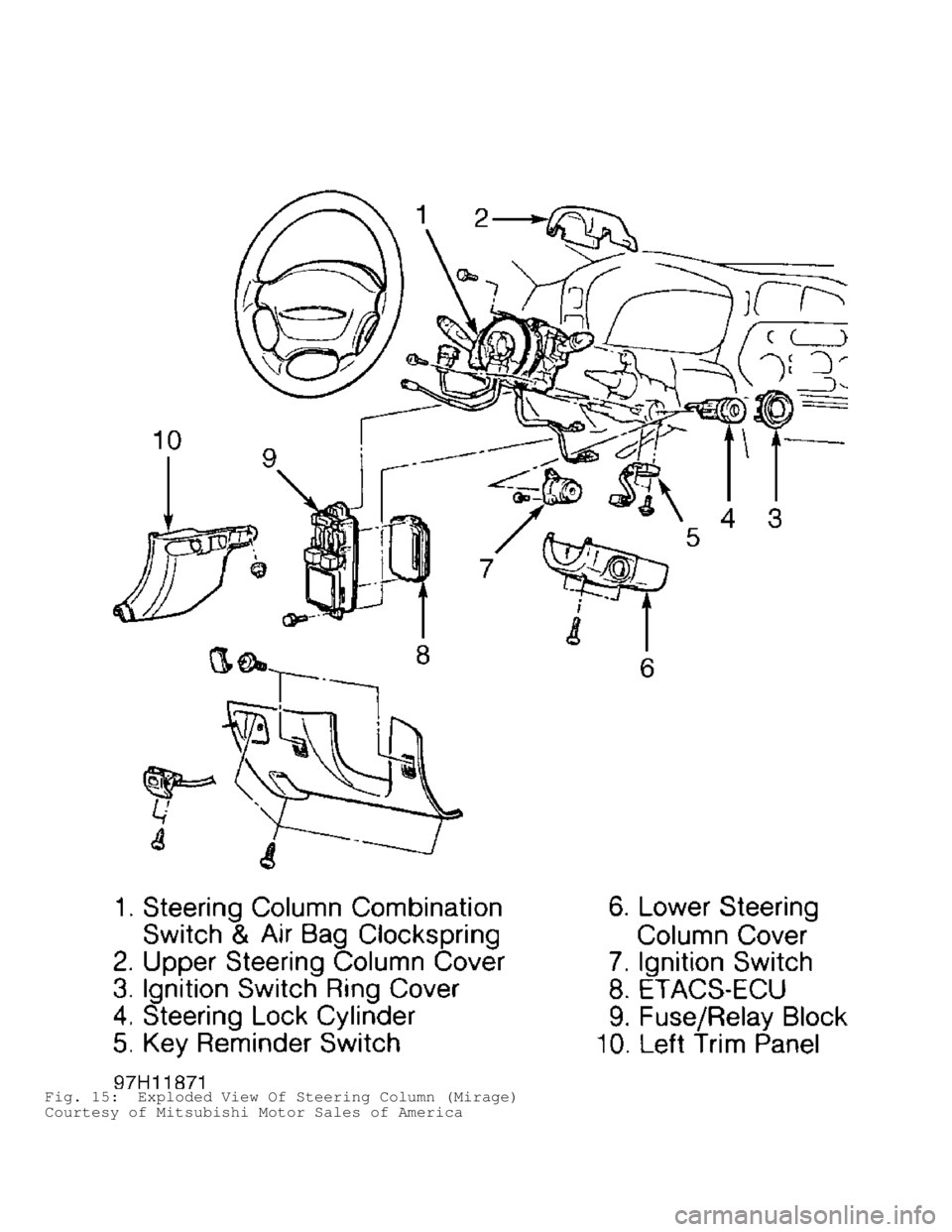

Fig. 15: Exploded View Of Steering Column (Mirage)
Courtesy of Mitsubishi Motor Sales of America
