1) Remove wiper switch from instrument panel and disconnect
wiper switch. Place wiper switch in OFF position. Continuity should
exist between terminals No. 4 and 5. See Fig. 12. Place wiper switch
in ON position. Continuity should exist between terminals No. 5 and 6.
2) Place wiper switch in INT position. Continuity should
exist between terminals No. 4 and 5, and between terminals No. 7 and
8. Depress washer switch. Continuity should exist between terminals
No. 2 and 6. Continuity between terminals No. 1 and 3 should exist in
all positions (light circuit).
REMOVAL & INSTALLATION
FRONT WIPER MOTOR
Removal & Installation
Remove wiper motor bolts. Pull motor out slightly. Disconnect
wiper linkage from motor assembly and remove motor. To install,
reverse removal procedure.
FRONT WIPER SWITCH
NOTE: Front wiper switch is part of combination switch on steering
column. See STEERING COLUMN SWITCHES article.
REAR WIPER MOTOR
Removal & Installation
Remove wiper blade and arm assembly. Remove tailgate trim, 2
bolts and wiper motor. To install, reverse removal procedure. Ensure
grommet is in good condition.
REAR WIPER SWITCH
Removal & Installation
Pry rear wiper switch from instrument panel and disconnect
wiper switch wiring connector. To install switch, reverse removal
procedure.
WIRING DIAGRAMS
Page 1490 of 1501

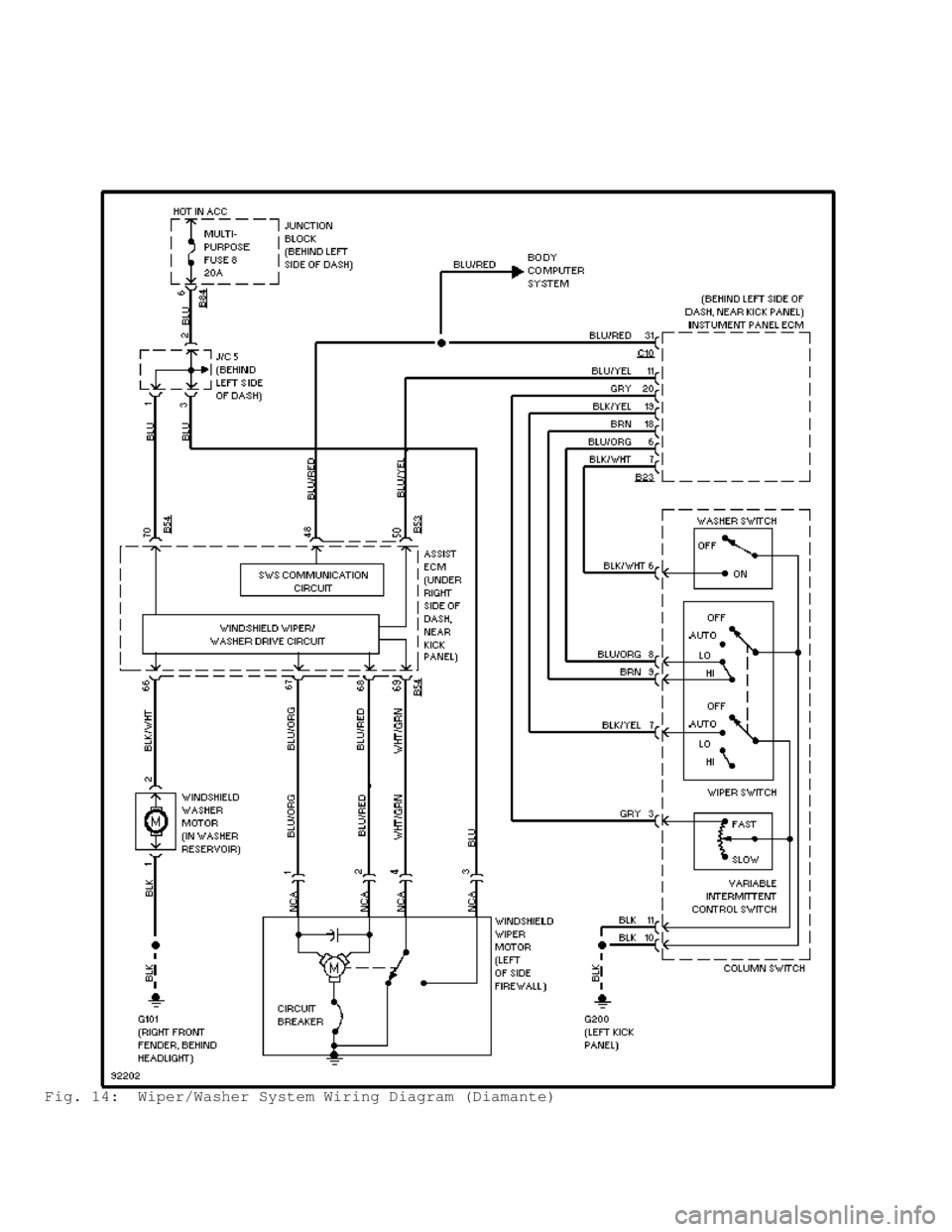

Fig. 14: Wiper/Washer System Wiring Diagram (Diamante)
Page 1491 of 1501

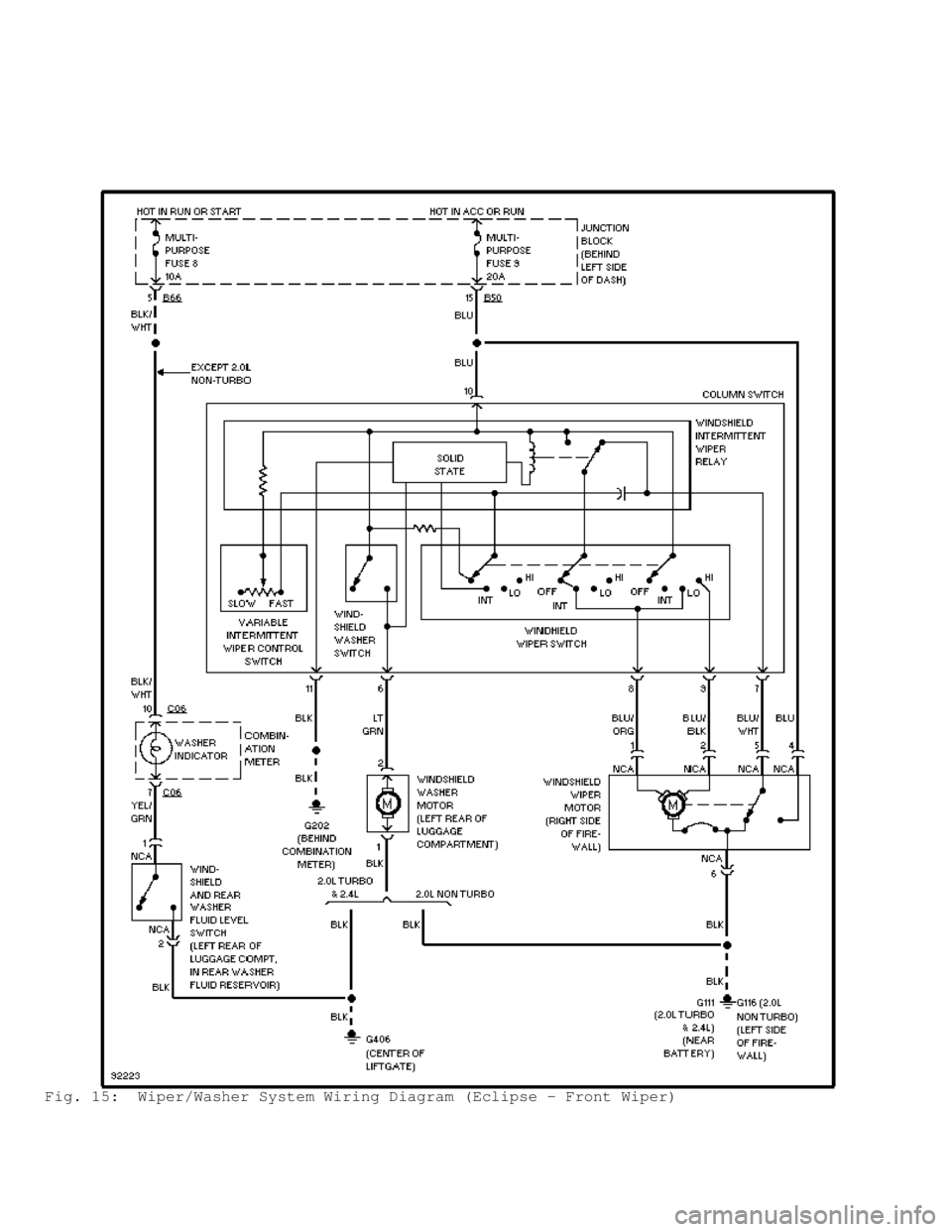

Fig. 15: Wiper/Washer System Wiring Diagram (Eclipse - Front Wiper)
Page 1492 of 1501

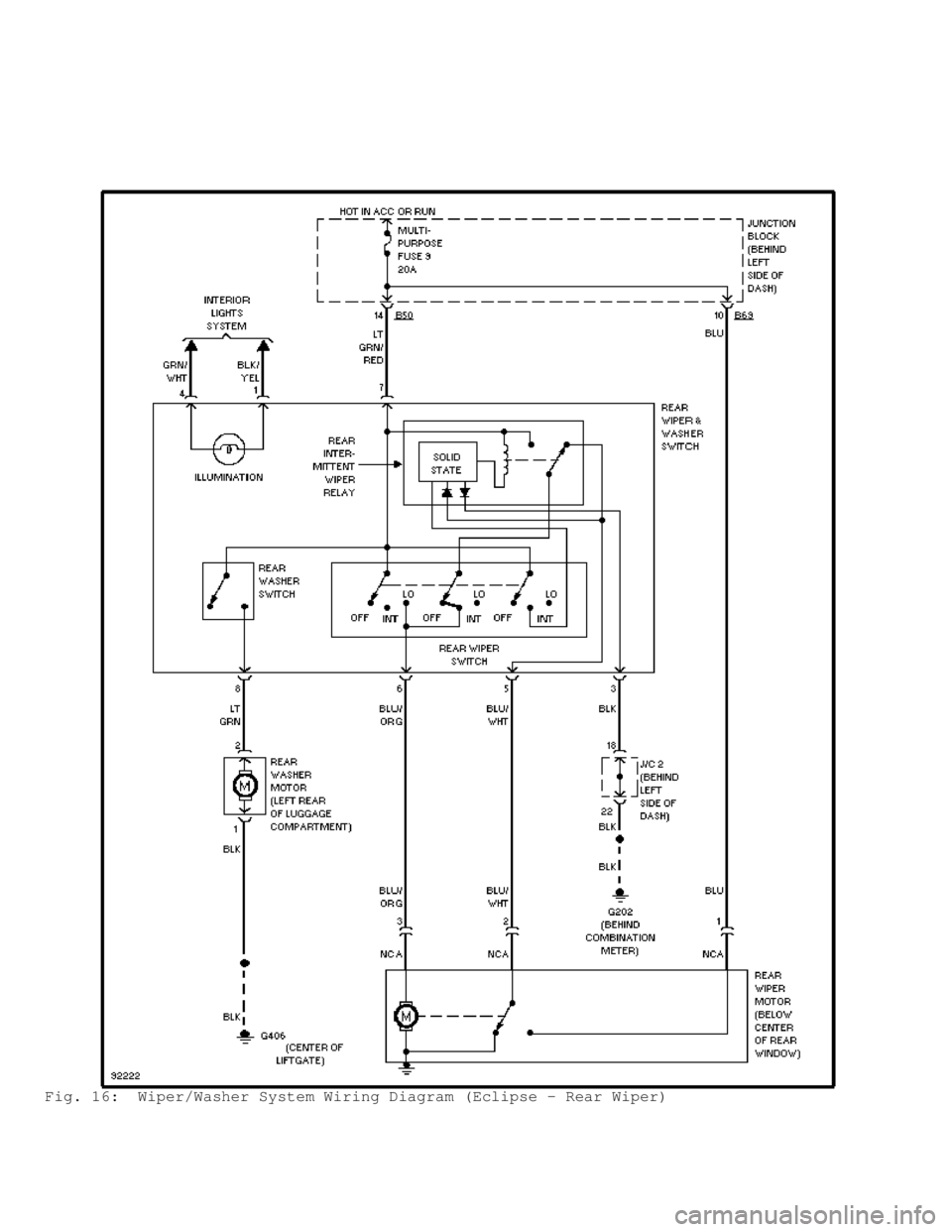

Fig. 16: Wiper/Washer System Wiring Diagram (Eclipse - Rear Wiper)
Page 1493 of 1501

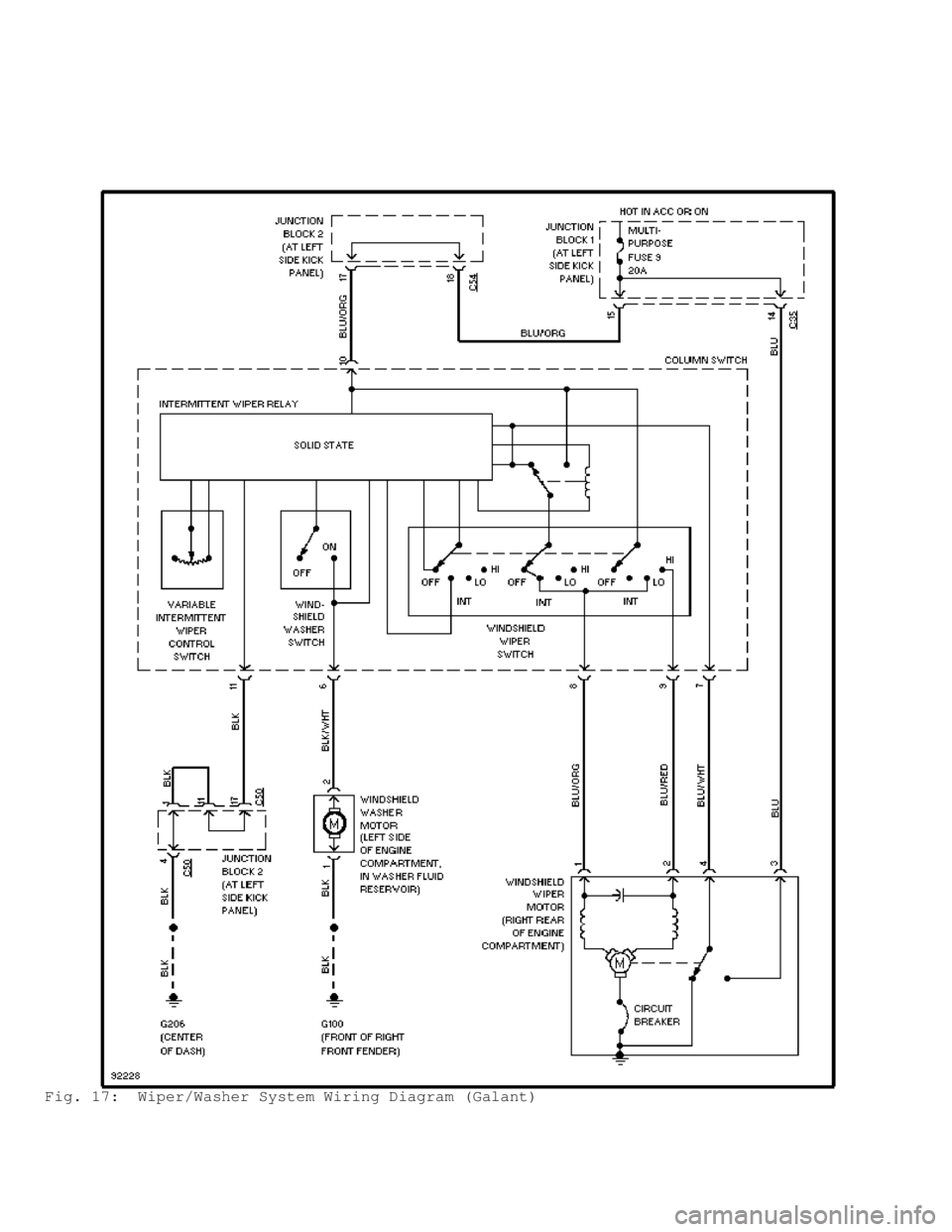

Fig. 17: Wiper/Washer System Wiring Diagram (Galant)
Page 1494 of 1501

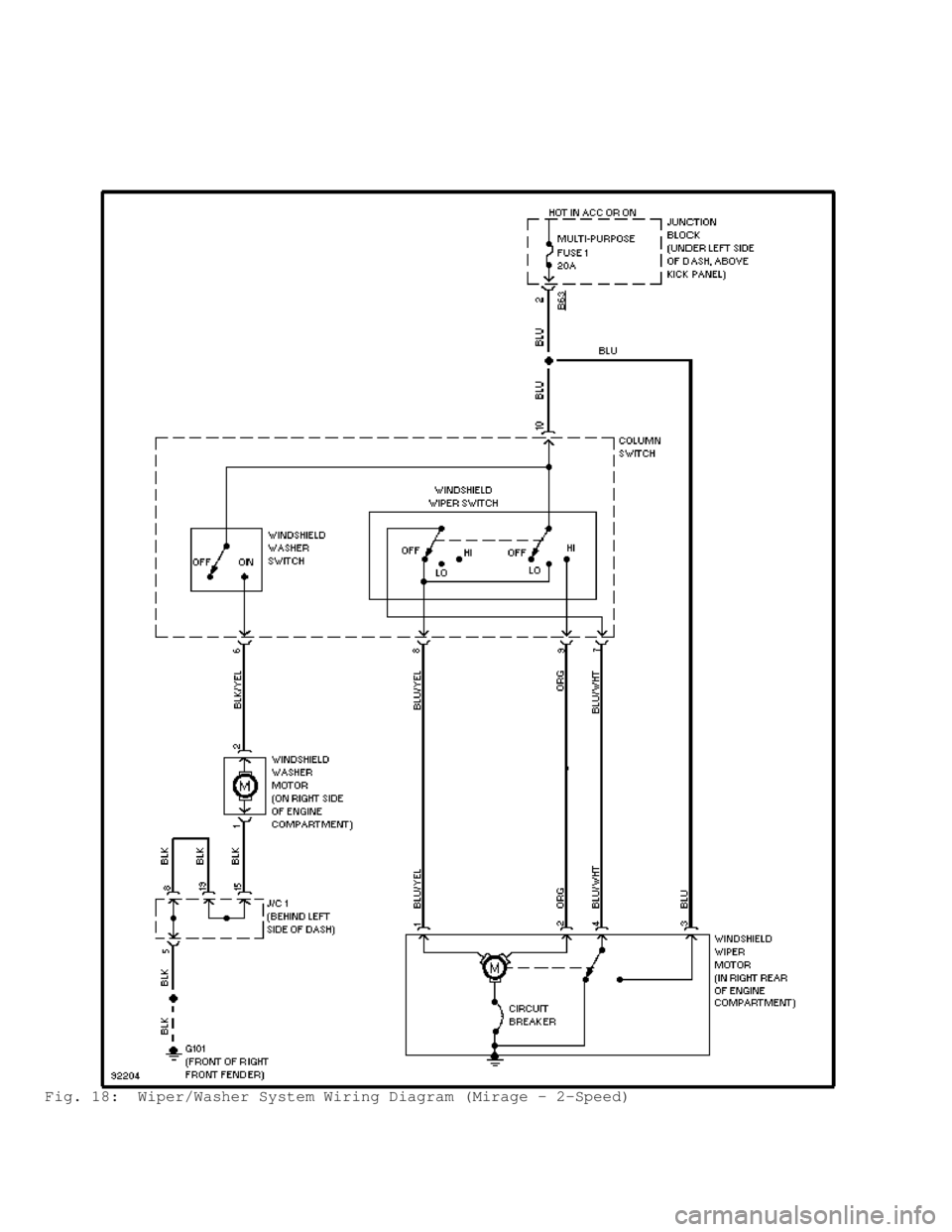

Fig. 18: Wiper/Washer System Wiring Diagram (Mirage - 2-Speed)
Page 1495 of 1501

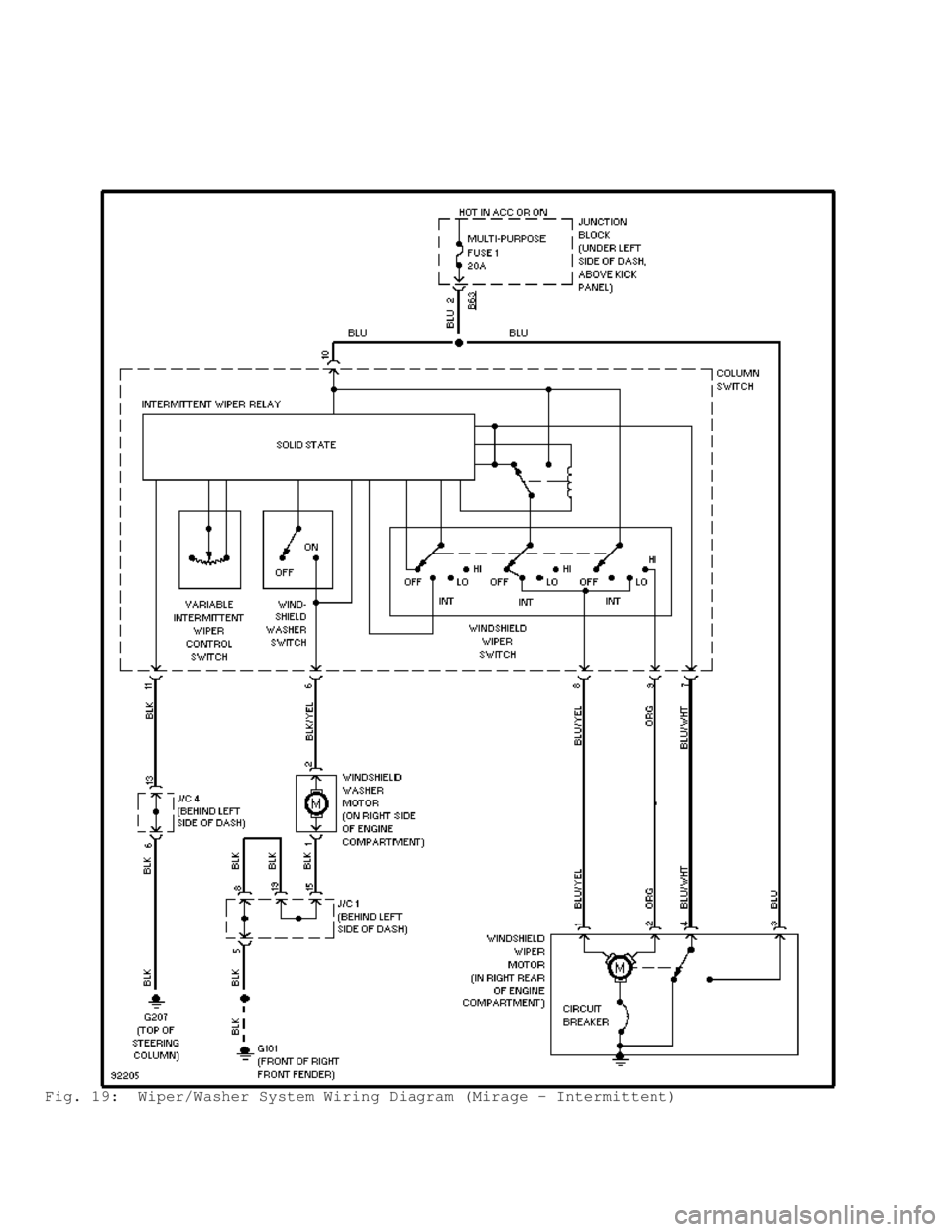

Fig. 19: Wiper/Washer System Wiring Diagram (Mirage - Intermittent)
Page 1496 of 1501
Fig. 20: Wiper/Washer System Wiring Diagram (Montero - Front & Rear
Wipers)
