1998 MITSUBISHI MONTERO Service Manual

MIRRORS - POWER
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Power Mirrors
Eclipse, Galant, Mirage, Montero, Montero Sport, 3000GT
DESCRIPTION & OPERATION
Electric remote control mirrors are controlled by a dual-
control switch mounted on driver's door, dash or center console
depending on model. Left/right switch directs current to desired
mirror. Horizontal/vertical switch directs current to electric motor
in mirror assembly, controlling up/down and left/right adjustment.
Heated mirrors are controlled by defogger relay.
TROUBLE SHOOTING
POWER MIRRORS INOPERATIVE
Check for faulty fuse, faulty power mirror switch or faulty
power mirror motor. See POWER MIRROR FUSE IDENTIFICATION table.
POWER MIRROR FUSE IDENTIFICATION TABLE









\









\









\









\









\









\






Application Fuse No.
Eclipse ............................................... 13
Galant ................................................. 9
Mirage ................................................. 7
Montero & 3000GT ....................................... 5
Montero Sport .......................................... 8









\









\









\









\









\









\






COMPONENT TESTS
POWER MIRROR MOTOR TEST
Connect 12-volt power source to mirror connector terminals.
See Figs. 1 -6. Replace mirror as necessary.
Fig. 1: Identifying Power Mirror Operational Test Charts (Eclipse,
Galant, Montero - W/Heater & Montero Sport - W/Heater)
Courtesy of Chrysler Corp.

Fig. 2: Identifying Power Mirror Operational Test Charts (Mirage,
Montero - W/out Heater & Montero Sport - W/out Heater)
Courtesy of Chrysler Corp.
Fig. 3: Identifying Power Mirror Operational Test Charts (3000GT)
Courtesy of Chrysler Corp.

Fig. 4: Identifying Power Mirror Connector (Eclipse, Galant, Montero
- W/Heater & Montero Sport - W/Heater)
Courtesy of Chrysler Corp.
Fig. 5: Identifying Power Mirror Connector (Mirage, Montero - W/out
Heater, Montero Sport - W/out Heater & 3000GT - W/out Heater)
Courtesy of Chrysler Corp.

Fig. 6: Identifying Power Mirror Connector (3000GT - W/Heater)
Courtesy of Chrysler Corp.
POWER MIRROR SWITCH TEST
Remove mirror switch. Using ohmmeter, check continuity of
switch. See appropriate POWER MIRROR SWITCH CONTINUITY CHART. See
Fig. 7 or 8. Replace switch if switch continuity is not as specified.
POWER MIRROR SWITCH CONTINUITY CHART (ECLIPSE)









\









\









\









\









\









\






Switch ( 1) Check Continuity
Position Between Pins No.
Left Side
UP ....................................... 3 & 4; 5 & 10
DOWN ..................................... 3 & 5; 4 & 10
LEFT .................................... 3 & 11; 4 & 10
RIGHT ................................... 3 & 4; 10 & 11
Right Side
UP ....................................... 3 & 4; 9 & 10
DOWN ..................................... 3 & 9; 4 & 10
LEFT ..................................... 3 & 8; 4 & 10
RIGHT .................................... 3 & 4; 8 & 10
( 1) - See Fig. 7.









\









\









\









\









\









\






POWER MIRROR SWITCH CONTINUITY CHART (ALL OTHERS)








\









\









\









\









\









\






Switch ( 1) Check Continuity
Position Between Pins No.
Left Side
UP ........................................ 4 & 8; 6 & 7
DOWN ...................................... 4 & 7; 6 & 8
LEFT ...................................... 3 & 6; 4 & 7
RIGHT ..................................... 3 & 4; 6 & 7

Right Side
UP ........................................ 2 & 4; 6 & 7
DOWN ...................................... 2 & 6; 4 & 7
LEFT ...................................... 4 & 7; 6 & 9
RIGHT ..................................... 4 & 9; 6 & 7
(1) - See Fig. 8.









\









\









\









\









\









\






Fig. 7: Identifying Power Mirror Switch Terminals (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Fig. 8: Identifying Power Mirror Switch Terminals (All Others)
Courtesy of Mitsubishi Motor Sales of America
REMOVAL & INSTALLATION
POWER MIRROR ASSEMBLY

Removal & Installation
Remove delta cover (trim cover), screws and electrical
connector. Remove mirror assembly. To install, reverse removal
procedure.
WIRING DIAGRAMS

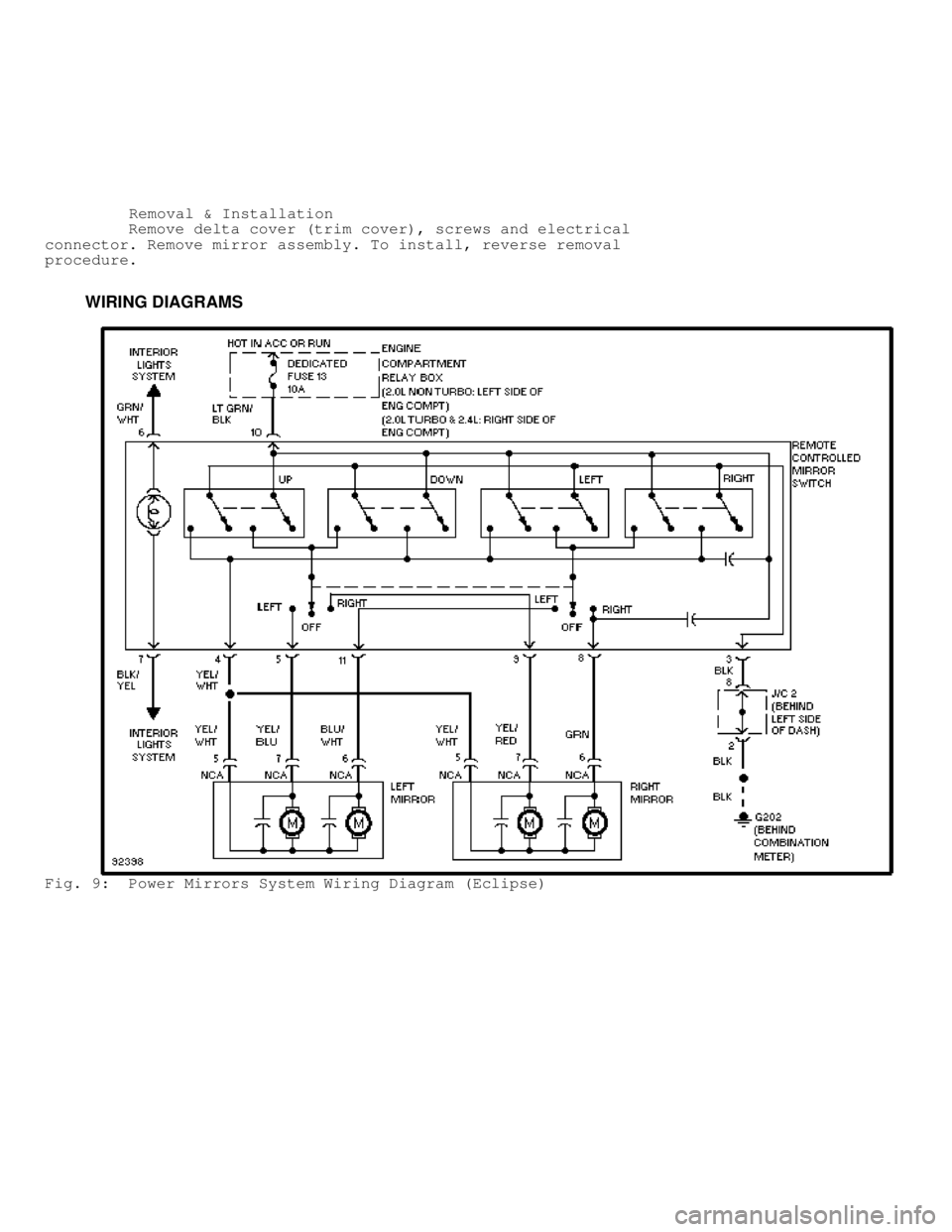

Fig. 9: Power Mirrors System Wiring Diagram (Eclipse)

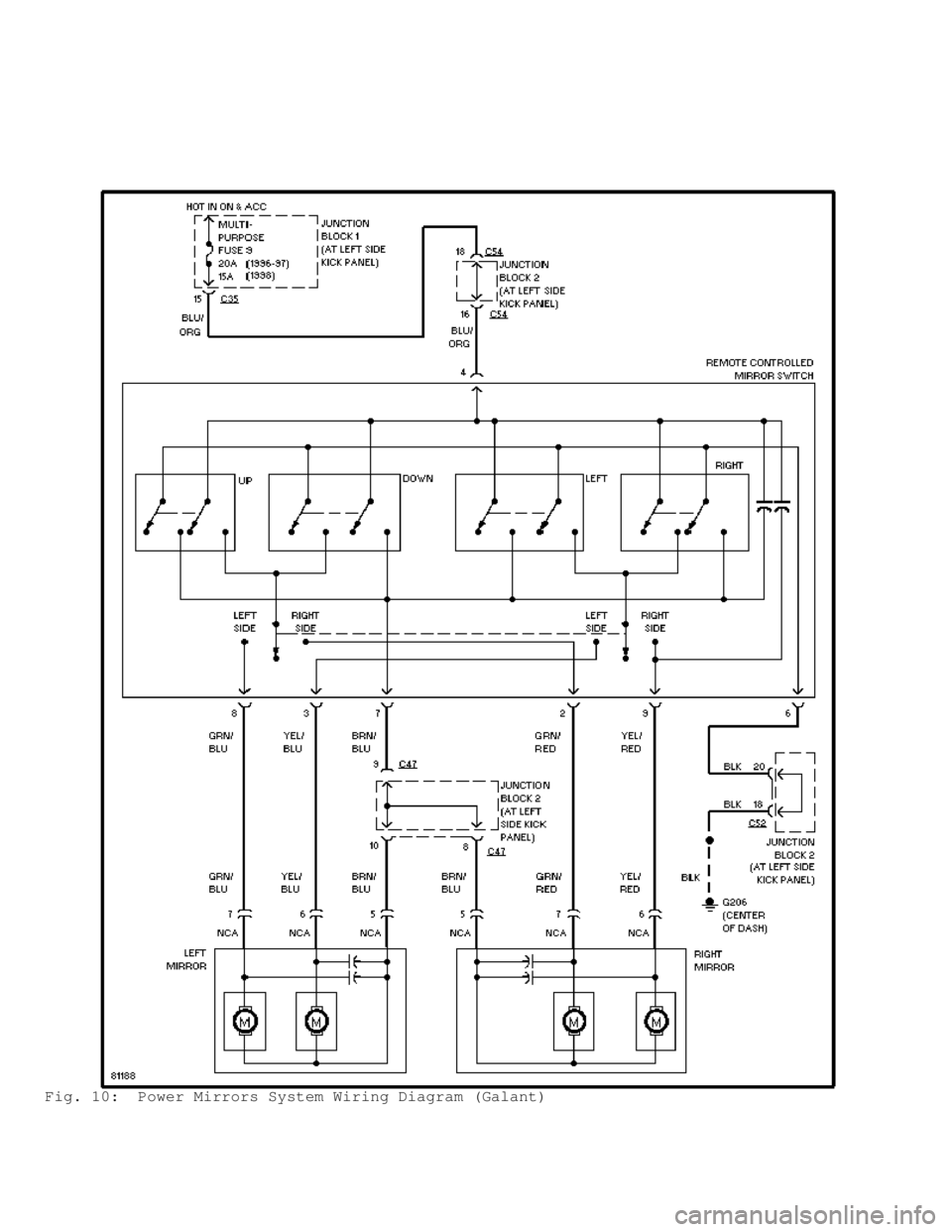

Fig. 10: Power Mirrors System Wiring Diagram (Galant)

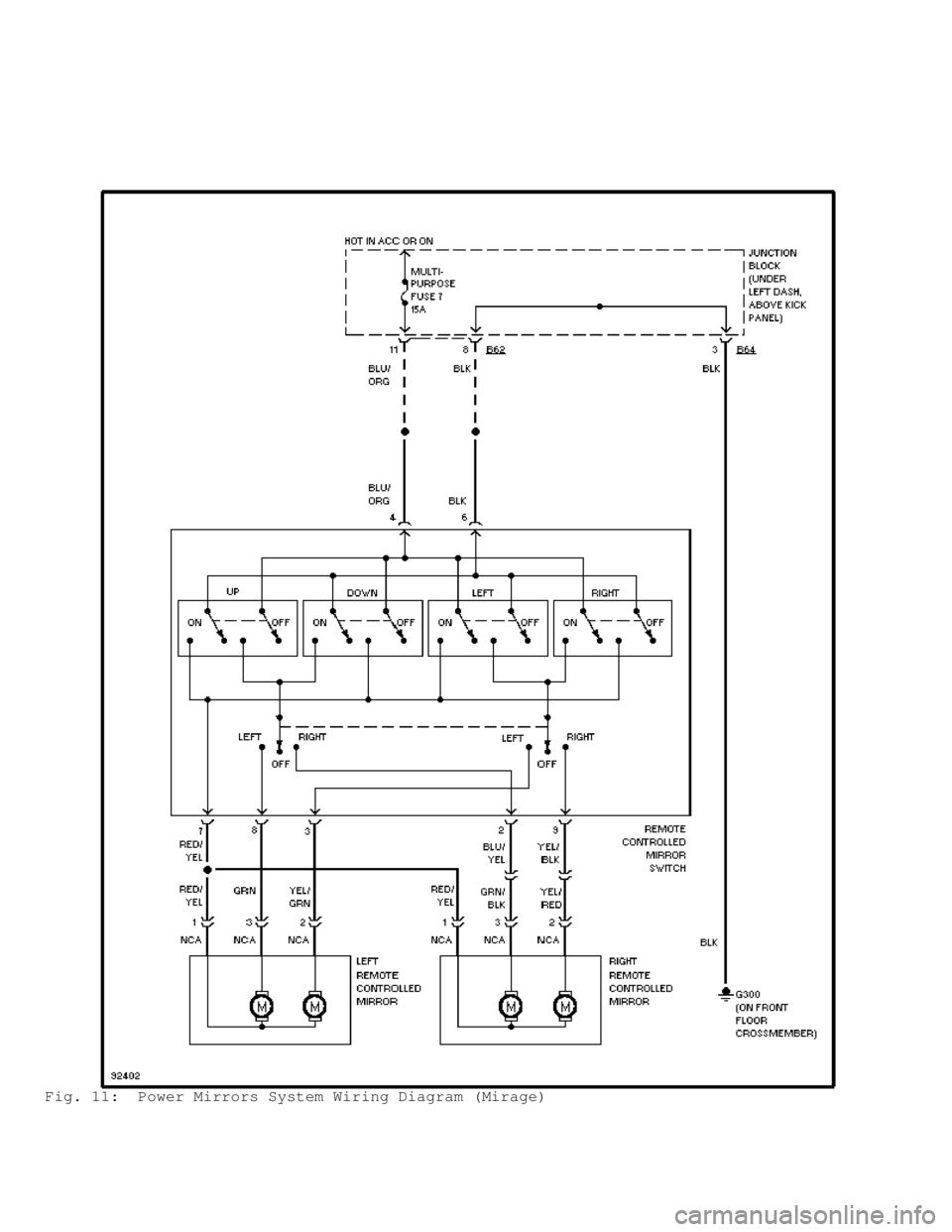

Fig. 11: Power Mirrors System Wiring Diagram (Mirage)
