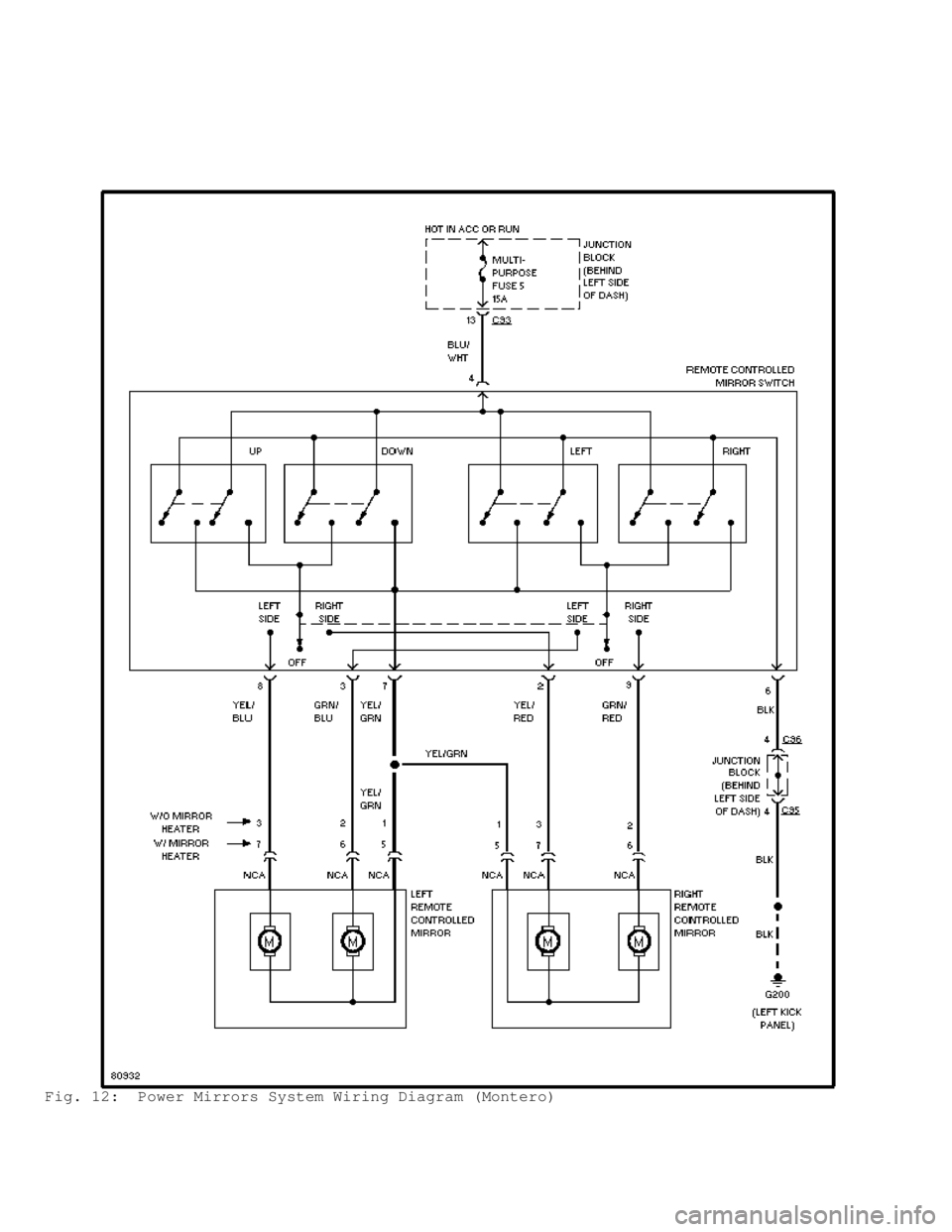

Fig. 12: Power Mirrors System Wiring Diagram (Montero)
Page 986 of 1501

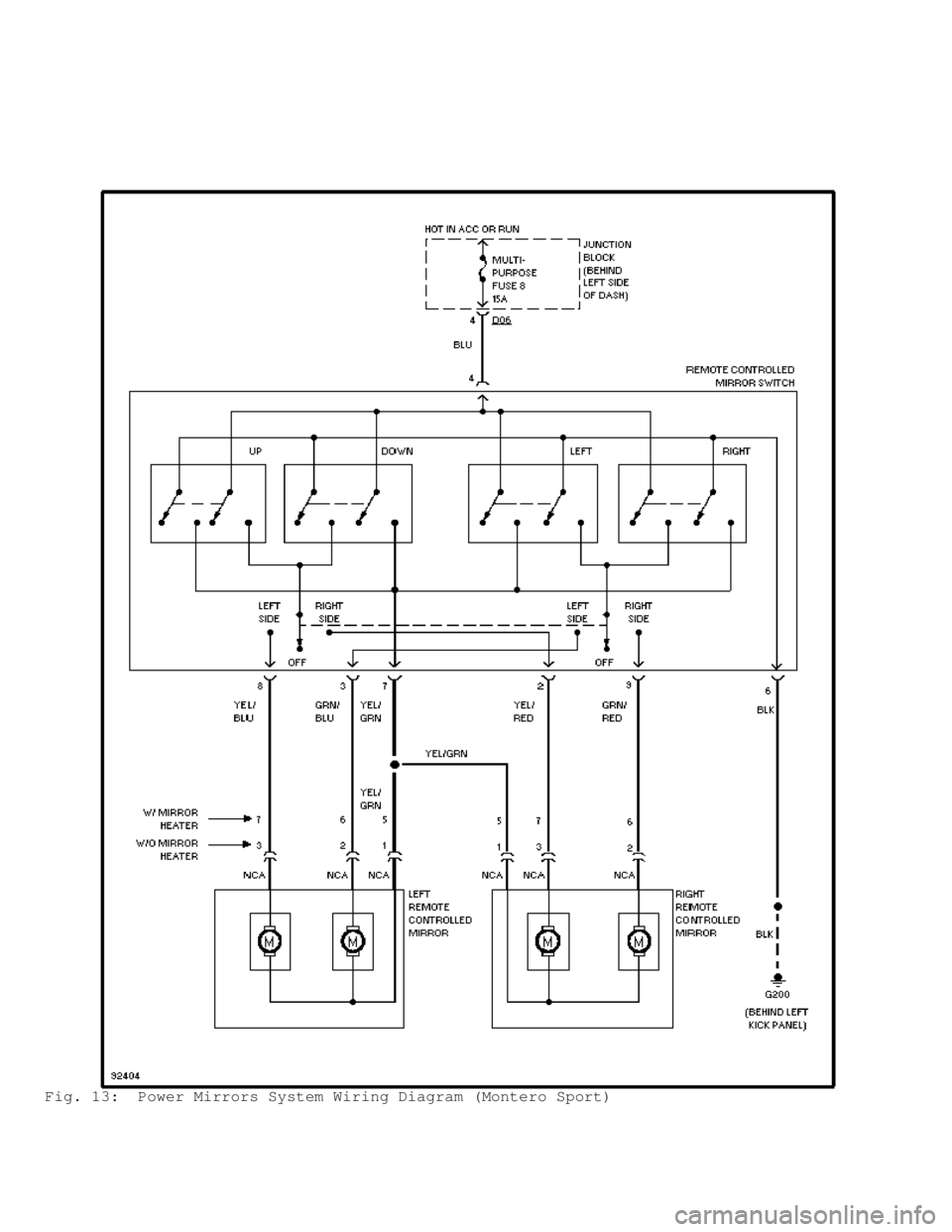

Fig. 13: Power Mirrors System Wiring Diagram (Montero Sport)
Page 987 of 1501

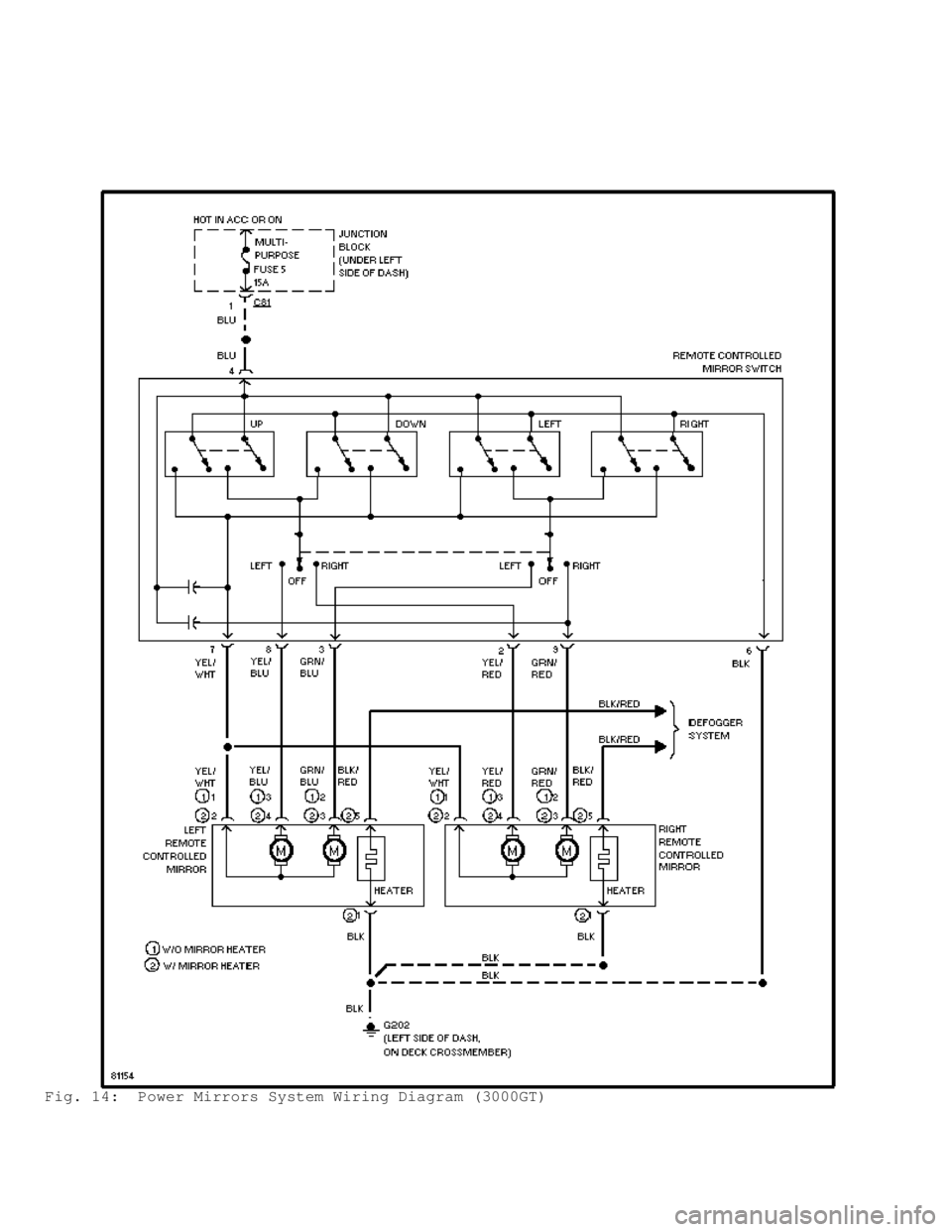

Fig. 14: Power Mirrors System Wiring Diagram (3000GT)
Page 988 of 1501
N - REMOVE/INSTALL/OVERHAUL
1998 Mitsubishi Montero
1998 ENGINE PERFORMANCE
Mitsubishi - Removal, Overhaul & Installation
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
INTRODUCTION
Removal, overhaul and installation procedures are covered in
this article. If component removal and installation is primarily an
unbolt and bolt-on procedure, only a torque specification may be
furnished.
COMPONENT LOCATION
The following illustrations are provided to assist in
locating components for which removal and installation procedures may
not be provided. See Figs. 1-12.
Fig. 1: Engine Performance-Related Components (Diamante)
Courtesy of Mitsubishi Motor Sales of America
Page 989 of 1501
Fig. 2: Engine Performance-Related Components (Eclipse 2.0L Non-
Turbo)
Courtesy of Mitsubishi Motor Sales of America
Fig. 3: Engine Performance-Related Components (Eclipse 2.0L Turbo)
Courtesy of Mitsubishi Motor Sales of America
Page 990 of 1501
Fig. 4: Engine Performance-Related Components (Eclipse 2.4L)
Courtesy of Mitsubishi Motor Sales of America
Page 991 of 1501
Fig. 5: Engine Performance-Related Components (Galant)
Courtesy of Mitsubishi Motor Sales of America
Page 992 of 1501
Fig. 6: Engine Performance-Related Components (Mirage 1.5L)
Courtesy of Mitsubishi Motor Sales of America
Fig. 7: Engine Performance-Related Components (Mirage 1.8L)
Courtesy of Mitsubishi Motor Sales of America
