MITSUBISHI MONTERO 1998 Service Manual Fig. 6: Identifying Power Window Relay Terminals (Montero & Montero
Sport)
Courtesy of Mitsubishi Motor Sales of America
POWER WINDOW MOTOR TEST
1) Remove appropriate door trim pane

Page 1034 of 1501

MITSUBISHI MONTERO 1998 Service Manual Right Front OFF ............................... 7, 8 & 9
Right Front UP ............................ 6 & 7; 8 & 9
Right Front DOWN .......................... 6 & 8; 7 & 9
Lock Position
L

Right Front OFF ............................... 7, 8 & 9
Right Front UP ............................ 6 & 7; 8 & 9
Right Front DOWN .......................... 6 & 8; 7 & 9
Lock Position
Left Front OFF ................................ 1, 5 & 9
Left Front UP ............................. 1 & 6; 5 & 9
Left Front DOWN ........................... 5 & 6; 1 & 9
Right Front OFF .................................. 7 & 8
Right Front UP ................................... 6 & 7
Right Front DOWN ................................. 6 & 8
(1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\

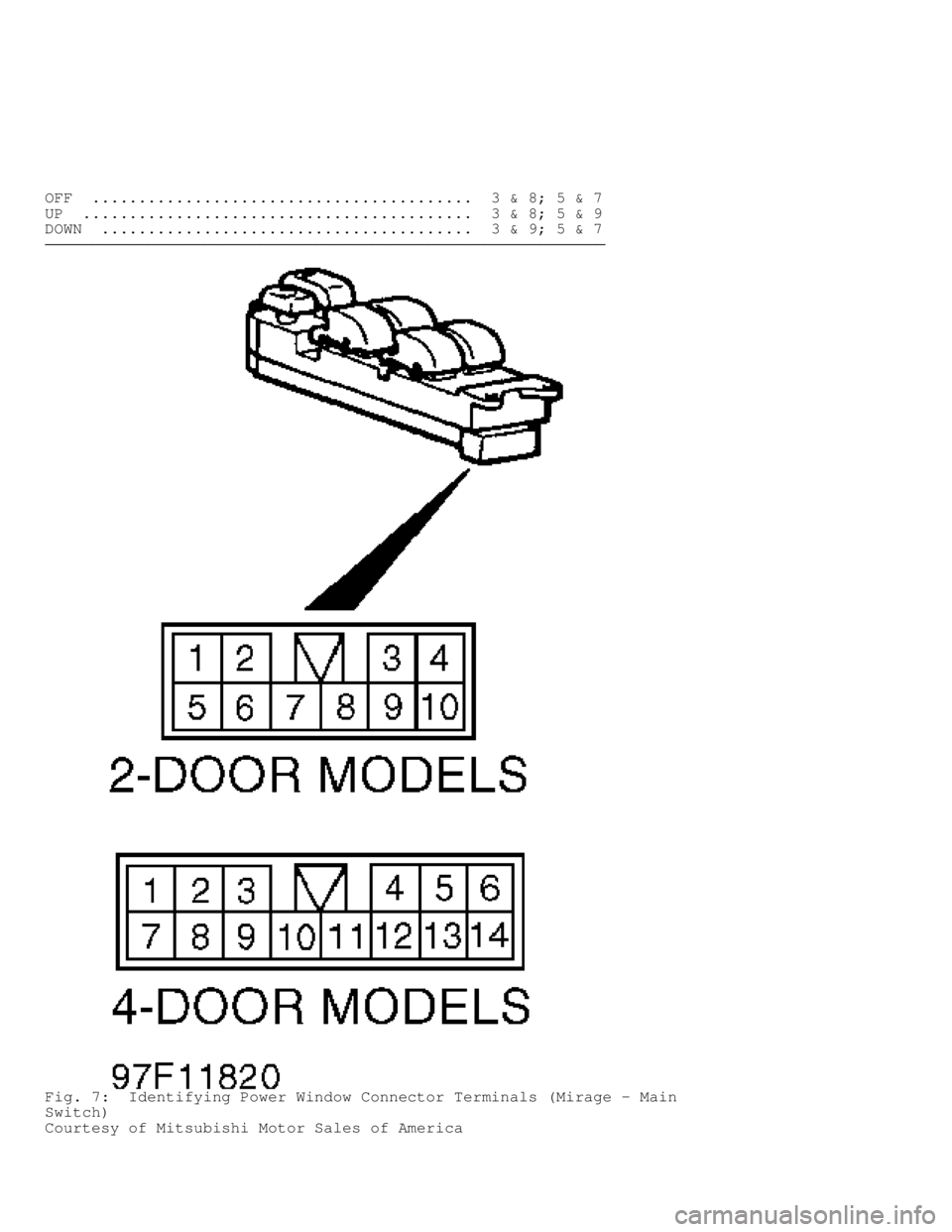

MASTER WINDOW SWITCH CONTINUITY TABLE (MIRAGE - 4-DOOR)\
\
\
\
\
\

Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ............................... 8, 9 & 12
Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF ................................ 1, 2 & 12
Left Rear UP ............................ 1 & 13; 2 & 12
Left Rear DOWN .......................... 2 & 13; 1 & 12
Right Front OFF ............................. 3, 11 & 12
Right Front UP ......................... 3 & 13; 11 & 12
Right Front DOWN ....................... 3 & 12; 11 & 13
Right Rear OFF .............................. 6, 12 & 14
Right Rear UP .......................... 6 & 12; 13 & 14
Right Rear DOWN ........................ 6 & 13; 12 & 14
Lock Position
Left Front OFF ............................... 8, 9 & 12
Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF .................................... 1 & 2
Left Rear UP .................................... 1 & 13
Left Rear DOWN .................................. 2 & 13
Right Front OFF ................................. 3 & 11
Right Front UP .................................. 3 & 13
Right Front DOWN ............................... 11 & 13
Right Rear OFF .................................. 6 & 14
Right Rear UP .................................. 13 & 14
Right Rear DOWN ................................. 6 & 13
( 1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\

SUB-SWITCH CONTINUITY TABLE (MIRAGE - ALL MODELS)\
\
\
\
\
\

Switch Position Check Continuity Between Pins No.
OFF ......................................... 4 & 7; 6 & 8
UP .......................................... 5 & 7; 6 & 8
DOWN ........................................ 4 & 7; 5 & 6
\
\
\
\
\
\

MASTER WINDOW SWITCH CONTINUITY TABLE (MONTERO & MONTERO SPORT)\
\
\
\
\
\

Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ............................... 8, 9 & 12

Page 1035 of 1501

MITSUBISHI MONTERO 1998 Service Manual Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF ................................ 1, 2 & 12
Left Rear UP .

Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF ................................ 1, 2 & 12
Left Rear UP ............................ 1 & 13; 2 & 12
Left Rear DOWN .......................... 1 & 12; 2 & 13
Right Front OFF ............................. 3, 11 & 12
Right Front UP ......................... 3 & 13; 11 & 12
Right Front DOWN ....................... 3 & 12; 11 & 13
Right Rear OFF .............................. 6, 12 & 14
Right Rear UP .......................... 6 & 12; 13 & 14
Right Rear DOWN ........................ 6 & 13; 12 & 14
Lock Position
Left Front OFF ............................... 8, 9 & 12
Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF .................................... 1 & 2
Left Rear UP .................................... 1 & 13
Left Rear DOWN .................................. 2 & 13
Right Front OFF ................................. 3 & 11
Right Front UP .................................. 3 & 13
Right Front DOWN ............................... 11 & 13
Right Rear OFF .................................. 6 & 14
Right Rear UP .................................. 13 & 14
Right Rear DOWN ................................. 6 & 13
(1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\

SUB-SWITCH CONTINUITY TABLE (MONTERO & MONTERO SPORT)\
\
\
\
\
\

Switch Position Check Continuity Between Pins No.
OFF ......................................... 4 & 7; 6 & 8
UP .......................................... 5 & 7; 6 & 8
DOWN ........................................ 4 & 7; 5 & 6
\
\
\
\
\
\

MASTER WINDOW SWITCH CONTINUITY TABLE (3000GT)\
\
\
\
\
\

Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ................................ 2, 6 & 9
Left Front UP ............................. 1 & 2; 6 & 9
Left Front DOWN ........................... 1 & 9; 2 & 6
Right Front OFF ............................... 3, 4 & 6
Right Front UP ............................ 1 & 4; 3 & 6
Right Front DOWN .......................... 1 & 3; 4 & 6
Lock Position
Left Front OFF ................................ 2, 6 & 9
Left Front UP ............................. 1 & 2; 6 & 9
Left Front DOWN ........................... 1 & 9; 2 & 6
Right Front OFF .................................. 3 & 4
Right Front UP ................................... 1 & 4
Right Front DOWN ................................. 1 & 3
( 1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\

PASSENGER-SIDE WINDOW SWITCH CONTINUITY TABLE (3000GT)\
\
\
\
\
\

Switch Position Check Continuity Between Pins No.

Page 1036 of 1501

MITSUBISHI MONTERO 1998 Service Manual OFF ......................................... 3 & 8; 5 & 7
UP .......................................... 3 & 8; 5 & 9
DOWN ........................................ 3 & 9; 5 & 7
��

Page 1037 of 1501

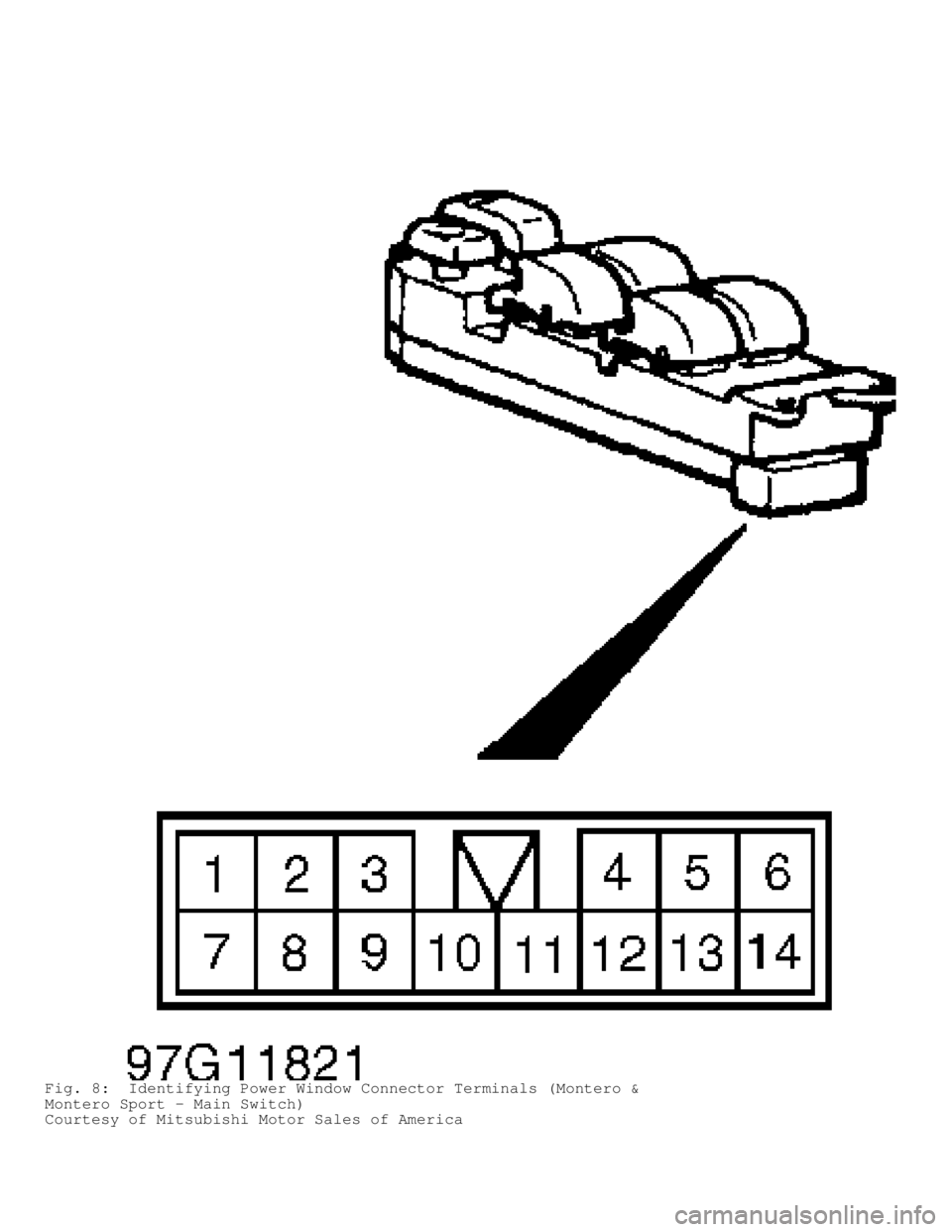

MITSUBISHI MONTERO 1998 Service Manual Fig. 8: Identifying Power Window Connector Terminals (Montero &
Montero Sport - Main Switch)
Courtesy of Mitsubishi Motor Sales of America

Page 1038 of 1501

MITSUBISHI MONTERO 1998 Service Manual Fig. 9: Identifying Power Window Connector Terminals (Mirage,
Montero & Montero Sport - Sub-Switch)
Courtesy of Mitsubishi Motor Sales of America
Fig. 10: Identifying Power Window Connector Terminal

Page 1039 of 1501

MITSUBISHI MONTERO 1998 Service Manual Fig. 11: Identifying Power Window Connector Terminals (3000GT -
Sub-Switch)
Courtesy of Mitsubishi Motor Sales of America
REMOVAL & INSTALLATION
POWER WINDOW MOTOR
Remova

Page 1040 of 1501

MITSUBISHI MONTERO 1998 Service Manual Fig. 13: Power Window System Wiring Diagram (Mirage - 2-Door)
