1998 MITSUBISHI MONTERO Service Manual

Fig. 19: Pin Voltage Chart (Montero Sport - 2 Of 4)

Fig. 20: Pin Voltage Chart (Montero Sport - 3 Of 4)

Fig. 21: Pin Voltage Chart (Montero Sport - 4 Of 4)

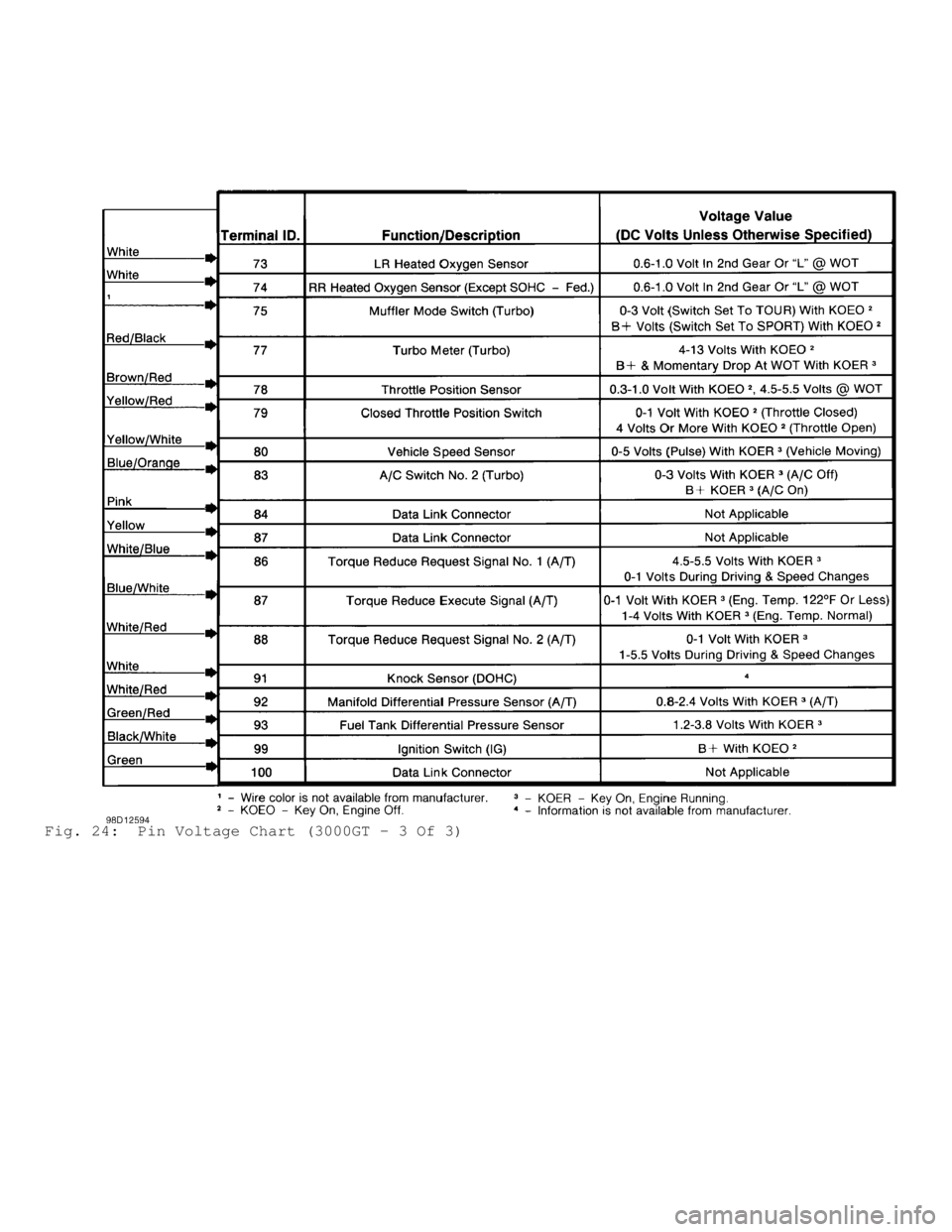

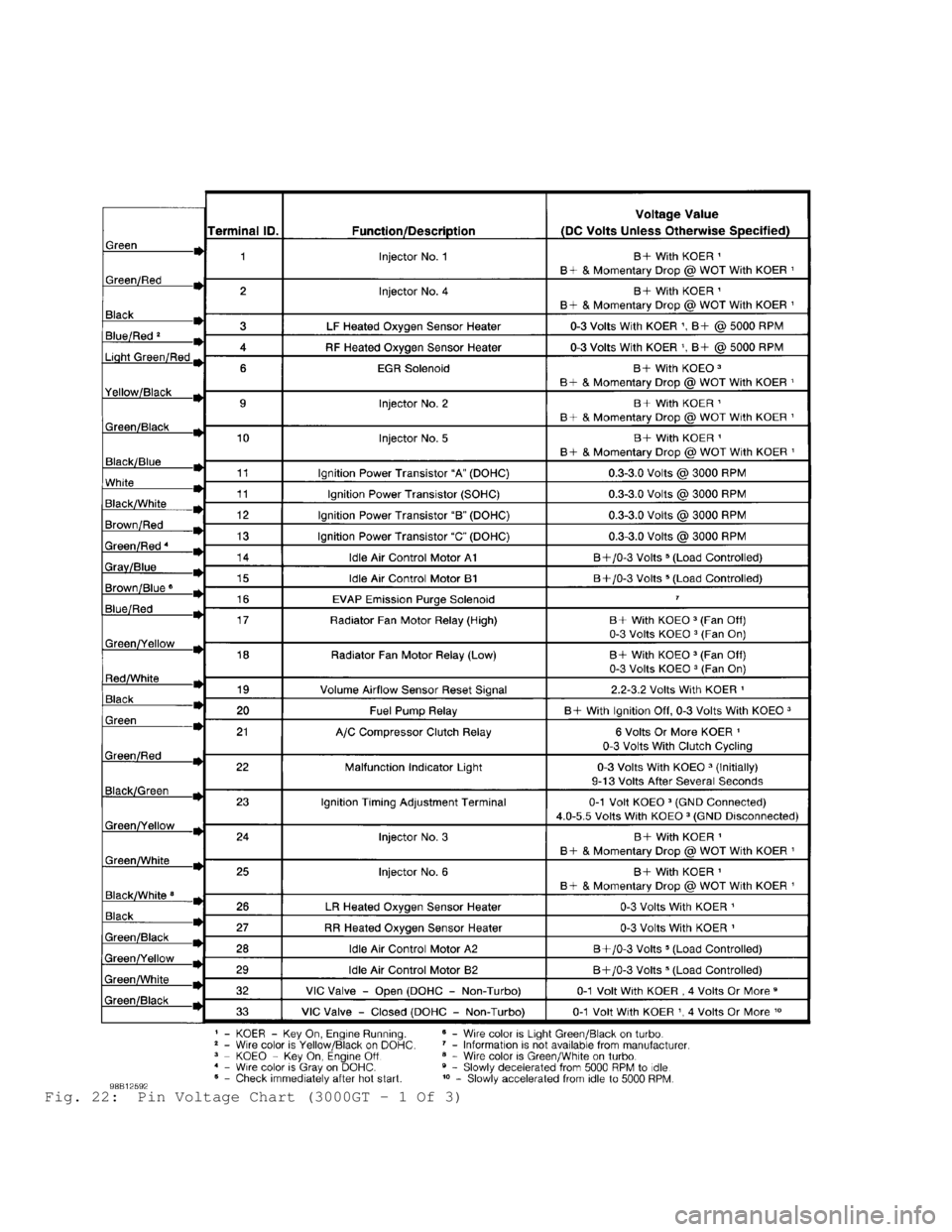

Fig. 22: Pin Voltage Chart (3000GT - 1 Of 3)

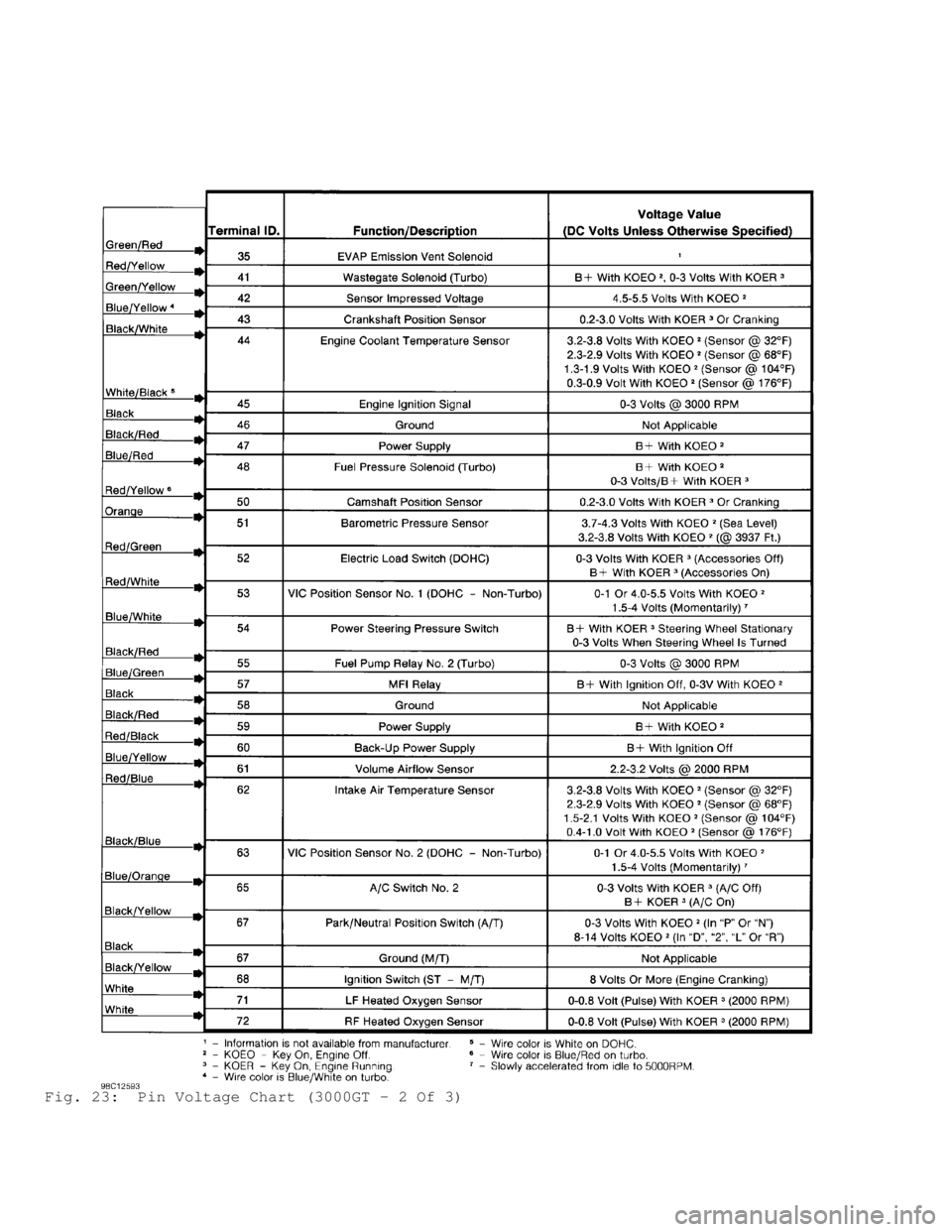

Fig. 23: Pin Voltage Chart (3000GT - 2 Of 3)

Fig. 24: Pin Voltage Chart (3000GT - 3 Of 3)

K - SENSOR RANGE CHARTS
1998 Mitsubishi Montero
1998 ENGINE PERFORMANCE
Mitsubishi - Sensor Operating Range Charts
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
INTRODUCTION
Sensor operating range information can help determine if a
sensor is out of calibration. An out-of-calibration sensor may not set
a diagnostic trouble code, but it may cause driveability problems. For
sensors not listed in this article, see G - TESTS W/CODES article.
NOTE: Unless stated otherwise in test procedure, perform all
voltage tests using a Digital Volt-Ohmmeter (DVOM) with a
minimum 10-megohm input impedance. For connector terminal
identification, see TERMINAL IDENTIFICATION in
G - TESTS W/CODES article.
ENGINE COOLANT TEMPERATURE (ECT) SENSOR RESISTANCE TABLE ( 1)









\









\









\









\









\









\






Application & Temperature F (C) Ohms
Diamante, & Eclipse Turbo & 2.4L
32 (0) ....................................... 5100-6500
68 (20) ...................................... 2100-2700
104 (40) ...................................... 900-1300
176 (80) ....................................... 260-360
Eclipse 2.0L Non-Turbo
77 (25) .................................... 9000-11,000
212 (100) ...................................... 600-800
Galant, Mirage & Montero Sport
68 (20) ...................................... 2100-2700
176 (80) ....................................... 260-360
Montero & 3000GT
32 (0) ............................................ 5800
68 (20) ........................................... 2400
104 (40) .......................................... 1100
176 (80) ........................................... 300
( 1) - Check resistance across ECT sensor terminals.









\









\









\









\









\









\






INTAKE AIR TEMPERATURE (IAT) SENSOR RESISTANCE TABLE








\









\









\









\









\









\






Application & Temperature F (C) Ohms
Diamante, & Eclipse Turbo & 2.4L ( 1)
32 (0) ....................................... 5300-6700
68 (20) ...................................... 2300-3000
104 (40) ..................................... 1000-1500
176 (80) ....................................... 300-420
Eclipse 2.0L Non-Turbo ( 2)
77 (25) .................................... 9000-11,000
212 (100) ...................................... 600-800
Galant, Mirage 1.8L & Montero Sport ( 1)
68 (20) ...................................... 2300-3000
176 (80) ....................................... 300-420
Mirage 1.5L ( 2)
68 (20) ...................................... 2300-3000

176 (80) ....................................... 300-420
Montero & 3000GT (1)
32 (0) ............................................ 6000
68 (20) ........................................... 2700
176 (80) ........................................... 400
( 1) - IAT sensor is incorporated in airflow sensor assembly.
Check resistance between IAT sensor terminals No. 5
and 6. See Figs. 1-4.
( 2) - Check resistance across IAT sensor terminals No. 1
and 2. See Figs. 1-4.









\









\









\









\









\









\






Fig. 1: IAT Sensor Terminals (Eclipse 2.0L Non-Turbo)
Courtesy of Mitsubishi Motor Sales of America
