1998 MITSUBISHI MONTERO Service Manual

Page 1305 of 1501

MITSUBISHI MONTERO 1998  Service Manual Fig. 10:  Manual Transmission & Clutch

Page 1306 of 1501

MITSUBISHI MONTERO 1998  Service Manual Fig. 11:  Squeak, Rattle, & Noise Conditions
Fig. 12:  Water Leak & Wind Noise

Page 1307 of 1501

MITSUBISHI MONTERO 1998  Service Manual

Page 1308 of 1501

MITSUBISHI MONTERO 1998  Service Manual SYSTEM WIRING DIAGRAMS
1998 Mitsubishi Montero
         1998 System Wiring Diagrams
          Mitsubishi - Montero
         AIR CONDITIONING
A/C Circuit

Page 1309 of 1501

MITSUBISHI MONTERO 1998  Service Manual Heater Circuit
         ANTI-LOCK BRAKES

Page 1310 of 1501

MITSUBISHI MONTERO 1998  Service Manual Anti-Lock Brakes Circuit

Page 1311 of 1501

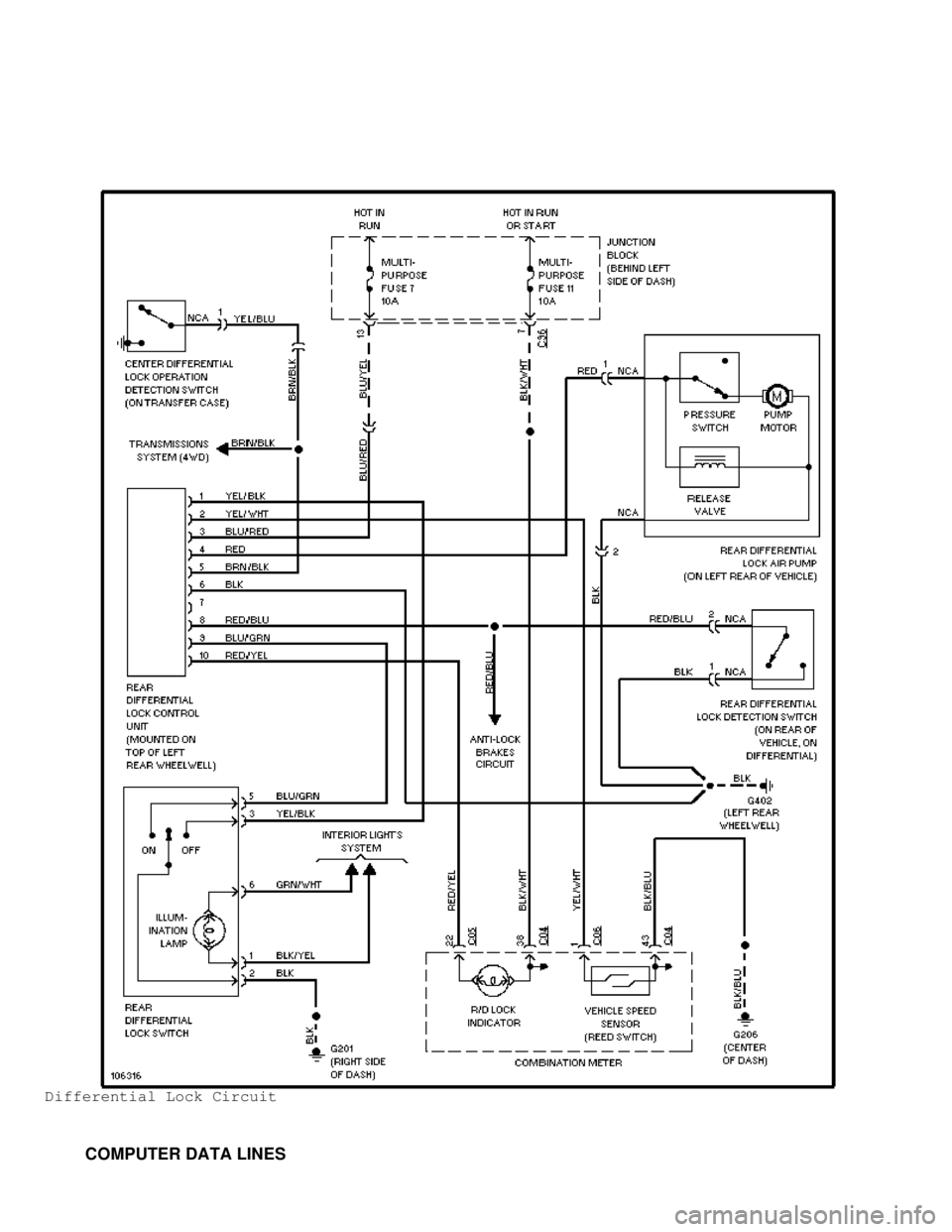

MITSUBISHI MONTERO 1998  Service Manual Differential Lock Circuit
         COMPUTER DATA LINES

Page 1312 of 1501

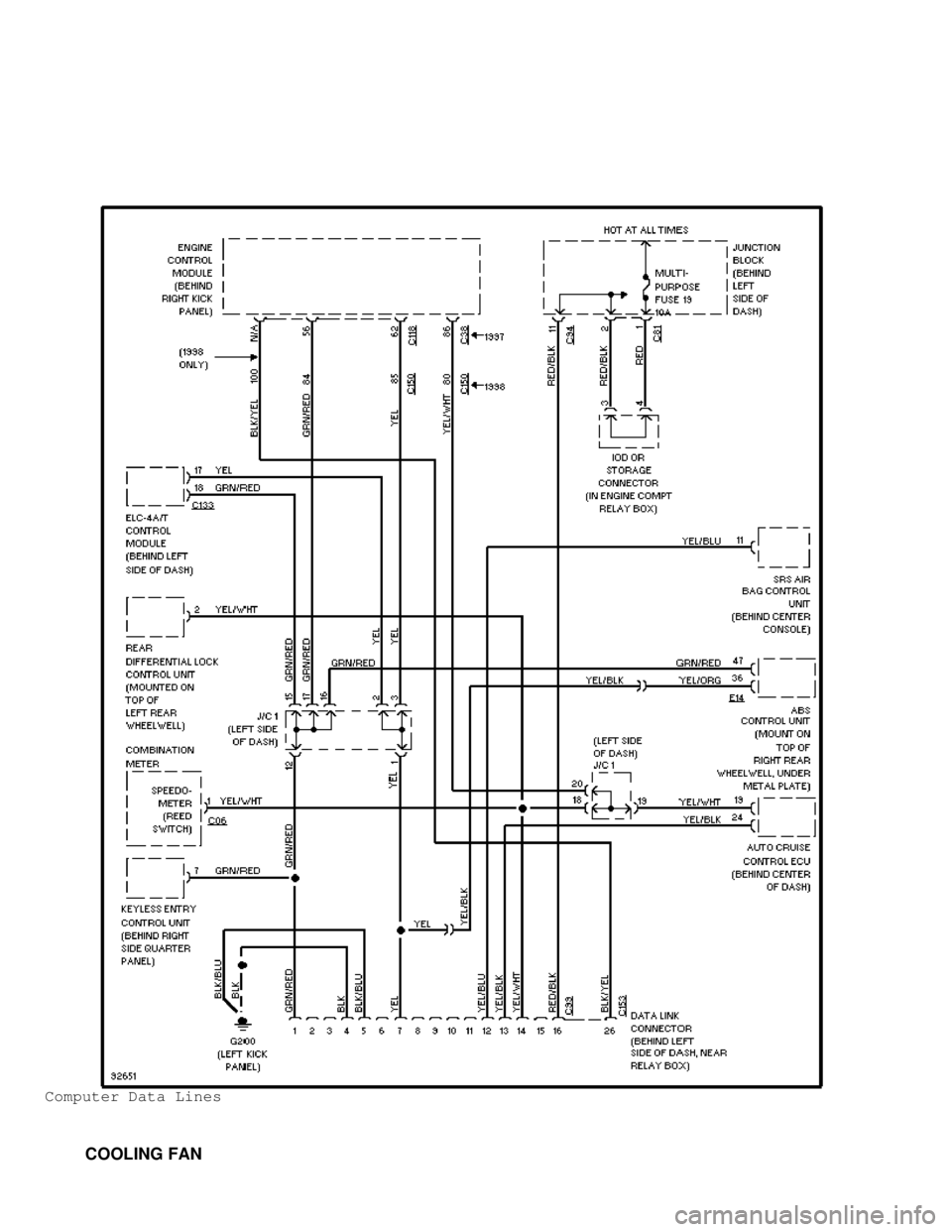

MITSUBISHI MONTERO 1998  Service Manual Computer Data Lines
         COOLING FAN
