1998 MITSUBISHI MONTERO Service Manual

Fig. 16: Testing Ignition Switch (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Key Reminder Switch Test
Disconnect key reminder switch connector. Check continuity
between specified terminals. See Fig. 17. If continuity is not as

specified, replace key reminder switch.
Fig. 17: Testing Key Reminder Switch (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 15 and 18. If
continuity is not as specified, replace steering column combination
switch.

Fig. 18: Testing Lighting & Turn Signal Switches (Mirage)
Courtesy of Mitsubishi Motor Sales of America

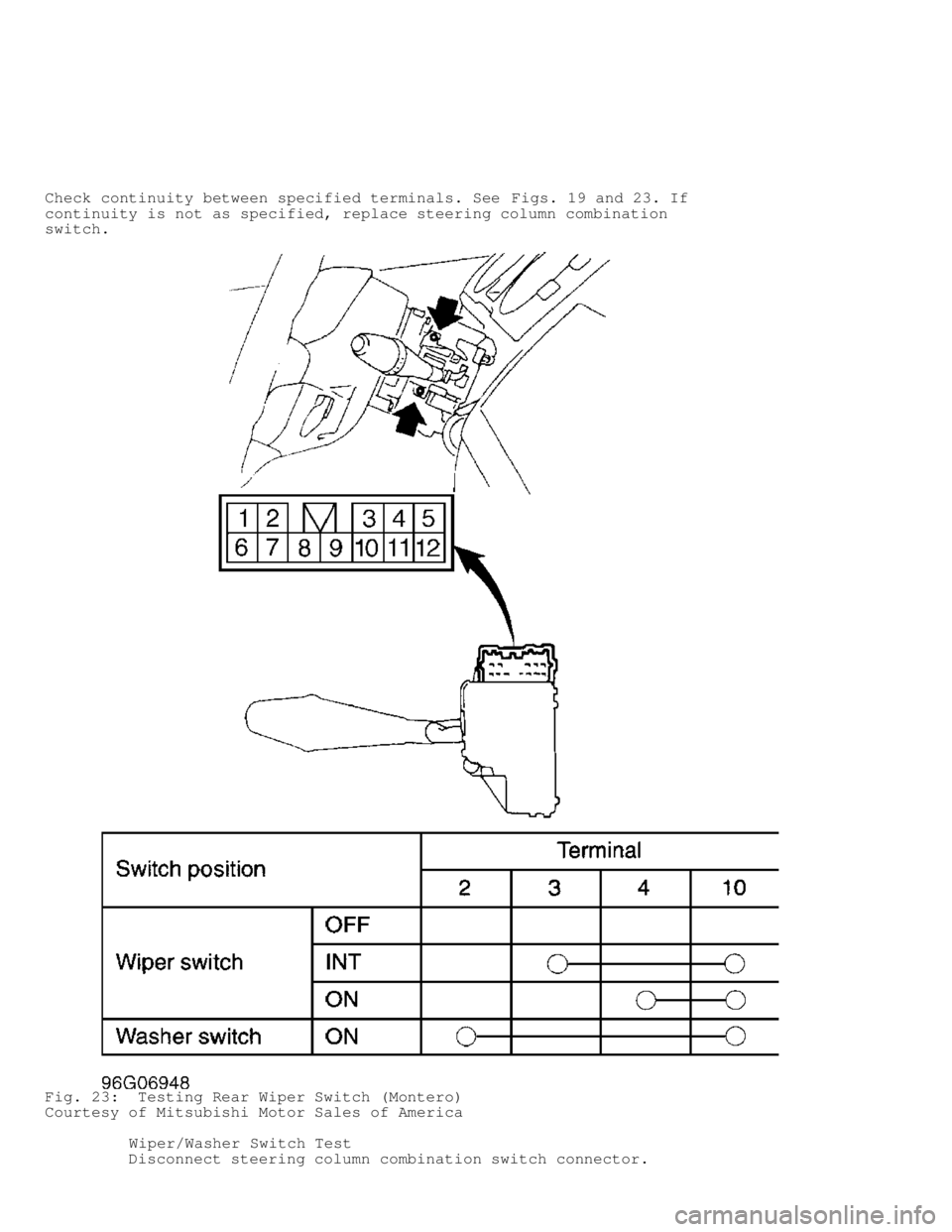

Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.

Check continuity between specified terminals. See Fig. 14. If
continuity is not as specified, replace wiper/washer switch.
MONTERO
Ignition Switch & Key Reminder Switch Tests
Disconnect ignition switch and key reminder switch
connectors. Check continuity between specified terminals. See Figs. 19
and 20. If continuity is not as specified, replace ignition switch or
key reminder switch.

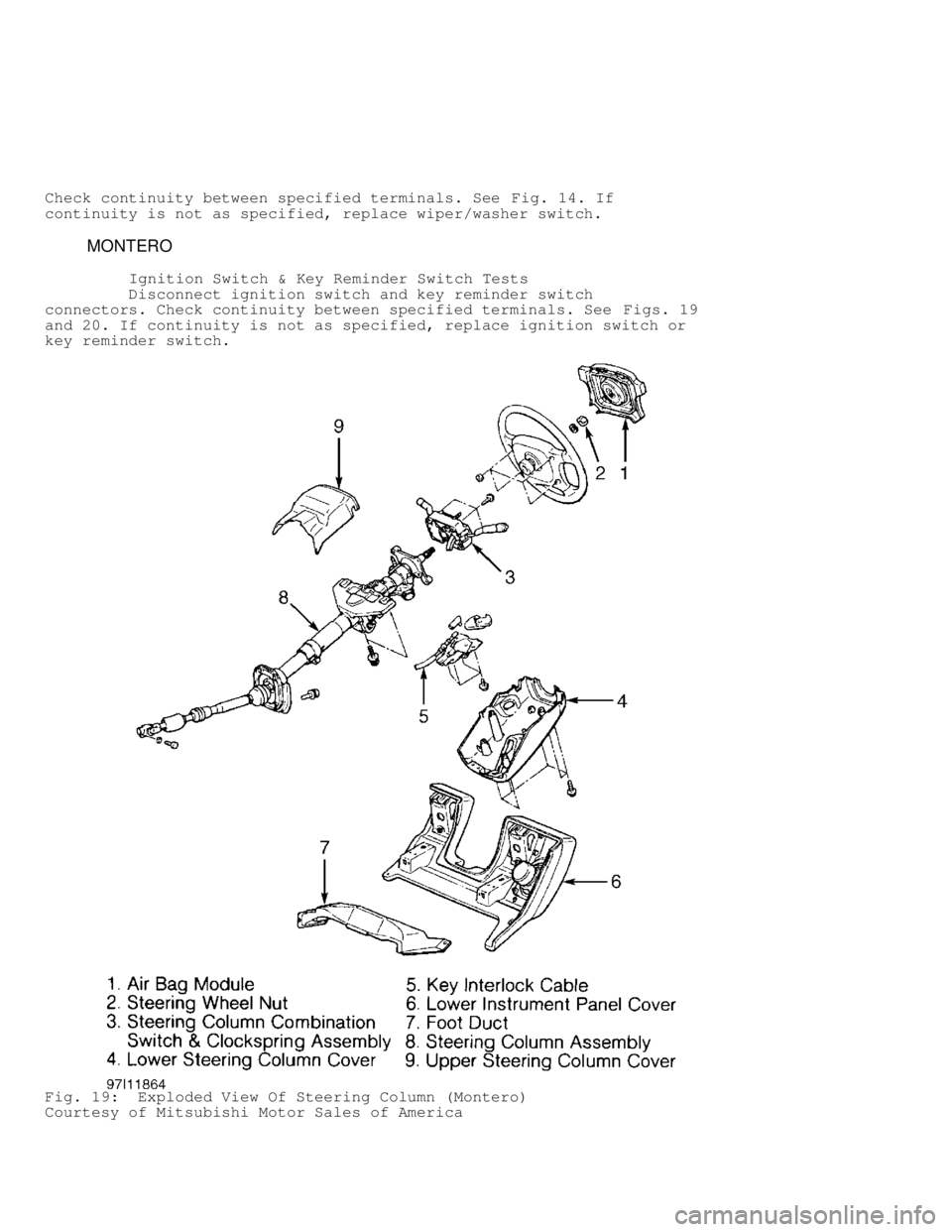

Fig. 19: Exploded View Of Steering Column (Montero)
Courtesy of Mitsubishi Motor Sales of America

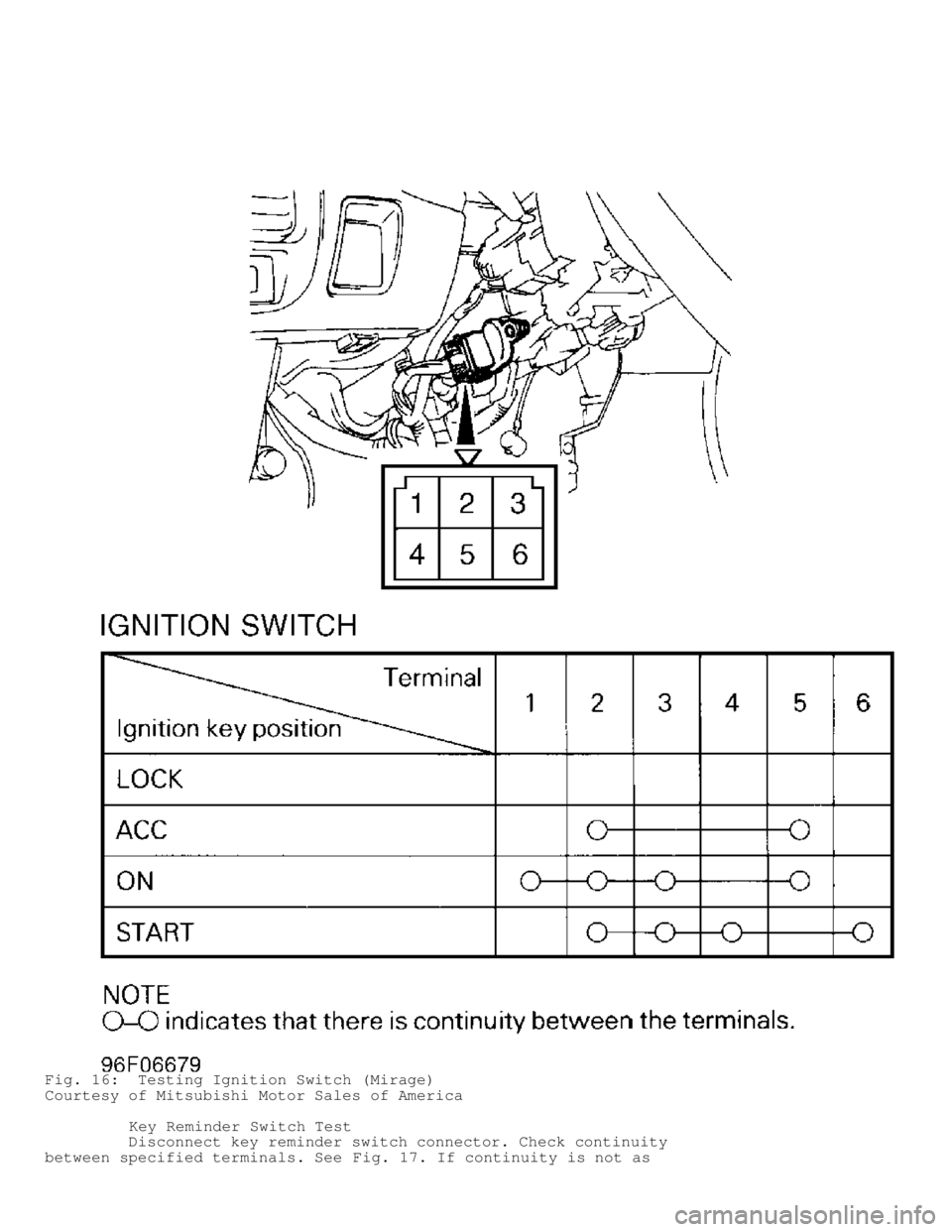

Fig. 20: Testing Ignition Switch & Key Reminder Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.

Check continuity between specified terminals. See Figs. 19 and 21. If
continuity is not as specified, replace steering column combination
switch.

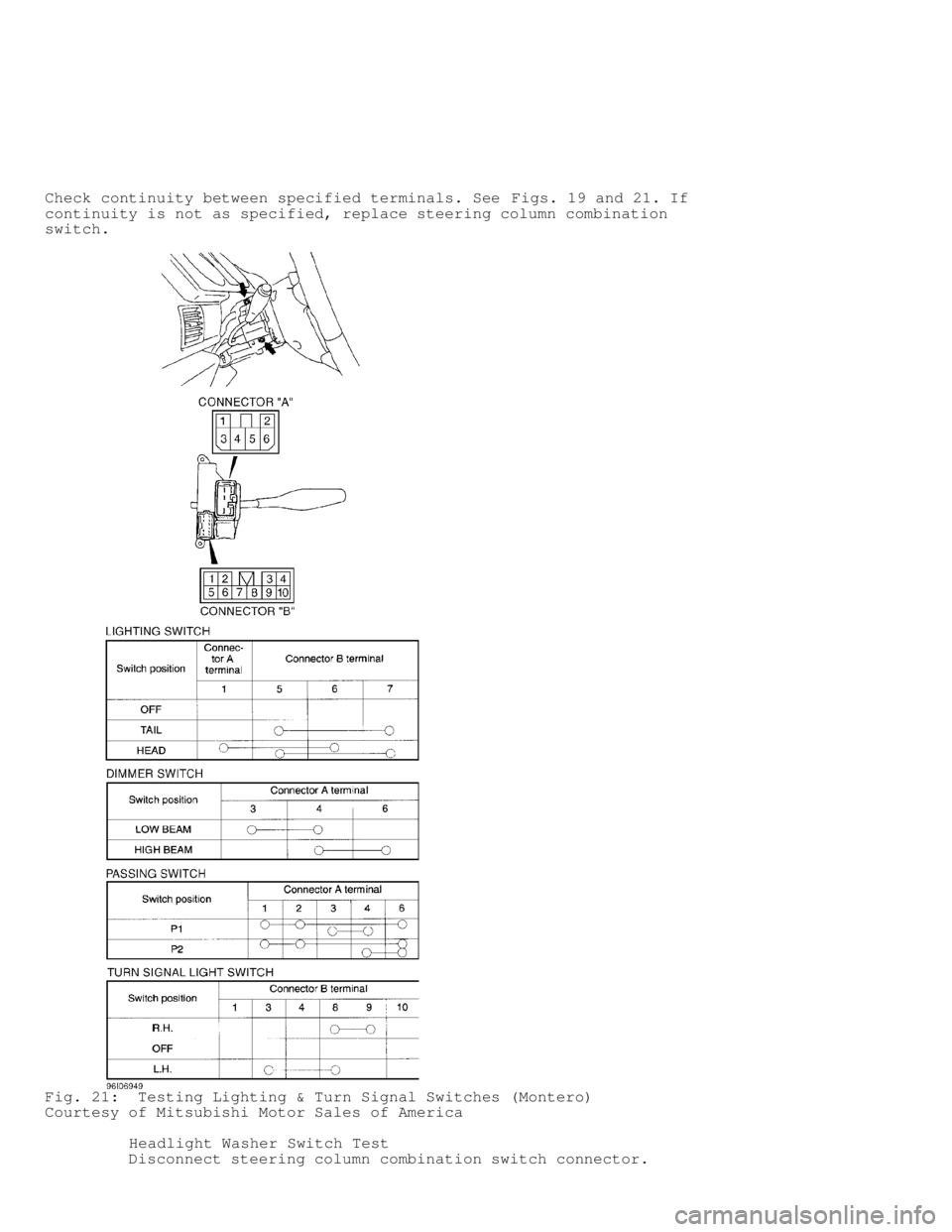

Fig. 21: Testing Lighting & Turn Signal Switches (Montero)
Courtesy of Mitsubishi Motor Sales of America
Headlight Washer Switch Test
Disconnect steering column combination switch connector.

Check continuity between specified terminals. See Figs. 19 and 22. If
continuity is not as specified, replace steering column combination
switch.
Fig. 22: Testing Headlight Washer Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
Rear Wiper Switch Test
Disconnect steering column combination switch connector.

Check continuity between specified terminals. See Figs. 19 and 23. If
continuity is not as specified, replace steering column combination
switch.

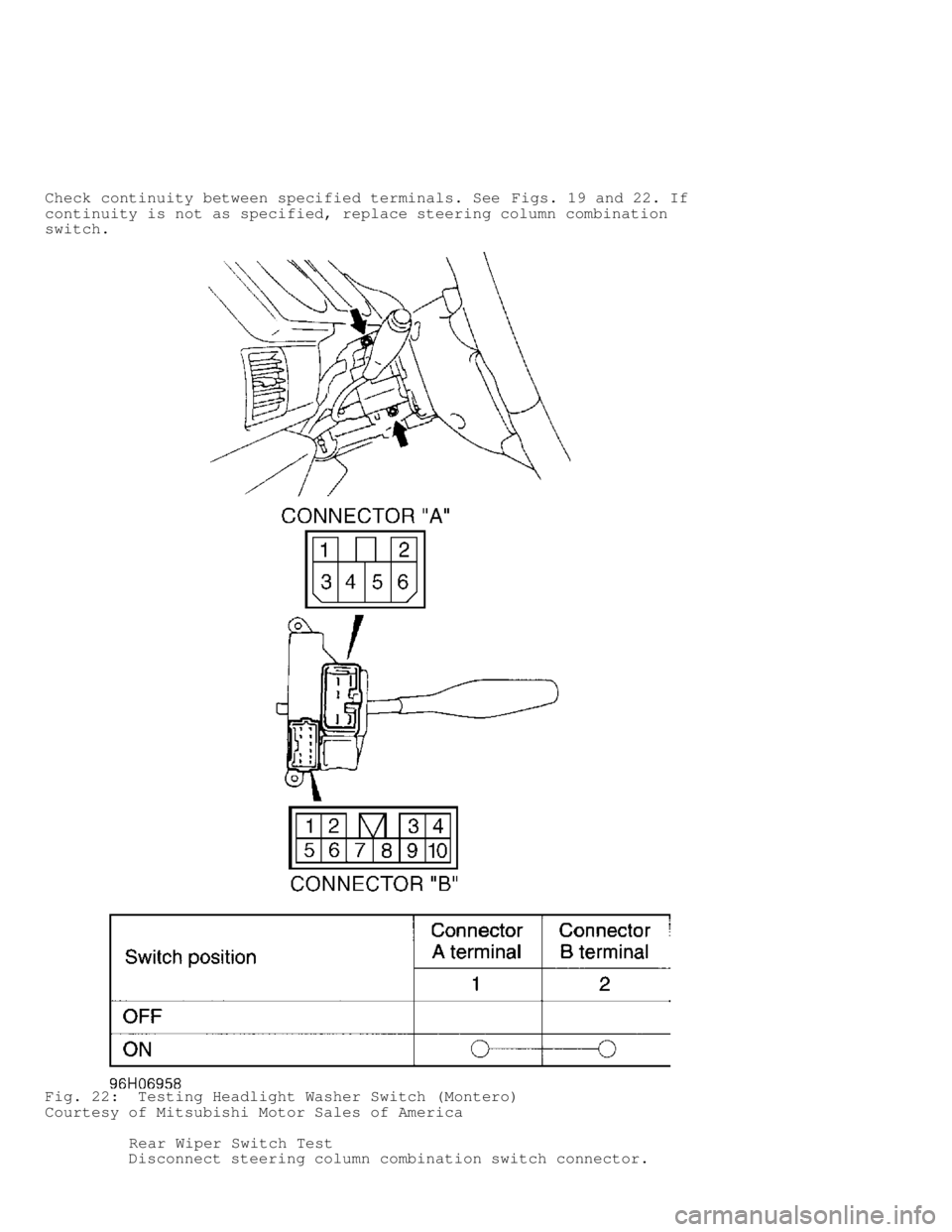

Fig. 23: Testing Rear Wiper Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Test
Disconnect steering column combination switch connector.
