Page 169 of 1501

$MITSUBISHI MONTERO 1998 Service Manual \b�� \ ��\ ��\ �� \ ��\ �� \ ��\ �� 14 No. 1 Shift Solenoid In 1st$

\b \
\
\
\
\
\
\

14 No. 1 Shift Solenoid In 1st Or 2nd Battery
\b
\
\
\
\
\
\
\

14 No. 1 Shift Solenoid In 3rd Or 4th Gear 0 Volts
\b
\
\
\
\
\
\
\

15 Power Supply Ignition ON Battery
\b
\
\
\
\
\
\
\

15 Power Supply Ignition OFF 0 Volts
\b
\
\
\
\
\
\
\

16 No. 2 Shift Solenoid In 2nd Or 3rd Gear Battery
\b
\
\
\
\
\
\
\

16 No. 2 Shift Solenoid In 1st Or 4th Gear 0 Volts
\b
\
\
\
\
\
\
\

17 Diagnostic Test Mode Not Specified Not Specified
\b
\
\
\
\
\
\
\

18 Diagnostic Output Scan Tool Not Battery

Connected
\b
\
\
\
\
\
\
\

21 Oil Temp Warning Lamp Normal Temp. Range 0 Volts
\b
\
\
\
\
\
\
\

21 Oil Temp Warning Lamp For 5 Seconds After Battery

Ign. Is On
\b
\
\
\
\
\
\
\

22 Oil Temp Sensor Temp @ 248F (120C) About 1.9
\b
\
\
\
\
\
\
\

22 Oil Temp Sensor Temp @ 302F (150C) About 1.1
\b
\
\
\
\
\
\
\

23 4WD Low Range Switch 4WD Lever In 4H-Lock Battery
\b
\
\
\
\
\
\
\

23 4WD Low Range Switch 4WD Lever In 4L-Lock 0 Volts
\b
\
\
\
\
\
\
\

24 Neutral Safety Switch In "R" Position Battery
\b
\
\
\
\
\
\
\

24 Neutral Safety Switch Except In "R" 0 Volts
\b
\
\
\
\
\
\
\

25 Ground Engine Idling 0 Volts
\b
\
\
\
\
\
\
\

26 Ground Engine Idling 0 Volts
\b
\
\
\
\
\
\
\

31 Neutral Safety Switch In "L" Position Battery
\b
\
\
\
\
\
\
\

31 Neutral Safety Switch Except In "L" 0 Volts
\b
\
\
\
\
\
\
\

32 Neutral Safety Switch In "N" Position Battery
\b
\
\
\
\
\
\
\

32 Neutral Safety Switch Except In "N" 0 Volts
\b
\
\
\
\
\
\
\

34 Power Mode Power Mode Selected Battery
\b
\
\
\
\
\
\
\

34 4WD Detection Switch 2WD 4 Volts Or

Montero Greater
\b
\
\
\
\
\
\
\

34 4WD Detection Switch 4WD 0-1 Volts

Montero
\b
\
\
\
\
\
\
\

34 Free Wheel 2WD 4 Volts Or

Montero Engage Switch Greater

Sport
\b
\
\
\
\
\
\
\

34 Free Wheel 4WD 0 Volts

Montero Engage Switch

Sport
\b
\
\
\
\
\
\
\

Page 170 of 1501

$MITSUBISHI MONTERO 1998 Service Manual 35 Output Speed Ignition Off 0 Volts Sensor Gnd \b �� \ ��\ ��$

35 Output Speed Ignition Off 0 Volts

Sensor Gnd
\b
\
\
\
\
\
\
\

35 Output Speed Ignition On 2.5 Volts

Sensor Gnd
\b
\
\
\
\
\
\
\

36 Input Speed Sensor Gnd Ignition Off 0 Volts
\b
\
\
\
\
\
\
\

36 Input Speed Sensor Gnd Ignition On 2.5 Volts
\b
\
\
\
\
\
\
\

37 Overdrive OFF Signal (
1) Steady Driving @ Battery

31 MPH (50 km/h)
\b
\
\
\
\
\
\
\

37 Overdrive OFF Signal (
1) Climbing Hill @ 0 - 1

31 MPH (50 km/h)
\b
\
\
\
\
\
\
\

38 Engine Ign. Signal Engine @ 3000 RPM .3 - 3.0
\b
\
\
\
\
\
\
\

39 Neutral Safety Switch In "D" Position Battery
\b
\
\
\
\
\
\
\

39 Neutral Safety Switch Except In "D" 0 Volts
\b
\
\
\
\
\
\
\

40 Neutral Safety Switch In "2" Position Battery
\b
\
\
\
\
\
\
\

40 Neutral Safety Switch Except In "2" 0 Volts
\b
\
\
\
\
\
\
\

41 HOLD Mode HOLD Mode Selected Battery
\b
\
\
\
\
\
\
\

41 HOLD Mode HOLD Mode Not Selected 0 Volts
\b
\
\
\
\
\
\
\

42 Overdrive Switch Overdrive ON 0 Volts
\b
\
\
\
\
\
\
\

42 Overdrive Switch Overdrive OFF Battery
\b
\
\
\
\
\
\
\

43 Output Speed Sensor Vehicle Stopped About 2.5
\b
\
\
\
\
\
\
\

43 Output Speed Sensor Vehicle Moving Other Than

2.5
\b
\
\
\
\
\
\
\

44 Input Speed Sensor Vehicle Stopped About 2.5
\b
\
\
\
\
\
\
\

44 Input Speed Sensor Vehicle Moving Other Than

2.5
\b
\
\
\
\
\
\
\

45 Coolant Temp Sensor Temp @ 86F (30C) 2.5
\b
\
\
\
\
\
\
\

45 Coolant Temp Sensor Temp @ 158F (70C) 0 Volts
\b
\
\
\
\
\
\
\

46 MIL Signal Ignition ON .5

4.5 Volts
\b
\
\
\
\
\
\
\

(
1) - Test circuit with shift lever in "D" position, mode selector

normal and cruise control on.
\f
\
\
\
\
\
\
\

REMOVAL & INSTALLATION
BRAKELIGHT SWITCH
Removal & Installation
1) Disconnect electrical connector. Remove lock nut, and
unscrew brakelight switch. To install, screw brakelight switch inward

Page 171 of 1501

MITSUBISHI MONTERO 1998 Service Manual until brakelight plunger contacts brake pedal.
2) Loosen brakelight switch 1/2 to one turn. Install and
tighten lock nut on brakelight switch. Install electrical connector.
Ensure brakelights

Page 172 of 1501

MITSUBISHI MONTERO 1998 Service Manual Disconnect electrical connector from output speed sensor. See
Fig. 15. Remove bolt and output speed sensor. To install, reverse
removal procedure.
Fig. 15: Locating Output Speed Sensor & Con

Page 173 of 1501

MITSUBISHI MONTERO 1998 Service Manual SOLENOIDS
Removal & Installation
Solenoids are located on transmission valve body. See Fig. 3.
Remove bolt, solenoid and gasket from valve body. To install, reverse
remova

Page 174 of 1501

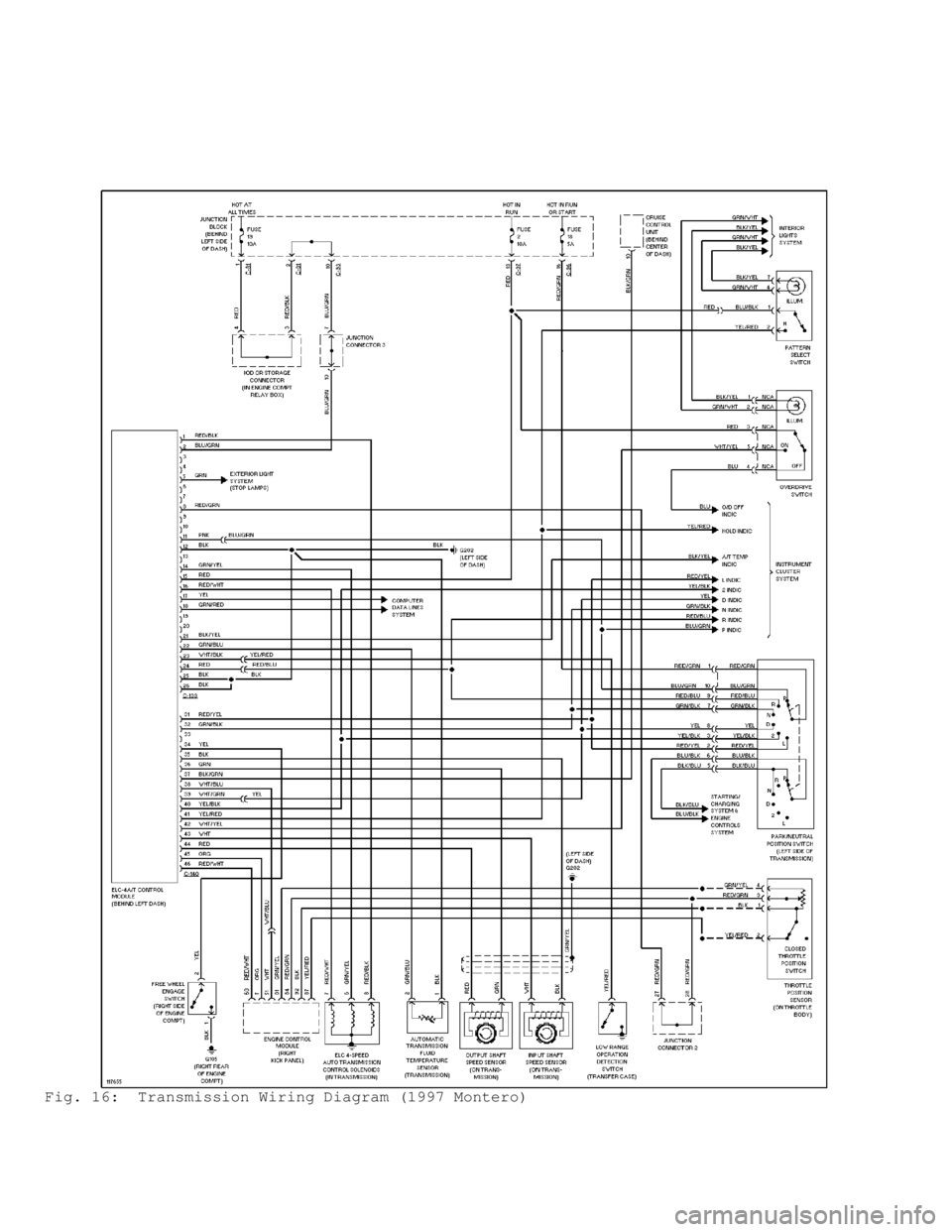

MITSUBISHI MONTERO 1998 Service Manual Fig. 16: Transmission Wiring Diagram (1997 Montero)

Page 175 of 1501

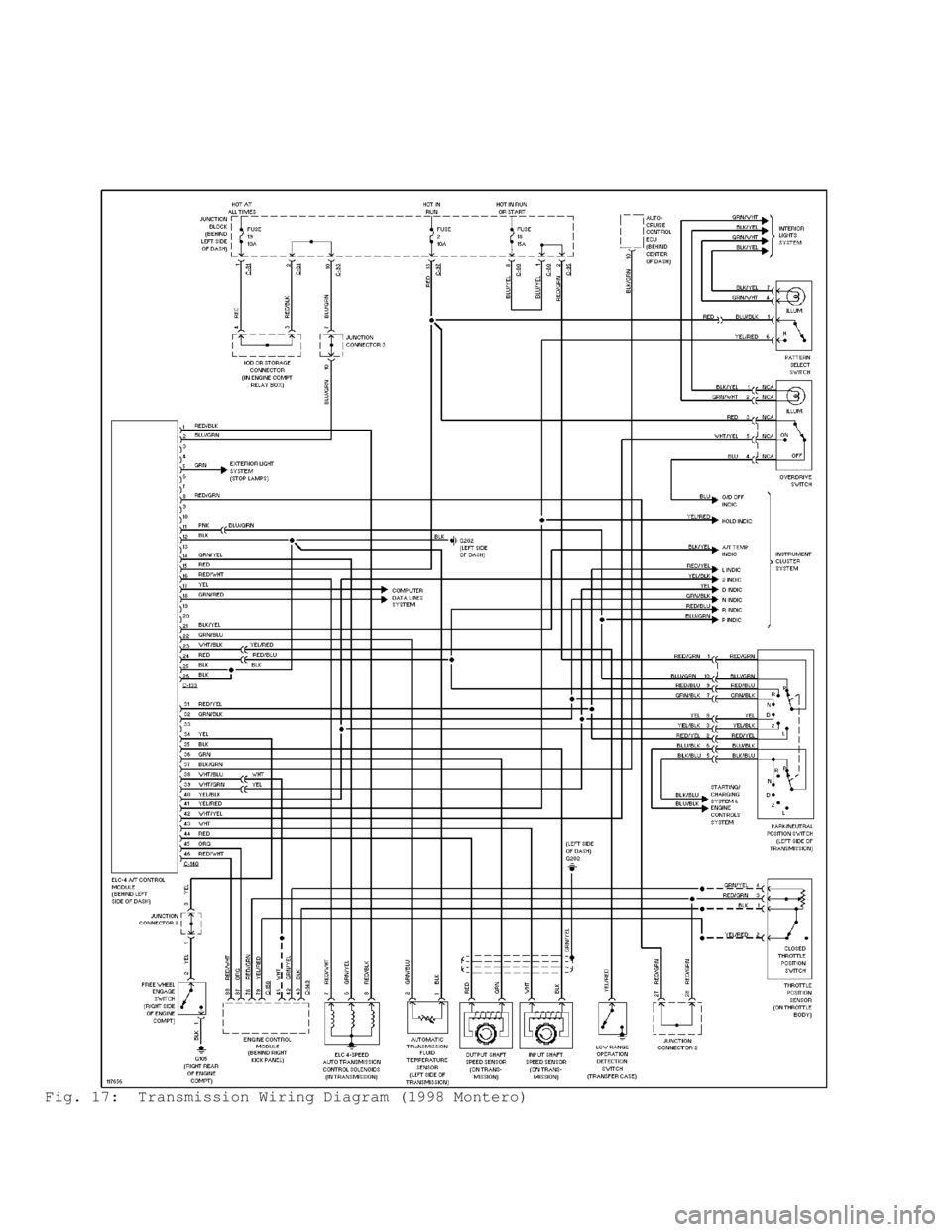

MITSUBISHI MONTERO 1998 Service Manual Fig. 17: Transmission Wiring Diagram (1998 Montero)

Page 176 of 1501

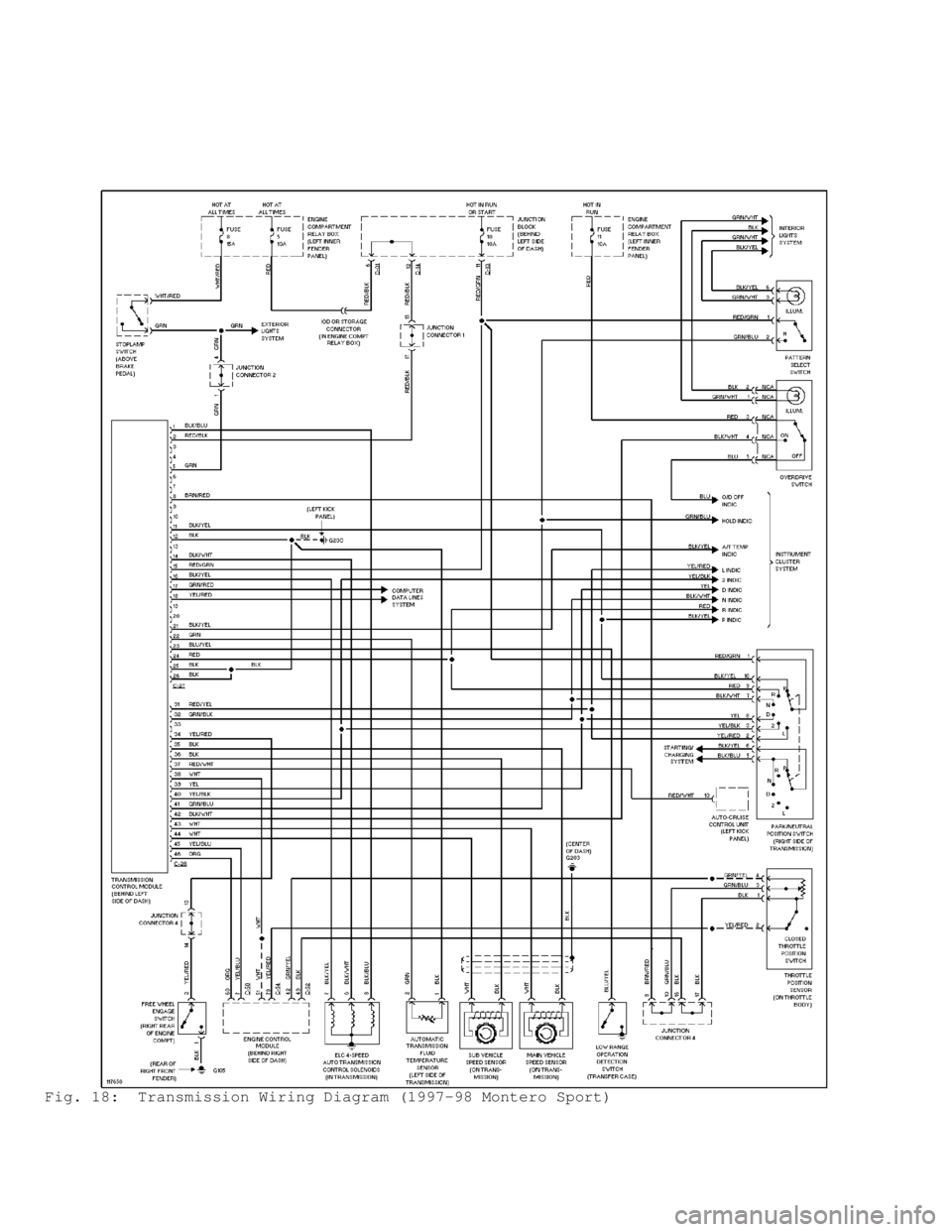

MITSUBISHI MONTERO 1998 Service Manual Fig. 18: Transmission Wiring Diagram (1997-98 Montero Sport)
