1998 MITSUBISHI MONTERO Service Manual

Check continuity between specified terminals. See Figs. 19 and 24. If
continuity is not as specified, replace steering column combination
switch.
Fig. 24: Testing Wiper/Washer Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
MONTERO SPORT

Ignition Switch Test
Disconnect ignition switch connectors. Check continuity
between specified terminals. See Figs. 25 and 26. If continuity is not
as specified, replace ignition switch.
Fig. 25: Exploded View Of Steering Column (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America

Fig. 26: Testing Ignition Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 25 and 27. If
continuity is not as specified, replace steering column combination
switch.

Fig. 27: Testing Lighting & Turn Signal Switches (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Front Wiper/Washer Switch Test
Disconnect steering column combination switch connector.

Check continuity between specified terminals. See Figs. 25 and 28. If
continuity is not as specified, replace steering column combination
switch.
Fig. 28: Front Wiper/Washer Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Key Reminder Switch Test
Disconnect key reminder switch connectors. Check continuity
between specified terminals. See Figs. 25 and 29. If continuity is not
as specified, replace key reminder switch.

Rear Wiper/Washer Switch Test
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Fig. 30. If
continuity is not as specified, replace steering column combination
switch.
Fig. 29: Testing Key Reminder Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America

Fig. 30: Testing Rear Wiper/Washer Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
3000GT
Lighting, Turn Signal & Dimmer/Passing Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 31 and 32. If
continuity is not as specified, replace steering column combination
switch.

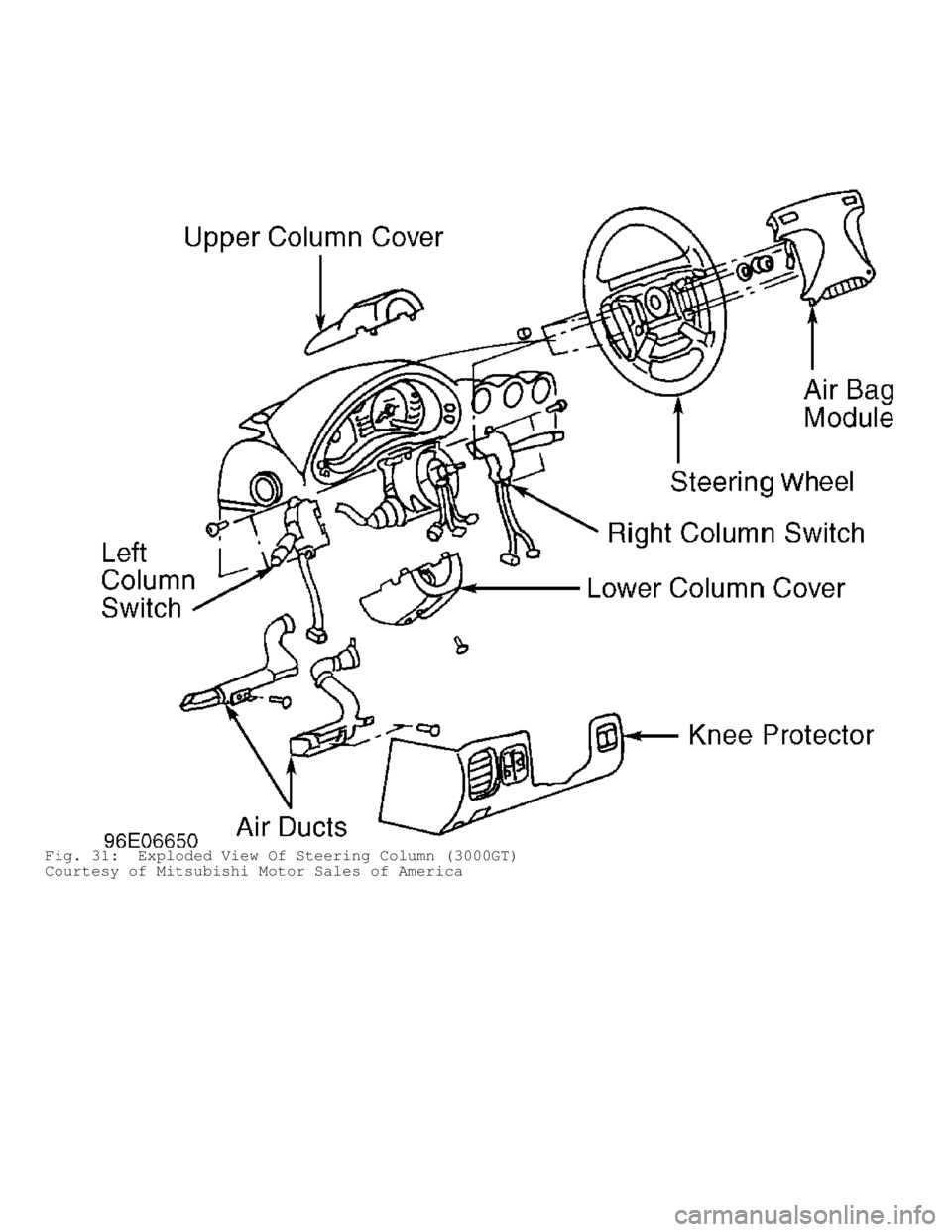

Fig. 31: Exploded View Of Steering Column (3000GT)
Courtesy of Mitsubishi Motor Sales of America
