1998 MITSUBISHI MONTERO Service Manual

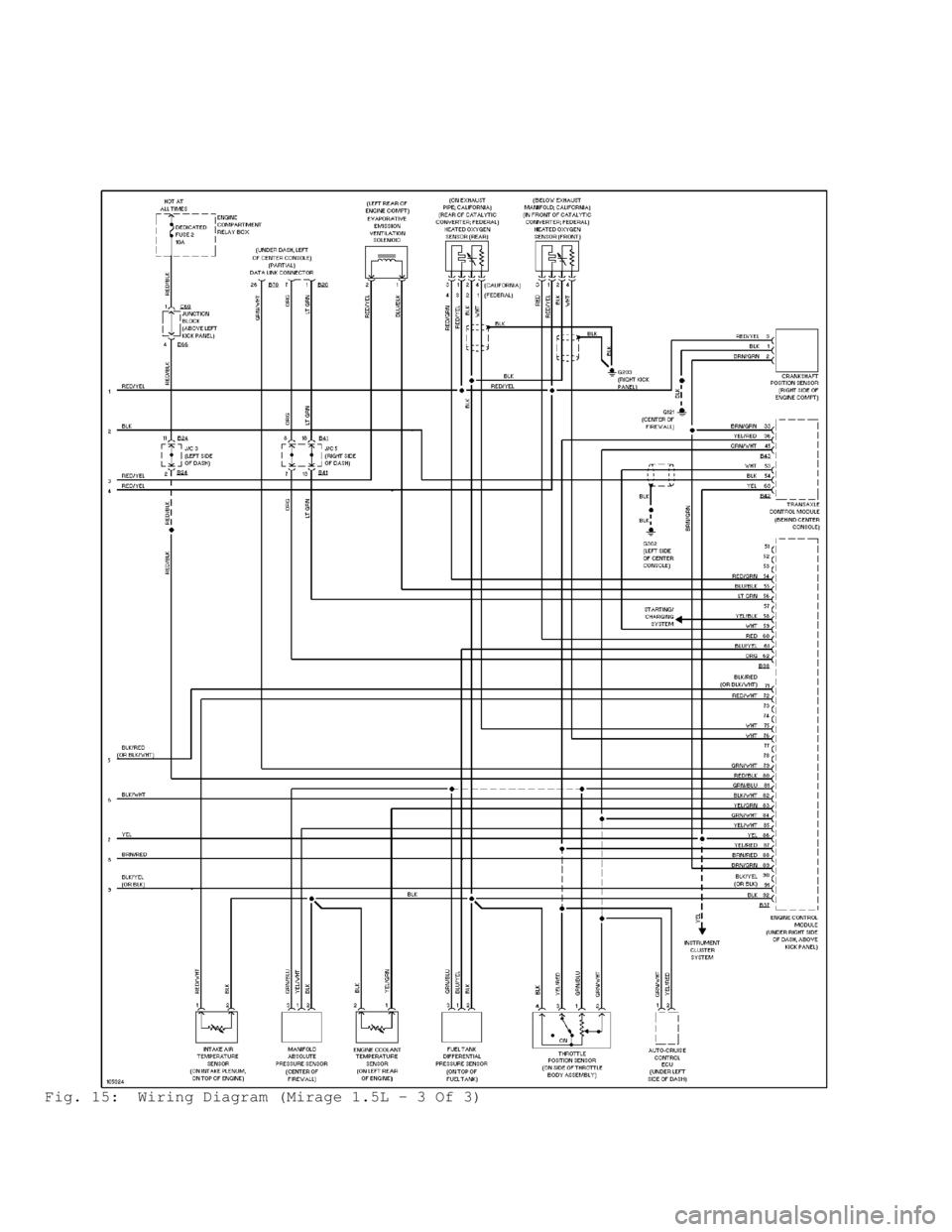

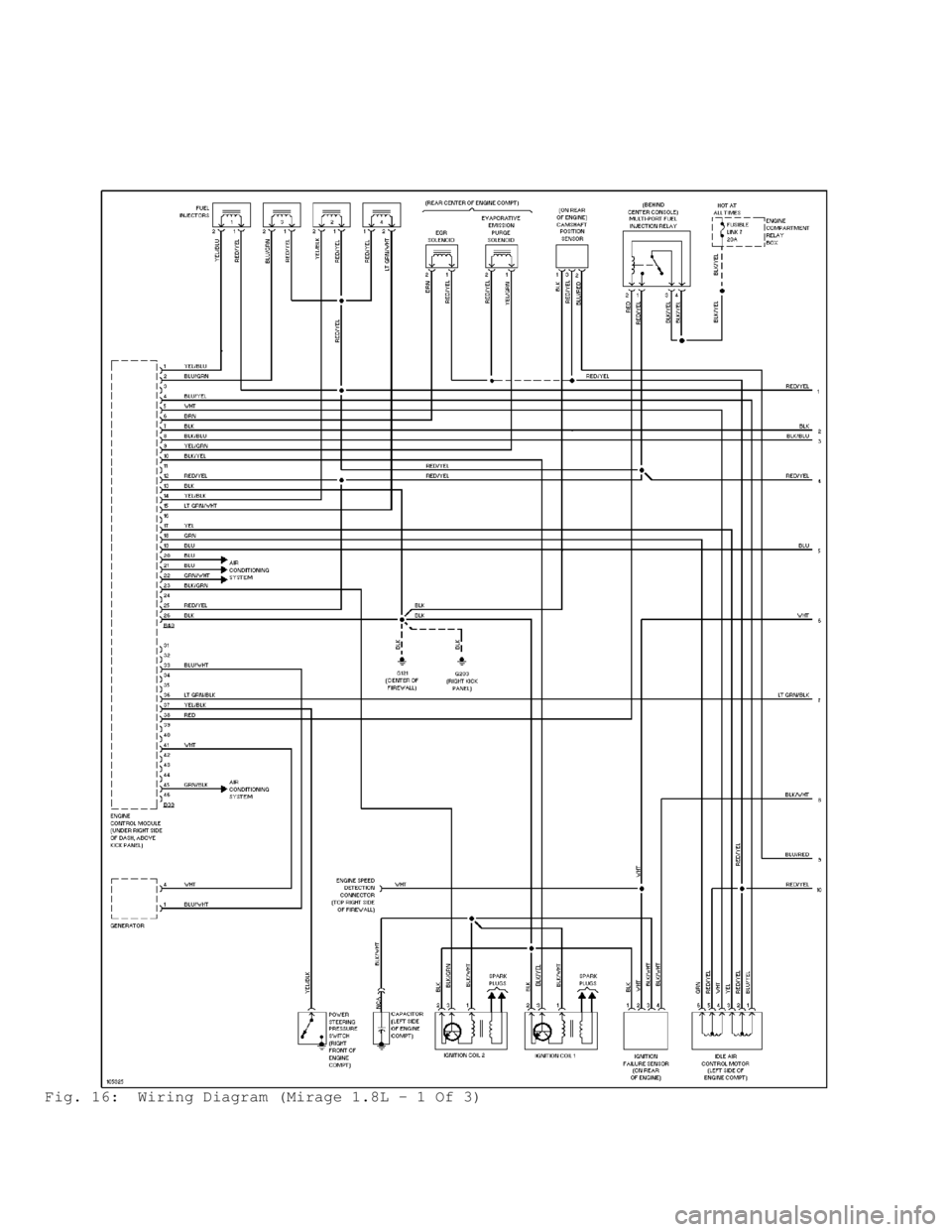

Fig. 14: Wiring Diagram (Mirage 1.5L - 2 Of 3)

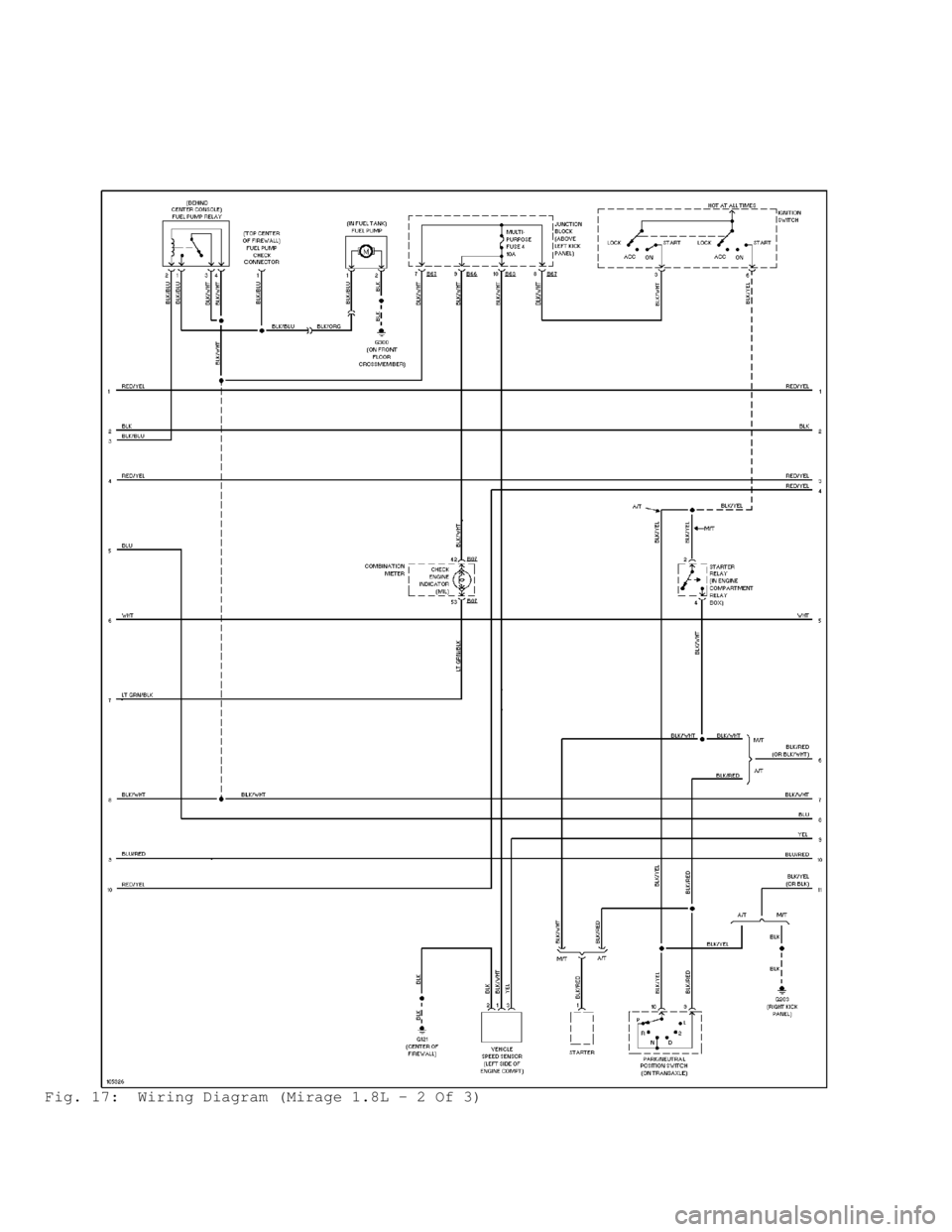

Fig. 15: Wiring Diagram (Mirage 1.5L - 3 Of 3)

Fig. 16: Wiring Diagram (Mirage 1.8L - 1 Of 3)

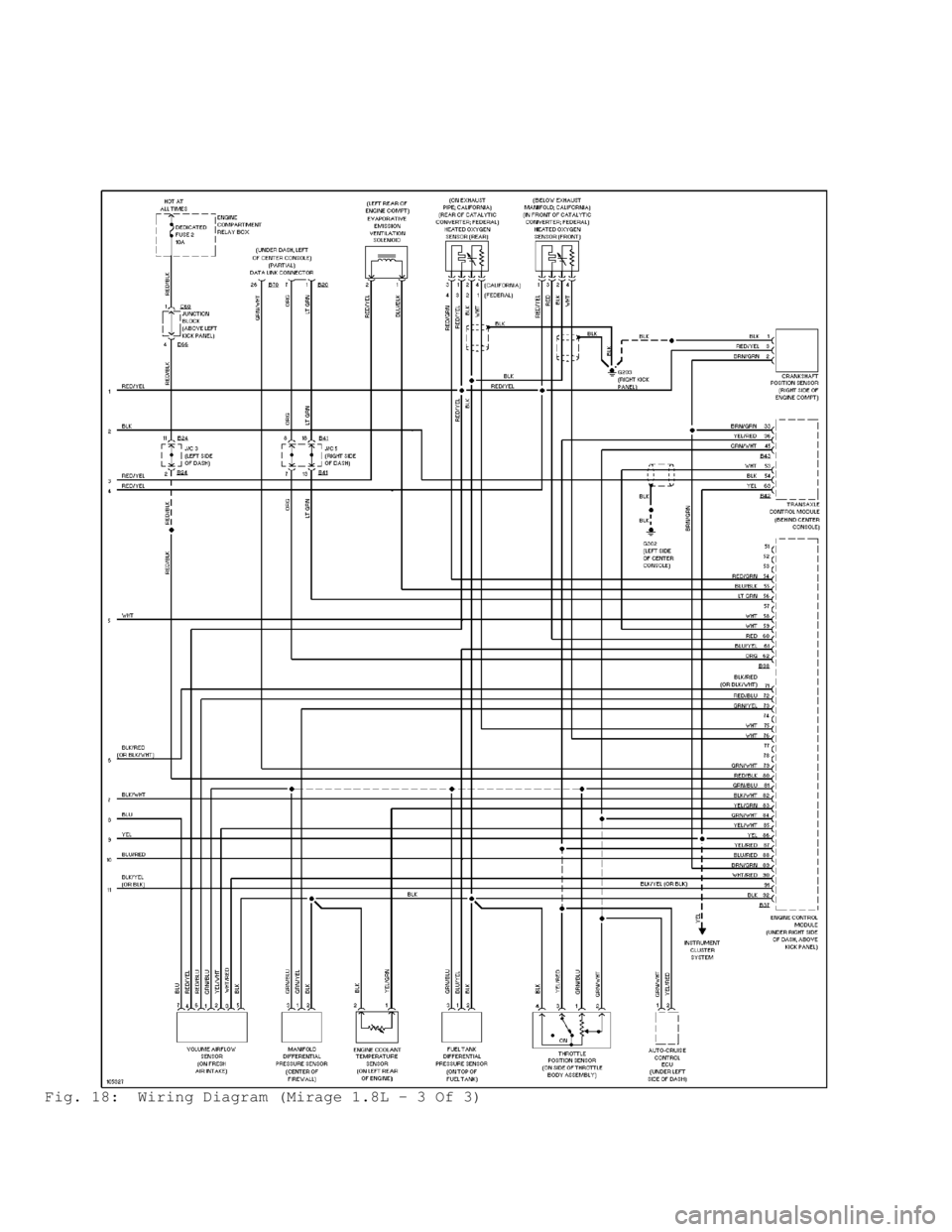

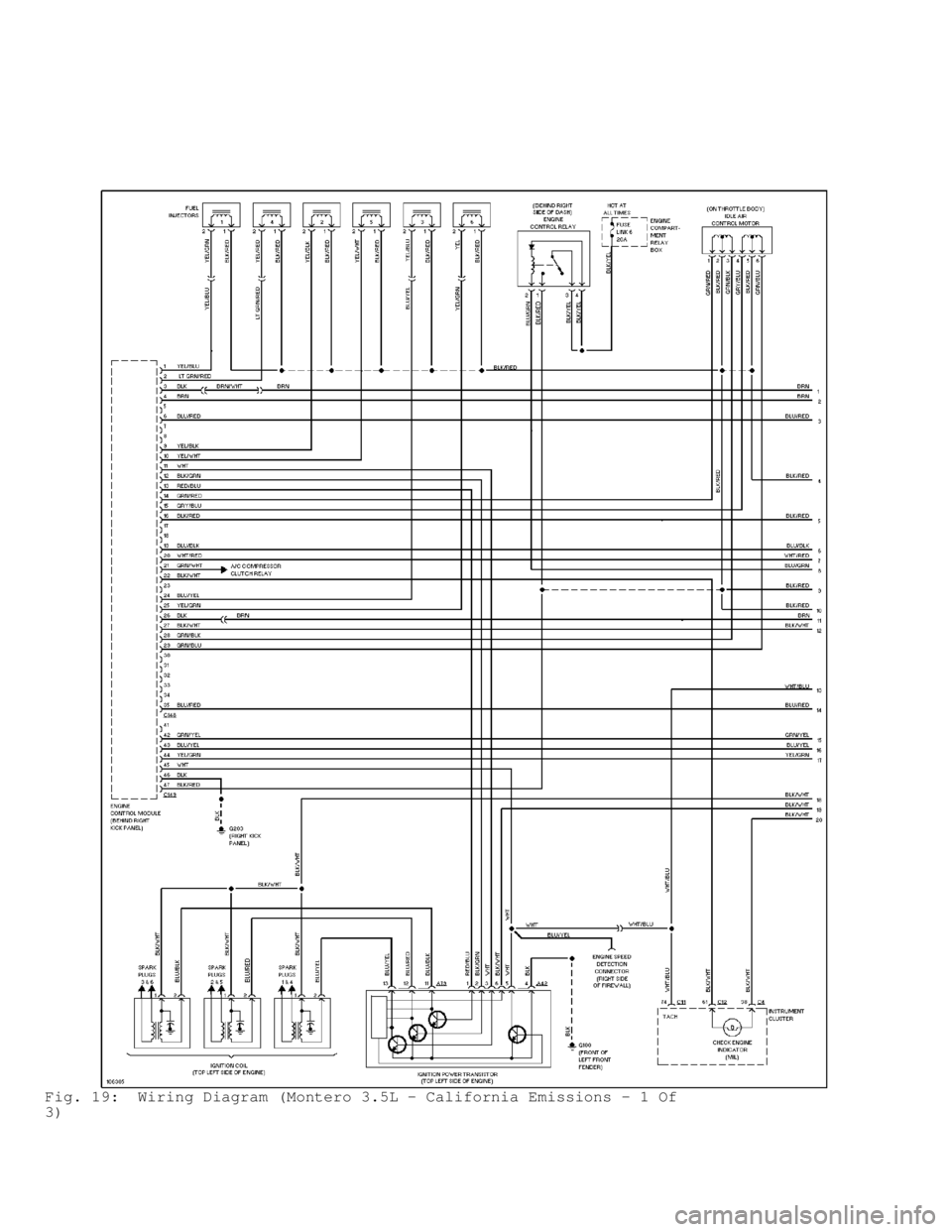

Fig. 17: Wiring Diagram (Mirage 1.8L - 2 Of 3)

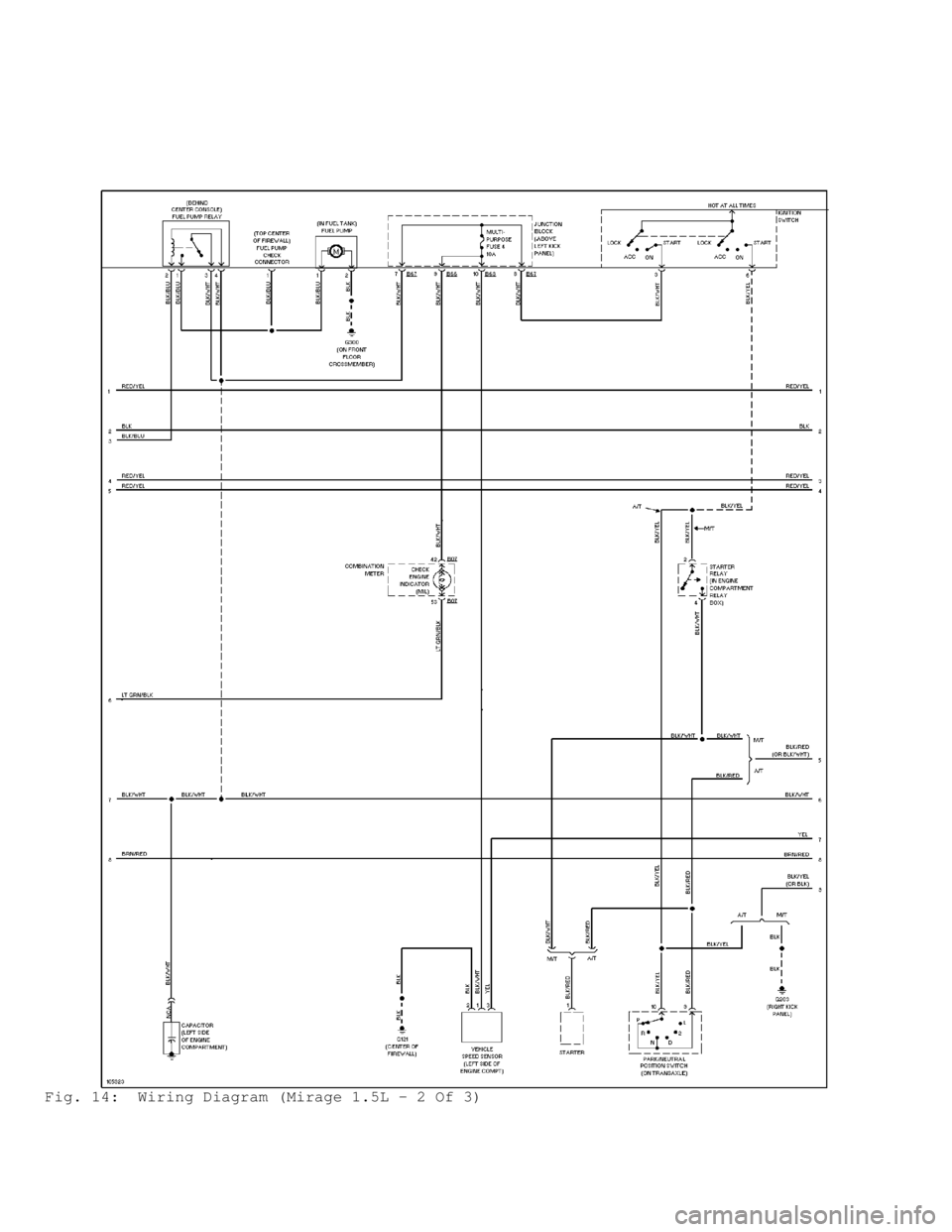

Fig. 18: Wiring Diagram (Mirage 1.8L - 3 Of 3)

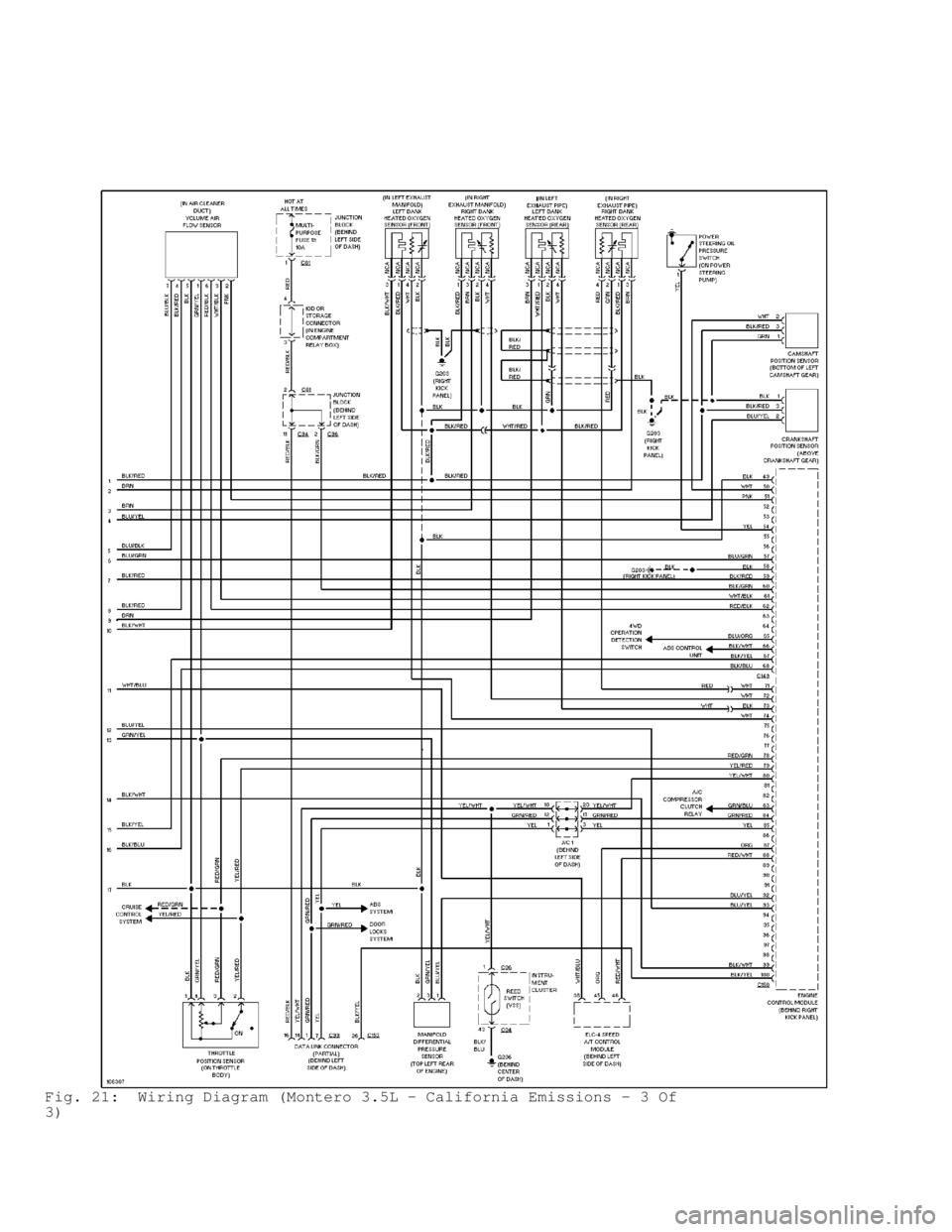

Fig. 19: Wiring Diagram (Montero 3.5L - California Emissions - 1 Of
3)

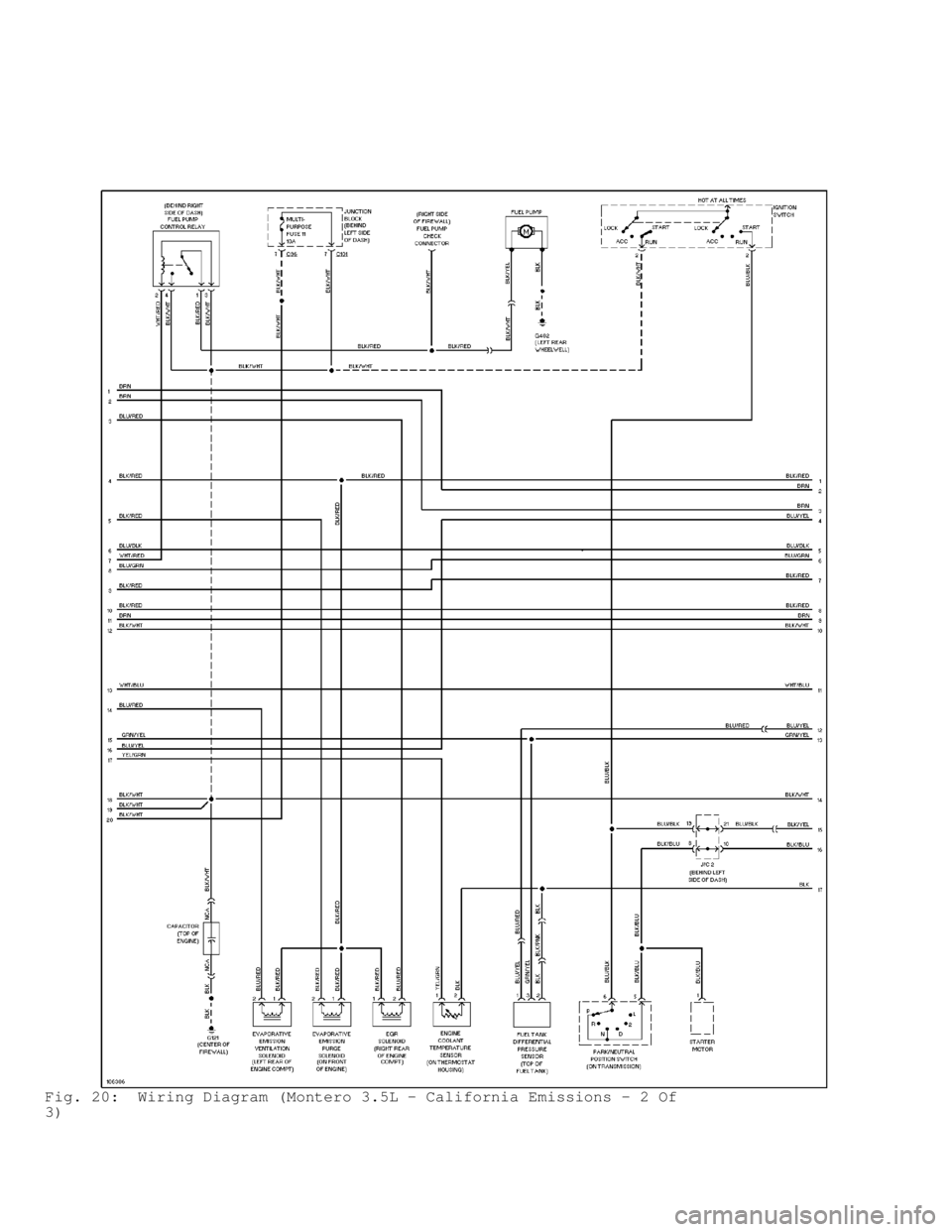

Fig. 20: Wiring Diagram (Montero 3.5L - California Emissions - 2 Of
3)

Fig. 21: Wiring Diagram (Montero 3.5L - California Emissions - 3 Of
3)
