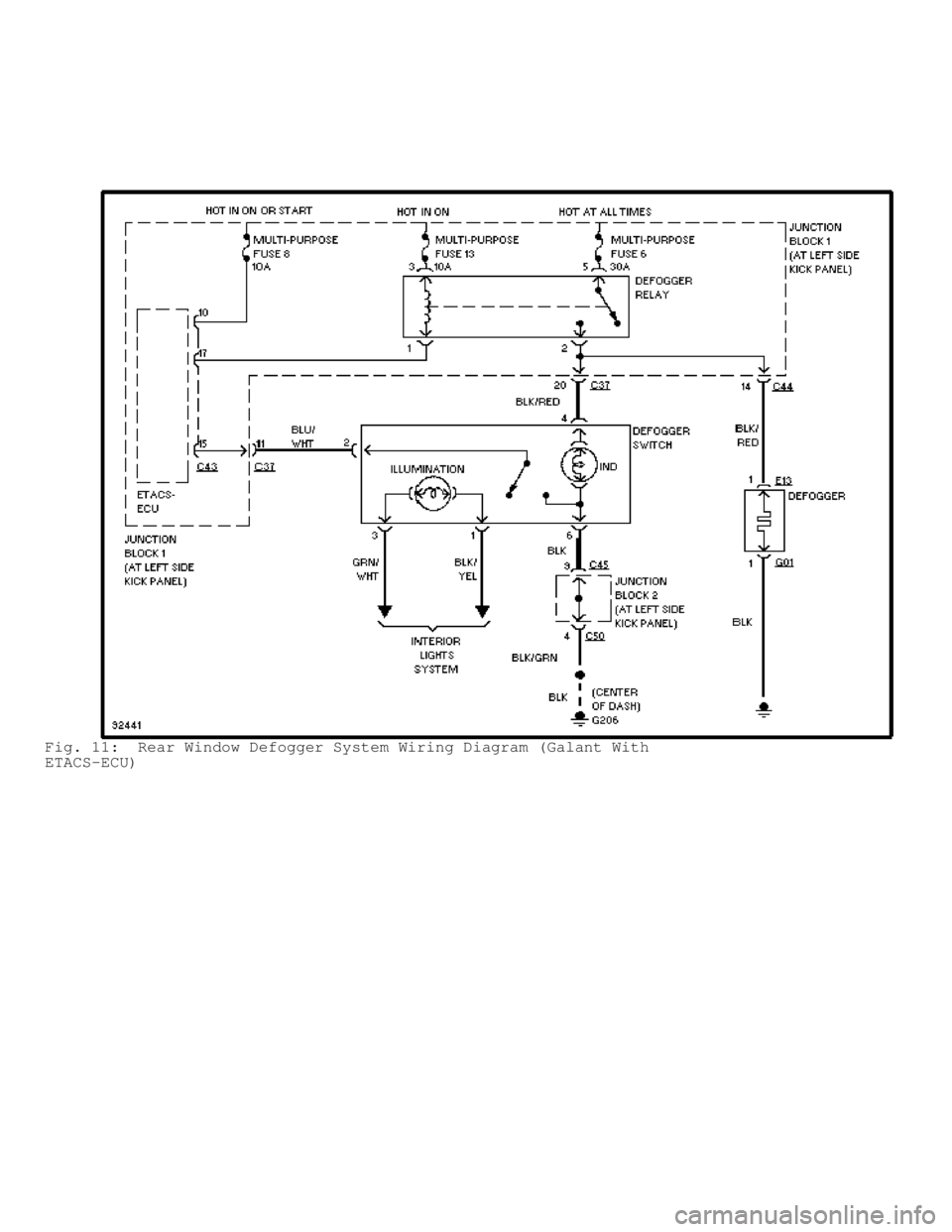

Fig. 11: Rear Window Defogger System Wiring Diagram (Galant With
ETACS-ECU)

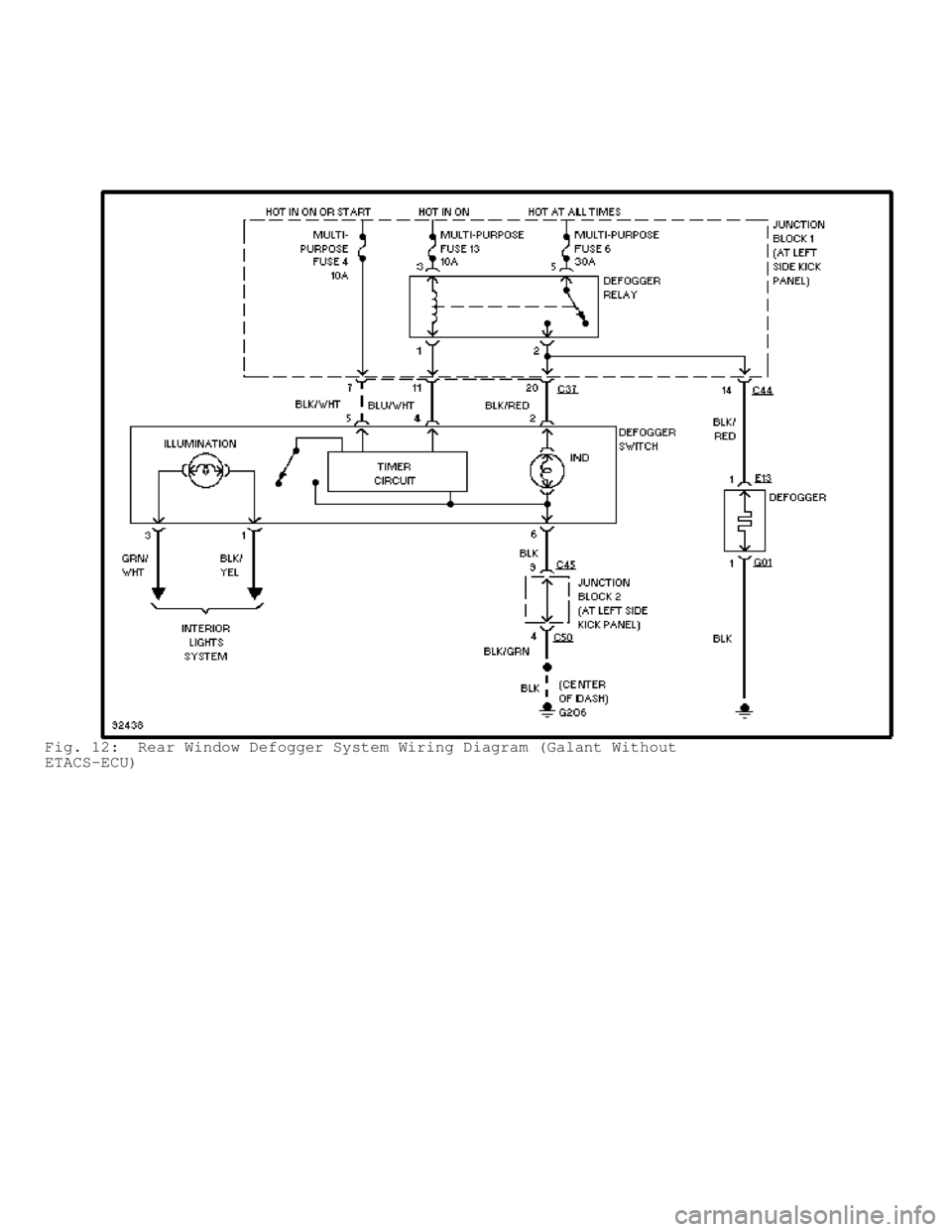

Fig. 12: Rear Window Defogger System Wiring Diagram (Galant Without
ETACS-ECU)

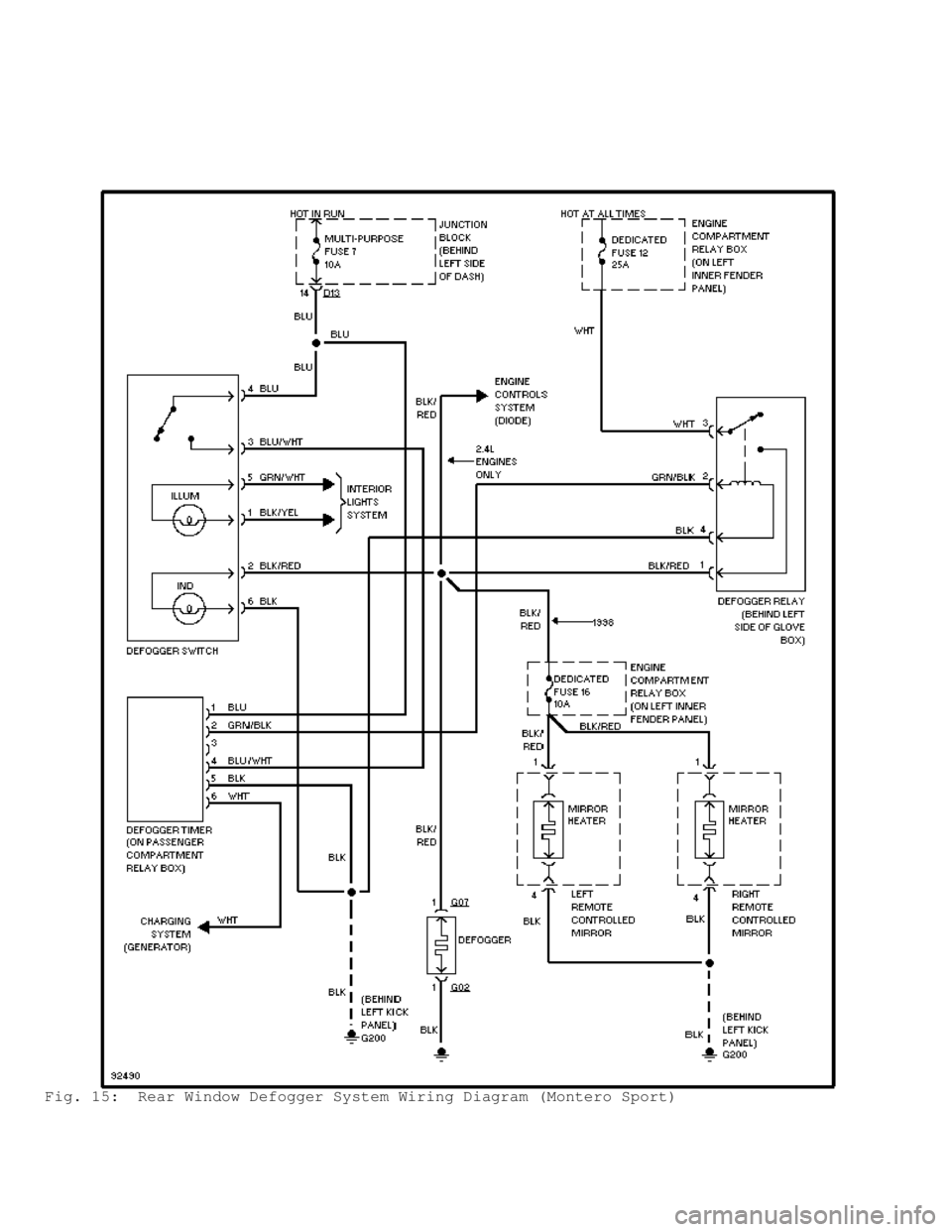

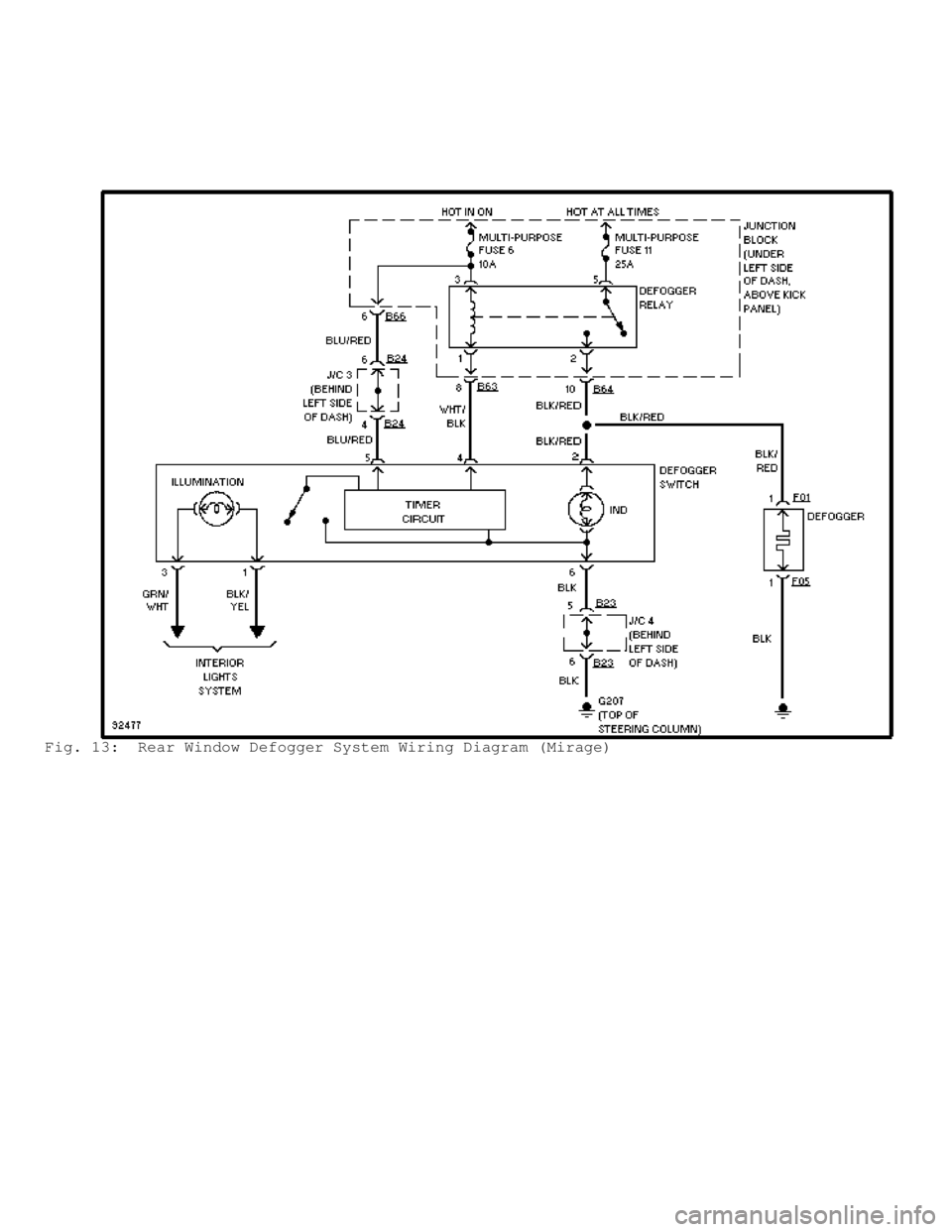

Fig. 13: Rear Window Defogger System Wiring Diagram (Mirage)

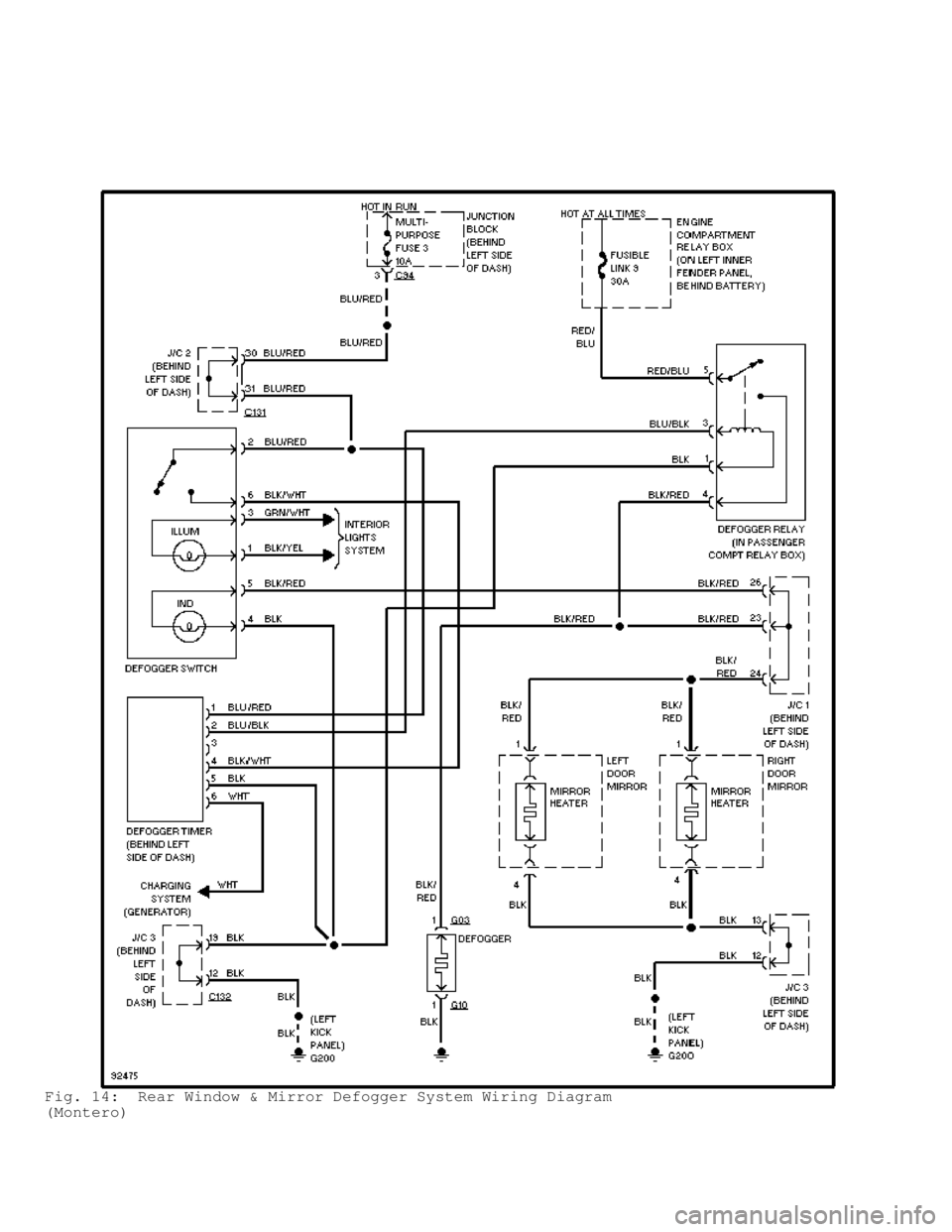

Fig. 14: Rear Window & Mirror Defogger System Wiring Diagram
(Montero)

Fig. 15: Rear Window Defogger System Wiring Diagram (Montero Sport)

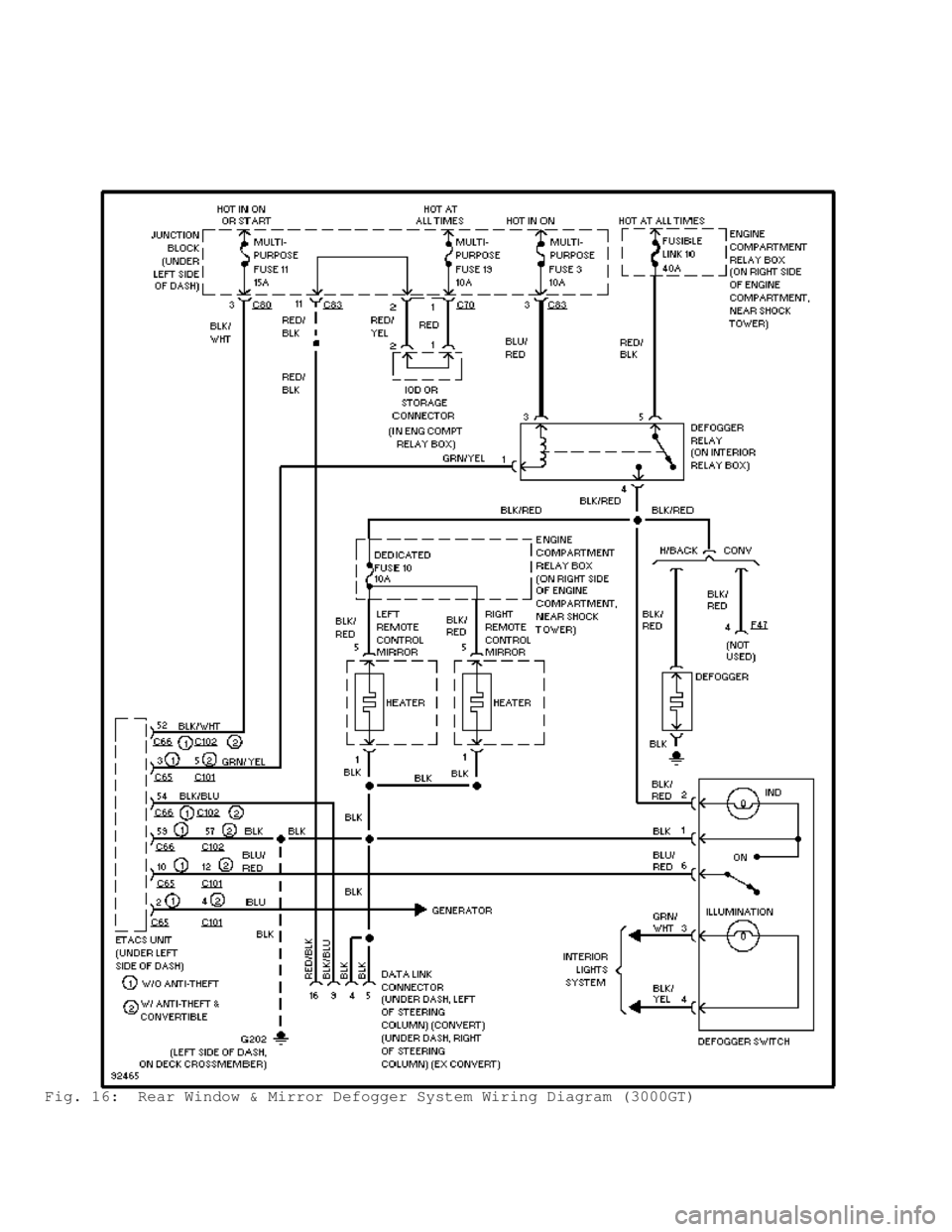

Fig. 16: Rear Window & Mirror Defogger System Wiring Diagram (3000GT)\

DIFFERENTIAL & AXLE SHAFTS - FRONT
1998 Mitsubishi Montero
1997-98 DRIVE AXLES
Mitsubishi Differentials & Axle Shafts - Front
Montero, Montero Sport
DESCRIPTION & OPERATION
Front axle assembly consists of a differential carrier,
housing tube, inner shaft and drive axles. See Figs. 1 and 2. A full-
floating axle design is used. Drive axles are flexible assemblies made
up of a shaft and an inner Birfield Joint (BJ) and an outer Double
Offset Joint (DOJ).
Fig. 1: Exploded View Of Front Differential Assembly & Suspension
Components (Typical)
Courtesy of Mitsubishi Motor Sales of America.

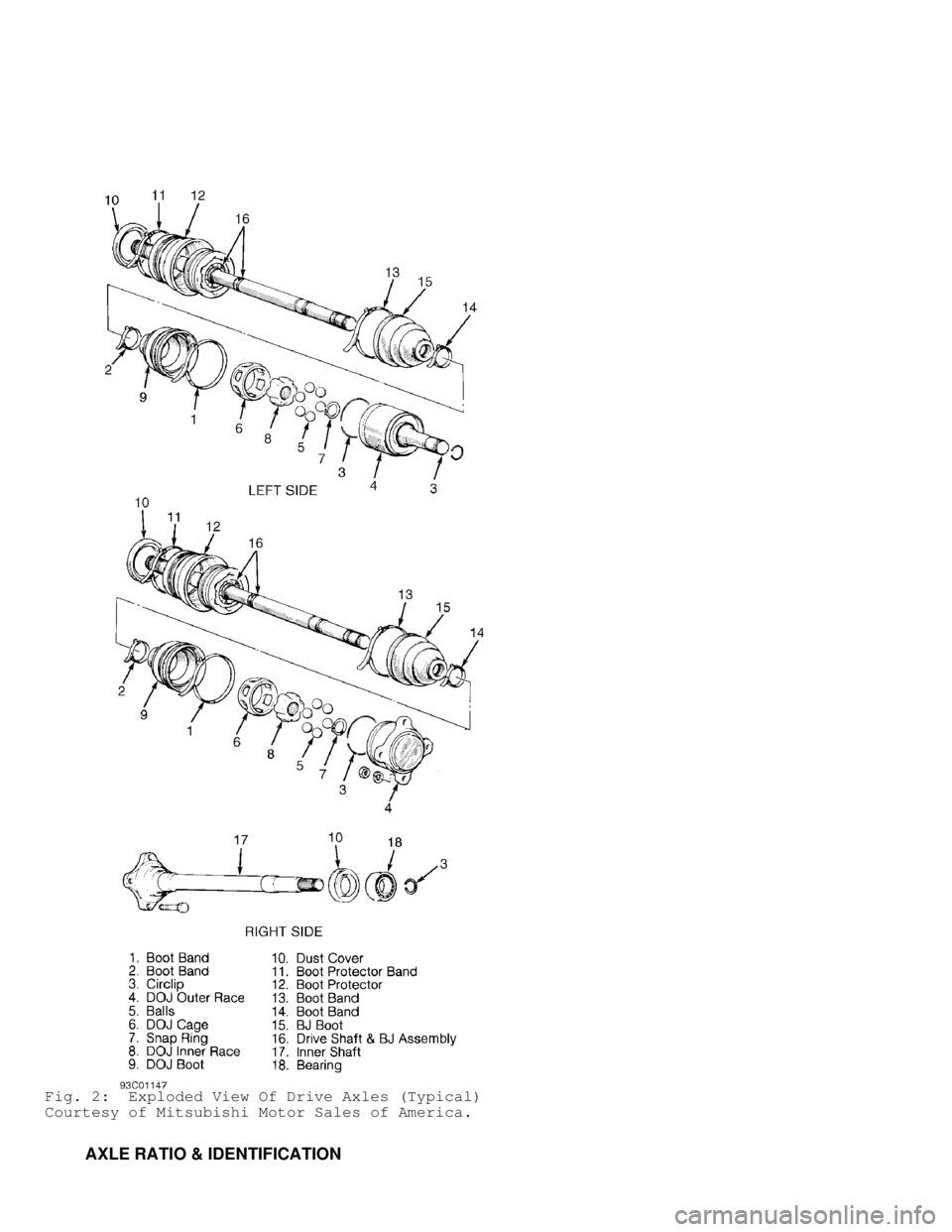

Fig. 2: Exploded View Of Drive Axles (Typical)
Courtesy of Mitsubishi Motor Sales of America.
