1998 MITSUBISHI MONTERO Service Manual

STARTER SPECIFICATIONS TABLE








\









\









\









\









\









\






Application In. (mm)
Commutator Maximum Runout ..................... .004 (.10)
Commutator Minimum Diameter
Diamante ................................... 1.23 (31.2)
Eclipse
Direct Drive Type ................................ (1)
Gear Reduction Type ...................... 1.12 (28.4)
Galant ..................................... 1.12 (28.4)
Mirage
Direct Drive Type ........................ 1.22 (31.4)
Gear Reduction Type ...................... 1.12 (28.4)
Montero & Montero Sport .................... 1.13 (28.8)
3000GT ..................................... 1.12 (28.4)
Commutator Undercut Depth ..................... .020 (.51)
Pinion Gap .......................... .020-.079 (.51-2.01)
( 1) - Information is not available from manufacturer at time
of publication.









\









\









\









\









\









\






TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS TABLE








\









\









\









\









\









\






Application Ft. Lbs. (N.m)
Starter-To-Block Bolts
Diamante ....................................... 23 (31)
Eclipse
2.0L Non-Turbo ............................... 40 (54)
2.0L Turbo & 2.4L ............................ 22 (30)
Galant ......................................... 22 (30)
Mirage ......................................... 36 (49)
Montero & Montero Sport .................. 19-24 (26-33)
3000GT ......................................... 23 (31)









\









\









\









\









\









\






WIRING DIAGRAMS

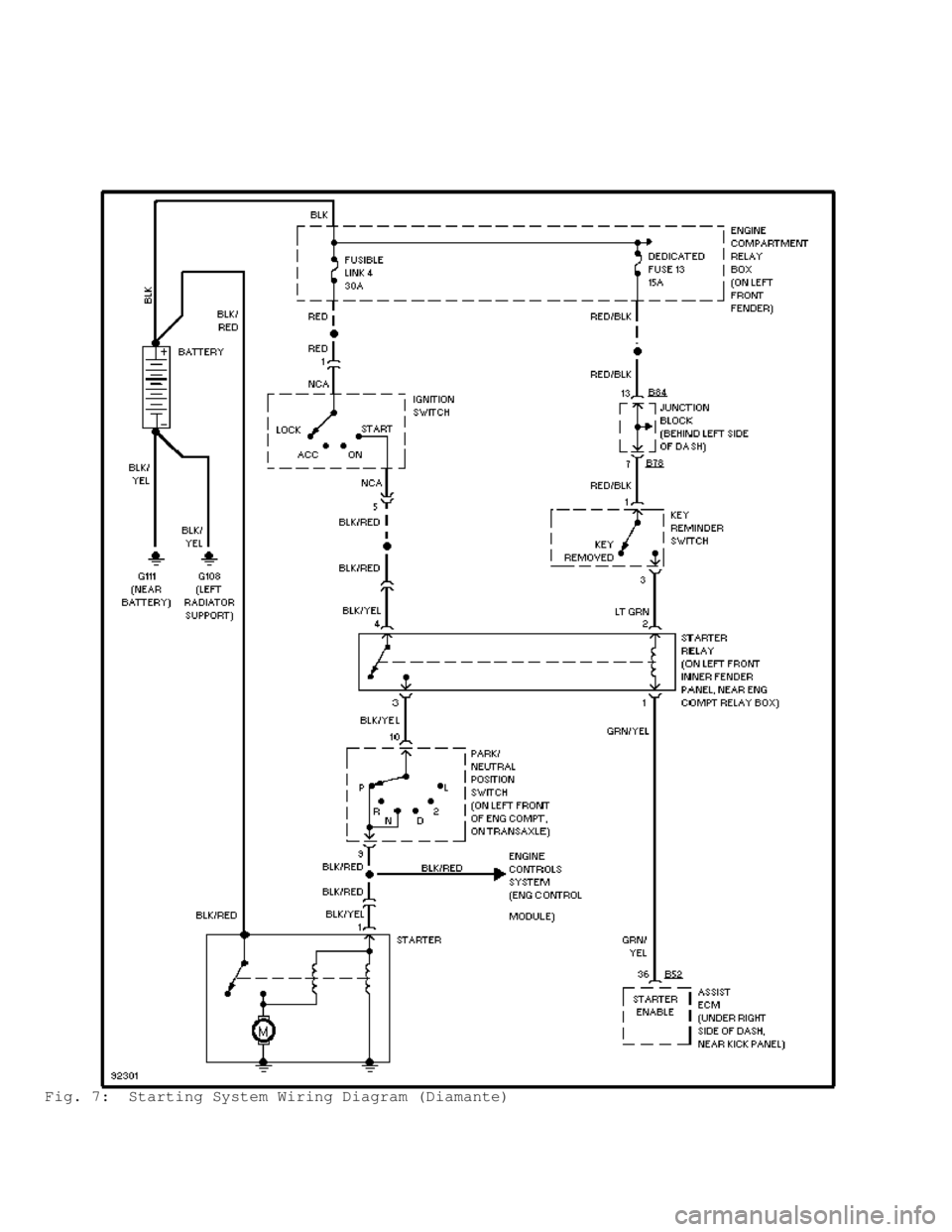

Fig. 7: Starting System Wiring Diagram (Diamante)

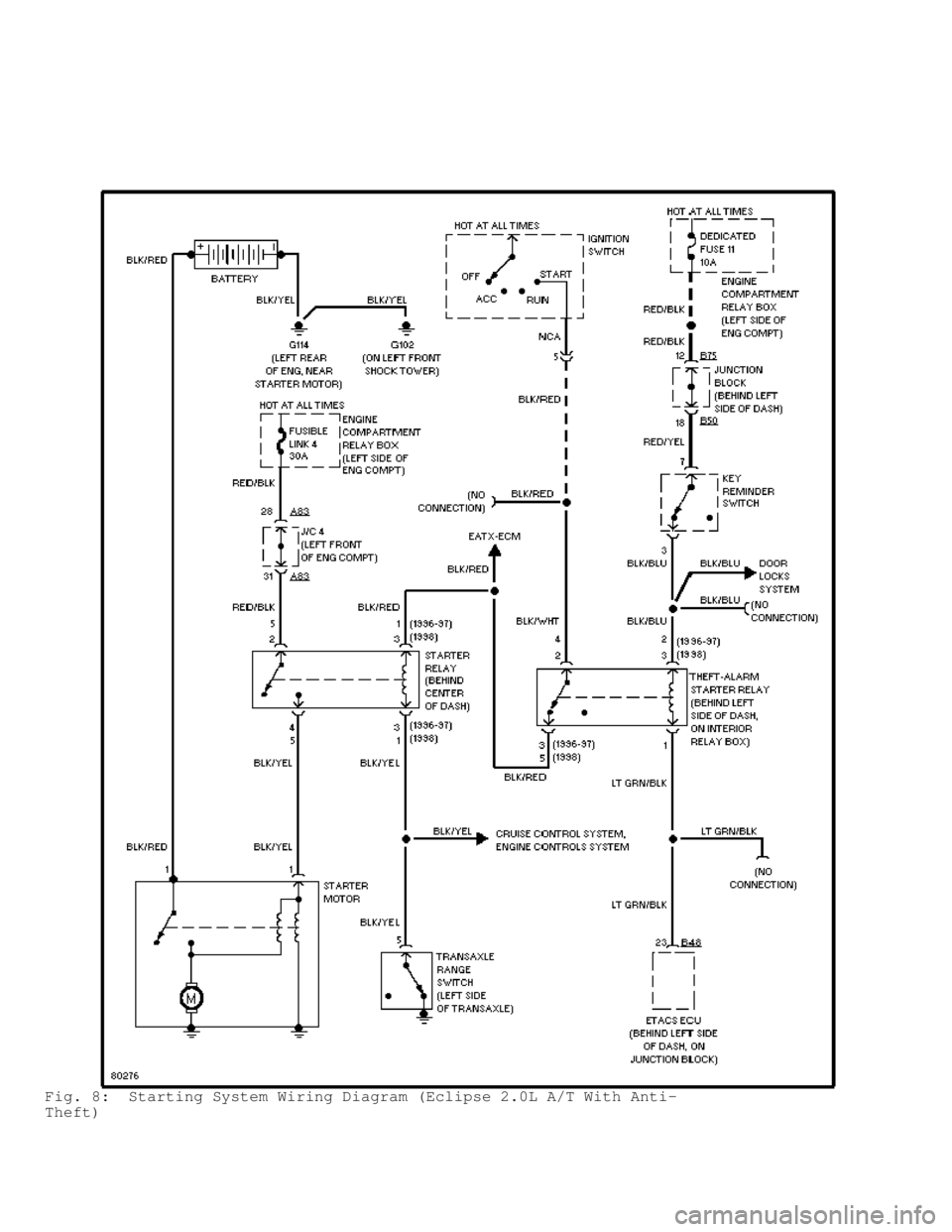

Fig. 8: Starting System Wiring Diagram (Eclipse 2.0L A/T With Anti-
Theft)

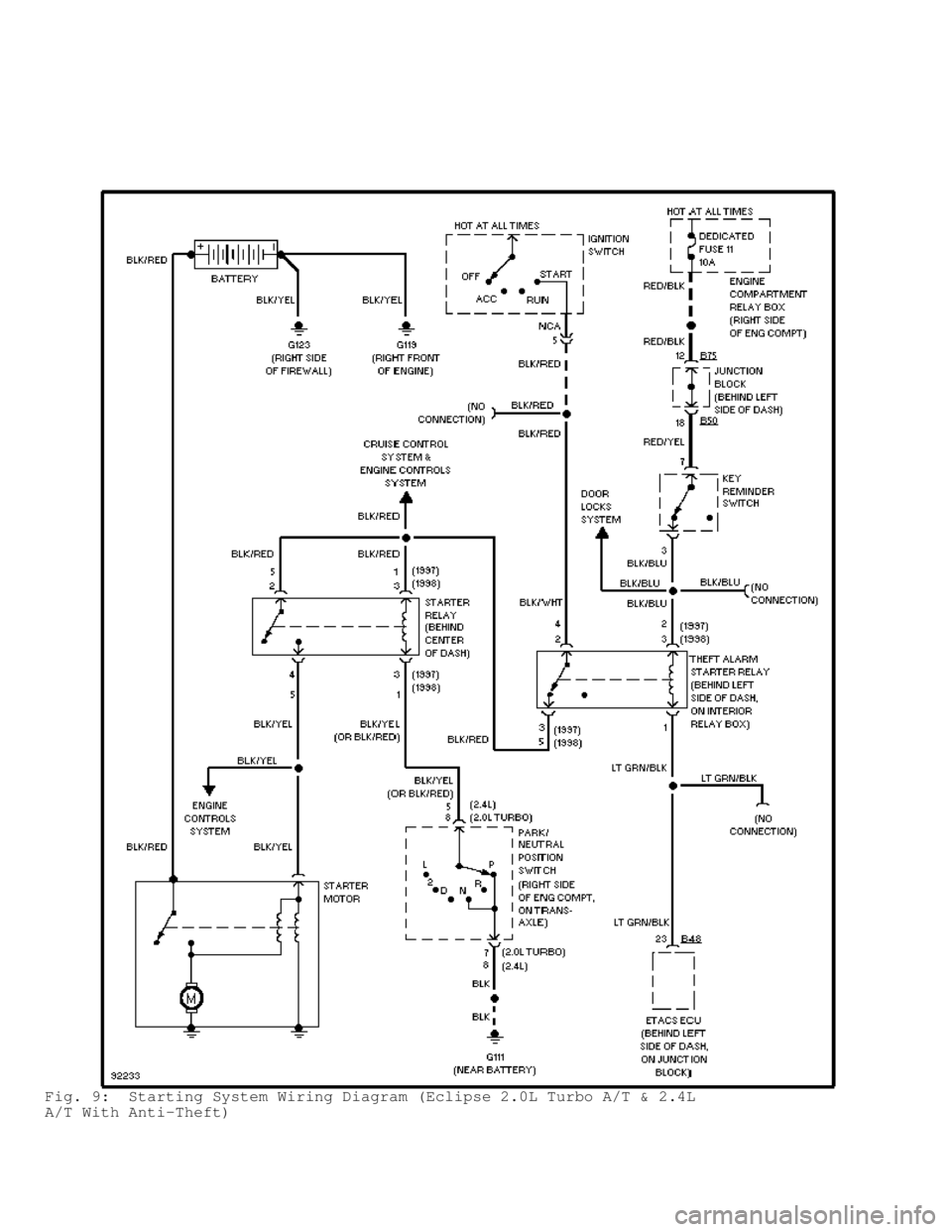

Fig. 9: Starting System Wiring Diagram (Eclipse 2.0L Turbo A/T & 2.4L
A/T With Anti-Theft)

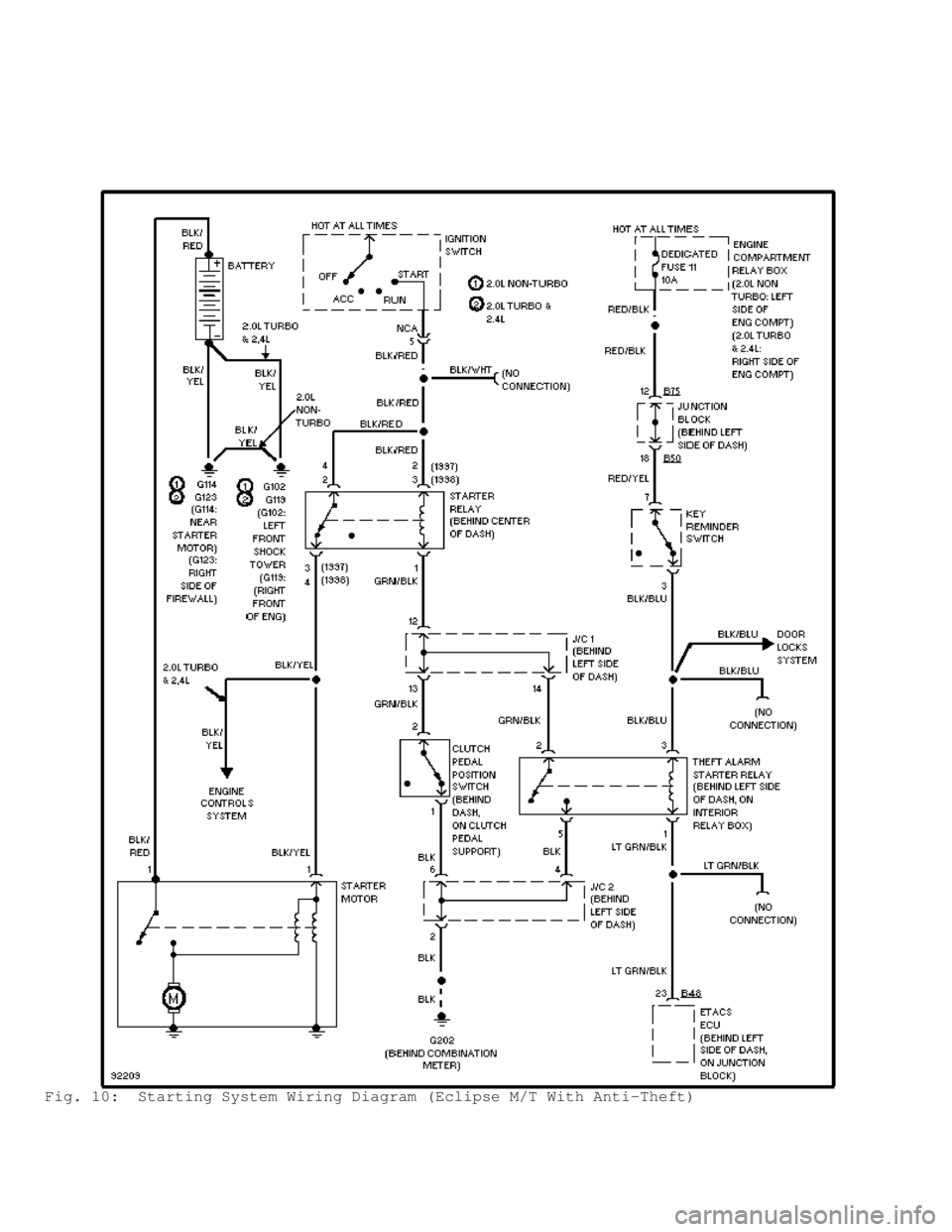

Fig. 10: Starting System Wiring Diagram (Eclipse M/T With Anti-Theft)\

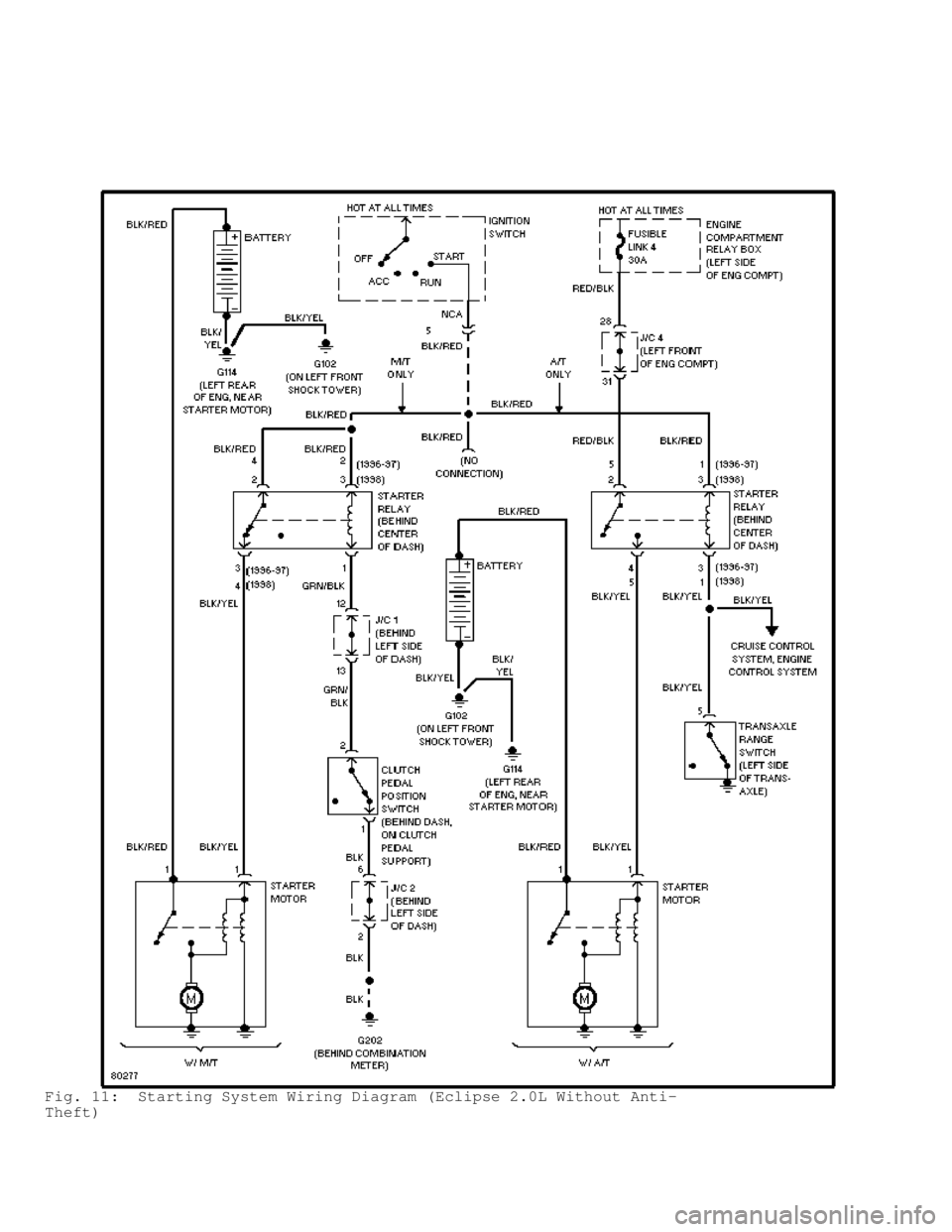

Fig. 11: Starting System Wiring Diagram (Eclipse 2.0L Without Anti-
Theft)

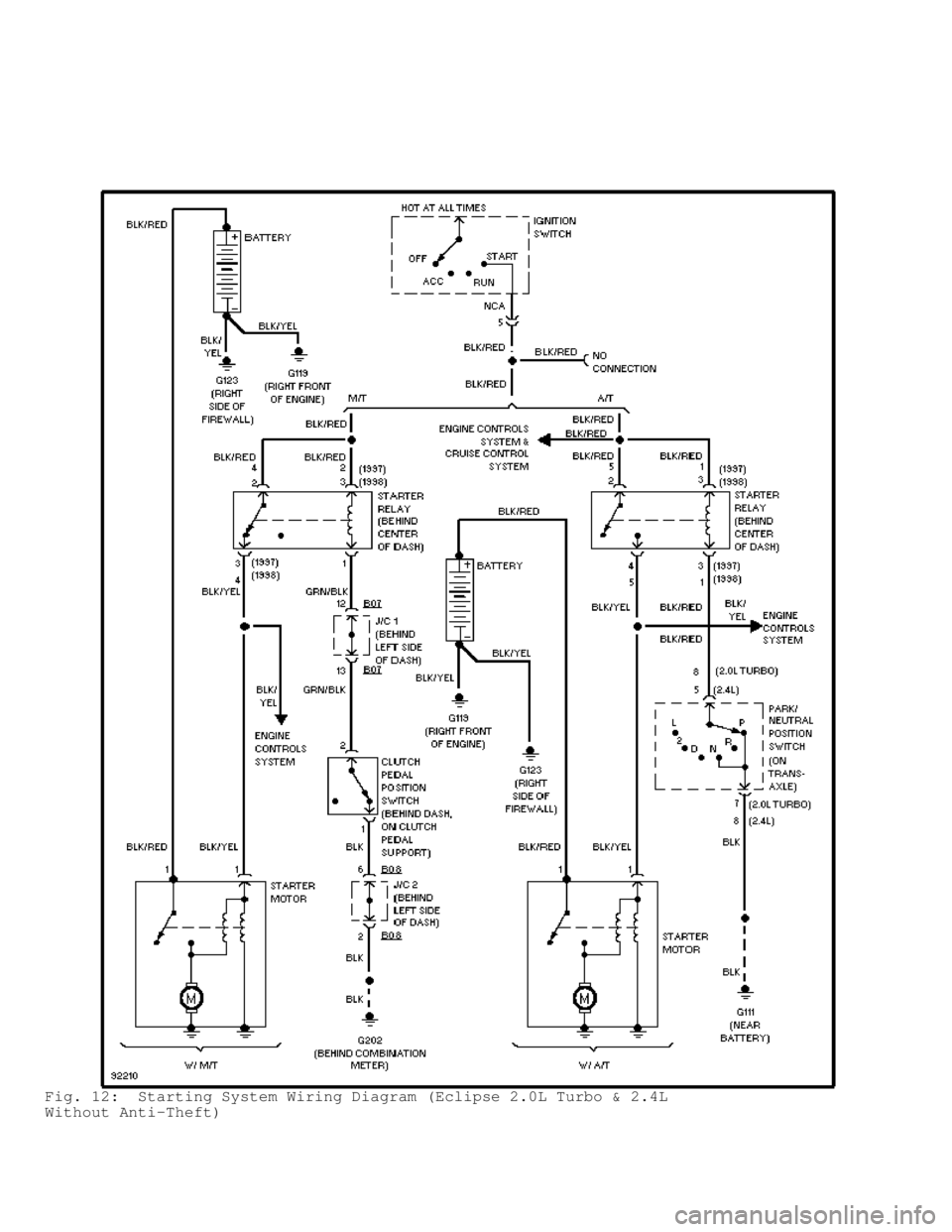

Fig. 12: Starting System Wiring Diagram (Eclipse 2.0L Turbo & 2.4L
Without Anti-Theft)

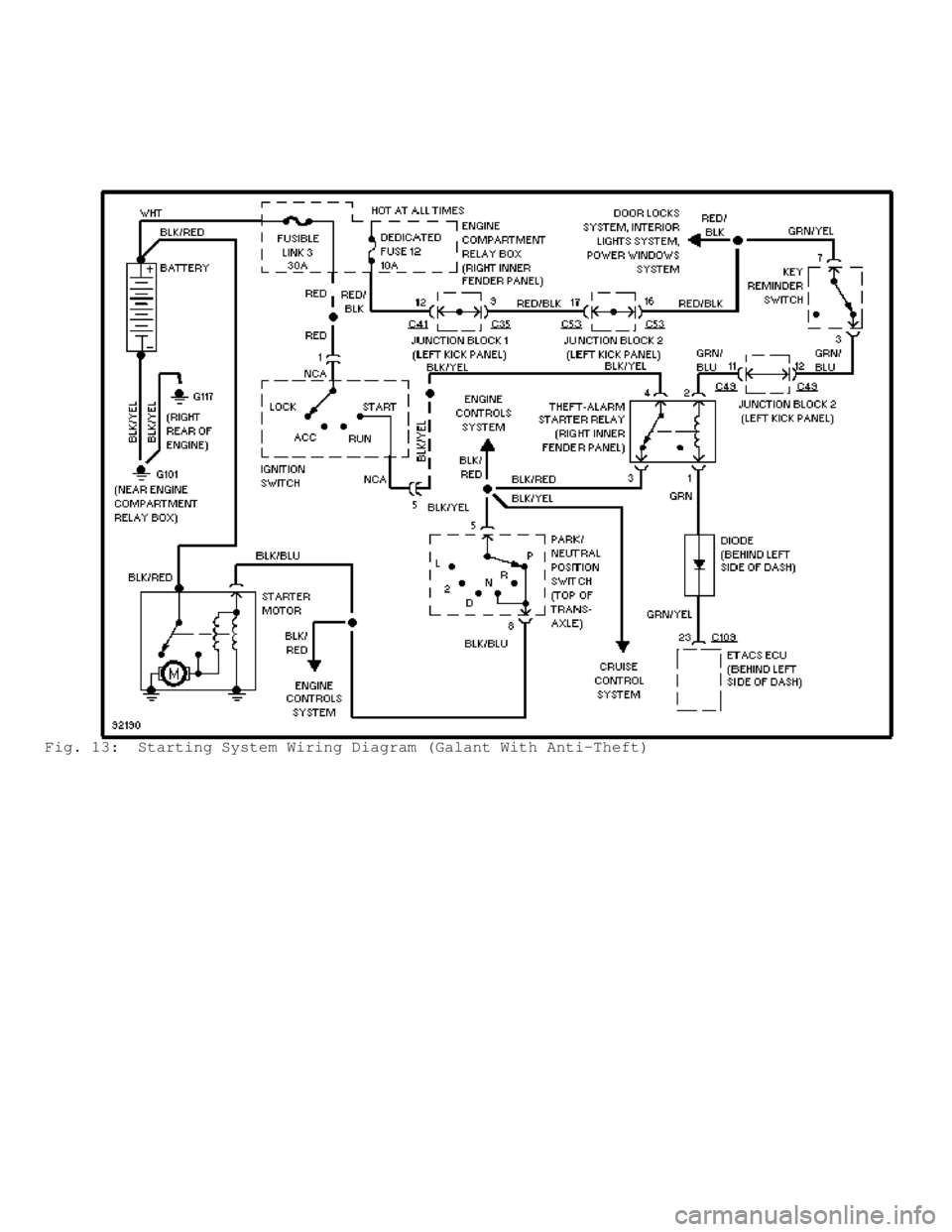

Fig. 13: Starting System Wiring Diagram (Galant With Anti-Theft)
