7038-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
8

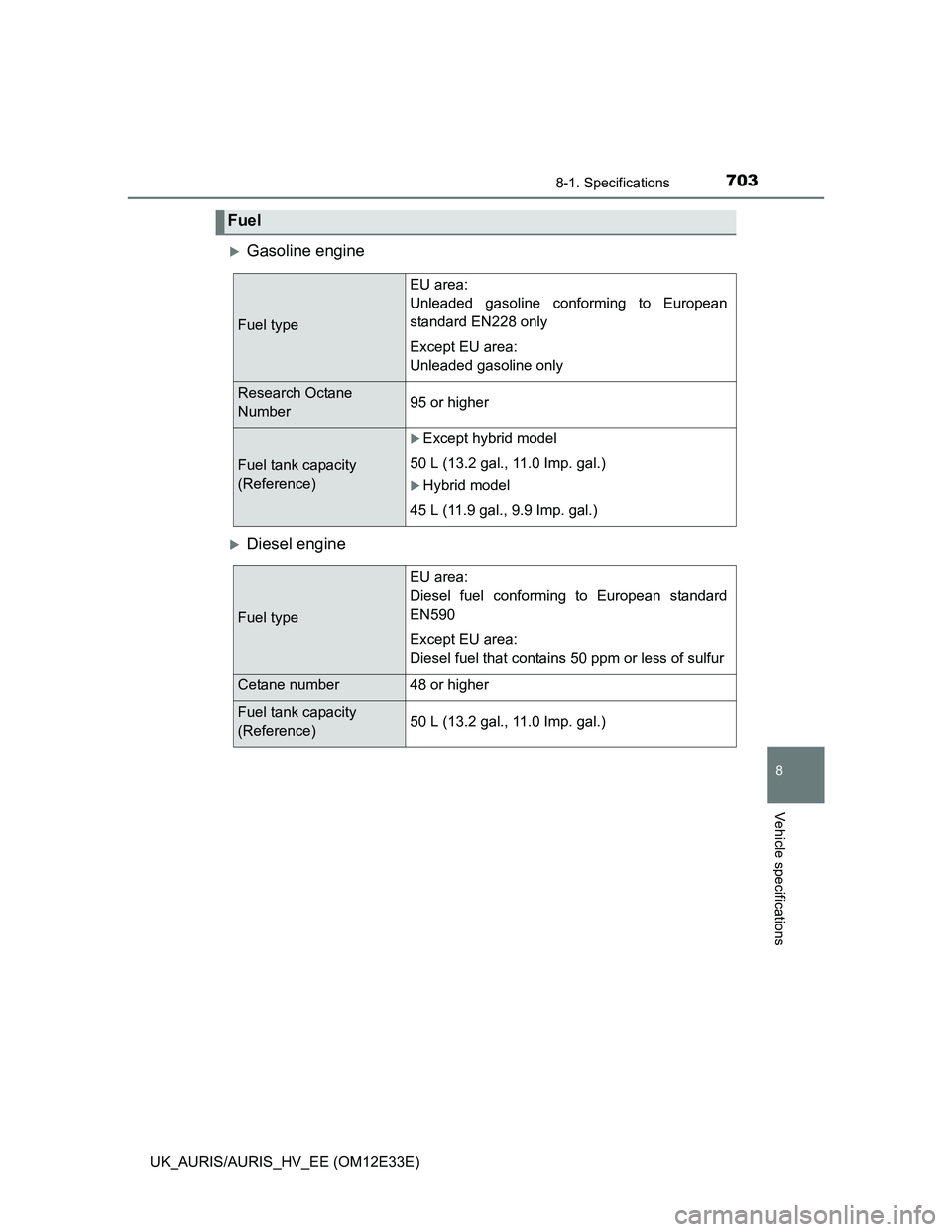

Vehicle specifications
Gasoline engine
Diesel engine
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)
Except hybrid model
50 L (13.2 gal., 11.0 Imp. gal.)
Hybrid model
45 L (11.9 gal., 9.9 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)

7048-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)

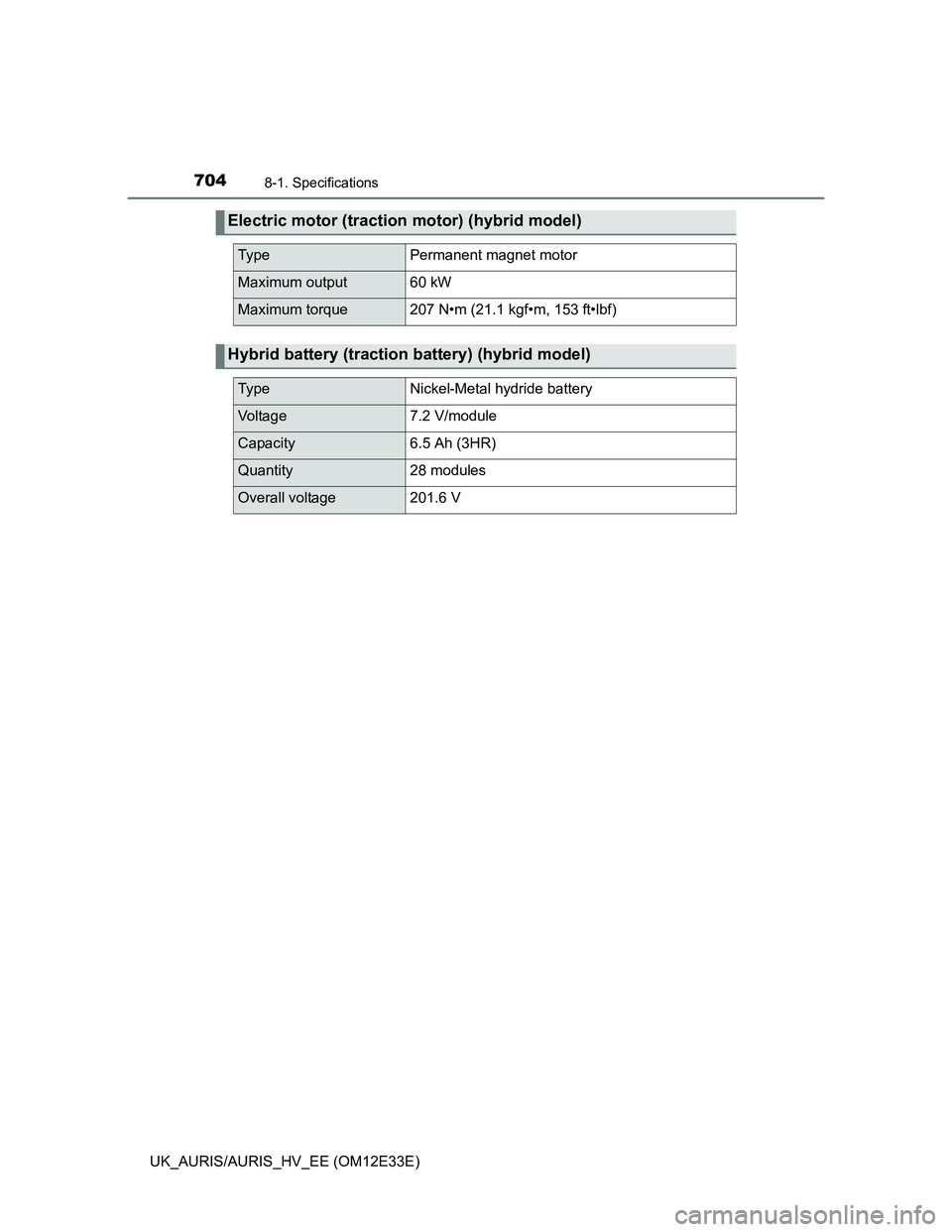

Electric motor (traction motor) (hybrid model)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery) (hybrid model)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V

7058-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine (except hybrid model) or
warm up the engine and turn off the hybrid system (hybrid model), wait
more than 5 minutes, and check the oil level on the dipstick.

Engine oil selection
Gasoline engine
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ZR-FAE and 2ZR-FXE engines
4.2 L (4.4 qt., 3.7 Imp. qt.)
1ND-TV engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
1AD-FTV engine
5.9 L (6.2 qt., 5.2 Imp. qt.)
Without filter1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ZR-FAE and 2ZR-FXE engines
3.9 L (4.1 qt., 3.4 Imp. qt.)
1ND-TV engine
3.5 L (3.7 qt., 3.1 Imp. qt.)
1AD-FTV engine
5.5 L (5.8 qt., 4.8 Imp. qt.)

7068-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)

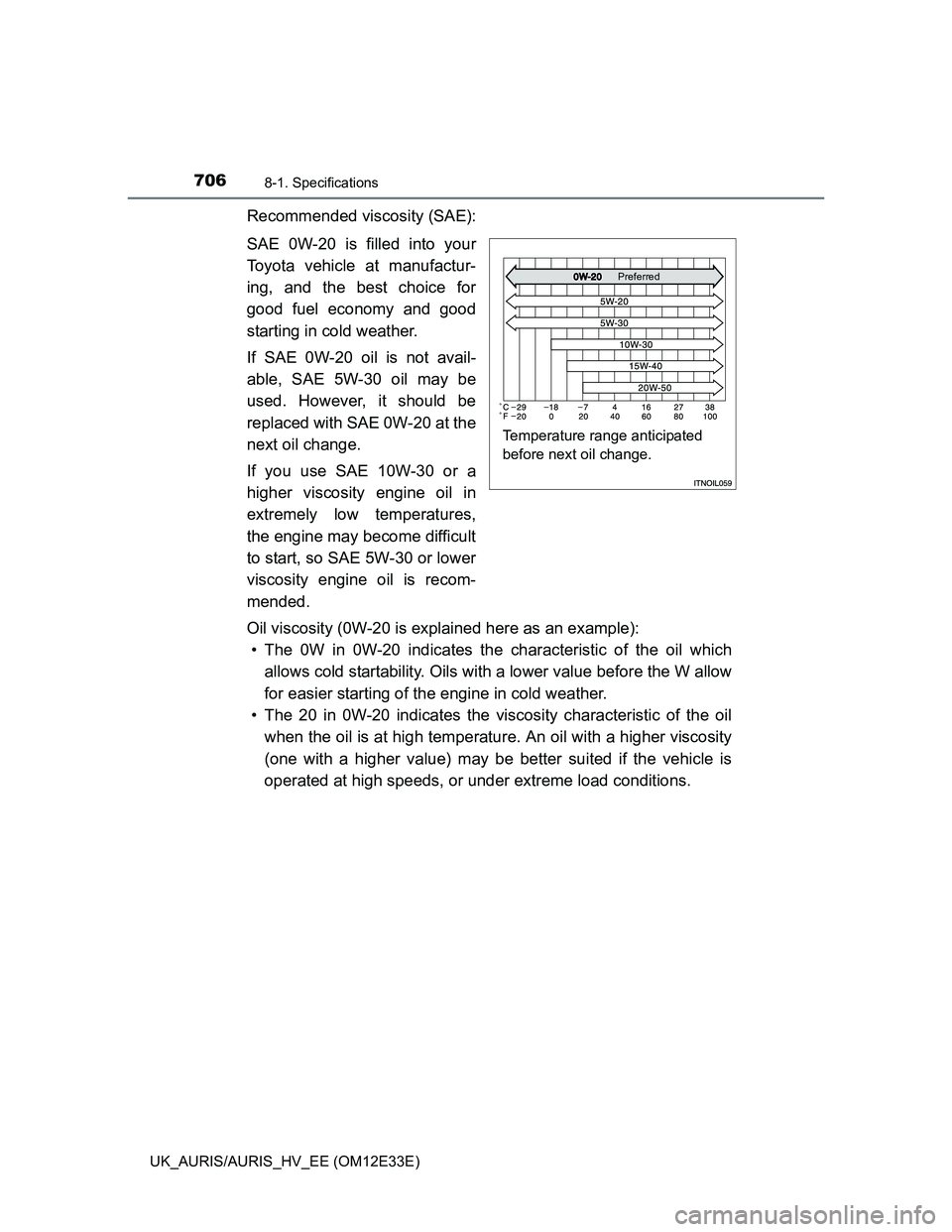

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 or lower
viscosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change.
Preferred

7078-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
8
Vehicle specifications
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality des-
ignation by API (American
Petroleum Institute) (SN)
Center portion: The SAE viscos-
ity grade (SAE 0W-20)
Lower portion: “Resource-Con-
serving” means that the oil has
fuel saving and environmental
protection capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certifica-
tion Mark is displayed on the
front of the container.
1
2

7088-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)

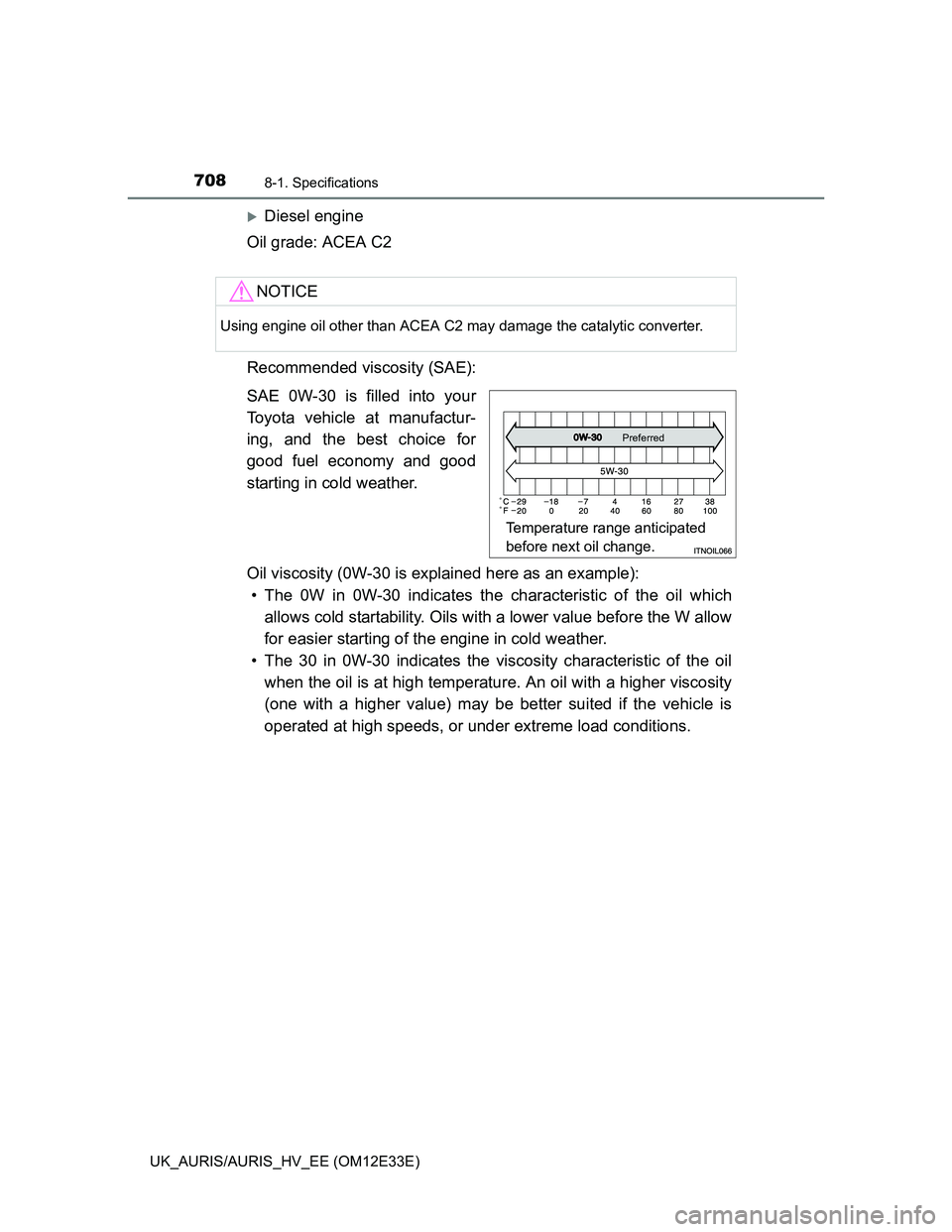

Diesel engine
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change.
Preferred

7098-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
8
Vehicle specifications

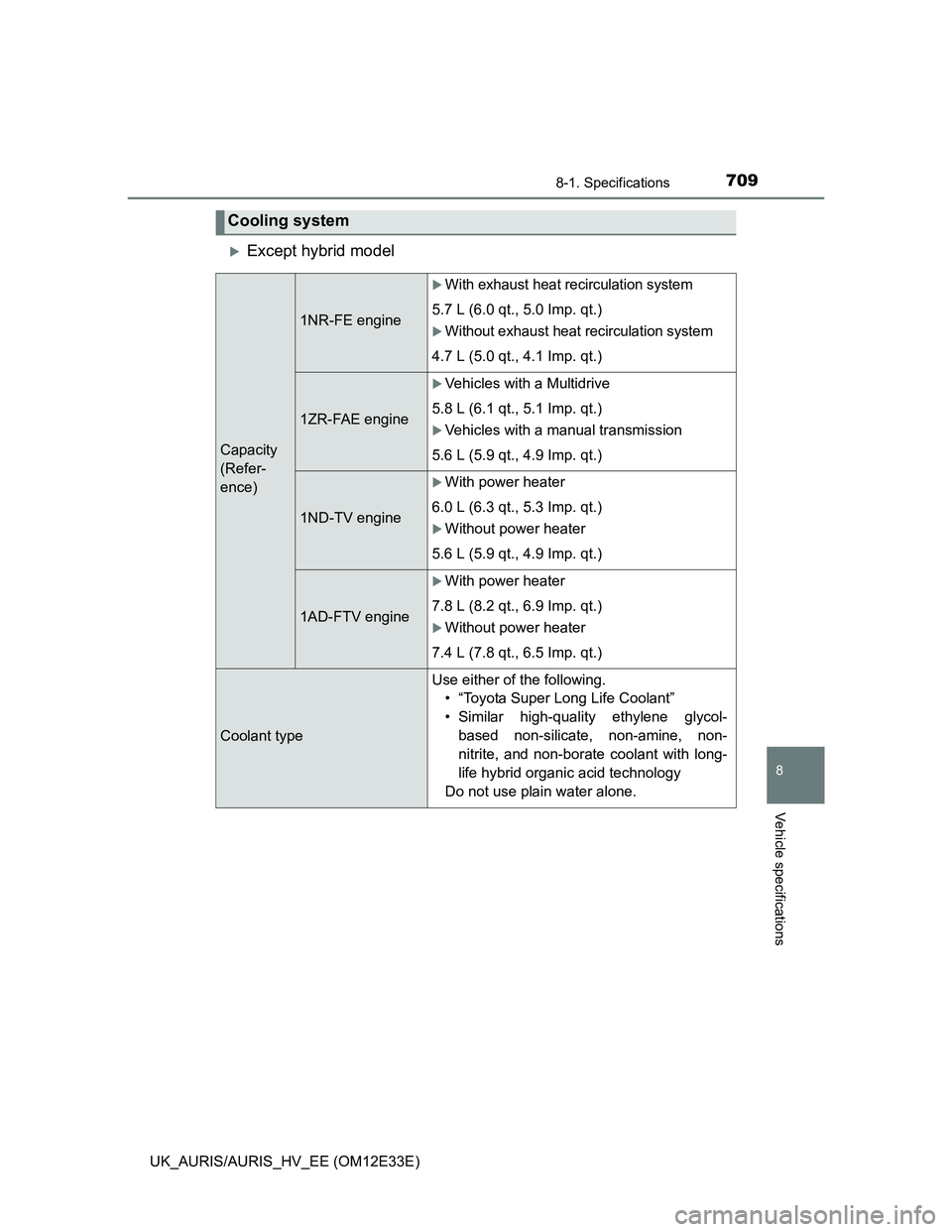

Except hybrid model
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
Vehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
Vehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
1AD-FTV engine
With power heater
7.8 L (8.2 qt., 6.9 Imp. qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.

7108-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)

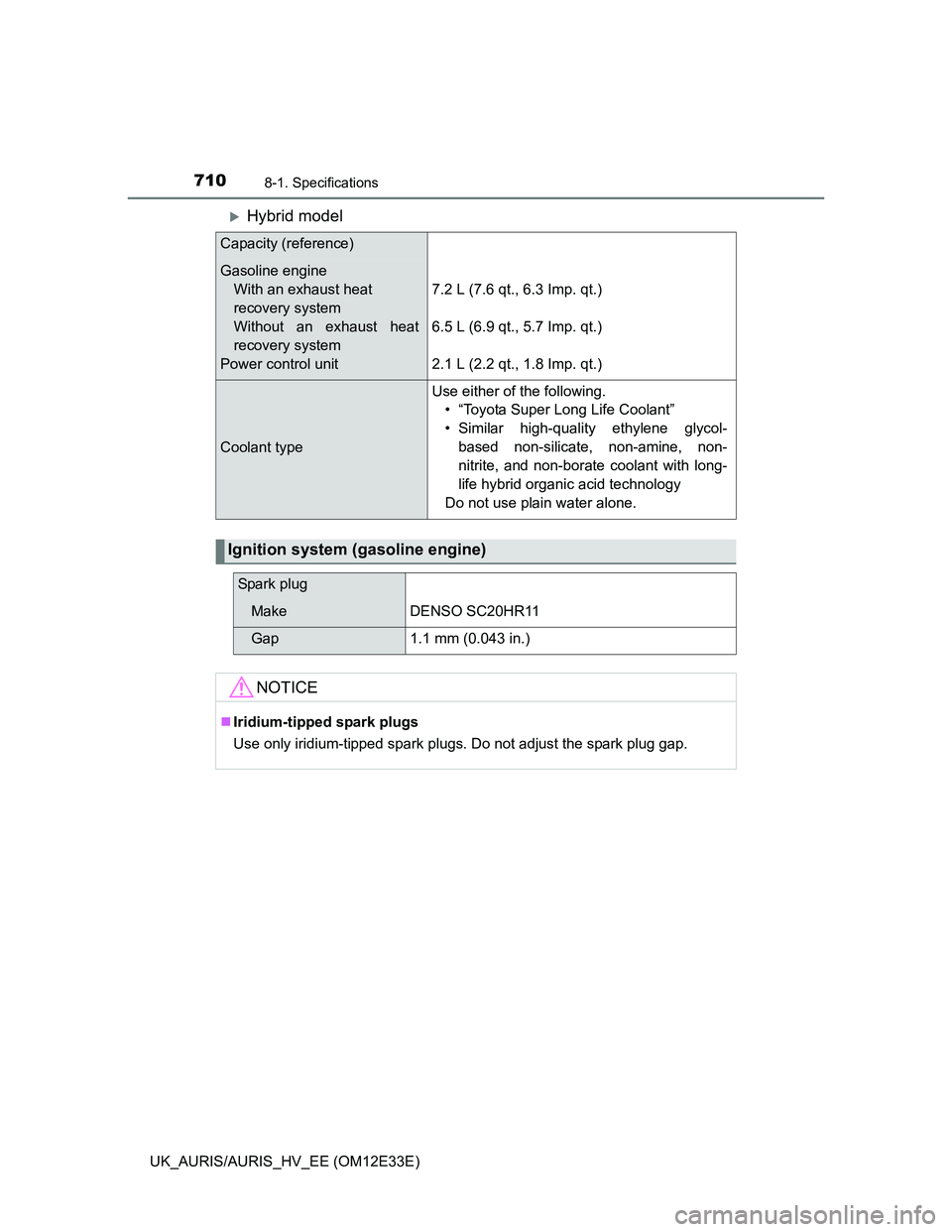

Hybrid model
Capacity (reference)
Gasoline engine
With an exhaust heat
recovery system
Without an exhaust heat
recovery system
Power control unit
7.2 L (7.6 qt., 6.3 Imp. qt.)
6.5 L (6.9 qt., 5.7 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (gasoline engine)
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
