2012 TOYOTA AURIS Owners Manual (in English)

5436-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
10EFI-MAIN30 A
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2
11HORN10 AHorn
12D/C CUT30 ADOME, ECU-B NO.1, RADIO
13AM27.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, IG2, multi-mode manual trans-
mission, Stop & Start system
14ECU-B NO.35 AElectric power steering
15ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, out side rear
view mirrors, gauge and meters, multi-
mode manual transmission
16SPARE30 ASpare fuse
17HTR50 AAir conditioning system
18ABS NO.150 AABS, VSC
19DEF30 ARear window defogger, outside rear view
mirror defoggers
20RDI40 AElectric cooling fan
21ABS NO.230 AABS, VSC
22DRL10 ADaytime running lights
23RADIO20 AAudio system
24DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
25ECU-B NO.110 A
Wireless remote control, main body ECU,
smart entry & start system, clock, VSC,
power door lock system
26SPARE20 ASpare fuse
27EFI NO.2*210 AMultiport fuel injection system/sequential
multiport fuel injection system
28EFI NO.110 AMultiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

5446-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
*1: Vehicles with 1AD-FTV engine
*2: Vehicles with 1ND-TV engine
*3: Vehicles without discharge headlights (low beam)
*4: Vehicles with discharge headlights (low beam)
*5: Vehicles without multi-mode manual transmission
*6: Vehicles with multi-mode manual transmission
29MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
30SPARE10 ASpare fuse
31H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
32H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
33H-LP RH-HI7.5 ARight-hand headlight (high beam)
34H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
35GLOW80 AEngine glow system
36BBC*540 AStop & Start system
AMT*650 AMulti-mode manual transmission
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39CDN FAN30 AElectric cooling fan(s)
40H-LP CLN30 AHeadlight cleaner
41PTC HIR NO.150 AAir conditioning system
42PTC HIR NO.230 AAir conditioning system
43STV HTR25 APower heater
44S-HORN10 A
45PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit

5456-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Under the instrument panel (vehicles with a diesel engine)
Ty p e A
FuseAmpereCircuit
1P/OUTLET15 APower outlet (luggage compartment)
2OBD7.5 AOn-board diagnosis system
3STOP7.5 A
Stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, high mounted stoplight, ABS,
VSC, shift lock control system, multi-
mode manual transmission
4FOG RR7.5 A Rear fog light, gauge and meters
5D/L NO.320 APower door lock system
6S/ROOF20 APanoramic roof shade
7FOG FR7.5 AFront fog lights, gauge and meters
8AM15 AIG1 RLY, ACC RLY
9D/L NO.210 ABack door lock system, power door lock
system
10DOOR NO.220 APower windows
11DOOR R/R20 APower windows
12DOOR R/L20 APower windows
13WASHER15 AWindshield washer
14WIPER NO.225 AWindshield wipers

5466-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
15WIPER RR15 ARear window wiper
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
panoramic roof shade, headlight cleaner,
audio system, AFS, windshield wipers
26HTR-IG7.5 A
Air conditioning system, rear window
defogger, power heater, Stop & Start sys-
tem
27ECU-IG NO.47.5 A
Front passenger seat belt reminder light,
airbag manual on-off system, outside
rear view mirrors, main body ECU,
Toyota parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
FuseAmpereCircuit

5476-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Ty p e B
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system,
multi-mode manual transmission
30S/HTR15 ASeat heaters
31METER5 AGauge and meters, Stop & Start system
32A/BAG7.5 ASRS airbag system
FuseAmpereCircuit
FuseAmpereCircuit
1P/SEAT30 APower seat
2DOOR NO.130 APower windows

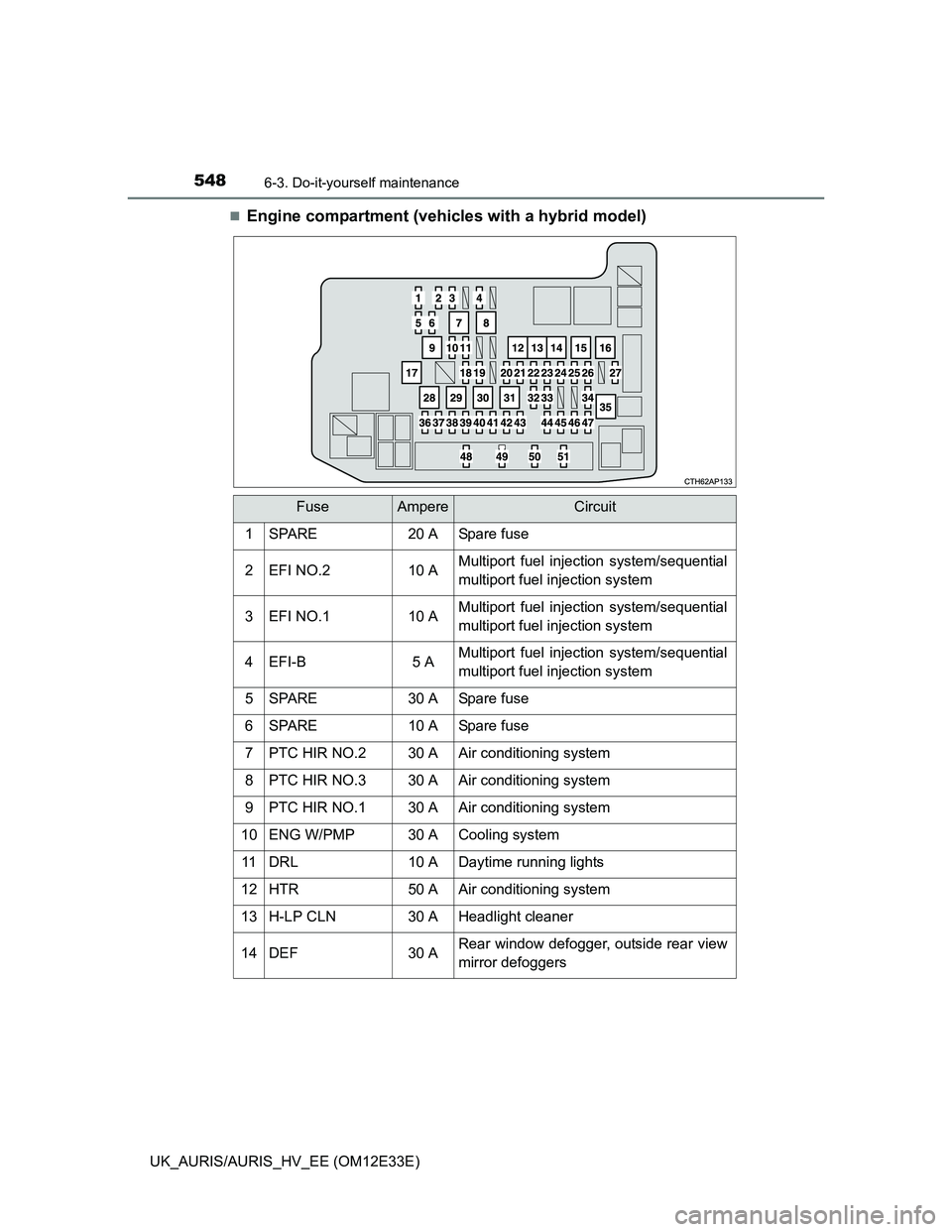

5486-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Engine compartment (vehicles with a hybrid model)
FuseAmpereCircuit
1SPARE20 ASpare fuse
2EFI NO.210 AMultiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.110 AMultiport fuel injection system/sequential
multiport fuel injection system
4EFI-B5 AMultiport fuel injection system/sequential
multiport fuel injection system
5SPARE30 ASpare fuse
6SPARE10 ASpare fuse
7PTC HIR NO.230 AAir conditioning system
8PTC HIR NO.330 AAir conditioning system
9PTC HIR NO.130 AAir conditioning system
10ENG W/PMP30 ACooling system
11DRL10 ADaytime running lights
12HTR50 AAir conditioning system
13H-LP CLN30 AHeadlight cleaner
14DEF30 ARear window defogger, outside rear view
mirror defoggers

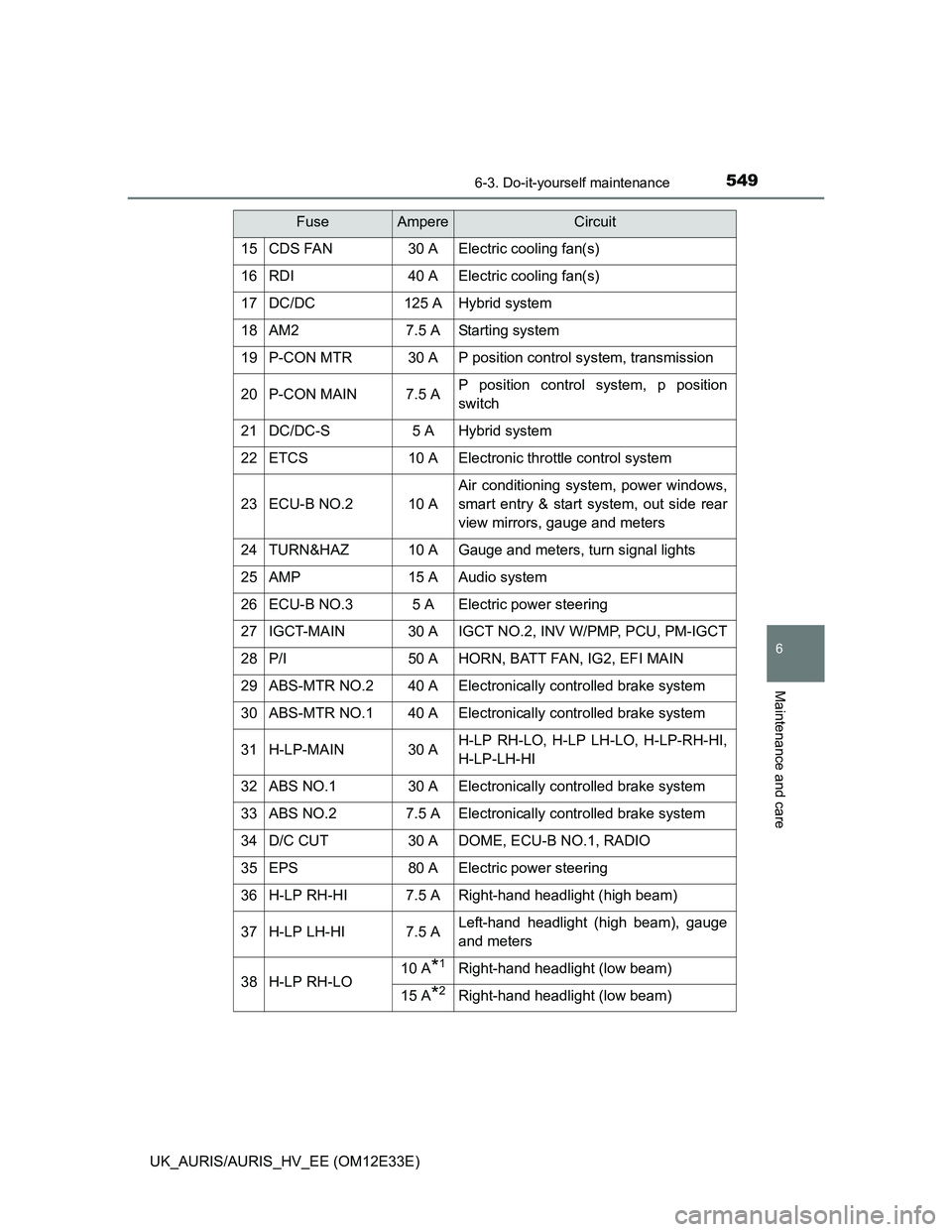

5496-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
15CDS FAN30 AElectric cooling fan(s)
16RDI40 AElectric cooling fan(s)
17DC/DC125 AHybrid system
18AM27.5 AStarting system
19P-CON MTR30 AP position control system, transmission
20P-CON MAIN7.5 AP position control system, p position
switch
21DC/DC-S5 AHybrid system
22ETCS10 AElectronic throttle control system
23ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, out side rear
view mirrors, gauge and meters
24TURN&HAZ10 AGauge and meters, turn signal lights
25AMP15 AAudio system
26ECU-B NO.35 AElectric power steering
27IGCT-MAIN30 AIGCT NO.2, INV W/PMP, PCU, PM-IGCT
28P/I50 AHORN, BATT FAN, IG2, EFI MAIN
29ABS-MTR NO.240 AElectronically controlled brake system
30ABS-MTR NO.140 AElectronically controlled brake system
31H-LP-MAIN30 AH-LP RH-LO, H-LP LH-LO, H-LP-RH-HI,
H-LP-LH-HI
32ABS NO.130 AElectronically controlled brake system
33ABS NO.27.5 AElectronically controlled brake system
34D/C CUT30 ADOME, ECU-B NO.1, RADIO
35EPS80 AElectric power steering
36H-LP RH-HI7.5 ARight-hand headlight (high beam)
37H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
38H-LP RH-LO10 A*1Right-hand headlight (low beam)
15 A*2Right-hand headlight (low beam)
FuseAmpereCircuit

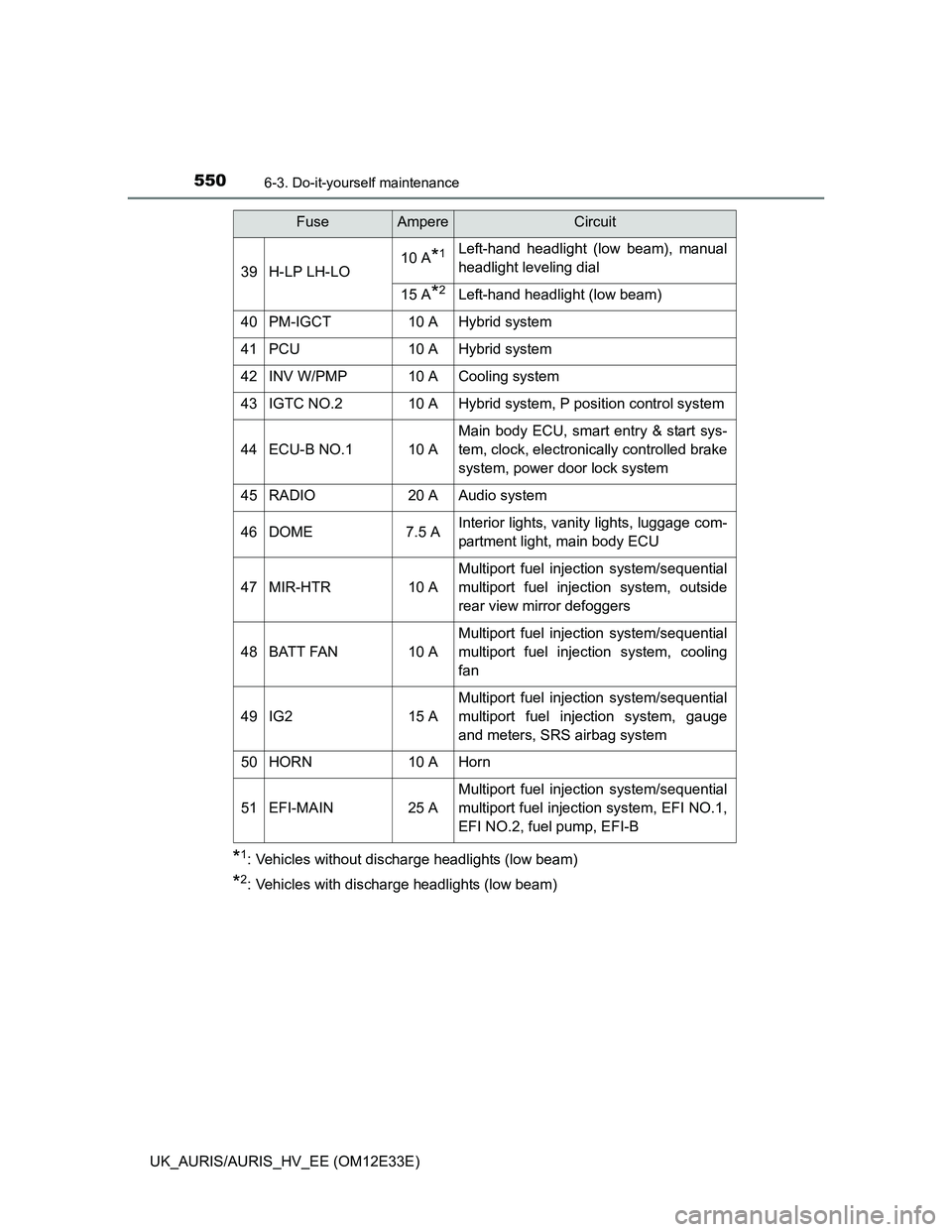

5506-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
*1: Vehicles without discharge headlights (low beam)
*2: Vehicles with discharge headlights (low beam)
39H-LP LH-LO10 A*1Left-hand headlight (low beam), manual
headlight leveling dial
15 A*2Left-hand headlight (low beam)
40PM-IGCT10 AHybrid system
41PCU10 AHybrid system
42INV W/PMP10 ACooling system
43IGTC NO.210 AHybrid system, P position control system
44ECU-B NO.110 A
Main body ECU, smart entry & start sys-
tem, clock, electronically controlled brake
system, power door lock system
45RADIO20 AAudio system
46DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
47MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
48BATT FAN10 A
Multiport fuel injection system/sequential
multiport fuel injection system, cooling
fan
49IG215 A
Multiport fuel injection system/sequential
multiport fuel injection system, gauge
and meters, SRS airbag system
50HORN10 AHorn
51EFI-MAIN25 A
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2, fuel pump, EFI-B
FuseAmpereCircuit
