2012 TOYOTA AURIS Owners Manual (in English)

4555-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Lift the deck board up.
Secure the deck board.
Remove the hook on the
backside of the deck board.
Attach the hook to the upper
edge of the back door open-
ing as shown.
Securing the deck board
1
2
1
2

4565-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)

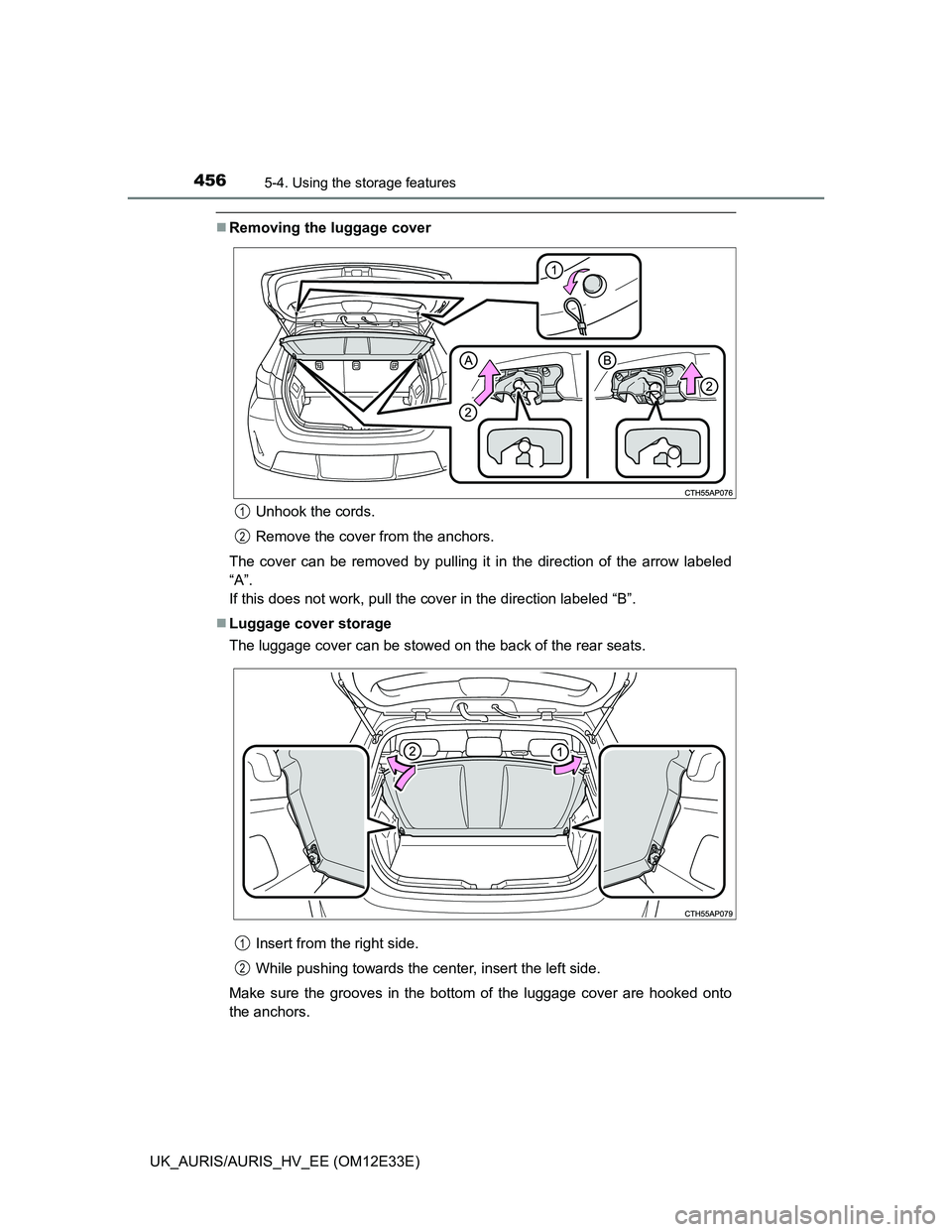

Removing the luggage cover
Unhook the cords.
Remove the cover from the anchors.
The cover can be removed by pulling it in the direction of the arrow labeled
“A”.
If this does not work, pull the cover in the direction labeled “B”.
Luggage cover storage
The luggage cover can be stowed on the back of the rear seats.
Insert from the right side.
While pushing towards the center, insert the left side.
Make sure the grooves in the bottom of the luggage cover are hooked onto
the anchors.
1
2
1
2

4575-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features

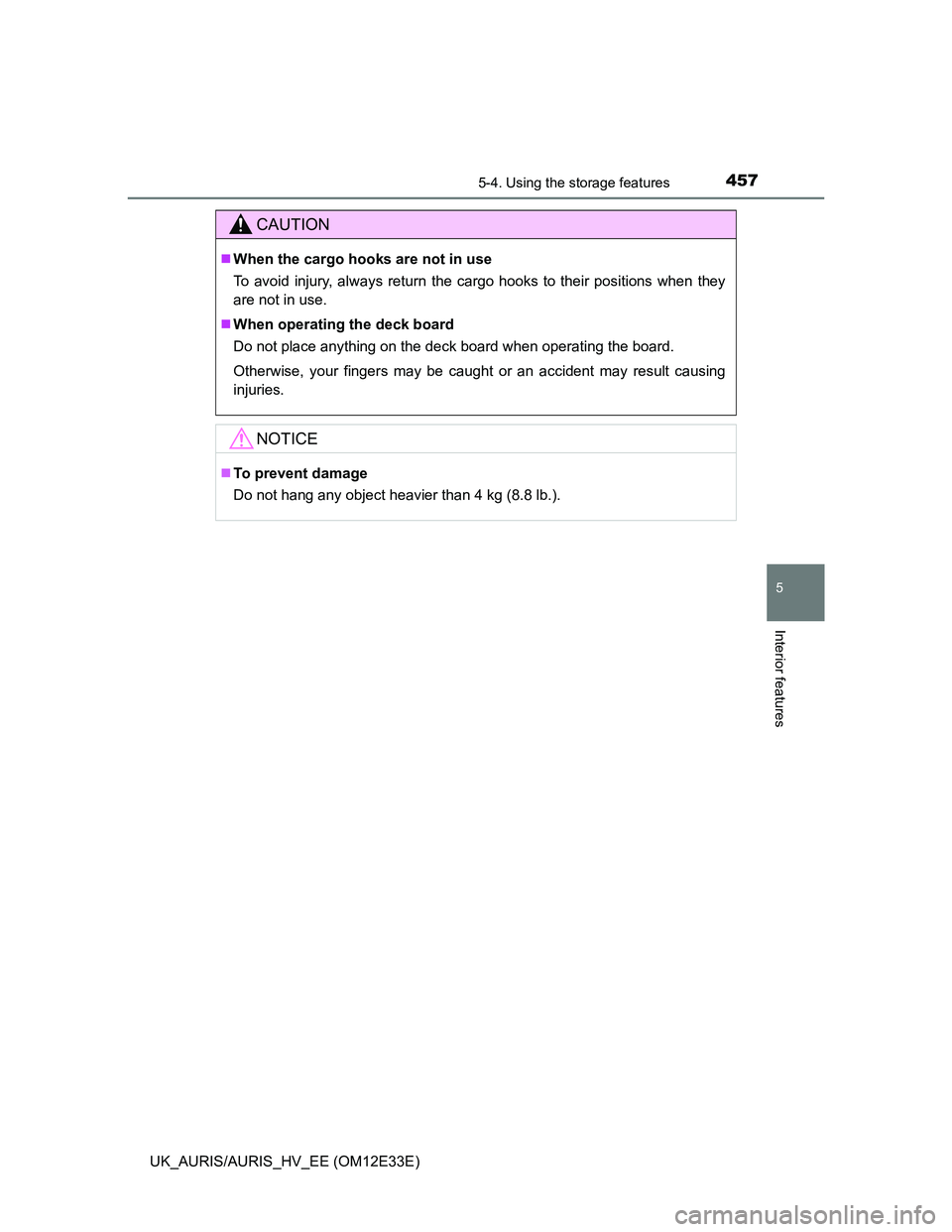

CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
When operating the deck board
Do not place anything on the deck board when operating the board.
Otherwise, your fingers may be caught or an accident may result causing
injuries.
NOTICE
To prevent damage
Do not hang any object heavier than 4 kg (8.8 lb.).

458
UK_AURIS/AURIS_HV_EE (OM12E33E)

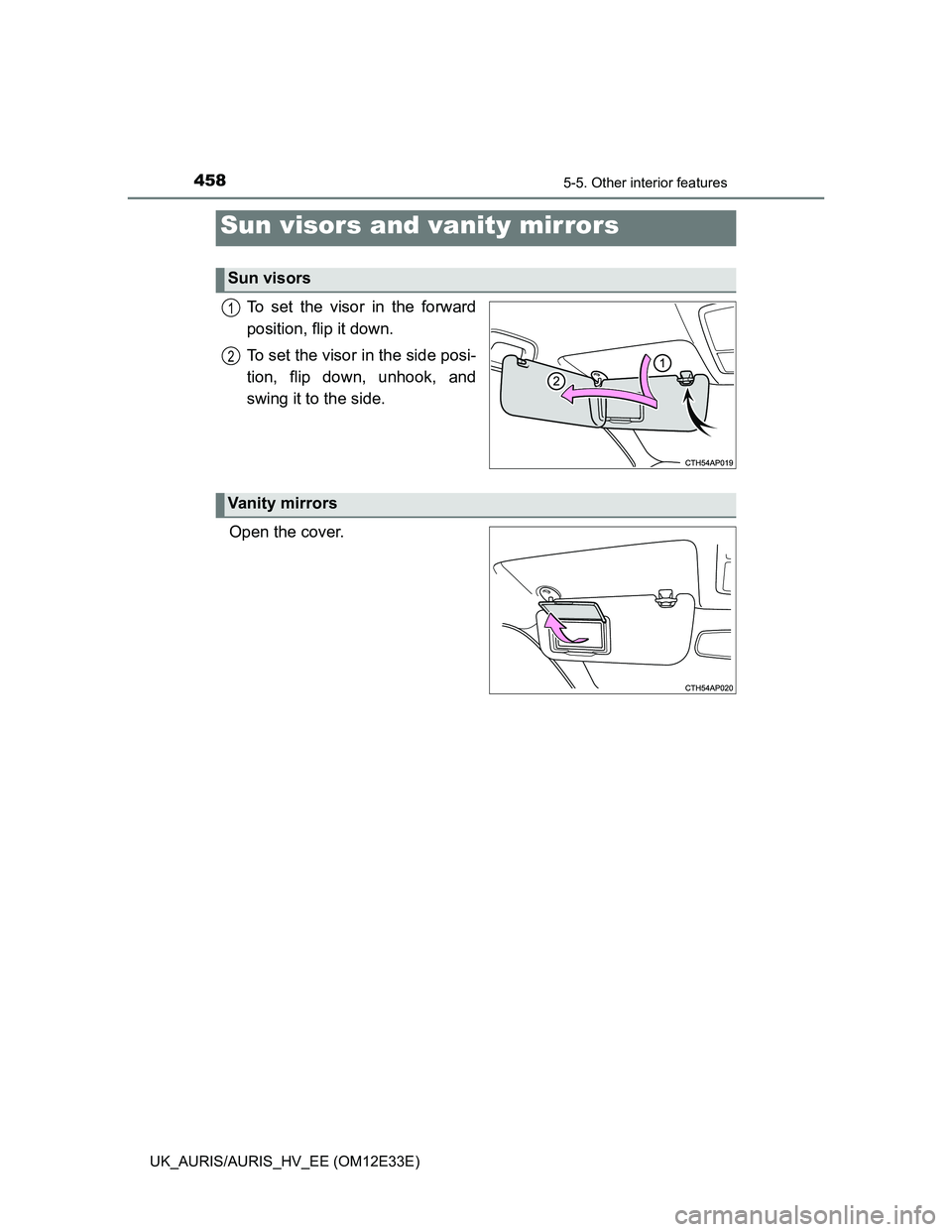

5-5. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
Sun visors and vanity mirrors
Sun visors
1
2
Vanity mirrors

4595-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour*
*: e.g.1:00 to 1:29  1:00
1:30 to 1:59  2:00
The clock is displayed when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model
The power switch is in ACCESSORY or ON mode.
When the 12-volt battery is disconnected
The clock data will be reset.
Clock
The clock can be adjusted by pressing the buttons.
1
2
3

4605-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Outside temperature display
The temperature display shows temperatures within the
range of -40C (-40F) to 50C (122F).
Ty p e AType B
Ty p e CType D

4615-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
The outside temperature is displayed when
Vehicles without smart entry & start system (except hybrid model)
The engine switch is in the “ON” position.
Vehicles with smart entry & start system (except hybrid model)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode.
Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When the vehicle is stopped, or moving at low speeds (less than 15 km/h [9
mph]).
When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
Vehicles with multi-information display: If the outside temperature is 3°C
(37.4F) or less, the ice warning indicator flashes 10 times, and then
illuminates.
When “--C” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

4625-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)

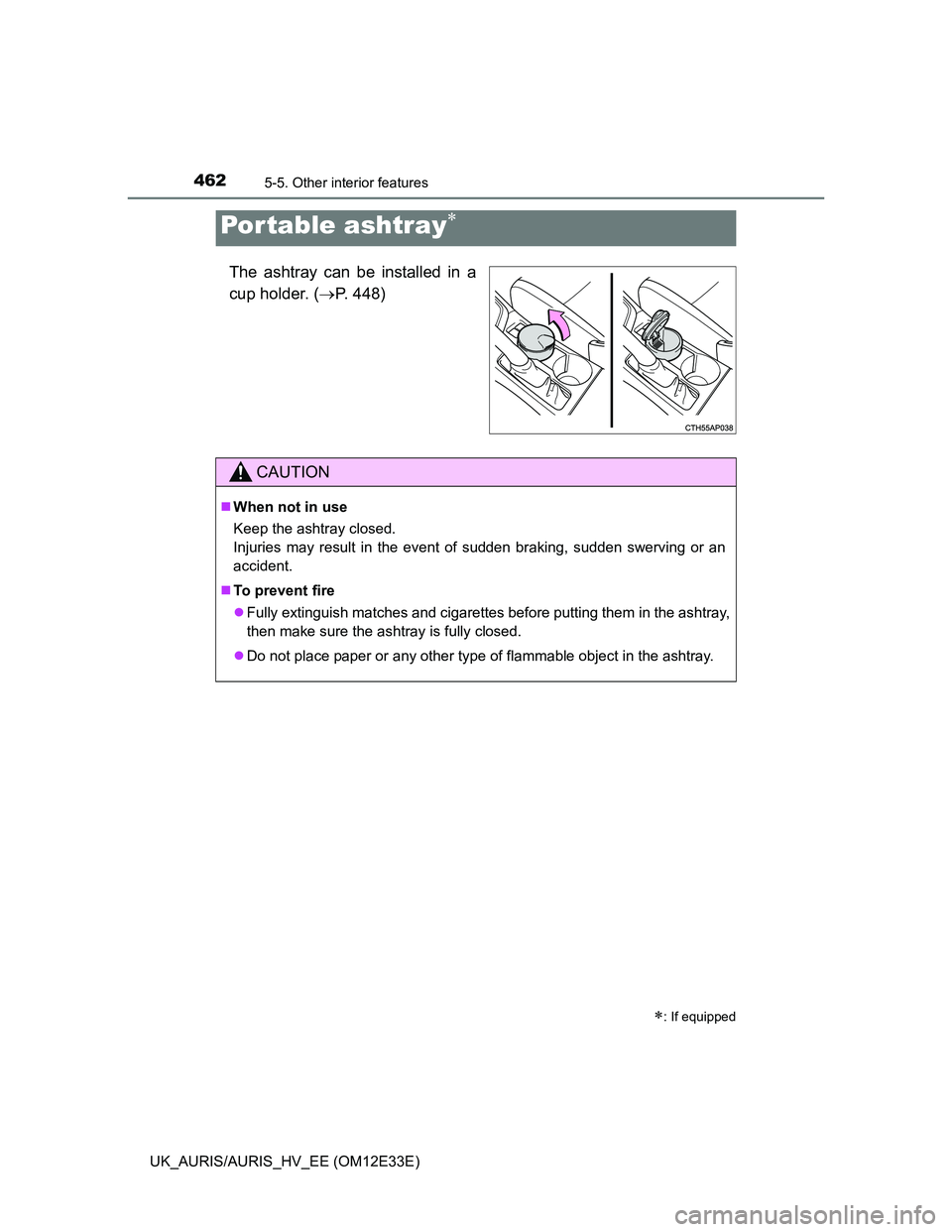

The ashtray can be installed in a
cup holder. (P. 448)
Por table ashtray
: If equipped
CAUTION
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
To prevent fire
Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
Do not place paper or any other type of flammable object in the ashtray.
