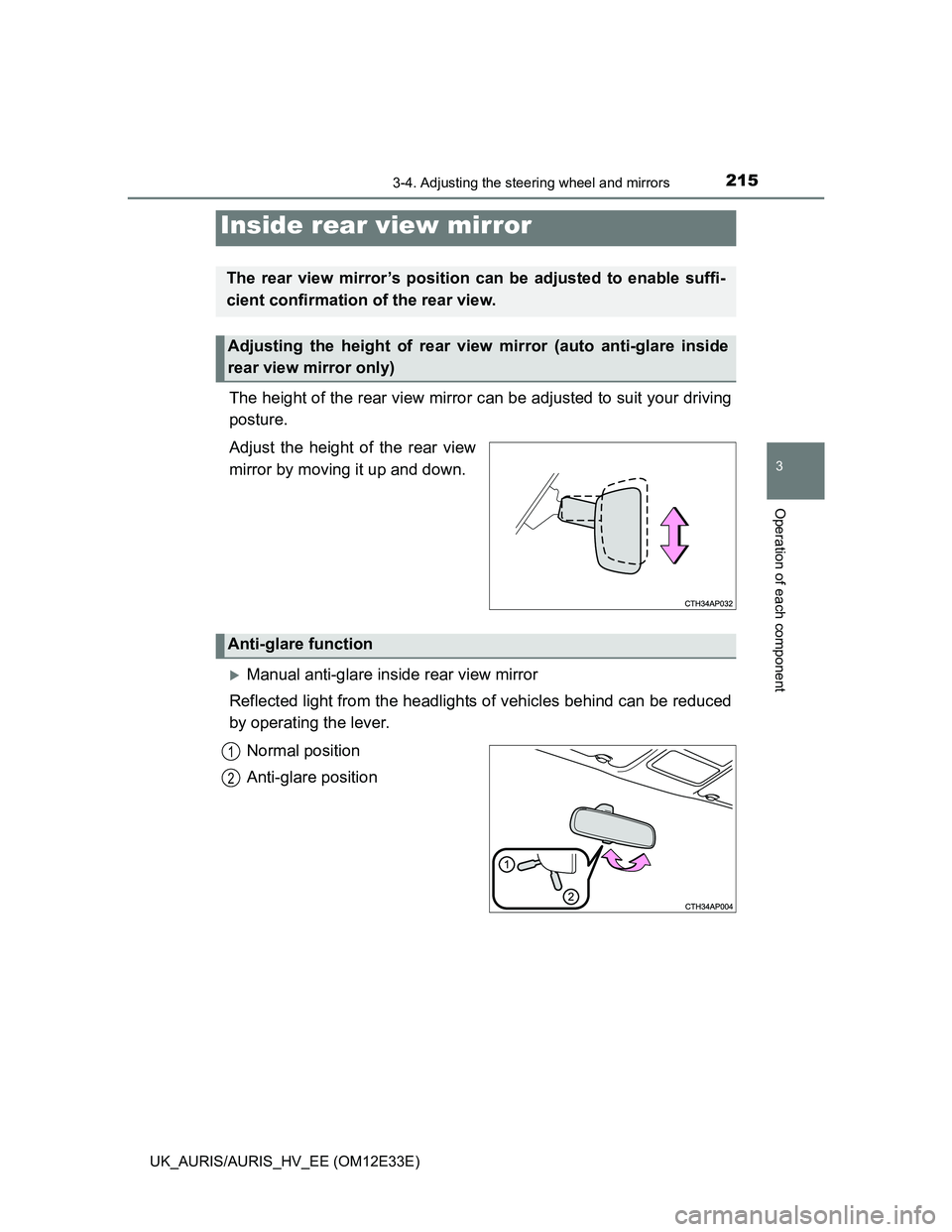

2153-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (auto anti-glare inside
rear view mirror only)
Anti-glare function
1
2

2163-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12E33E)
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
Except hybrid model: The function
will set to ON mode each time the
engine switch is turned to IGNI-
TION ON mode.
Hybrid model: The function will set
to ON mode each time the power
switch is turned to ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

2173-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding the mirrors
Manual typePower type (if equipped)
Push the mirror back in the direc-
tion of the vehicle’s rear. Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.

2183-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12E33E)
Automatic mode allows the folding or extending of the mirrors to be
linked to locking/unlocking of the doors.
Automatic operation can be disabled by performing the following.
Except hybrid model: Turn the
engine switch to off.
Hybrid model: Turn the power
switch to off.
Press and hold the switch that
folds the mirrors and of the
mirror angle adjustment switch
at the same time for more than
2 seconds.
Performing the above proce-
dures again will reactivate auto-
matic operation.
Automatically folding and extending the mirrors (if equipped)

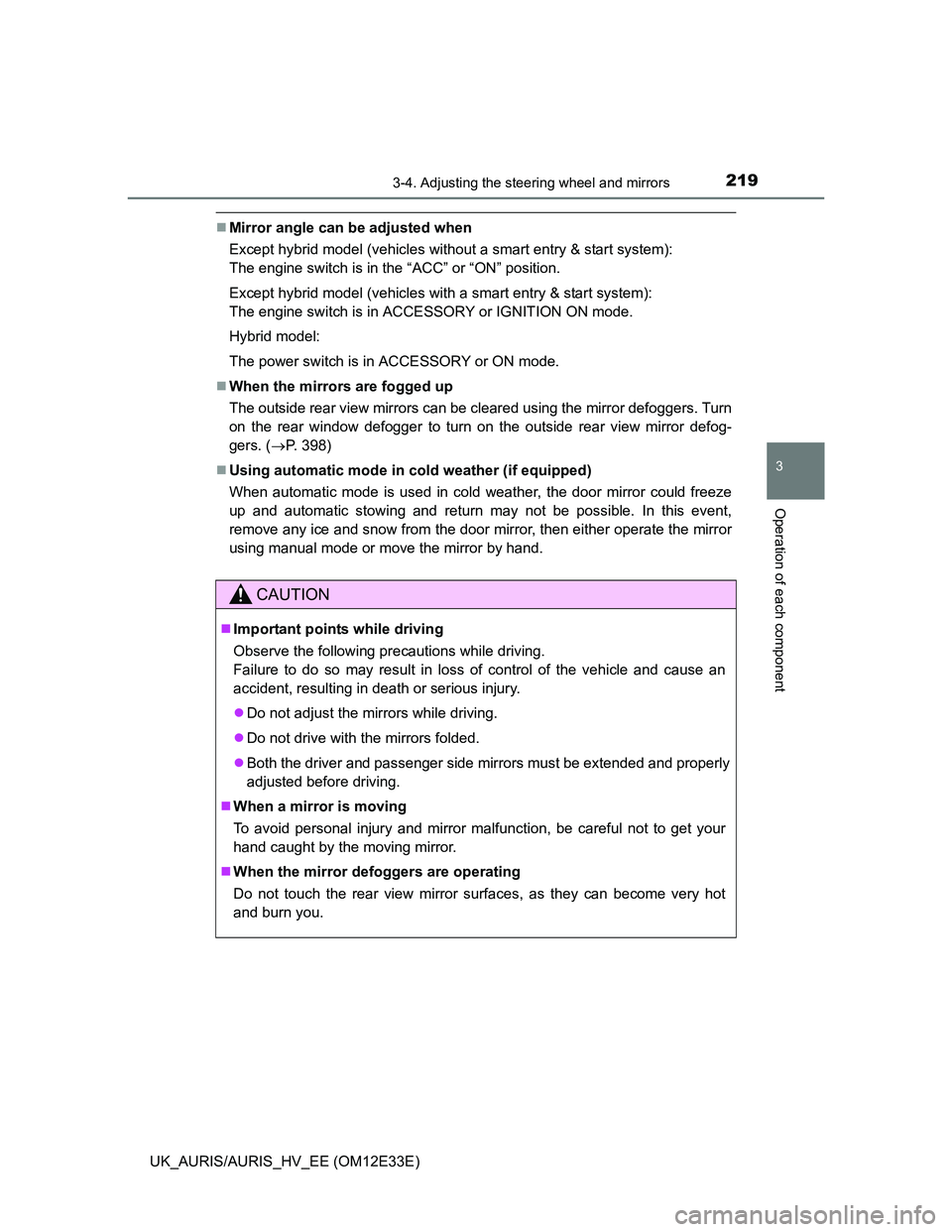

2193-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
Mirror angle can be adjusted when
Except hybrid model (vehicles without a smart entry & start system):
The engine switch is in the “ACC” or “ON” position.
Except hybrid model (vehicles with a smart entry & start system):
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model:
The power switch is in ACCESSORY or ON mode.
When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (P. 398)
Using automatic mode in cold weather (if equipped)
When automatic mode is used in cold weather, the door mirror could freeze
up and automatic stowing and return may not be possible. In this event,
remove any ice and snow from the door mirror, then either operate the mirror
using manual mode or move the mirror by hand.
CAUTION
Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

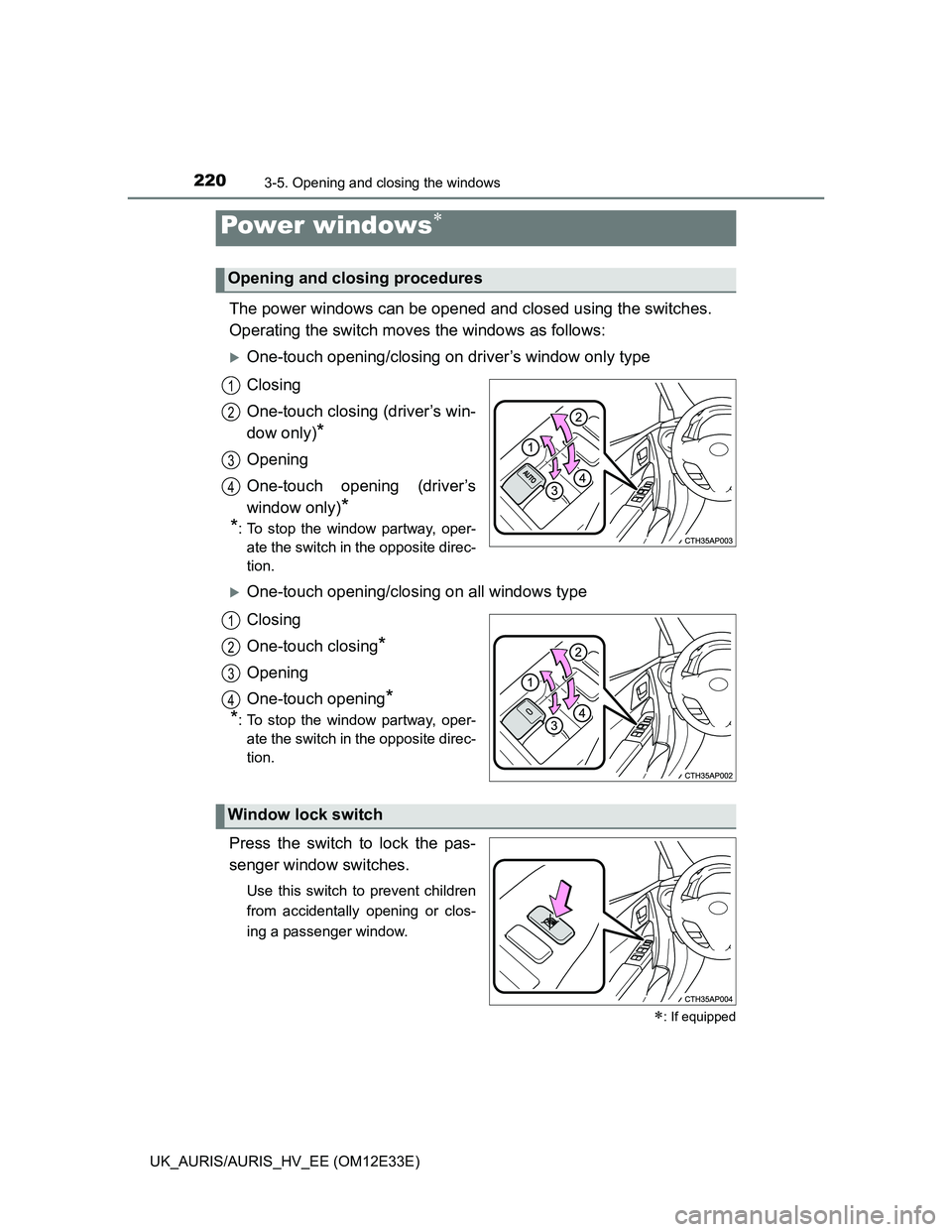

220
UK_AURIS/AURIS_HV_EE (OM12E33E)
3-5. Opening and closing the windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
One-touch opening/closing on driver’s window only type
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
One-touch opening/closing on all windows type
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Power windows
: If equipped
Opening and closing procedures
1
2
3
4
1
2
3
4
Window lock switch

2213-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
The power windows can be operated when
Except hybrid model (vehicles without a smart entry & start system):
The engine switch is in the “ON” position.
Except hybrid model (vehicles with a smart entry & start system):
The engine switch is in IGNITION ON mode.
Hybrid model: The power switch is in ON mode.
Operating the power windows after turning the engine off
Except hybrid model (vehicles without a smart entry & start system):
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Except hybrid model (vehicles with a smart entry & start system):
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
Hybrid model: The power windows can be operated for approximately 45 sec-
onds even after the power switch is turned to ACCESSORY mode or turned
off. They cannot, however, be operated once either front door is opened.
Jam protection function (windows with one-touch closing function only)
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.

2223-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12E33E)When the power window does not close normally (windows with one-
touch closing function only)
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
Except hybrid model (vehicles without a smart entry & start system): After
stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the engine switch is
turned to the “ON” position.
Except hybrid model (vehicles with a smart entry & start system): After
stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the engine switch is
turned to IGNITION ON mode.
Hybrid model: After stopping the vehicle, the window can be closed by
holding the power window switch in the one-touch closing position while the
power switch is turned to ON mode.
If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
1
2
3
