2012 TOYOTA AURIS Owners Manual (in English)

4956-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care

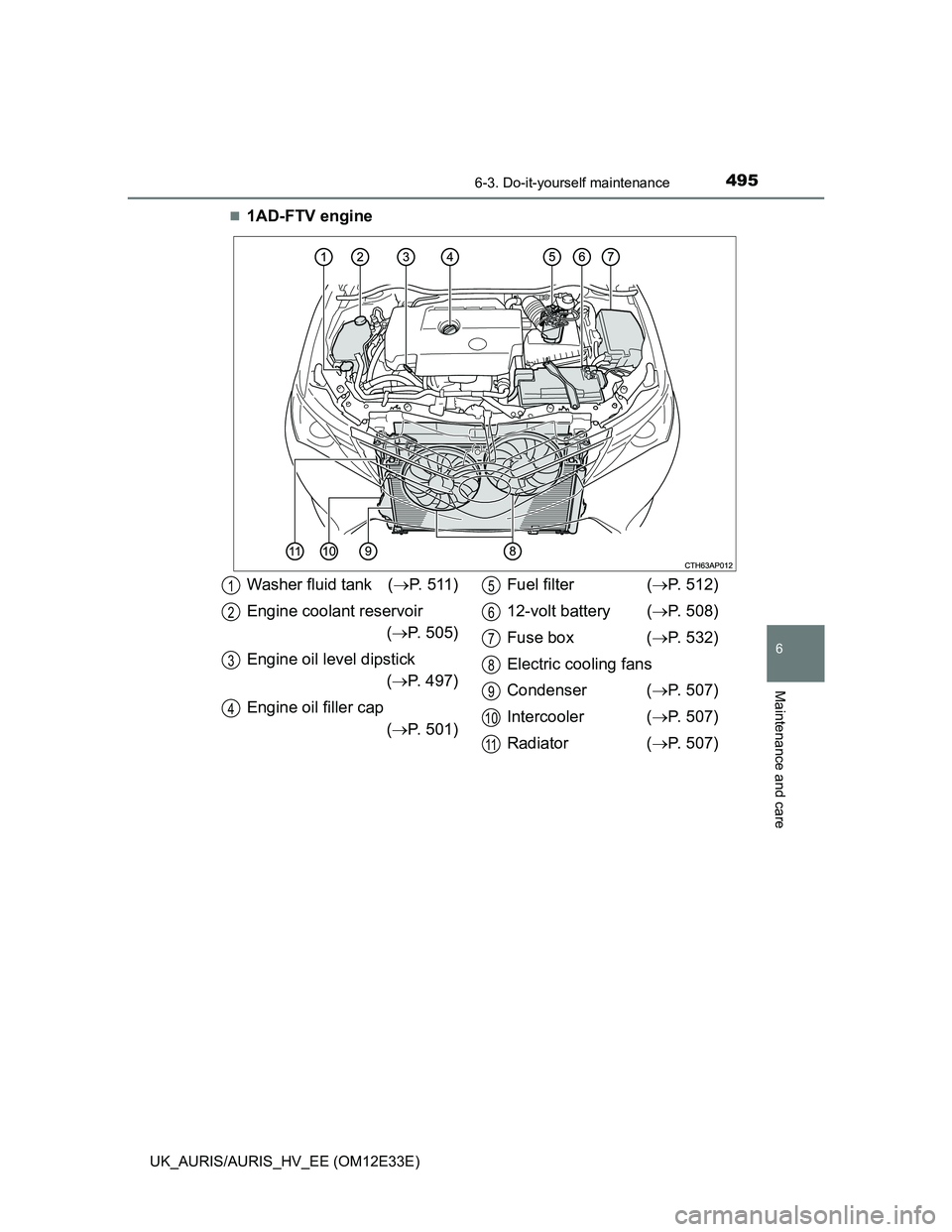

1AD-FTV engine
Washer fluid tank (P. 5 11 )
Engine coolant reservoir
(P. 505)
Engine oil level dipstick
(P. 497)
Engine oil filler cap
(P. 501)Fuel filter (P. 512)
12-volt battery (P. 508)
Fuse box (P. 532)
Electric cooling fans
Condenser (P. 507)
Intercooler (P. 507)
Radiator (P. 507)1
2
3
4
5
6
7
8
9
10
11

4966-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)

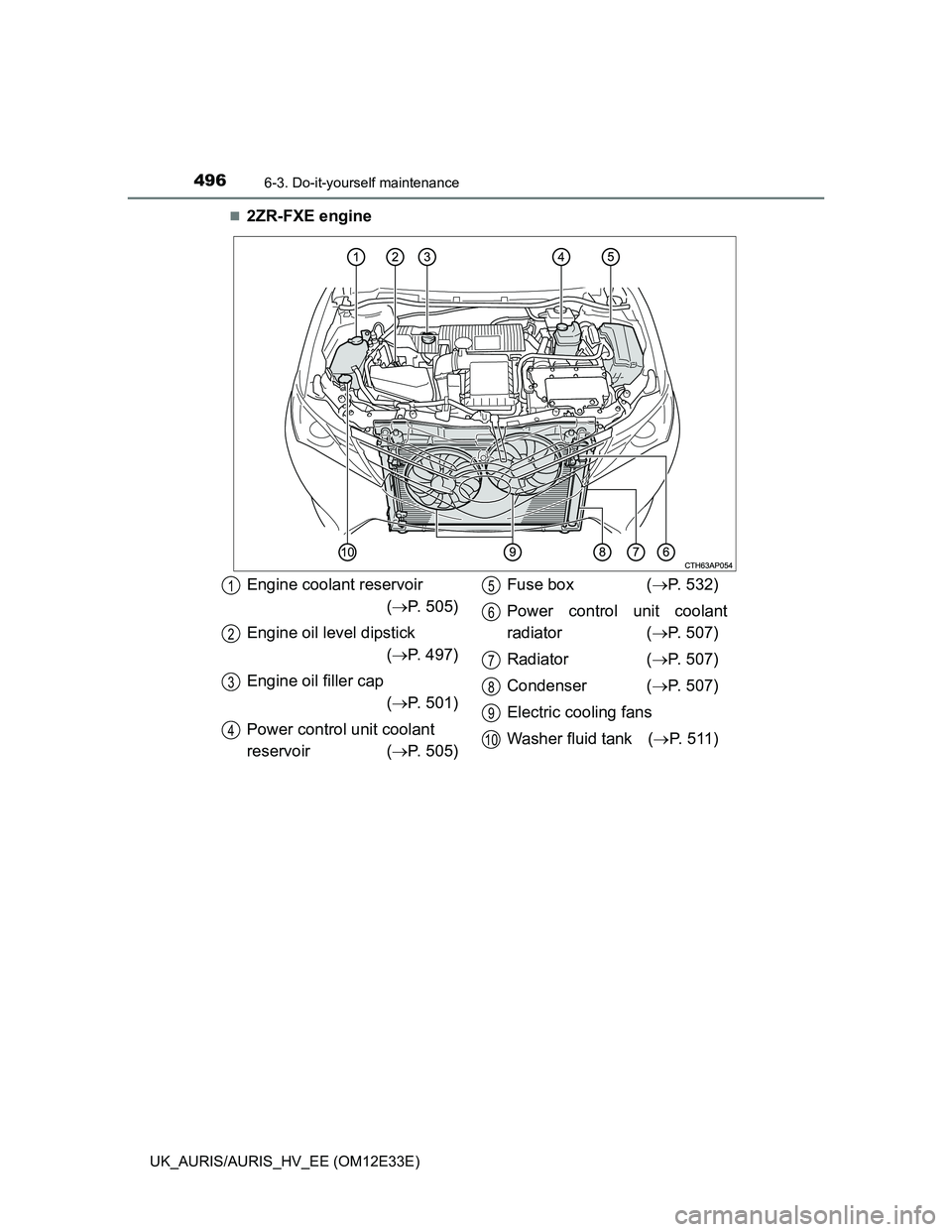

2ZR-FXE engine
Engine coolant reservoir
(P. 505)
Engine oil level dipstick
(P. 497)
Engine oil filler cap
(P. 501)
Power control unit coolant
reservoir (P. 505)Fuse box (P. 532)
Power control unit coolant
radiator (P. 507)
Radiator (P. 507)
Condenser (P. 507)
Electric cooling fans
Washer fluid tank (P. 5 1 1 )1
2
3
4
5
6
7
8
9
10

4976-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Gasoline engine: Park the vehicle on level ground. After turning
off the engine, wait more than 5 minutes for the oil to drain back
into the bottom of the engine.
Diesel engine: Park the vehicle on level ground. After warming
up the engine and turning it off, wait more than 5 minutes for the
oil to drain back into the bottom of the engine.
Hybrid model: Park the vehicle on level ground. After warming up
the engine and turning off the hybrid system, wait more than 5
minutes for the oil to drain back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine

4986-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Wipe the dipstick clean.
1ZR-FAE and 2ZR-FXE engine with flat dipstick and 1NR-FE,
1ND-TV and 1AD-FTV engine: Reinsert the dipstick fully.
1ZR-FAE engine with non-
flat dipstick: Reinsert the
non-flat dipstick fully with its
protruding areas ( in the
illustration) pointing towards
the engine.
2ZR-FXE engine with non-
flat dipstick: Reinsert the
non-flat dipstick fully with its
protruding areas ( in the
illustration) pointing towards
the engine.
Holding a rag under the end, pull the dipstick out and check the
oil level.
2ZR-FXE engine
3
4
4
1
4
1
5

4996-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care

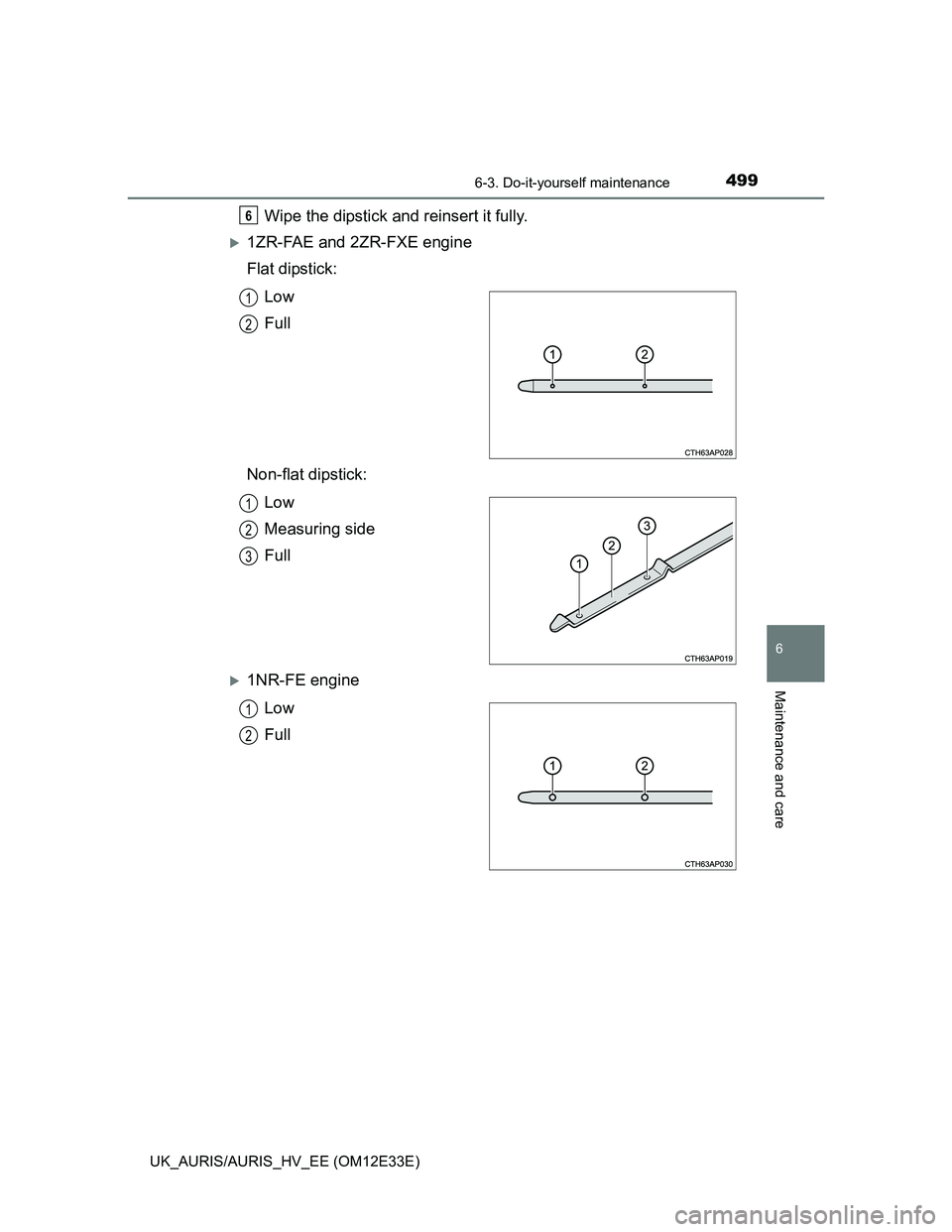

Wipe the dipstick and reinsert it fully.
1ZR-FAE and 2ZR-FXE engine
Flat dipstick:
Low
Full
Non-flat dipstick:
Low
Measuring side
Full
1NR-FE engine
Low
Full
6
1
2
1
2
3
1
2

5006-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)

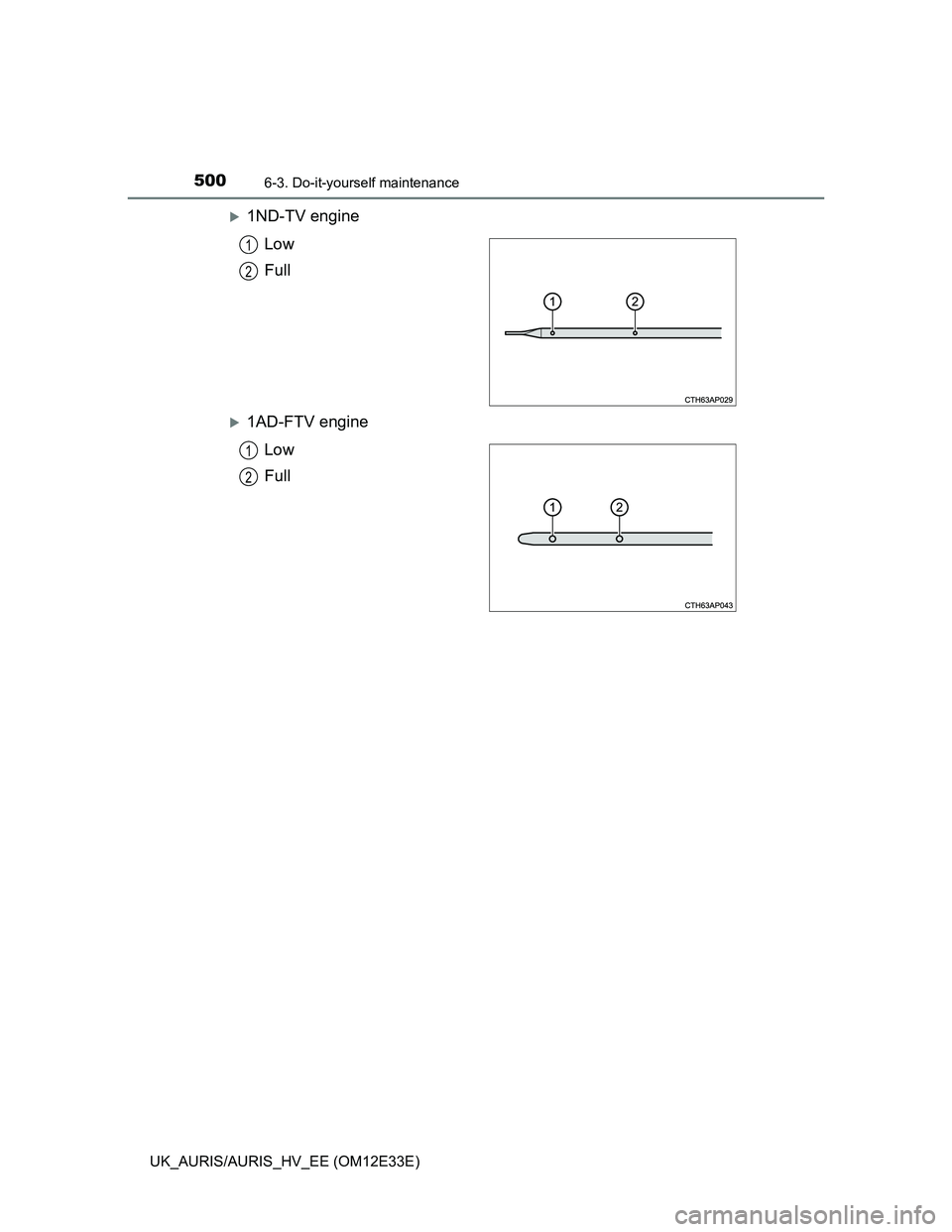

1ND-TV engine
Low
Full
1AD-FTV engine
Low
Full
1
2
1
2

5016-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine
2ZR-FXE engine

5026-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 705
Oil quantity
(Low  Full)
1NR-FE, 1ZR-FAE, 1ND-TV and 2ZR-FXE
engines
1.5 L (1.6 qt., 1.3 Imp. qt.)
1AD-FTV engine
1.6 L (1.7 qt., 1.4 Imp. qt.)
Items Clean funnel
1
2
3
