2012 TOYOTA AURIS Owners Manual (in English)

2874-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
*1: Vehicles with a multi-information
display
*2: Vehicles without a multi-informa-
tion display
Gear Shift Indicator display
Gear Shift Indicator may not be displayed when your foot is placed on the
clutch pedal.
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
Gasoline engine
km/h (mph)
Gear Shift Indicator
*1*2
1
2
Shift positionMaximum speed
1NR-FE engine1ZR-FAE engine
144 (27)49 (30)
281 (50)92 (57)
3112 (69)134 (83)
4151 (93)181 (112)
5178 (110)215 (133)

2884-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
Diesel engine
km/h (mph)
Shift positionMaximum speed
1ND-TV engine1AD-FTV engine
142 (26)44 (27)
279 (49)88 (54)
3122 (75)139 (86)
4165 (102)197 (122)
5224 (139)248 (154)
CAUTION
Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
NOTICE
To prevent damage to the transmission
Do not lift up the ring section except when shifting the lever to R.
Shift the shift lever to R only when the vehicle is stationary.
Do not shift the shift lever to R without
depressing the clutch pedal.

2894-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving

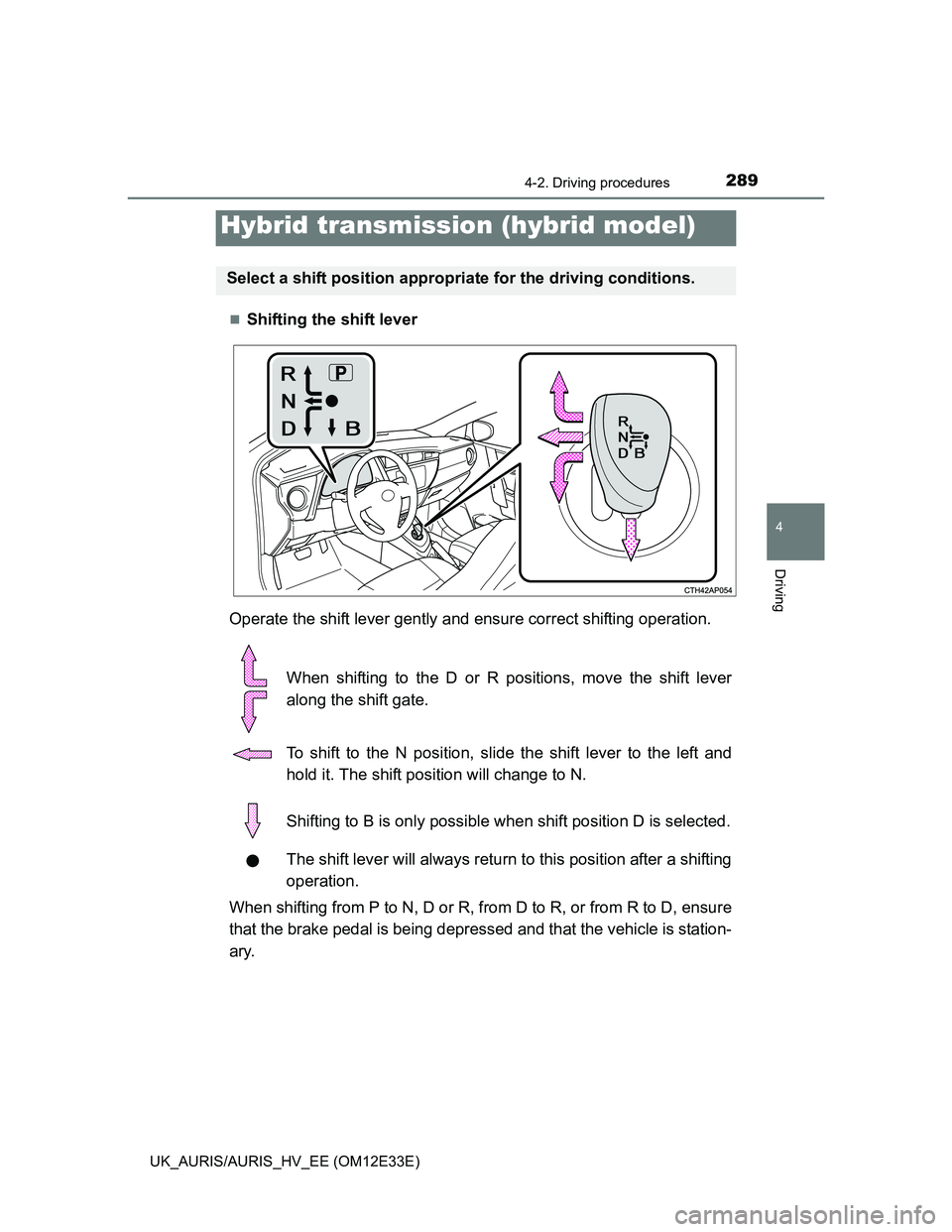

Shifting the shift lever
Operate the shift lever gently and ensure correct shifting operation.
When shifting to the D or R positions, move the shift lever
along the shift gate.
To shift to the N position, slide the shift lever to the left and
hold it. The shift position will change to N.
Shifting to B is only possible when shift position D is selected.
The shift lever will always return to this position after a shifting
operation.
When shifting from P to N, D or R, from D to R, or from R to D, ensure
that the brake pedal is being depressed and that the vehicle is station-
ary.
Hybrid transmission (hybrid model)
Select a shift position appropriate for the driving conditions.

2904-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
The position of the frame on the shift position indicator changes in
accordance with the current shift position.
When selecting a shift position, make sure that the shift position has
been changed to the desired position by checking the shift position
indicator provided on the instrument panel.
When a shift position other than D or B is selected, the arrow toward B
disappears from the shift position indicator.
Shift position purpose
*: For good fuel economy and noise reduction, the D position should usually
be used.
Shift positionFunction
PParking the vehicle or starting the hybrid system
RReversing
NNeutral
DNormal driving*
BApplying moderate engine braking when driving
down hills or on steep slopes

2914-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving

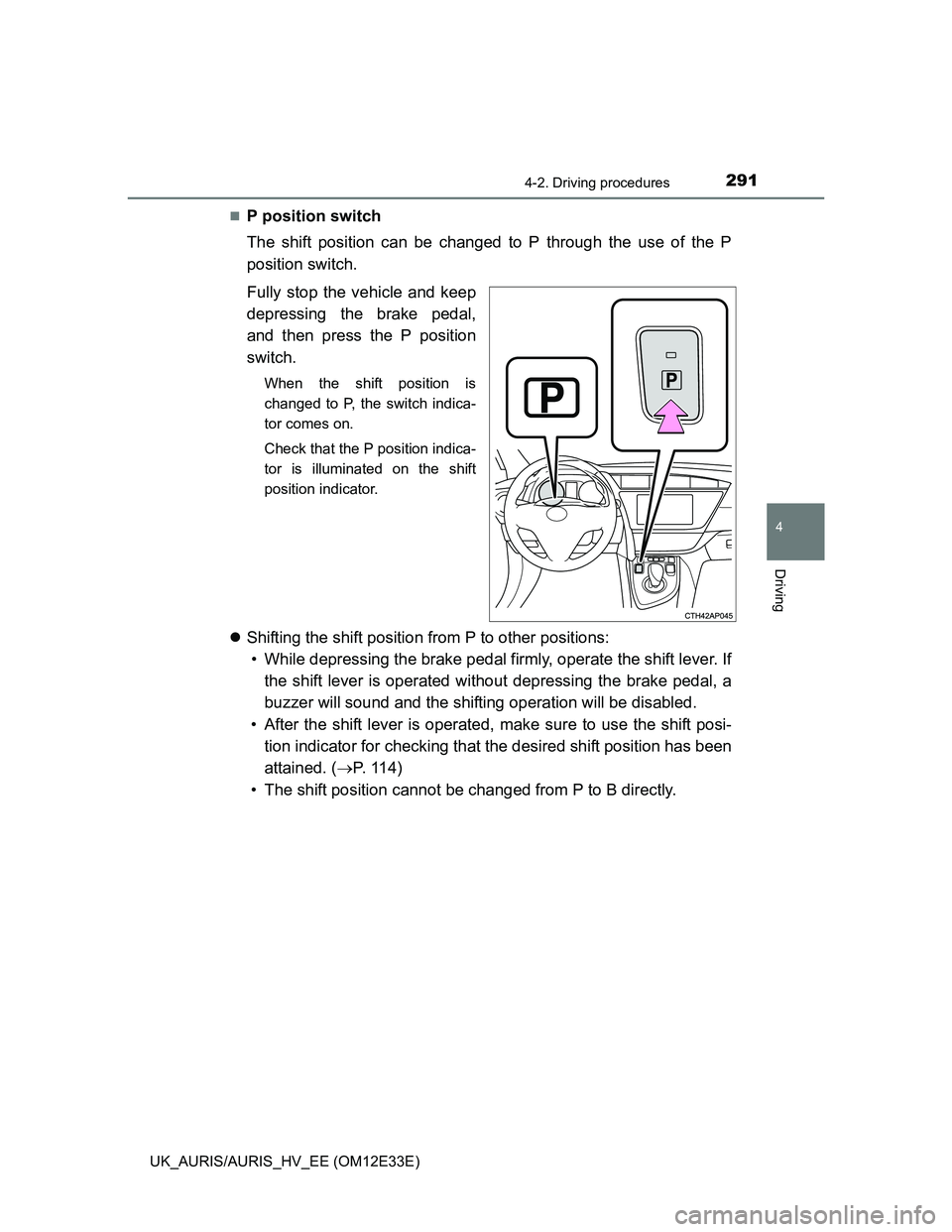

P position switch
The shift position can be changed to P through the use of the P
position switch.
Fully stop the vehicle and keep
depressing the brake pedal,
and then press the P position
switch.
When the shift position is
changed to P, the switch indica-
tor comes on.
Check that the P position indica-
tor is illuminated on the shift
position indicator.
Shifting the shift position from P to other positions:
• While depressing the brake pedal firmly, operate the shift lever. If
the shift lever is operated without depressing the brake pedal, a
buzzer will sound and the shifting operation will be disabled.
• After the shift lever is operated, make sure to use the shift posi-
tion indicator for checking that the desired shift position has been
attained. (P. 1 1 4 )
• The shift position cannot be changed from P to B directly.

2924-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
Selecting a driving mode
The following modes can be selected to suit driving conditions.
Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating and braking. The operation of the air condi-
tioning system will be minimized.
Press the “ECO MODE” switch once more to cancel the Eco drive mode.
Eco drive mode will not be canceled until the “ECO MODE” switch is
pressed, even if the power switch is turned off.
Press the “PWR MODE” switch to change the driving mode to power
mode.
Power mode
Use when high levels of response and feeling are desirable, such as when
driving in mountainous regions or when overtaking.
Press the “PWR MODE” switch once more to cancel the power mode.
Turning the power switch off will cancel power mode.
Press the “ECO MODE” switch to change the driving mode to Eco drive
mode.
1
2

2934-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving

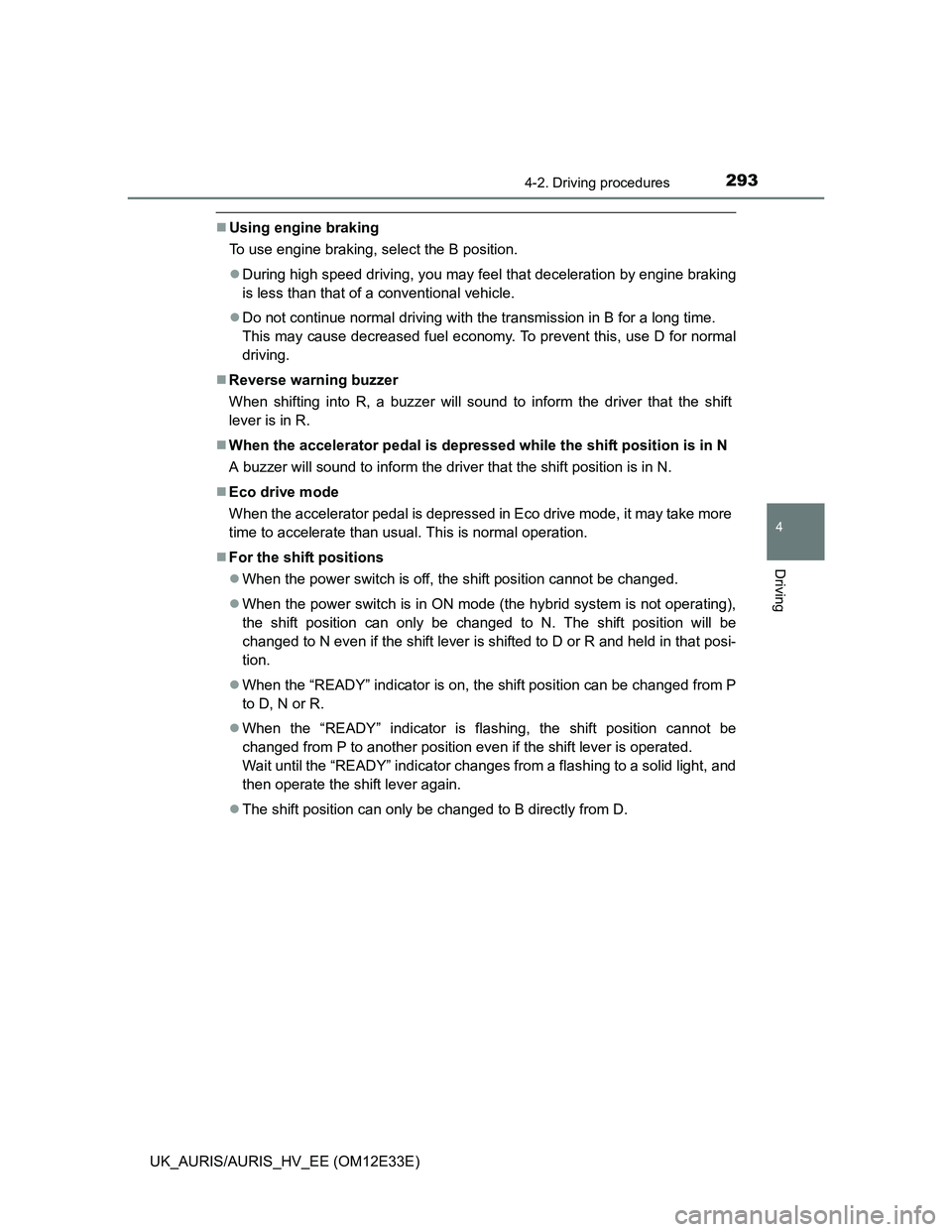

Using engine braking
To use engine braking, select the B position.
During high speed driving, you may feel that deceleration by engine braking
is less than that of a conventional vehicle.
Do not continue normal driving with the transmission in B for a long time.
This may cause decreased fuel economy. To prevent this, use D for normal
driving.
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
When the accelerator pedal is depressed while the shift position is in N
A buzzer will sound to inform the driver that the shift position is in N.
Eco drive mode
When the accelerator pedal is depressed in Eco drive mode, it may take more
time to accelerate than usual. This is normal operation.
For the shift positions
When the power switch is off, the shift position cannot be changed.
When the power switch is in ON mode (the hybrid system is not operating),
the shift position can only be changed to N. The shift position will be
changed to N even if the shift lever is shifted to D or R and held in that posi-
tion.
When the “READY” indicator is on, the shift position can be changed from P
to D, N or R.
When the “READY” indicator is flashing, the shift position cannot be
changed from P to another position even if the shift lever is operated.
Wait until the “READY” indicator changes from a flashing to a solid light, and
then operate the shift lever again.
The shift position can only be changed to B directly from D.

2944-2. Driving procedures

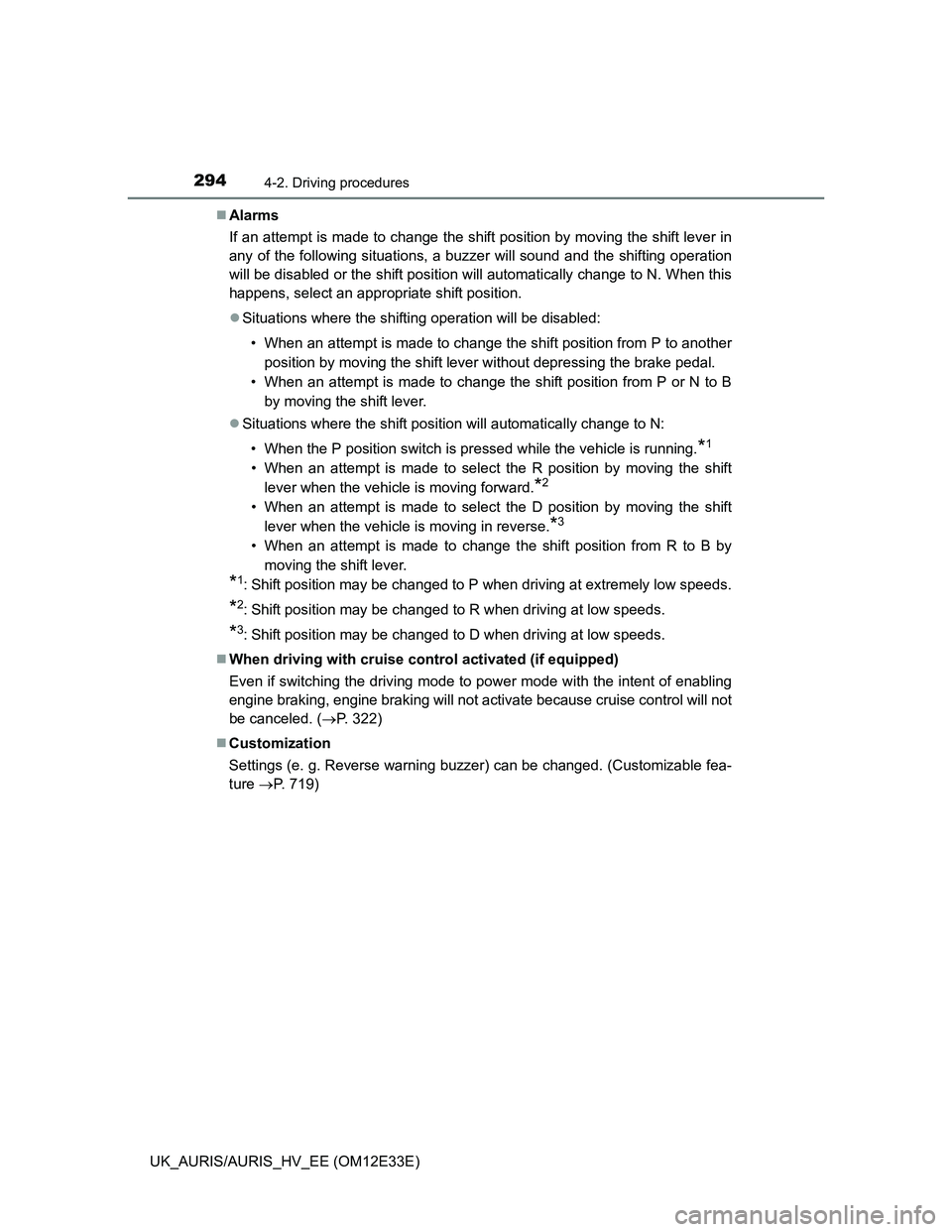

UK_AURIS/AURIS_HV_EE (OM12E33E)Alarms
If an attempt is made to change the shift position by moving the shift lever in
any of the following situations, a buzzer will sound and the shifting operation
will be disabled or the shift position will automatically change to N. When this
happens, select an appropriate shift position.
Situations where the shifting operation will be disabled:
• When an attempt is made to change the shift position from P to another
position by moving the shift lever without depressing the brake pedal.
• When an attempt is made to change the shift position from P or N to B
by moving the shift lever.
Situations where the shift position will automatically change to N:
• When the P position switch is pressed while the vehicle is running.
*1
• When an attempt is made to select the R position by moving the shift
lever when the vehicle is moving forward.
*2
• When an attempt is made to select the D position by moving the shift
lever when the vehicle is moving in reverse.
*3
• When an attempt is made to change the shift position from R to B by
moving the shift lever.
*1: Shift position may be changed to P when driving at extremely low speeds.
*2: Shift position may be changed to R when driving at low speeds.
*3: Shift position may be changed to D when driving at low speeds.
When driving with cruise control activated (if equipped)
Even if switching the driving mode to power mode with the intent of enabling
engine braking, engine braking will not activate because cruise control will not
be canceled. (P. 322)
Customization
Settings (e. g. Reverse warning buzzer) can be changed. (Customizable fea-
ture P. 719)
