2012 TOYOTA AURIS Owners Manual (in English)

6237-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

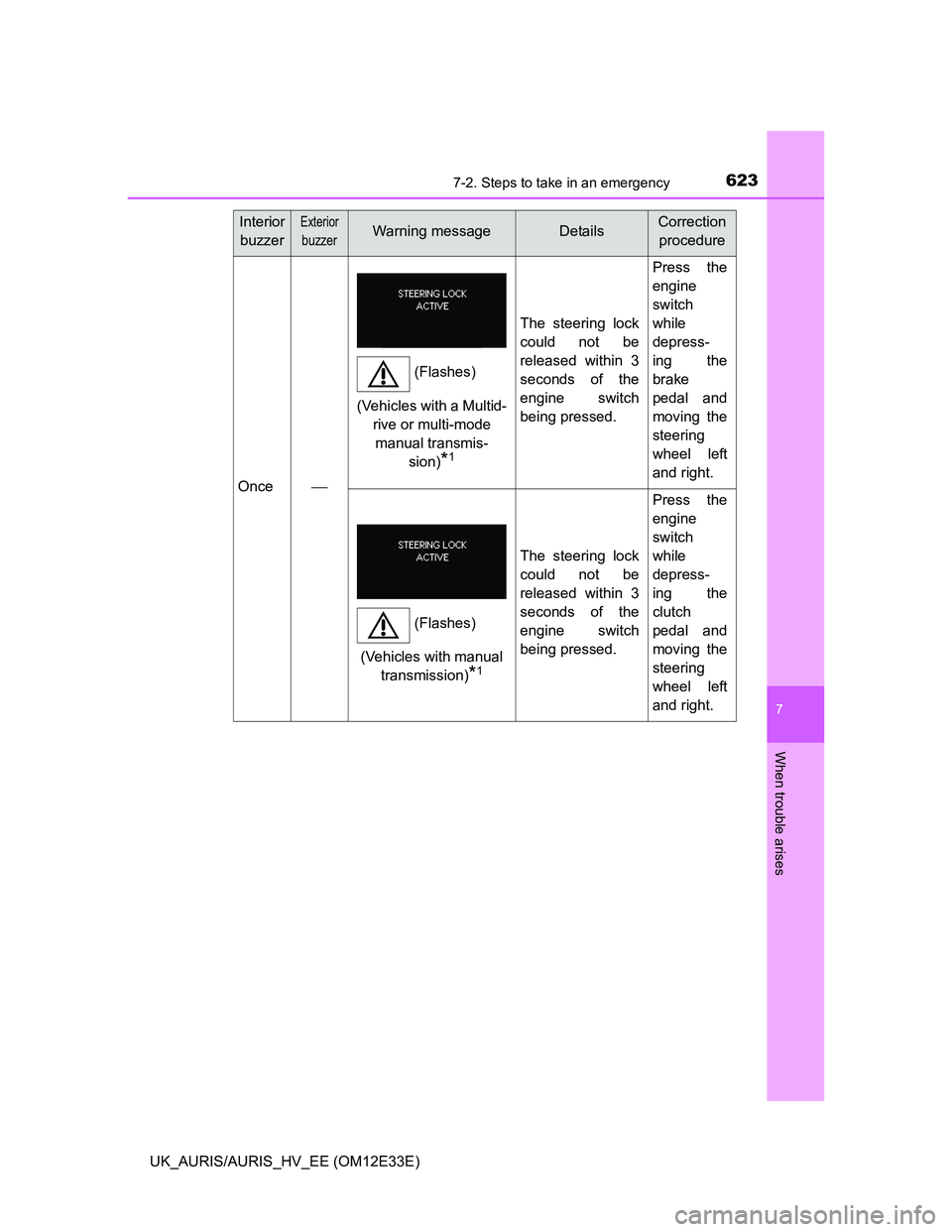

Once
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
brake
pedal and
moving the
steering
wheel left
and right.
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
clutch
pedal and
moving the
steering
wheel left
and right.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive or multi-mode
manual transmis-
sion)
*1
(Flashes)
(Vehicles with manual
transmission)
*1

6247-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
*1: Vehicles with a smart entry & start system
*2: Vehicles with a push button start
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

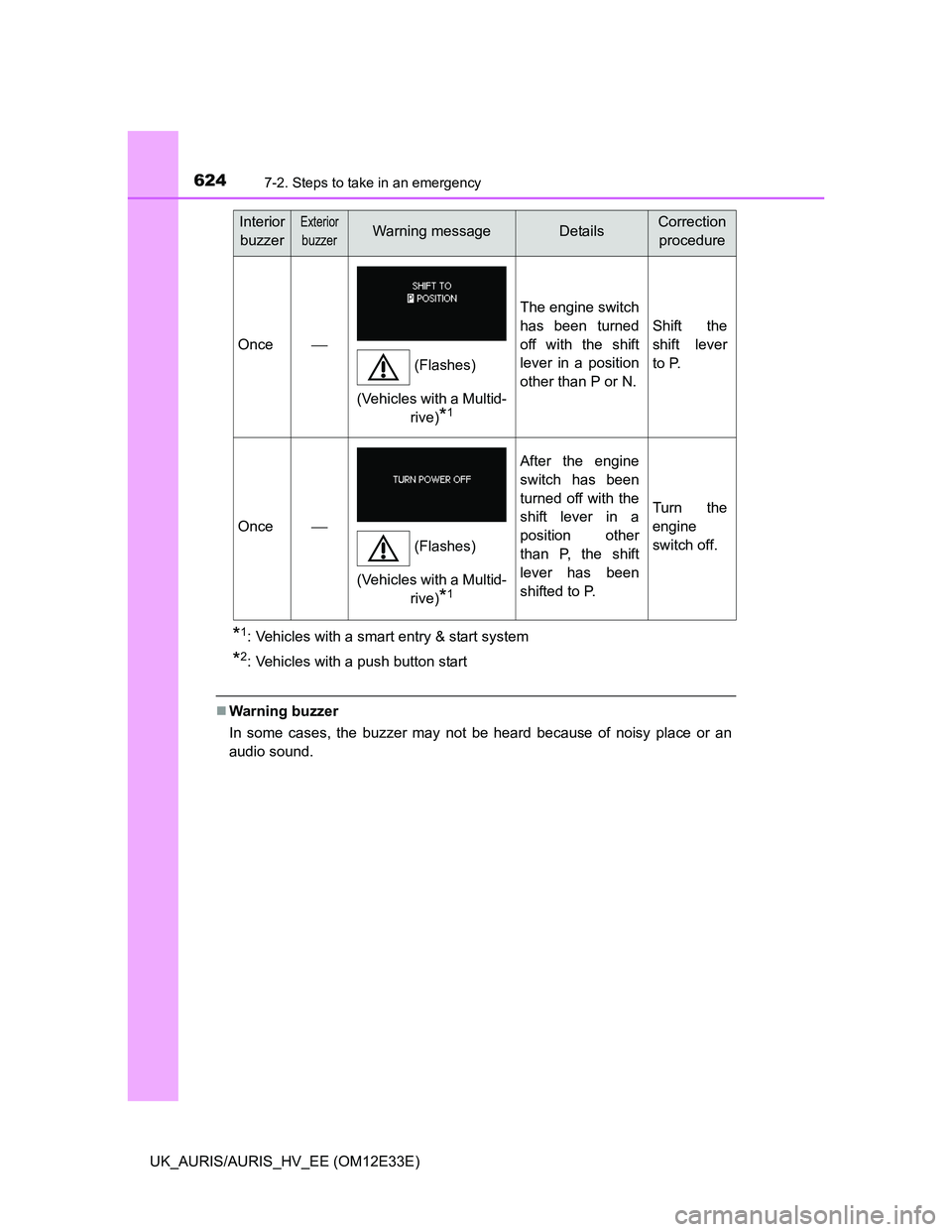

Once
The engine switch
has been turned
off with the shift
lever in a position
other than P or N.
Shift the
shift lever
to P.
Once
After the engine
switch has been
turned off with the
shift lever in a
position other
than P, the shift
lever has been
shifted to P.
Turn the
engine
switch off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)
*1
(Flashes)
(Vehicles with a Multid-
rive)
*1

6257-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Engine oil change reminder message comes on (diesel engine)
1ND-TV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed, when you have driven less than 15000 km (9300 miles)
based on a usage or driving condition.
1AD-FTV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 30000 km (18000 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed, when you have driven less than 30000 km (18000 miles)
based on a usage or driving condition.
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain and
traffic conditions, and be sure to observe traffic laws and/or regulations. Fail-
ure to do so may cause an unexpected accident, resulting in death or serious
injury.
NOTICE
When the DPF system warning message comes on (diesel engine)
If the DPF system warning message is left on without performing cleaning,
after an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
If the fuel filter warning message comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

6267-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P (Multidrive) or R (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 572)
If you have a flat tire (vehicles with a spare
tire)
Remove the flat tire and replace it with the spare tire provided.
For details about tires: P. 519
CAUTION
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

6277-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

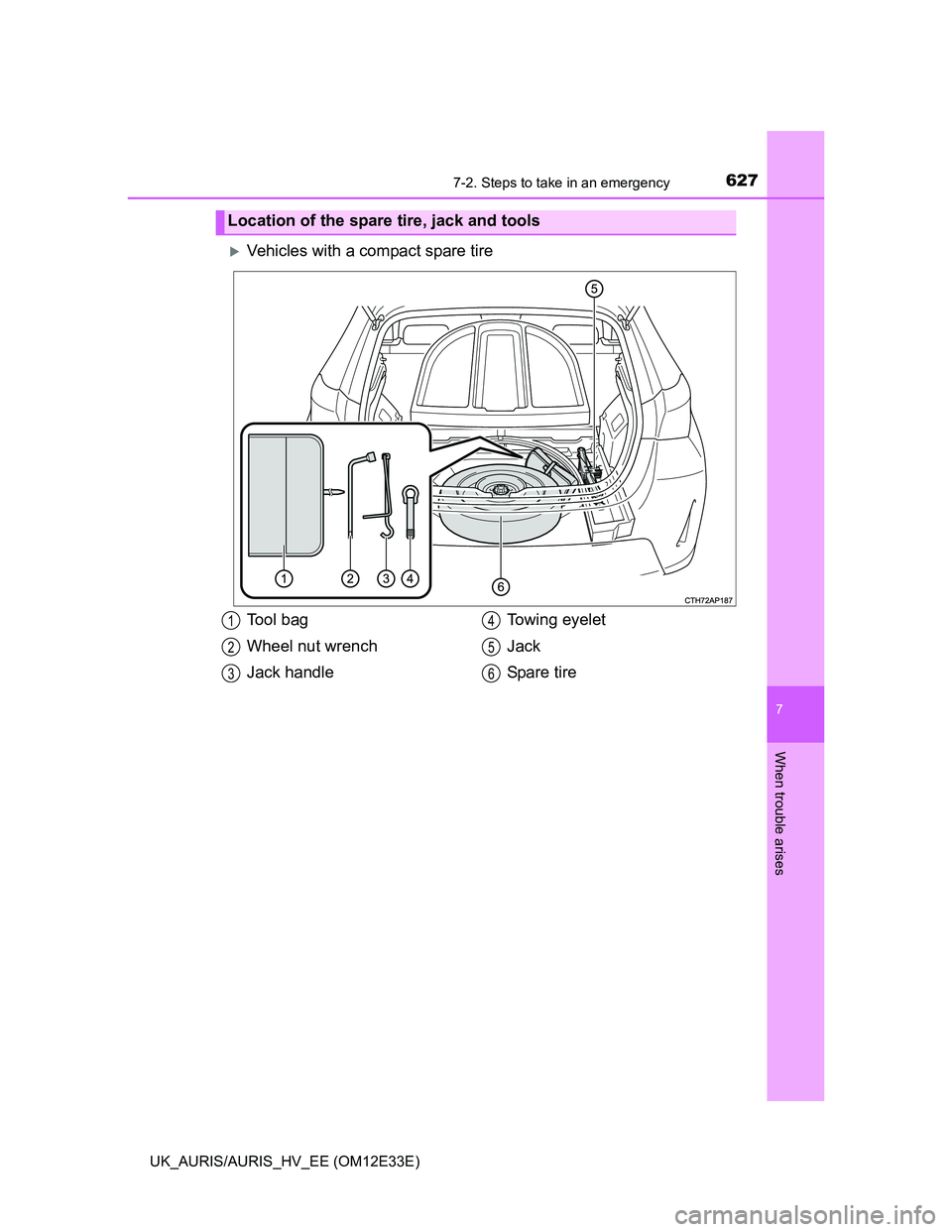

Vehicles with a compact spare tire
Location of the spare tire, jack and tools
Tool bag
Wheel nut wrench
Jack handleTowing eyelet
Jack
Spare t i re1
2
3
4
5
6

6287-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

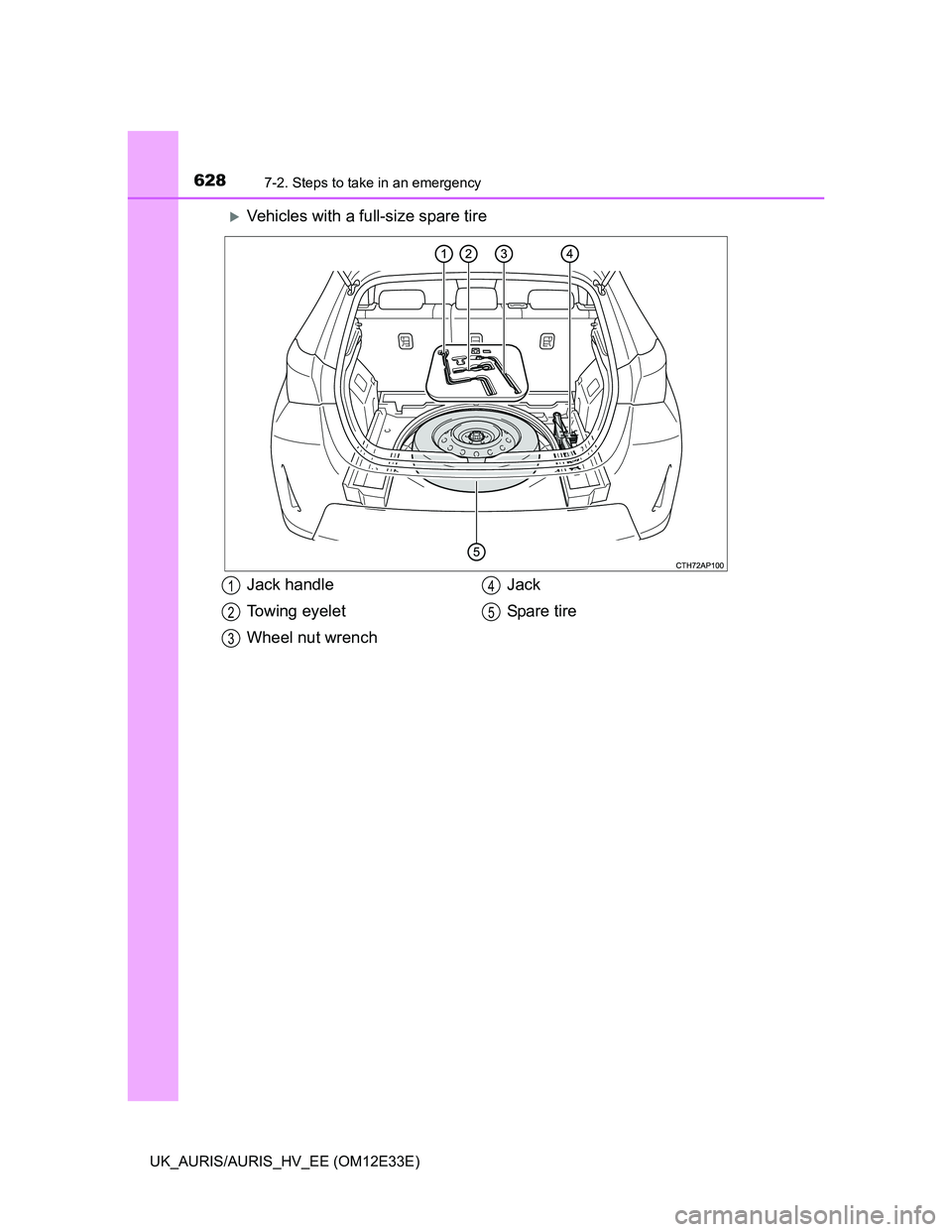

Vehicles with a full-size spare tire
Jack handle
Towing eyelet
Wheel nut wrenchJack
Spare t i re1
2
3
4
5

6297-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Remove the deck mat. (P. 454)
Take out the jack.
For tightening
For loosening

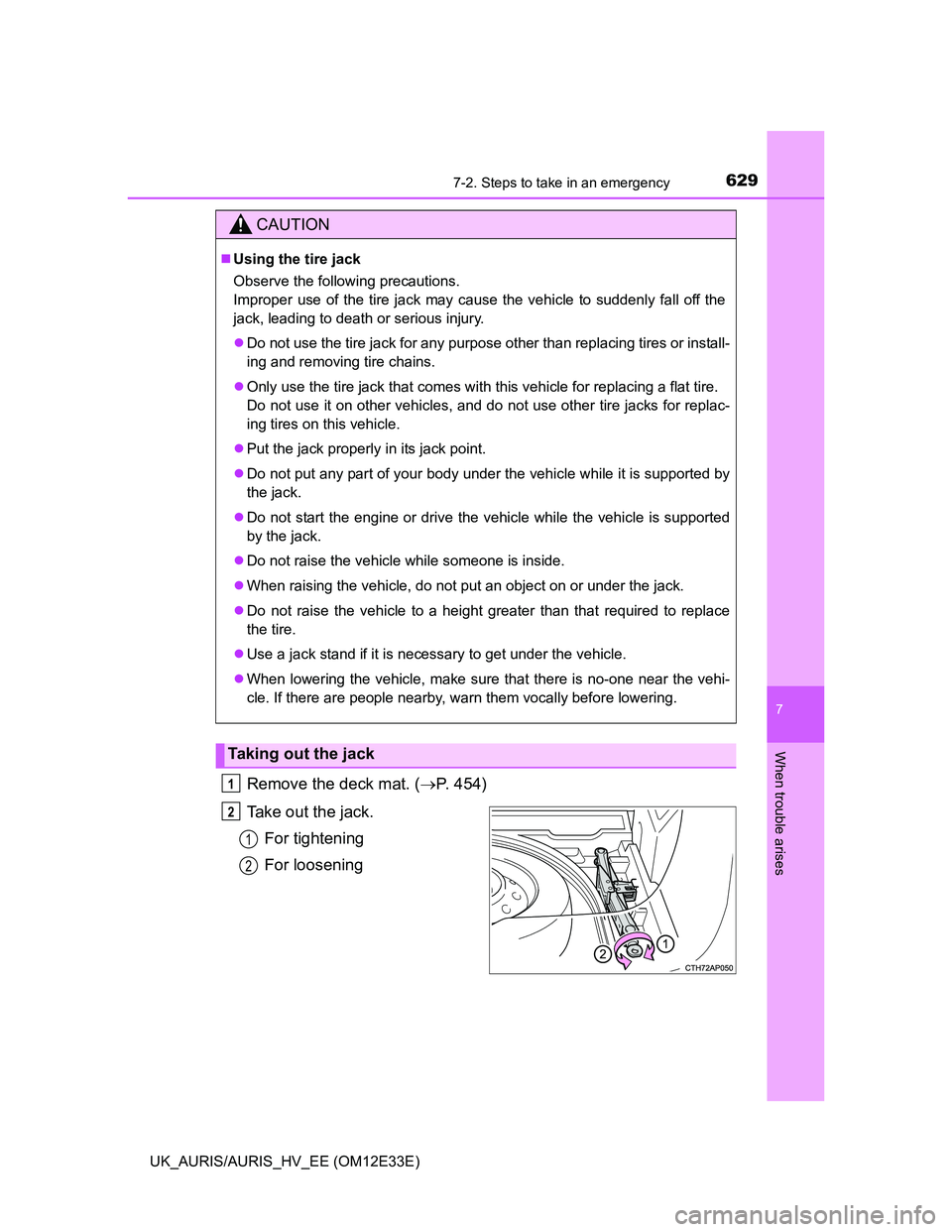

CAUTION
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Put the jack properly in its jack point.
Do not put any part of your body under the vehicle while it is supported by
the jack.
Do not start the engine or drive the vehicle while the vehicle is supported
by the jack.
Do not raise the vehicle while someone is inside.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
Taking out the jack
1
2
1
2

6307-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

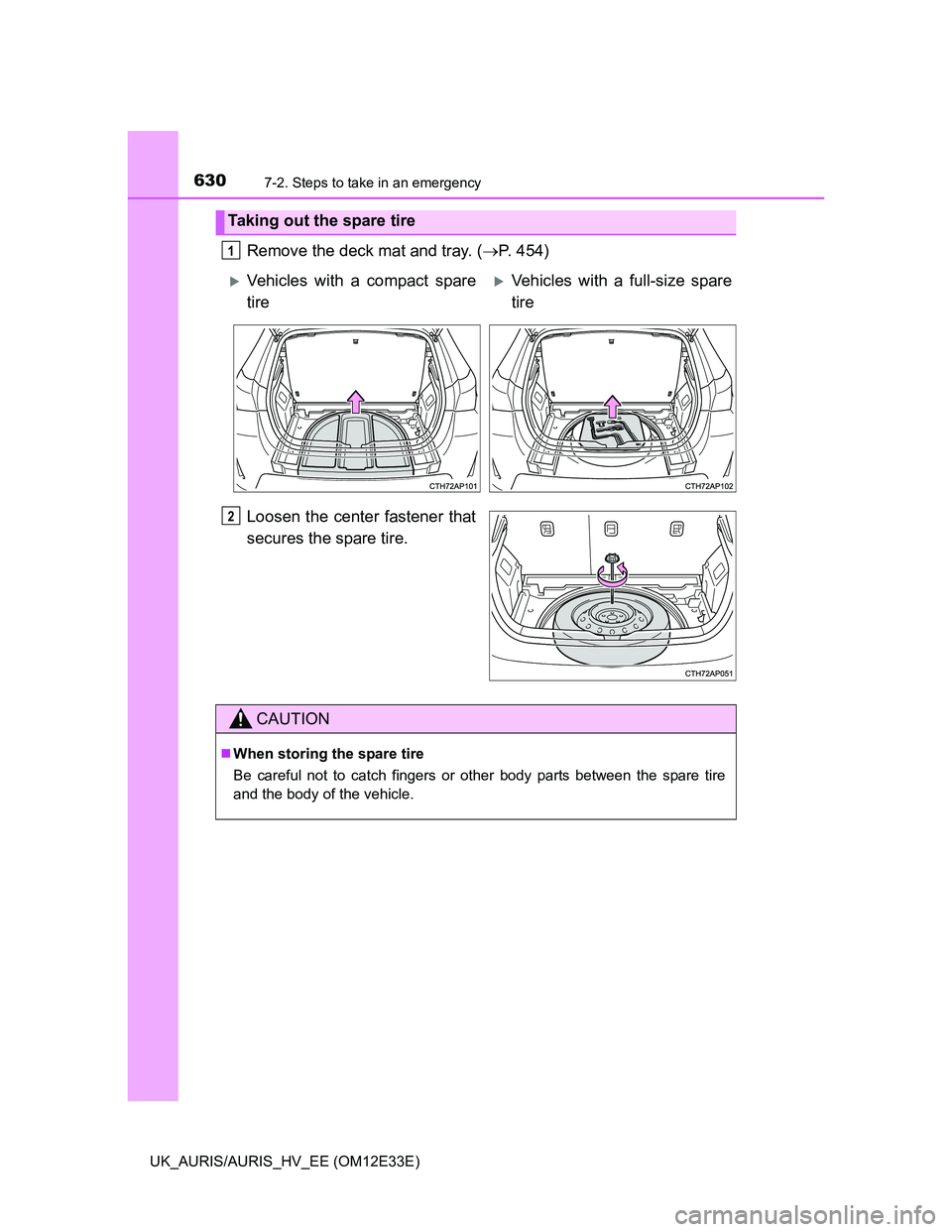

Remove the deck mat and tray. (P. 454)
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
Vehicles with a compact spare
tireVehicles with a full-size spare
tire
2
CAUTION
When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
