2012 TOYOTA AURIS Owners Manual (in English)

1272. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
2
Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
• Driving monitor (P. 131)
• Eco Driving Indicator
*1 (P. 138)
• Warning messages (P. 599)
• Shift position and gear position
indicators
*2 (P. 276, 281)
• Outside temperature display
(P. 460)
• Trip information (P. 130)
*1: Vehicles with a Multidrive
*2: If equipped
Display change button
Switches the trip information.
“DISP” button
Switches the driving monitor.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
(P. 21)
5
6
7

1282. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Hybrid model
Hybrid System Indicator
Hybrid System Indicator represents the hybrid system power output and
regenerative charging. (P. 136)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Shift position indicators
Displays the shift position.
1
2
3
4

1292. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
2
Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
• Driving monitor (P. 131)
• Warning messages (P. 599)
• Outside temperature display
(P. 460)
• Trip information (P. 130)
Display change button
Switches the trip information.
“DISP” button
Switches the driving monitor.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
(P. 21)
5
6
7

1302. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Displays the odometer, trip meter and other cruising related informa-
tion. The display can be switched by pressing the display change but-
ton.
Odometer
Trip meters A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Trip information
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 sec-
ond to reset.
Displays the amount of time the engine was
stopped due to operation of the Stop & Start
system during the current trip (from when the
engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to operation of
the Stop & Start system since the system was
last reset.
Press and hold the button for longer than 1 sec-
ond to reset.

1312. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
2
Instrument cluster
Meter light control display
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
“DISP” button.
Average fuel consumption and current fuel consumption Displays the meter light control display
• Pressing and holding the display change button
for more than 1 second will adjust the bright-
ness of the meter light when the tail lights are
on.
• Except hybrid model: This screen is only dis-
played when tail lights are on.
Driving monitor
Displays the average fuel consumption
since the function was reset
• The function can be reset by pressing the
“DISP” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
Displays the current rate of fuel consump-
tion
• The function can be reset by pressing the
“DISP” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
1
2

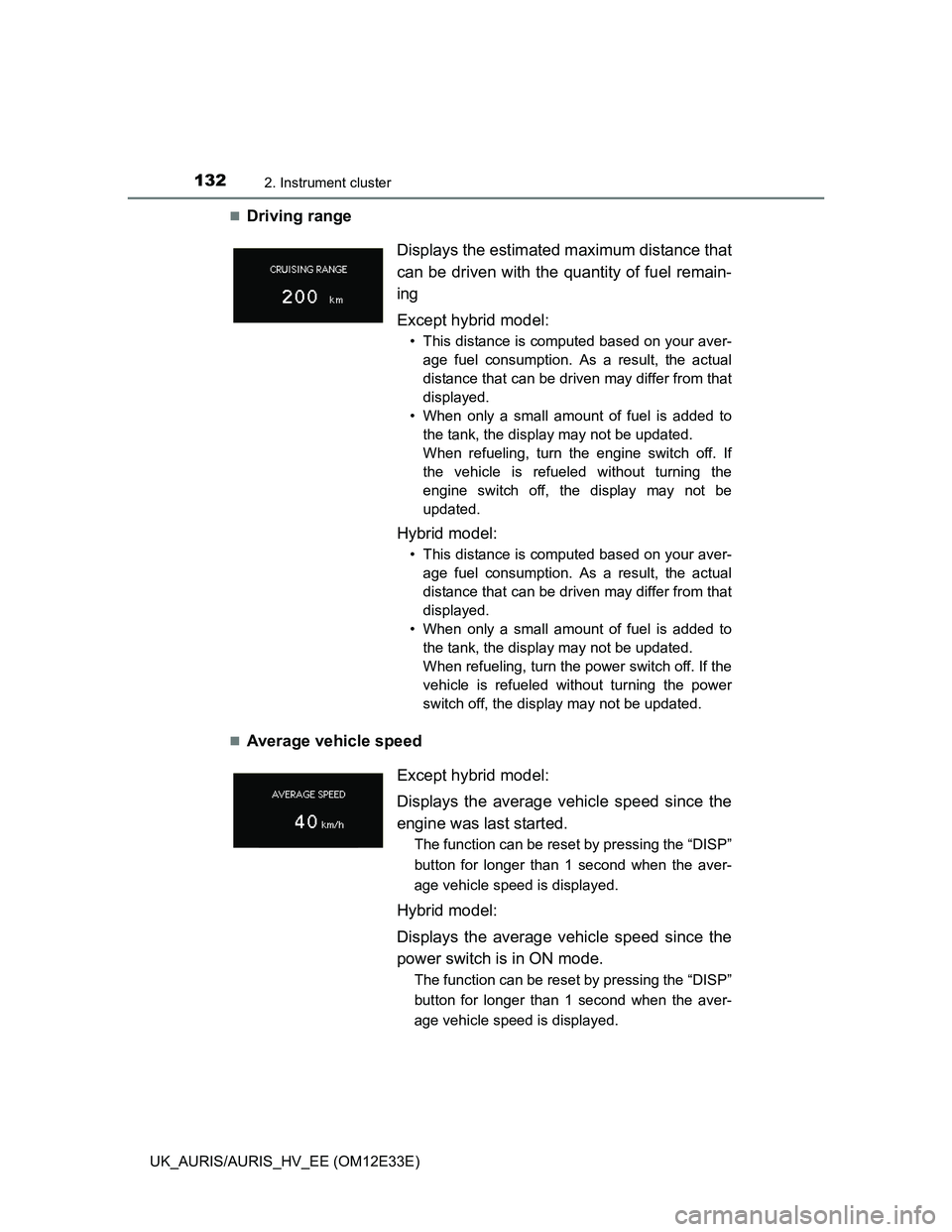

1322. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Driving range
Average vehicle speedDisplays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing
Except hybrid model:
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the engine switch off. If
the vehicle is refueled without turning the
engine switch off, the display may not be
updated.
Hybrid model:
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the power switch off. If the
vehicle is refueled without turning the power
switch off, the display may not be updated.
Except hybrid model:
Displays the average vehicle speed since the
engine was last started.
The function can be reset by pressing the “DISP”
button for longer than 1 second when the aver-
age vehicle speed is displayed.
Hybrid model:
Displays the average vehicle speed since the
power switch is in ON mode.
The function can be reset by pressing the “DISP”
button for longer than 1 second when the aver-
age vehicle speed is displayed.

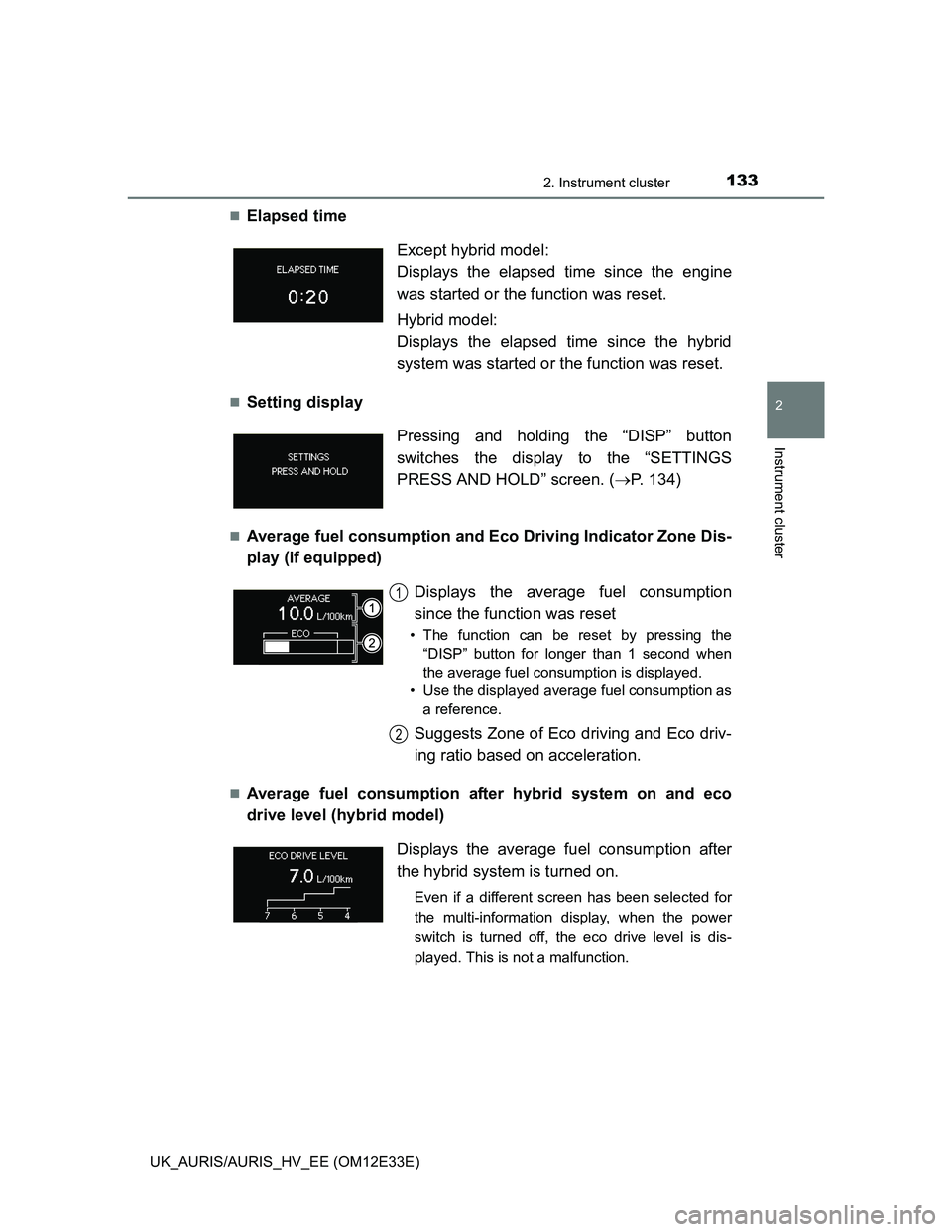

1332. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
2
Instrument cluster
Elapsed time
Setting display
Average fuel consumption and Eco Driving Indicator Zone Dis-
play (if equipped)
Average fuel consumption after hybrid system on and eco
drive level (hybrid model)Except hybrid model:
Displays the elapsed time since the engine
was started or the function was reset.
Hybrid model:
Displays the elapsed time since the hybrid
system was started or the function was reset.
Pressing and holding the “DISP” button
switches the display to the “SETTINGS
PRESS AND HOLD” screen. (P. 134)
Displays the average fuel consumption
since the function was reset
• The function can be reset by pressing the
“DISP” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
Suggests Zone of Eco driving and Eco driv-
ing ratio based on acceleration.
1
2
Displays the average fuel consumption after
the hybrid system is turned on.
Even if a different screen has been selected for
the multi-information display, when the power
switch is turned off, the eco drive level is dis-
played. This is not a malfunction.

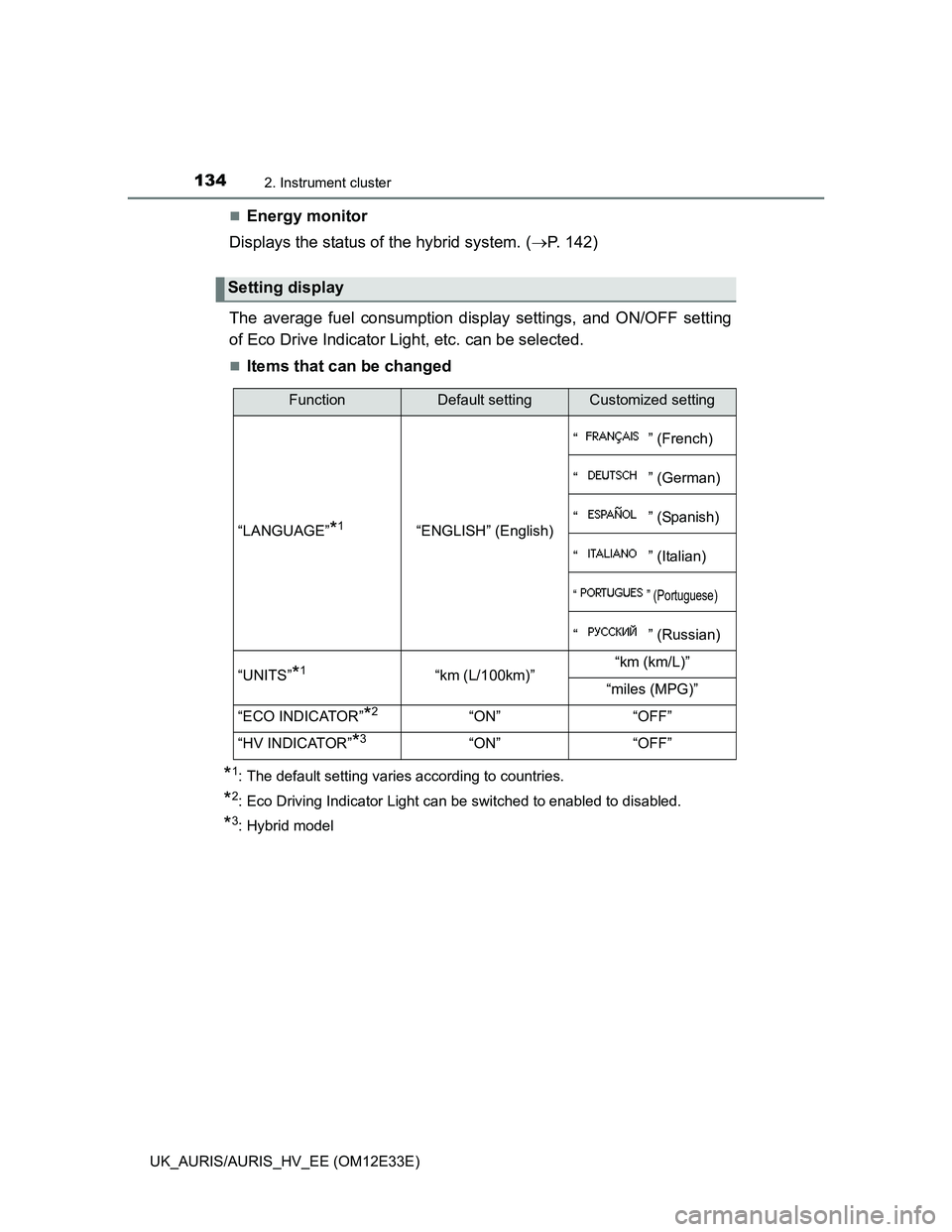

1342. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Energy monitor
Displays the status of the hybrid system. (P. 142)
The average fuel consumption display settings, and ON/OFF setting
of Eco Drive Indicator Light, etc. can be selected.
Items that can be changed
*1: The default setting varies according to countries.
*2: Eco Driving Indicator Light can be switched to enabled to disabled.
*3: Hybrid model
Setting display
FunctionDefault settingCustomized setting
“LANGUAGE”
*1“ENGLISH” (English)“ ” (French)
“ ” (German)
“ ” (Spanish)
“ ” (Italian)
“ ” (Portuguese)
“ ” (Russian)
“UNITS”
*1“km (L/100km)”“km (km/L)”
“miles (MPG)”
“ECO INDICATOR”
*2“ON” “OFF”
“HV INDICATOR”
*3“ON” “OFF”
