2012 TOYOTA AURIS Owners Manual (in English)

5837-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
Except hybrid model (vehicles without a multi-information display):
High engine coolant temperature warning light comes on.
Except hybrid model (vehicles with a multi-information display):
High engine coolant temperature gauge needle continually points
higher than normal.
Hybrid model: The high engine coolant temperature display is
shown on the multi-information display.
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the engine
Engine missing, stumbling or running roughly
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5847-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
Fuel pump shut off system (except hybrid
model [gasoline engine only])
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

5857-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
Warning lightWarning light/Details
(Red)
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake booster system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.

5867-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning light (vehicles with a drive
monitor display)
Indicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning light (vehicles with a
drive monitor display)
Indicates that the engine oil pressure is too low.
andHigh engine coolant temperature warning light (vehicles
with a drive monitor display)
Indicates that the engine is almost overheating. (P. 685)

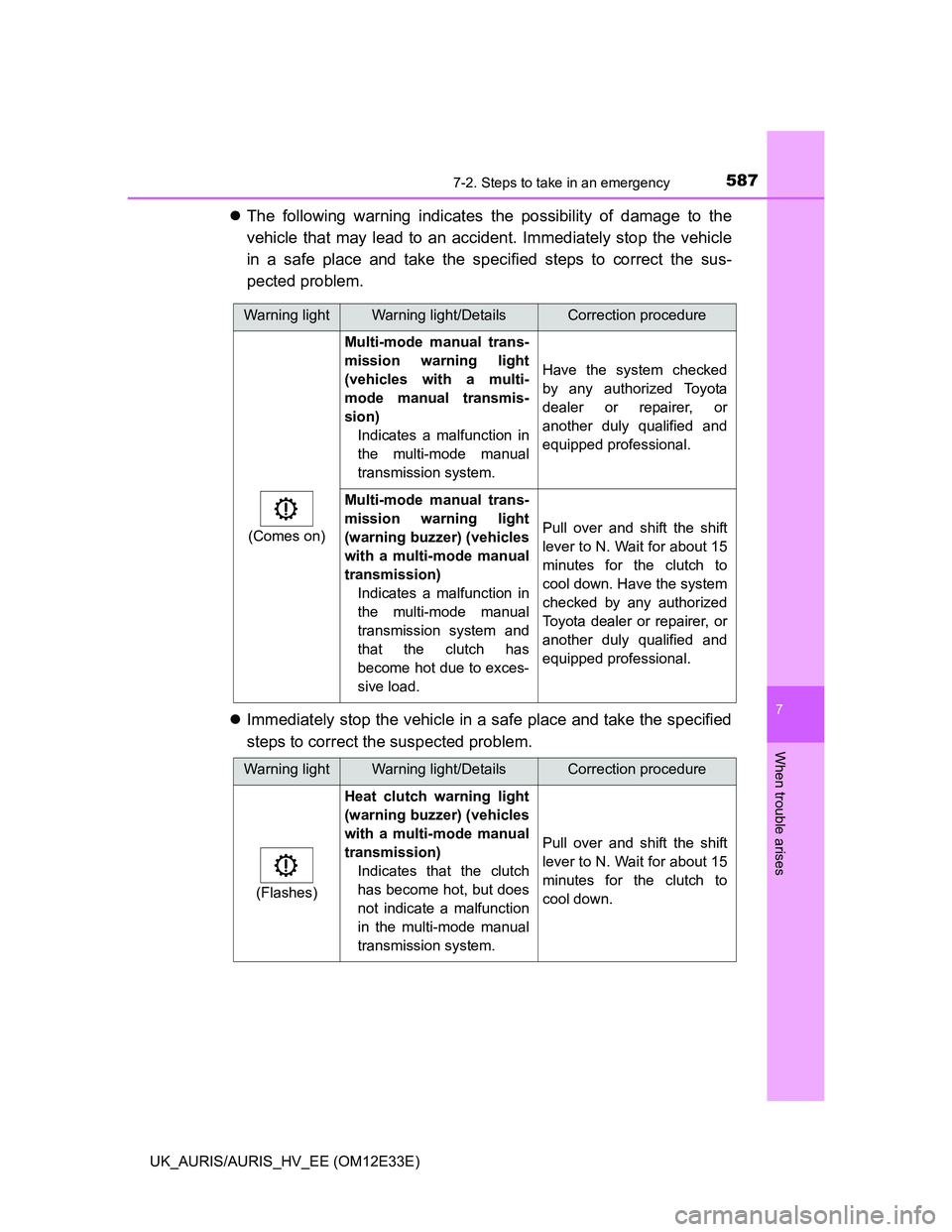

5877-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
The following warning indicates the possibility of damage to the
vehicle that may lead to an accident. Immediately stop the vehicle
in a safe place and take the specified steps to correct the sus-
pected problem.
Immediately stop the vehicle in a safe place and take the specified
steps to correct the suspected problem.
Warning lightWarning light/DetailsCorrection procedure
(Comes on)Multi-mode manual trans-
mission warning light
(vehicles with a multi-
mode manual transmis-
sion)
Indicates a malfunction in
the multi-mode manual
transmission system. Have the system checked
by any authorized Toyota
dealer or repairer, or
another duly qualified and
equipped professional.
Multi-mode manual trans-
mission warning light
(warning buzzer) (vehicles
with a multi-mode manual
transmission)
Indicates a malfunction in
the multi-mode manual
transmission system and
that the clutch has
become hot due to exces-
sive load.
Pull over and shift the shift
lever to N. Wait for about 15
minutes for the clutch to
cool down. Have the system
checked by any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Warning lightWarning light/DetailsCorrection procedure
(Flashes)Heat clutch warning light
(warning buzzer) (vehicles
with a multi-mode manual
transmission)
Indicates that the clutch
has become hot, but does
not indicate a malfunction
in the multi-mode manual
transmission system.Pull over and shift the shift
lever to N. Wait for about 15
minutes for the clutch to
cool down.

5887-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
To prevent the clutch from overheating
Observe the following while driving.
Do not keep driving up a hill at low speeds.
Do not start off and stop repeatedly on an uphill.
Do not use the accelerator pedal or starting assist system to hold the vehicle
on a hill.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immedi-
ately.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic Multidrive control system
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system

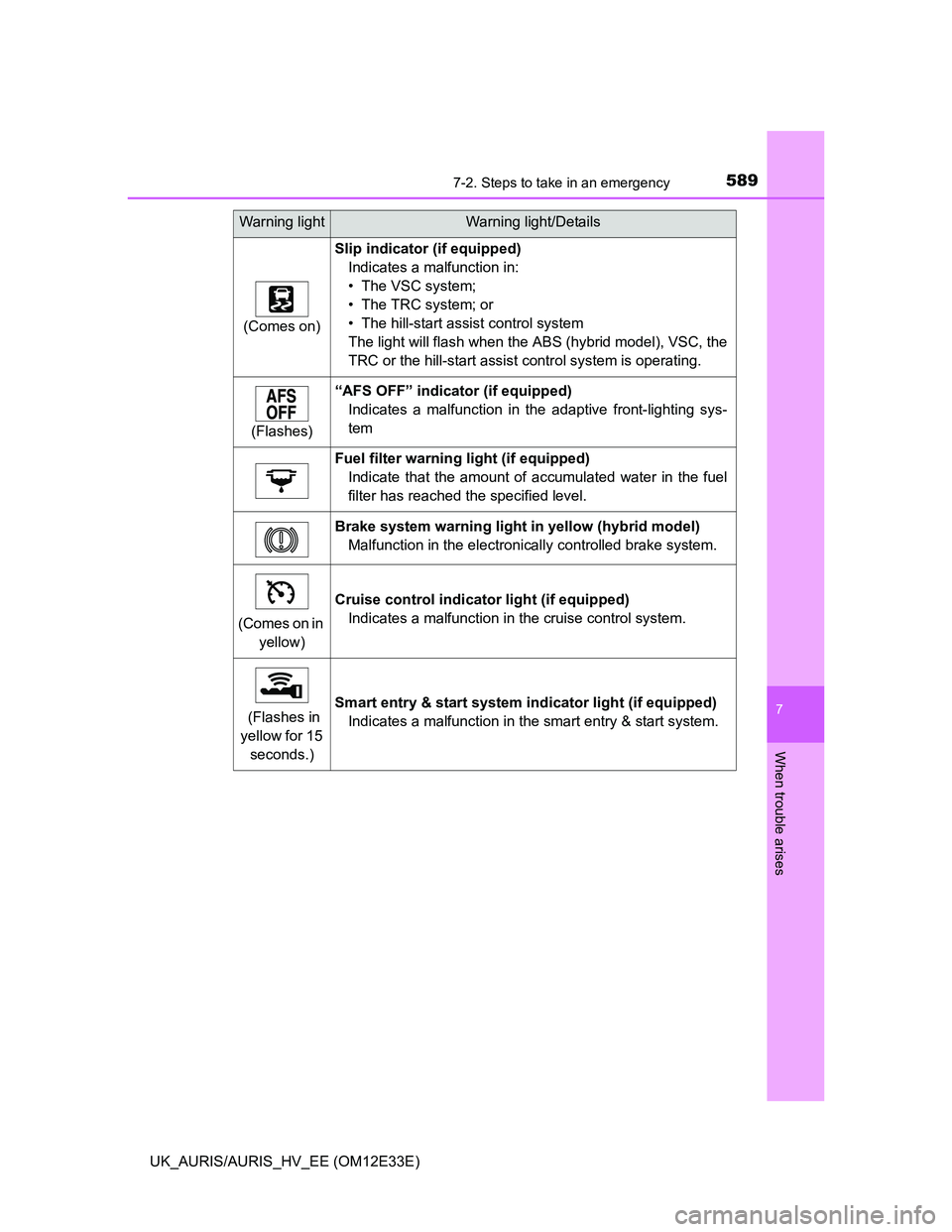

5897-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
(Comes on)
Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
The light will flash when the ABS (hybrid model), VSC, the
TRC or the hill-start assist control system is operating.
(Flashes)
“AFS OFF” indicator (if equipped)
Indicates a malfunction in the adaptive front-lighting sys-
tem
Fuel filter warning light (if equipped)
Indicate that the amount of accumulated water in the fuel
filter has reached the specified level.
Brake system warning light in yellow (hybrid model)
Malfunction in the electronically controlled brake system.
(Comes on in
yellow)
Cruise control indicator light (if equipped)
Indicates a malfunction in the cruise control system.
(Flashes in
yellow for 15
seconds.)Smart entry & start system indicator light (if equipped)
Indicates a malfunction in the smart entry & start system.
Warning lightWarning light/Details

5907-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Follow the correction procedures.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1, 2
Indicates that a door is not
fully closed
Check that all the doors are
closed.
Low fuel level warning
light
except hybrid model:
Indicates remaining fuel is
approximately 7.5 L (2.0
gal., 1.6 Imp. gal.) or less
Refuel the vehicle.Low fuel level warning
light
hybrid model:
Indicates remaining fuel is
approximately 6.8 L (1.8
gal., 1.5 Imp. gal.) or less
Driver’s and front passen-
ger’s seat belt reminder
light (warning buzzer)
*3
Warns the driver and/or
front passenger to fasten
their seat belts
Fasten the seat belt.
If the front passenger’s
seat is occupied, the front
passenger’s seat belt also
needs to be fastened to
make the warning light
(warning buzzer) off.
Rear passengers’ seat belt
reminder lights (warning
buzzer)
*3
Warns the rear passengers
to fasten their seat belts.
Fasten the seat belt.
Low engine oil level warn-
ing light (diesel engine)
*2
Indicates that engine oil
level is low, but does not
indicate a malfunction.
Check the level of engine oil,
and add if necessary.
(P. 497)
