2012 TOYOTA AURIS Owners Manual (in English)

711-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)

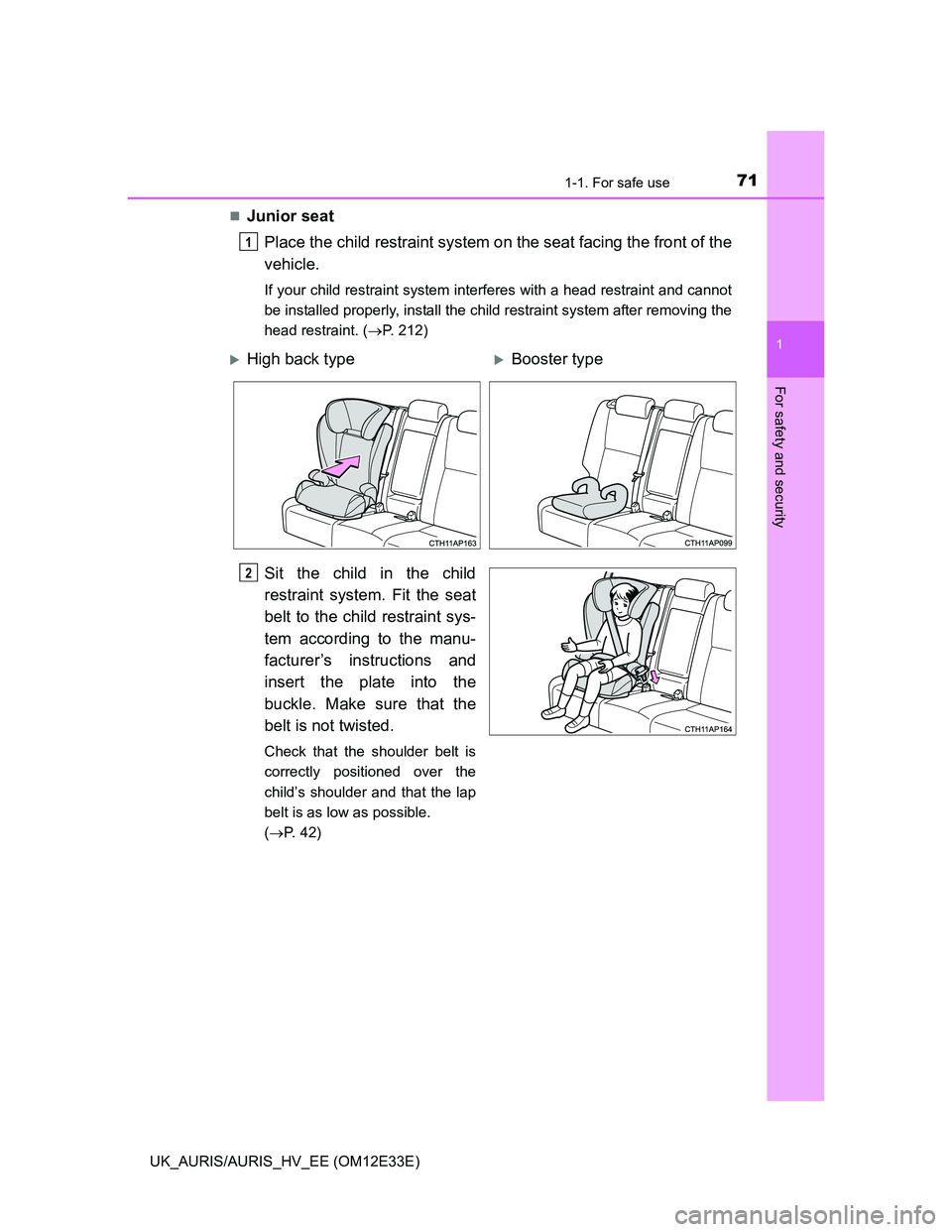

Junior seat
Place the child restraint system on the seat facing the front of the
vehicle.
If your child restraint system interferes with a head restraint and cannot
be installed properly, install the child restraint system after removing the
head restraint. (P. 212)
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(P. 42)
1
High back typeBooster type
2

721-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)
Push the buckle release button
and fully retract the seat belt.
Removing a child restraint installed with a seat belt

731-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)
Adjust the head restraint to the
uppermost position.
If your child restraint system
interferes with a head restraint
and cannot be installed properly,
install the child restraint system
after removing the head
restraint. (P. 212)
If the child restraint has a top strap, remove the luggage cover.
(P. 456)
Latch the buckles onto the exclusive fixing bars.
Hybrid model only: To align
the ISOFIX connectors with
the gap between the seat
cushion and seatback, tem-
porarily put the connectors
on the edge of the seat cush-
ion.
Insert the ISOFIX connectors
into the gap until they latch
onto the exclusive fixing
bars.
If the child restraint has a top strap, the top strap should be latched onto
the anchor bracket.
Run the top strap under the head restraint.

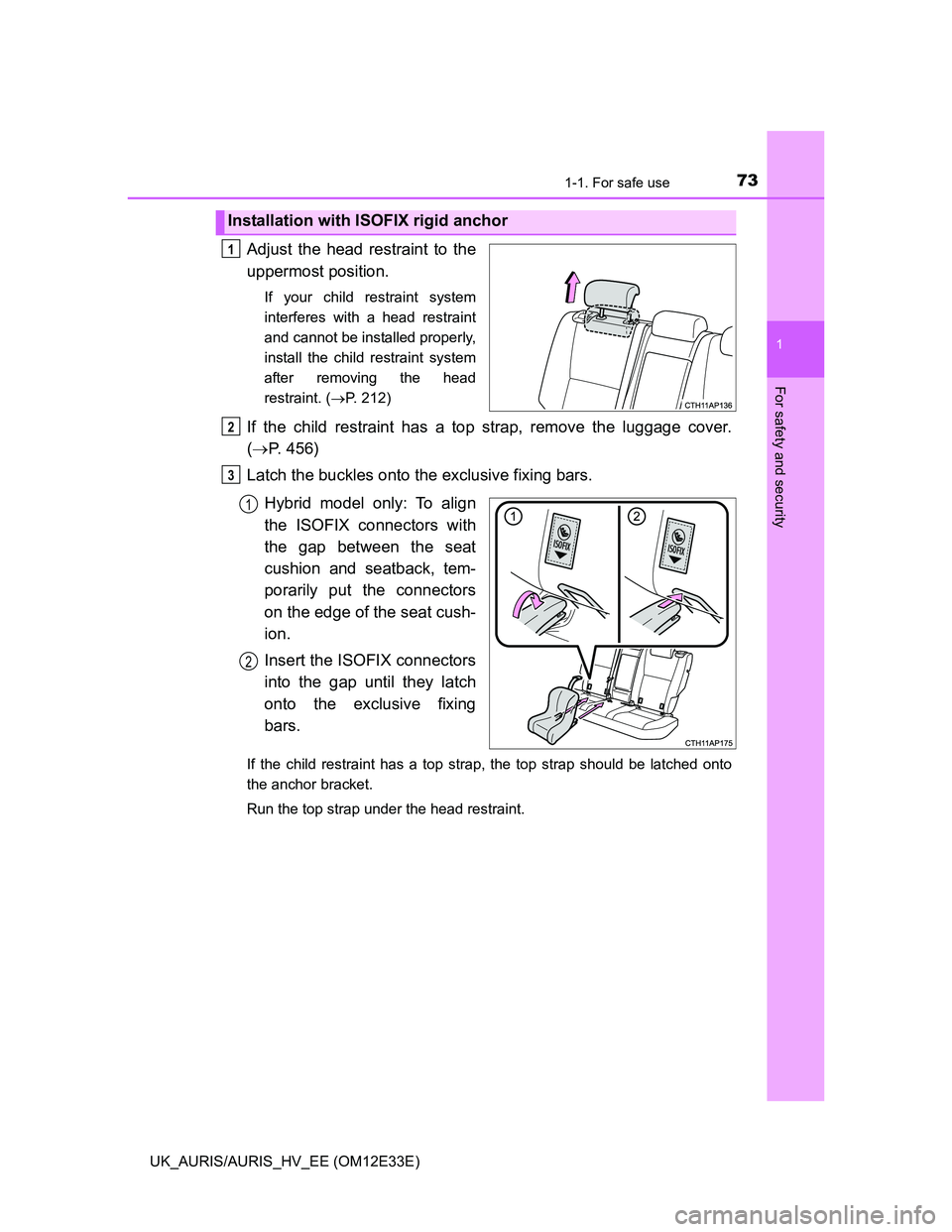

Installation with ISOFIX rigid anchor
1
2
3
1
2

741-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)
Adjust the head restraint to the
uppermost position.
If your child restraint system
interferes with a head restraint
and cannot be installed properly,
install the child restraint system
after removing the head
restraint. (P. 212)
Secure the child restraint sys-
tem using the seat belt or ISO-
FIX rigid anchors.
Remove the luggage cover. (P. 456)
Latch the hook onto the anchor
bracket and tighten the top
strap.
Run the top strap under the head
restraint.
Make sure the top strap is securely
latched.

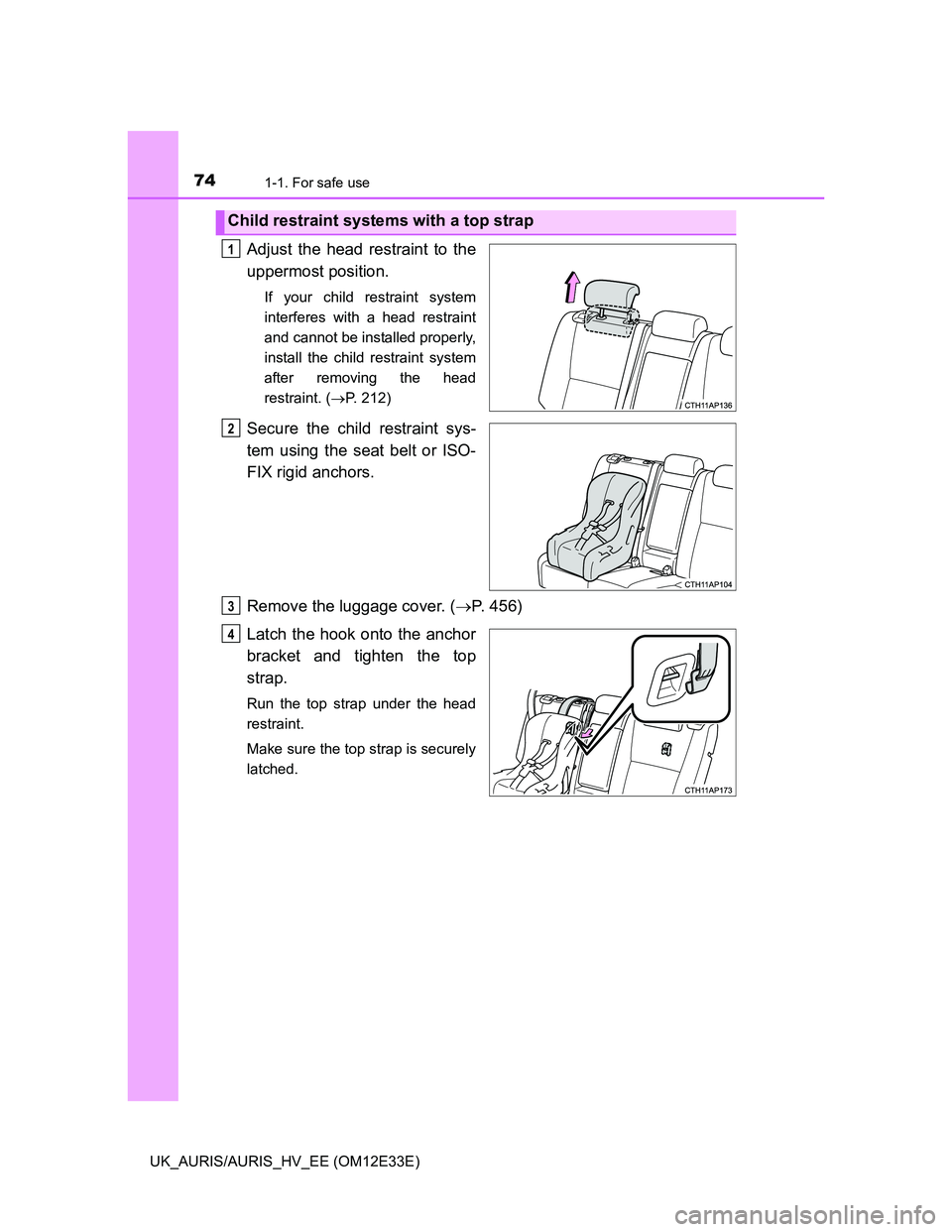

Child restraint systems with a top strap
1
2
3
4

751-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instruc-
tions provided by the manufacturer of the system. If your child restraint sys-
tem does not provide a locking clip, you can purchase the following item from
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.
If the driver's seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
Only put a forward-facing child restraint
system on the front seat when unavoid-
able.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible and remove the head restraint.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).

761-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)

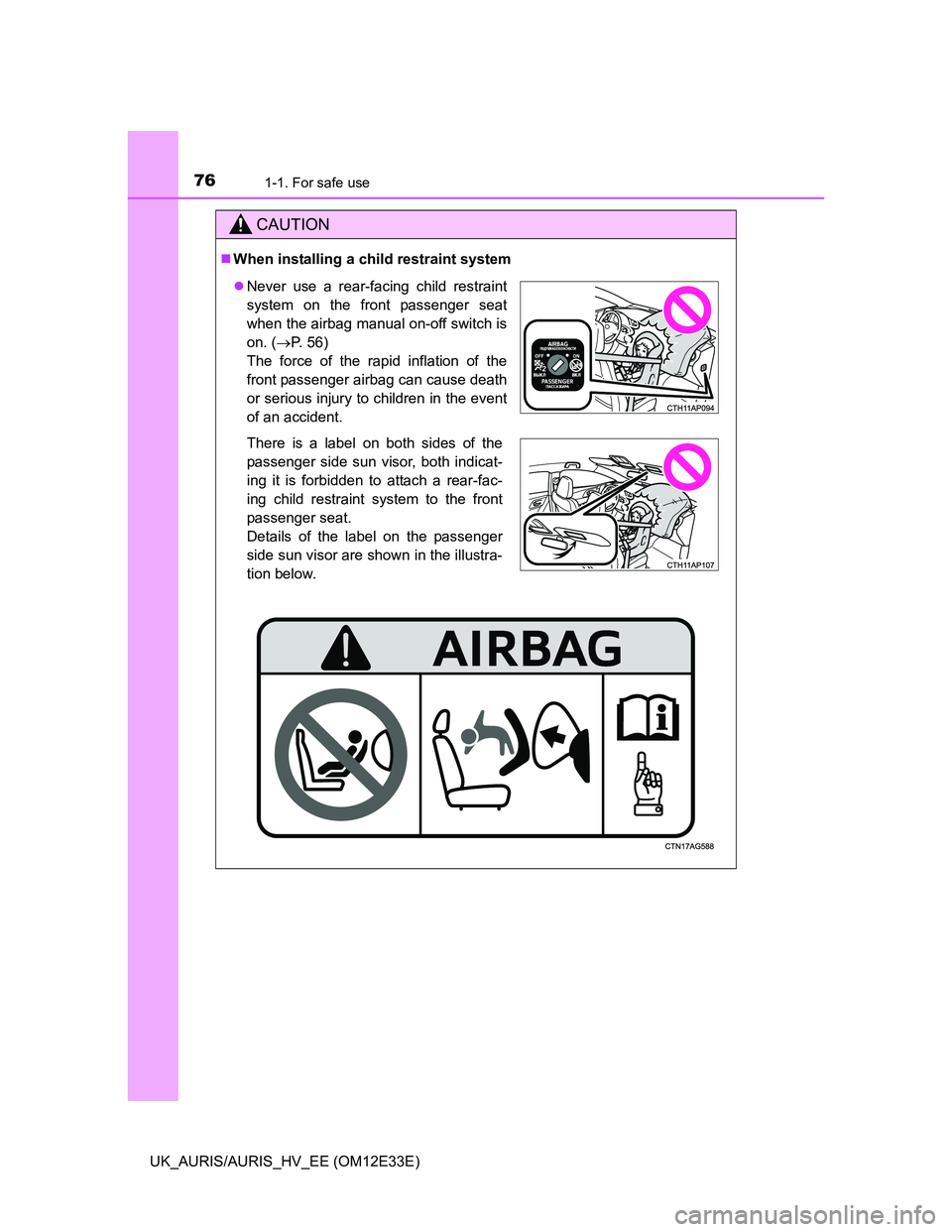

CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 56)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a label on both sides of the
passenger side sun visor, both indicat-
ing it is forbidden to attach a rear-fac-
ing child restraint system to the front
passenger seat.
Details of the label on the passenger
side sun visor are shown in the illustra-
tion below.

771-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)

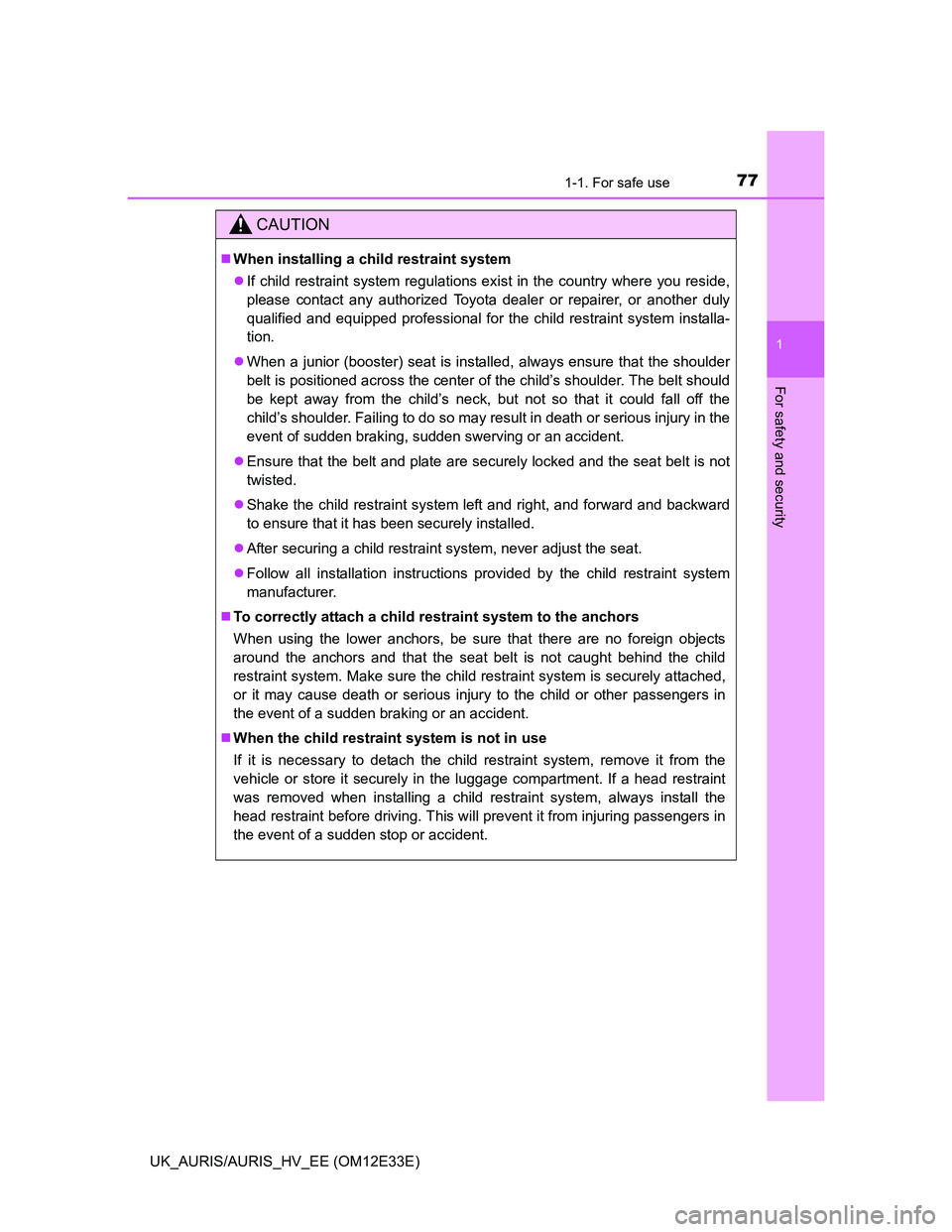

CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When a junior (booster) seat is installed, always ensure that the shoulder
belt is positioned across the center of the child’s shoulder. The belt should
be kept away from the child’s neck, but not so that it could fall off the
child’s shoulder. Failing to do so may result in death or serious injury in the
event of sudden braking, sudden swerving or an accident.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
After securing a child restraint system, never adjust the seat.
Follow all installation instructions provided by the child restraint system
manufacturer.
To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking or an accident.
When the child restraint system is not in use
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers in
the event of a sudden stop or accident.

781-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)

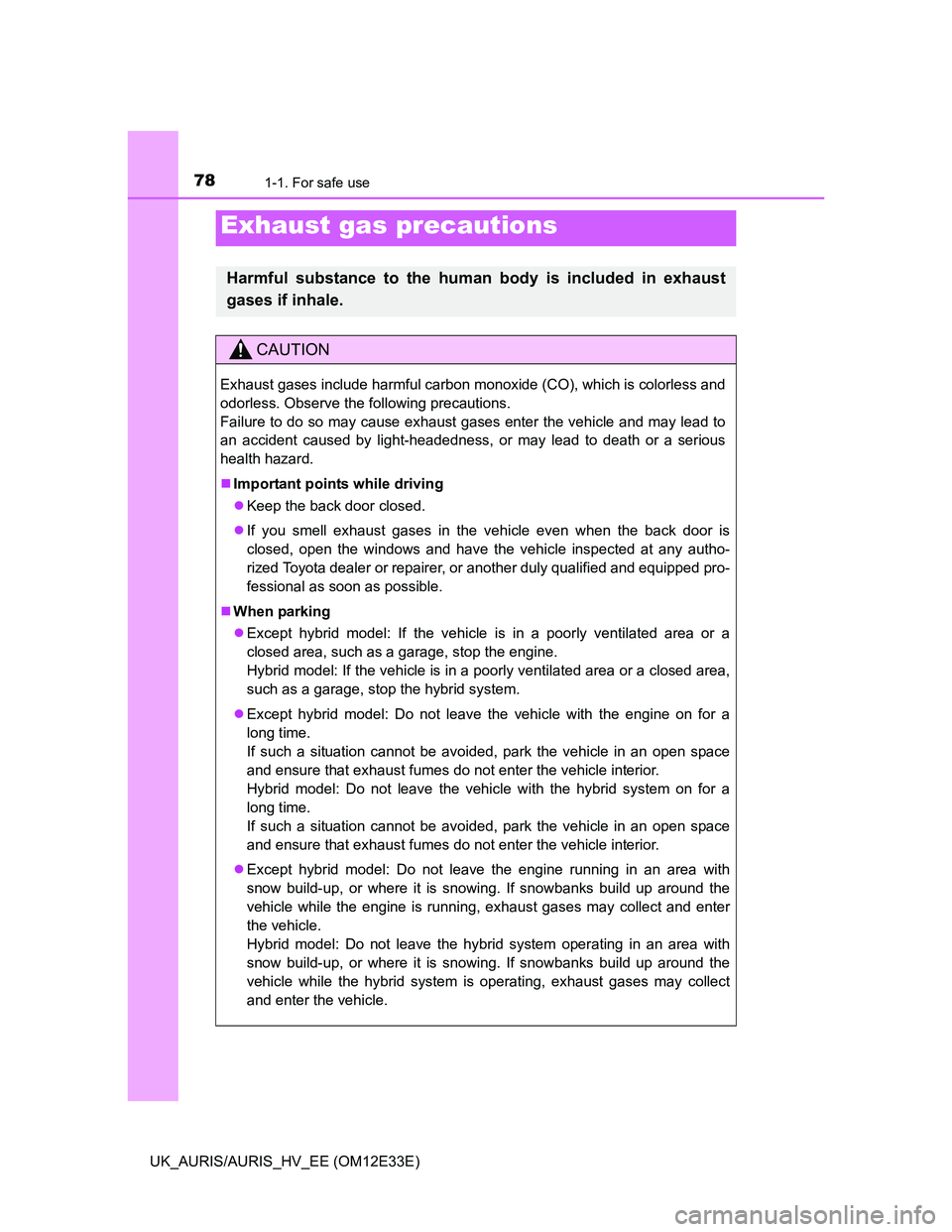

Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhale.
CAUTION
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
Important points while driving
Keep the back door closed.
If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
When parking
Except hybrid model: If the vehicle is in a poorly ventilated area or a
closed area, such as a garage, stop the engine.
Hybrid model: If the vehicle is in a poorly ventilated area or a closed area,
such as a garage, stop the hybrid system.
Except hybrid model: Do not leave the vehicle with the engine on for a
long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
Hybrid model: Do not leave the vehicle with the hybrid system on for a
long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
Except hybrid model: Do not leave the engine running in an area with
snow build-up, or where it is snowing. If snowbanks build up around the
vehicle while the engine is running, exhaust gases may collect and enter
the vehicle.
Hybrid model: Do not leave the hybrid system operating in an area with
snow build-up, or where it is snowing. If snowbanks build up around the
vehicle while the hybrid system is operating, exhaust gases may collect
and enter the vehicle.
