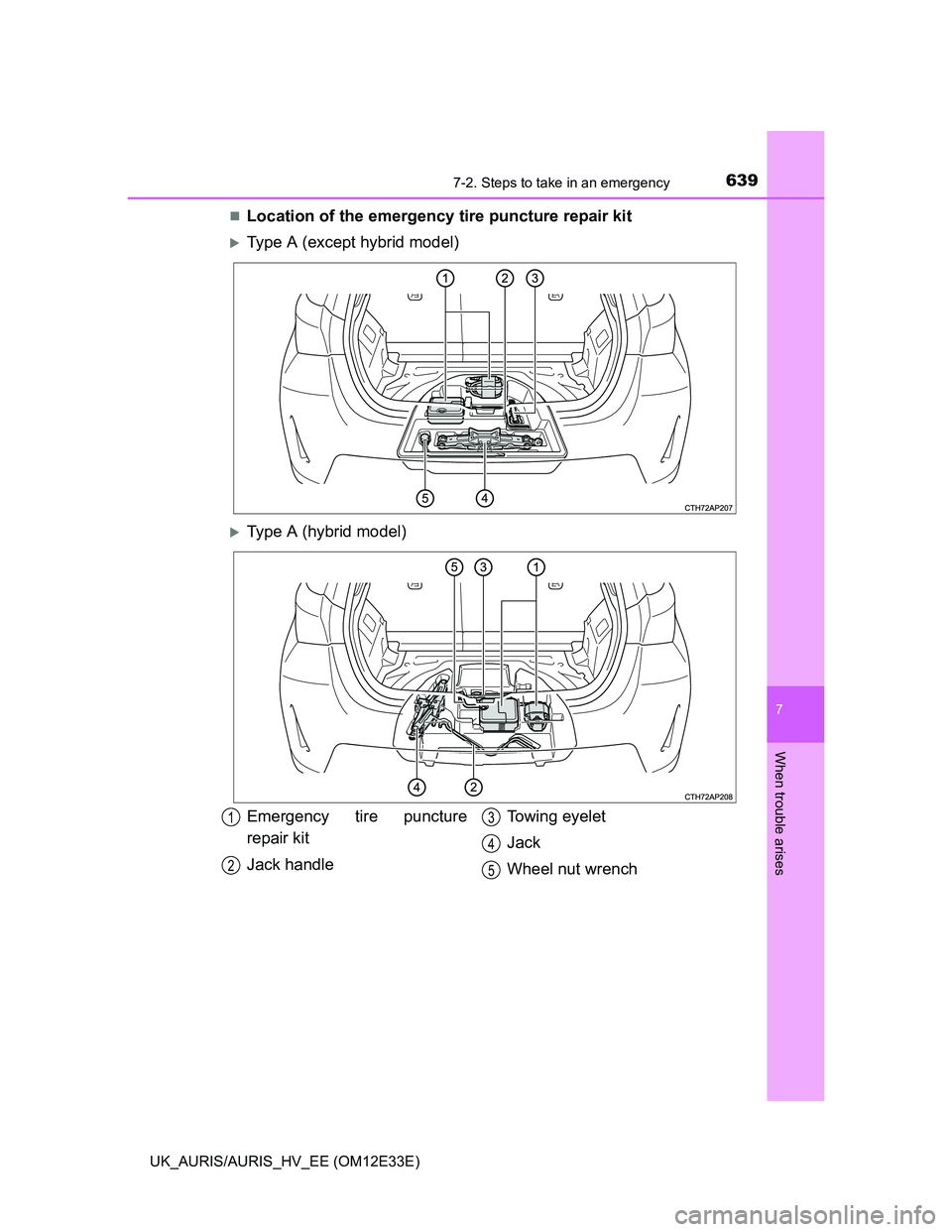

Location of the emergency tire puncture repair kit
Type A (except hybrid model)
Type A (hybrid model)
Emergency tire puncture
repair kit
Jack handleTowing eyelet
Jack
Wheel nut wrench1
2
3
4
5

6407-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

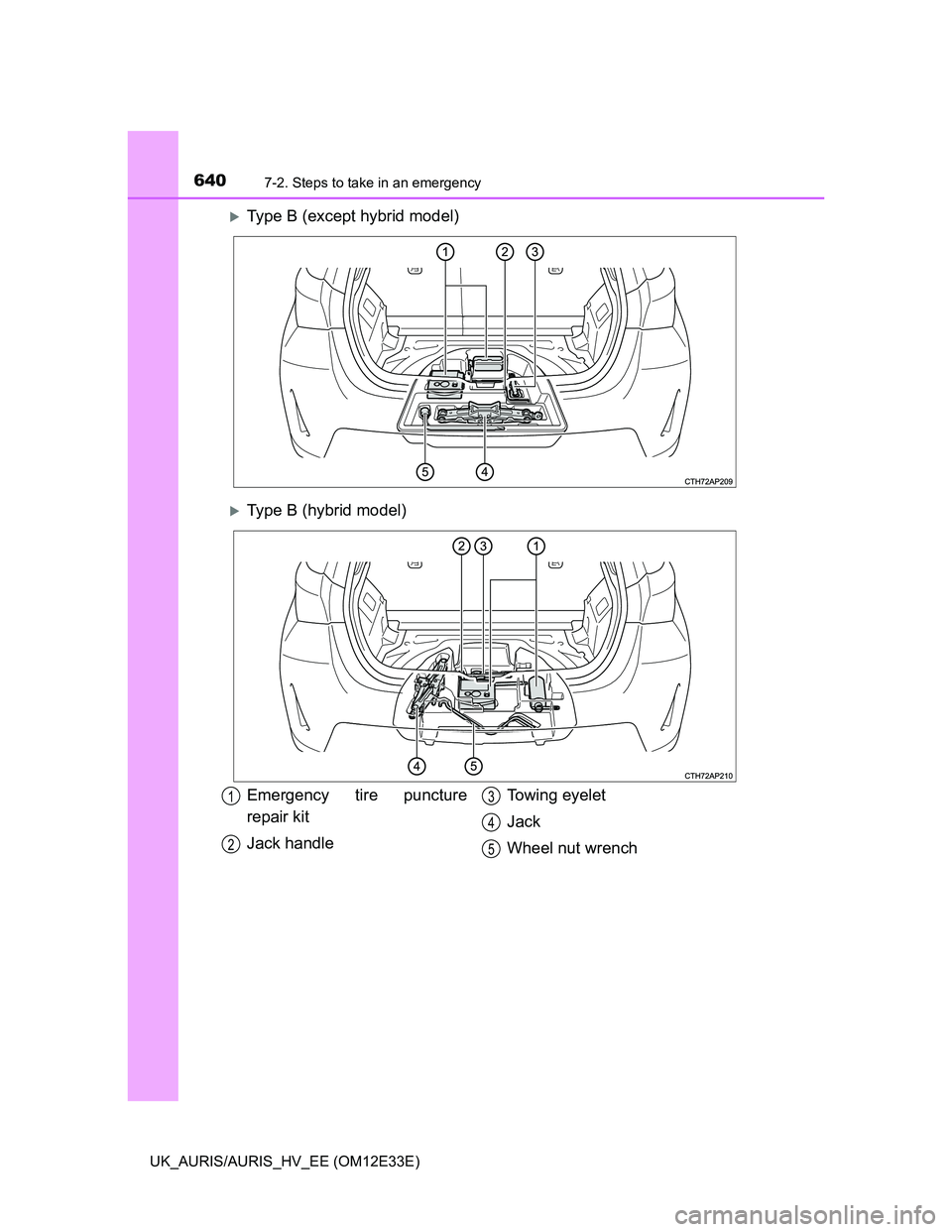

Type B (except hybrid model)
Type B (hybrid model)
Emergency tire puncture
repair kit
Jack handleTowing eyelet
Jack
Wheel nut wrench1
2
3
4
5

6417-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

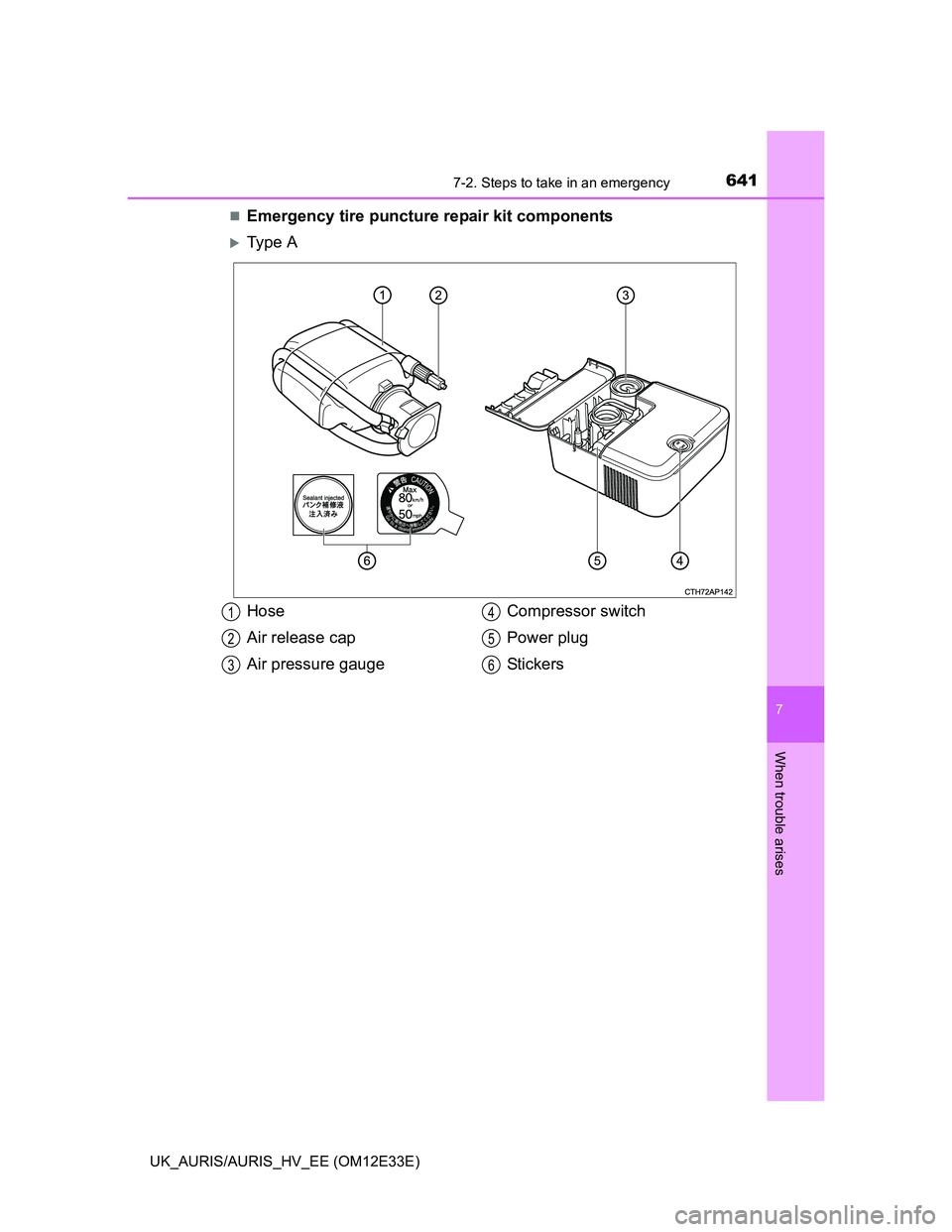

Emergency tire puncture repair kit components
Ty p e A
Hose
Air release cap
Air pressure gaugeCompressor switch
Power plug
St ic ke rs1
2
3
4
5
6

6427-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

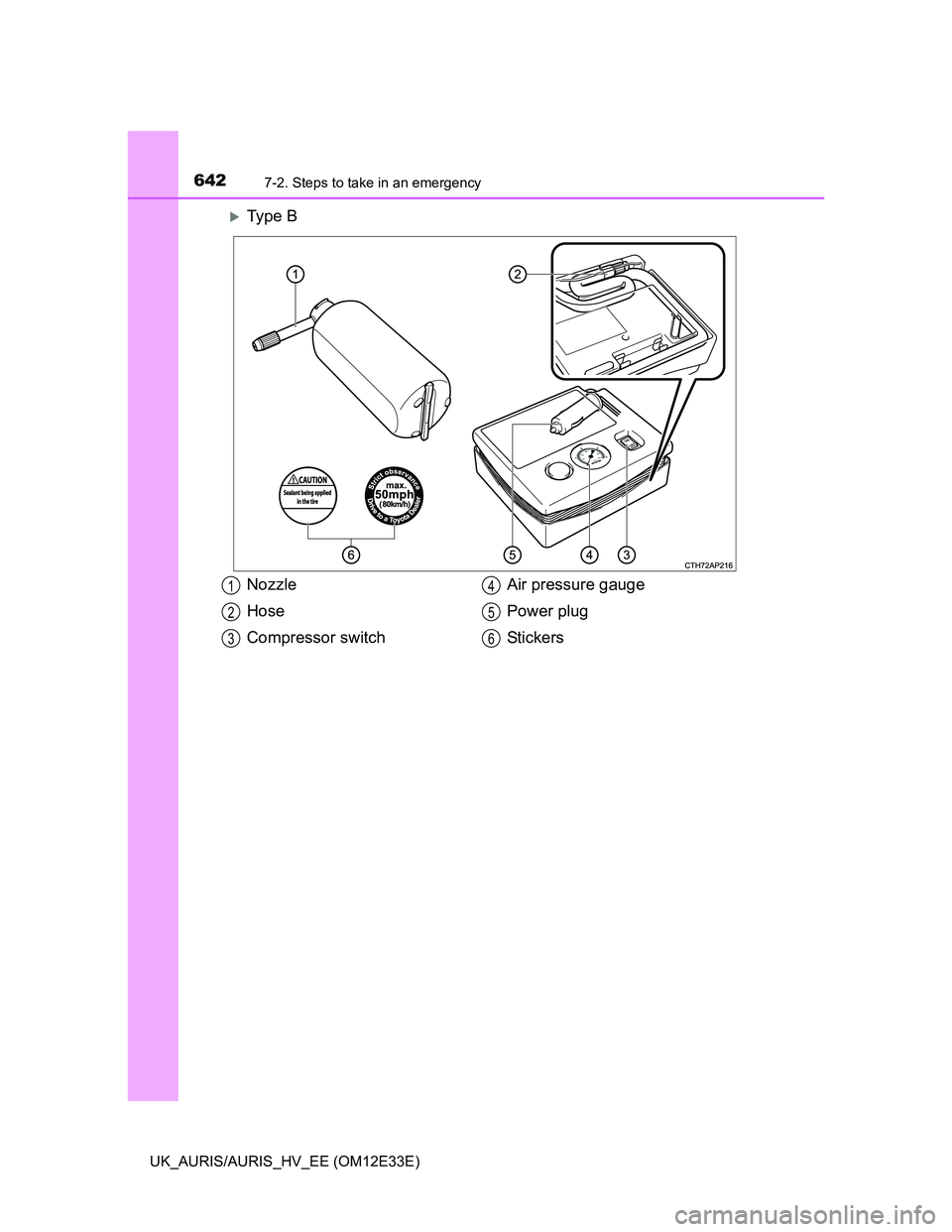

Ty p e B

Nozzle
Hose
Compressor switchAir pressure gauge
Power plug
St ic ke rs1
2
3
4
5
6

6437-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

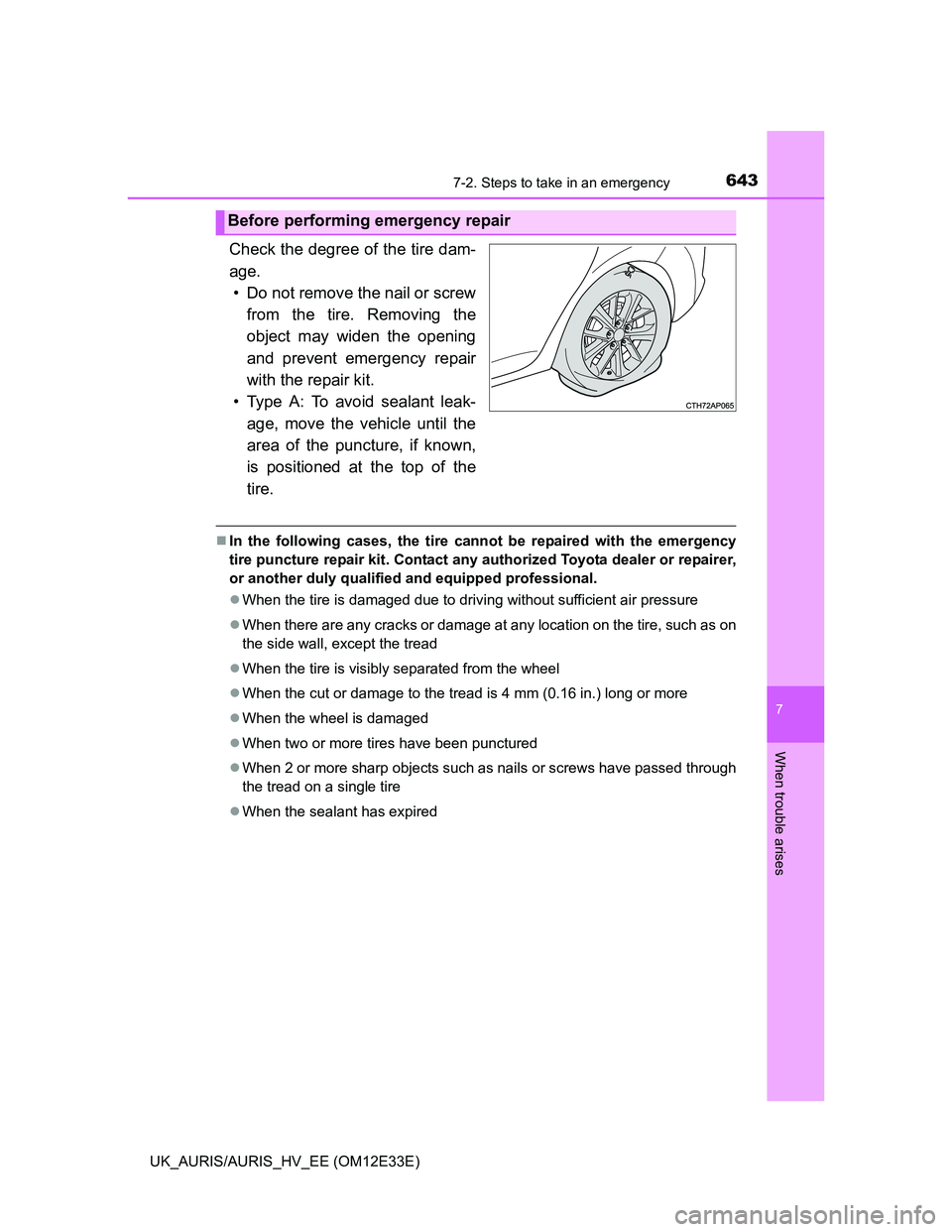

Check the degree of the tire dam-
age.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and prevent emergency repair
with the repair kit.
• Type A: To avoid sealant leak-
age, move the vehicle until the
area of the puncture, if known,
is positioned at the top of the
tire.
In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
When the sealant has expired
Before performing emergency repair

6447-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles with a deck board: Lift
the deck board and attach the
hook.
Remove the hook on the
backside of the deck board.
Attach the hook to the upper
edge of the back door open-
ing as shown.
Remove the luggage mat. (P. 452)
Take out the emergency tire puncture repair kit. (P. 639)
Take out the repair kit from the tool box.
Remove the valve cap from the
valve of the punctured tire.
Remove the protective film from
the bottle and extend the hose.
Remove the air release cap
from the hose.
Attach the sticker enclosed with the
bottle on the specified locations.
(See step 9.)
You will use the air release cap
again. Therefore keep it in a safe
place.

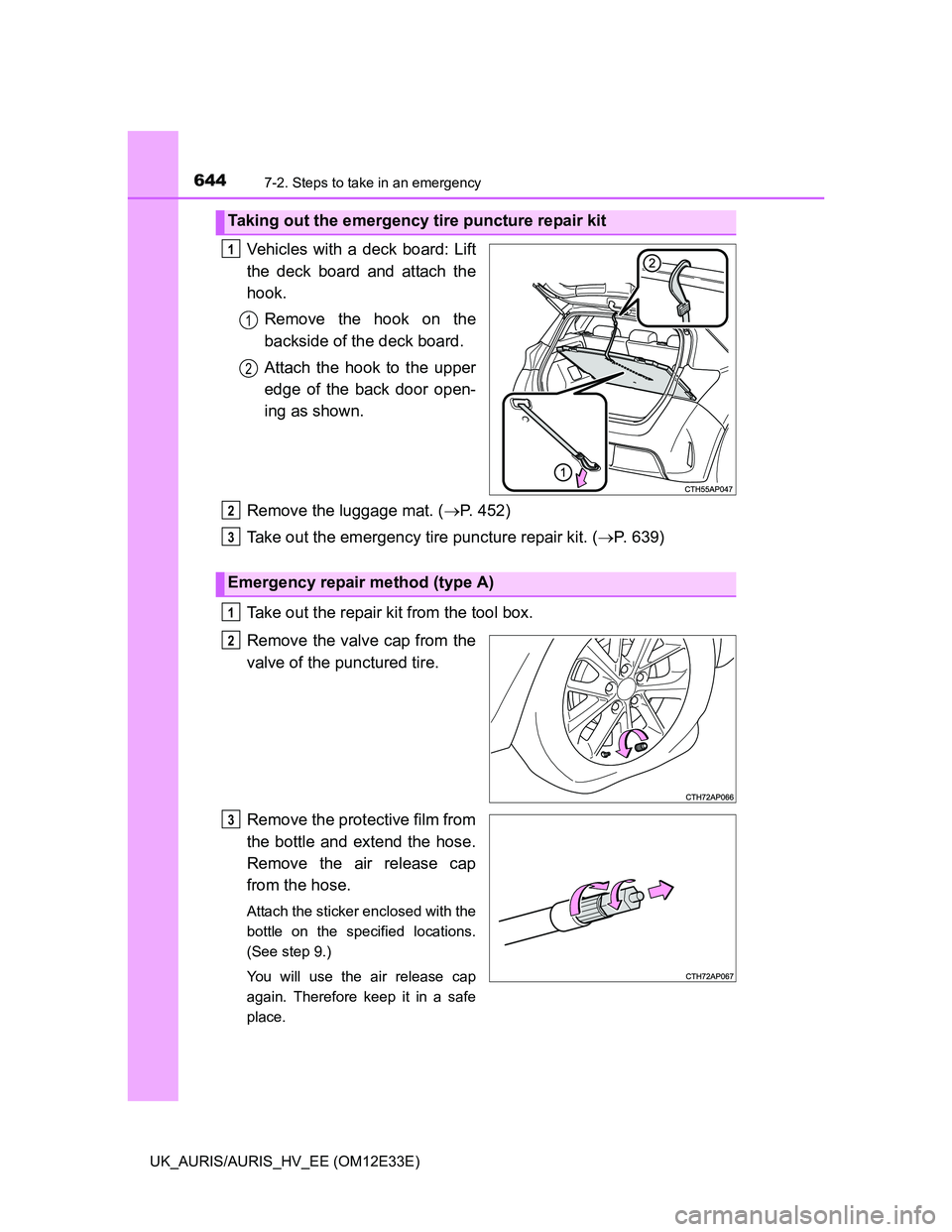

Taking out the emergency tire puncture repair kit
1
1
2
Emergency repair method (type A)
2
3
1
2
3

6457-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

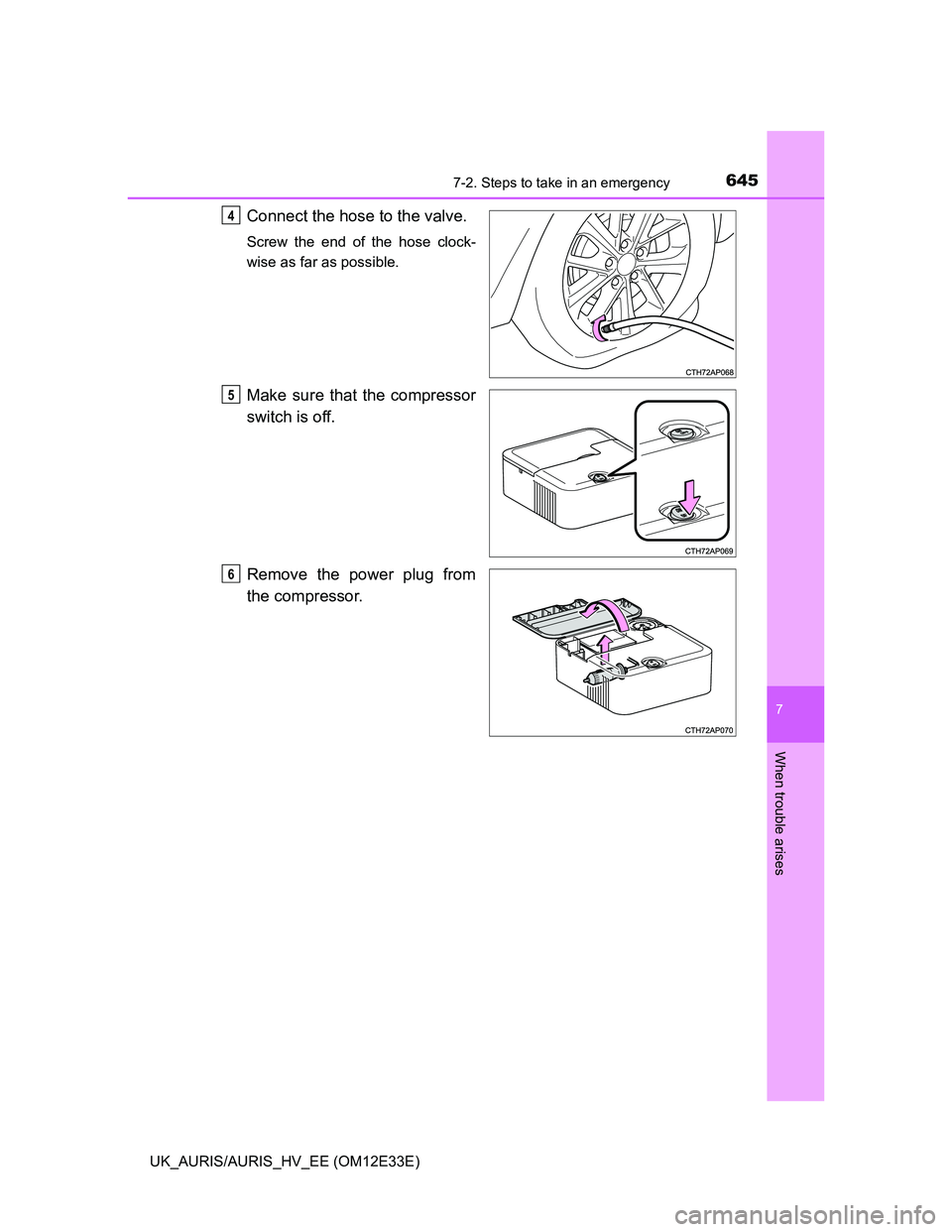

Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
4
5
6

6467-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

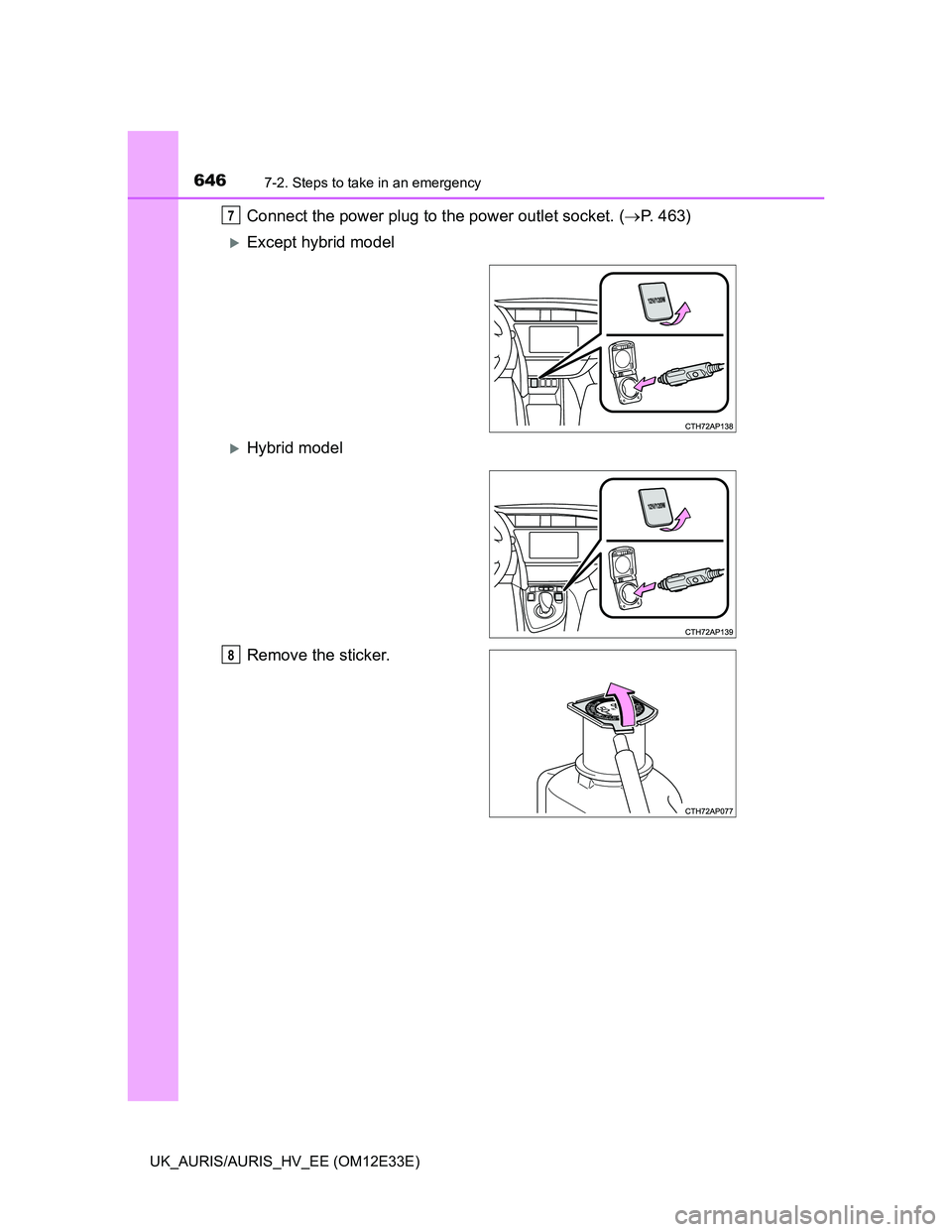

Connect the power plug to the power outlet socket. (P. 463)
Except hybrid model
Hybrid model
Remove the sticker.
7
8
