2012 TOYOTA AURIS CD player

TABLE OF CONTENTS4
UK_AURIS/AURIS_HV_EE (OM12E33E)5-1. Using the air conditioning
system and defogger
Heater system....................374
Automatic air conditioning
system (without dual
operation) ........................379
Automatic air conditioning
system (with dual
operation) ........................388
Power heater .....................396
Rear window and
outside rear view
mirror defoggers ..............398
5-2. Using the audio system
Audio system types............400
Using the radio...................404
Using the CD player...........408
Playing back MP3 and
WMA discs.......................413
Operating an iPod ..............419
Operating a USB
memory............................428
Optimal use of the audio
system .............................435
Using the AUX port ............437
Using the steering wheel
audio switches .................4385-3. Using the interior lights
Interior lights list ................ 441
• Interior lights ................ 442
• Vanity lights ................. 442
• Personal lights ............. 443
5-4. Using the storage features
List of storage features...... 445
• Glove box..................... 446
• Console box ................. 446
• Bottle holders ............... 447
• Cup holders ................. 448
• Auxiliary boxes ............. 450
Luggage compartment
features ........................... 451
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 458
Clock ................................. 459
Outside temperature
display ............................. 460
Portable ashtray ................ 462
Power outlets .................... 463
Seat heaters ...................... 465
Armrest.............................. 468
Coat hooks ........................ 469
Assist grips ........................ 470
Panoramic roof shade ....... 471
5Interior features

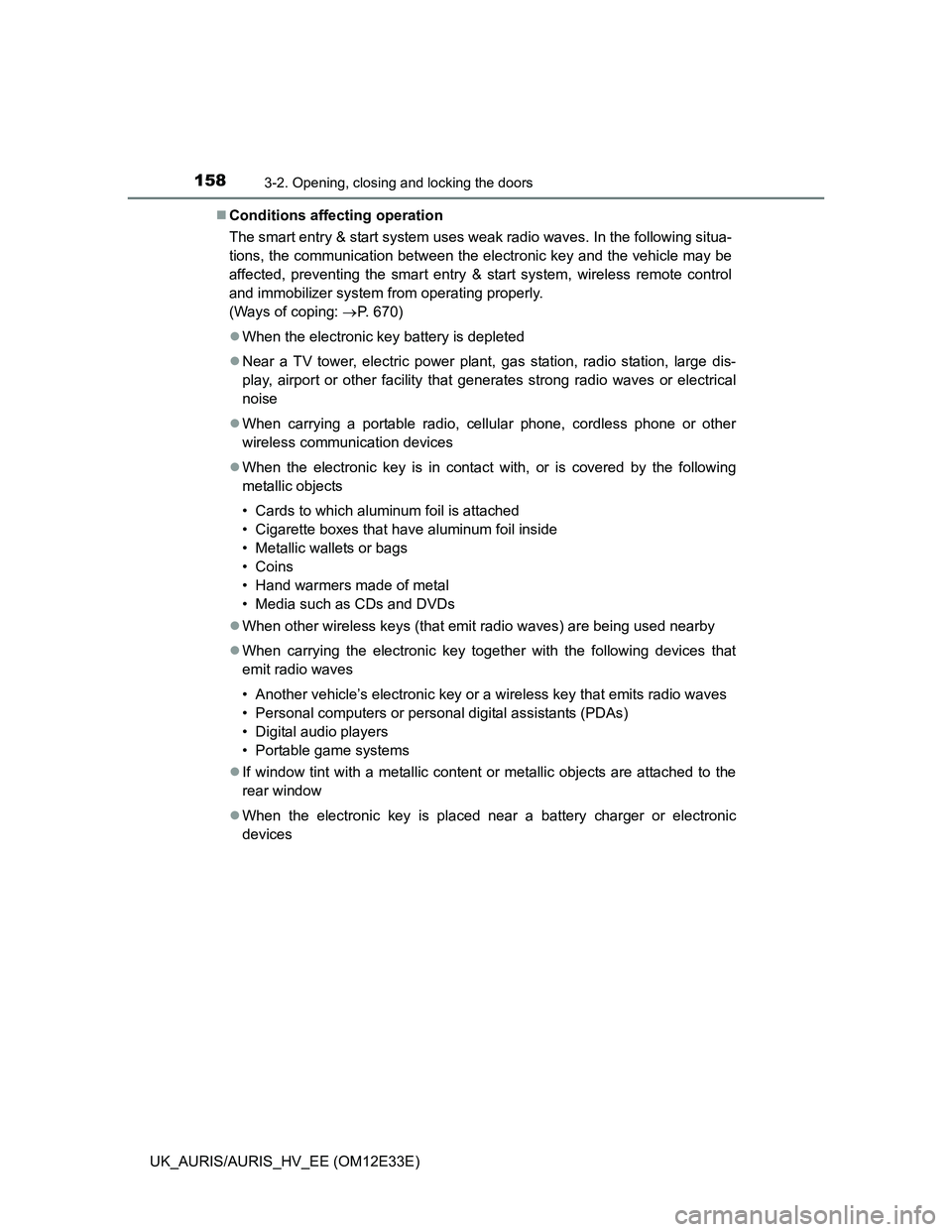

1583-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and immobilizer system from operating properly.
(Ways of coping: P. 670)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
When other wireless keys (that emit radio waves) are being used nearby
When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to the
rear window
When the electronic key is placed near a battery charger or electronic
devices

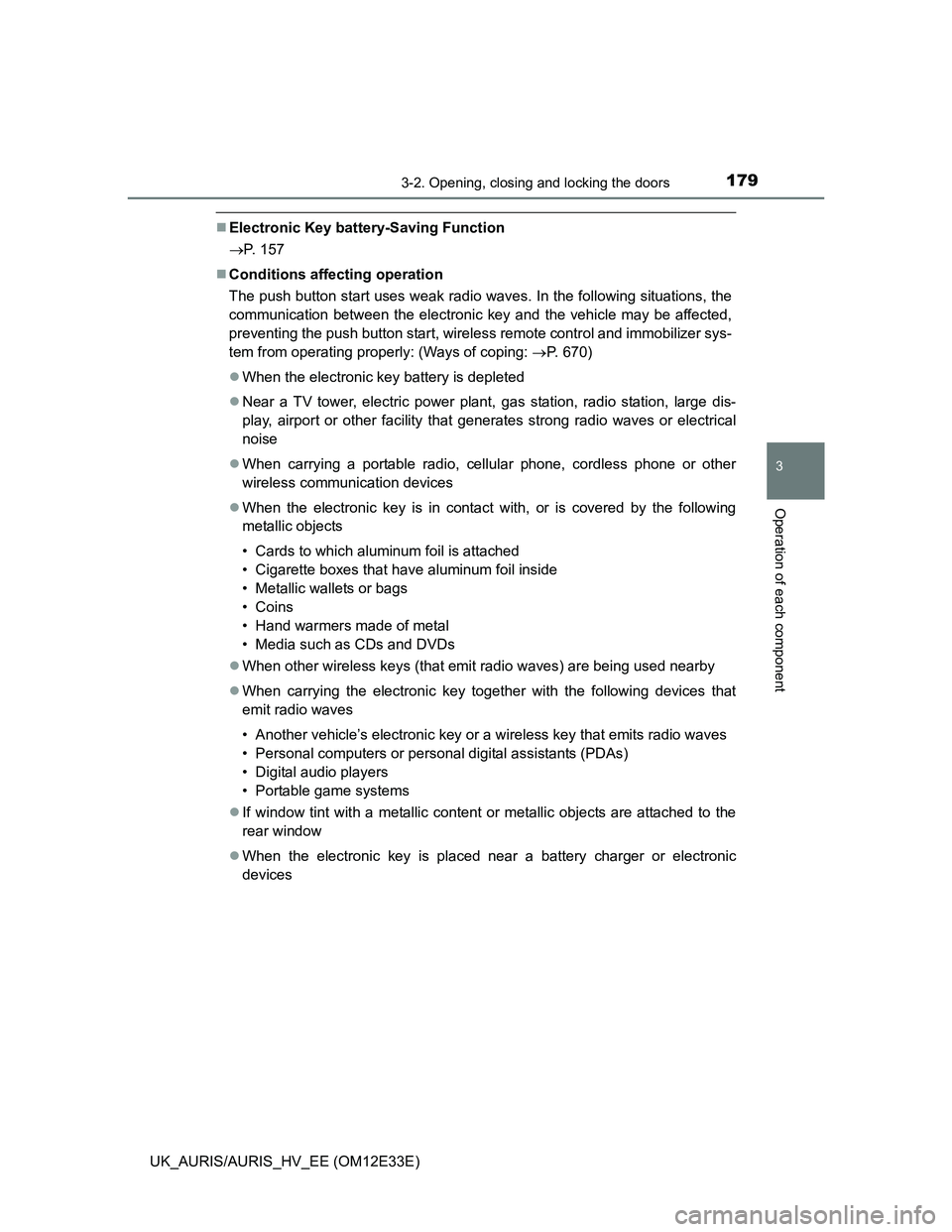

1793-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
Electronic Key battery-Saving Function
P. 157
Conditions affecting operation
The push button start uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the push button start, wireless remote control and immobilizer sys-
tem from operating properly: (Ways of coping: P. 670)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
When other wireless keys (that emit radio waves) are being used nearby
When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to the
rear window
When the electronic key is placed near a battery charger or electronic
devices

373
5Interior features
UK_AURIS/AURIS_HV_EE (OM12E33E)5-1. Using the air conditioning
system and defogger
Heater system ................... 374
Automatic air conditioning
system (without dual
operation) ........................ 379
Automatic air conditioning
system (with dual
operation) ........................ 388
Power heater ..................... 396
Rear window and
outside rear view
mirror defoggers .............. 398
5-2. Using the audio system
Audio system types ........... 400
Using the radio .................. 404
Using the CD player .......... 408
Playing back MP3 and
WMA discs....................... 413
Operating an iPod.............. 419
Operating a USB
memory............................ 428
Optimal use of the audio
system ............................. 435
Using the AUX port ............ 437
Using the steering wheel
audio switches ................. 4385-3. Using the interior lights
Interior lights list ................. 441
• Interior lights .................. 442
• Vanity lights ................... 442
• Personal lights ............... 443
5-4. Using the storage
features
List of storage features ...... 445
• Glove box ...................... 446
• Console box .................. 446
• Bottle holders ................ 447
• Cup holders ................... 448
• Auxiliary boxes .............. 450
Luggage compartment
features............................ 451
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 458
Clock .................................. 459
Outside temperature
display ............................. 460
Portable ashtray................. 462
Power outlets ..................... 463
Seat heaters ...................... 465
Armrest .............................. 468
Coat hooks......................... 469
Assist grips ........................ 470
Panoramic roof shade........ 471

400
UK_AURIS/AURIS_HV_EE (OM12E33E)
5-2. Using the audio system
Vehicles without a “touch screen”
CD player with changer controller and AM/FM radio
Audio system types
: If equipped
TitlePage
Using the radioP. 404
Using the CD playerP. 408
Playing back MP3 and WMA discsP. 413
Operating an iPodP. 419
Operating a USB memoryP. 428
Optimal use of the audio systemP. 435
Using the AUX portP. 437
Using the steering wheel audio switchesP. 438

4085-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12E33E)
Insert a CD.
Press and remove the CD.
Using the CD player
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageBack button
Playback
Displaying track list
Selecting a track, fast-forward-
ing or reversing
Loading CDs
Ejecting CDs
1
2
3
4
5
6
7
8
9
10

4105-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12E33E)
Display
Up to 24 characters can be displayed at a time.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . If the CD still
cannot be played back, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped profes-
sional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
Certification for the CD player
This product is a class I laser product.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.

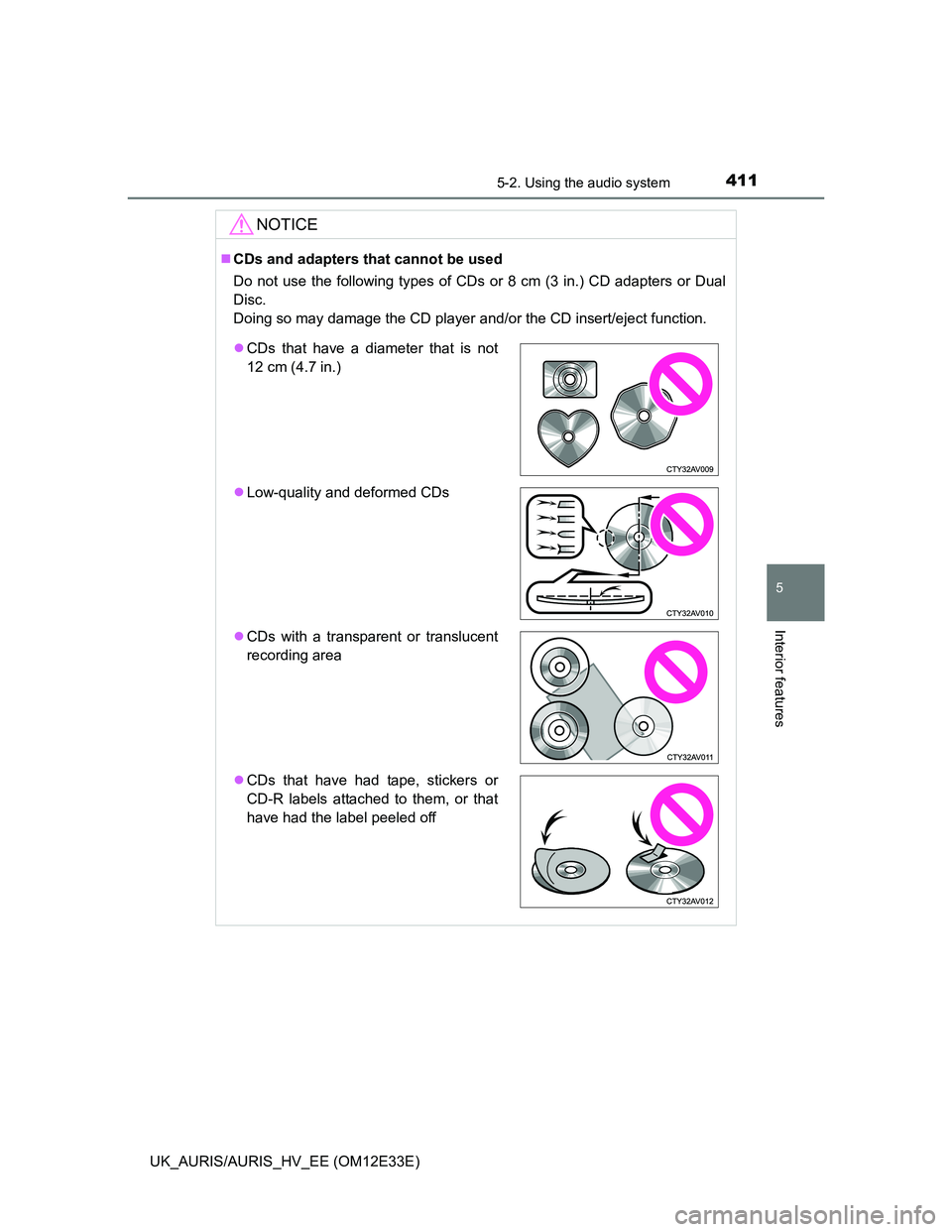

4115-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs or 8 cm (3 in.) CD adapters or Dual
Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not
12 cm (4.7 in.)
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or
CD-R labels attached to them, or that
have had the label peeled off
