2012 TOYOTA AURIS Owners Manual (in English)

695

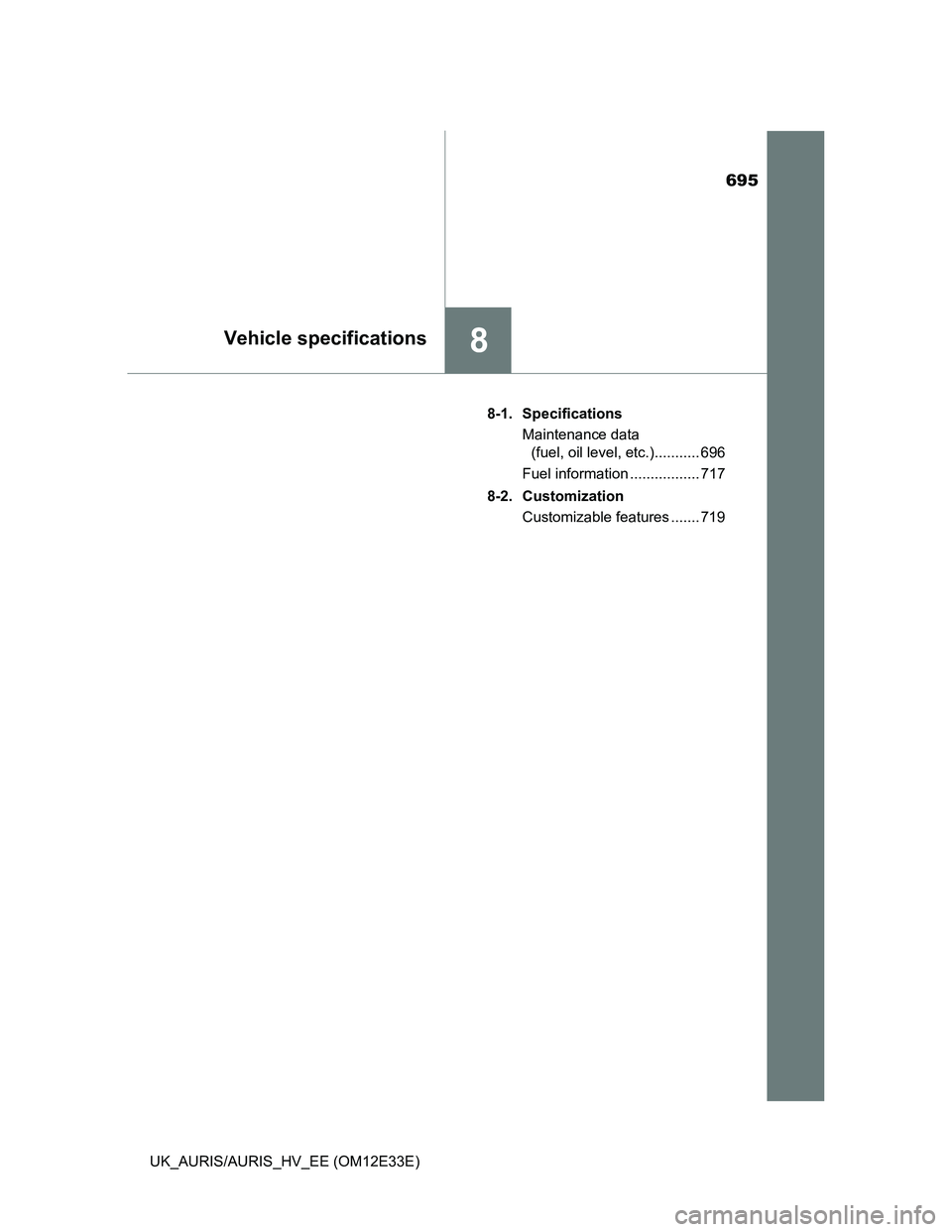

8Vehicle specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)8-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 696
Fuel information ................. 717
8-2. Customization
Customizable features ....... 719

696
UK_AURIS/AURIS_HV_EE (OM12E33E)
8-1. Specifications
Except hybrid model
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4275 mm (168.3 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*2, 3
1520 mm (59.8 in.)*3
1510 mm (59.4 in.)*4
1ZR-FAE engine
1530 mm (60.2 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
1AD-FTV engine
1515 mm (59.6 in.)
*3
1505 mm (59.3 in.)*5
Gross vehicle mass*6
1NR-FE engine
1735 kg (3826 lb.)
1ZR-FAE engine
1830 kg (4035 lb.)
*7
1805 kg (3980 lb.)*8
1ND-TV engine
1815 kg (4002 lb.)
1AD-FTV engine
1915 kg (4223 lb.)

6978-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
8
Vehicle specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 215/45R17 tires
*5: Vehicles with 225/45R17 tires
*6: Vehicles with towing package
*7: Vehicles with a Multidrive
*8: Vehicles with a manual transmission

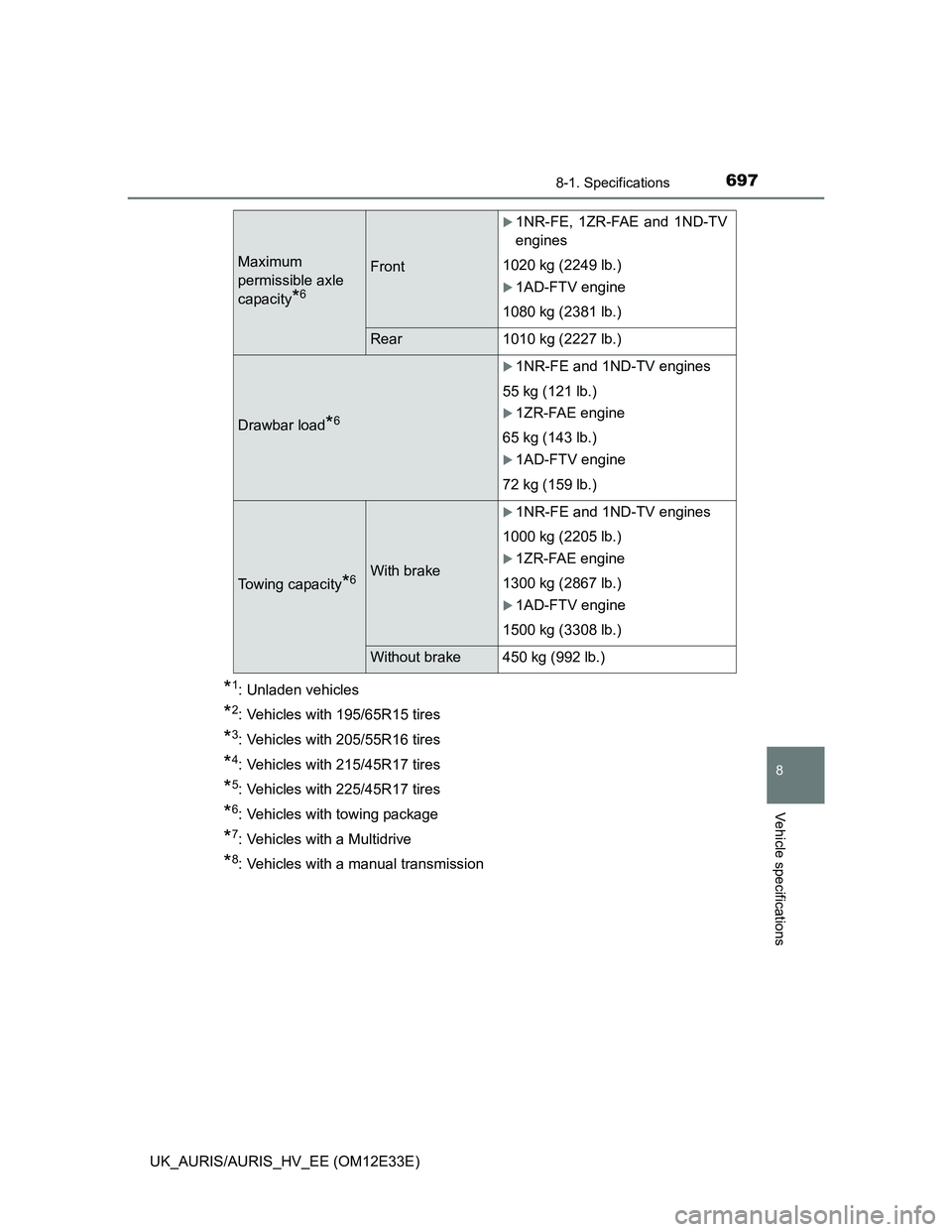

Maximum
permissible axle
capacity
*6
Front
1NR-FE, 1ZR-FAE and 1ND-TV
engines
1020 kg (2249 lb.)
1AD-FTV engine
1080 kg (2381 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load*6
1NR-FE and 1ND-TV engines
55 kg (121 lb.)
1ZR-FAE engine
65 kg (143 lb.)
1AD-FTV engine
72 kg (159 lb.)
Towing capacity*6With brake
1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
1ZR-FAE engine
1300 kg (2867 lb.)
1AD-FTV engine
1500 kg (3308 lb.)
Without brake 450 kg (992 lb.)

6988-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
Hybrid model
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 225/45R17 tires
*5: ZWE186L-DHXGBW, ZWE186R-DHXGBW models*7
*6: ZWE186L-DHXNBW, ZWE186R-DHXNBW models*7
*7: The model code is indicated on the manufacturer's label. (P. 699)
Overall length 4275 mm (168.3 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4
Rear1530 mm (60.2 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*4
Gross vehicle mass1840 kg (4057 lb.)*5
1815 kg (4002 lb.)*6
Maximum permis-
sible axle capacityFront 1020 kg (2249 lb.)
Rear 1010 kg (2227 lb.)

6998-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
8
Vehicle specifications

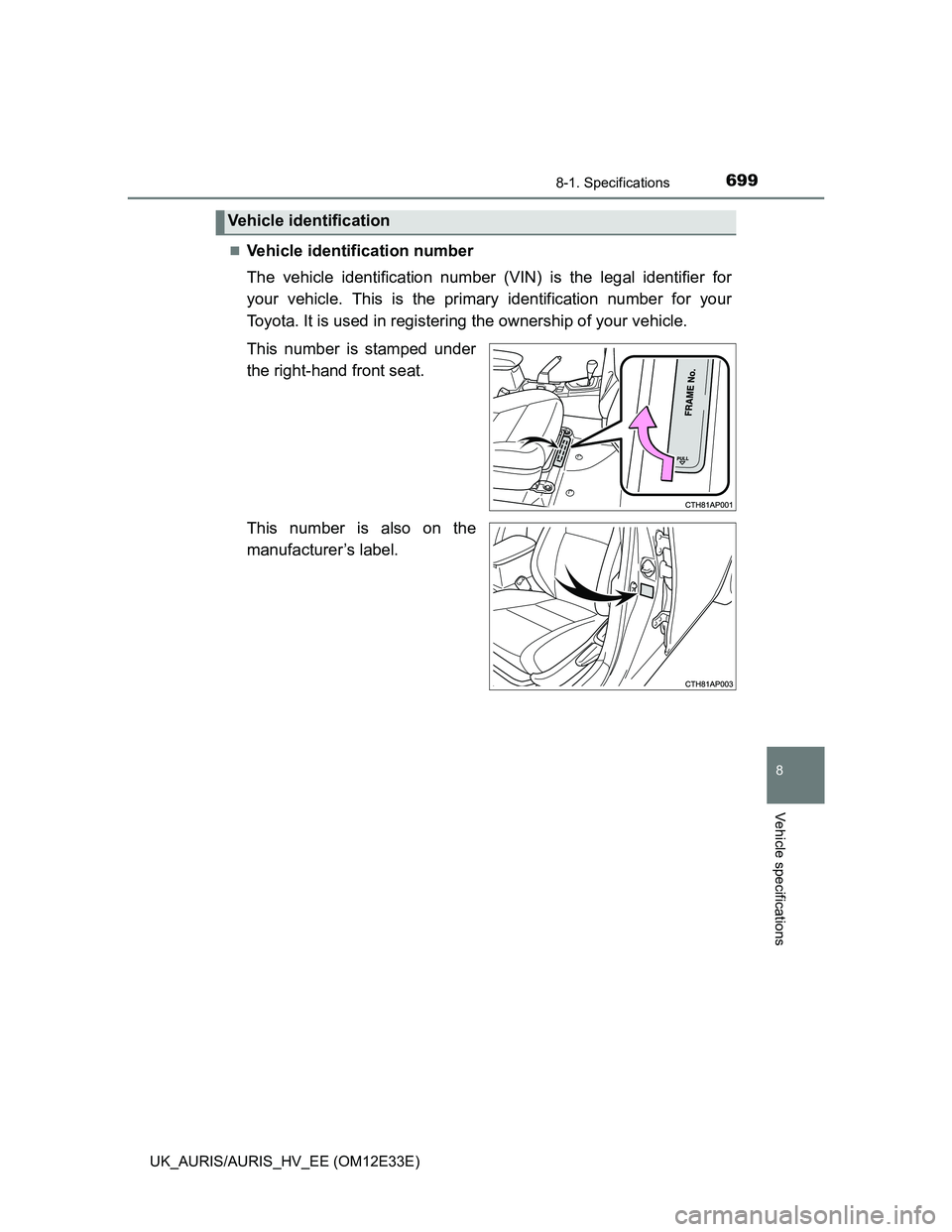

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification

7008-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)

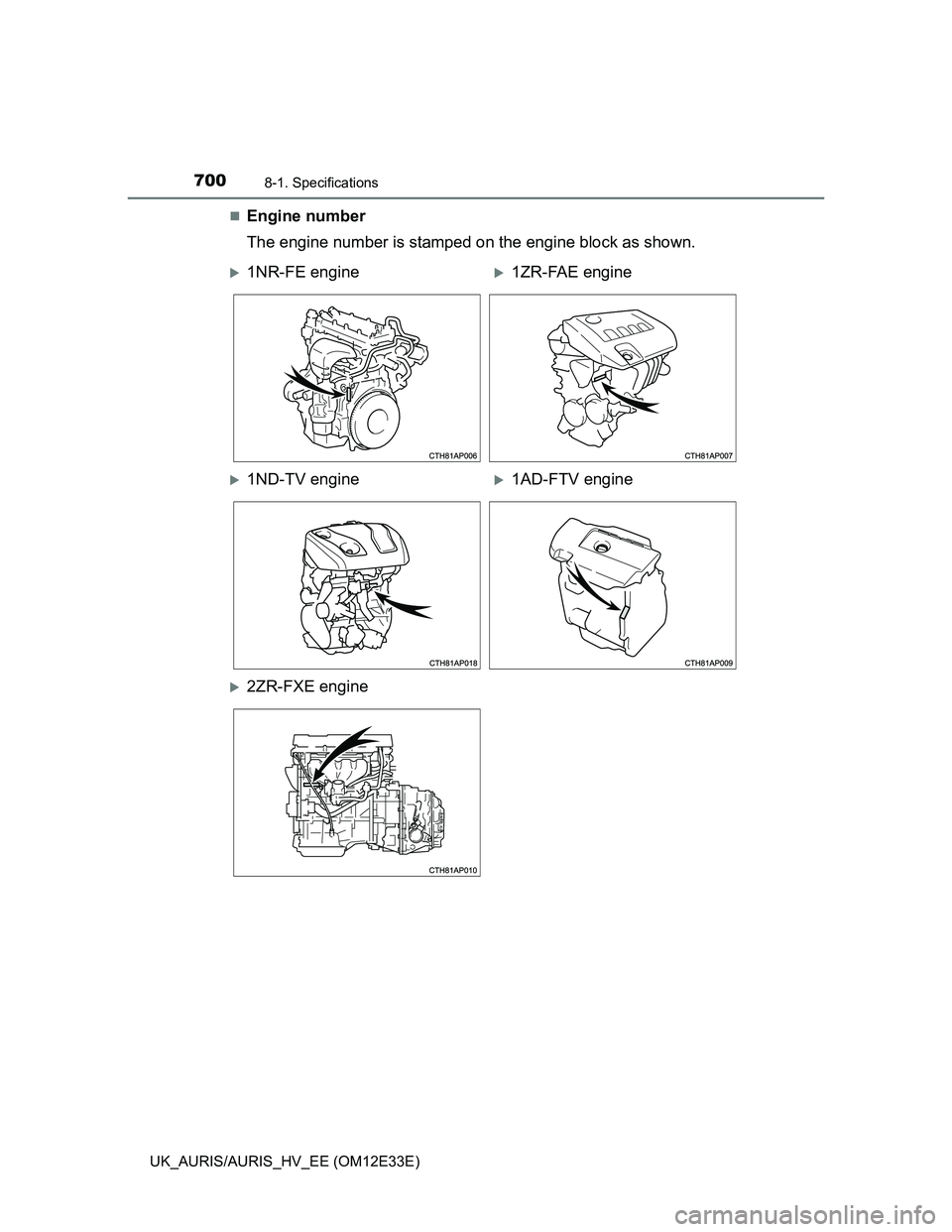

Engine number
The engine number is stamped on the engine block as shown.
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine
2ZR-FXE engine

7018-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)
8
Vehicle specifications

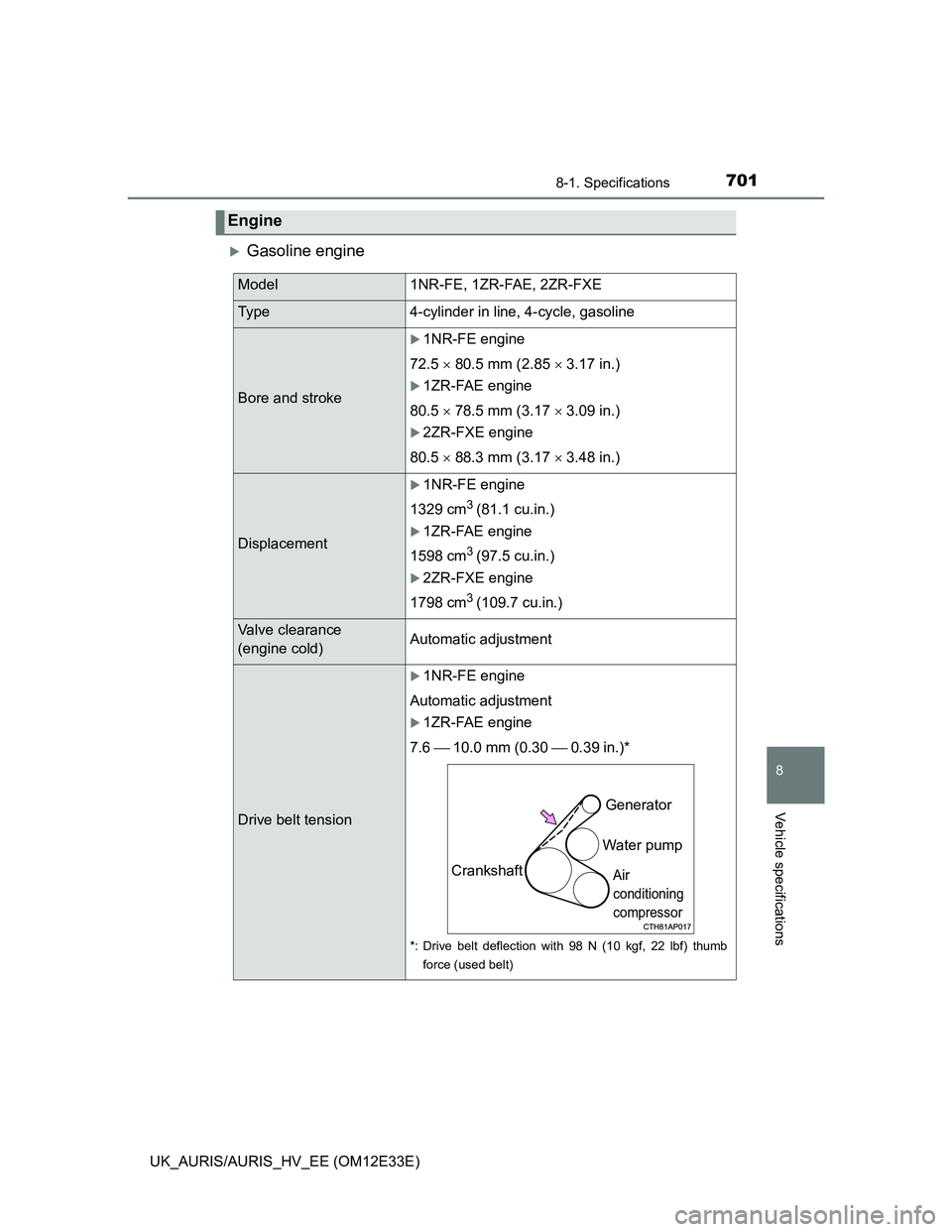

Gasoline engine
Engine
Model1NR-FE, 1ZR-FAE, 2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1NR-FE engine
72.5  80.5 mm (2.85  3.17 in.)
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FXE engine
80.5  88.3 mm (3.17  3.48 in.)
Displacement
1NR-FE engine
1329 cm
3 (81.1 cu.in.)
1ZR-FAE engine
1598 cm
3 (97.5 cu.in.)
2ZR-FXE engine
1798 cm
3 (109.7 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
1NR-FE engine
Automatic adjustment
1ZR-FAE engine
7.6 10.0 mm (0.30 0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
Generator
Water pump
Air
conditioning
compressorCrankshaft

7028-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12E33E)

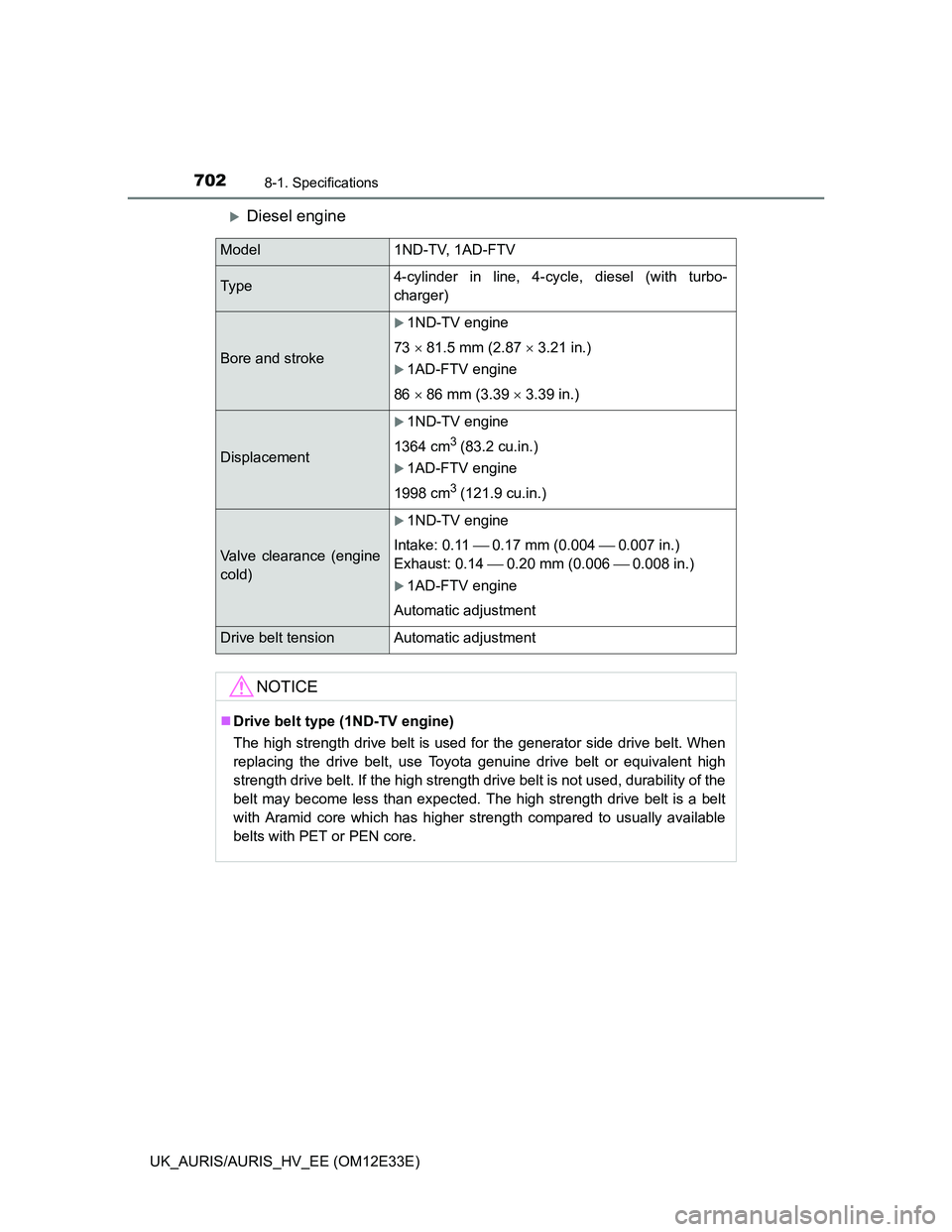

Diesel engine
Model 1ND-TV, 1AD-FTV
Ty p e4-cylinder in line, 4-cycle, diesel (with turbo-
charger)
Bore and stroke
1ND-TV engine
73  81.5 mm (2.87  3.21 in.)
1AD-FTV engine
86  86 mm (3.39  3.39 in.)
Displacement
1ND-TV engine
1364 cm
3 (83.2 cu.in.)
1AD-FTV engine
1998 cm
3 (121.9 cu.in.)
Valve clearance (engine
cold)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
1AD-FTV engine
Automatic adjustment
Drive belt tension Automatic adjustment
NOTICE
Drive belt type (1ND-TV engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.
