551-1. For safe use
1
For safety and security

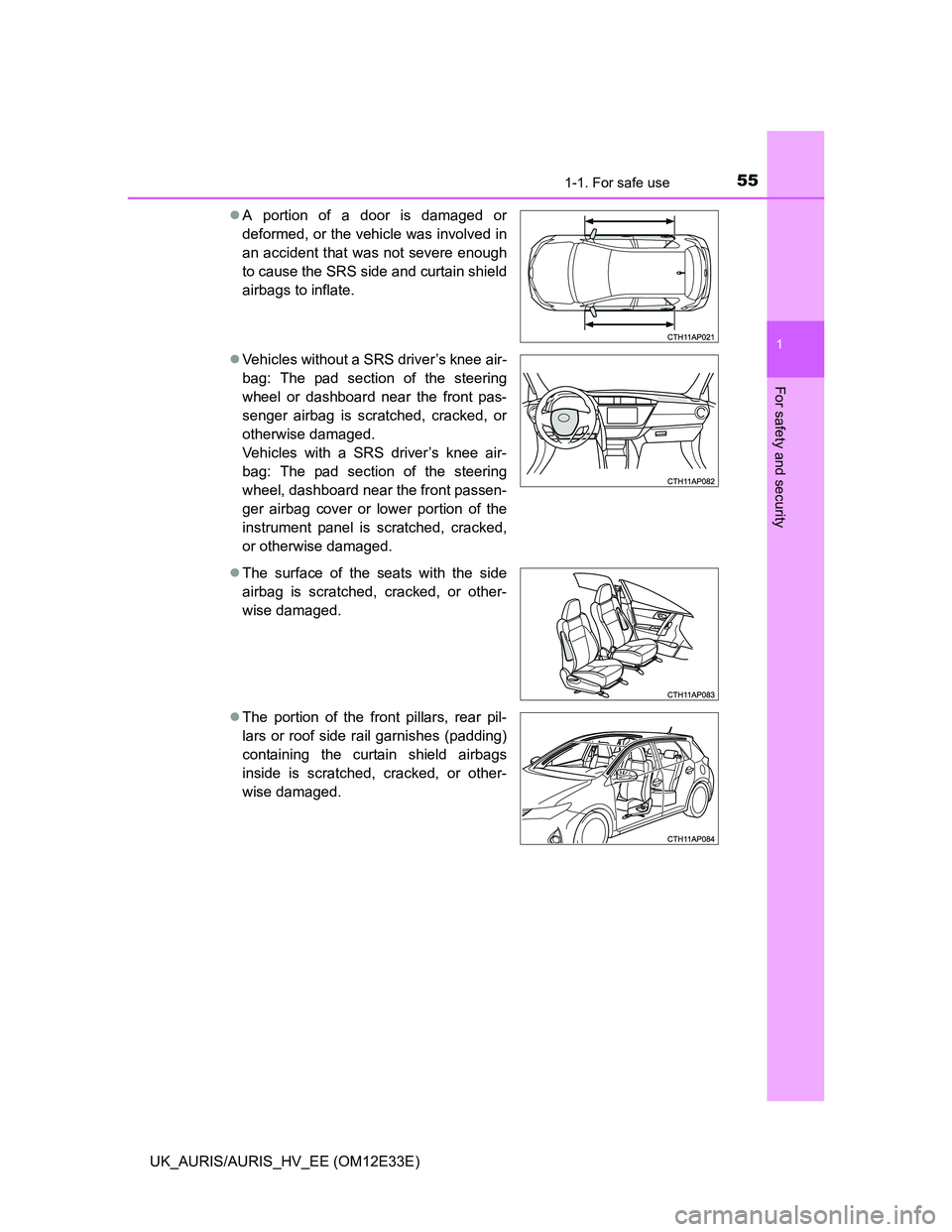

UK_AURIS/AURIS_HV_EE (OM12E33E)A portion of a door is damaged or
deformed, or the vehicle was involved in
an accident that was not severe enough
to cause the SRS side and curtain shield
airbags to inflate.
Vehicles without a SRS driver’s knee air-
bag: The pad section of the steering
wheel or dashboard near the front pas-
senger airbag is scratched, cracked, or
otherwise damaged.
Vehicles with a SRS driver’s knee air-
bag: The pad section of the steering
wheel, dashboard near the front passen-
ger airbag cover or lower portion of the
instrument panel is scratched, cracked,
or otherwise damaged.
The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.
The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the curtain shield airbags
inside is scratched, cracked, or other-
wise damaged.

561-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)

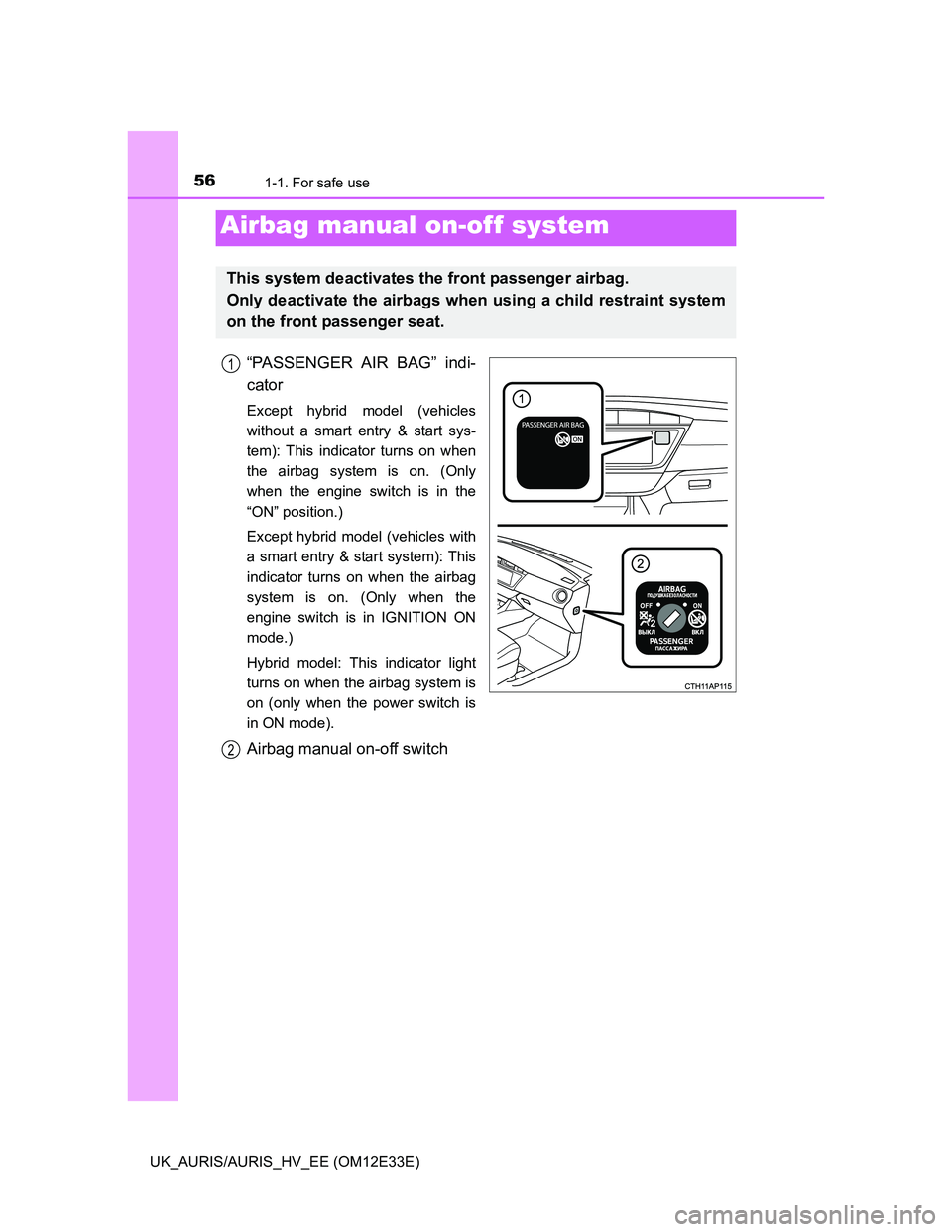

“PASSENGER AIR BAG” indi-
cator
Except hybrid model (vehicles
without a smart entry & start sys-
tem): This indicator turns on when
the airbag system is on. (Only
when the engine switch is in the
“ON” position.)
Except hybrid model (vehicles with
a smart entry & start system): This
indicator turns on when the airbag
system is on. (Only when the
engine switch is in IGNITION ON
mode.)
Hybrid model: This indicator light
turns on when the airbag system is
on (only when the power switch is
in ON mode).
Airbag manual on-off switch
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system
on the front passenger seat.
1
2

571-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)
Insert the key into the cylinder and
rotate to the “OFF” position.
The “OFF” indicator light turns on.
(Except hybrid model [vehicles
without a smart entry & start sys-
tem]: Only when the engine switch
is in the “ON” position.
Except hybrid model [vehicles with
a smart entry & start system]: Only
when the engine switch is in IGNI-
TION ON mode.
Hybrid model: Only when the
power switch is in ON mode)
“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag
CAUTION
When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to off. If the airbag manual
on-off system is left on, the strong impact of the airbag deployment (infla-
tion) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

581-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)
It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
Safety infor mation for children
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

591-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)

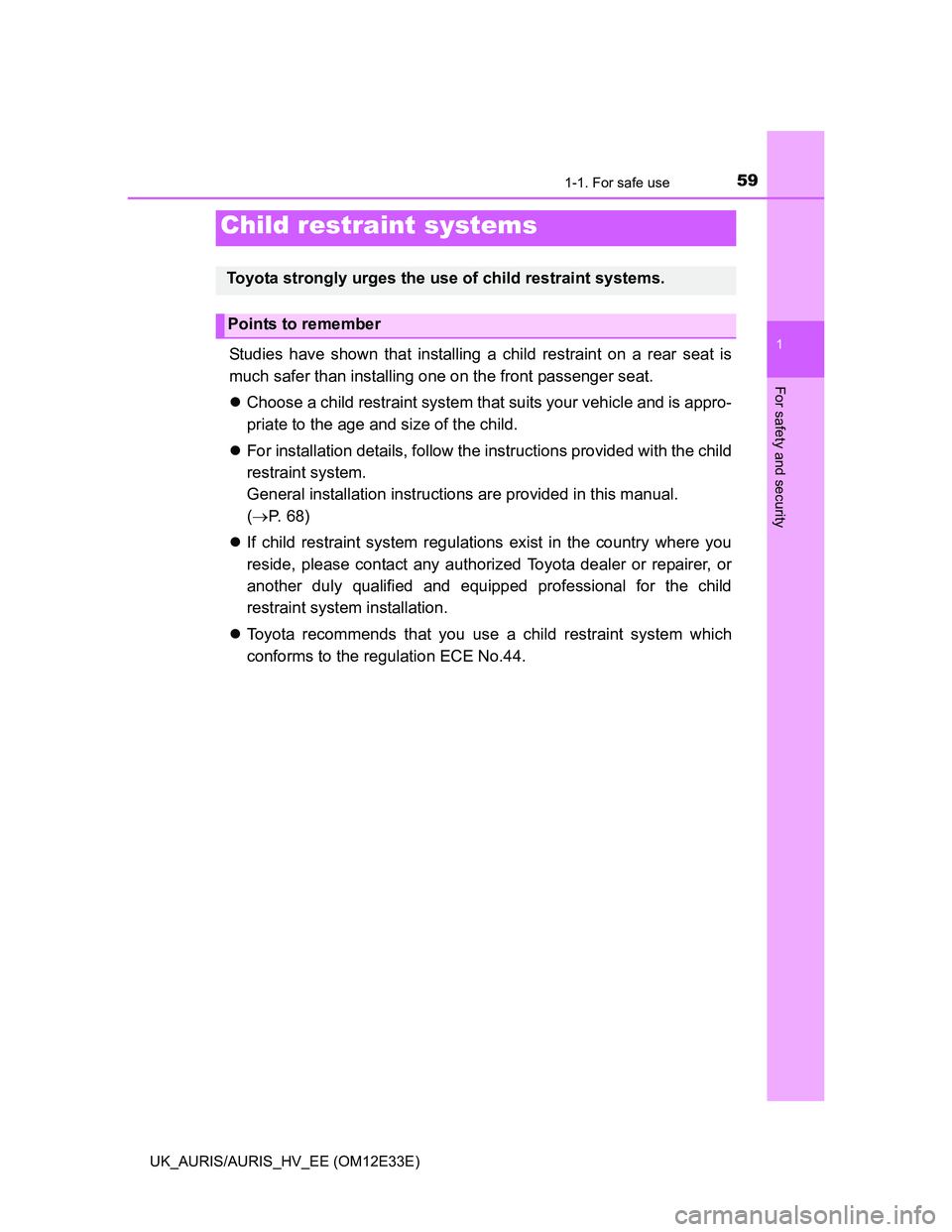

Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.
For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(P. 68)
If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
Toyota recommends that you use a child restraint system which
conforms to the regulation ECE No.44.
Child restraint systems
Toyota strongly urges the use of child restraint systems.
Points to remember

601-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)

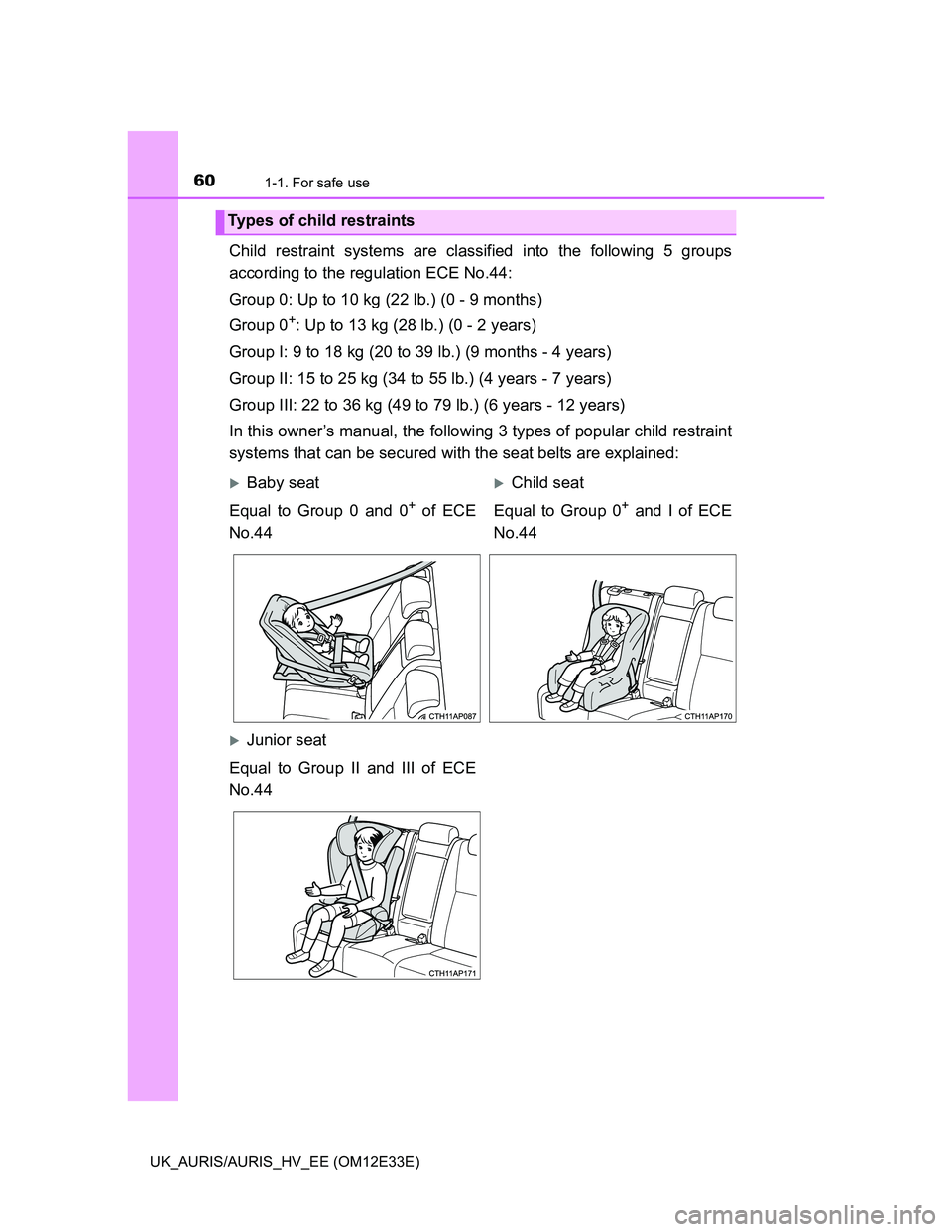

Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0
+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained:
Types of child restraints
Baby seatChild seat
Equal to Group 0 and 0
+ of ECE
No.44Equal to Group 0+ and I of ECE
No.44
Junior seat
Equal to Group II and III of ECE
No.44

611-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)

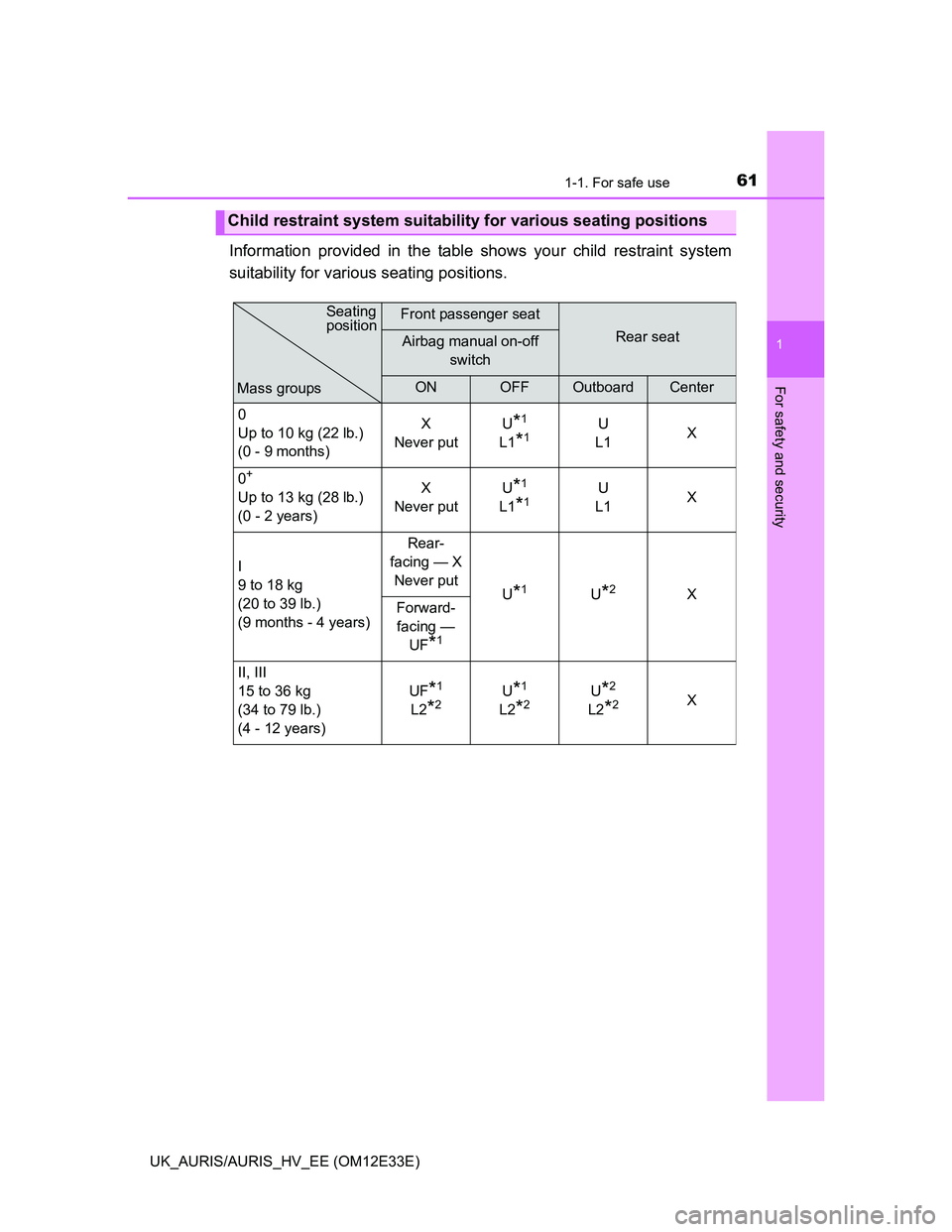

Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
Front passenger seat
Rear seatAirbag manual on-off
switch
ONOFFOutboardCenter
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU
*1
L1*1U
L1X
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU*1
L1*1U
L1X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Rear-
facing — X
Never put
U
*1U*2X
Forward-
facing —
UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*1
L2*2U*1
L2*2U*2
L2*2X
Mass groupsSeating
position

621-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
L1: Suitable for “TOYOTA G 0
+, BABY SAFE PLUS with SEAT BELT
FIXATION, BASE PLATFORM” (0 to 13 kg [0 to 28 lb.]) approved
for the use in this mass group.
L2: Suitable for “TOYOTA KIDFIX” (15 to 36 kg [34 to 79 lb.])
approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position. Move the front seat
cushion to the fully rearward.
*2: Remove the head restraint if it interferes with your child restraint system.
The child restraint system mentioned in the table may not be available
outside of the EU area.
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer con-
cerned and the seller of those seats.
