631-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)

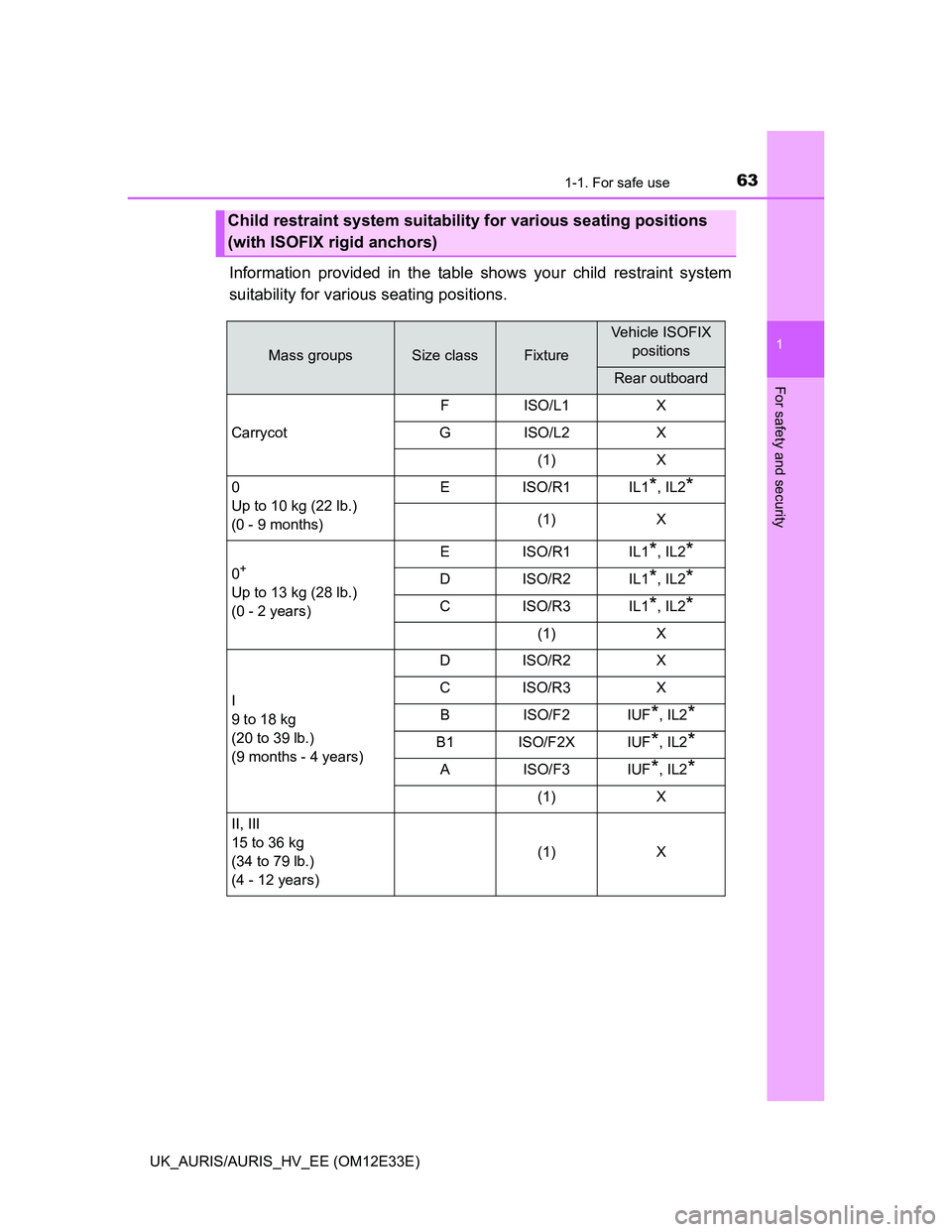

Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Mass groupsSize classFixture
Vehicle ISOFIX
positions
Rear outboard
CarrycotF ISO/L1 X
G ISO/L2 X
(1) X
0
Up to 10 kg (22 lb.)
(0 - 9 months)EISO/R1IL1
*, IL2*
(1) X
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)EISO/R1IL1
*, IL2*
DISO/R2IL1*, IL2*
CISO/R3IL1*, IL2*
(1) X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)DISO/R2 X
CISO/R3 X
BISO/F2IUF
*, IL2*
B1 ISO/F2X IUF*, IL2*
AISO/F3IUF*, IL2*
(1) X
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)(1) X

641-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)
(1) For the child restraint system which do not carry the ISO/XX size
class identification (A to G), for the applicable mass group, the
car manufacturer shall indicate the vehicle specific ISOFIX child
restraint system(s) recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for use in this mass group.
IL1: Toyota recommend to use “TOYOTA MINI” approved for the use
in this mass group.
IL2: Toyota recommend to use “TOYOTA MIDI” approved for the use
in this mass group.
When using a “TOYOTA MINI” or “TOYOTA MIDI”, adjust the support
leg and the ISOFIX connectors as follows:
Lock the support leg where
5th hole can be seen.
Lock the ISOFIX connectors
where numbers 4 and 5 can
be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*: Remove the head restraint if it interferes with your child restraint system.
When using the right side seat for the child restraint system, do not sit
in the center seat.
The child restraint system mentioned in the table may not be available
outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and retailer.
1
2

651-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)

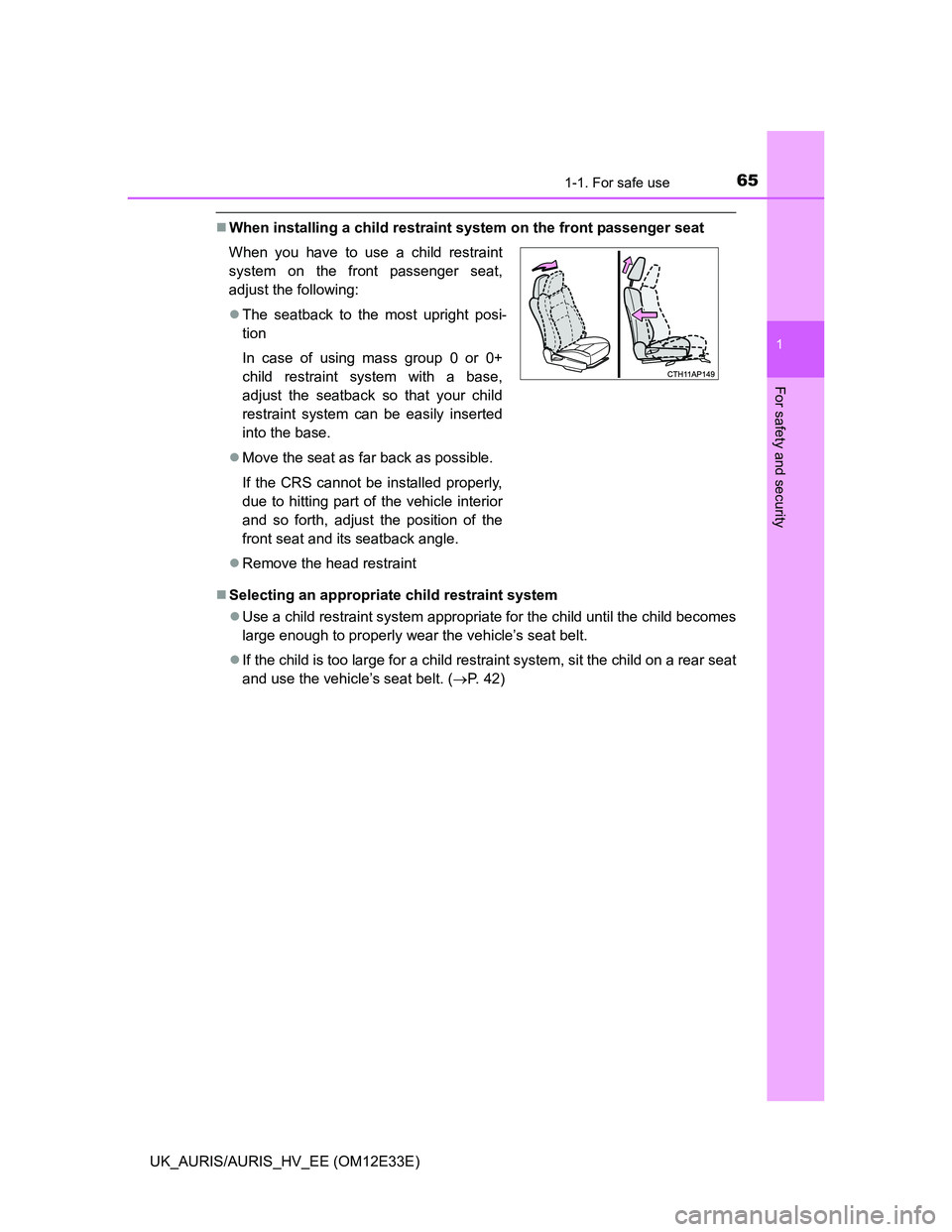

When installing a child restraint system on the front passenger seat
Selecting an appropriate child restraint system
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (P. 42) When you have to use a child restraint
system on the front passenger seat,
adjust the following:
The seatback to the most upright posi-
tion
In case of using mass group 0 or 0+
child restraint system with a base,
adjust the seatback so that your child
restraint system can be easily inserted
into the base.
Move the seat as far back as possible.
If the CRS cannot be installed properly,
due to hitting part of the vehicle interior
and so forth, adjust the position of the
front seat and its seatback angle.
Remove the head restraint

661-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)

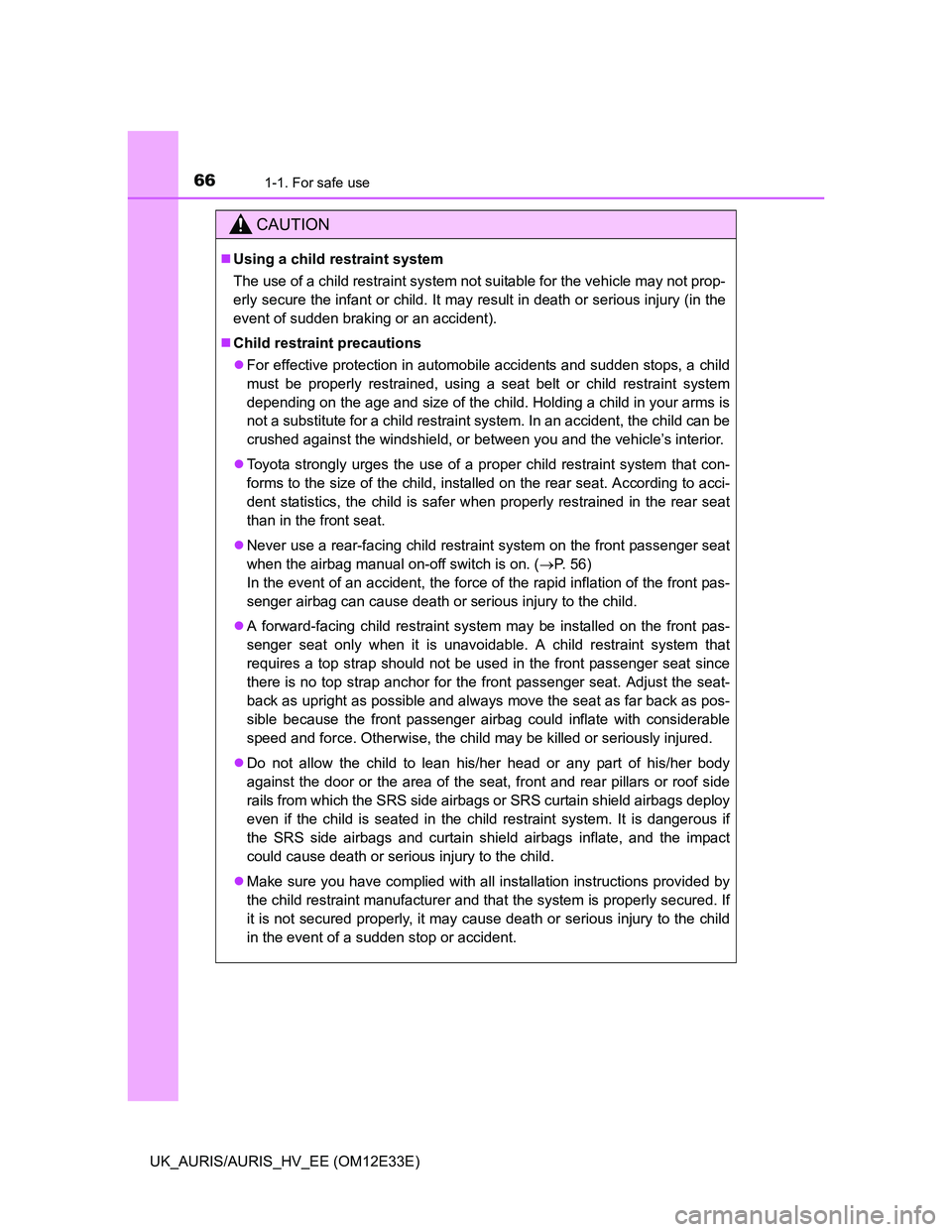

CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 56)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top strap should not be used in the front passenger seat since
there is no top strap anchor for the front passenger seat. Adjust the seat-
back as upright as possible and always move the seat as far back as pos-
sible because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop or accident.

671-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)

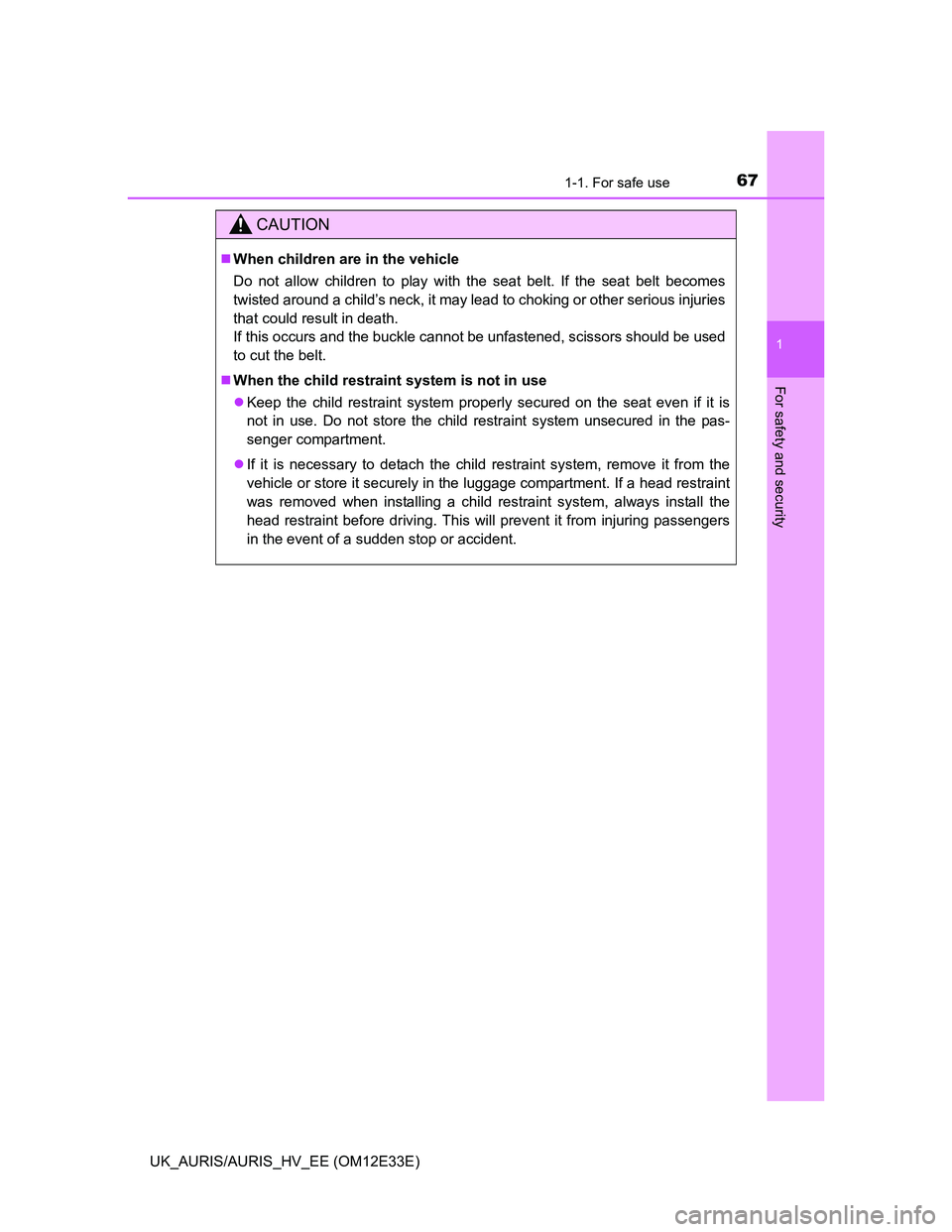

CAUTION
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers
in the event of a sudden stop or accident.

681-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)

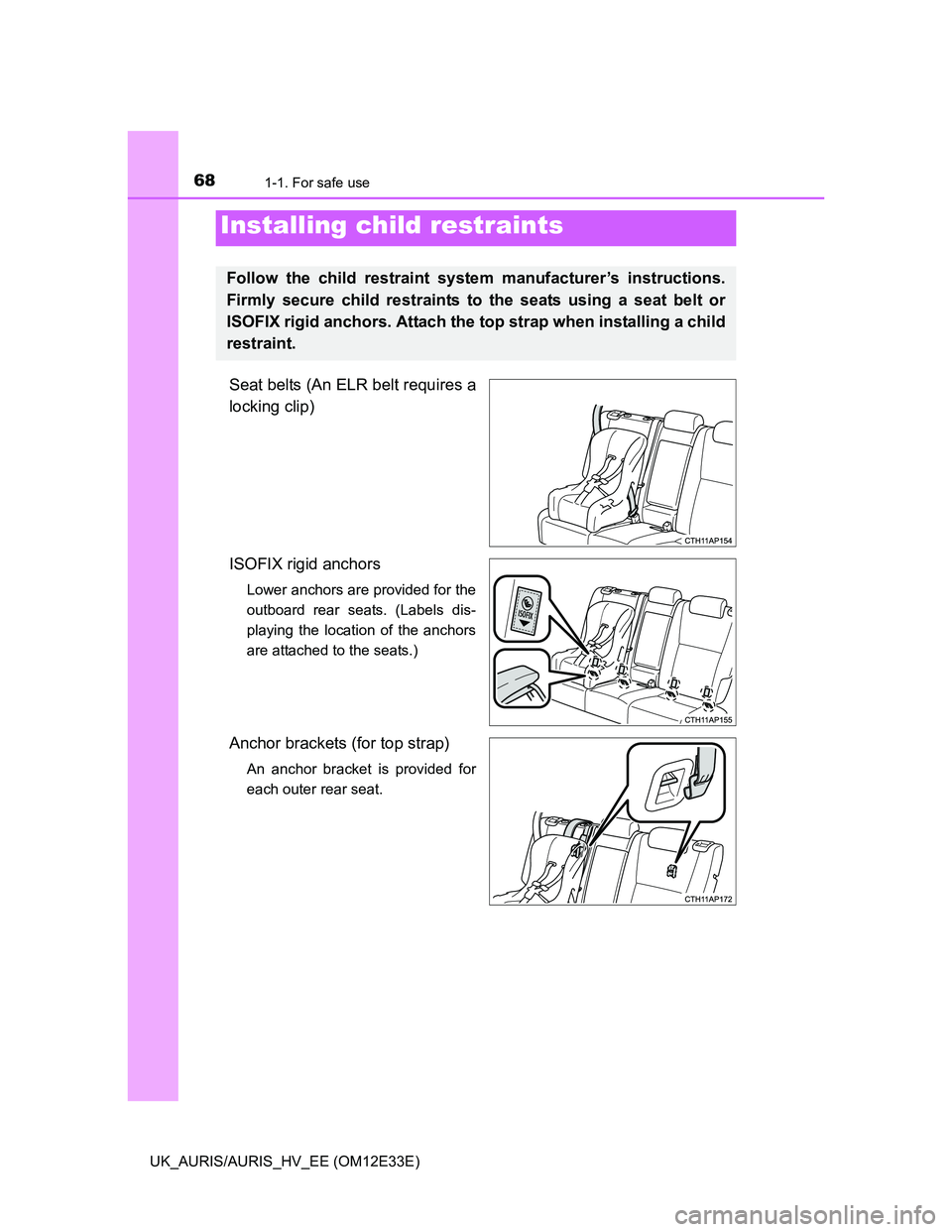

Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors
Lower anchors are provided for the
outboard rear seats. (Labels dis-
playing the location of the anchors
are attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
each outer rear seat.
Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

691-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12E33E)
Rear-facing  Baby seat/child seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
Installing child restraints using a seat belt
1
2
3

701-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12E33E)

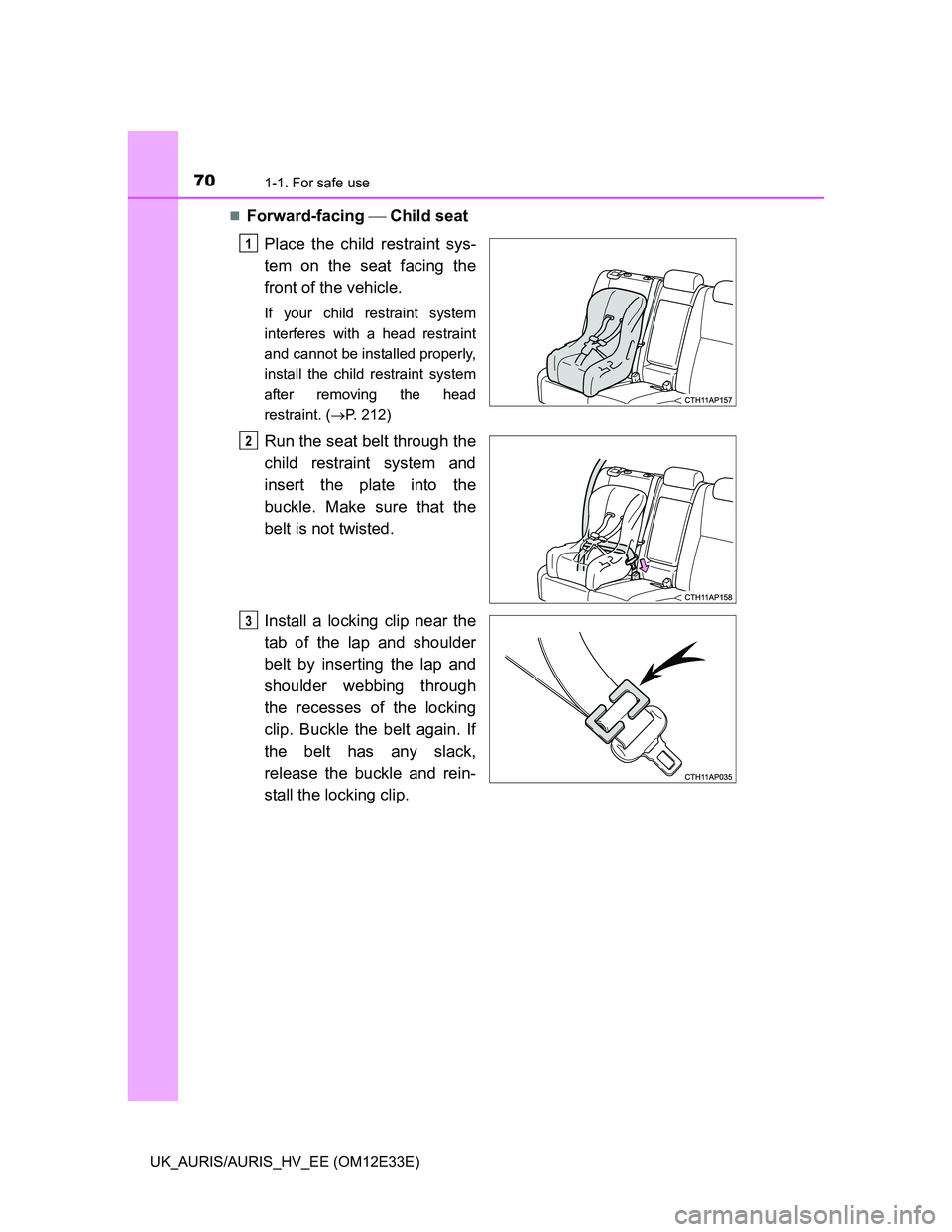

Forward-facing  Child seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
If your child restraint system
interferes with a head restraint
and cannot be installed properly,
install the child restraint system
after removing the head
restraint. (P. 212)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
1
2
3
