2012 TOYOTA AURIS Owners Manual (in English)

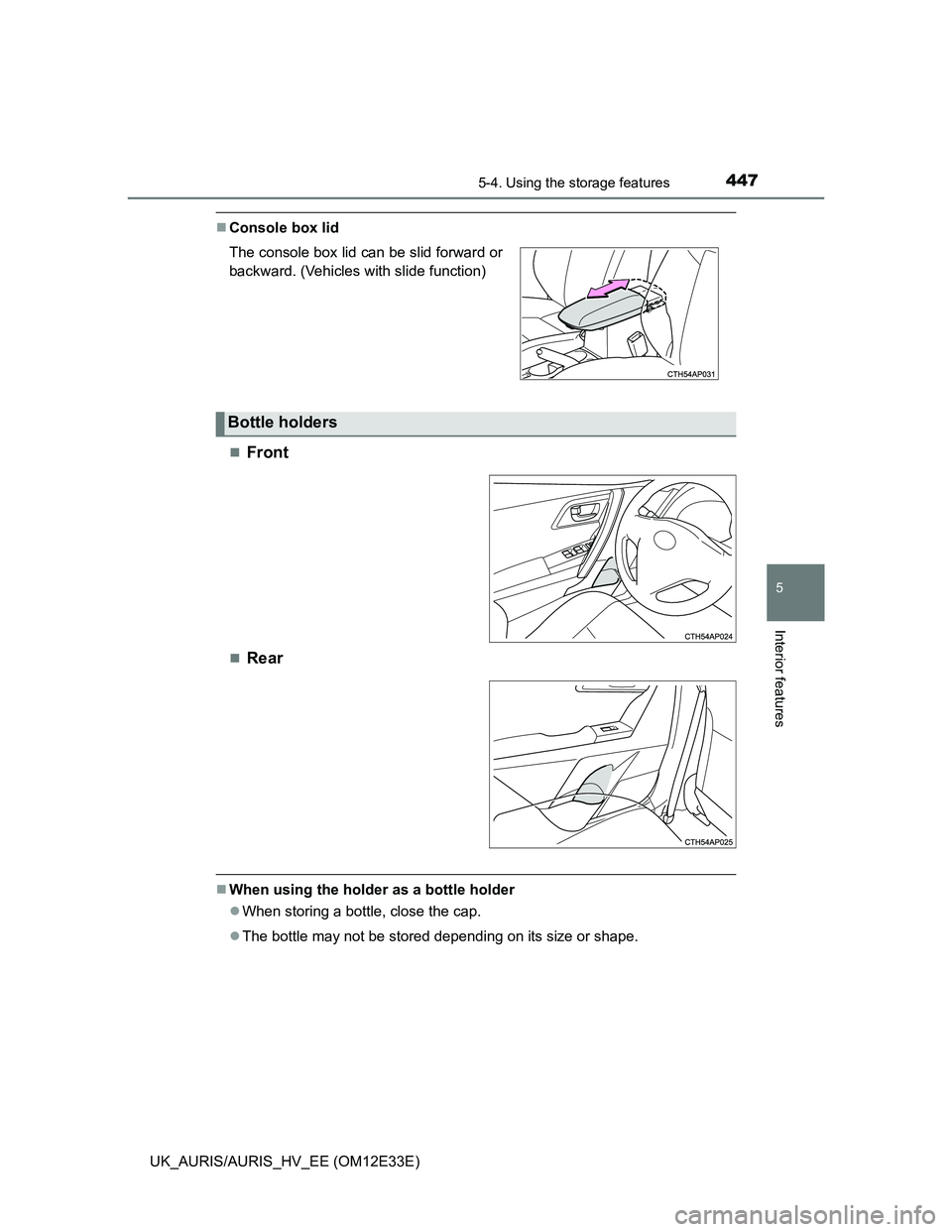

4475-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Console box lid

Front
Rear
When using the holder as a bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape. The console box lid can be slid forward or
backward. (Vehicles with slide function)
Bottle holders

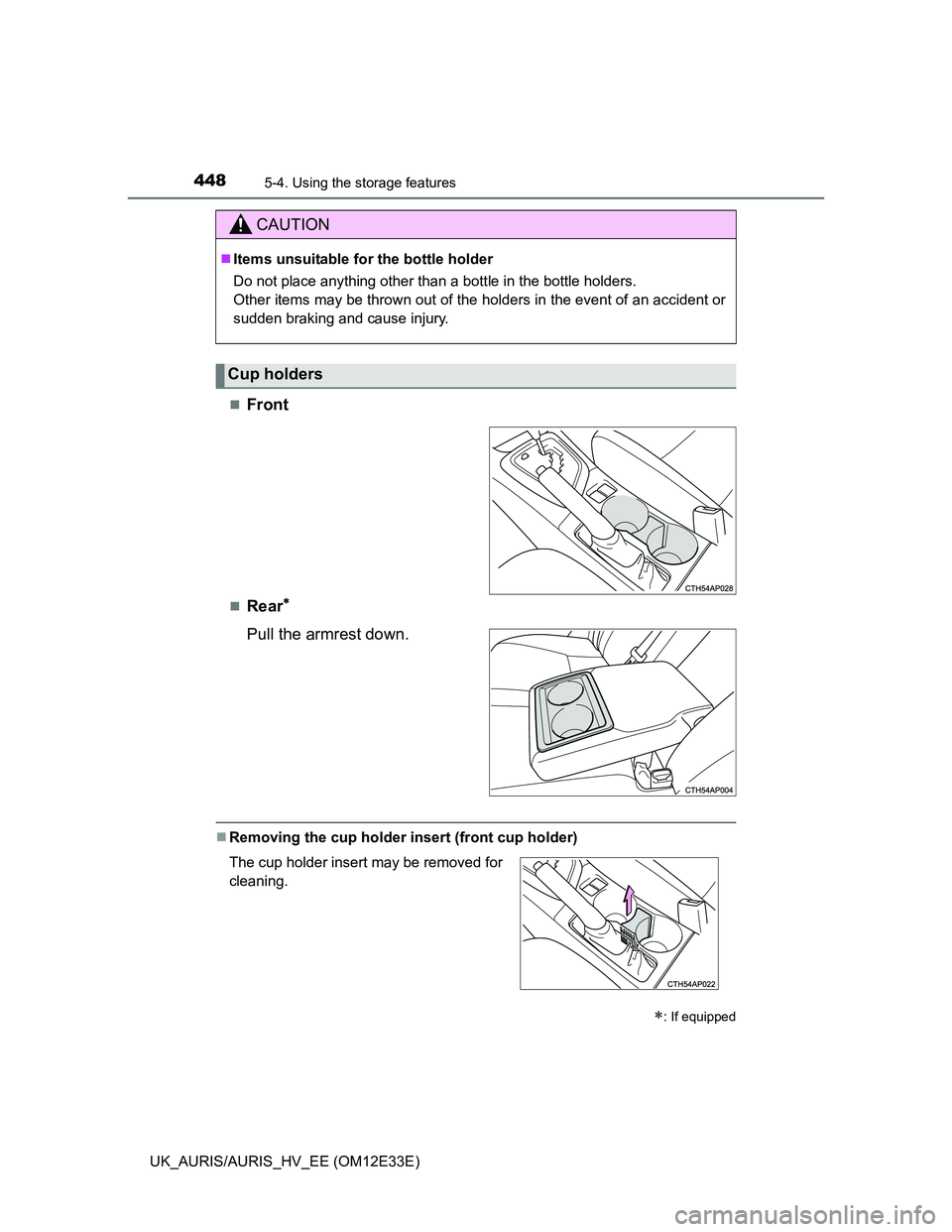

4485-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Front
Rear
Pull the armrest down.
Removing the cup holder insert (front cup holder)
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
Cup holders
: If equipped
The cup holder insert may be removed for
cleaning.

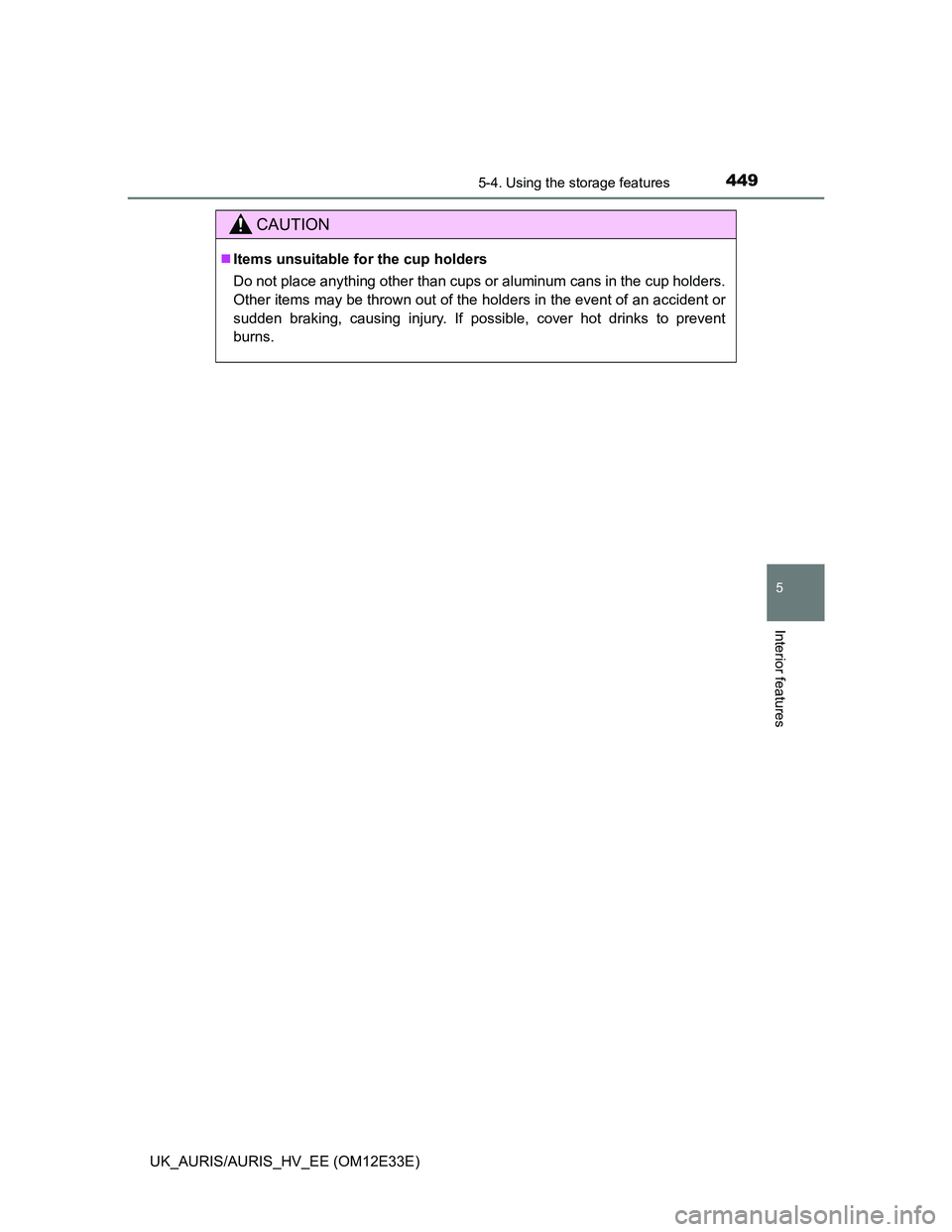

4495-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
CAUTION
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

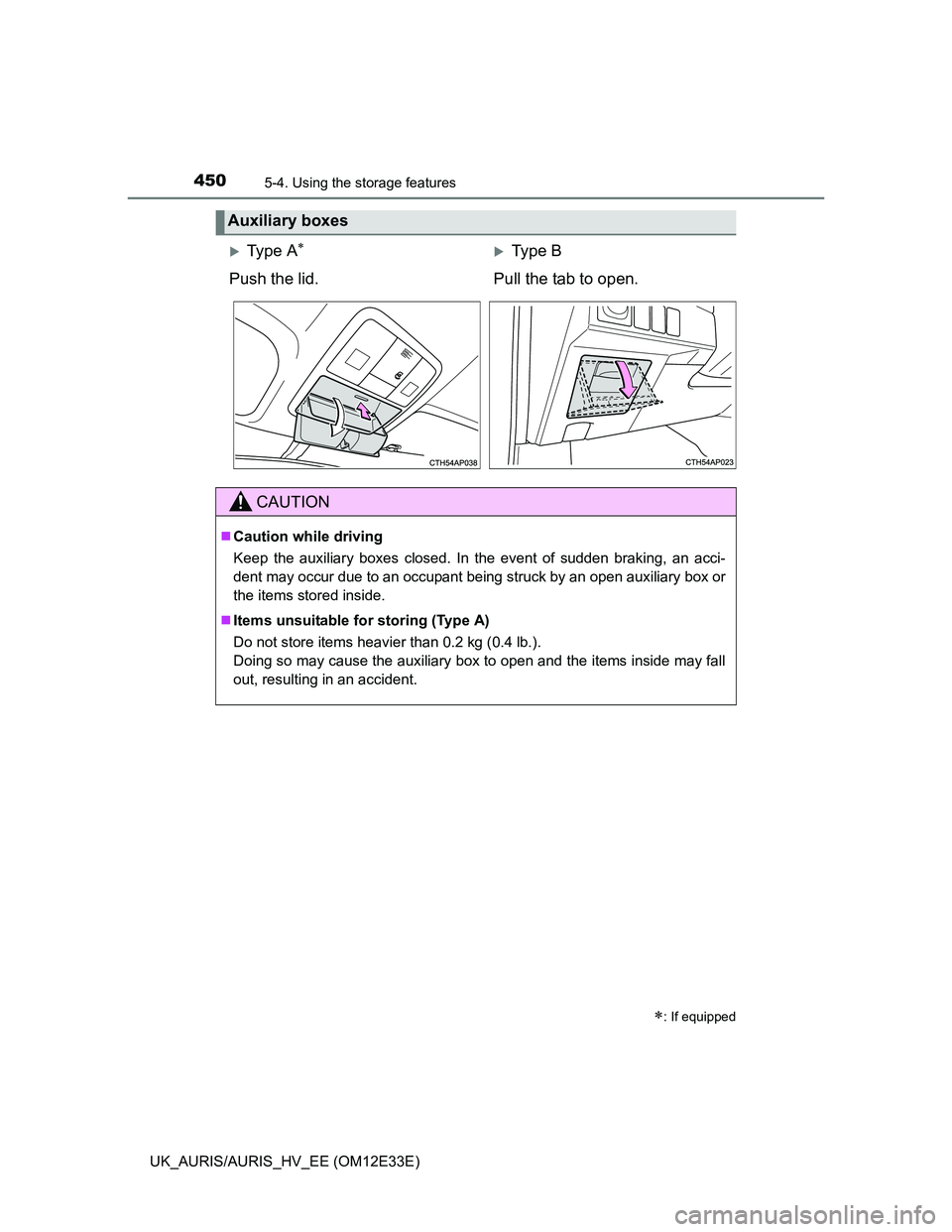

4505-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Auxiliary boxes
: If equipped
Ty p e AType B
Push the lid. Pull the tab to open.
CAUTION
Caution while driving
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.
Items unsuitable for storing (Type A)
Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

4515-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Deck board (if equipped)
Upper position
Lower position
The lower position can be used
when the deck board is placed on
the luggage floor cover.

Cargo hooks (if equipped)
Cargo hooks are provided for
securing loose items.
Luggage compar tment features
1
2

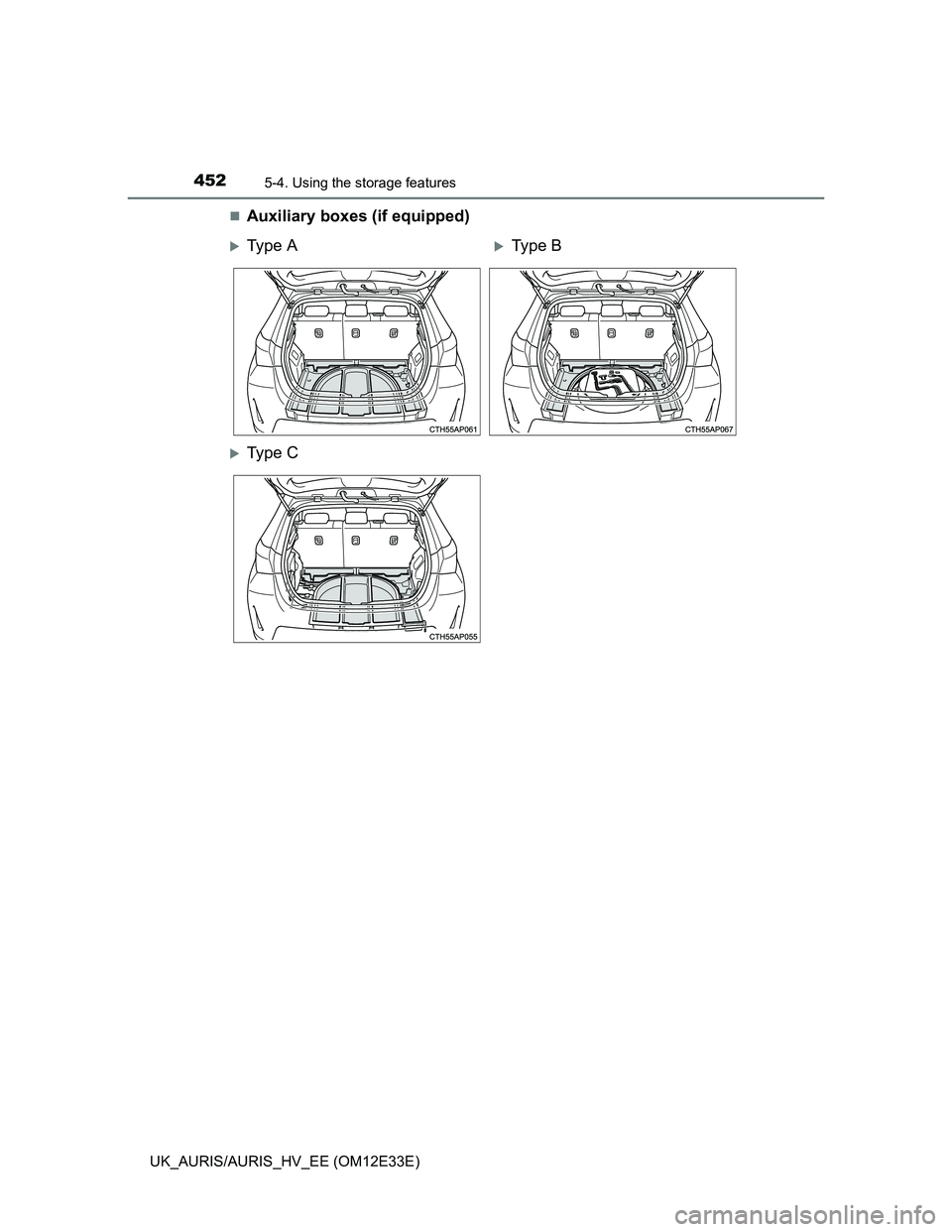

4525-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Auxiliary boxes (if equipped)
Ty p e AType B
Ty p e C

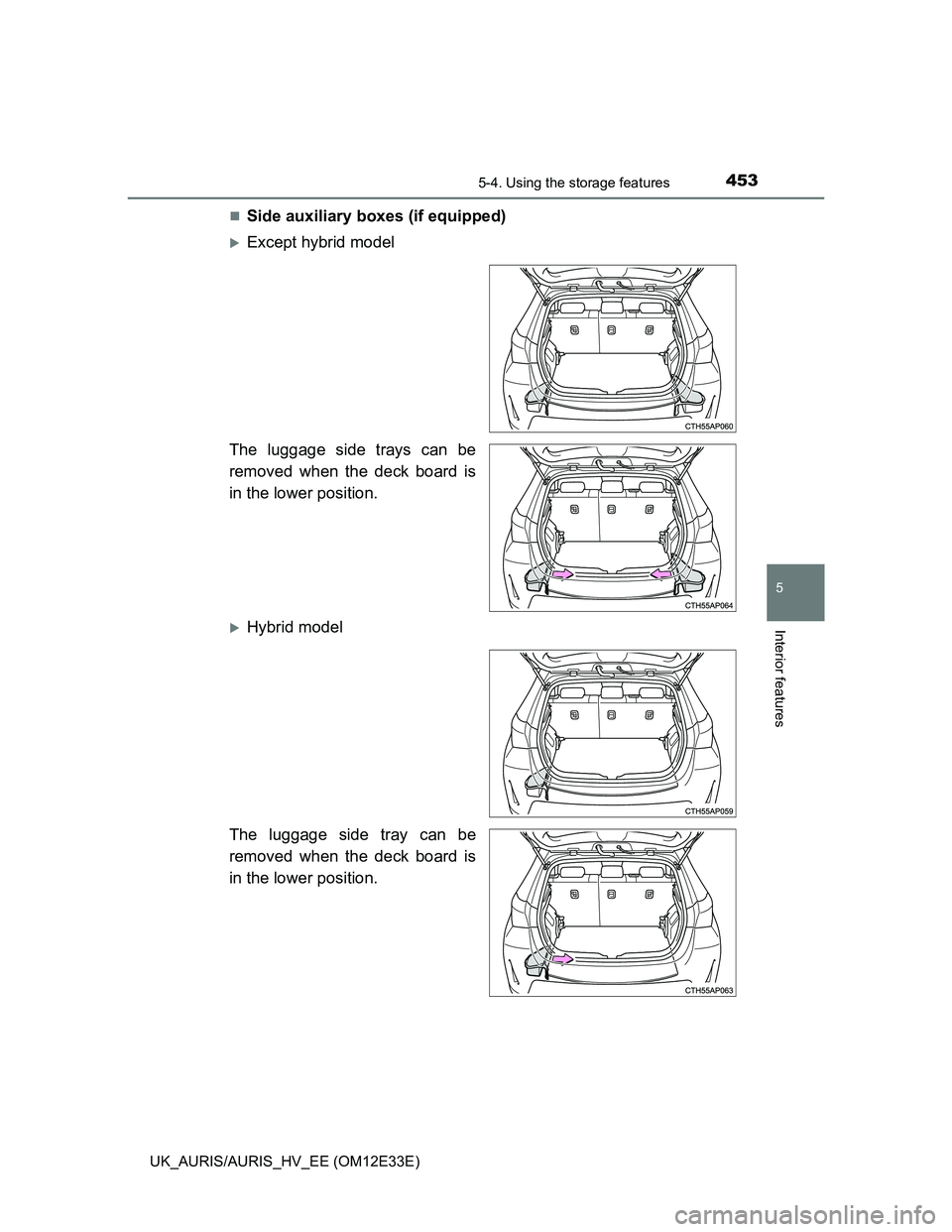

4535-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
5
Interior features
Side auxiliary boxes (if equipped)
Except hybrid model
The luggage side trays can be
removed when the deck board is
in the lower position.
Hybrid model
The luggage side tray can be
removed when the deck board is
in the lower position.

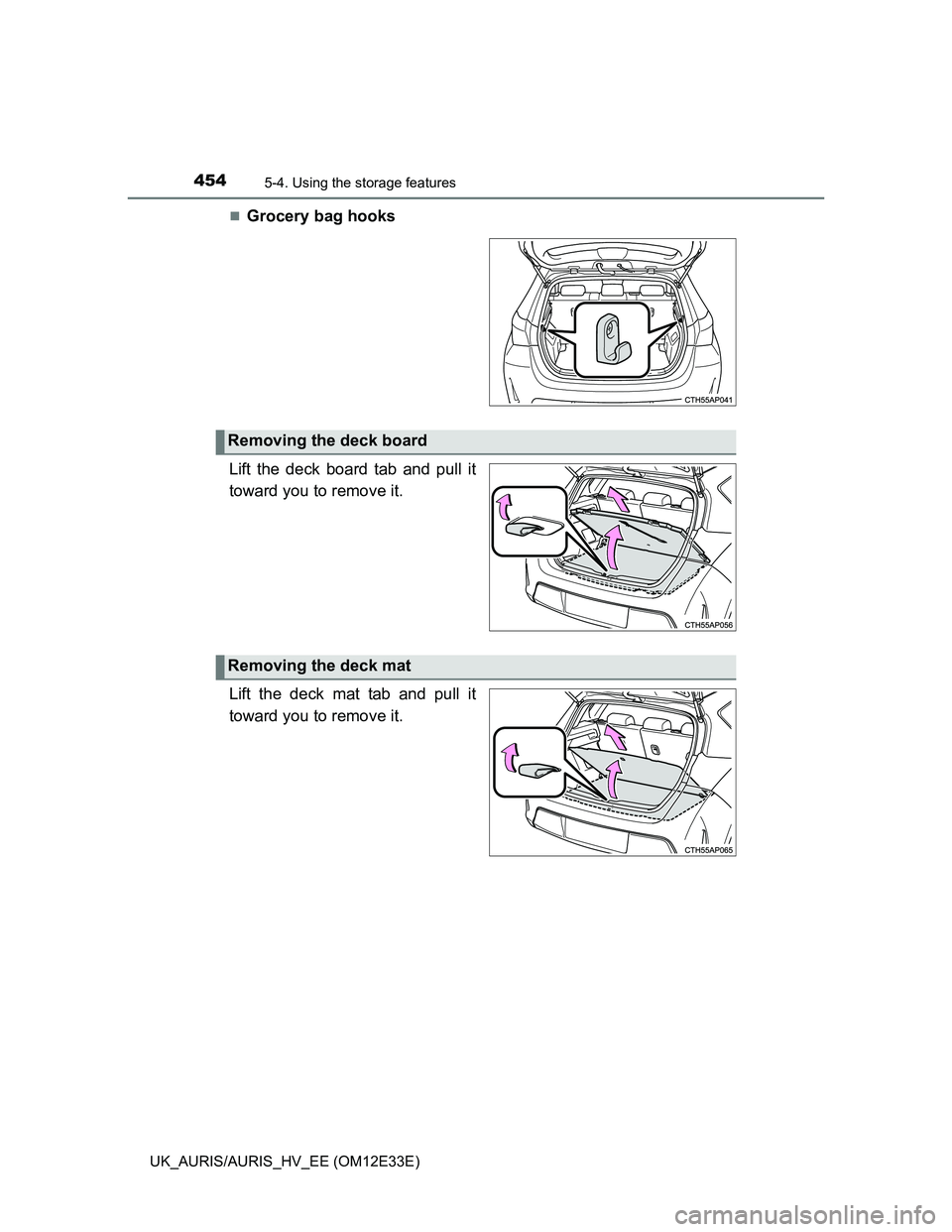

4545-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12E33E)
Grocery bag hooks
Lift the deck board tab and pull it
toward you to remove it.
Lift the deck mat tab and pull it
toward you to remove it.
Removing the deck board
Removing the deck mat
