2012 TOYOTA AURIS Owners Manual (in English)

2233-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component

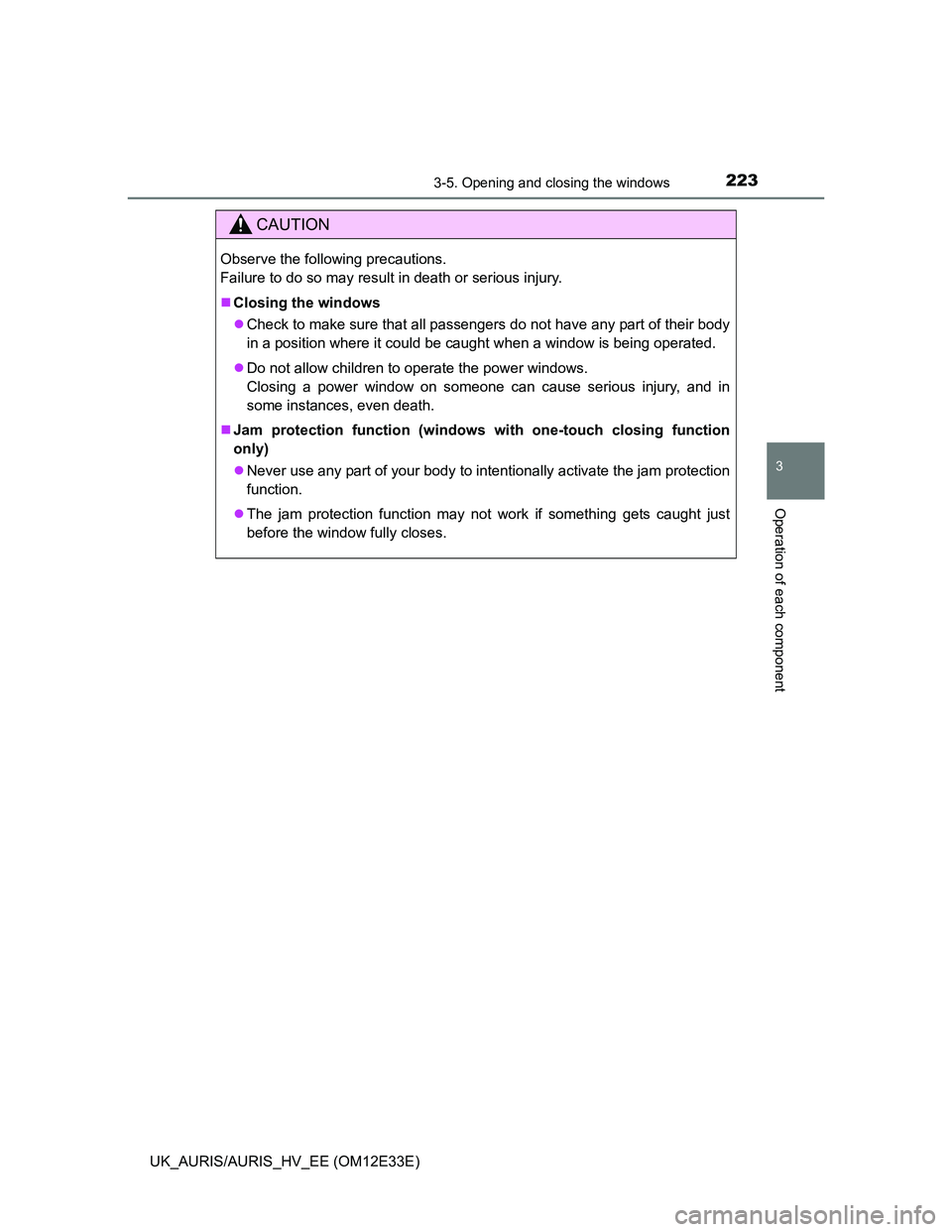

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Closing the windows
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
Jam protection function (windows with one-touch closing function
only)
Never use any part of your body to intentionally activate the jam protection
function.
The jam protection function may not work if something gets caught just
before the window fully closes.

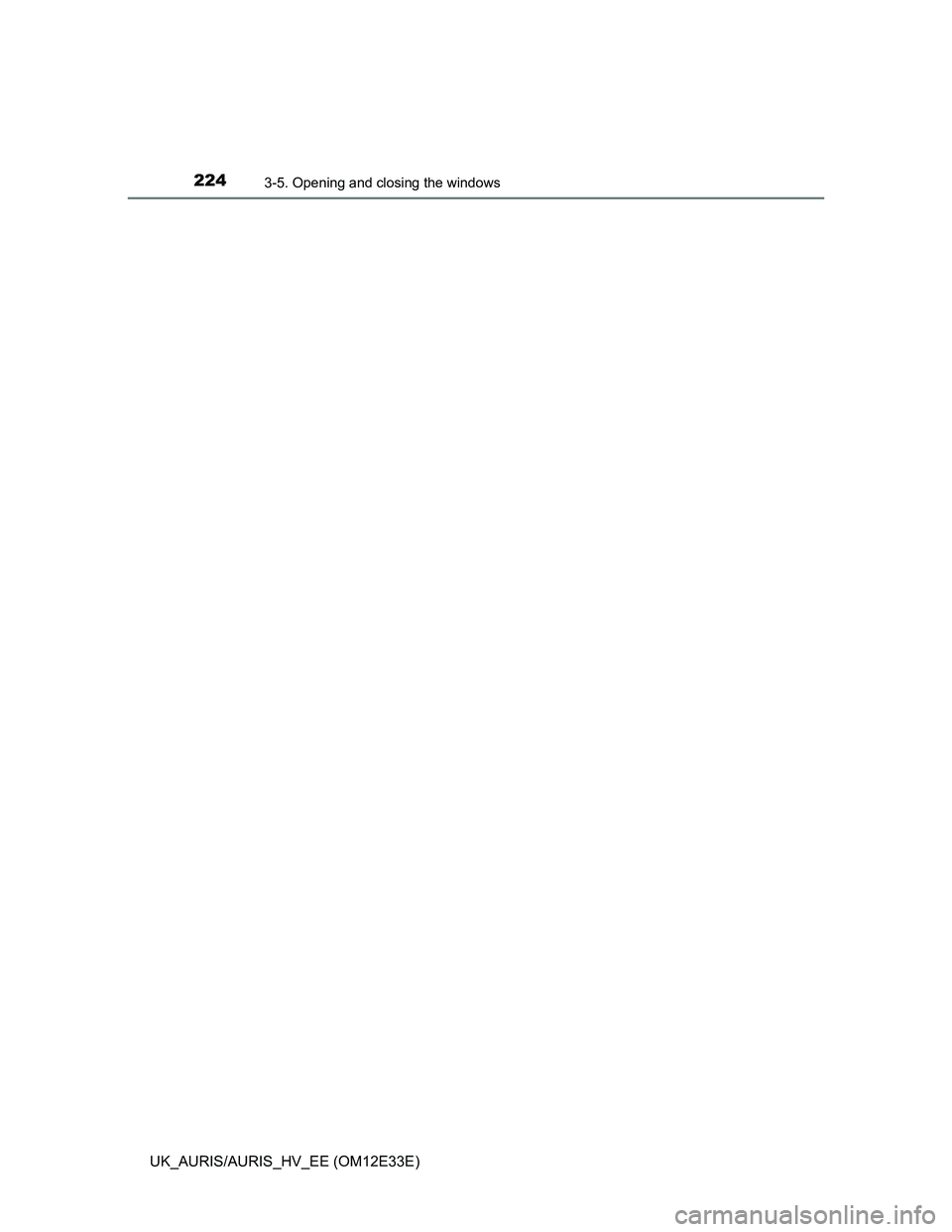

2243-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12E33E)

225
4Driving
UK_AURIS/AURIS_HV_EE (OM12E33E)4-1. Before driving
Driving the vehicle ............. 226
Cargo and luggage ............ 243
Trailer towing (except
hybrid model) ................... 244
Trailer towing
(hybrid model).................. 253
4-2. Driving procedures
Engine (ignition) switch
(except hybrid model
[vehicles without a smart
entry & start system])....... 254
Engine (ignition) switch
(except hybrid model
[vehicles with a smart
entry & start system])....... 258
Power (ignition) switch....... 268
EV drive mode ................... 274
Multidrive ........................... 276
Multi-mode Manual
Transmission ................... 281
Manual transmission.......... 286
Hybrid transmission ........... 289
Turn signal lever ................ 297
Parking brake .................... 298
Horn ................................... 2994-3. Operating the lights and
wipers
Headlight switch................. 300
Automatic High Beam ........ 306
Fog light switch .................. 310
Windshield wipers and
washer ............................. 312
Rear window wiper and
washer ............................. 316
4-4. Refueling
Opening the fuel tank
cap ................................... 318
4-5. Using the driving support
systems
Cruise control..................... 322
Speed limiter ...................... 327
Toyota parking
assist-sensor ................... 330
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 336
Stop & Start system ........... 350
Driving assist systems ....... 356
Hill-start assist control........ 362
Diesel particulate filter
system ............................. 364
4-6. Driving tips
Hybrid vehicle driving
tips ................................... 366
Winter driving tips .............. 368

226
UK_AURIS/AURIS_HV_EE (OM12E33E)
4-1. Before driving
P. 254, 258, 268
Multidrive and hybrid transmission
Except hybrid model: With the brake pedal depressed, shift the shift
lever to D. (P. 276)
Hybrid model: With the brake pedal depressed, shift the shift posi-
tion to D. (P. 289)
Check that the shift position indicator shows D.
Release the parking brake. (P. 298)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Multi-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or M.
(P. 281)
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Release the parking brake. (P. 298)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine (except hybrid model) or hybrid system
(hybrid model)
Driving
1
2
3
1
2
3

2274-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 286)
Release the parking brake. (P. 298)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Multidrive
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (P. 276)
Multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the shift
lever to N. (P. 281)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. (P. 286)
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
shifting the shift lever to N and releasing the clutch pedal will stop the
engine. (P. 286)
Hybrid transmission
With the shift position in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the shift
position to P. (P. 289)
Stopping
1
2
3
1
2
1
2
1
2
1
2

2284-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12E33E)
Multidrive and hybrid transmission
Except hybrid model: With the shift lever in D, depress the brake
pedal.
Hybrid model: Stop the vehicle completely.
Set the parking brake. (P. 298)
Except hybrid model: Shift the shift lever to P. (P. 276)
If parking on a hill, block the wheels as needed.
Hybrid model: Shift the shift position to P. (P. 291)
Check that the shift position indicator shows P.
If parking on a hill, block the wheels as needed.
Except hybrid model: Turn the engine switch off to stop the engine.
Hybrid model: Turn the power switch off to stop the hybrid system.
Lock the door, making sure that you have the key on your person.
Multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
Set the parking brake. (P. 298)
Shift the shift lever to E, M or R. (P. 276)
When parking on a hill, if necessary, block the wheels.
Turn the engine switch off to stop the engine.
When shifting the shift lever to E or M: Make sure that the display of the
gear position indicator shows 1.
When shifting the shift lever to R: Make sure that the display of the gear
position indicator shows R.
Lock the door, making sure that you have the key on your person.
Parking the vehicle
1
2
3
4
5
1
2
3
4
5

2294-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. (P. 298)
Shift the shift lever to N. (P. 286)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your person.
Multidrive and hybrid transmission
Except hybrid model: Make sure that the parking brake is set and
shift the shift lever to D.
Hybrid model: Firmly set the parking brake and then shift the shift
position to D.
Gently depress the accelerator pedal.
Release the parking brake.
Multi-mode manual transmission
With the brake pedal depressed, firmly set the parking brake and
shift the shift lever to E or M.
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
Starting off on a steep uphill
1
2
3
4
5
1
2
3
1
2
3
1
2
3

2304-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12E33E)
When starting off on a uphill (vehicles with a hill-start assist control)
The hill-start assist control is available. (P. 362)
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
Engine speed while driving (vehicles with a Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
The vehicle is judged to be driving uphill or downhill
When the accelerator pedal is released
With the Sport Mode switch activated, when the brake pedal is depressed.
Breaking in your new Toyota (except hybrid model)
To extend the life of the vehicle, observing the following precautions is recom-
mended:
For the first 300 km (186 miles):
Avoid sudden stops.
For the first 800 km (500 miles):
Do not tow a trailer.
For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
