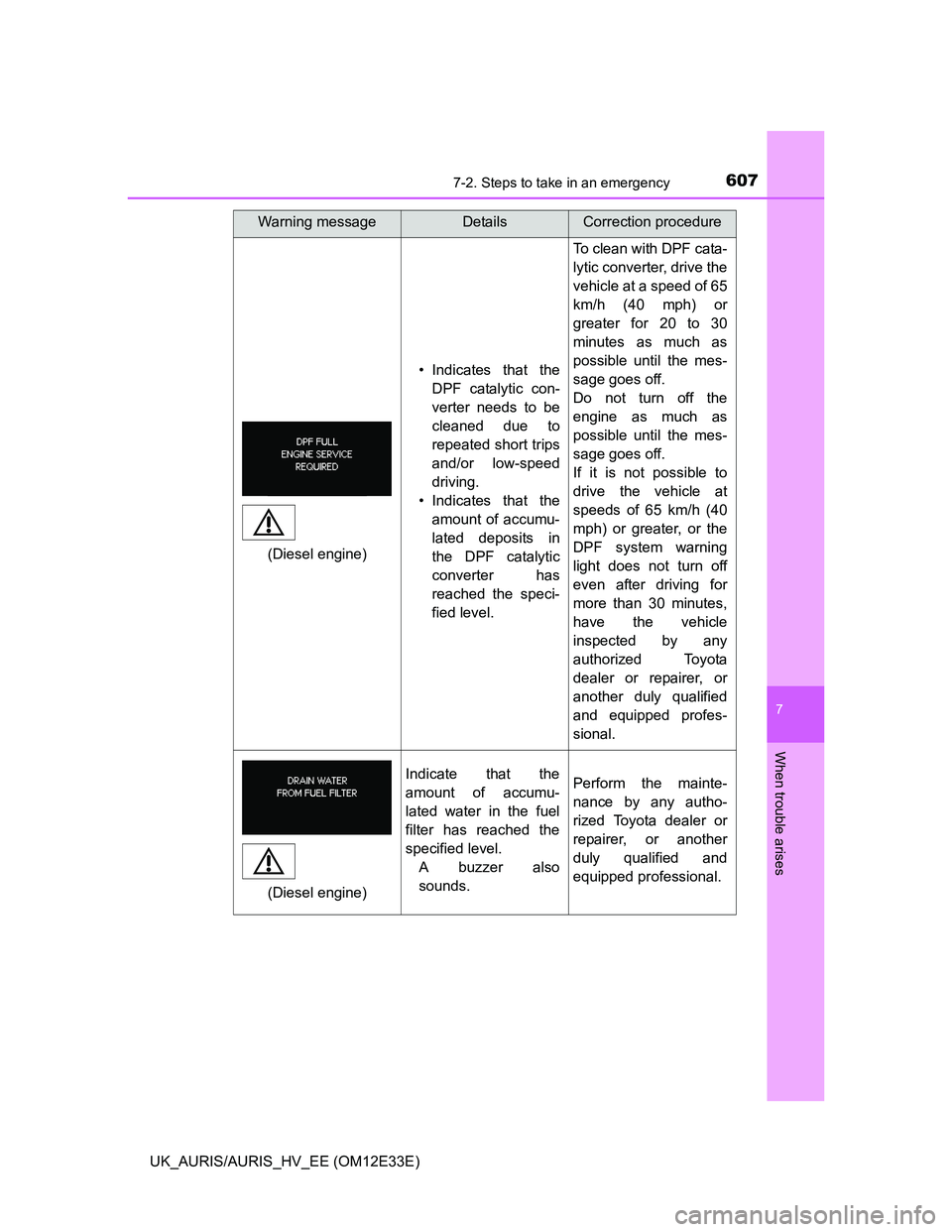

6077-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
• Indicates that the
DPF catalytic con-
verter needs to be
cleaned due to
repeated short trips
and/or low-speed
driving.
• Indicates that the
amount of accumu-
lated deposits in
the DPF catalytic
converter has
reached the speci-
fied level.
To clean with DPF cata-
lytic converter, drive the
vehicle at a speed of 65
km/h (40 mph) or
greater for 20 to 30
minutes as much as
possible until the mes-
sage goes off.
Do not turn off the
engine as much as
possible until the mes-
sage goes off.
If it is not possible to
drive the vehicle at
speeds of 65 km/h (40
mph) or greater, or the
DPF system warning
light does not turn off
even after driving for
more than 30 minutes,
have the vehicle
inspected by any
authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional.
Indicate that the
amount of accumu-
lated water in the fuel
filter has reached the
specified level.
A buzzer also
sounds.Perform the mainte-
nance by any autho-
rized Toyota dealer or
repairer, or another
duly qualified and
equipped professional.
Warning messageDetailsCorrection procedure
(Diesel engine)
(Diesel engine)

6087-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Indicates that the
amount of accumu-
lated deposits in the
DPF catalytic con-
verter has reached the
specified level.
To clean with DPF cata-
lytic converter, drive the
vehicle at a speed of 65
km/h (40 mph) or
greater for 20 to 30
minutes as much as
possible until the mes-
sage goes off.
Do not turn off the
engine as much as
possible until the mes-
sage goes off.
If it is not possible to
drive the vehicle at
speeds of 65 km/h (40
mph) or greater, or the
DPF system warning
light does not turn off
even after driving for
more than 30 minutes,
have the vehicle
inspected by any
authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional.
Indicates that the
hybrid system has
overheated
• A buzzer also
sounds.
• This message may
be displayed when
driving under
severe operating
conditions. (For
example, when
driving up a long
steep hill.)
Stop and check.
(P. 687)
Warning messageDetailsCorrection procedure
(Diesel engine)
(Hybrid model)

6097-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Indicates that the
hybrid battery (traction
battery) is low
A buzzer also
sounds.
When stopping the
vehicle for a long
period of time, shift the
shift position to P. The
hybrid battery (traction
battery) cannot be
charged with the shift
position in N.
Indicates that the
hybrid battery (traction
battery) power has
dropped because a
long period of time has
elapsed after shifting
the shift position to N
A buzzer also
sounds.
Restart the hybrid sys-
tem when starting the
vehicle.
Indicates that the
driver’s door was
opened with the shift
position in any position
other than P with the
hybrid system on
A buzzer also
sounds.
Shift the shift position
to P.
Indicates that the
accelerator pedal is
depressed while the
shift position is in N
A buzzer also
sounds.
Release the accelera-
tor pedal and shift the
shift position to D, B or
R.
Warning messageDetailsCorrection procedure
(Flashes)
(Hybrid model)
(Flashes)
(Hybrid model)
(Flashes)
(Hybrid model)
(Flashes)
(Hybrid model)

6107-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)*: For the EV drive mode operating conditions (P. 274).
Indicates that the EV
drive mode is not avail-
able*
A buzzer also
sounds.
The reason the EV
drive mode is not
available (the vehicle
is idling, battery
charge is low, speed
is higher than the EV
drive mode operat-
ing speed range,
accelerator pedal is
depressed too much)
may be displayed.
Use the EV drive mode
when it becomes avail-
able.
Indicates that the EV
drive mode has been
automatically can-
celled*
A buzzer also
sounds.
The reason the EV
drive mode is not
available (the battery
charge is low, speed
is higher than the EV
drive mode speed
range, accelerator
pedal is depressed
too much) may be
displayed.
Drive the vehicle for a
while.
Warning messageDetailsCorrection procedure
(Hybrid model)
(Flashes 3
times)
(Hybrid model)

6117-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Have the malfunction repaired immediately. (vehicles with a
smart entry & start system or push button start)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
OnceThe electronic key
is not detected
when an attempt
is made to start
the engine.Start the
engine with
the elec-
tronic key
present.
The electronic key
is not detected
when an attempt
is made to start
the hybrid system.Start the
hybrid sys-
tem with
the elec-
tronic key
present.
(Flashes)
(Except hybrid model)*1
(Flashes)
(Hybrid model)
*1, 2

6127-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Once3
times
The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the engine switch
was in a mode
other than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key
was not in the
vehicle, the shift
lever was in P and
the engine switch
was not turned
off.
Turn the
engine
switch off
or bring the
electronic
key back
into the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)
*1

6137-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Once3
times
The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the power switch
was in a mode
other than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key
was not in the
vehicle, shift posi-
tion was shifted to
P and the power
switch was not
turned off.
Turn the
power
switch off
or bring the
electronic
key back
into the
vehicle.
Once
Con-
tinu-
ous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the engine
switch off when
the shift lever was
in P.
Turn the
engine
switch off
and lock
the doors
again.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Hybrid model)
*1, 2
(Displayed alternately)
(Flashes)
(Vehicles with a Multid-
rive)
*1

6147-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Once
Con-
tinu-
ous
An attempt was
made to lock the
doors using the
entry function
after the elec-
tronic key was
carried outside
the vehicle with-
out turning off the
power switch.
Turn the
power
switch off
and lock
the doors
again.
9
times
An attempt was
made to drive
when the regular
key was not
inside the vehicle.Confirm
that the
electronic
key is
inside the
vehicle.
Con-
tinu-
ous

The driver’s door
was opened when
the shift lever was
not in P and the
engine switch was
not turned off.
Shift the
shift lever
to P.
The driver’s door
was opened when
the shift position
was in any posi-
tions other than P
and the power
switch was not
turned off.
Shift the
shift posi-
tion to P.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Displayed alternately)
(Flashes)
(Hybrid model)
*1
(Flashes)*1, 2
(Flashes)
(Vehicles with a Multid-
rive)
*1
(Flashes)
(Hybrid model)
*1, 2
