2012 TOYOTA AURIS Owners Manual (in English)

5516-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care

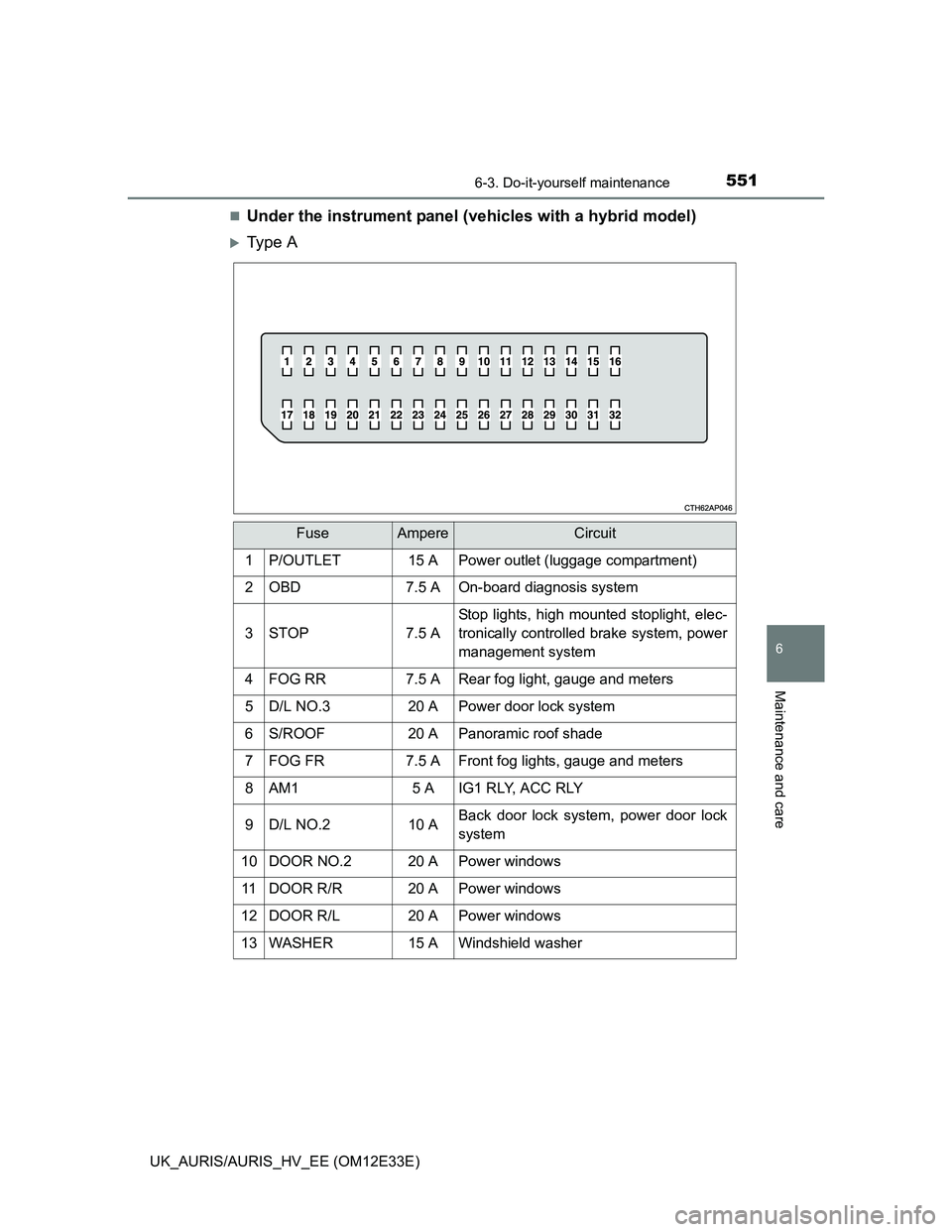

Under the instrument panel (vehicles with a hybrid model)
Ty p e A
FuseAmpereCircuit
1P/OUTLET15 APower outlet (luggage compartment)
2OBD7.5 AOn-board diagnosis system
3STOP7.5 A
Stop lights, high mounted stoplight, elec-
tronically controlled brake system, power
management system
4FOG RR7.5 A Rear fog light, gauge and meters
5D/L NO.320 APower door lock system
6S/ROOF20 APanoramic roof shade
7FOG FR7.5 AFront fog lights, gauge and meters
8AM15 AIG1 RLY, ACC RLY
9D/L NO.210 ABack door lock system, power door lock
system
10DOOR NO.220 APower windows
11DOOR R/R20 APower windows
12DOOR R/L20 APower windows
13WASHER15 AWindshield washer

5526-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
14WIPER NO.225 AWindshield wipers
15WIPER RR15 ARear window wiper
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 AOutside rear view mirrors, audio system,
main body ECU, clock, power outlet
19SFT LOCK-ACC5 A
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 A
23ECU-IG NO.17.5 AElectric cooling fan, AFS, electronically
controlled brake system
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Inside rear view mirror, headlight cleaner,
audio system, AFS, panoramic roof
shade, windshield washer
26HTR-IG7.5 AAir conditioning system, rear window
defogger, seat heaters
27ECU-IG NO.47.5 A
Main body ECU, front passenger seat
belt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28ECU-IG NO.55 AElectric power steering
29IGN7.5 A
Smart entry & start system, stop lights,
electronically controlled brake system,
power management system
30S/HTR15 ASeat heaters
31METER5 AGauge and meters
32A/BAG7.5 ASRS airbag system
FuseAmpereCircuit

5536-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care

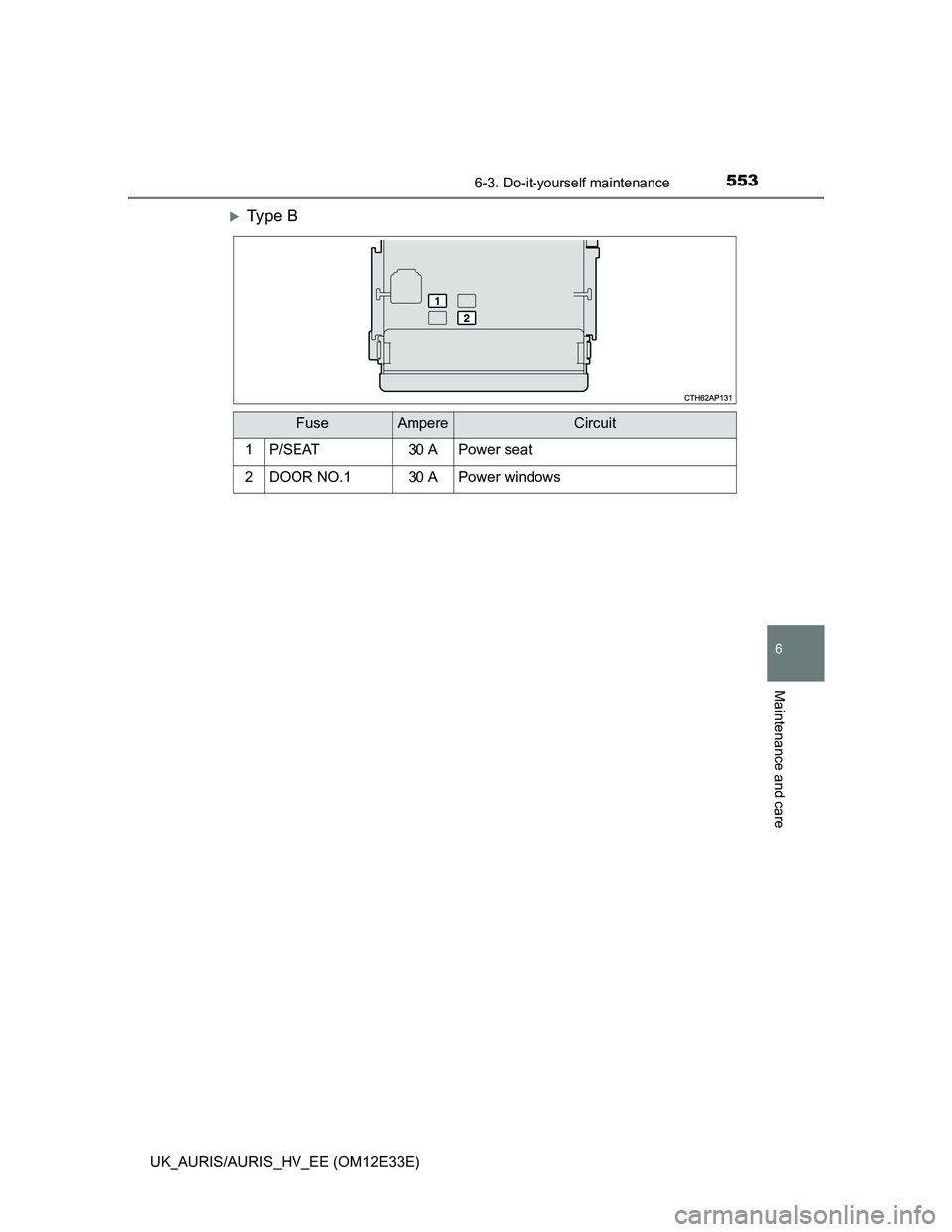

Ty p e B
FuseAmpereCircuit
1P/SEAT30 APower seat
2DOOR NO.130 APower windows

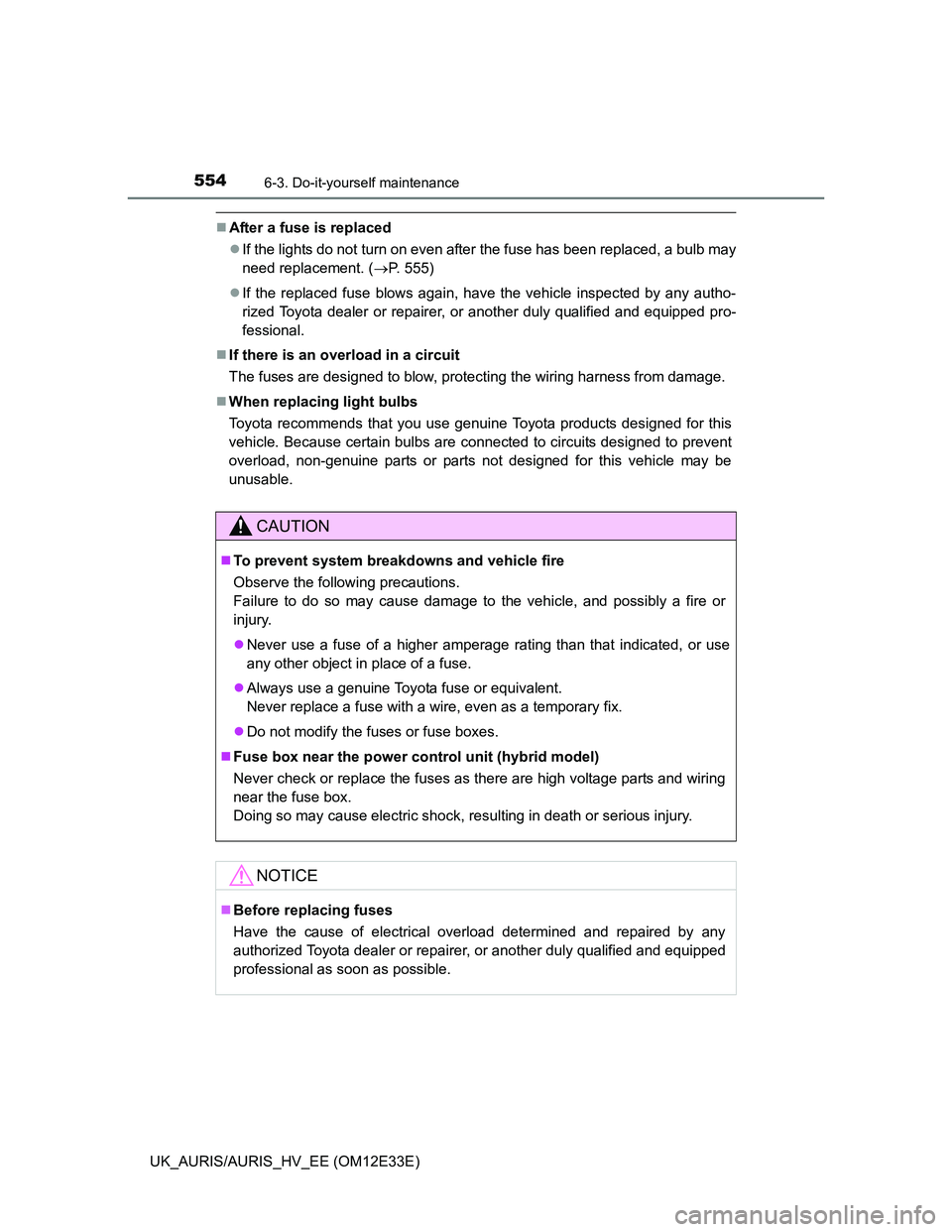

5546-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 555)
If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
Fuse box near the power control unit (hybrid model)
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.

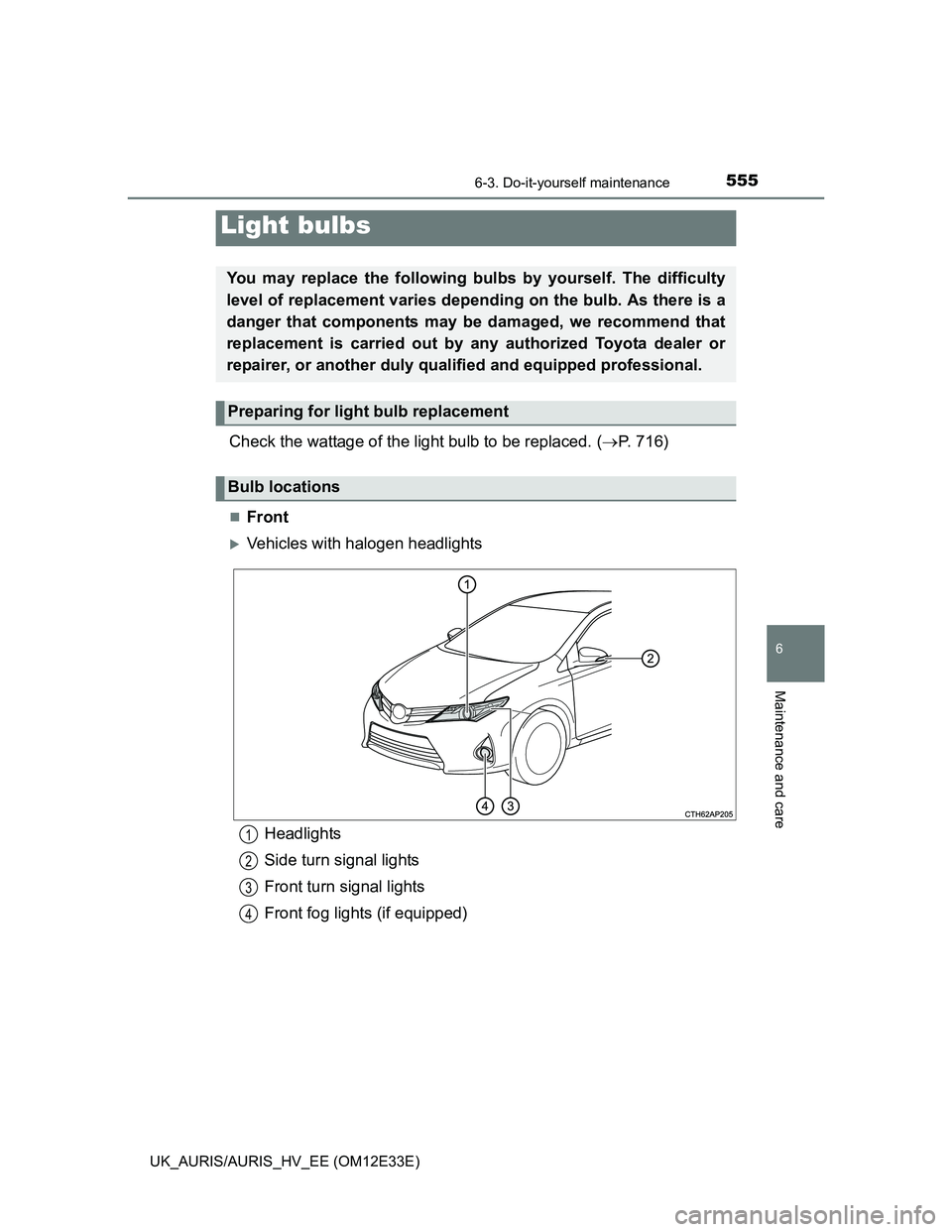

5556-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Check the wattage of the light bulb to be replaced. (P. 716)
Front
Vehicles with halogen headlights
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Bulb locations
Headlights
Side turn signal lights
Front turn signal lights
Front fog lights (if equipped)1
2
3
4

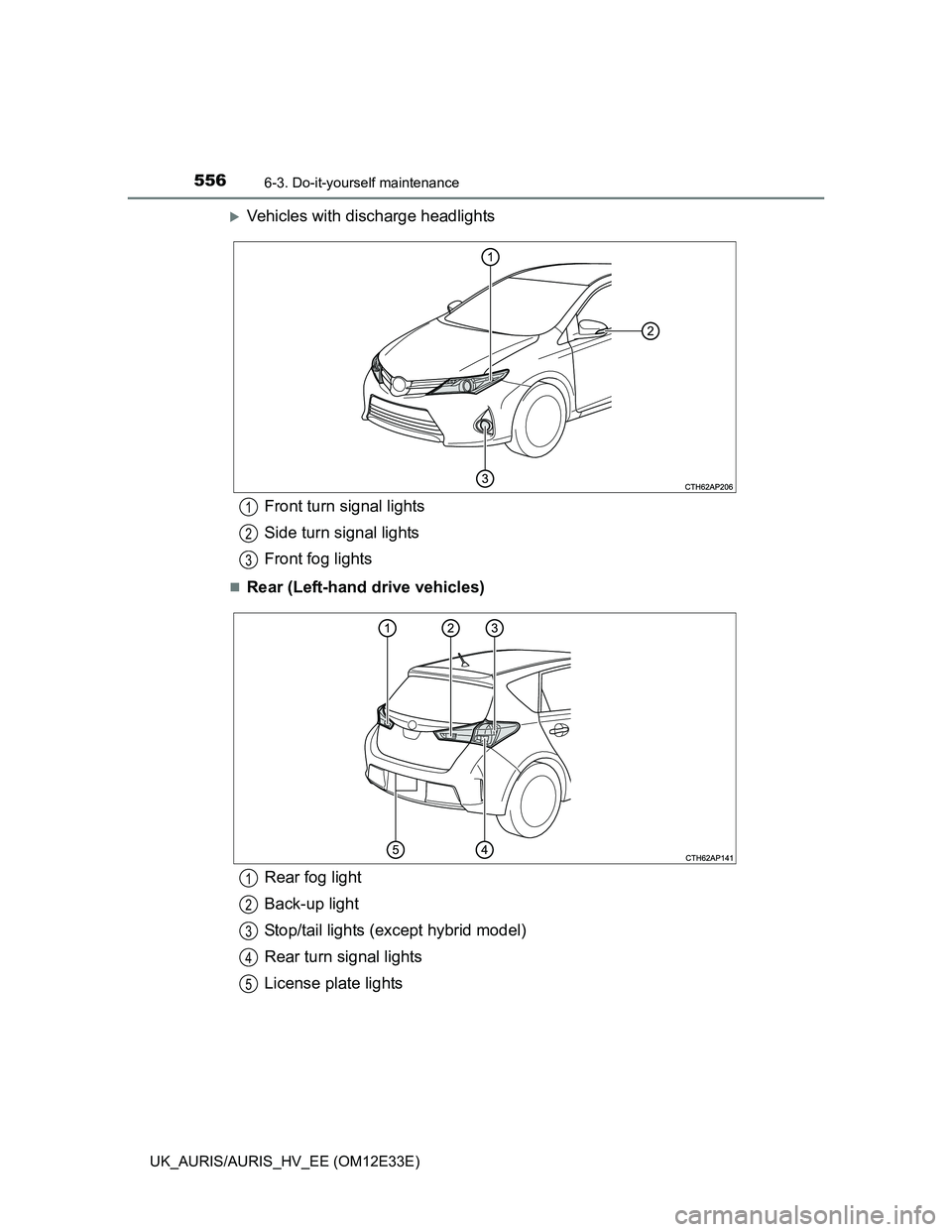

5566-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles with discharge headlights
Rear (Left-hand drive vehicles)
Front turn signal lights
Side turn signal lights
Front fog lights1
2
3
Rear fog light
Back-up light
Stop/tail lights (except hybrid model)
Rear turn signal lights
License plate lights1
2
3
4
5

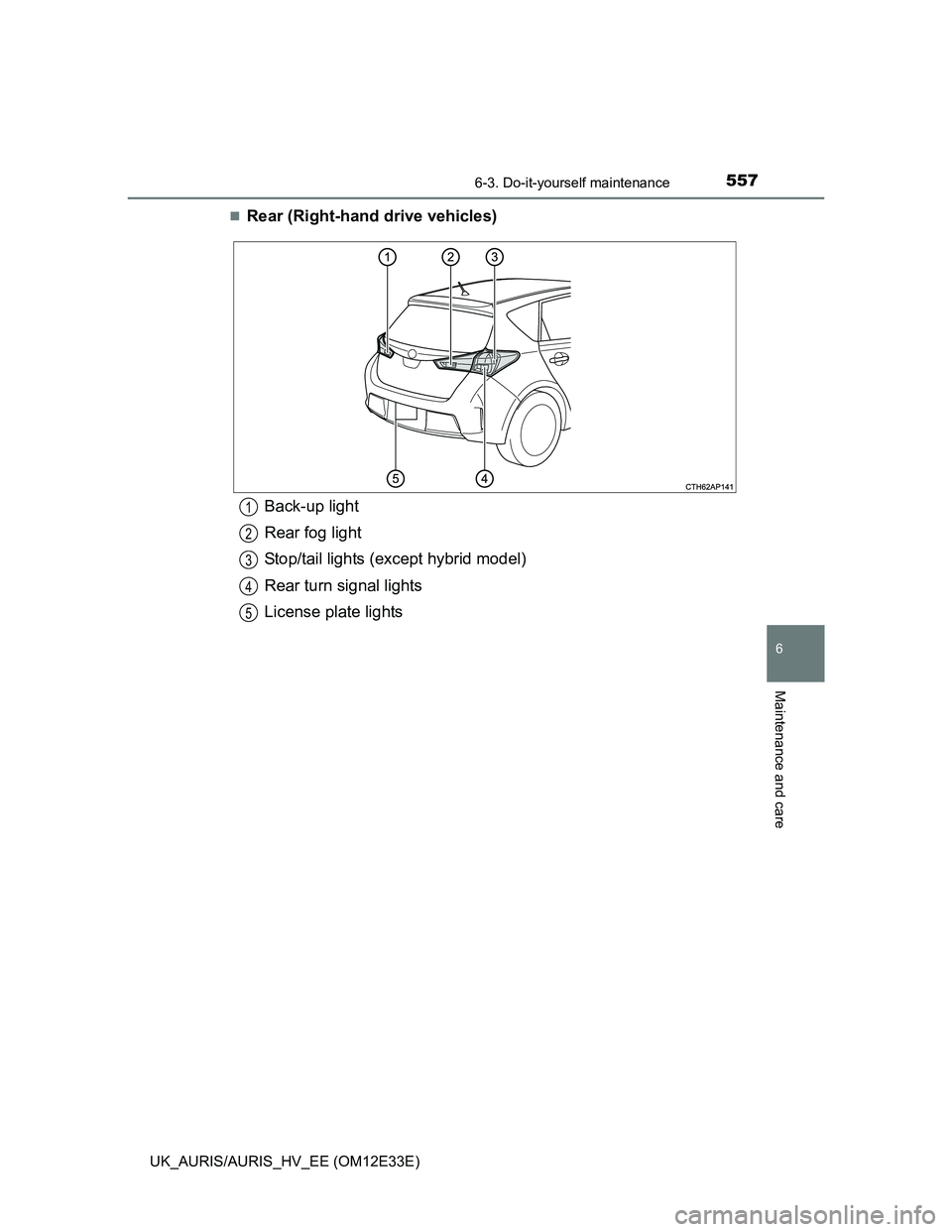

5576-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Rear (Right-hand drive vehicles)
Back-up light
Rear fog light
Stop/tail lights (except hybrid model)
Rear turn signal lights
License plate lights1
2
3
4
5

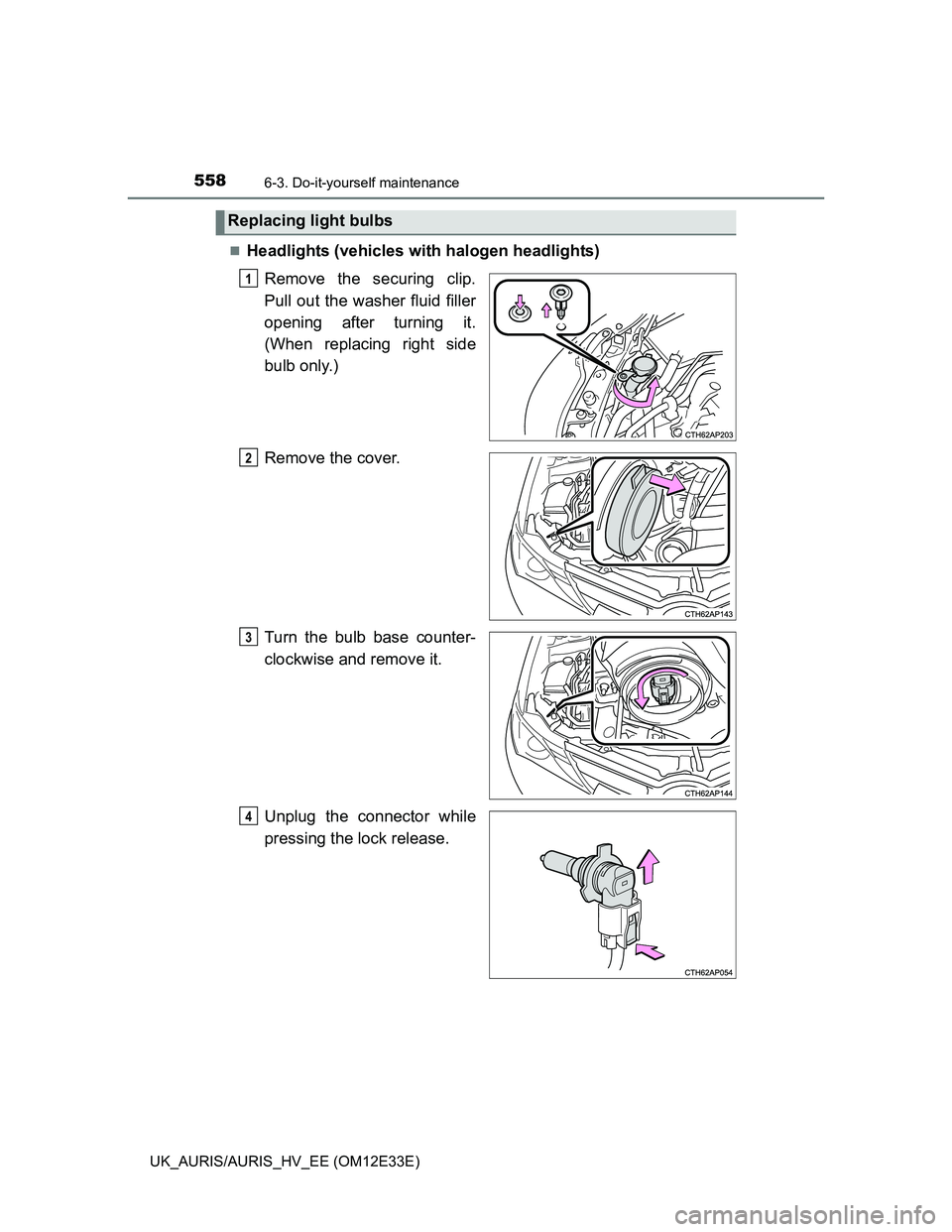

5586-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Headlights (vehicles with halogen headlights)
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
Turn the bulb base counter-
clockwise and remove it.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
4
