2012 TOYOTA AURIS steering wheel adjustment

214
UK_AURIS/AURIS_HV_EE (OM12E33E)

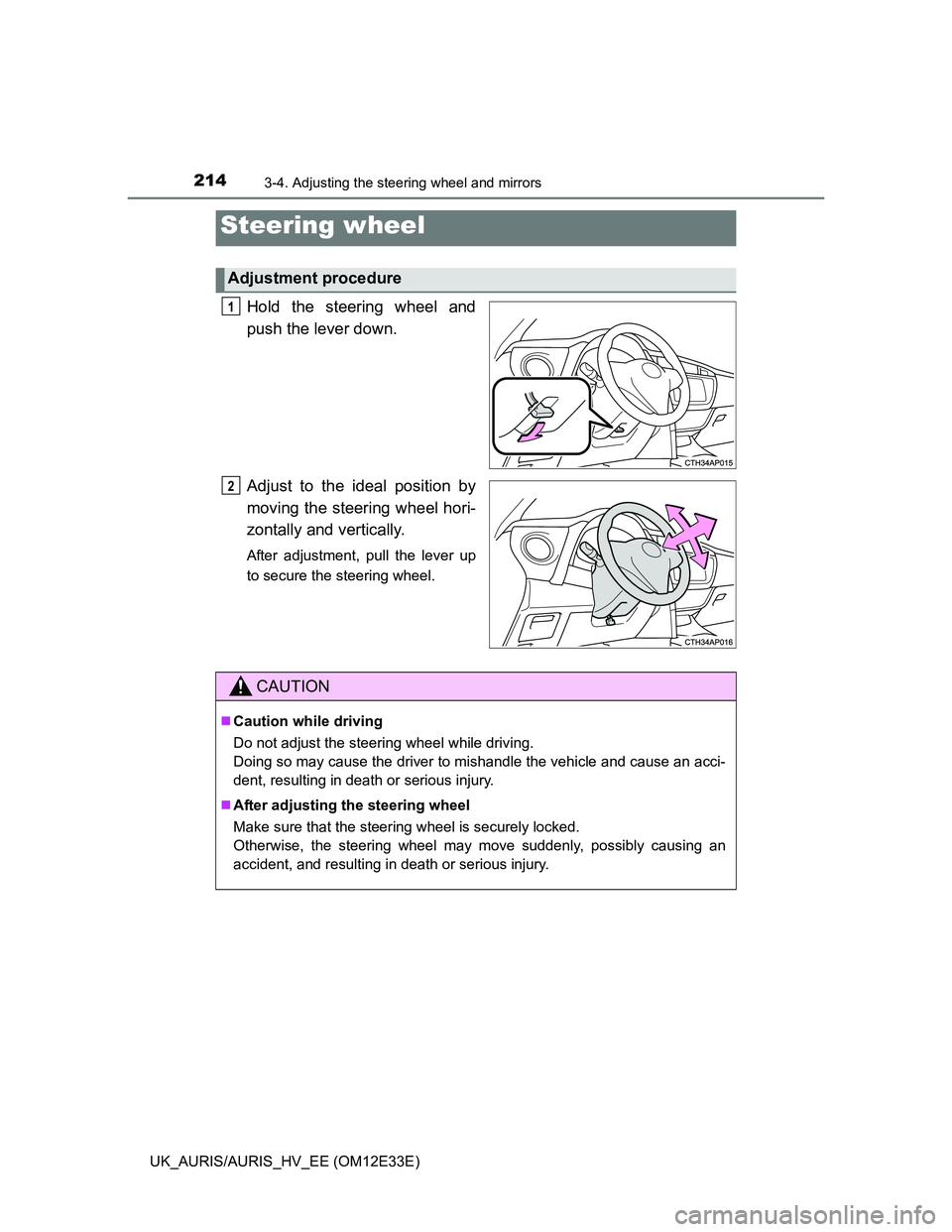

3-4. Adjusting the steering wheel and mirrors
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
Steering wheel
Adjustment procedure
1
2
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.

2173-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component

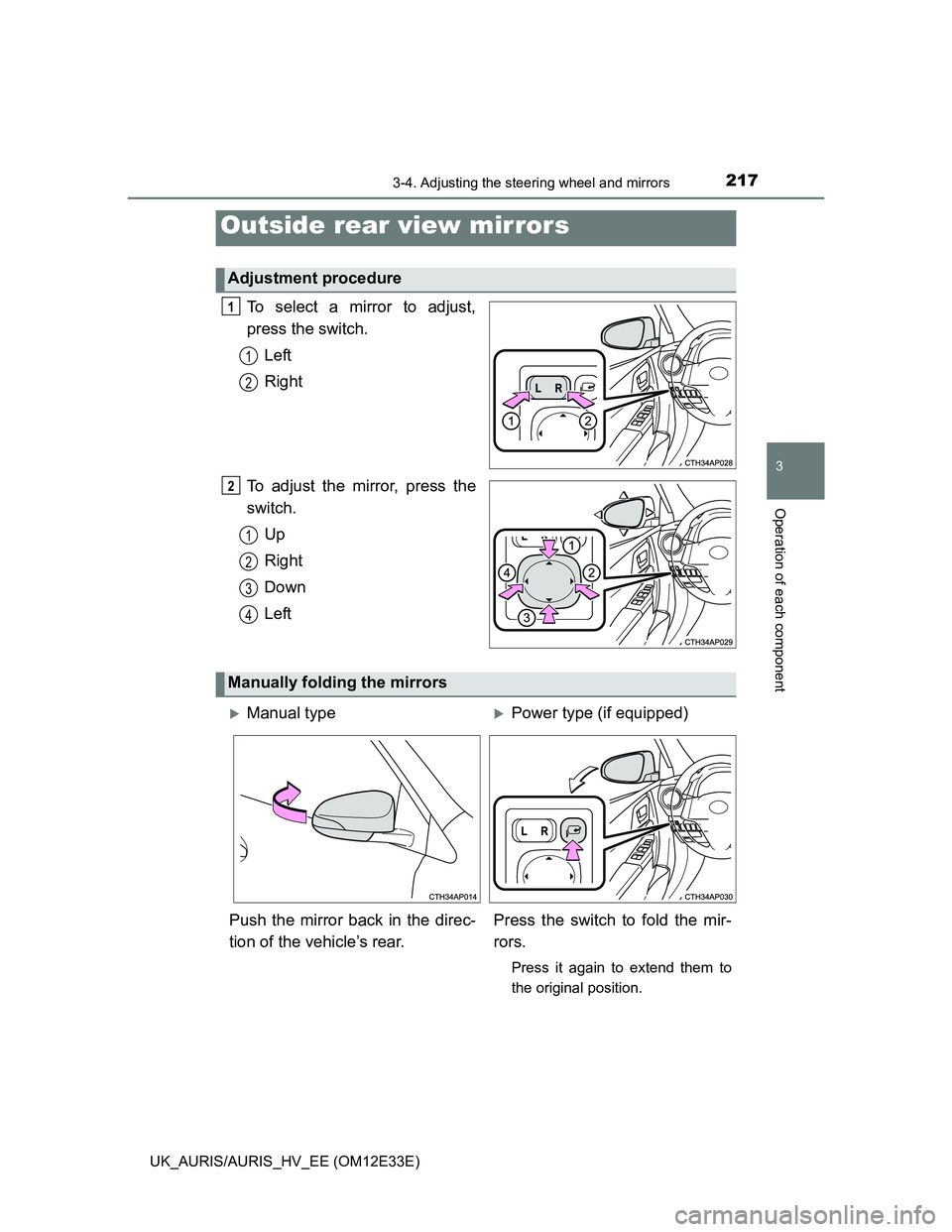

To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding the mirrors
Manual typePower type (if equipped)
Push the mirror back in the direc-
tion of the vehicle’s rear. Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.

2183-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12E33E)

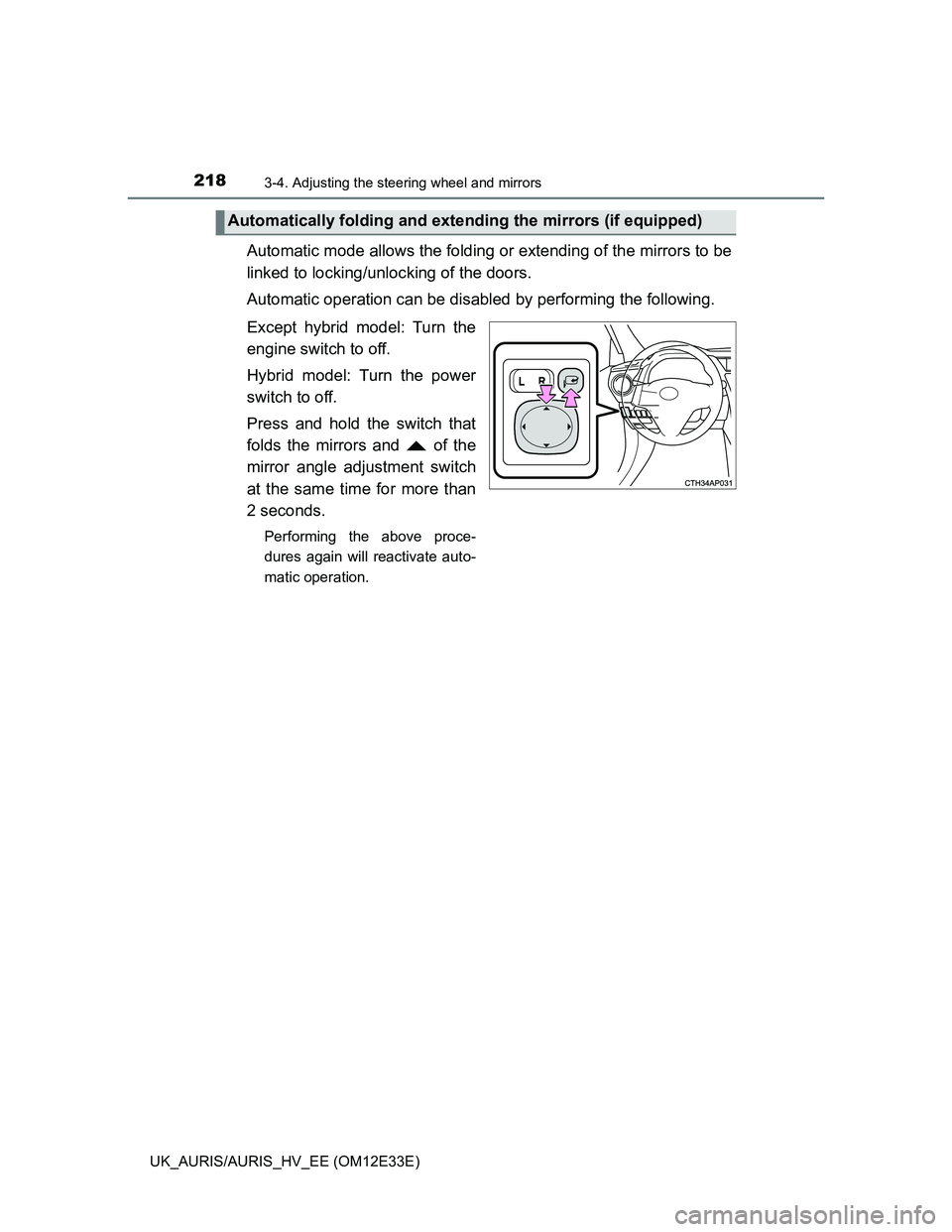

Automatic mode allows the folding or extending of the mirrors to be
linked to locking/unlocking of the doors.
Automatic operation can be disabled by performing the following.
Except hybrid model: Turn the
engine switch to off.
Hybrid model: Turn the power
switch to off.
Press and hold the switch that
folds the mirrors and of the
mirror angle adjustment switch
at the same time for more than
2 seconds.
Performing the above proce-
dures again will reactivate auto-
matic operation.
Automatically folding and extending the mirrors (if equipped)

743Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Specifications .......................... 696
Speech command system*
Speed limiter ............................ 327
Speedometer .................... 122, 126
Sport mode ............................... 277
Steering lock
Column lock release ..... 256, 265
Steering lock system
warning message ............... 611
Steering wheel ......................... 214
Adjustment ............................ 214
Audio switches ...................... 438
Stop & Start cancel switch...... 351
Stop & Start system................. 350
Stop & Start system
operation time........................ 124
Stop & Start system total
operation time........................ 124
Stop lights
Emergency brake signal ....... 357
Replacing light bulbs ............. 555
Storage feature ........................ 445
Stuck
If the vehicle becomes
stuck ................................... 692
Sun visors ................................ 458
Sunshade
Panoramic roof...................... 471Switches
AFS OFF switch.................... 303
Airbag manual on-off
switch ................................... 56
Audio remote control
switches.............................. 438
Cruise control switch............. 322
“DISP” button ........ 123, 127, 129
Door lock switches ................ 200
Emergency flashers switch ... 572
Engine switch................ 254, 258
“ES” switch............................ 282
Fog light switch ..................... 310
Ignition switch ............... 254, 258
Toyota parking assist-sensor
switch ................................. 330
Light switches ....................... 300
Outside rear view mirror
switches.............................. 217
Paddle shift switches .... 278, 282
Power door lock switch ......... 200
Power switch......................... 268
Power window switches ........ 220
“SPORT” switch .................... 277
Stop & Start cancel switch .... 350
Rear window and outside
rear view mirror defoggers
switch ................................. 398
Seat heater switches ............ 465
Talk switch*
Telephone switches*
VSC OFF switch ................... 358
Window lock switch............... 220
Windshield wiper and
washer switch ..................... 312
*: Refer to ““touch screen” Owner’s manual”
