5917-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
DPF system warning light
(diesel engine)
*2
• Indicates that the DPF
catalytic converter needs
to be cleaned due to
repeated short trips and/
or low-speed driving.
• Indicates that the
amount of accumulated
deposits in the DPF cat-
alytic converter has
reached the specified
level.
To clean with DPF catalytic
converter, drive the vehicle
at a speed of 65 km/h (40
mph) or greater for 20 to 30
minutes as much as possible
until the DPF system warn-
ing light turns off
*4.
Do not turn off the engine as
much as possible until the
DPF system warning light
turns off.
If it is not possible to drive
the vehicle at speeds of 65
km/h (40 mph) or greater, or
the DPF system warning
light does not turn off even
after driving for more than 30
minutes, have the vehicle
inspected by any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
(Flashes)
Engine oil change
reminder light (diesel
engine)
*2
Indicates that the engine
oil should be scheduled to
be changed.
Flashes approximately
14500 km (9000 miles)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance date has been
reset).Check and change the
engine oil and oil filter by any
authorized Toyota dealer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should be
reset. (P. 503)
Warning lightWarning light/DetailsCorrection procedure

5927-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
(Flashes)
Engine oil change
reminder light (diesel
engine)
*2
Indicates that the engine
oil should be scheduled to
be changed.
• Flashes while you are
driving.
• Vehicles without a smart
entry & start system:
Flashes for about 12
seconds when the
engine switch is turned
to the “ON” position.
• Vehicles with a smart
entry & start system:
Flashes for about 12
seconds when the
engine switch is turned
to IGNITION ON mode.
Check and change the
engine oil and oil filter by any
authorized Toyota dealer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should be
reset. (P. 503)
Engine oil change
reminder light (diesel
engine)
*2
Indicates that the engine
oil should be scheduled to
be changed.
1ND-TV engine
Comes on approximately
15000 km (9300 miles)
after the engine oil is
changed (and the oil main-
tenance data has been
reset).
1AD-FTV engine
Comes on approximately
30000 km (18000 miles)
after the engine oil is
changed (and the oil main-
tenance data has been
reset).
Check and change the
engine oil and oil filter by any
authorized Toyota dealer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should be
reset. (P. 503)
Warning lightWarning light/DetailsCorrection procedure

5937-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
*1: Open door warning buzzer:
P. 602
*2: Vehicles with a drive monitor display
*3: Driver’s and passengers seat belt buzzer:
The driver’s and passengers seat belt buzzer sounds to alert the driver and
passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of at least 20 km/h (12 mph).
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 90 more seconds.
*4: The DPF system warning may not turn off when the engine oil change
reminder is on. In this event, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Master warning light (vehi-
cles with a multi-informa-
tion display)
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.
P. 5 9 9
Warning lightWarning light/DetailsCorrection procedure

5947-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart entry &
start system without multi-information display)
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure
ContinuousContinuous(Flashes
in yellow)Smart entry & start system
indicator light (vehicles with
a Multidrive)
The electronic key was car-
ried outside the vehicle and
the driver’s door was opened
and closed while any shift
position other than P was
selected without turning off
the engine switch.• Change the
shift position
to P.
• Bring the
electronic
key back into
the vehicle.
Once3 times
(Flashes
in yellow)
Smart entry & start system
indicator light (vehicles with
a Multidrive)
The electronic key was car-
ried outside the vehicle and
the driver’s door was opened
and closed while the shift
position P was selected with-
out turning off the engine
switch.
Turn the
engine switch
off or bring the
electronic key
back into the
vehicle.
Smart entry & start system
indicator light
Indicates that a door other
than the driver’s door has
been opened and closed with
the engine switch in any
mode other than OFF and the
electronic key outside of the
detection area.
Confirm the
location of the
electronic key.

5957-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
OnceContinuous
(5 seconds)
(Flashes
in yellow)
Smart entry & start system
indicator light
An attempt was made to exit
the vehicle with the electronic
key and lock the doors with-
out first turning the engine
switch off.
Turn the
engine switch
off and lock the
doors again.
Once(Flashes
in yellow
for 15
seconds.)Smart entry & start system
indicator light
Indicates that the electronic
key is not present when
attempting to start the engine.Confirm the
location of the
electronic key.
9 times
(Flashes
in yellow)
Smart entry & start system
indicator light
An attempt was made to drive
when the regular key was not
inside the vehicle.Confirm that
the electronic
key is inside
the vehicle.
Once(Flashes
in yellow
for 15
seconds.)
Smart entry & start system
indicator light
Indicates that the electronic
key battery is low.Replace the
battery.
(P. 529)
Once(Flashes
quickly in
green for
15 sec-
onds.)
Smart entry & start system
indicator light
Indicates that the steering
lock has not been released.Release the
steering lock.
(P. 264)
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

5967-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Front passenger detection sensor, seat belt reminder and warning
buzzer
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Toy-
ota dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
If the engine oil change reminder is on (if equipped)
Repeated short time trips and/or low-speed driving may cause the oil to
degrade sooner than usual, regardless of the actual distance driven. If this
happens, the engine oil change reminder will come on.
Once(Flashes
in yellow
for 30
seconds.)
Smart entry & start system
indicator light
• When the doors were
unlocked with the mechani-
cal key and then the engine
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could
not be detected in the vehi-
cle even after the engine
switch was pressed two
consecutive times.
Touch the
electronic key
to the engine
switch while
depressing the
brake pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

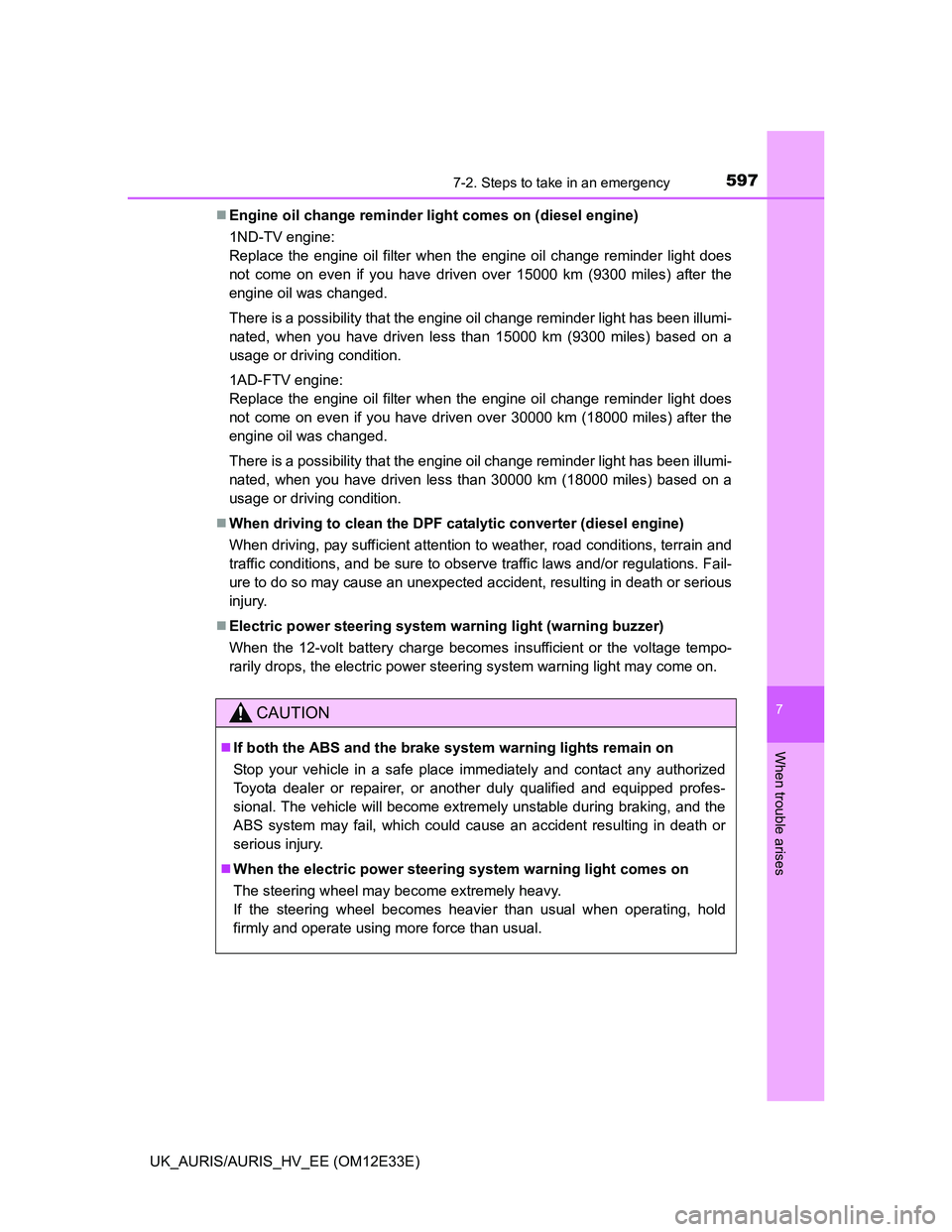

5977-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Engine oil change reminder light comes on (diesel engine)
1ND-TV engine:
Replace the engine oil filter when the engine oil change reminder light does
not come on even if you have driven over 15000 km (9300 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated, when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
1AD-FTV engine:
Replace the engine oil filter when the engine oil change reminder light does
not come on even if you have driven over 30000 km (18000 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated, when you have driven less than 30000 km (18000 miles) based on a
usage or driving condition.
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain and
traffic conditions, and be sure to observe traffic laws and/or regulations. Fail-
ure to do so may cause an unexpected accident, resulting in death or serious
injury.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on.
CAUTION
If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.

5987-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
NOTICE
When the DPF system warning light comes on (diesel engine)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
If the fuel filter warning light comes on (diesel engine)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
