2012 TOYOTA AURIS Owners Manual (in English)

6637-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

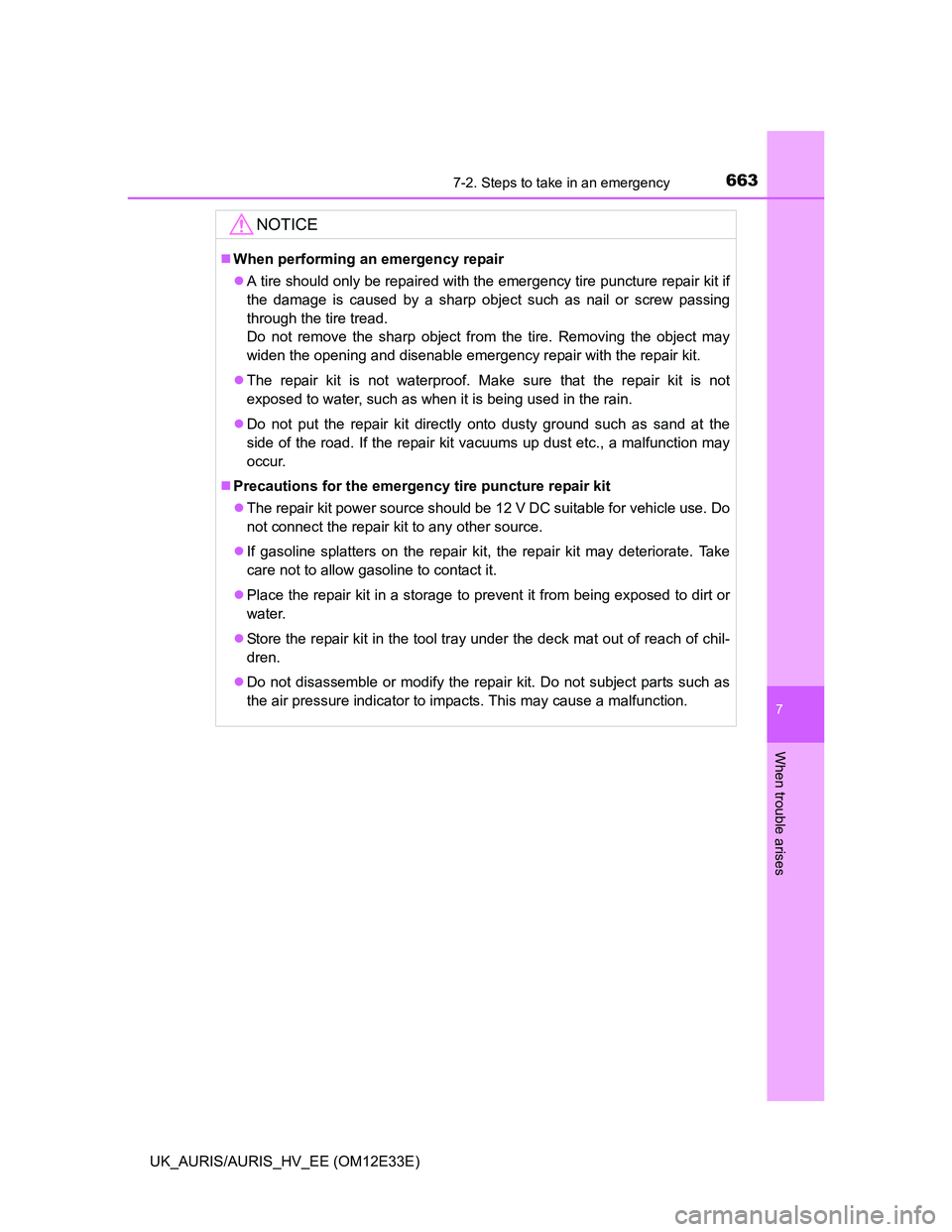

NOTICE
When performing an emergency repair
A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergency repair with the repair kit.
The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a malfunction may
occur.
Precautions for the emergency tire puncture repair kit
The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.
Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
Store the repair kit in the tool tray under the deck mat out of reach of chil-
dren.
Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.

6647-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
One of the following may be the cause of the problem:
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(P. 254, 258)
There may be a malfunction in the engine immobilizer system.
(P. 91)
One of the following may be the cause of the problem:
The battery may be discharged. (P. 674)
The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
(P. 665)
If the engine will not start (except hybrid
model)
If the engine will not start even though correct starting proce-
dures are being followed (P. 254, 258), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over

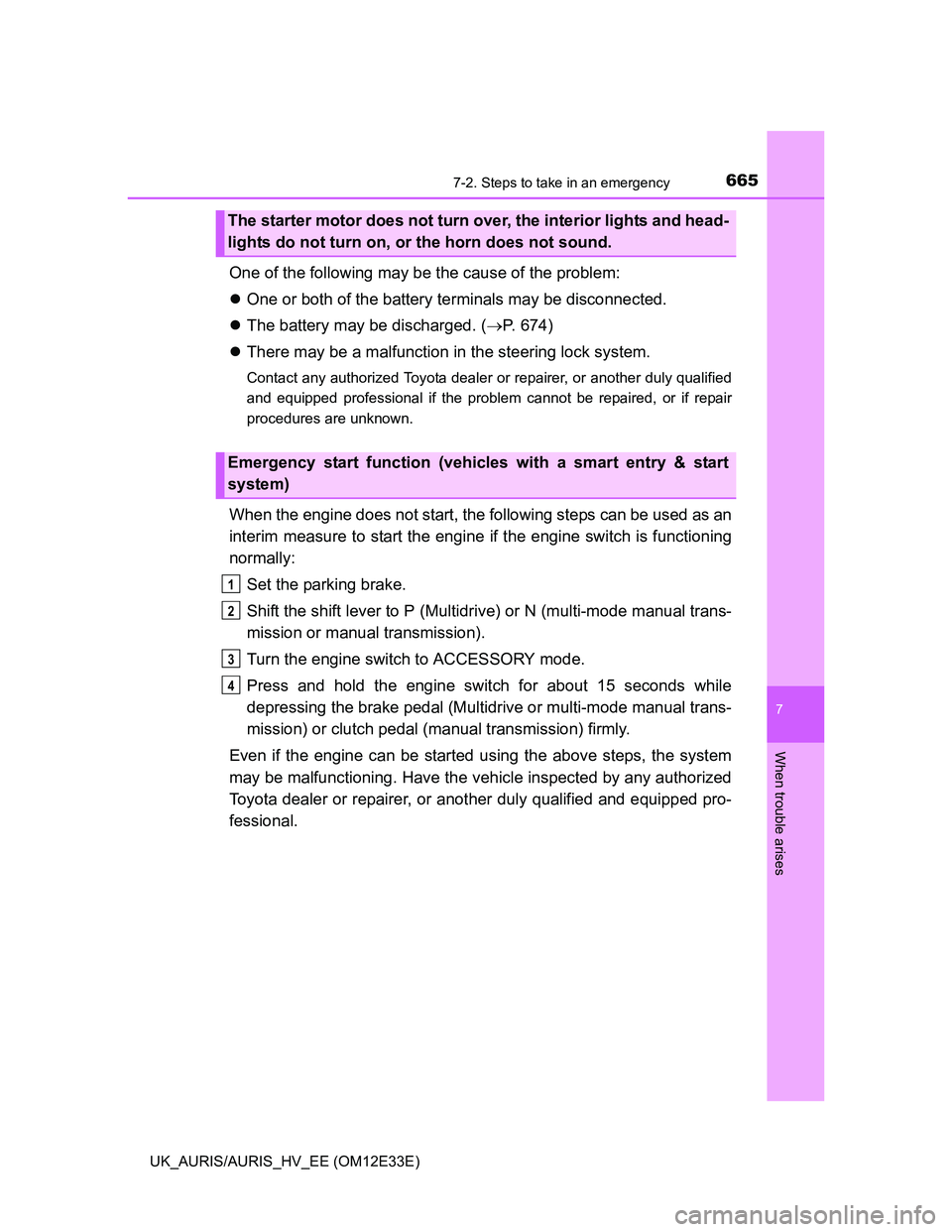

6657-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
One of the following may be the cause of the problem:
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 674)
There may be a malfunction in the steering lock system.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional if the problem cannot be repaired, or if repair
procedures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:
Set the parking brake.
Shift the shift lever to P (Multidrive) or N (multi-mode manual trans-
mission or manual transmission).
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal (Multidrive or multi-mode manual trans-
mission) or clutch pedal (manual transmission) firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function (vehicles with a smart entry & start
system)
1
2
3
4

6667-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
One of the following may be the cause of the problem:
The electronic key may not be functioning properly. (P. 672)
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
There may be a malfunction in the immobilizer system. (P. 9 9 )
There may be malfunction in the P position control system.
*
(P. 272, 600)
The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. How-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. (P. 667)
*: It may not be possible to shift the shift position from P to another position.
One of the following may be the cause of the problem:
The 12-volt battery may be discharged. (P. 674)
The 12-volt battery terminal connections may be loose or corroded.
If the hybrid system will not star t (hybrid
model)
Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. (P. 268)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

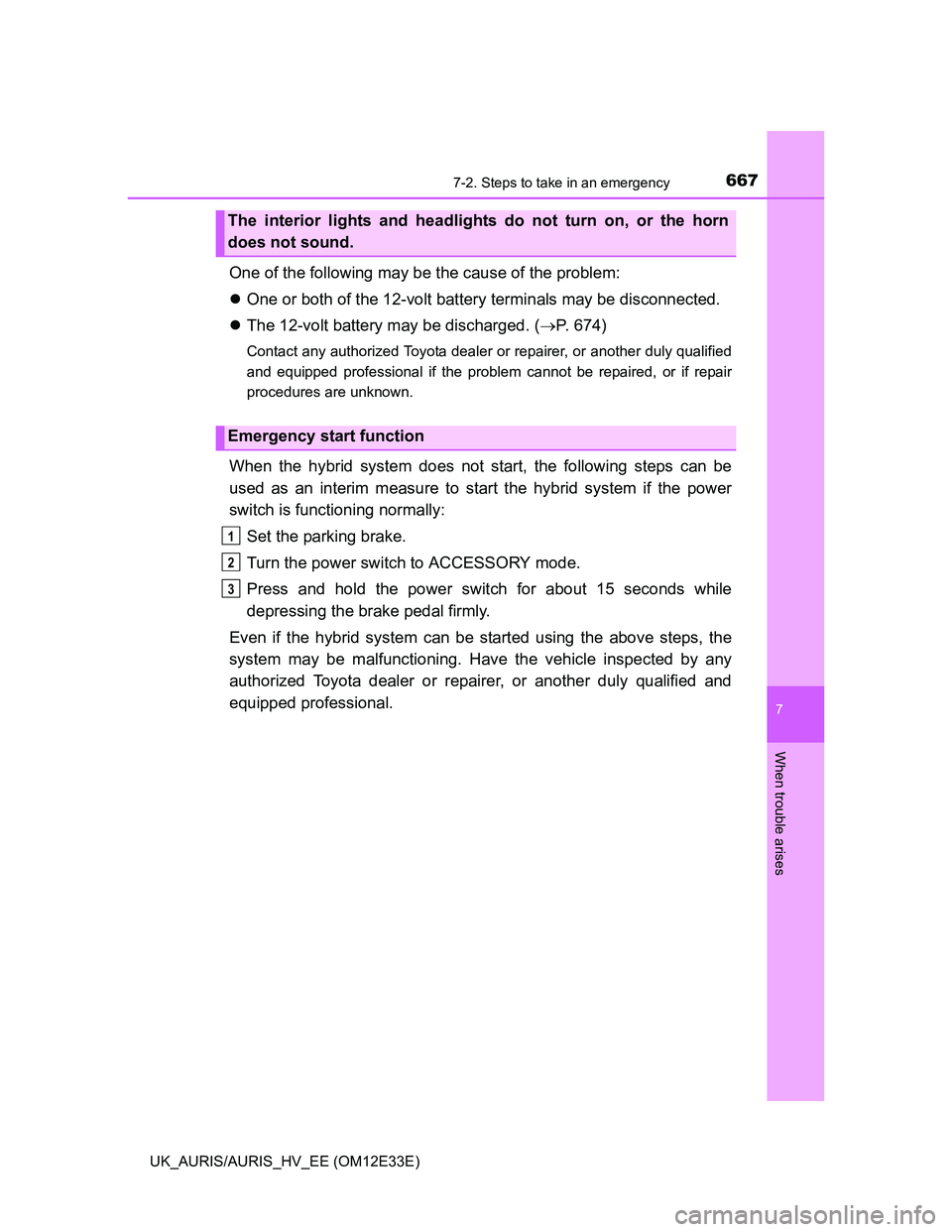

6677-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
One of the following may be the cause of the problem:
One or both of the 12-volt battery terminals may be disconnected.
The 12-volt battery may be discharged. (P. 674)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional if the problem cannot be repaired, or if repair
procedures are unknown.
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the power
switch is functioning normally:
Set the parking brake.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
The interior lights and headlights do not turn on, or the horn
does not sound.
Emergency start function
1
2
3

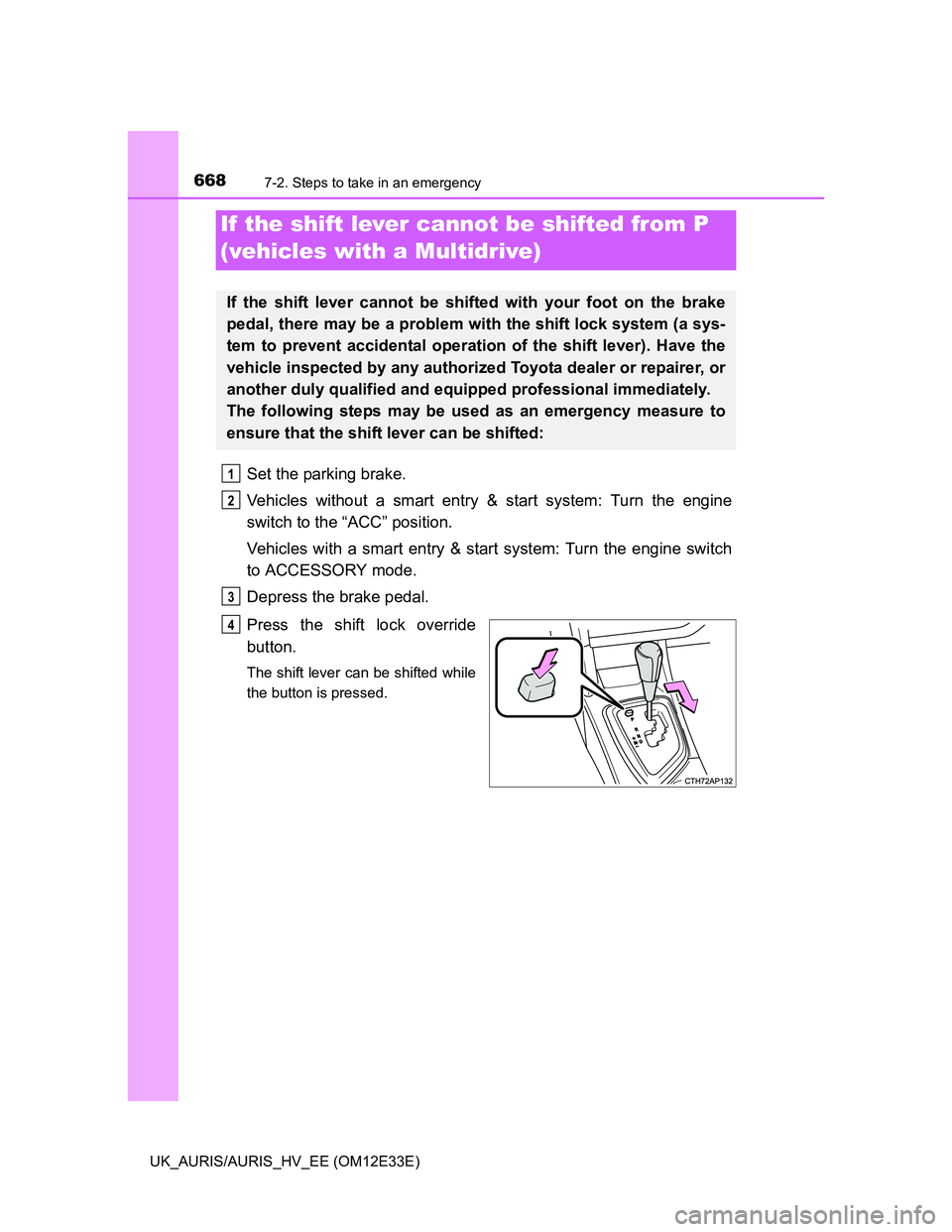

6687-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Set the parking brake.
Vehicles without a smart entry & start system: Turn the engine
switch to the “ACC” position.
Vehicles with a smart entry & start system: Turn the engine switch
to ACCESSORY mode.
Depress the brake pedal.
Press the shift lock override
button.
The shift lever can be shifted while
the button is pressed.
If the shift lever cannot be shifted from P
(vehicles with a Multidrive)
If the shift lever cannot be shifted with your foot on the brake
pedal, there may be a problem with the shift lock system (a sys-
tem to prevent accidental operation of the shift lever). Have the
vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
1
2
3
4

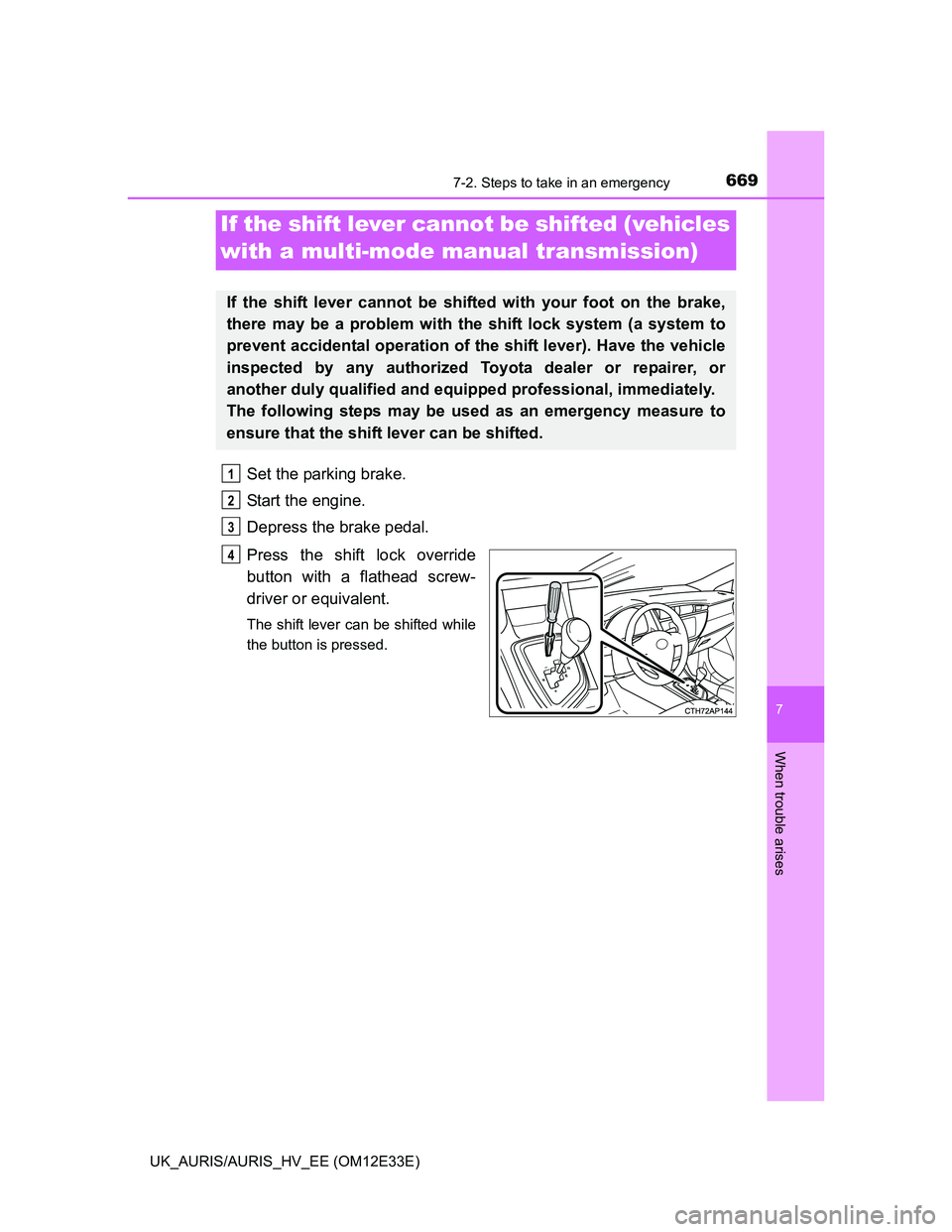

6697-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Set the parking brake.
Start the engine.
Depress the brake pedal.
Press the shift lock override
button with a flathead screw-
driver or equivalent.
The shift lever can be shifted while
the button is pressed.
If the shift lever cannot be shifted (vehicles
with a multi-mode manual transmission)
If the shift lever cannot be shifted with your foot on the brake,
there may be a problem with the shift lock system (a system to
prevent accidental operation of the shift lever). Have the vehicle
inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
1
2
3
4

6707-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Use the mechanical key
(P. 149) in order to perform the
following operations:
Locks all the doors
Unlocks all the doors
If the electronic key does not operate properly (vehicles
with a smart entr y & start system or push button start)
If communication between the electronic key and vehicle is
interrupted (P. 158) or the electronic key cannot be used
because the battery is depleted, the smart entry & start system,
push button start and wireless remote control cannot be used. In
such cases, the doors can be opened and the engine can be
started by following the procedure below.
Locking and unlocking the doors
1
2
