2012 TOYOTA AURIS Owners Manual (in English)

7
When trouble arises
575
UK_AURIS/AURIS_HV_EE (OM12E33E)
7-2. Steps to take in an emergency

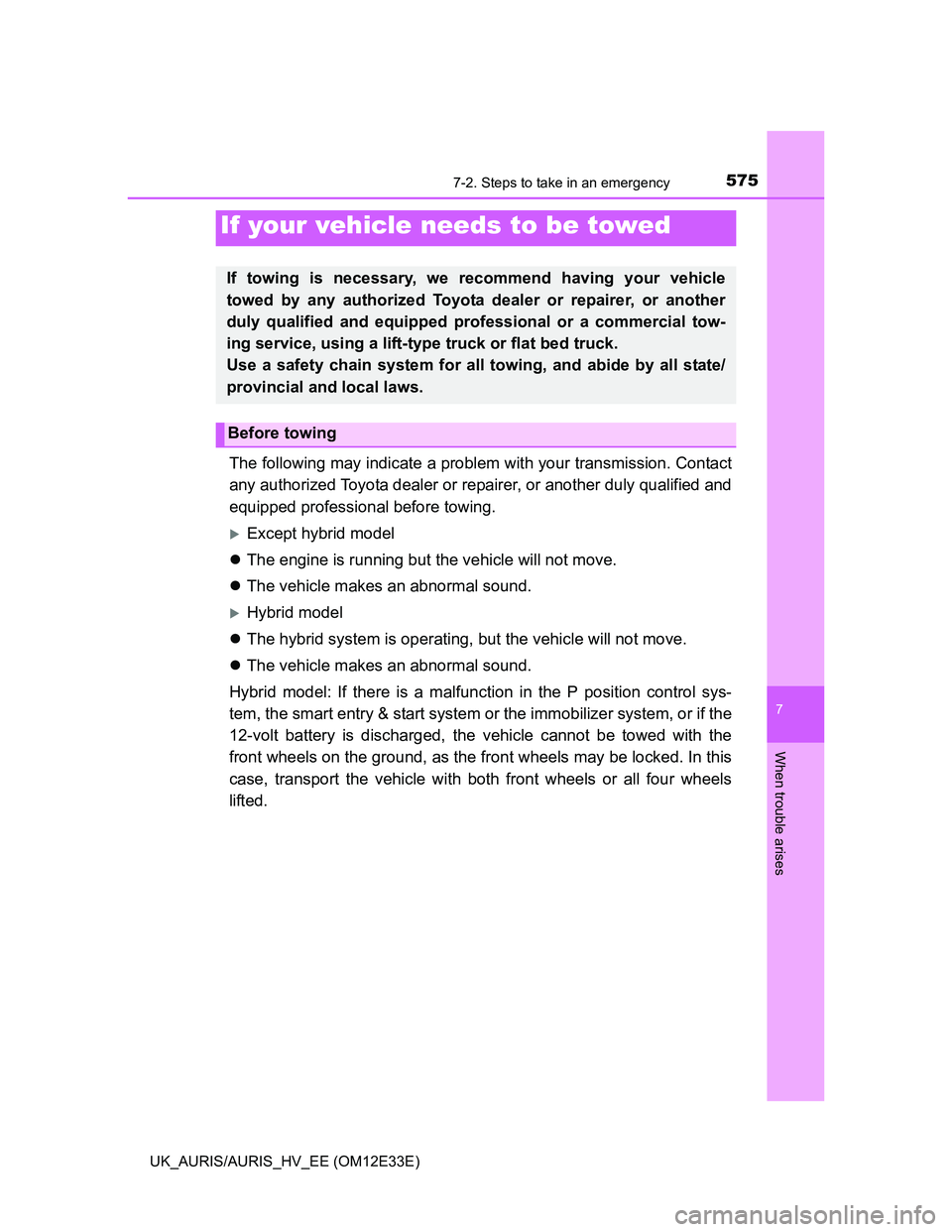

The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional before towing.
Except hybrid model
The engine is running but the vehicle will not move.
The vehicle makes an abnormal sound.
Hybrid model
The hybrid system is operating, but the vehicle will not move.
The vehicle makes an abnormal sound.
Hybrid model: If there is a malfunction in the P position control sys-
tem, the smart entry & start system or the immobilizer system, or if the
12-volt battery is discharged, the vehicle cannot be towed with the
front wheels on the ground, as the front wheels may be locked. In this
case, transport the vehicle with both front wheels or all four wheels
lifted.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional or a commercial tow-
ing service, using a lift-type truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Before towing

5767-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

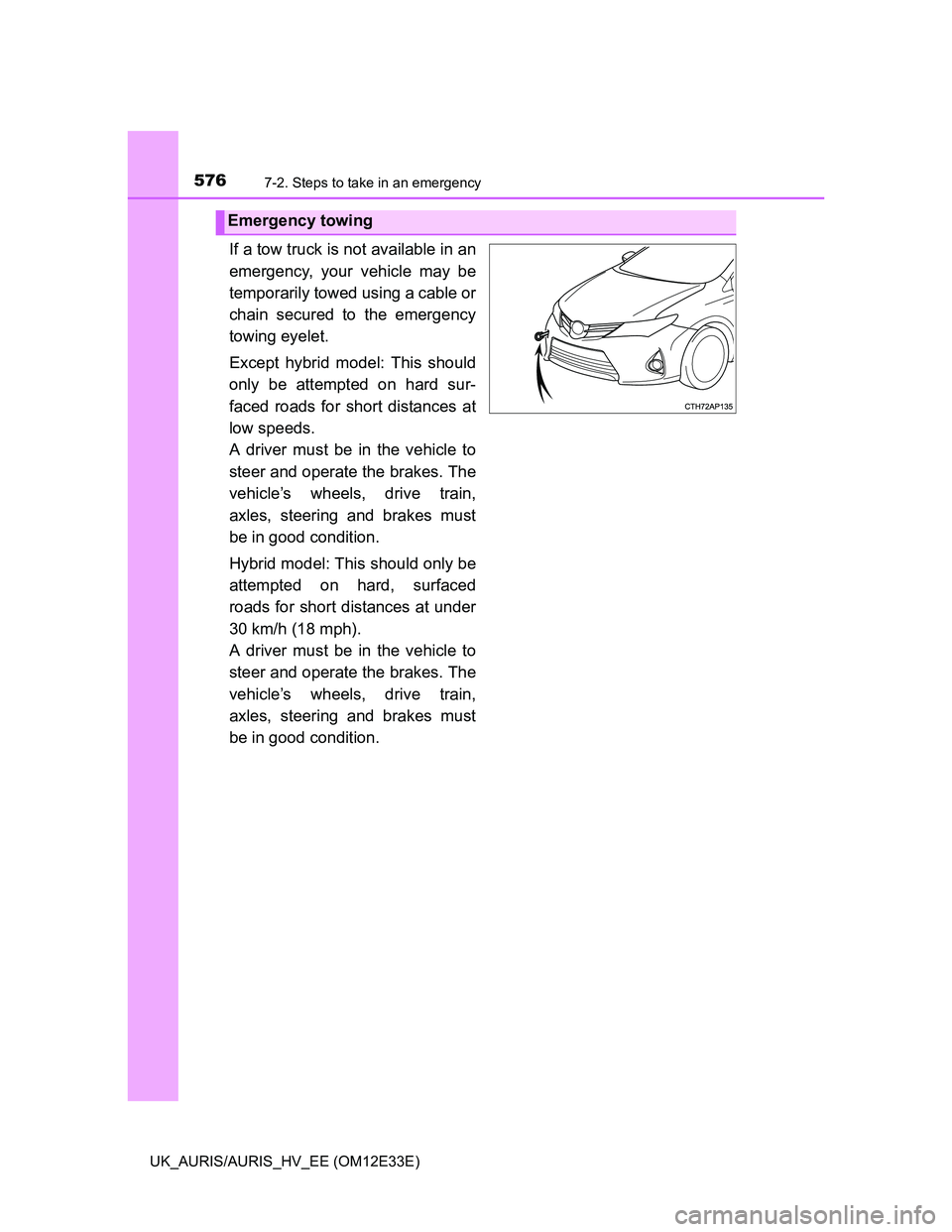

If a tow truck is not available in an
emergency, your vehicle may be
temporarily towed using a cable or
chain secured to the emergency
towing eyelet.
Except hybrid model: This should
only be attempted on hard sur-
faced roads for short distances at
low speeds.
A driver must be in the vehicle to
steer and operate the brakes. The
vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
Hybrid model: This should only be
attempted on hard, surfaced
roads for short distances at under
30 km/h (18 mph).
A driver must be in the vehicle to
steer and operate the brakes. The
vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
Emergency towing

5777-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

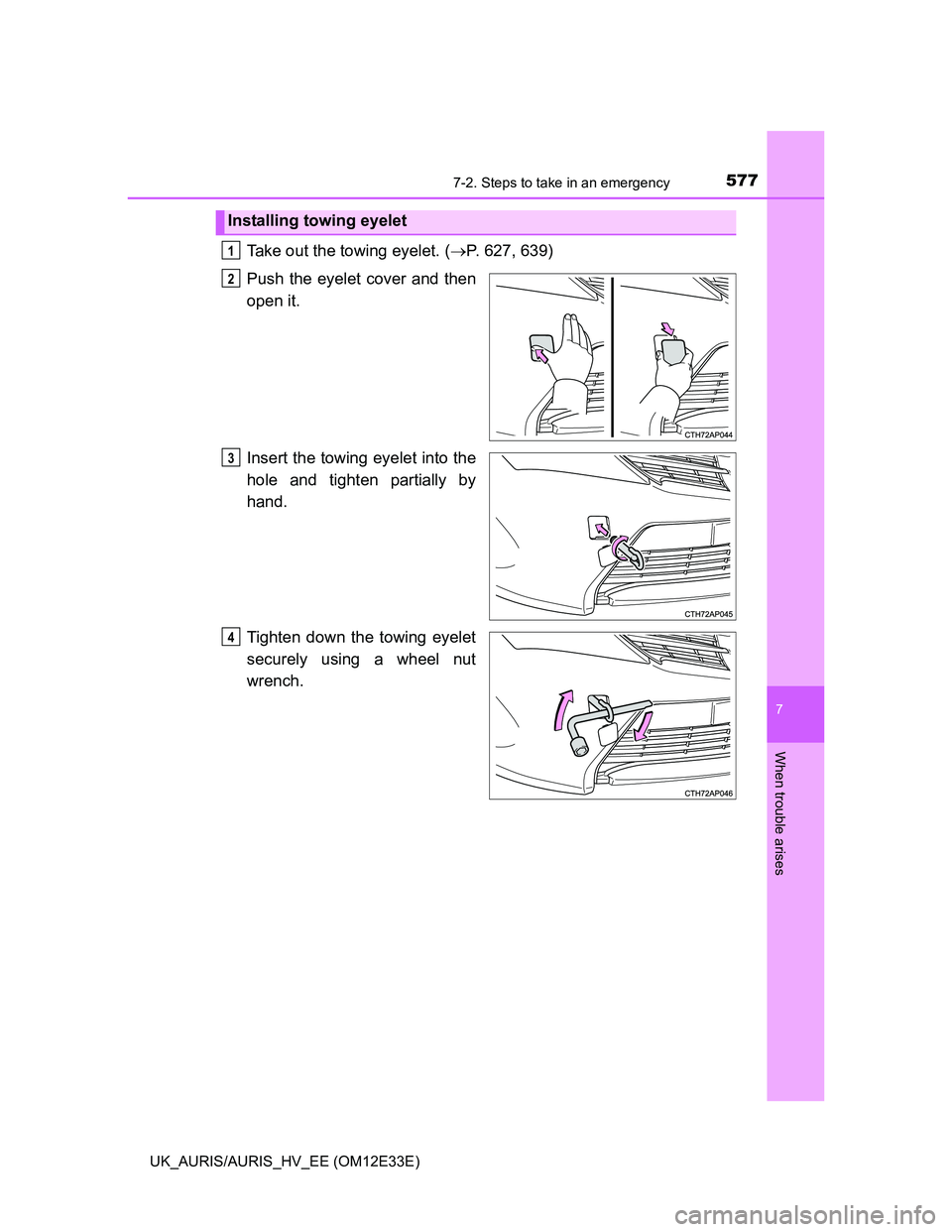

Take out the towing eyelet. (P. 627, 639)
Push the eyelet cover and then
open it.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
Installing towing eyelet
1
2
3
4

5787-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

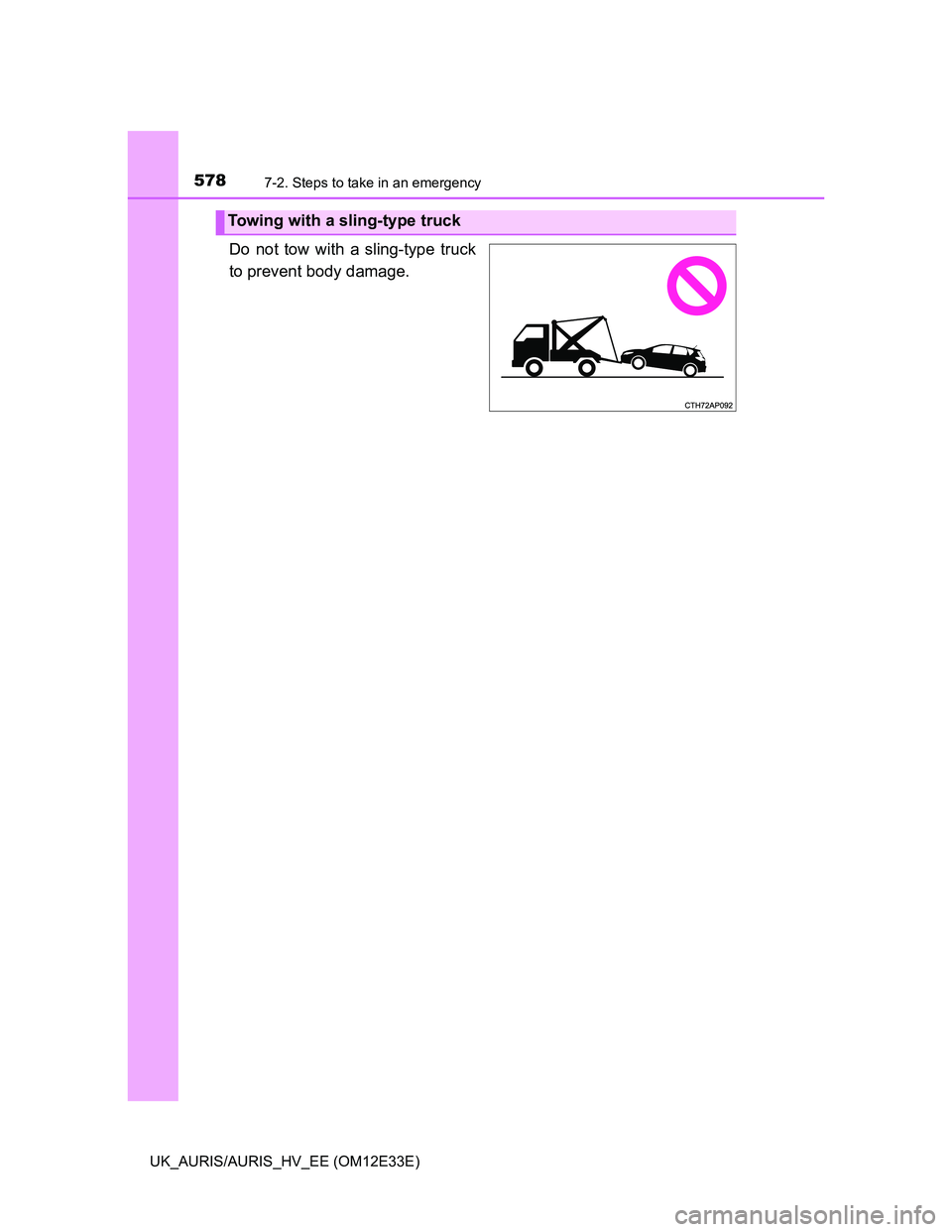

Do not tow with a sling-type truck
to prevent body damage.
Towing with a sling-type truck

5797-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

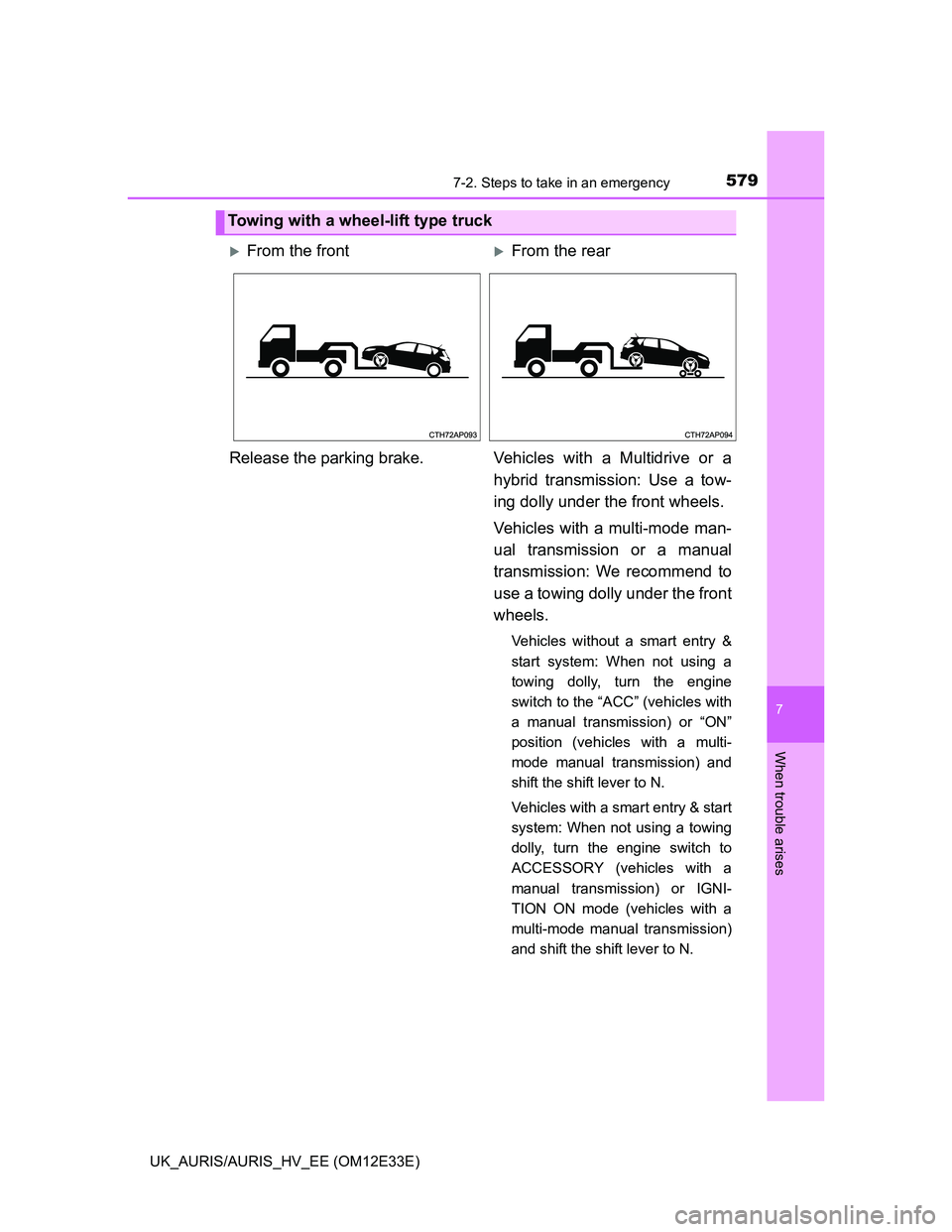

Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Vehicles with a Multidrive or a
hybrid transmission: Use a tow-
ing dolly under the front wheels.
Vehicles with a multi-mode man-
ual transmission or a manual
transmission: We recommend to
use a towing dolly under the front
wheels.
Vehicles without a smart entry &
start system: When not using a
towing dolly, turn the engine
switch to the “ACC” (vehicles with
a manual transmission) or “ON”
position (vehicles with a multi-
mode manual transmission) and
shift the shift lever to N.
Vehicles with a smart entry & start
system: When not using a towing
dolly, turn the engine switch to
ACCESSORY (vehicles with a
manual transmission) or IGNI-
TION ON mode (vehicles with a
multi-mode manual transmission)
and shift the shift lever to N.

5807-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)

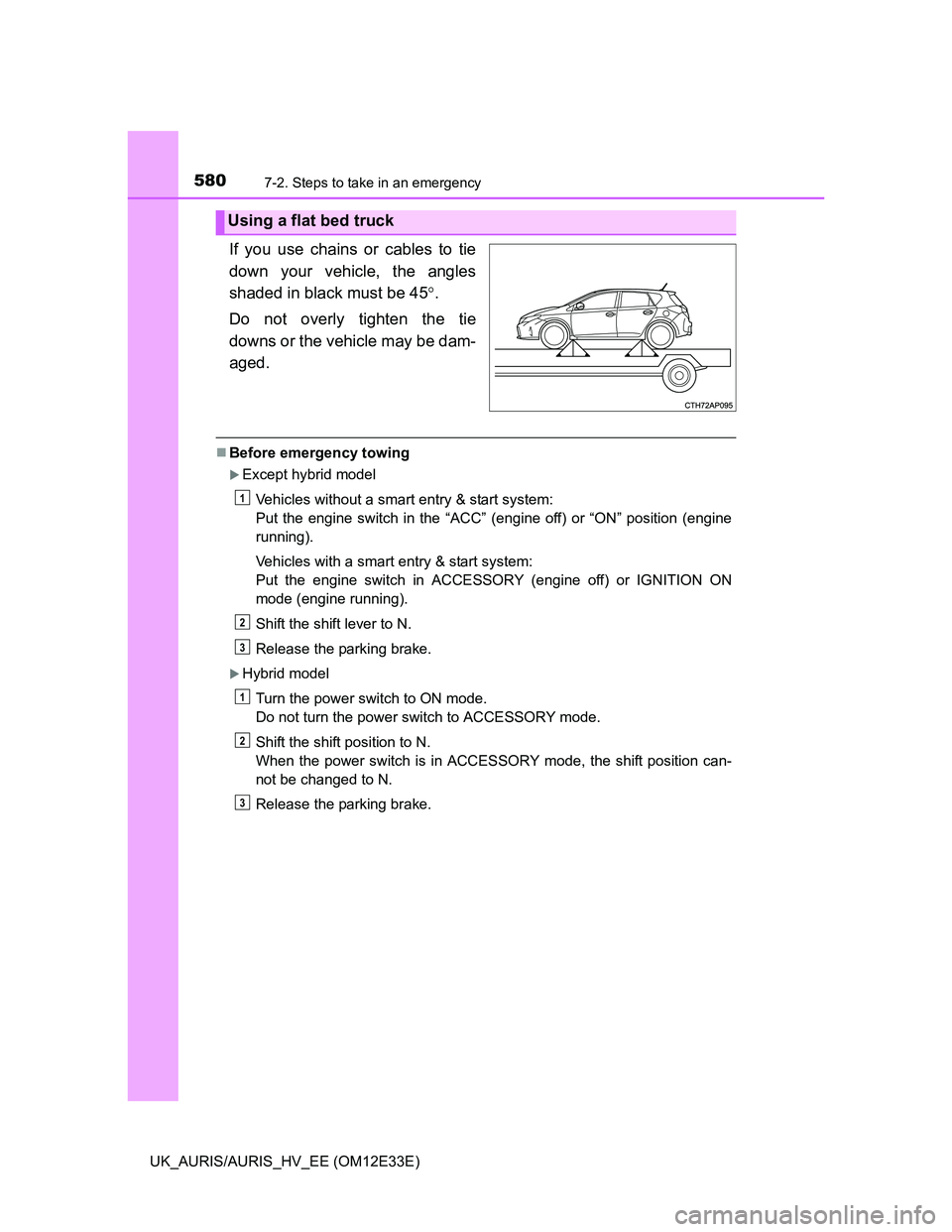

If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
Before emergency towing
Except hybrid model
Vehicles without a smart entry & start system:
Put the engine switch in the “ACC” (engine off) or “ON” position (engine
running).
Vehicles with a smart entry & start system:
Put the engine switch in ACCESSORY (engine off) or IGNITION ON
mode (engine running).
Shift the shift lever to N.
Release the parking brake.
Hybrid model
Turn the power switch to ON mode.
Do not turn the power switch to ACCESSORY mode.
Shift the shift position to N.
When the power switch is in ACCESSORY mode, the shift position can-
not be changed to N.
Release the parking brake.
Using a flat bed truck
1
2
3
1
2
3

5817-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises

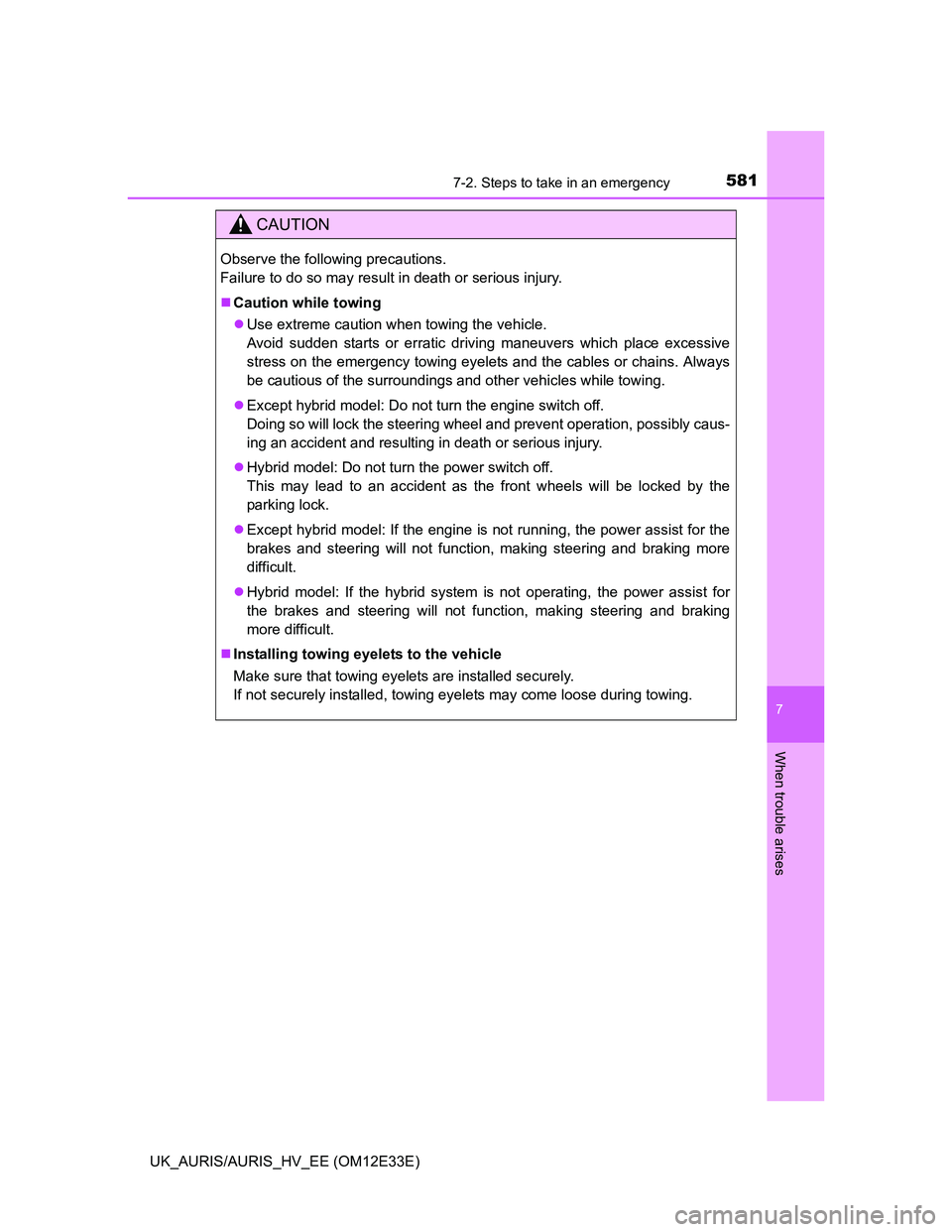

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
Except hybrid model: Do not turn the engine switch off.
Doing so will lock the steering wheel and prevent operation, possibly caus-
ing an accident and resulting in death or serious injury.
Hybrid model: Do not turn the power switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
Except hybrid model: If the engine is not running, the power assist for the
brakes and steering will not function, making steering and braking more
difficult.
Hybrid model: If the hybrid system is not operating, the power assist for
the brakes and steering will not function, making steering and braking
more difficult.
Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.

5827-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
NOTICE
To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck (Multidrive or hybrid transmission)
Never tow this vehicle from the rear with the front wheels on the ground.
To prevent causing serious damage to the Stop & Start system when
towing (vehicles with Stop & Start system)
Never tow this vehicle with four wheels on the ground. Use a flatbed truck,
or lift up front or rear of the vehicle by using a wheel-lift type truck.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (Multidrive or hybrid transmission)
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (multi-mode manual transmission or manual transmission)
Vehicles without a smart entry & start system: Do not tow the vehicle from
the rear when the engine switch is in the “LOCK” position or the key is
removed. The steering lock mechanism is not strong enough to hold the
front wheels straight.
Vehicles with a smart entry & start system: Do not tow the vehicle from the
rear when the engine switch is off. The steering lock mechanism is not
strong enough to hold the front wheels straight.
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
To prevent causing serious damage to the transmission in emergency
towing
Vehicles with a Multidrive or hybrid transmission, never tow a vehicle from
the rear with four wheels on the ground. This may cause serious damage to
the transmission.
