2012 TOYOTA AURIS Owners Manual (in English)

5676-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
5
6
7

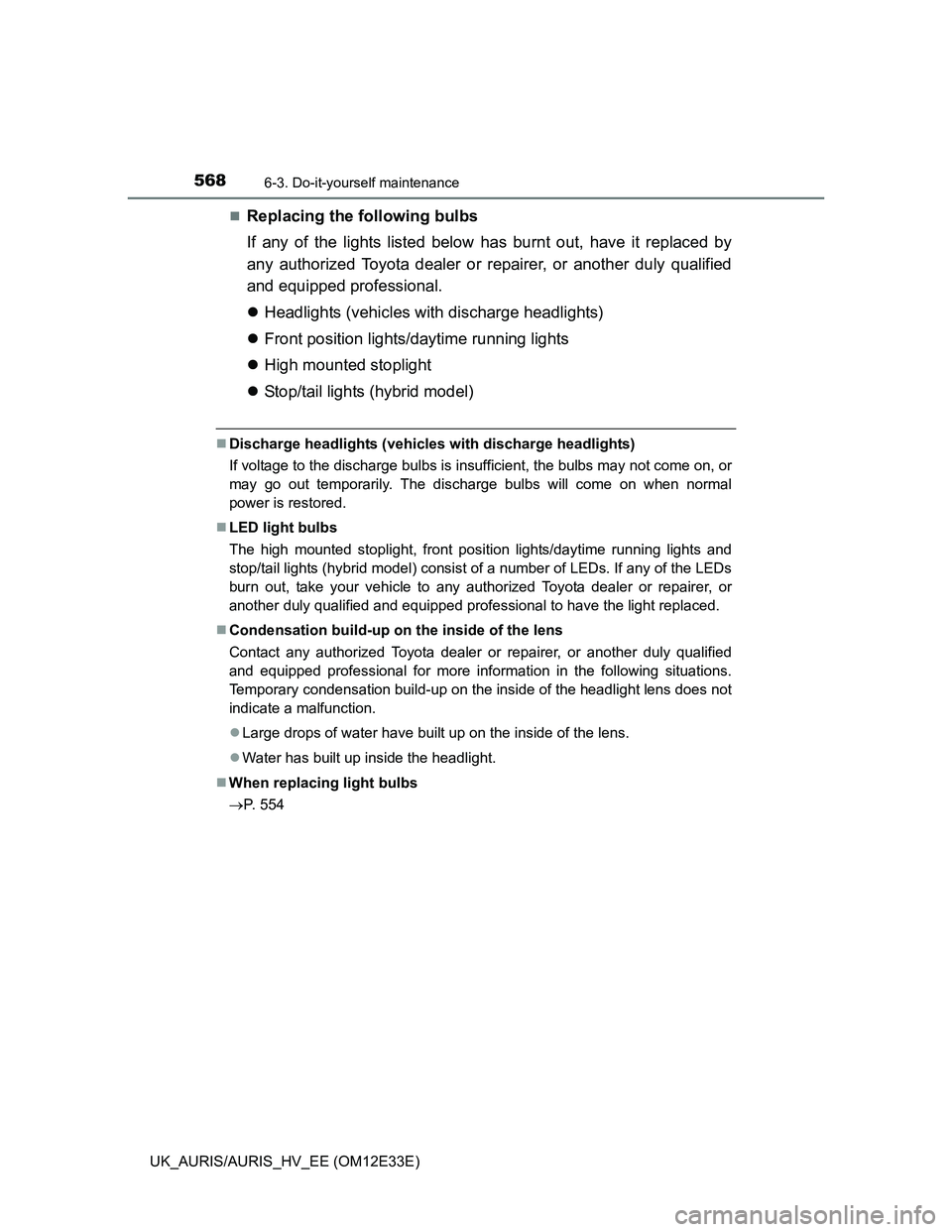

5686-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlights (vehicles with discharge headlights)
Front position lights/daytime running lights
High mounted stoplight
Stop/tail lights (hybrid model)
Discharge headlights (vehicles with discharge headlights)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The high mounted stoplight, front position lights/daytime running lights and
stop/tail lights (hybrid model) consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 554

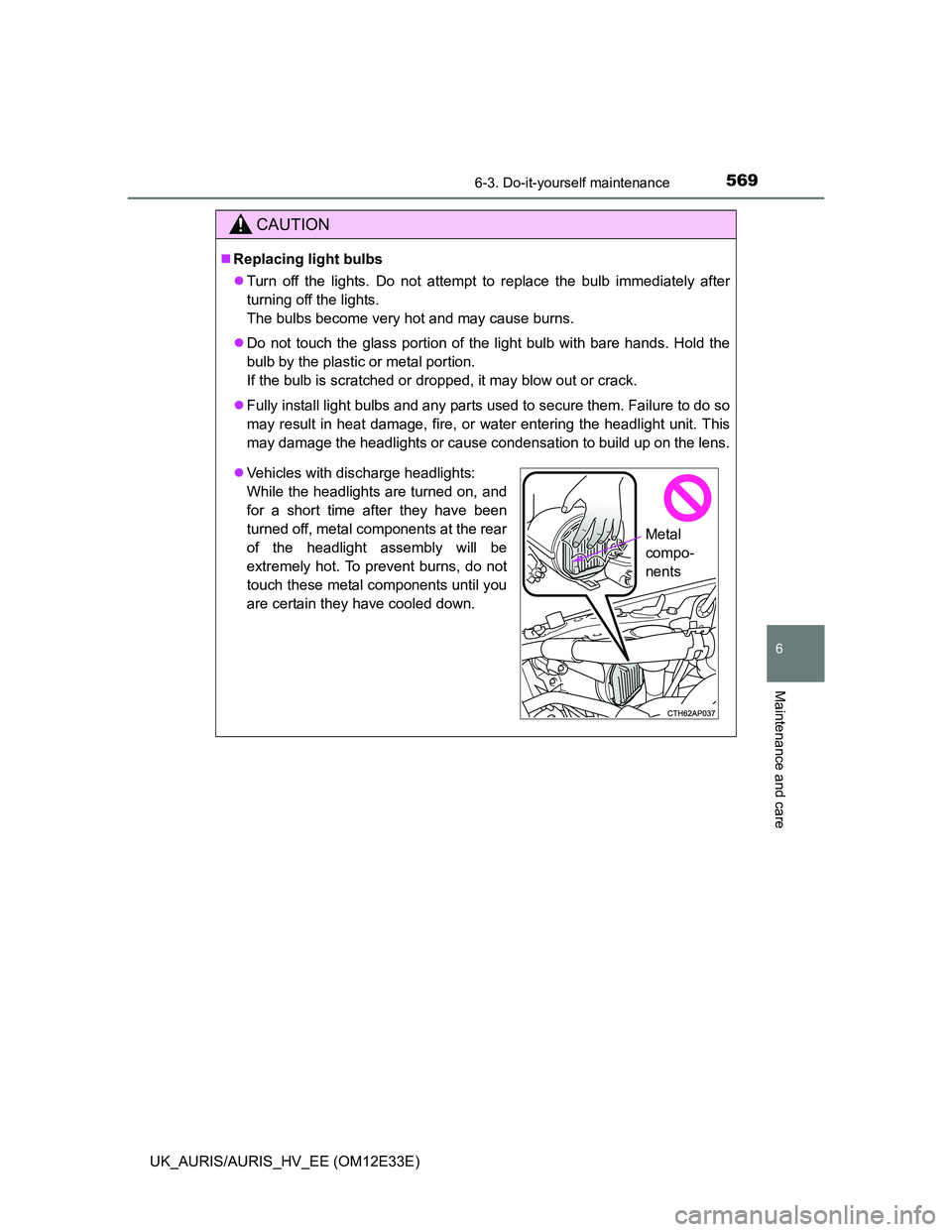

5696-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
6
Maintenance and care
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
Vehicles with discharge headlights:
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the rear
of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal
compo-
nents

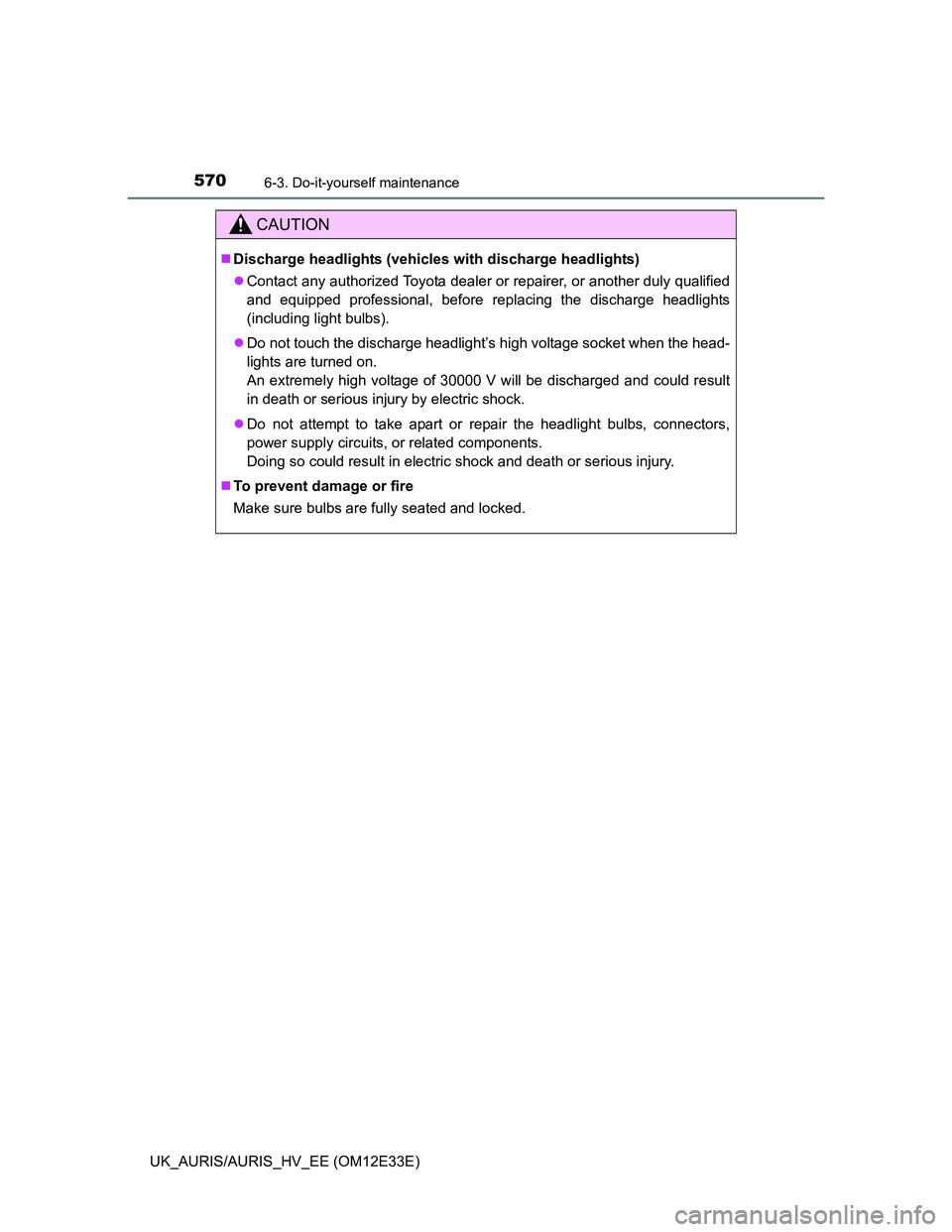

5706-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12E33E)
CAUTION
Discharge headlights (vehicles with discharge headlights)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in death or serious injury by electric shock.
Do not attempt to take apart or repair the headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
To prevent damage or fire
Make sure bulbs are fully seated and locked.

571
7When trouble arises
UK_AURIS/AURIS_HV_EE (OM12E33E)7-1. Essential information
Emergency flashers ........... 572
If your vehicle has to
be stopped in an
emergency ....................... 573
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 575
If you think something is
wrong ............................... 583
Fuel pump shut off
system ............................. 584
If a warning light turns
on or a warning buzzer
sounds ............................. 585
If a warning message is
displayed ......................... 599
If you have a flat tire
(vehicles with a spare
tire) .................................. 626
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 638
If the engine will not
start ................................. 664
If the hybrid system will
not start ........................... 666
If the shift lever cannot
be shifted from P ............. 668
If the shift lever cannot
be shifted ......................... 669If the electronic key does
not operate properly ........ 670
If the vehicle 12-volt battery
is discharged (except
hybrid model) ................... 674
If the 12-volt battery is
discharged
(hybrid model).................. 680
If your vehicle overheats
(except hybrid model) ...... 685
If your vehicle overheats
(hybrid model).................. 687
If you run out of fuel and
the engine stalls............... 691
If the vehicle becomes
stuck ................................ 692

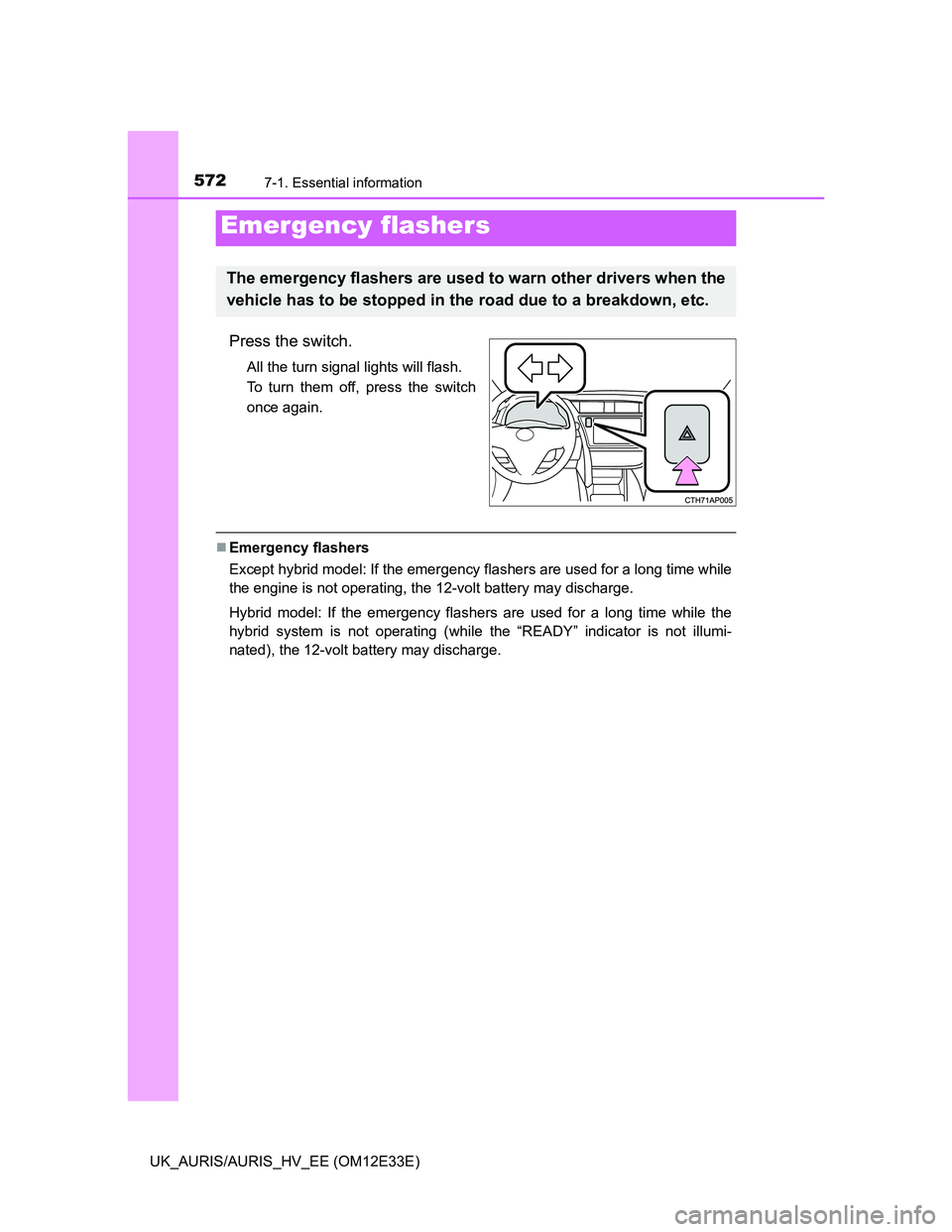

572
UK_AURIS/AURIS_HV_EE (OM12E33E)
7-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
Emergency flashers
Except hybrid model: If the emergency flashers are used for a long time while
the engine is not operating, the 12-volt battery may discharge.
Hybrid model: If the emergency flashers are used for a long time while the
hybrid system is not operating (while the “READY” indicator is not illumi-
nated), the 12-volt battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

5737-1. Essential information
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Except hybrid model: Shift the shift lever to N.
Hybrid model: Change the shift position to N.
If the shift lever is shifted to N (except hybrid model)
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift position can be changed to N (hybrid model)
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N (except hybrid model)
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the engine
by turning the engine switch to
the “ACC” position.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
3
4

5747-1. Essential information
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
If the shift position cannot be changed to N (hybrid model)
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
3
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
CAUTION
If the engine has to be turned off while driving (except hybrid model)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
If the hybrid system has to be turned off while driving (hybrid model)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the hybrid system.
5
