2012 TOYOTA AURIS Owners Manual (in English)

727What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the
lock is set. Open the rear door from outside and then unlock the
child-protector lock. (P. 202)
Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly?
(P. 254)
Vehicles with a multidrive:
Is the shift lever in P? (P. 254)
Is the steering wheel unlocked? (P. 255)
Is the 12-volt battery discharged? (P. 674)
The rear door cannot be opened
If you think something is wrong
The engine does not start (vehicles without smart entry &
start system) (except hybrid model)

728What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles without a manual transmission:
Did you press the engine switch while firmly depressing the brake
pedal? (P. 258)
Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch
pedal? (P. 258)
Vehicles with a multidrive:
Is the shift lever in P? (P. 264)
Is the electronic key anywhere detectable inside the vehicle?
(P. 154)
Is the steering wheel unlocked? (P. 265)
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
(P. 671)
Is the 12-volt battery discharged? (P. 674)
Did you press the power switch while firmly depressing the brake
pedal? (P. 268)
Is the shift lever in P? (P. 268)
Is the electronic key anywhere detectable inside the vehicle?
(P. 154)
Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
(P. 670)
Is the 12-volt battery discharged? (P. 680)
The engine does not start (vehicles with smart entry &
start system) (except hybrid model)
The hybrid system does not start (hybrid model)

729What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in the “ON” position. (P. 668)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in IGNITION ON mode. (P. 668)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 256)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 264)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 220)
The shift lever cannot be shifted from P even if you
depress the brake pedal (vehicles with a multidrive)
The steering wheel cannot be turned after the engine is
stopped (except hybrid model)
The windows do not open or close by operating the power
window switches

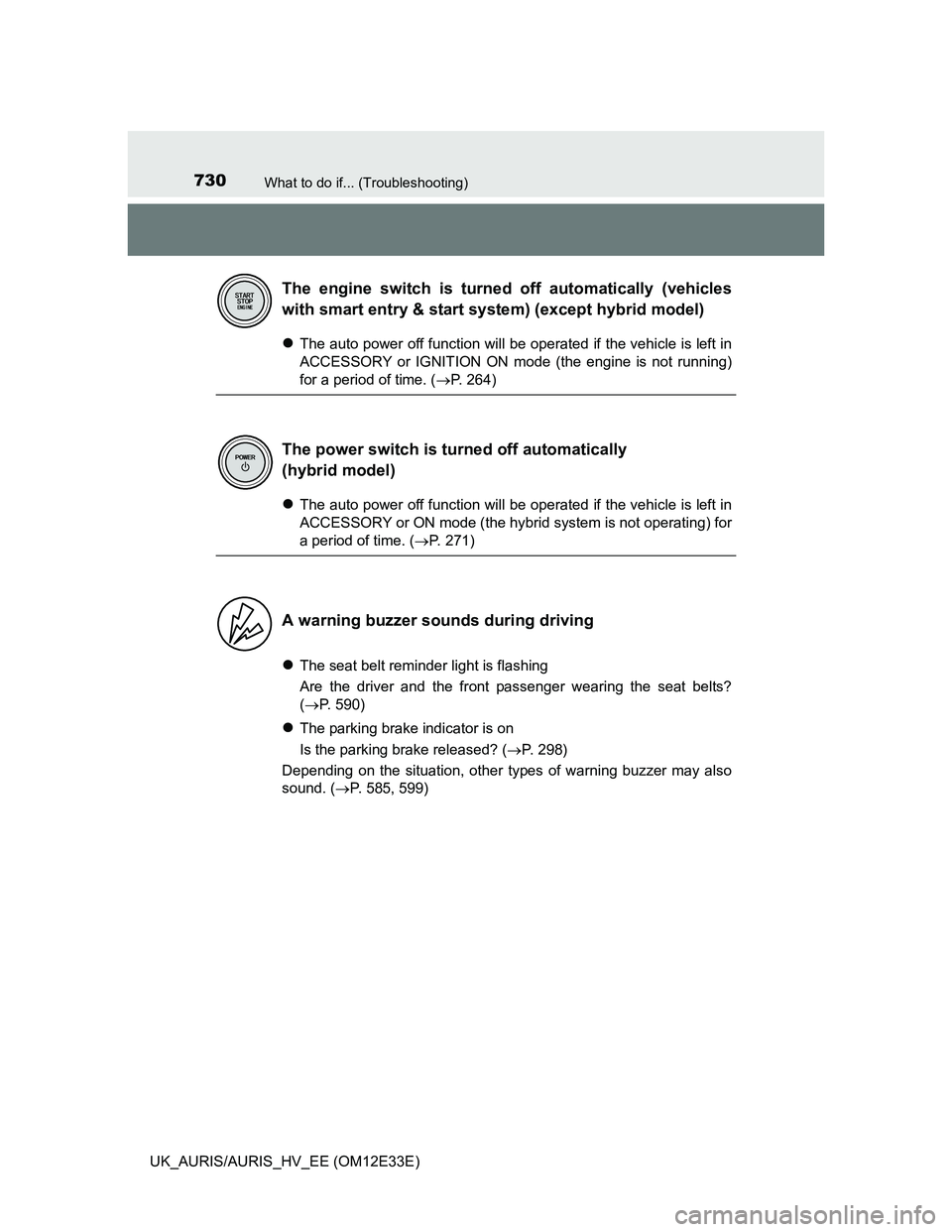

730What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running)
for a period of time. (P. 264)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for
a period of time. (P. 271)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 590)
The parking brake indicator is on
Is the parking brake released? (P. 298)
Depending on the situation, other types of warning buzzer may also
sound. (P. 585, 599)
The engine switch is turned off automatically (vehicles
with smart entry & start system) (except hybrid model)
The power switch is turned off automatically
(hybrid model)
A warning buzzer sounds during driving

731What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)

Did anyone inside the vehicle open a door or anything move inside
the vehicle
* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 103)
*: If the vehicle is equipped with intrusion sensor.
Vehicles without a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to IGNITION ON mode or
start the engine.
Hybrid model:
To stop the alarm, turn the power switch to ON mode or start the
hybrid system.
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 599)
When a warning light turns on, refer to P. 585.
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)

732What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)
When a warning light turns on or a warning message is displayed,
refer to P. 585, 599.
Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the
spare tire. (P. 626)
Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily
with the emergency tire puncture repair kit. (P. 638)
Try the procedure for when the vehicle becomes stuck in mud, dirt,
or snow. (P. 692)
A warning light turns on or a warning message is dis-
played (vehicles with a multi-information display)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

733
UK_AURIS/AURIS_HV_EE (OM12E33E)
Alphabetical index
Alphabetical index
A/C..................................... 379, 388
Air conditioning filter.............. 526
ABS
(Anti-lock Brake System) ...... 356
Function ................................ 356
Warning light ......................... 588
Adaptive Front-lighting
System (AFS) ......................... 303
AFS (Adaptive Front-lighting
System) .................................. 303
Air conditioning filter .............. 526
Air conditioning
system ............................ 379, 388
Air conditioning filter.............. 526
Airbags ....................................... 46
Airbag operating conditions .... 52
Airbag precautions for
your child .............................. 48
Airbag warning light .............. 588
Correct driving posture............ 40
Curtain shield airbag
operating conditions ............. 52
Curtain shield airbag
precautions ........................... 50
General airbag precautions..... 48
Locations of airbags ................ 46
Modification and
disposal of airbags................ 51
Side airbag operating
conditions ............................. 52
Side airbag precautions .......... 48
Side and curtain shield airbags
operating conditions ............. 52
Side and curtain shield airbags
precautions ........................... 48
SRS airbags ............................ 46
Alarm......................................... 103
Alarm..................................... 103
Warning buzzer ............. 585, 599
Anchor brackets ........................ 68Antennas .................................. 153
Anti-lock Brake
System (ABS) ........................ 356
Function ................................ 356
Warning light ......................... 588
Armrest ..................................... 468
Ashtrays ................................... 462
Assist grips .............................. 470
Audio system ........................... 400
AUX port ............................... 437
CD player .............................. 408
iPod....................................... 419
MP3/WMA disc ..................... 413
Optimal use........................... 435
Portable music player ........... 437
Radio .................................... 404
Steering wheel audio
switch ................................. 438
USB memory ........................ 428
Automatic headlight leveling
system .................................... 305
Automatic High Beam ............. 306
Automatic light control
system .................................... 300
Multidrive.................................. 276
If the shift lever cannot be
shifted from P ..................... 668
M mode ................................. 279
Paddle shift switches ............ 278
AUX port ................................... 437
Auxiliary boxes ........................ 450
A

734Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Back door ................................ 204
Back-up lights
Replacing light bulb............... 555
Wattage................................. 716
Battery .............................. 508, 514
Checking ....................... 508, 514
If the 12-volt battery is
discharged .......................... 680
If the vehicle has discharged
battery................................. 674
Preparing and checking before
winter .................................. 368
Warning light ......................... 586
Bluetooth
®
Audio system*
Hands-free system*
(for cellular phone)
Boost ventilator system .......... 374
Bottle holders........................... 447
Brake
Fluid ...................................... 713
Parking brake ........................ 298
Warning light ................. 585, 589
Brake assist.............................. 356
Break-in tips ............................ 230
Brightness control
Meter light control ......... 125, 131Care................................... 474, 478
Aluminum wheels.................. 475
Exterior ................................. 474
Interior................................... 478
Seat belts .............................. 479
Cargo hooks............................. 451
CD player .................................. 408
Chains....................................... 370
Child restraint system ............... 59
Baby seats, definition.............. 59
Baby seats, installation ........... 69
Child seats, definition.............. 59
Child seats, installation ........... 69
Installing CRS with ISOFIX
rigid anchors ......................... 73
Installing CRS with
seat belts .............................. 69
Installing CRS with top strap... 74
Junior seats, definition ............ 59
Junior seats, installation ......... 71
Child safety ................................ 58
Airbag precautions .................. 48
Battery precautions ....... 510, 679
Child restraint system ............. 59
How your child should wear
the seat belt .......................... 43
Installing child restraints ......... 68
Panoramic roof shade
precautions ......................... 472
Power window lock switch .... 220
Power window precautions ... 223
Rear door child-protectors .... 202
Removed electronic key
battery precautions ............. 531
Seat belt precautions .............. 45
Seat heater precautions........ 465
BC
