2012 TOYOTA AURIS Owners Manual (in English)

2794-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving
To enter 7-speed sport sequential shiftmatic mode, shift the shift lever
to M. Gear steps can then be selected by operating the shift lever or
paddle shift switches (vehicles with a paddle shift switch), allowing
you to drive in the gear step of your choosing.
Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear step, from M1 to
M7, will be displayed in the meter.
*1: Vehicles with a multi-information
display
*2: Vehicles without a multi-informa-
tion display
However, even when in the M position, the gear steps will be auto-
matically changed if the engine speed is too high, or too low.
Gear step functions
You can choose from 7 levels of engine braking force.
A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
If the 7-speed sport sequential shiftmatic mode indicator does not come
on even after shifting the shift lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
When the vehicle comes to a stop with the shift lever in the M position
The transmission will automatically downshift to M1 once the vehicle is
stopped.
After a stop, the vehicle will start off in M1.
When the vehicle is stopped, the transmission is set at M1.
Changing gear steps in the M position
*1*2
1
2

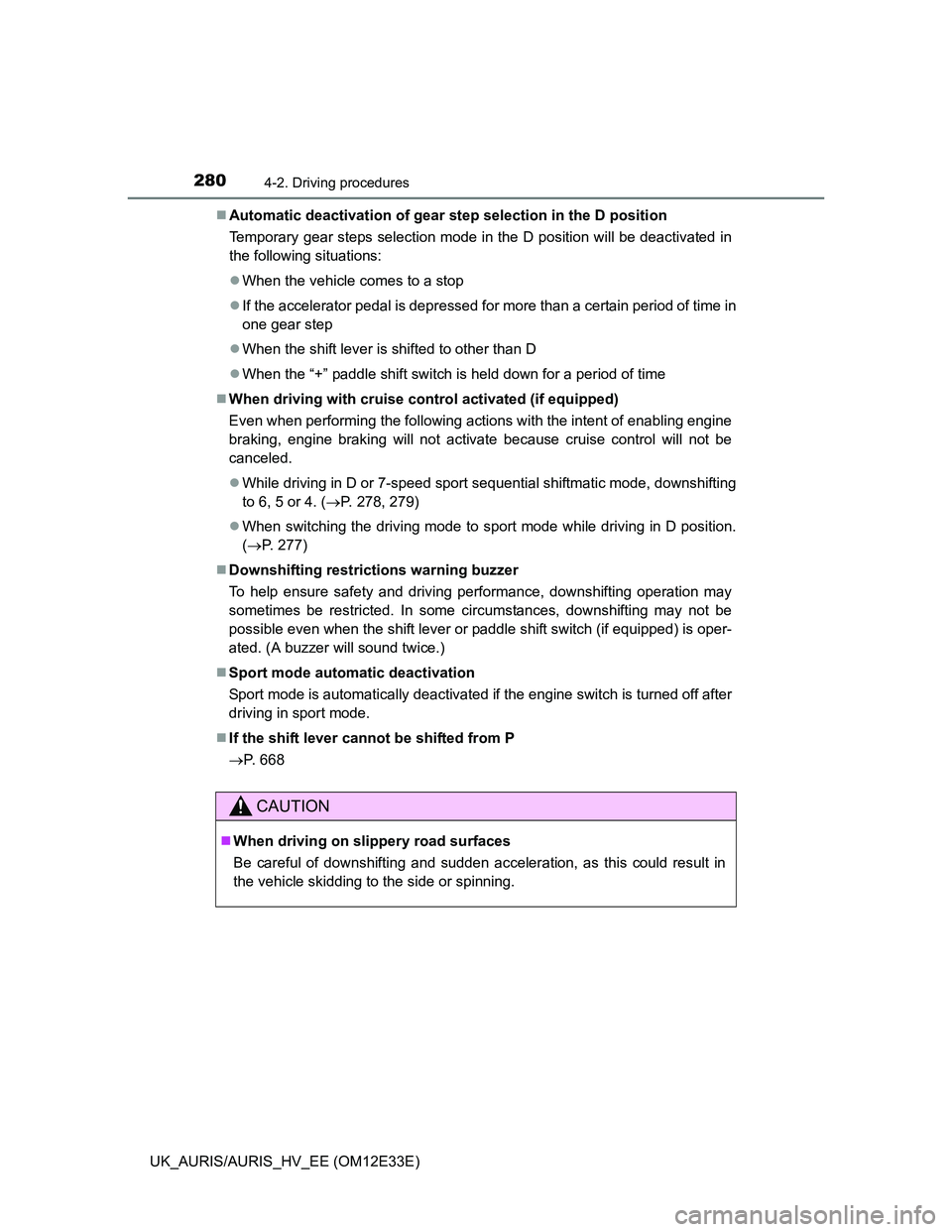

2804-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)Automatic deactivation of gear step selection in the D position
Temporary gear steps selection mode in the D position will be deactivated in
the following situations:
When the vehicle comes to a stop
If the accelerator pedal is depressed for more than a certain period of time in
one gear step
When the shift lever is shifted to other than D
When the “+” paddle shift switch is held down for a period of time
When driving with cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
While driving in D or 7-speed sport sequential shiftmatic mode, downshifting
to 6, 5 or 4. (P. 278, 279)
When switching the driving mode to sport mode while driving in D position.
(P. 277)
Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch (if equipped) is oper-
ated. (A buzzer will sound twice.)
Sport mode automatic deactivation
Sport mode is automatically deactivated if the engine switch is turned off after
driving in sport mode.
If the shift lever cannot be shifted from P
P. 668
CAUTION
When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in
the vehicle skidding to the side or spinning.

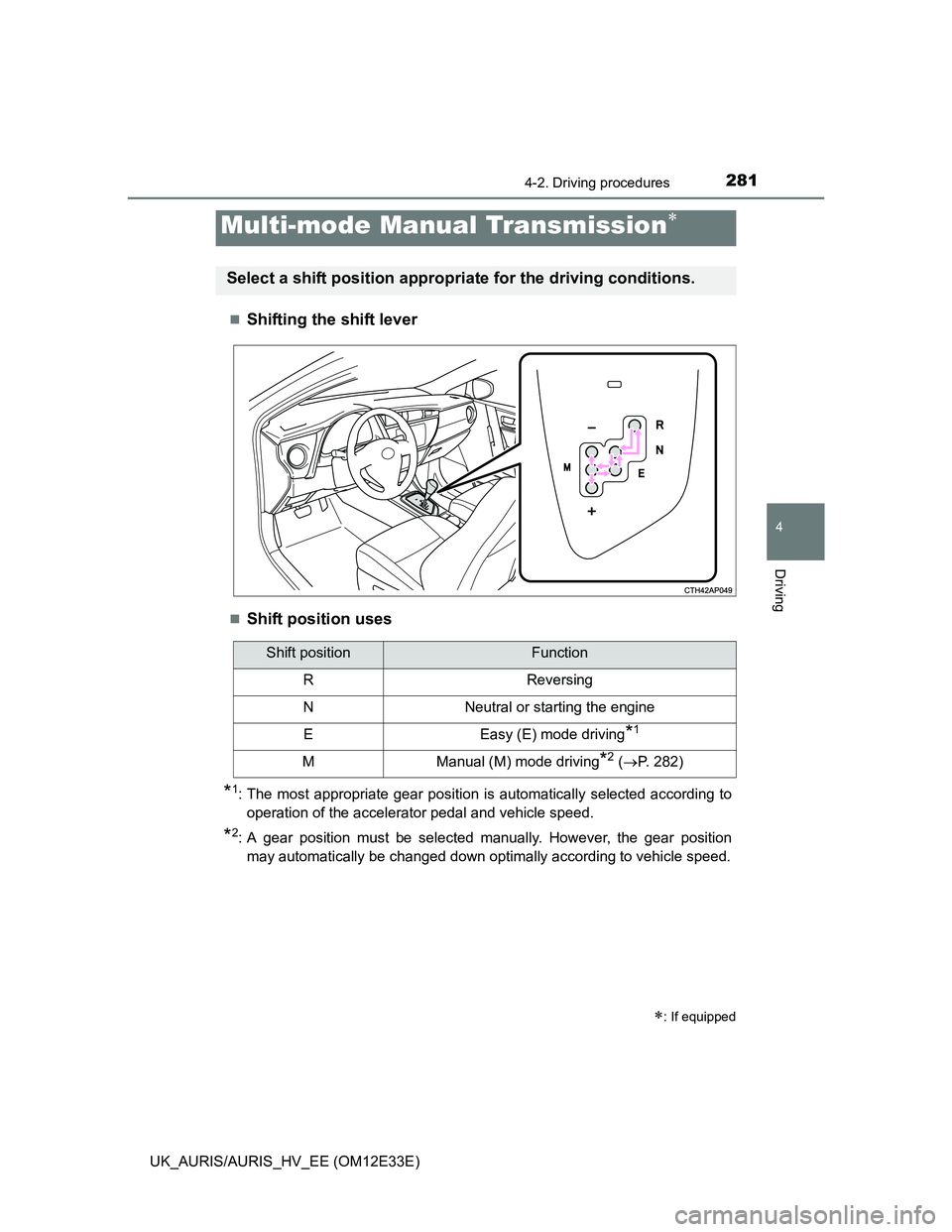

2814-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving
Shifting the shift lever
Shift position uses
*1: The most appropriate gear position is automatically selected according to
operation of the accelerator pedal and vehicle speed.
*2: A gear position must be selected manually. However, the gear position
may automatically be changed down optimally according to vehicle speed.
Multi-mode Manual Transmission
: If equipped
Select a shift position appropriate for the driving conditions.
Shift positionFunction
RReversing
NNeutral or starting the engine
EEasy (E) mode driving*1
MManual (M) mode driving*2 (P. 282)

2824-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
Selecting the Easy sports (Es) mode (when the shift lever in E
only)
The Es mode can be selected for superior driving performance and
to achieve a feeling of faster acceleration than in E mode.
Press the “Es” switch.
Press the switch once more to
cancel the Es mode.
To improve fuel economy, can-
cel the Es mode for ordinary
driving.
Shift the shift lever to M and operate the shift lever or paddle shift
switch.
Upshifting
Downshifting
Shifting operation may be
restricted depending on the vehicle
speed.
*1: Vehicles with a multi-information
display
*2: Vehicles without a multi-informa-
tion display
Changing gear positions in M mode
*1*2
1
2

2834-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving
When the shift position is in E or Es, the paddle shift switches can be
used to select a gear position temporarily. When a gear position is
selected, the gear position will be displayed.
Upshifting
Downshifting
*1: Vehicles with a multi-information
display
*2: Vehicles without a multi-informa-
tion display
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
Gear Shift Indicator operates only
M mode.
*1: Vehicles with a multi-information
display
*2: Vehicles without a multi-informa-
tion display
Changing gear positions in E or Es mode
*1*2
1
2
Gear Shift Indicator
*1*2
1
2

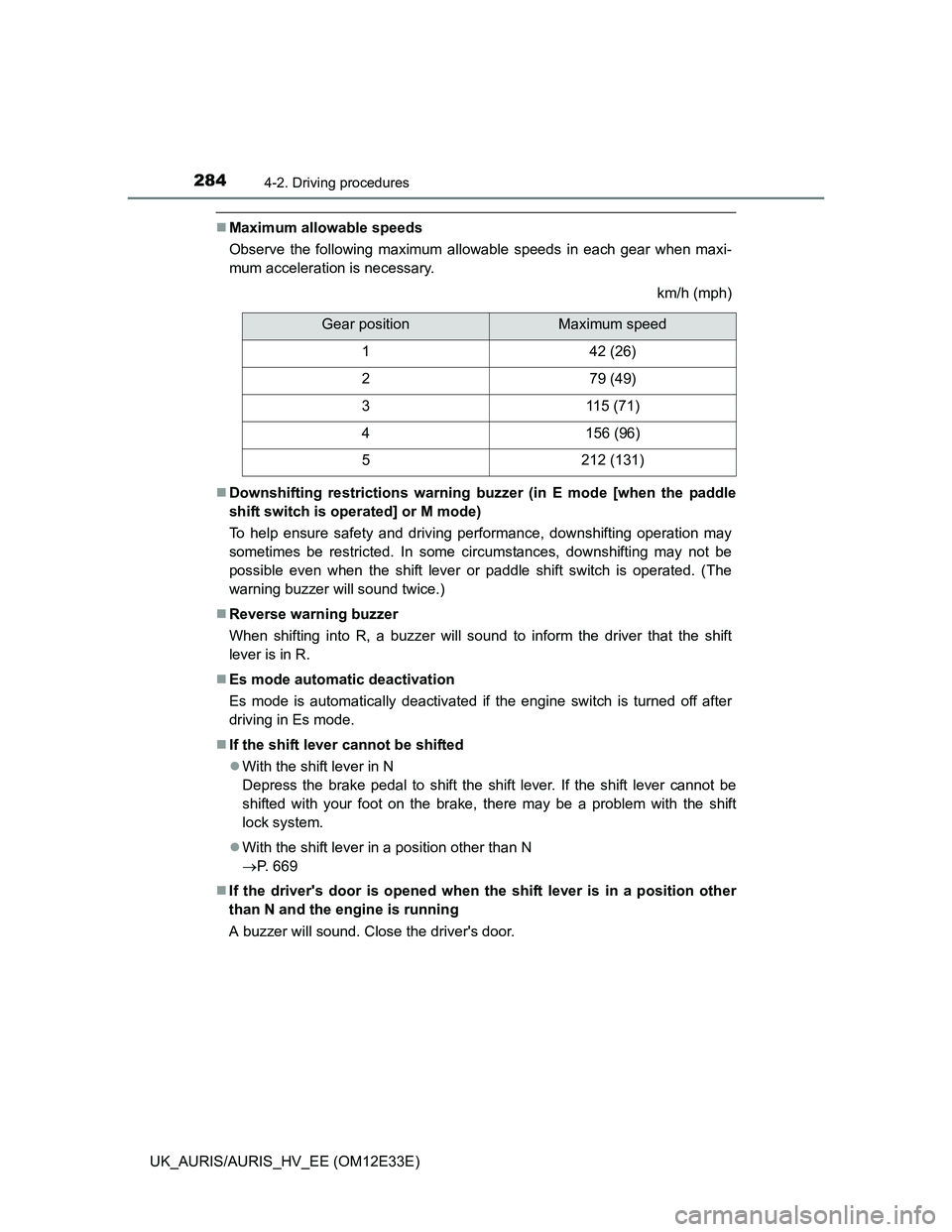

2844-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
Downshifting restrictions warning buzzer (in E mode [when the paddle
shift switch is operated] or M mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch is operated. (The
warning buzzer will sound twice.)
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
Es mode automatic deactivation
Es mode is automatically deactivated if the engine switch is turned off after
driving in Es mode.
If the shift lever cannot be shifted
With the shift lever in N
Depress the brake pedal to shift the shift lever. If the shift lever cannot be
shifted with your foot on the brake, there may be a problem with the shift
lock system.
With the shift lever in a position other than N
P. 669
If the driver's door is opened when the shift lever is in a position other
than N and the engine is running
A buzzer will sound. Close the driver's door.
Gear positionMaximum speed
142 (26)
279 (49)
3115 (71)
4156 (96)
5212 (131)

2854-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
4
Driving
If the parking brake is set when the shift lever is in a position other than
N with engine running
When the driver’s door is opened
A buzzer will sound and the gear position will automatically change to N in
10 seconds.
When the driver’s door is closed
A buzzer will sound and the gear position will automatically change to N in
90 seconds.
If the M indicator does not come on even after shifting the shift lever to M
This may indicate a malfunction in the multi-mode manual transmission sys-
tem. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional immediately.
(In this situation, the vehicle will operate as if the shift lever is in E.)
If the N indicator is flashing
When shifting the shift lever:
Shift the shift lever to N. Wait a few seconds and shift the shift lever to the
desired position.
When the engine is turned off:
Vehicles without a smart entry & start system:
Turn the engine switch to the “ON” position and shift the shift lever to N, and
then to the desired position.
Vehicles with a smart entry & start system:
Turn the engine switch to IGNITION ON mode and shift the shift lever to N,
and then to the desired position.
If the indicator still blinks after the above operations, shift the shift lever to N
and start the engine. Then, shift the shift lever to the desired position.
If the N indicator is flashing and the warning buzzer is beeping
Shift the shift lever to N, and then to E, M or R.
CAUTION
Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.

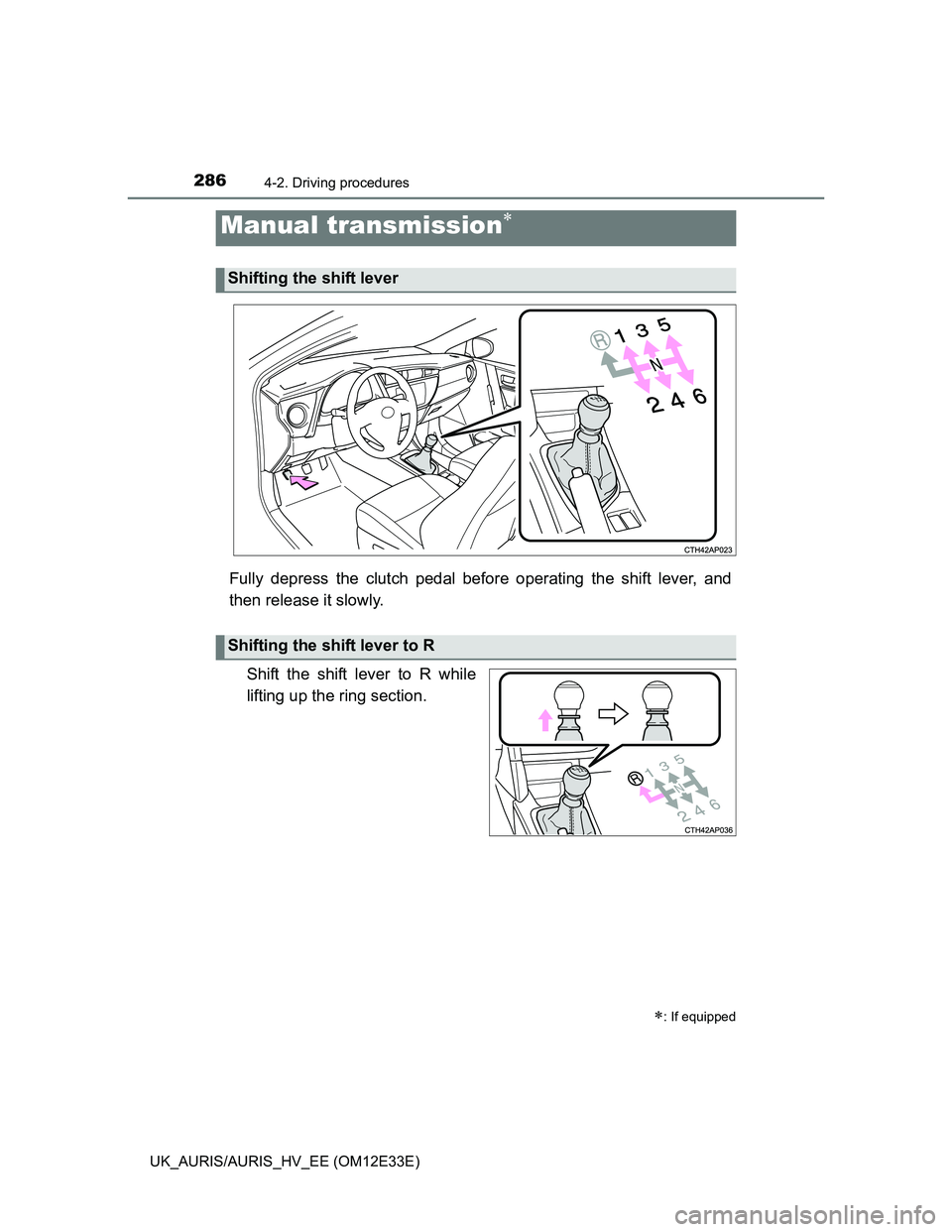

2864-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12E33E)
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shift the shift lever to R while
lifting up the ring section.
Manual transmission
: If equipped
Shifting the shift lever
Shifting the shift lever to R
