2012 TOYOTA AURIS Owners Manual (in English)

5997-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. The following warning indicates the possibility of dam-
age to the vehicle that may lead to an accident. Immediately stop the
vehicle in a safe place and contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If a warning message is displayed (vehicles
with a multi-infor mation display)
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
Stop the vehicle immediately.
Warning messageDetails
Indicates a malfunction in the hybrid system.
(hybrid model)
A buzzer also sounds.

6007-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. Failure to investigate the cause of the following warn-
ings may lead to the system operating abnormally and possibly cause
an accident. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil
pressure is too low.
Indicates a malfunction in the vehicle’s charging
system.
• Indicates that the engine is almost overheat-
ing. (hybrid model) (P. 687)
• The power control unit may be overheating.
(hybrid model) (P. 687)
Have the vehicle inspected immediately.
Warning messageDetails
Warning messageDetails
Indicates a malfunction in the cruise control sys-
tem (if equipped)
• Press the “ON-OFF” button once to deacti-
vate the system, and then press the button
again to reactivate the system.
• A buzzer also sounds.
Indicates a malfunction in the Automatic High
Beam system (if equipped)
A buzzer also sounds.

6017-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Indicates a malfunction in the smart entry & start
system (if equipped)
A buzzer also sounds.
Indicates that the speed limiter system is mal-
functioning. (if equipped)
A buzzer also sounds.
Indicates a malfunction in the P position control
system. (hybrid model)
• In this situation, there is a possibility that the
parking lock mechanism will not work.
When parking, park the vehicle on a flat sur-
face and apply the parking brake securely.
Also, it may not be possible to turn the power
switch off. If this happens, applying the park-
ing brake will enable the switch to be turned
off.
• A buzzer also sounds.
Indicates a malfunction in the Toyota parking
assist-sensor (if equipped)
• The malfunctioning assist-sensor is flashing.
• A buzzer also sounds.
Warning messageDetails
(Flashes)

6027-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. After taking the specified steps to correct the sus-
pected problem, check that the warning message and light goes off.
Follow the correction procedures.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the side doors
is not fully closed
The system also indi-
cates which doors
are not fully closed.
If the vehicle reaches
a speed of 5 km/h
(3 mph), a buzzer
sounds to indicate
that the door(s) are
not yet fully closed.
Make sure that all the
side doors are closed.
Indicates that the back
door is not fully closed
If the vehicle reaches
a speed of 5 km/h
(3 mph), a buzzer
sounds to indicate
that the back door is
not yet fully closed.
Close the back door.

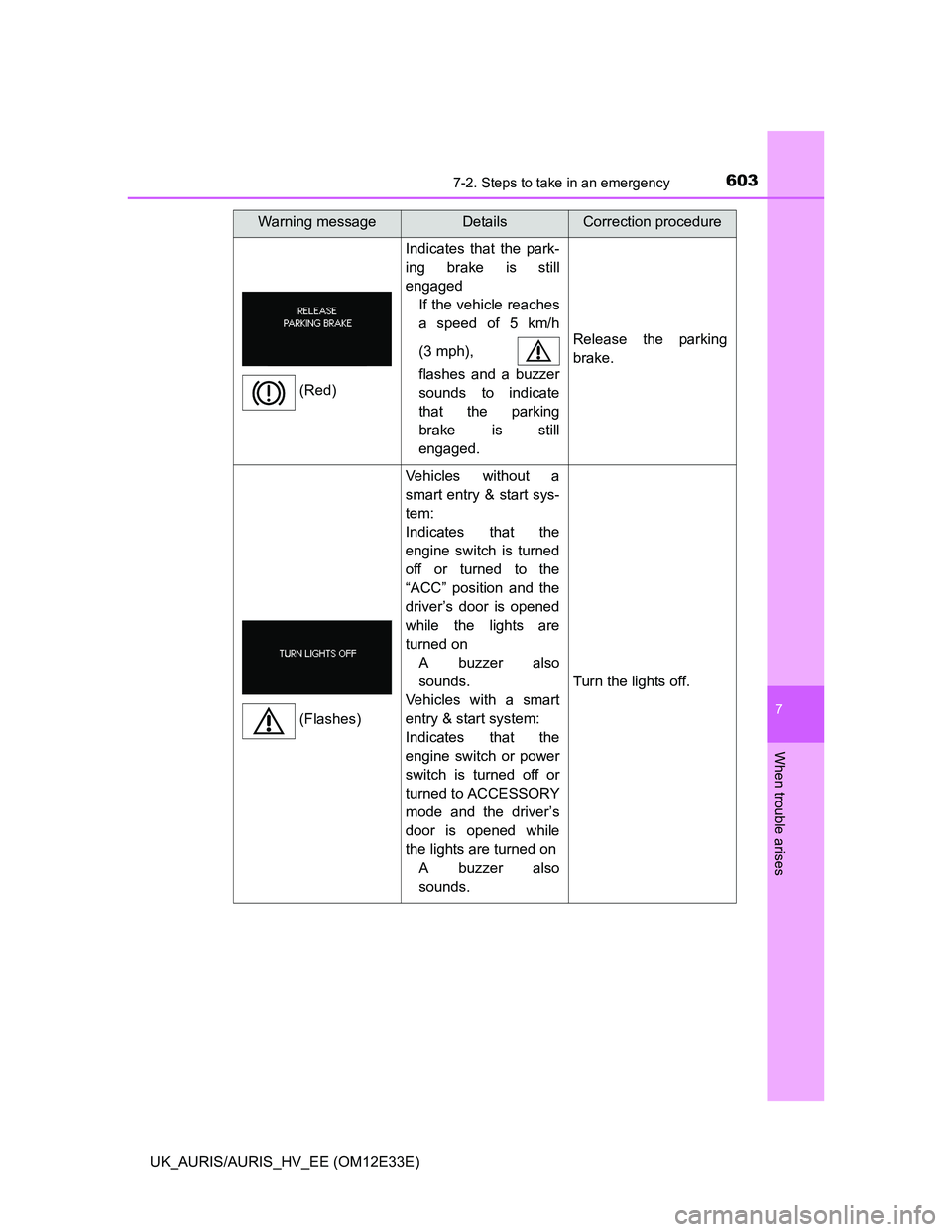

6037-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Indicates that the park-
ing brake is still
engaged
If the vehicle reaches
a speed of 5 km/h
(3 mph),
flashes and a buzzer
sounds to indicate
that the parking
brake is still
engaged.
Release the parking
brake.
Vehicles without a
smart entry & start sys-
tem:
Indicates that the
engine switch is turned
off or turned to the
“ACC” position and the
driver’s door is opened
while the lights are
turned on
A buzzer also
sounds.
Vehicles with a smart
entry & start system:
Indicates that the
engine switch or power
switch is turned off or
turned to ACCESSORY
mode and the driver’s
door is opened while
the lights are turned on
A buzzer also
sounds.
Turn the lights off.
Warning messageDetailsCorrection procedure
(Red)
(Flashes)

6047-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Indicates that the
driver’s door was
opened with the shift
position in any position
other than P
A buzzer also
sounds.
Shift the shift position
to P.
Indicates that engine oil
level is low.
A buzzer also
sounds.Check the level of
engine oil, and add if
necessary.
Indicates that the
engine oil is scheduled
to be changed.
Comes on approxi-
mately 14500 km
(9000 miles) after the
engine oil is
changed. (The indi-
cator will not work
properly unless the
oil maintenance data
has been reset.)
Check the engine oil,
and change if neces-
sary. After changing the
engine oil, the oil
change system should
be reset. (P. 503)
Warning messageDetailsCorrection procedure
(Flashes)
(Vehicles with a Multid-
rive)
(Diesel engine)
(Diesel engine)

6057-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Indicates that the
engine oil is changed.
• Flashes while you
are driving
• Vehicles without a
smart entry & start
system: Flashes for
about 12 seconds
when the engine
switch is turned to
the “ON” position.
• Vehicles with a
smart entry & start
system: Flashes for
about 12 seconds
when the engine
switch is turned to
IGNITION ON
mode.
Check the engine oil,
and change if neces-
sary. After changing the
engine oil, the oil
change system should
be reset. (P. 503)
Warning messageDetailsCorrection procedure
(Diesel engine)

6067-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Indicates that the
engine oil should be
changed.
1ND-TV engine
Comes on approxi-
mately 15000 km
(9300 miles) after the
engine oil is
changed. (The indi-
cator will not work
properly unless the
oil maintenance data
has been reset.)
1AD-FTV engine
Comes on approxi-
mately 30000 km
(18000 miles) after
the engine oil is
changed. (The indi-
cator will not work
properly unless the
oil maintenance data
has been reset.)
Check and change the
engine oil and oil filter
by any authorized
Toyota dealer or
repairer, or another
duly qualified and
equipped professional.
After changing the
engine oil, the oil
change system should
be reset. (P. 503)
Warning messageDetailsCorrection procedure
(Diesel engine)
