2012 TOYOTA AURIS Owners Manual (in English)

1913-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3

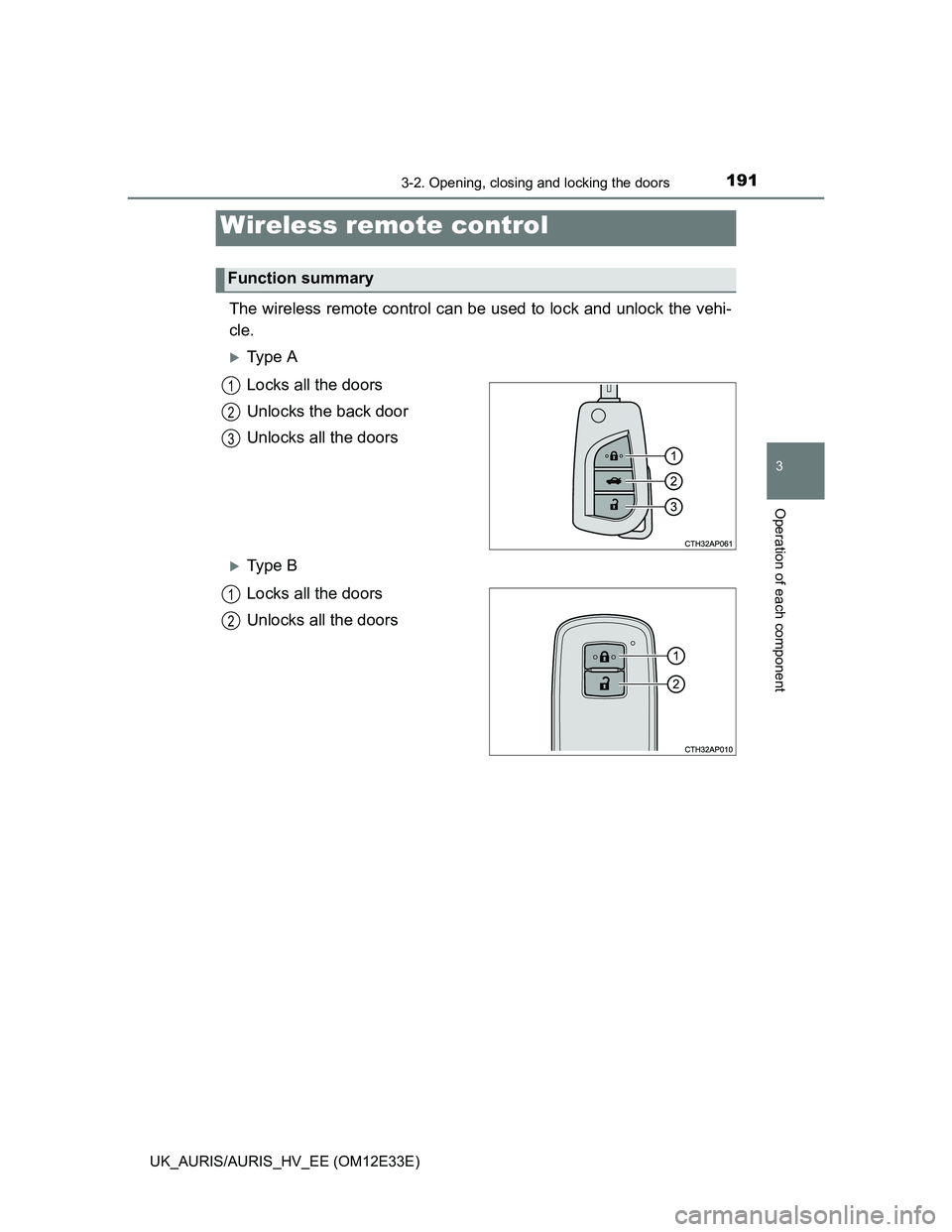

Operation of each component
The wireless remote control can be used to lock and unlock the vehi-
cle.
Ty p e A
Locks all the doors
Unlocks the back door
Unlocks all the doors
Ty p e B
Locks all the doors
Unlocks all the doors
Wireless remote control
Function summary
1
2
3
1
2

1923-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
Security feature
Vehicles without a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Vehicles with a smart entry & start system
P. 151
Alarm (if equipped)
Using the wireless remote control to lock the doors will set the alarm system.
(P. 103)
Conditions affecting operation
Type A
The wireless remote control function may not operate normally in the follow-
ing situations:
When the wireless key battery is depleted
Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
When carrying a portable radio, cellular phone or other wireless communi-
cation devices
When multiple wireless keys are in the vicinity
When the wireless key is in contact with, or is covered by a metallic object
When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such as a
personal computer
If window tint with a metallic content or metallic objects are attached to the
rear window
Type B
P. 158, 179

1933-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
If the wireless remote control does not operate properly (type B)
Locking and unlocking the doors: Use the mechanical key.
(P. 670)
Key battery depletion
Type A
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 529)
Type B
P. 162, 180
When the key battery is fully depleted
P. 529
Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 719)

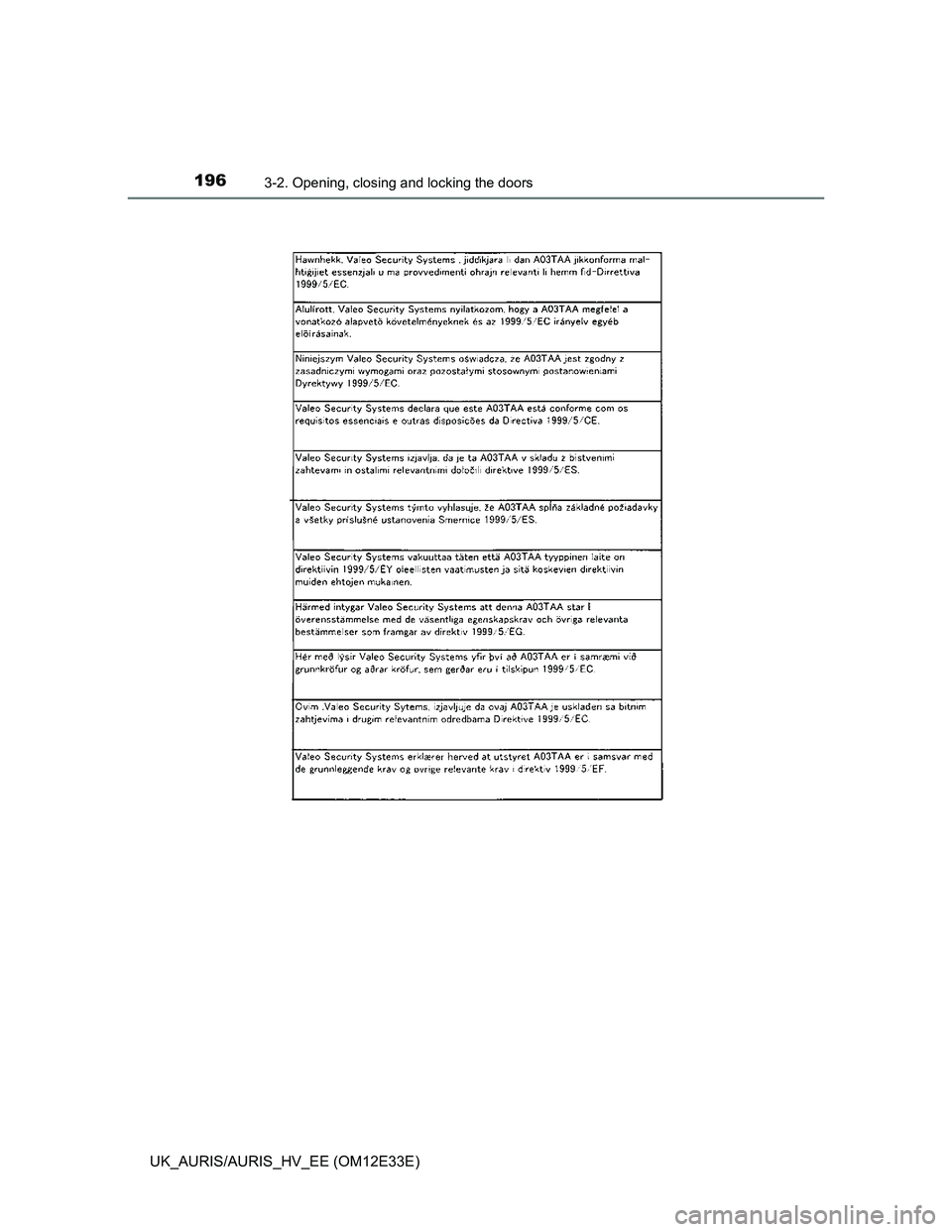

1943-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)Certification for the wireless remote control (vehicles without a smart
entry & start system or push button start)

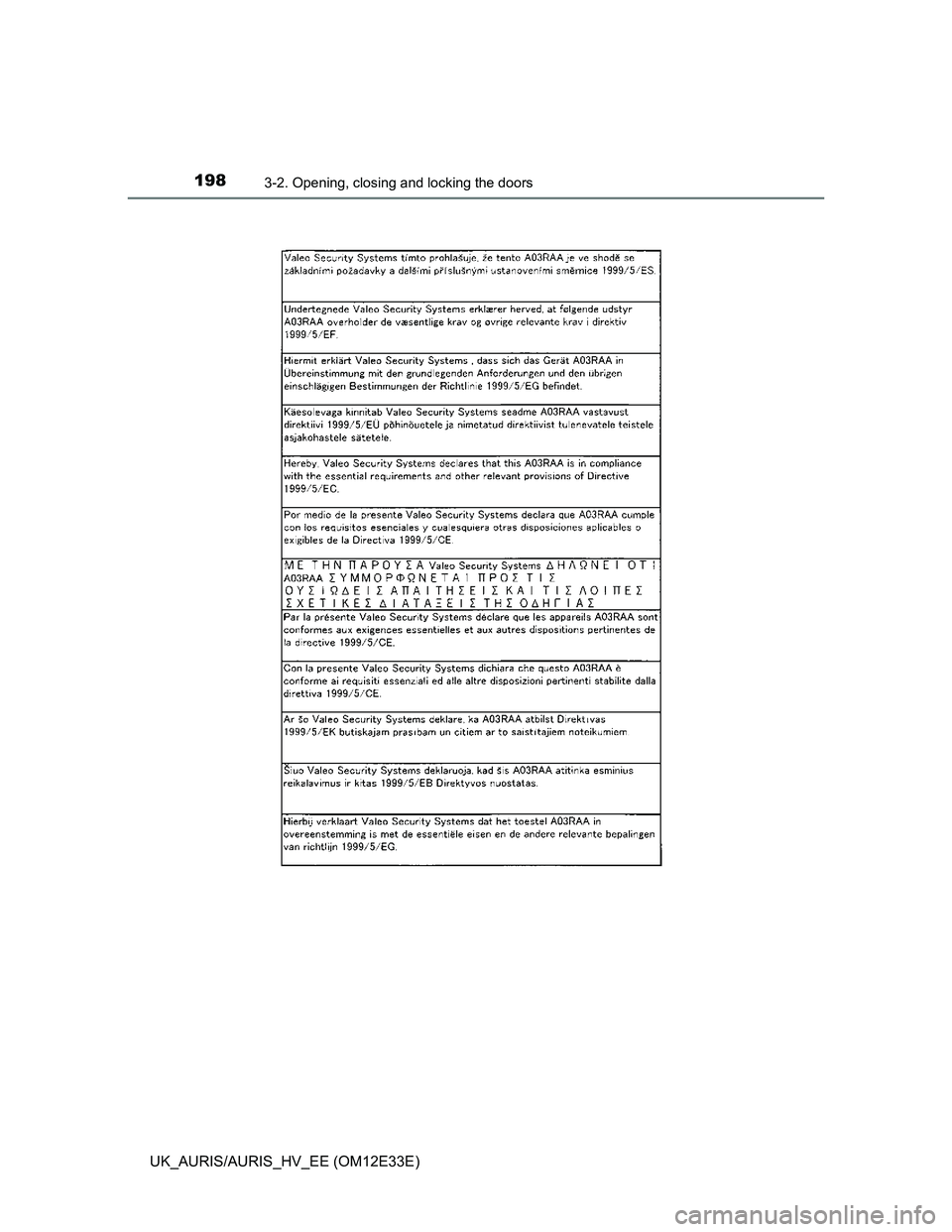

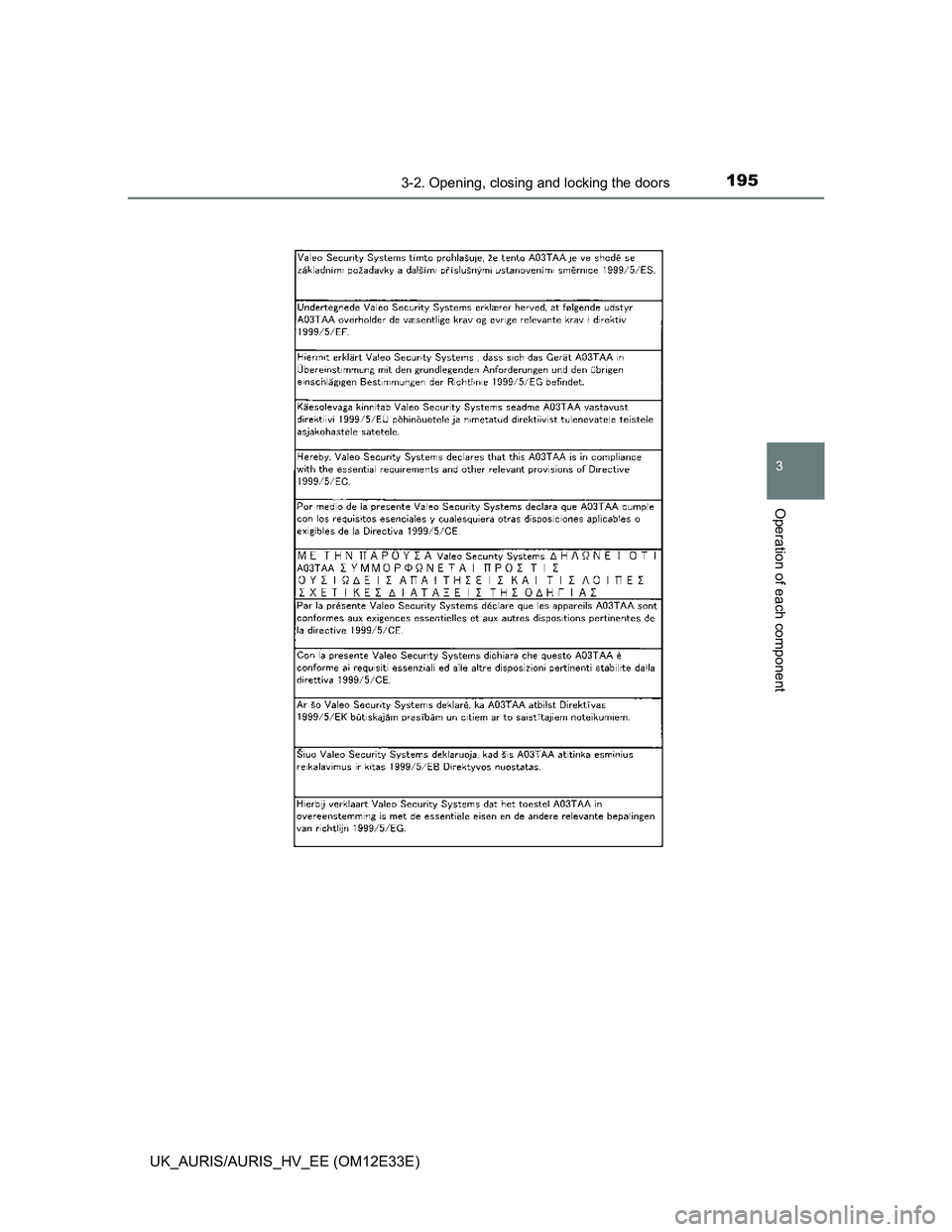

1953-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component

1963-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)

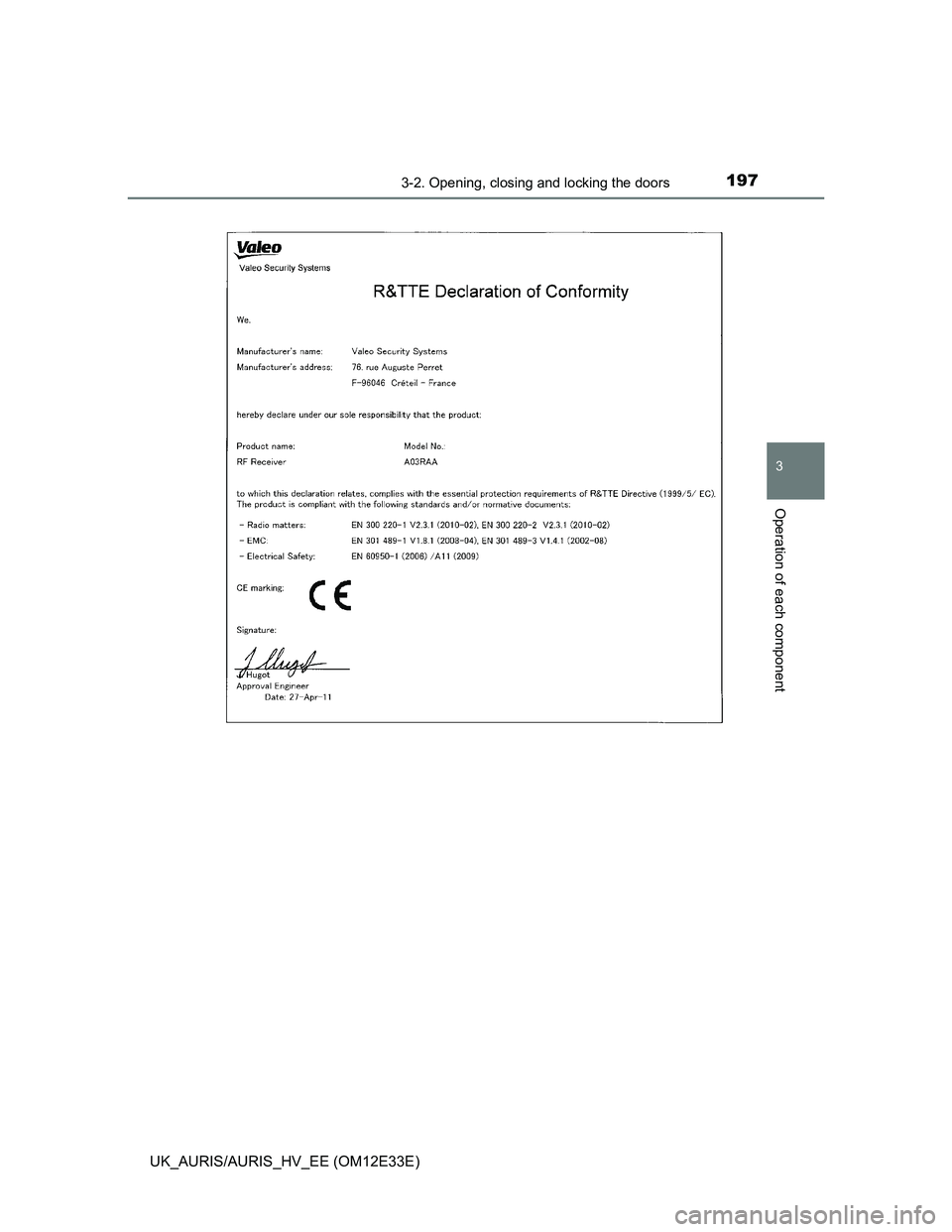

1973-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component

1983-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
