2012 TOYOTA AURIS Owners Manual (in English)

7
1
8 7
6
5
4
3
2
UK_AURIS/AURIS_HV_EE (OM12E33E)

8

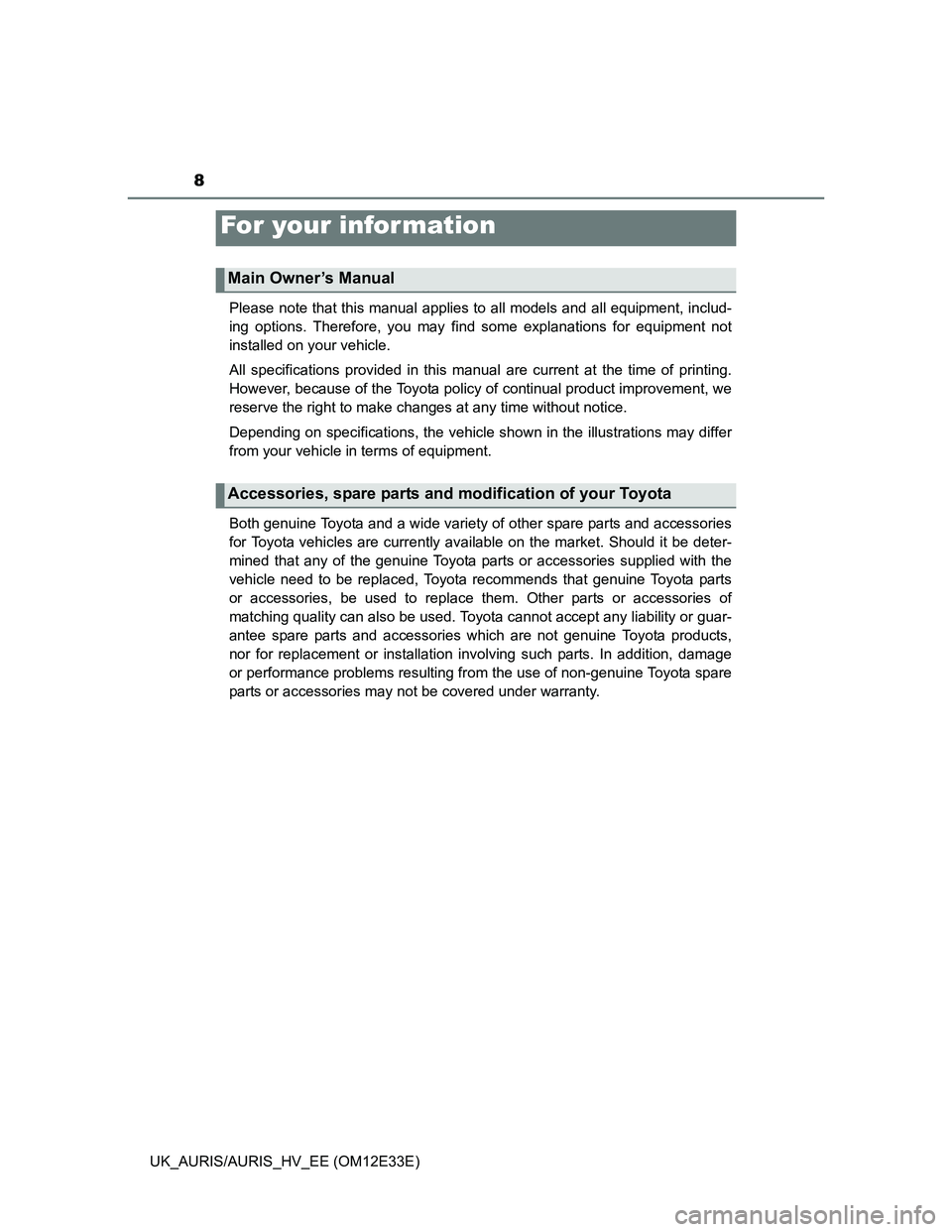

UK_AURIS/AURIS_HV_EE (OM12E33E)Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be deter-
mined that any of the genuine Toyota parts or accessories supplied with the
vehicle need to be replaced, Toyota recommends that genuine Toyota parts
or accessories, be used to replace them. Other parts or accessories of
matching quality can also be used. Toyota cannot accept any liability or guar-
antee spare parts and accessories which are not genuine Toyota products,
nor for replacement or installation involving such parts. In addition, damage
or performance problems resulting from the use of non-genuine Toyota spare
parts or accessories may not be covered under warranty.
For your information
Main Owner’s Manual
Accessories, spare parts and modification of your Toyota

9
UK_AURIS/AURIS_HV_EE (OM12E33E)The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Cruise control system (if equipped)
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Hybrid model: High voltage parts and cables on the hybrid vehicles emit
approximately the same amount of electromagnetic waves as the conven-
tional gasoline powered vehicles or home electronic appliances despite of
their electromagnetic shielding.
Hybrid model: Unwanted noise may occur in the reception of the RF-transmit-
ter.
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional,
before you scrap your vehicle.
Installation of an RF-transmitter system
Scrapping of your Toyota
Your vehicle contains batteries and/or accumulators. Do not discard them
into the environment but cooperate with separate collection (Directive 2006/
66/EC).

10
UK_AURIS/AURIS_HV_EE (OM12E33E)
CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

11
UK_AURIS/AURIS_HV_EE (OM12E33E)

12
UK_AURIS/AURIS_HV_EE (OM12E33E)

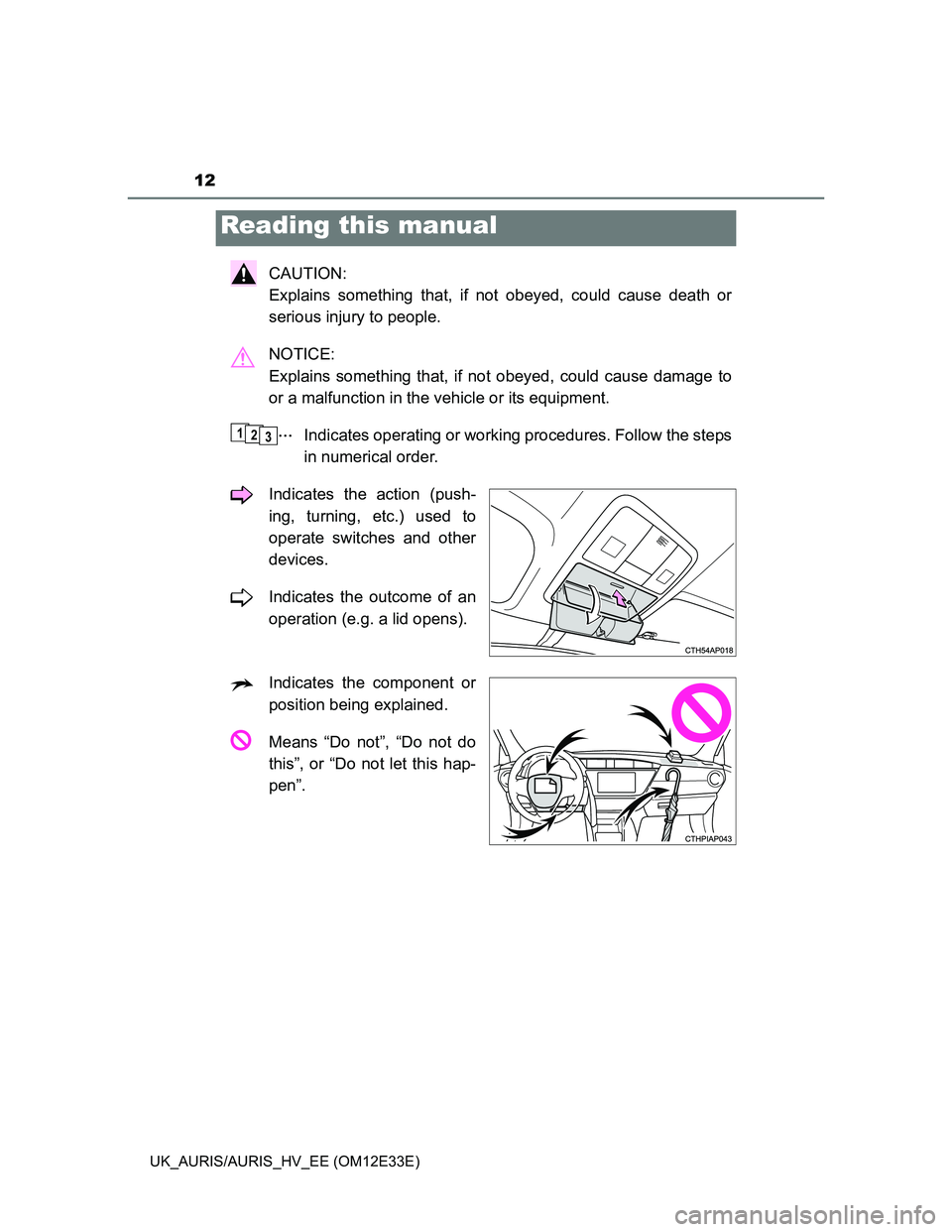

CAUTION:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
Reading this manual
123

13
UK_AURIS/AURIS_HV_EE (OM12E33E)

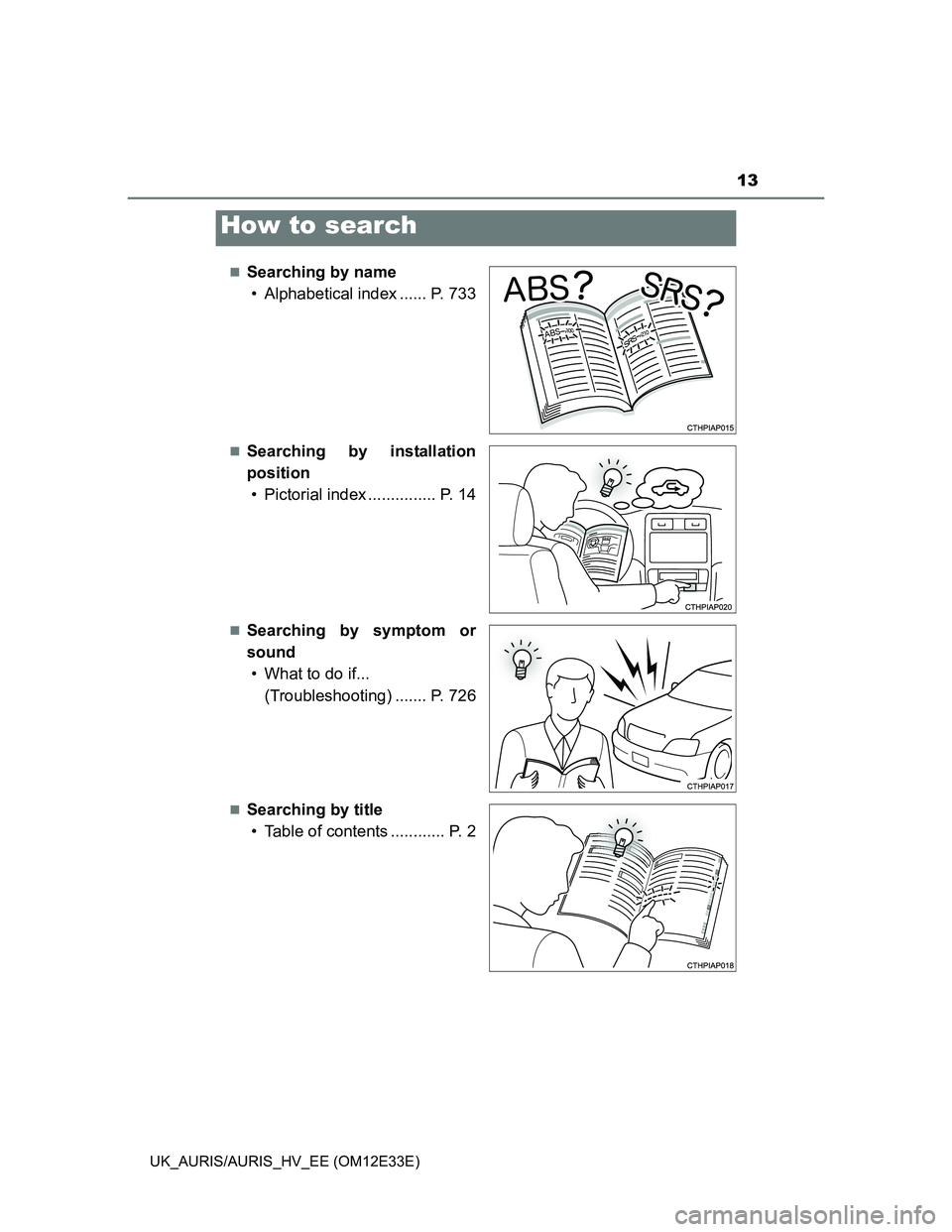

Searching by name
• Alphabetical index ...... P. 733
Searching by installation
position
• Pictorial index ............... P. 14
Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 726
Searching by title
• Table of contents ............ P. 2
How to search

14
UK_AURIS/AURIS_HV_EE (OM12E33E)
Pictorial index
Pictorial index
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152, 191
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . P. 220
Locking/unlocking by using the mechanical key
*1 . . . . . . . . . P. 670
Warning lights/warning messages
*2. . . . . . . . . . . . . . . . P. 590, 602
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152, 191
Warning lights/warning messages
*2. . . . . . . . . . . . . . . . P. 590, 602
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
1
2
3
