2012 TOYOTA AURIS Owners Manual (in English)

1753-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
CAUTION
Caution regarding interference with electronic devices
People with implanted pacemakers or cardiac defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (P. 153)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of emitting the radio
waves. Then, consult your doctor to see if you should disable the entry
function.
Users of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.

1763-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
Push button start
: If equipped
Starting and stopping the hybrid system can be performed sim-
ply by carrying the electronic key on your person, for example in
your pocket. P. 268)
(The driver should always carry the electronic key.)

1773-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component

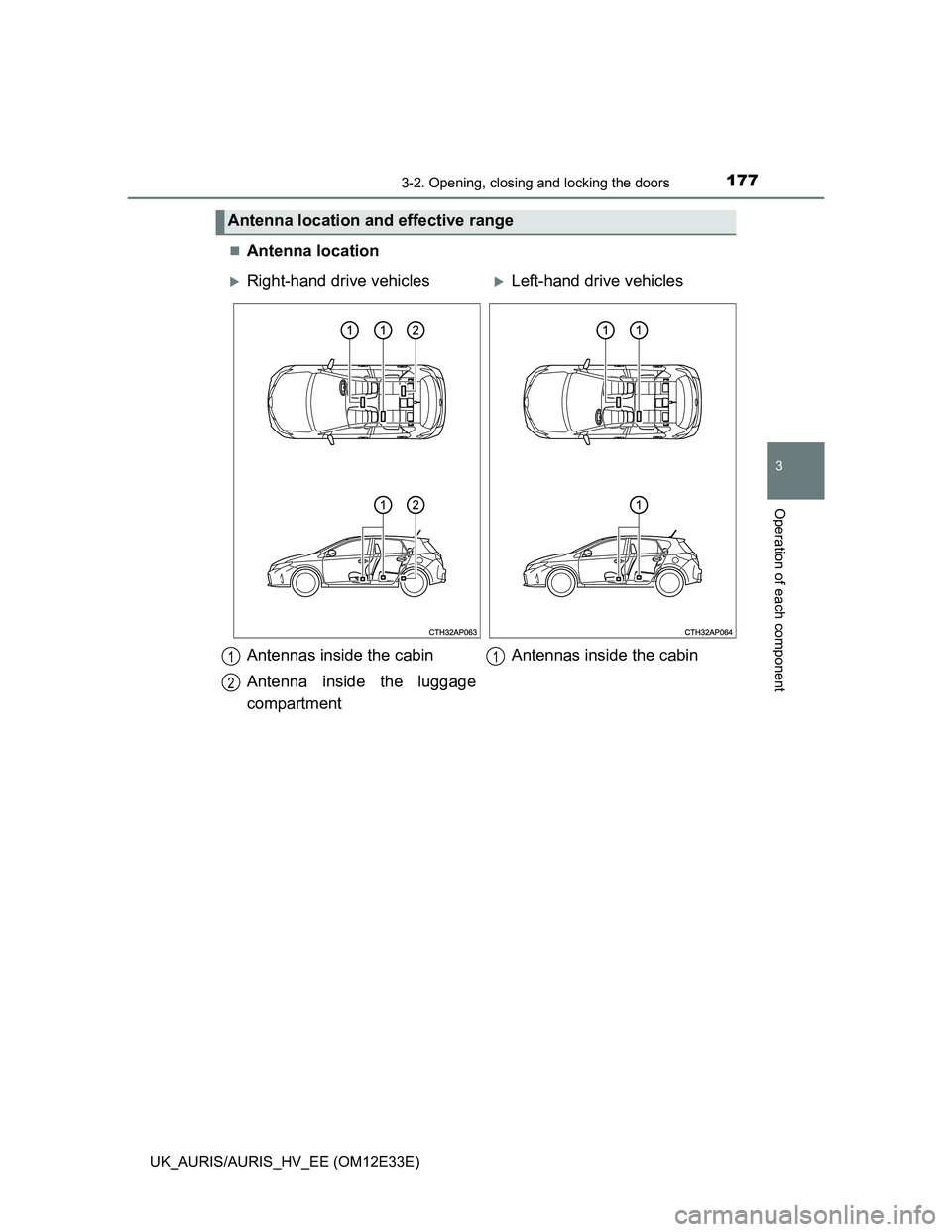

Antenna location
Antenna location and effective range
Right-hand drive vehiclesLeft-hand drive vehicles
Antennas inside the cabin
Antenna inside the luggage
compartmentAntennas inside the cabin
1
2
1

1783-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)

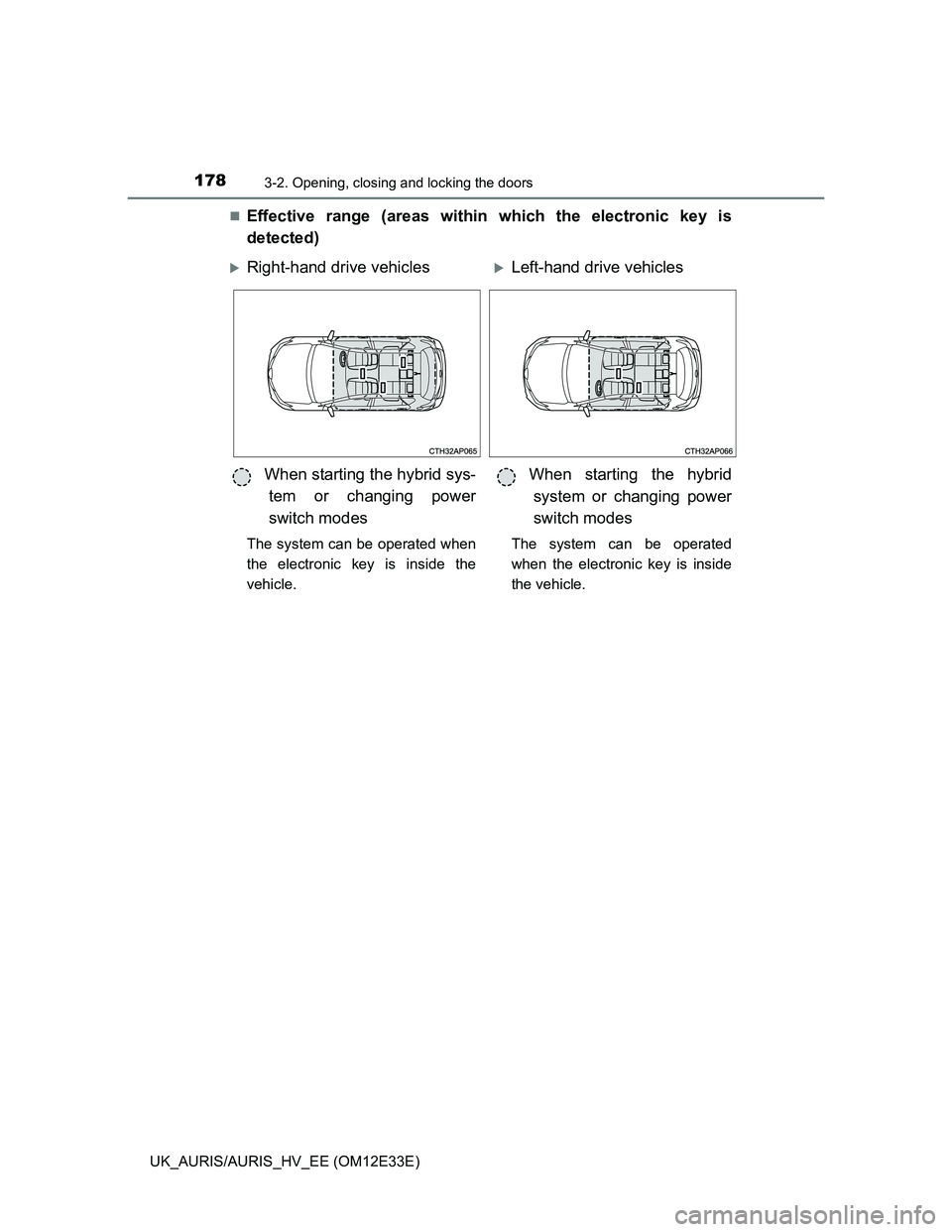

Effective range (areas within which the electronic key is
detected)
Right-hand drive vehiclesLeft-hand drive vehicles
When starting the hybrid sys-
tem or changing power
switch modes
The system can be operated when
the electronic key is inside the
vehicle.
When starting the hybrid
system or changing power
switch modes
The system can be operated
when the electronic key is inside
the vehicle.

1793-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
Electronic Key battery-Saving Function
P. 157
Conditions affecting operation
The push button start uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the push button start, wireless remote control and immobilizer sys-
tem from operating properly: (Ways of coping: P. 670)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
When other wireless keys (that emit radio waves) are being used nearby
When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to the
rear window
When the electronic key is placed near a battery charger or electronic
devices

1803-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)Electronic key battery depletion
The standard battery life is 1 to 2 years.
If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops. (P. 6 11 )
As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 529)
• The push button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Glass top ranges
To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly.
Alarms and warning messages
P. 6 1 1
If the push button start does not operate properly
Starting the hybrid system: P. 268
When the electronic key battery is fully depleted
P. 529
Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the push button start.
(Customizable features P. 719)
If the push button start has been deactivated in a customized setting
Starting the hybrid system and changing power switch modes: P. 6 7 2
Stopping the hybrid system: P. 269

1813-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component

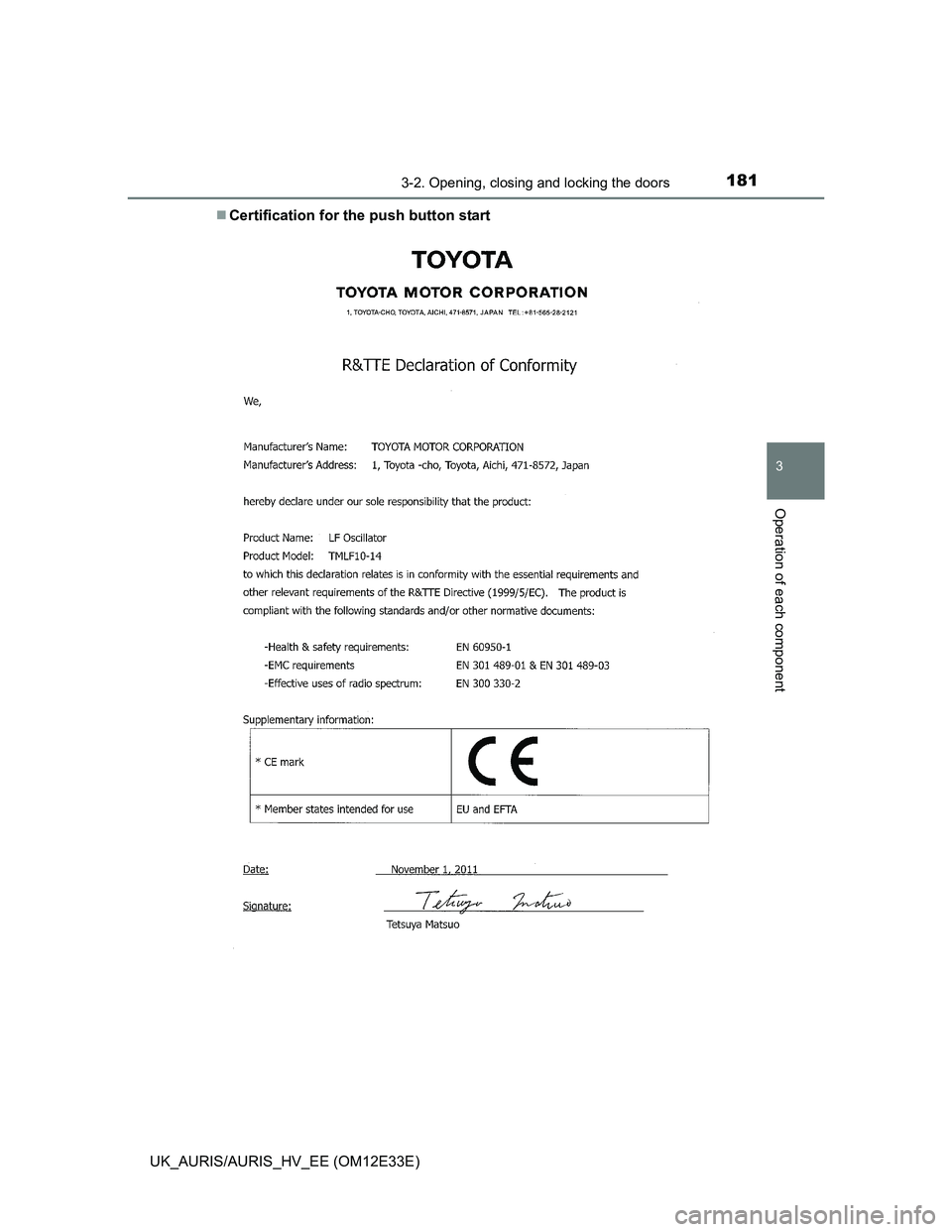

Certification for the push button start

1823-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)

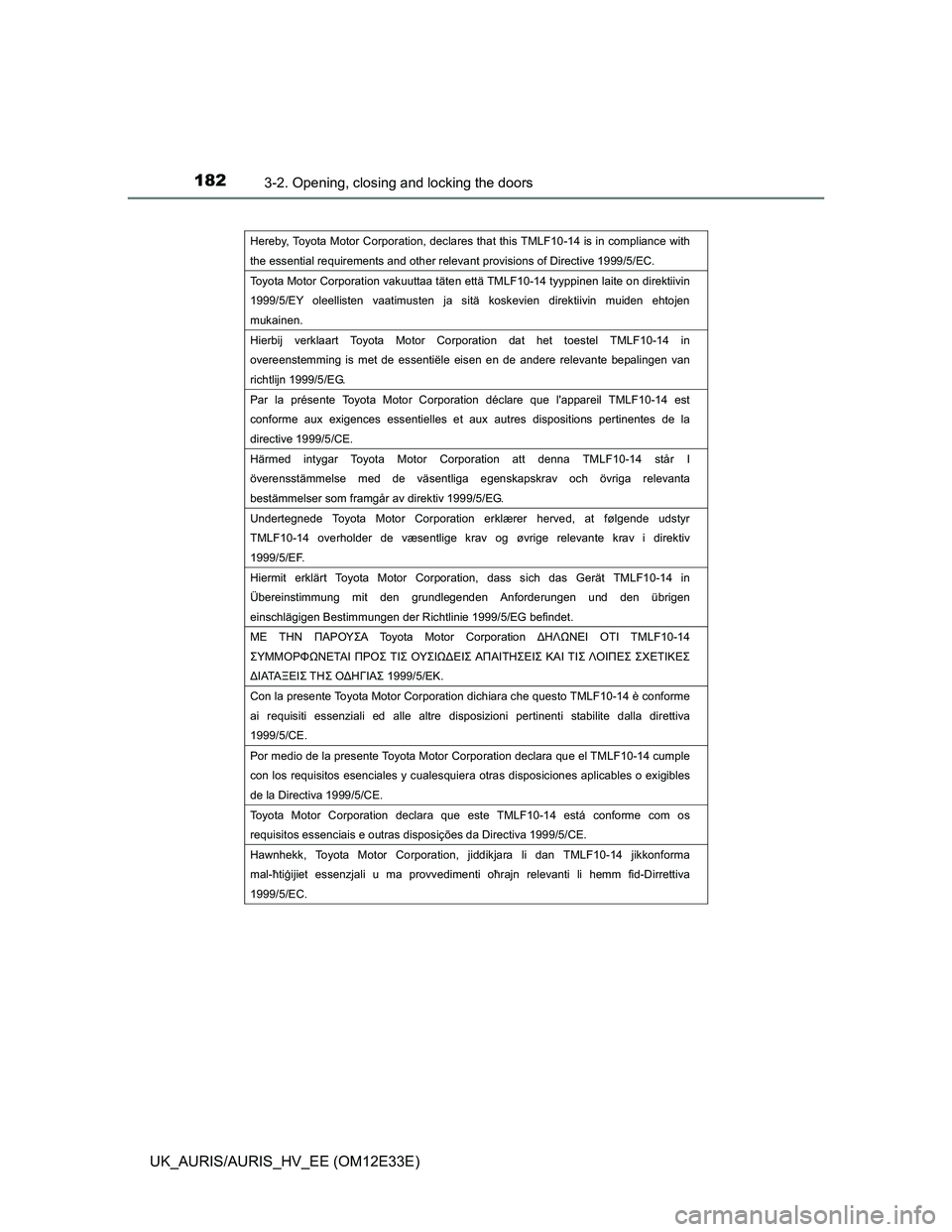

Hereby, Toyota Motor Corporation, declares that this TMLF10-14 is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.:w
Toyota Motor Corporation vakuuttaa täten että TMLF10-14 tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.:w
Hierbij verklaart Toyota Motor Corporation dat het toestel TMLF10-14 in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.:w
Par la présente Toyota Motor Corporation déclare que l'appareil TMLF10-14 est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.:w
Härmed intygar Toyota Motor Corporation att denna TMLF10-14 står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
Undertegnede Toyota Motor Corporation erklærer herved, at følgende udstyr
TMLF10-14 overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Hiermit erklärt Toyota Motor Corporation, dass sich das Gerät TMLF10-14 in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.:w

ü
