FRONT BUMPEREI-15
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P

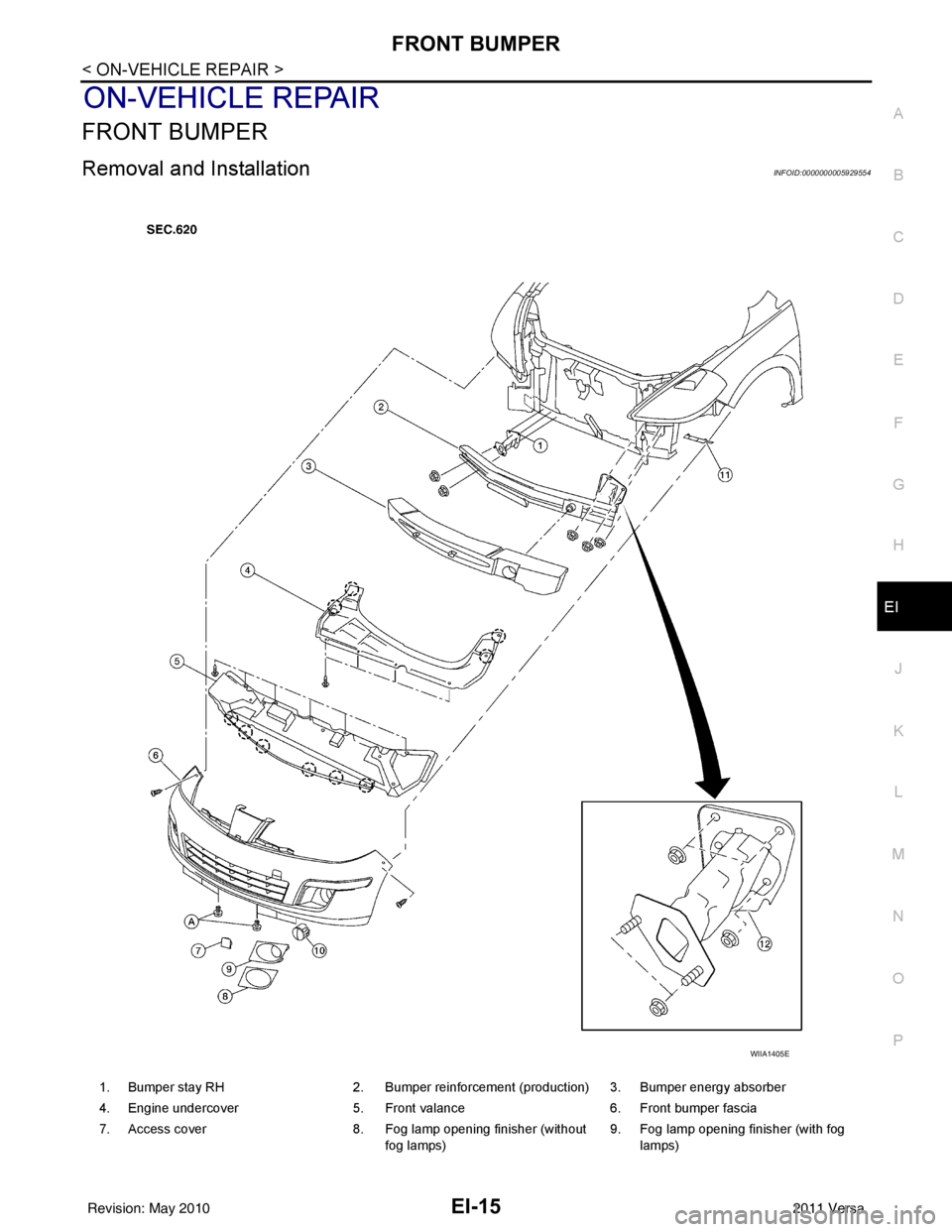

ON-VEHICLE REPAIR
FRONT BUMPER
Removal and InstallationINFOID:0000000005929554
1. Bumper stay RH 2. Bumper reinforcement (production) 3. Bumper energy absorber
4. Engine undercover 5. Front valance 6. Front bumper fascia
7. Access cover 8. Fog lamp opening finisher (without
fog lamps) 9. Fog lamp opening finisher (with fog
lamps)
WIIA1405E
Revision: May 2010 2011 Versa
Page 2346 of 3787

EI-16
< ON-VEHICLE REPAIR >
FRONT BUMPER
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
REMOVAL
1. Open hood.
2. Remove front grille. Refer to EI-23
.
3. Remove front fender protectors RH/LH. Refer to EI-26
.
4. Remove front valance and engine undercover.
5. Remove screws of front bumper fascia RH/LH.
6. Pull the outboard edge of front bumper fascia away from vehicle to disengage from the bumper side retainer.
7. Disconnect fog lamp harness connector RH/LH (if equipped).
8. Remove the front bumper fascia.
9. Remove fog lamp opening finisher and fog lamp assembly RH/ LH (if equipped). Refer to LT-49, "
Removal and Installation".
10. Remove bumper energy absorber.
11. Remove RH/LH air guide mounting clips of bumper reinforcement.
12. Remove the nuts, then remove bumper reinforcement and bumper stay(s): • For production, bumper stay LH is part of bumper reinforcement.
• For service, bumper stay RH/LH are separate assemblies.
13. Remove bumper side bracket RH/LH after front bumper fascia removal.
INSTALLATION
10. Fog lamp assembly 11. Bumper side retainer 12. Bumper stay LH (service)
A. Clip C205
PIIB2537J
PIIB2538J
PIIB2543J
Revision: May 2010 2011 Versa
Page 2347 of 3787
FRONT BUMPEREI-17
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
Installation is in the reverse order of removal.
mm (in)
ALKIA1929ZZ
Component PortionMinimum Target Value Maximum
Front bumper - Hood Clearance A-A 4.0 (0.157) 6.0 (0.236)8.5 (0.335)
Front bumper - Hood Surface A-A-1.9 (0.075) 0.65 (0.026)2.65 (0.104)
Front bumper - Front grille B-B1.0 (0.039) 2.0 (0.079)3.0 (0.118)
Front bumper - Head lamp C-C0.3 (0.012) 2.0 (0.079)3.7 (0.146)
Front bumper - Front fender Clearance D-D 0.0 (0.000)0.0 (0.000)1.0 (0.039)
Front bumper - Front fender Surface D-D -0.35 (0.014)0.65 (0.026)1.65 (0.065)
Revision: May 2010 2011 Versa
Page 2348 of 3787
EI-18
< ON-VEHICLE REPAIR >
REAR BUMPER
REAR BUMPER
ComponentINFOID:0000000005929555
Hatchback Models
WIIA1406E
1. Bumper side bracket2. Rear fender protector 3. Spring nut
4. Bumper reinforcement bracket 5. Rear bumper reinforcement 6. Energy absorbing foam
7. Rear bumper fascia 8. Rear bumper upper retainer A. Clip C205
Revision: May 2010 2011 Versa
Page 2349 of 3787
REAR BUMPEREI-19
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P

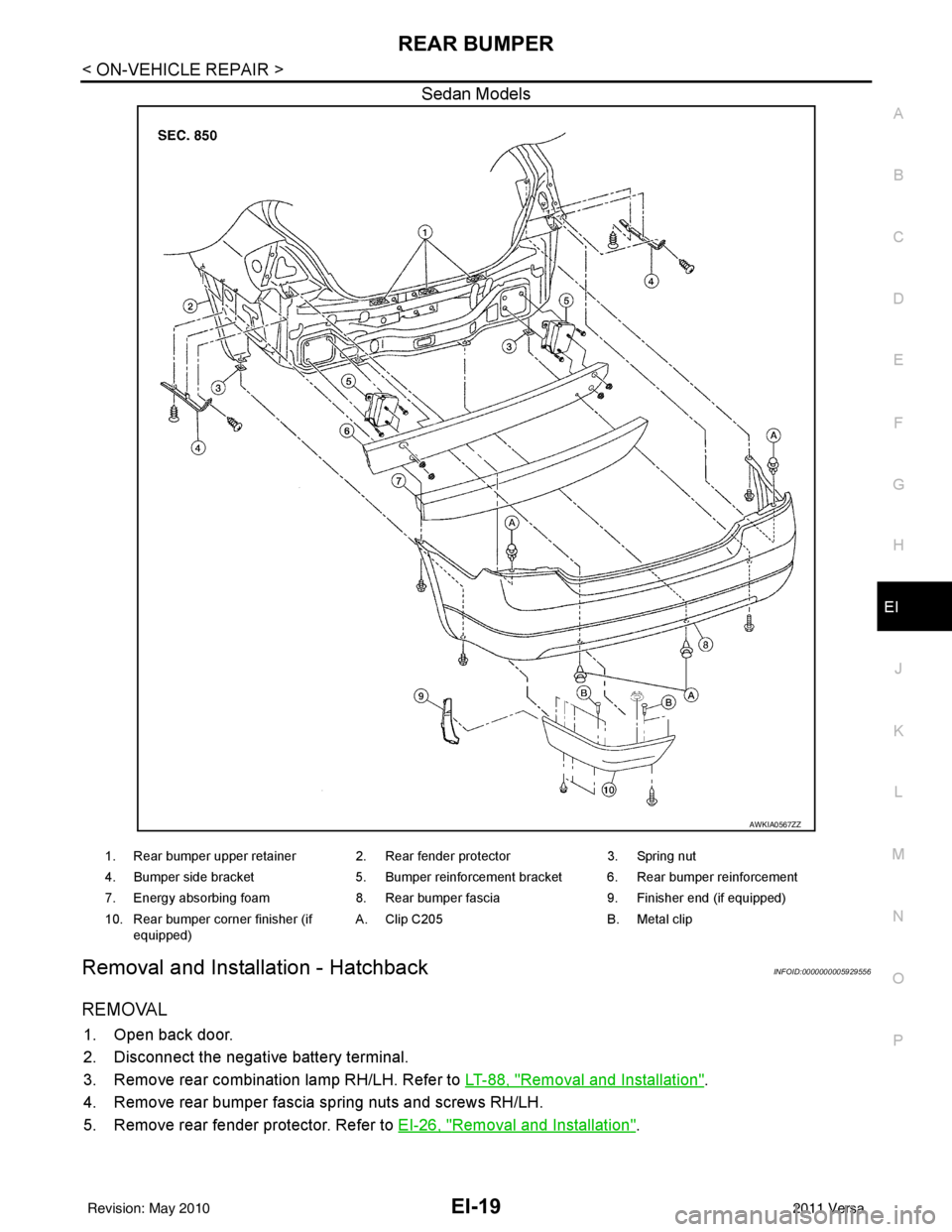

Sedan Models
Removal and Installation - HatchbackINFOID:0000000005929556
REMOVAL
1. Open back door.
2. Disconnect the negative battery terminal.
3. Remove rear combination lamp RH/LH. Refer to LT-88, "
Removal and Installation".
4. Remove rear bumper fascia spring nuts and screws RH/LH.
5. Remove rear fender protector. Refer to EI-26, "
Removal and Installation".
AWKIA0567ZZ
1. Rear bumper upper retainer 2. Rear fender protector 3. Spring nut
4. Bumper side bracket 5. Bumper reinforcement bracket 6. Rear bumper reinforcement
7. Energy absorbing foam 8. Rear bumper fascia 9. Finisher end (if equipped)
10. Rear bumper corner finisher (if equipped) A. Clip C205
B. Metal clip
Revision: May 2010 2011 Versa
Page 2350 of 3787
EI-20
< ON-VEHICLE REPAIR >
REAR BUMPER

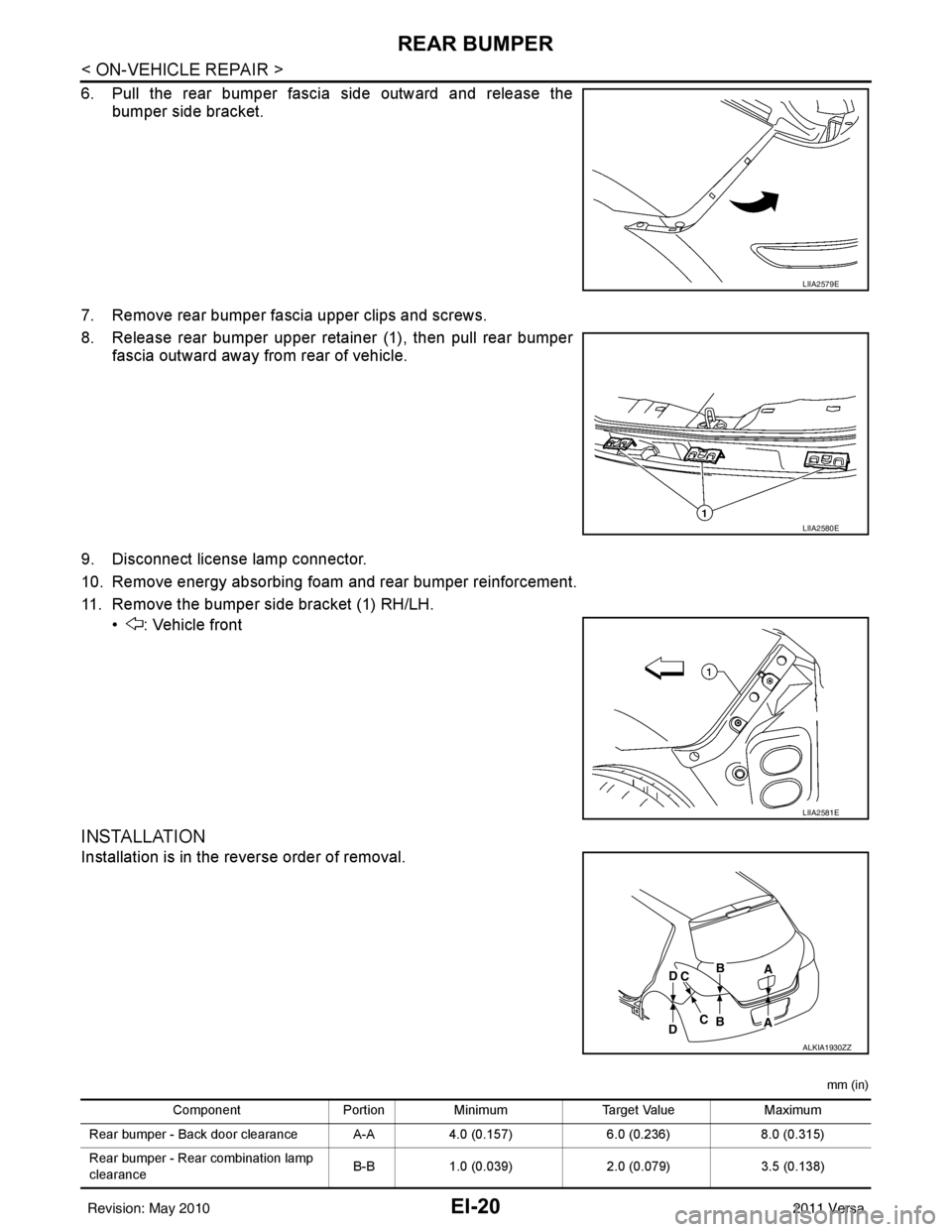

6. Pull the rear bumper fascia side outward and release thebumper side bracket.
7. Remove rear bumper fascia upper clips and screws.
8. Release rear bumper upper retainer (1), then pull rear bumper fascia outward away from rear of vehicle.
9. Disconnect license lamp connector.
10. Remove energy absorbing foam and rear bumper reinforcement.
11. Remove the bumper side bracket (1) RH/LH. • : Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
mm (in)
LIIA2579E
LIIA2580E
LIIA2581E
ALKIA1930ZZ
Component PortionMinimum Target Value Maximum
Rear bumper - Back door clearance A-A 4.0 (0.157)6.0 (0.236)8.0 (0.315)
Rear bumper - Rear combination lamp
clearance B-B
1.0 (0.039) 2.0 (0.079)3.5 (0.138)
Revision: May 2010 2011 Versa
Page 2351 of 3787

REAR BUMPEREI-21
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P

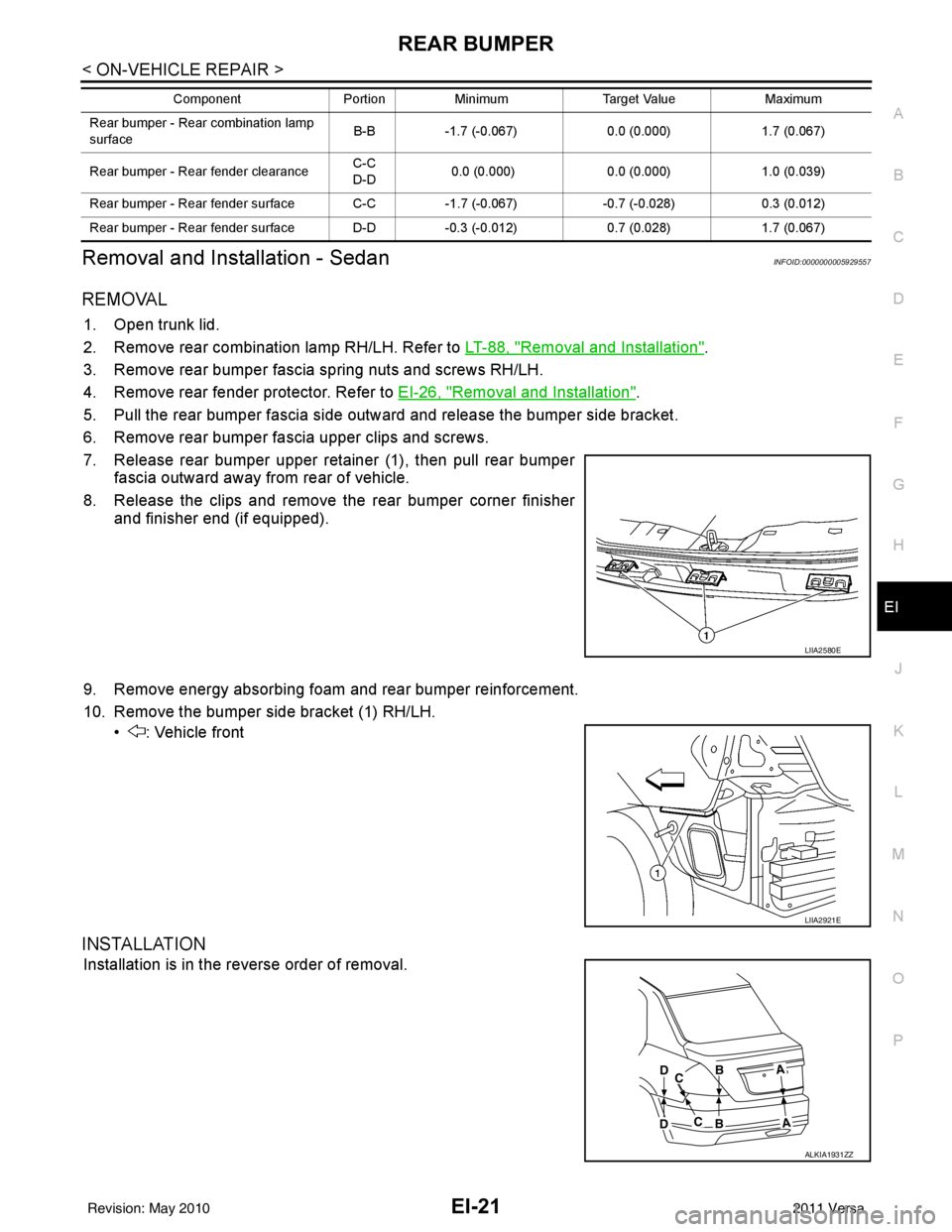

Removal and Installation - SedanINFOID:0000000005929557
REMOVAL
1. Open trunk lid.
2. Remove rear combination lamp RH/LH. Refer to LT-88, "
Removal and Installation".
3. Remove rear bumper fascia spring nuts and screws RH/LH.
4. Remove rear fender protector. Refer to EI-26, "
Removal and Installation".
5. Pull the rear bumper fascia side outward and release the bumper side bracket.
6. Remove rear bumper fascia upper clips and screws.
7. Release rear bumper upper retainer (1), then pull rear bumper fascia outward away from rear of vehicle.
8. Release the clips and remove the rear bumper corner finisher and finisher end (if equipped).
9. Remove energy absorbing foam and rear bumper reinforcement.
10. Remove the bumper side bracket (1) RH/LH. • : Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
Rear bumper - Rear combination lamp
surface B-B
-1.7 (-0.067) 0.0 (0.000)1.7 (0.067)
Rear bumper - Rear fender clearance C-C
D-D
0.0 (0.000)
0.0 (0.000)1.0 (0.039)
Rear bumper - Rear fender surface C-C -1.7 (-0.067)-0.7 (-0.028) 0.3 (0.012)
Rear bumper - Rear fender surface D-D -0.3 (-0.012)0.7 (0.028)1.7 (0.067)
Component
PortionMinimum Target Value Maximum
LIIA2580E
LIIA2921E
ALKIA1931ZZ
Revision: May 2010 2011 Versa
Page 2352 of 3787
EI-22
< ON-VEHICLE REPAIR >
REAR BUMPER
mm (in)
ComponentPortionMinimum Target Value Maximum
Rear bumper - Trunk lid clearance A-A 4.8 (0.189)7.0 (0.276)9.2 (0.362)
Rear bumper - Rear combination lamp
clearance B-B
1.0 (0.039) 2.0 (0.079)3.5 (0.138)
Rear bumper - Rear combination lamp
surface B-B
-1.2 (-0.047) 0.0 (0.000)1.2 (0.047)
Rear bumper - Rear fender clearance C-C
D-D 0.0 (0.000)
0.0 (0.000)1.0 (0.039)
Rear bumper - Rear fender surface C-C
D-D-1.7 (-0.067)
-0.7 (0.028)0.3 (0.012)
