Page 1129 of 3787
![NISSAN TIIDA 2011 Service Repair Manual CVT-74
< SERVICE INFORMATION >[RE0F08B]
P0715 INPUT SPEED SENSOR A
Diagnosis Procedure
INFOID:0000000005928801
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” NISSAN TIIDA 2011 Service Repair Manual CVT-74
< SERVICE INFORMATION >[RE0F08B]
P0715 INPUT SPEED SENSOR A
Diagnosis Procedure
INFOID:0000000005928801
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS”](/manual-img/5/57396/w960_57396-1128.png)
CVT-74
< SERVICE INFORMATION >[RE0F08B]
P0715 INPUT SPEED SENSOR A
Diagnosis Procedure
INFOID:0000000005928801
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “PRI SPEED SEN”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2.CHECK PRIMARY SPEED SENSOR
1. Start engine.
2. Check voltage between TCM connector terminals.
3. Check the pulse with CONSULT-III or oscilloscope, when vehi- cle cruises.
OK or NG
OK >> GO TO 6.
NG - 1 >> Battery voltage is not supplied: GO TO 3.
NG - 2 >> Battery voltage is supplied, but there is a malfunction in the frequency: GO TO 4.
3. CHECK HARNESS BETWEEN TCM AND CVT UNI T HARNESS CONNECTOR (SENSOR POWER AND
SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and primary speed sensor harness connector.
Item nameConditionDisplay value
PRI SPEED SEN During driving (lock-up
ON)Approximately matches
the engine speed.
Item Connector
TerminalData (Approx.)
TCM E32 10, 19 - 42Battery voltage
Name Condition
Primary speed sen-
sor When running at 20 km/h (12 MPH) in “L” position with the
closed throttle position signal OFF, use the CONSULT-III
pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData (Ap-
prox.)
TCM E32 38 Primary speed sensor 1250 Hz
AWDIA0644GB
Revision: May 2010 2011 Versa
Page 1130 of 3787
![NISSAN TIIDA 2011 Service Repair Manual P0715 INPUT SPEED SENSOR ACVT-75
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3. Check continuity between TCM connector terminals and primary speed sensor harness connector term NISSAN TIIDA 2011 Service Repair Manual P0715 INPUT SPEED SENSOR ACVT-75
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3. Check continuity between TCM connector terminals and primary speed sensor harness connector term](/manual-img/5/57396/w960_57396-1129.png)
P0715 INPUT SPEED SENSOR ACVT-75
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3. Check continuity between TCM connector terminals and primary speed sensor harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HARNESS BETWEEN TC M AND CVT UNIT HARNESS CONNE CTOR (PRIMARY SPEED SEN-
SOR)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and primary speed sensor harness connector.
3. Check continuity between TCM connector terminal and primary speed sensor harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and then drive the vehi-
cle [10 km/h (6 MPH) or more], perform self-diagnosis check. Refer to CVT-72, "
DTC Confirmation Proce-
dure".
Is the
“P0715” detected again?
YES >> Replace the primary speed sensor. Refer to CVT-169, "Removal and Installation".
NO >> Replace TCM. Refer to CVT-159, "
Removal and Installation".
6.CHECK DTC
Perform CVT-72, "
DTC Confirmation Procedure".
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-46, "
TCM Terminal and Reference Value".
2. If NG, re-check TCM pin terminals for dam age or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
TCM E3242
Ye s
Primary speed sensor F501
TCM E3210, 19
Ye s
Primary speed sensor F503
AWDIA0648GB
Item Connector Terminal Continuity
TCM E3238
Ye s
Primary speed sensor F502
AWDIA0649GB
Revision: May 2010 2011 Versa
Page 1131 of 3787
![NISSAN TIIDA 2011 Service Repair Manual CVT-76
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
P0720 OUTPUT SPEED SENSOR
DescriptionINFOID:0000000005928802
The secondary speed sensor detects the revolution of
the CVT output shaf NISSAN TIIDA 2011 Service Repair Manual CVT-76
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
P0720 OUTPUT SPEED SENSOR
DescriptionINFOID:0000000005928802
The secondary speed sensor detects the revolution of
the CVT output shaf](/manual-img/5/57396/w960_57396-1130.png)
CVT-76
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
P0720 OUTPUT SPEED SENSOR
DescriptionINFOID:0000000005928802
The secondary speed sensor detects the revolution of
the CVT output shaft and emits a pulse signal. The
pulse signal is sent to the TCM, which converts it into vehicle speed.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005928803
Remarks: Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000005928804
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0720” with CONSULT-III is det ected TCM does not receive the proper signal from
the sensor.
Possible CauseINFOID:0000000005928805
• Harness or connectors (Sensor circuit is open or shorted.)
• Secondary speed sensor
DTC Confirmation ProcedureINFOID:0000000005928806
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 12 consecutive seconds. ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. If DTC is detected, go to CVT-78, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
VSP SENSOR During driving Approximately matches the spee dometer reading.
Revision: May 2010 2011 Versa
Page 1132 of 3787
P0720 OUTPUT SPEED SENSORCVT-77
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

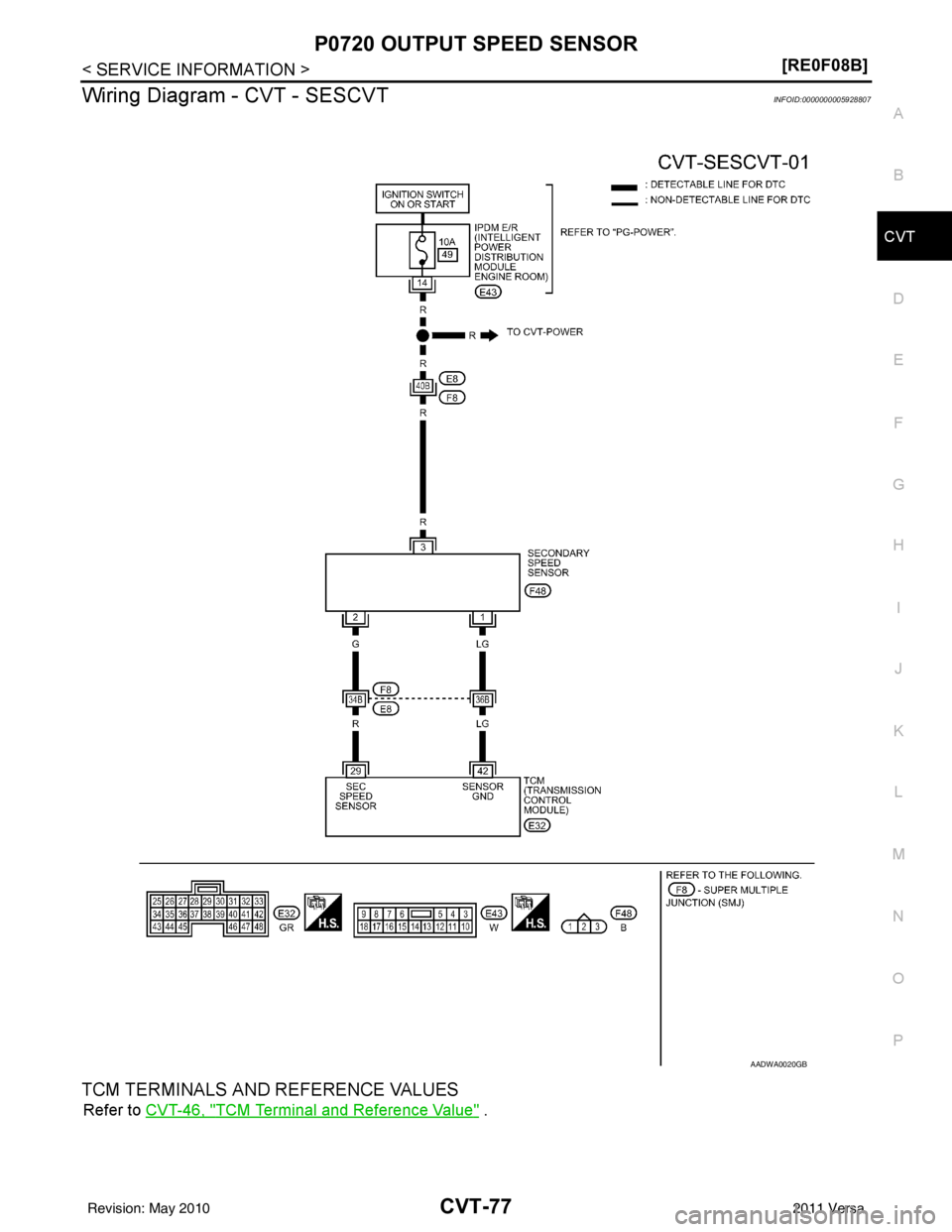

Wiring Diagram - CVT - SESCVTINFOID:0000000005928807
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value" .
AADWA0020GB
Revision: May 2010 2011 Versa
Page 1133 of 3787
![NISSAN TIIDA 2011 Service Repair Manual CVT-78
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
Diagnosis Procedure
INFOID:0000000005928808
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” i NISSAN TIIDA 2011 Service Repair Manual CVT-78
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
Diagnosis Procedure
INFOID:0000000005928808
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” i](/manual-img/5/57396/w960_57396-1132.png)
CVT-78
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
Diagnosis Procedure
INFOID:0000000005928808
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “VSP SENSOR”.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK SECONDARY SPEED SENSOR
With CONSULT-III
1. Start engine.
2. Check power supply to secondary speed sensor by voltage between TCM connector terminals 10, 19 and 42. Refer to CVT-37, "
Circuit Diagram" .
3. If OK, check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the secondary speed sensor harness connector.
3. Turn ignition switch ON.
Item name ConditionDisplay value
VSP SENSOR During drivingApproximately matches
the speedometer reading.
Item Connector
Terminal Data (Approx.)
TCM E31, E32 10 - 42
Battery voltage
19 - 42
Name Condition
Secondary speed
sensor When running at 20 km/h (12 MPH) in “D” position, use the
CONSULT-III pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData (Ap-
prox.)
TCM E32 29 Secondary speed sensor 570 Hz
SCIA2344E
Revision: May 2010 2011 Versa
Page 1134 of 3787
![NISSAN TIIDA 2011 Service Repair Manual P0720 OUTPUT SPEED SENSORCVT-79
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
4. Check voltage between secondary speed sensor harness con- nector terminals.
5. Check voltage betw NISSAN TIIDA 2011 Service Repair Manual P0720 OUTPUT SPEED SENSORCVT-79
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
4. Check voltage between secondary speed sensor harness con- nector terminals.
5. Check voltage betw](/manual-img/5/57396/w960_57396-1133.png)
P0720 OUTPUT SPEED SENSORCVT-79
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
4. Check voltage between secondary speed sensor harness con- nector terminals.
5. Check voltage between secondary speed sensor harness con- nector terminal and ground.
6. If OK, check harness for short to ground and short to power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.: GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND SECONDARY SPEED SENSOR
1. Turn ignition switch OFF.
2. Disconnect TCM connector and secondar y speed sensor harness connector.
3. Check continuity between TCM connector terminal and second- ary speed sensor harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and them drive the vehi-
cle [more than 40 km/h (25 MPH)], perform self-diagnosis check. Refer to CVT-76, "
DTC Confirmation Proce-
dure" .
Is
“P0720” detected again?
YES >> Replace the secondary speed sensor. Refer to CVT-170, "Removal and Installation".
NO >> Replace TCM. Refer to CVT-159, "
Removal and Installation".
6. CHECK HARNESS BETWEEN TCM AND SECONDARY SPEED SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and secondar y speed sensor harness connector.
ItemConnector Terminal Data (Ap-
prox.)
Secondary speed sensor F483 - 1 Battery volt-
age
SCIA2345E
Item Connector Terminal Data (Ap-
prox.)
Secondary speed sensor F483 - groundBattery volt-
age
SCIA2346E
Item Connector Terminal Continuity
TCM E3229
Ye s
Secondary speed sensor F482
SCIA1967E
Revision: May 2010 2011 Versa
Page 1135 of 3787
![NISSAN TIIDA 2011 Service Repair Manual CVT-80
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
3. Check continuity between TCM connector terminals and sec-
ondary speed sensor harness connector terminal. Refer to CVT-
37, "Circu NISSAN TIIDA 2011 Service Repair Manual CVT-80
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
3. Check continuity between TCM connector terminals and sec-
ondary speed sensor harness connector terminal. Refer to CVT-
37, "Circu](/manual-img/5/57396/w960_57396-1134.png)
CVT-80
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
3. Check continuity between TCM connector terminals and sec-
ondary speed sensor harness connector terminal. Refer to CVT-
37, "Circuit Diagram" .
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> 10 A fuse (No. 49, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND SECO NDARY SPEED SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and secondary speed sensor harness connector.
3. Check continuity between TCM connector terminal and second- ary speed sensor harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK DTC
Perform CVT-76, "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 9.
9.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-46, "
TCM Terminal and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
TCM E3110
Ye s
Secondary speed sensor F483
TCM E3119
Ye s
Secondary speed sensor F483
SCIA2369E
Item Connector Terminal Continuity
TCM E3242
Ye s
Secondary speed sensor F481
SCIA2347E
Revision: May 2010 2011 Versa
Page 1136 of 3787
![NISSAN TIIDA 2011 Service Repair Manual P0725 ENGINE SPEEDCVT-81
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
P0725 ENGINE SPEED
DescriptionINFOID:0000000005928809
The engine speed signal is sent from the ECM to the T NISSAN TIIDA 2011 Service Repair Manual P0725 ENGINE SPEEDCVT-81
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
P0725 ENGINE SPEED
DescriptionINFOID:0000000005928809
The engine speed signal is sent from the ECM to the T](/manual-img/5/57396/w960_57396-1135.png)
P0725 ENGINE SPEEDCVT-81
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
P0725 ENGINE SPEED
DescriptionINFOID:0000000005928809
The engine speed signal is sent from the ECM to the TCM.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000005928810
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000005928811
• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0725” with CONSULT-III is detected when TCM does not receive the engine
speed signal (input by CAN communication) from ECM.
Possible CauseINFOID:0000000005928812
Harness or connectors
(The ECM to the TCM circuit is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000005928813
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 10 consecutive seconds. PRI SPEED SEN: More than 1000 rpm
3. If DTC is detected, go to CVT-81, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005928814
1. CHECK DTC WITH ECM
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ENGINE” with CONSULT-III. Refer to EC-612, "
CONSULT-III
Function (ENGINE)".
OK or NG
OK >> GO TO 2.
NG >> Check the DTC detected item. Refer to EC-612, "
CONSULT-III Function (ENGINE)".
2. CHECK DTC WITH TCM
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRA NSMISSION” with CONSULT-III. Refer to CVT-48, "
CON-
SULT-III Function (TRANSMISSION)".
OK or NG
OK >> GO TO 3.
NG >> Check the DTC detected item. Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)".
Item nameCondition Display value
ENG SPEED SIG Engine running Closely matches the tachometer reading.
ACC PEDAL OPEN Released accelerator pedal - Fully depressed accel-
erator pedal 0.0/8 - 8.0/8
Revision: May 2010
2011 Versa
