NISSAN TIIDA 2011 Service Repair Manual P0335 CKP SENSOR (POS)EC-267
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0335 CKP SENSOR (POS)
DescriptionINFOID:0000000005929939
The crankshaft position sensor (POS
) is located

P0335 CKP SENSOR (POS)EC-267
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0335 CKP SENSOR (POS)
DescriptionINFOID:0000000005929939
The crankshaft position sensor (POS
) is located on the oil pan facing
the gear teeth (cogs) of the signal pl ate. It detects the fluctuation of
the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic fiel d, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.
DTC LogicINFOID:0000000005929940
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the follo wing procedure, confirm that battery vo ltage is more than 10.5 V with igni-
tion switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for at least 5 seconds.
PBIA9209J
JMBIA0714GB
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0335 Crankshaft position sensor
(POS) circuit • The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
• The proper pulse signal from the crankshaft position sensor (POS) is not sent to ECM
while the engine is running.
• The crankshaft position sensor (POS) signal is not in the normal pattern during engine run-
ning. • Harness or connectors
[Crankshaft position sensor (POS) cir-
cuit is open or shorted.]
(Refrigerant pressure sensor circuit is
shorted.)
(Accelerator pedal position sensor cir-
cuit is shorted.)
(EVAP control system pressure sensor
circuit is shorted.)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
• Accelerator pedal position sensor
• EVAP control system pressure sensor
• Signal plate
Revision: May 2010 2011 Versa

Page 1562 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-268
< COMPONENT DIAGNOSIS >[HR16DE]
P0335 CKP SENSOR (POS)
If engine does not start, crank
engine for at least 2 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-269, "Dia

Page 1563 of 3787

NISSAN TIIDA 2011 Service Repair Manual P0335 CKP SENSOR (POS)EC-269
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

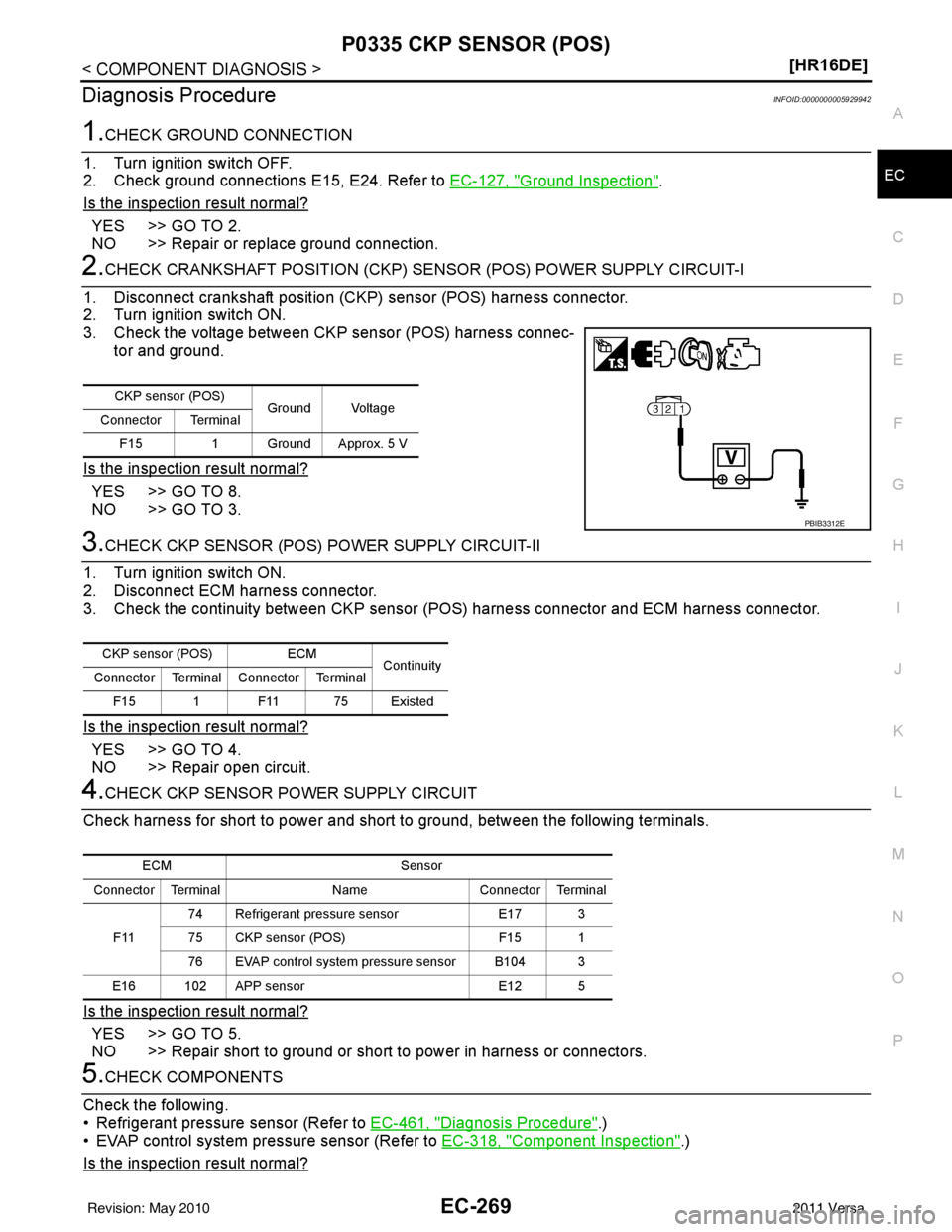

Diagnosis ProcedureINFOID:0000000005929942
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check

Page 1564 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-270
< COMPONENT DIAGNOSIS >[HR16DE]
P0335 CKP SENSOR (POS)
YES >> GO TO 6.
NO >> Replace malfunctioning components.
6.CHECK APP SENSOR
Refer to EC-405, "
Component Inspection".
Is the inspection r

Page 1565 of 3787

NISSAN TIIDA 2011 Service Repair Manual P0335 CKP SENSOR (POS)EC-271
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>> INSPECTION END

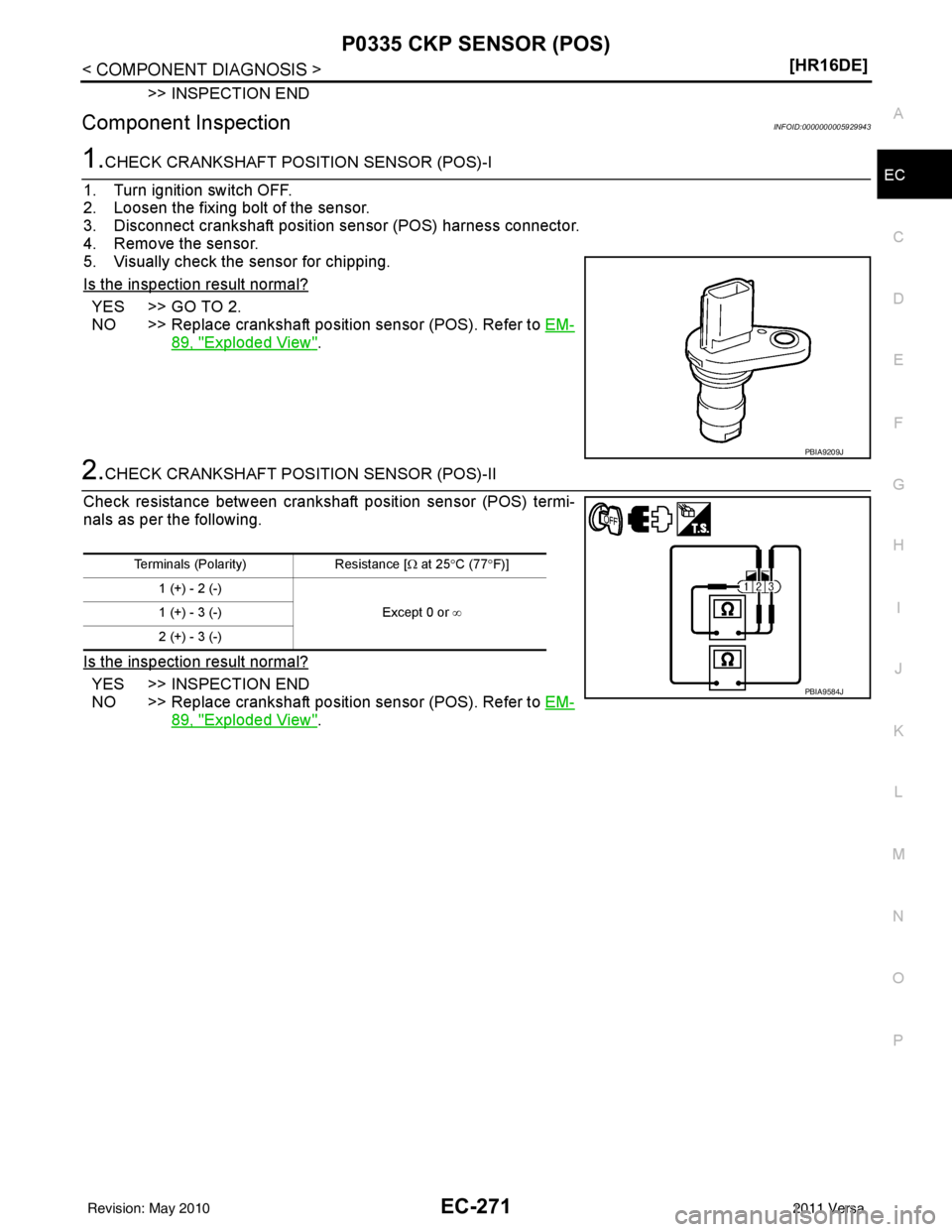

Component InspectionINFOID:0000000005929943
1.CHECK CRANKSHAFT POSI
TION SENSOR (POS)-I

Page 1566 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-272
< COMPONENT DIAGNOSIS >[HR16DE]
P0340 CMP SENSOR (PHASE)
P0340 CMP SENSOR (PHASE)
DescriptionINFOID:0000000005929944
The camshaft position sensor (PHASE) senses the retraction of
camshaft (INT)

EC-272
< COMPONENT DIAGNOSIS >[HR16DE]
P0340 CMP SENSOR (PHASE)
P0340 CMP SENSOR (PHASE)
DescriptionINFOID:0000000005929944
The camshaft position sensor (PHASE) senses the retraction of
camshaft (INT) to identify a particular cylinder. The camshaft position
sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor
(PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.
DTC LogicINFOID:0000000005929945
DTC DETECTION LOGIC
NOTE:
If DTC P0340 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-362, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with igni-
tion switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Start engine and let it idle for at least 5 seconds. If engine does not start, crank engine for at least 2 seconds.
2. Check 1st trip DTC.
PBIA9875J
JMBIA0714GB
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340 Camshaft position sensor
(PHASE) circuit • The cylinder No. signal is not sent to ECM for
the first few seconds during engine cranking.
• The cylinder No. signal is not sent to ECM during engine running.
• The cylinder No. signal is not in the normal pattern during engine running. • Harness or connectors
(The sensor circuit is open or shorted)
• Camshaft position sensor (PHASE)
• Camshaft (INT)
• Starter motor
• Starting system circuit
• Dead (Weak) battery
Revision: May 2010 2011 Versa

Page 1567 of 3787

NISSAN TIIDA 2011 Service Repair Manual P0340 CMP SENSOR (PHASE)EC-273
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is 1st trip DTC detected?
YES >> Go to EC-274, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFI

Page 1568 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-274
< COMPONENT DIAGNOSIS >[HR16DE]
P0340 CMP SENSOR (PHASE)
Wiring Diagram
INFOID:0000000005929946
Diagnosis ProcedureINFOID:0000000005929947
1.CHECK STARTING SYSTEM
Turn ignition switch to START
