COMBINATION SWITCHLT-65
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
Terminal and Reference Value for BCMINFOID:0000000005929102
Refer to BCS-12, "Terminal and Reference Value for BCM" .
CONSULT-III Function (BCM)INFOID:0000000005929103
Refer to BCS-17, "CONSULT-III Function (BCM)" .
Combination Switch InspectionINFOID:0000000005929104
1.SYSTEM CHECK
Referring to table below, check which system malfunctioning switch belongs to.
>> Check the system to which the switch belongs, and GO TO 2.
2.SYSTEM CHECK
With CONSULT-III
CAUTION:
If CONSULT-III is used with no connection of CONSULT-III CONVERTER, malfunctions might be
detected in self-diagnosis de pending on control unit which carry out CAN communication.
1. Connect CONSULT-III, and select “C OMB SW” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR”.
3. Select “START”, and confirm that other switches in the system operate normally.
Example: When turn signal LH is inoperative, confi rm that PASSING, HEAD LAMP 2 or FRONT FOG (if
equipped) turn ON-OFF normally.
Without CONSULT-III
Operating combination switch, and confirm that other switches in the system operate normally.
Example: When a turn signal switch is inoperative, confirm that FRONT WIPER LO or FRONT WIPER INT
turn ON-OFF normally.
Check results
Other switches in the system operate normall y.>>Replace lighting switch or wiper switch.
Other switches in the system do not operate normally.>>GO TO 3.
3.HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM connector and combination switch connector.
3. Check for continuity between BCM harness connecto r of the suspect system and the corresponding com-
bination switch harness connector.
System 1 System 2System 3System 4System 5
— FRONT WASHER FRONT WIPER LO TURN LHTURN RH
FRONT WIPER HI —FRONT WIPER INT PASSINGHEAD LAMP 1
INT VOLUME 1 ——HEAD LAMP 2 HI BEAM
— INT VOLUME 3 ——LIGHT SW 1ST
INT VOLUME 2 ——FRONT FOG —
Revision: May 2010 2011 Versa
Page 3098 of 3787
LT-66
< SERVICE INFORMATION >
COMBINATION SWITCH
4. Check for continuity between of BCM harness connector in suspect system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
4.CHECK BCM OUTPUT TERMINAL
1. Connect BCM and combination switch connectors.
2. Turn ignition switch ON.
3. Turn lighting switch and wiper switch to OFF position.
4. Set wiper dial position 4.

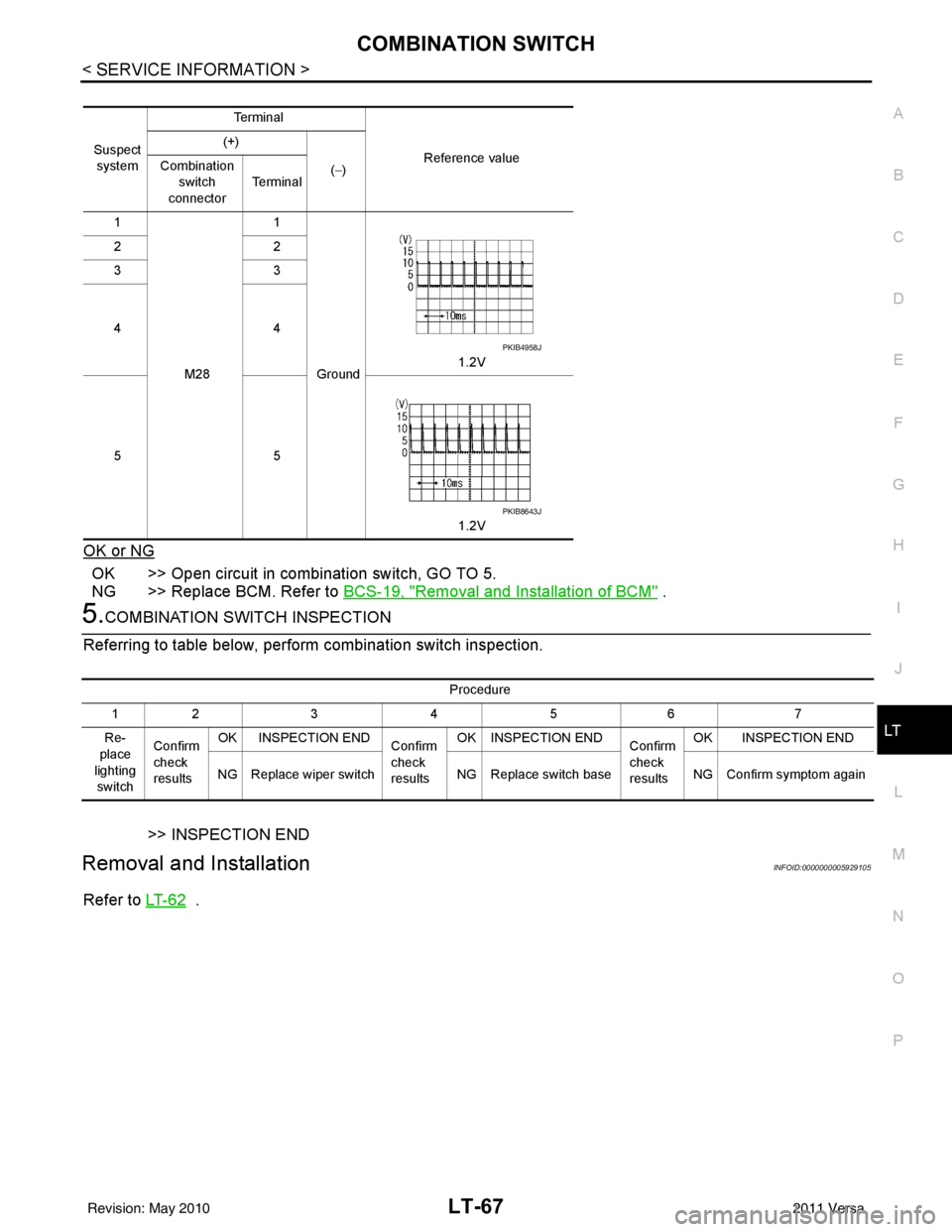

5. Check BCM output terminal voltage waveform of suspect sys- tem.
Suspect
system AB
Continuity
Connector Terminal Connector Terminal
1
M18Input 1 6
M286
Ye s
Output 1 36
1
2 Input 2 5
7
Output 2 35 2
3 Input 3 4
10
Output 3 34 3
4 Input 4 3
9
Output 4 33 4
5 Input 5 2
8
Output 5 32 5
Suspect
system BCM
Continuity
Connector Terminal
1
M18 Input 1
6
Ground No
Output 1 36
2 Input 2
5
Output 2 35
3 Input 3
4
Output 3 34
4 Input 4
3
Output 4 33
5 Input 5
2
Output 5 32
WKIA5497E
WKIA5500E
PKIC1020E
Revision: May 2010 2011 Versa
Page 3099 of 3787
COMBINATION SWITCHLT-67
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-19, "
Removal and Installation of BCM" .
5.COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationINFOID:0000000005929105
Refer to LT- 6 2 .
Suspect
system Te r m i n a l
Reference value
(+)
(−)
Combination
switch
connector Te r m i n a l
1
M28 1
Ground 1.2V
22
33
44
55
1.2V
PKIB4958J
PKIB8643J
Procedure
12 3 4 5 6 7
Re-
place
lighting switch Confirm
check
results
OK INSPECTION END
Confirm
check
resultsOK INSPECTION END
Confirm
check
resultsOK INSPECTION END
NG Replace wiper switch NG Replace switch baseNG Confirm symptom again
Revision: May 2010 2011 Versa
Page 3100 of 3787
LT-68
< SERVICE INFORMATION >
STOP LAMP
STOP LAMP

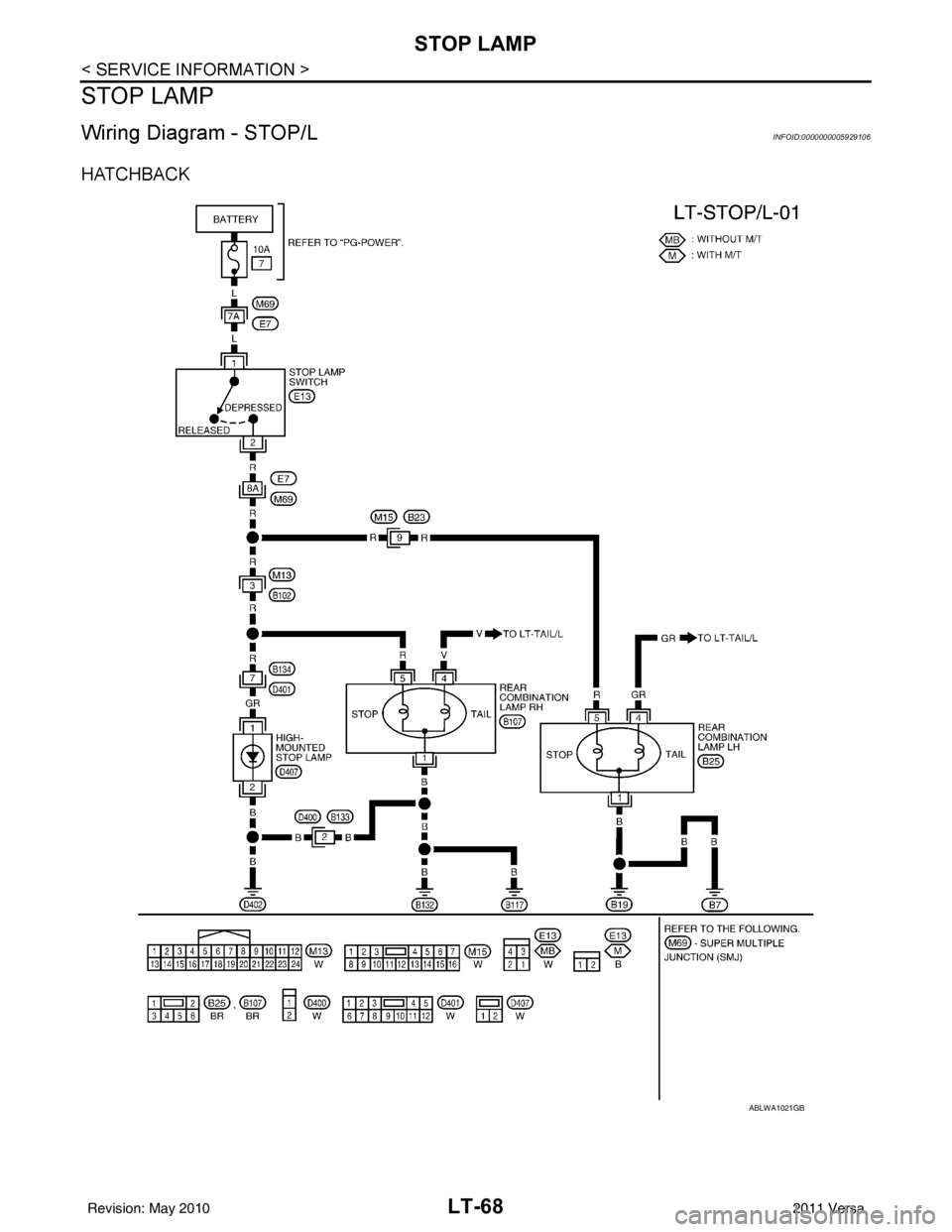

Wiring Diagram - STOP/LINFOID:0000000005929106
HATCHBACK
ABLWA1021GB
Revision: May 20102011 Versa
Page 3101 of 3787
STOP LAMPLT-69
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

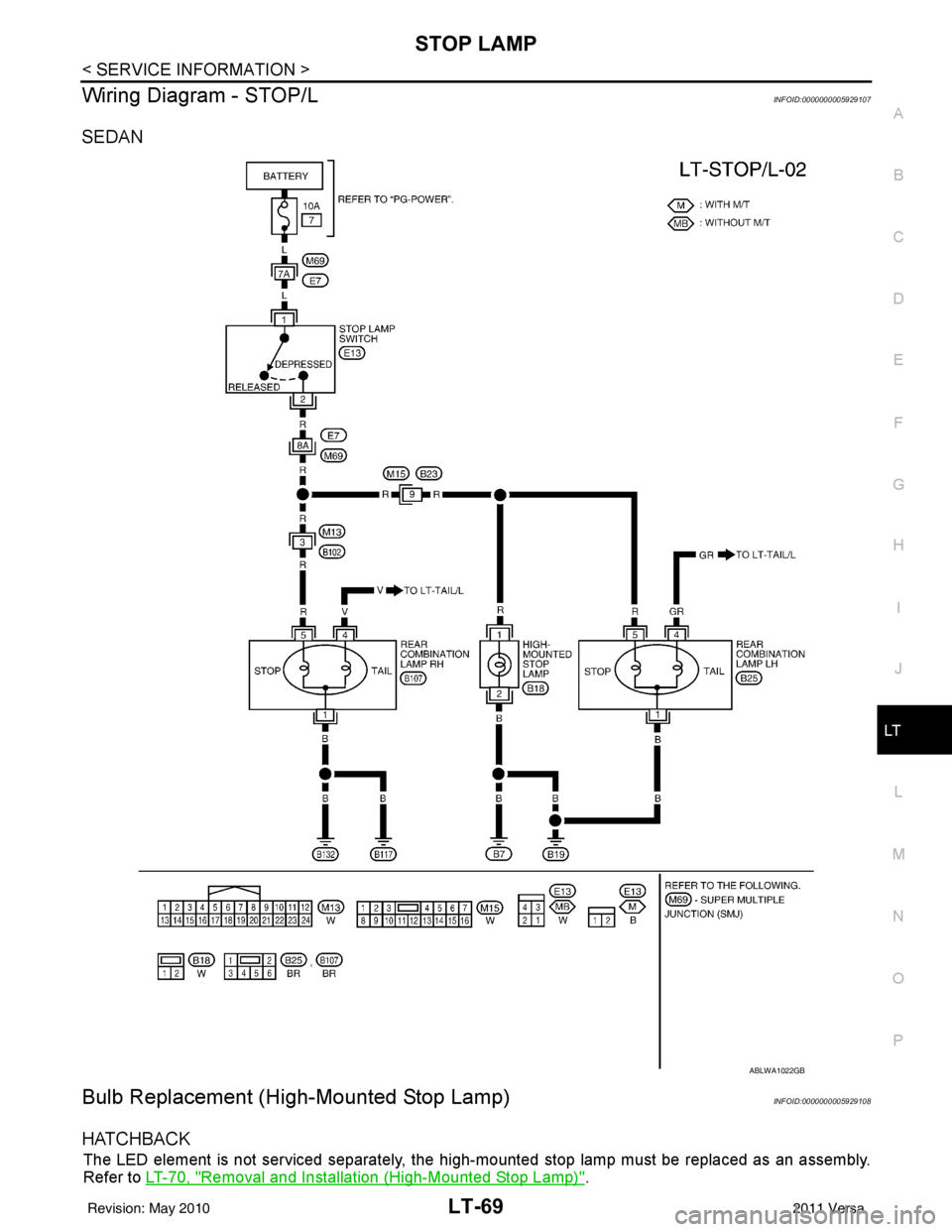

Wiring Diagram - STOP/LINFOID:0000000005929107
SEDAN
Bulb Replacement (High-Mounted Stop Lamp)INFOID:0000000005929108
HATCHBACK
The LED element is not serviced separately, the hi gh-mounted stop lamp must be replaced as an assembly.
Refer to LT-70, "
Removal and Installation (High-Mounted Stop Lamp)".
ABLWA1022GB
Revision: May 2010 2011 Versa
Page 3102 of 3787

LT-70
< SERVICE INFORMATION >
STOP LAMP
SEDAN - WITH REAR AIR SPOILER
The LED element is not serviced separately, the high-mounted stop lamp must be replaced as an assembly.
Refer to LT-70, "
Removal and Installation (High-Mounted Stop Lamp)".
1. Installation is in the reverse order of removal.
SEDAN - WITHOUT REAR AIR SPOILER
Removal

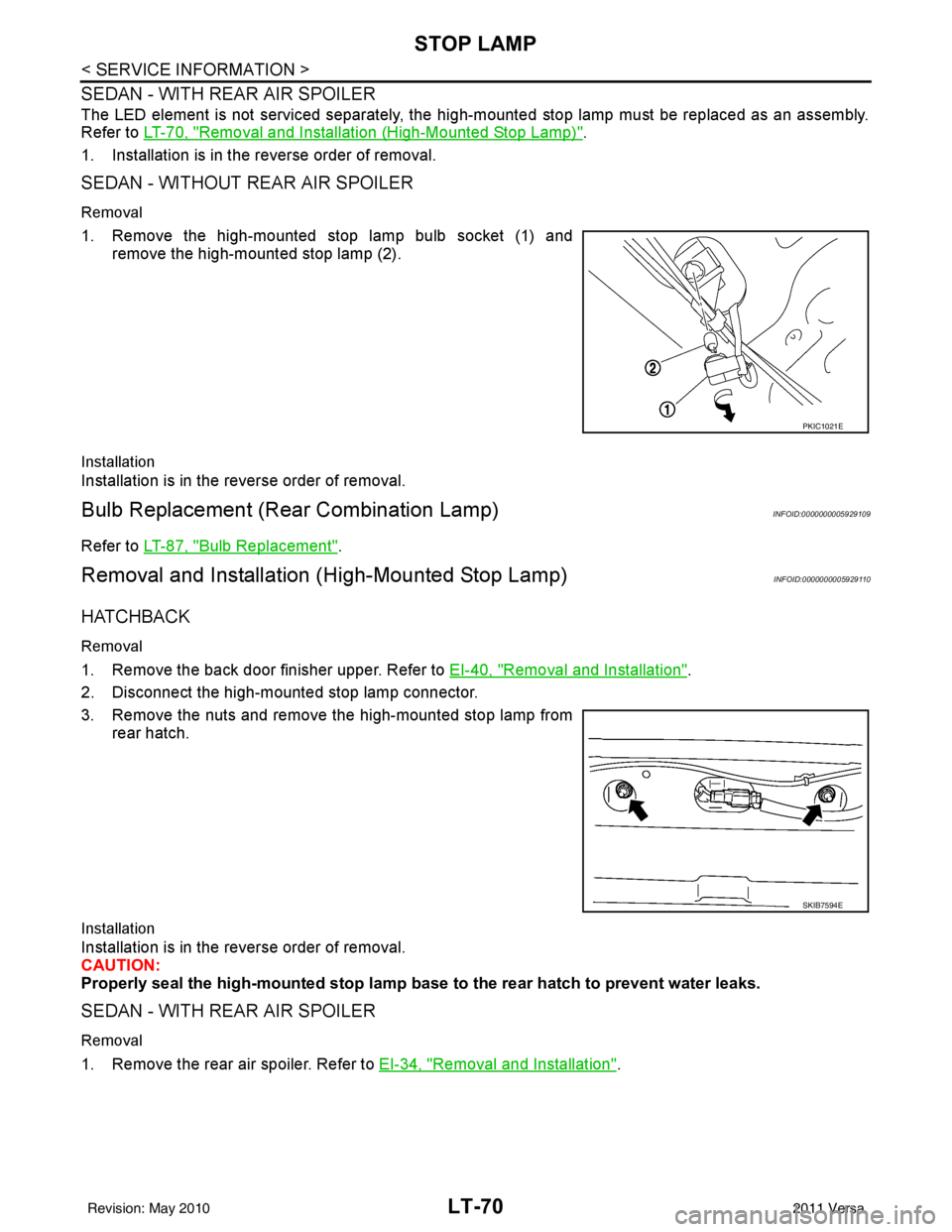

1. Remove the high-mounted stop lamp bulb socket (1) and remove the high-mounted stop lamp (2).
Installation
Installation is in the reverse order of removal.
Bulb Replacement (Rear Combination Lamp)INFOID:0000000005929109
Refer to LT-87, "Bulb Replacement".
Removal and Installation (High-Mounted Stop Lamp)INFOID:0000000005929110
HATCHBACK
Removal
1. Remove the back door finisher upper. Refer to EI-40, "Removal and Installation".
2. Disconnect the high-mounted stop lamp connector.
3. Remove the nuts and remove the high-mounted stop lamp from rear hatch.
Installation
Installation is in the reverse order of removal.
CAUTION:
Properly seal the high-mounted stop lamp b ase to the rear hatch to prevent water leaks.
SEDAN - WITH REAR AIR SPOILER
Removal
1. Remove the rear air spoiler. Refer to EI-34, "Removal and Installation".
PKIC1021E
SKIB7594E
Revision: May 2010 2011 Versa
Page 3103 of 3787

STOP LAMPLT-71
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

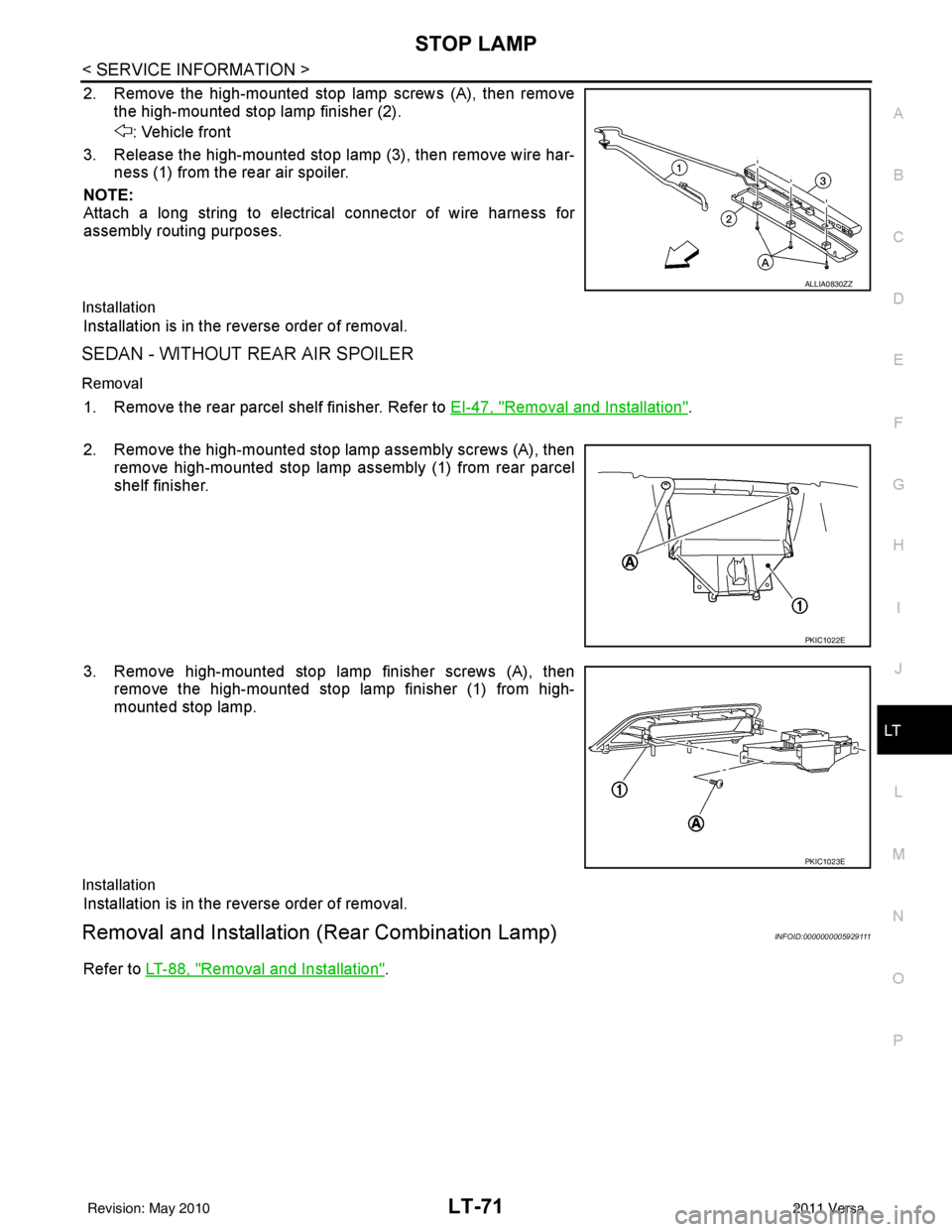

2. Remove the high-mounted stop lamp screws (A), then remove the high-mounted stop lamp finisher (2).
: Vehicle front
3. Release the high-mounted stop lamp (3), then remove wire har- ness (1) from the rear air spoiler.
NOTE:
Attach a long string to electrical connector of wire harness for
assembly routing purposes.
Installation
Installation is in the reverse order of removal.
SEDAN - WITHOUT REAR AIR SPOILER
Removal
1. Remove the rear parcel shelf finisher. Refer to EI-47, "Removal and Installation".
2. Remove the high-mounted stop lamp assembly screws (A), then remove high-mounted stop lamp assembly (1) from rear parcel
shelf finisher.
3. Remove high-mounted stop lamp finisher screws (A), then remove the high-mounted stop lamp finisher (1) from high-
mounted stop lamp.
Installation
Installation is in the reverse order of removal.
Removal and Installation (Rear Combination Lamp)INFOID:0000000005929111
Refer to LT-88, "Removal and Installation".
ALLIA0830ZZ
PKIC1022E
PKIC1023E
Revision: May 2010 2011 Versa
Page 3104 of 3787
LT-72
< SERVICE INFORMATION >
BACK-UP LAMP
BACK-UP LAMP

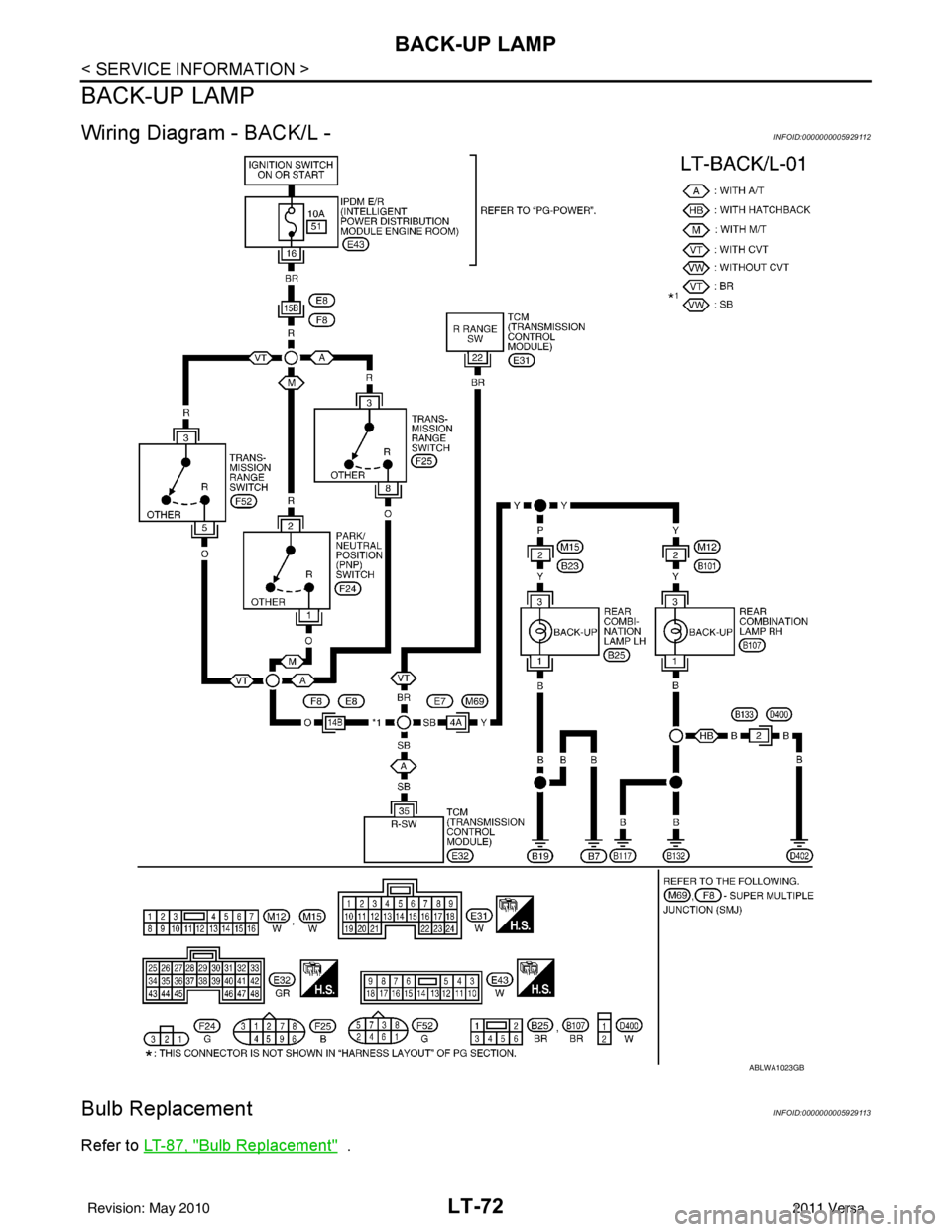

Wiring Diagram - BACK/L -INFOID:0000000005929112
Bulb ReplacementINFOID:0000000005929113
Refer to LT-87, "Bulb Replacement" .
ABLWA1023GB
Revision: May 2010 2011 Versa
