Page 841 of 3787

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-331
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

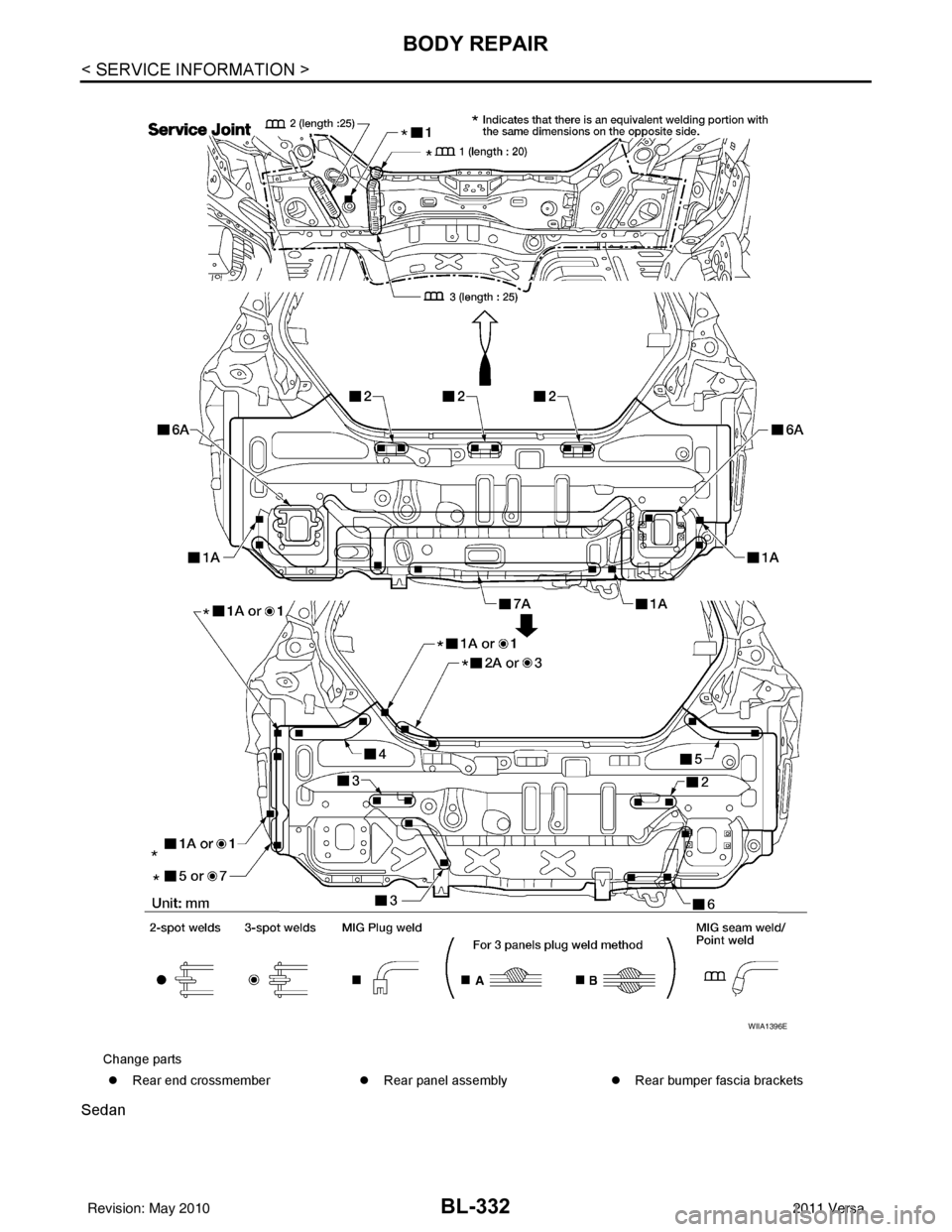

REAR PANEL
Hatchback
Change parts �z Rear fender �zRear fender corner �zRear combination lamp base
LIIA2905E
Revision: May 2

Page 842 of 3787

NISSAN TIIDA 2011 Service Repair Manual BL-332
< SERVICE INFORMATION >
BODY REPAIR

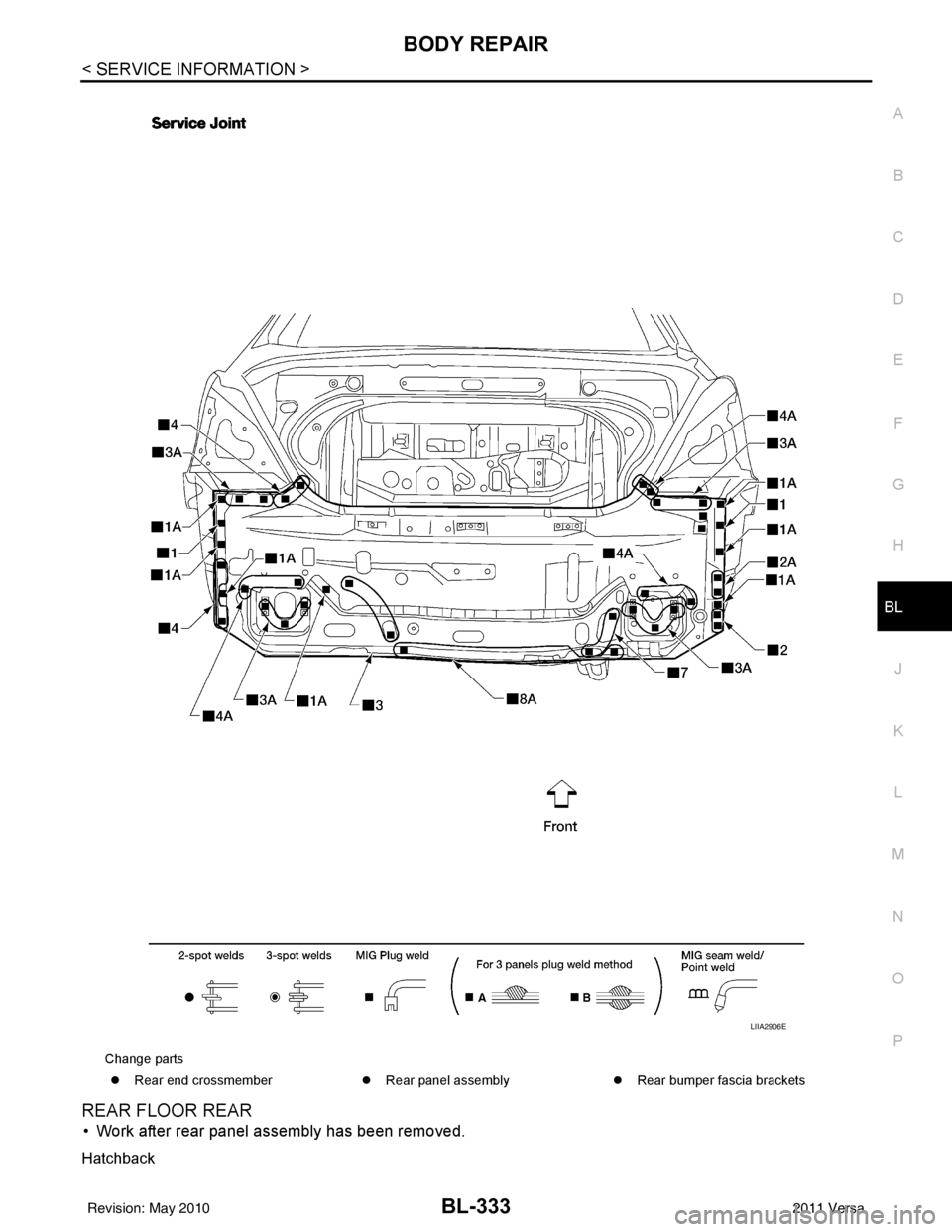

Sedan
Change parts�z Rear end crossmember �zRear panel assembly �zRear bumper fascia brackets
WIIA1396E
Revision: May 2010 2011 Versa

Page 843 of 3787

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-333
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

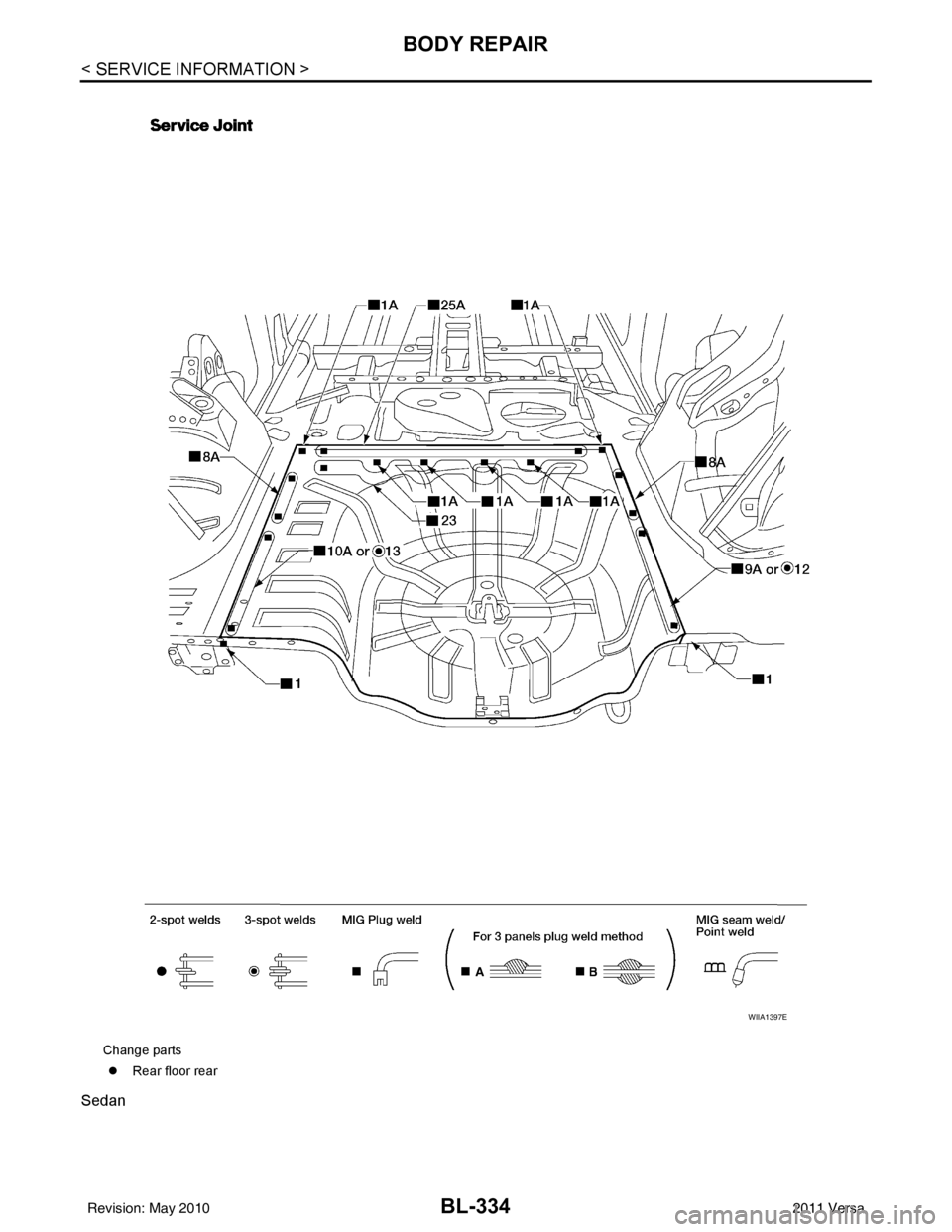

REAR FLOOR REAR
• Work after rear panel assembly has been removed.
Hatchback
Change parts �z Rear end crossmember �zRear pan

Page 844 of 3787

NISSAN TIIDA 2011 Service Repair Manual BL-334
< SERVICE INFORMATION >
BODY REPAIR

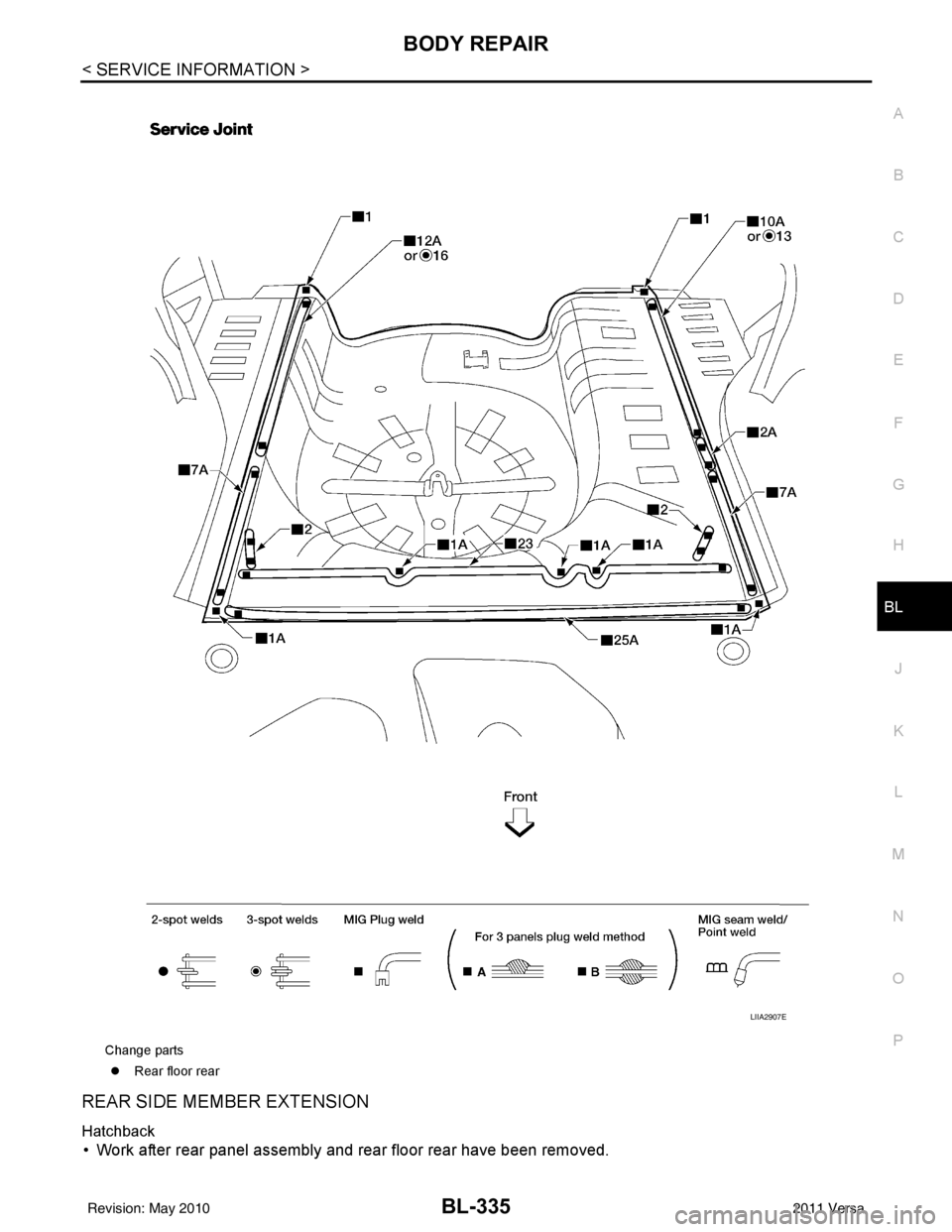

Sedan
Change parts�z Rear floor rear
WIIA1397E
Revision: May 2010 2011 Versa

Page 845 of 3787

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-335
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

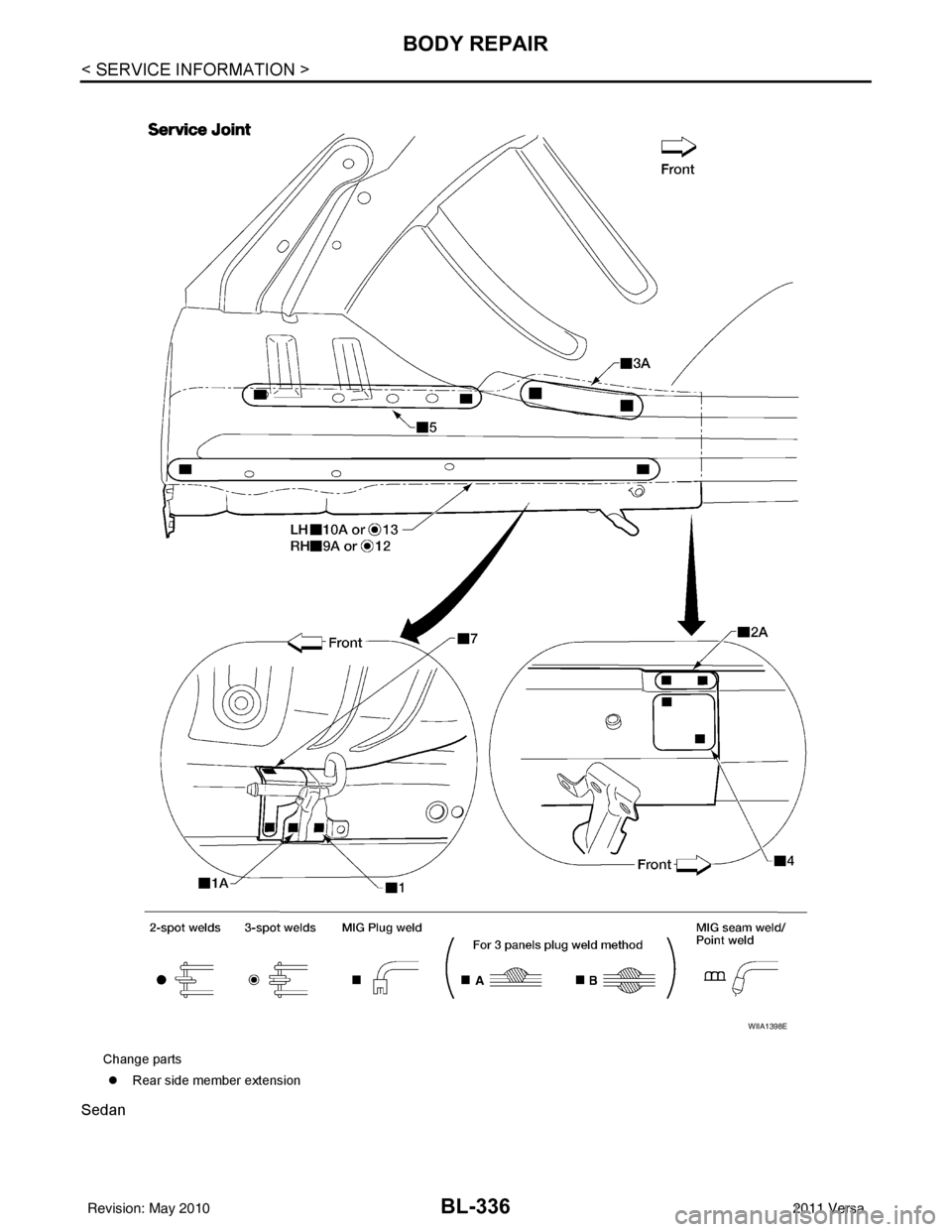

REAR SIDE MEMBER EXTENSION
Hatchback
• Work after rear panel assembly and rear floor rear have been removed.
Change parts �z

Page 846 of 3787

NISSAN TIIDA 2011 Service Repair Manual BL-336
< SERVICE INFORMATION >
BODY REPAIR
Sedan
Change parts�z Rear side member extension
WIIA1398E
Revision: May 2010 2011 Versa

Page 847 of 3787

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-337
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

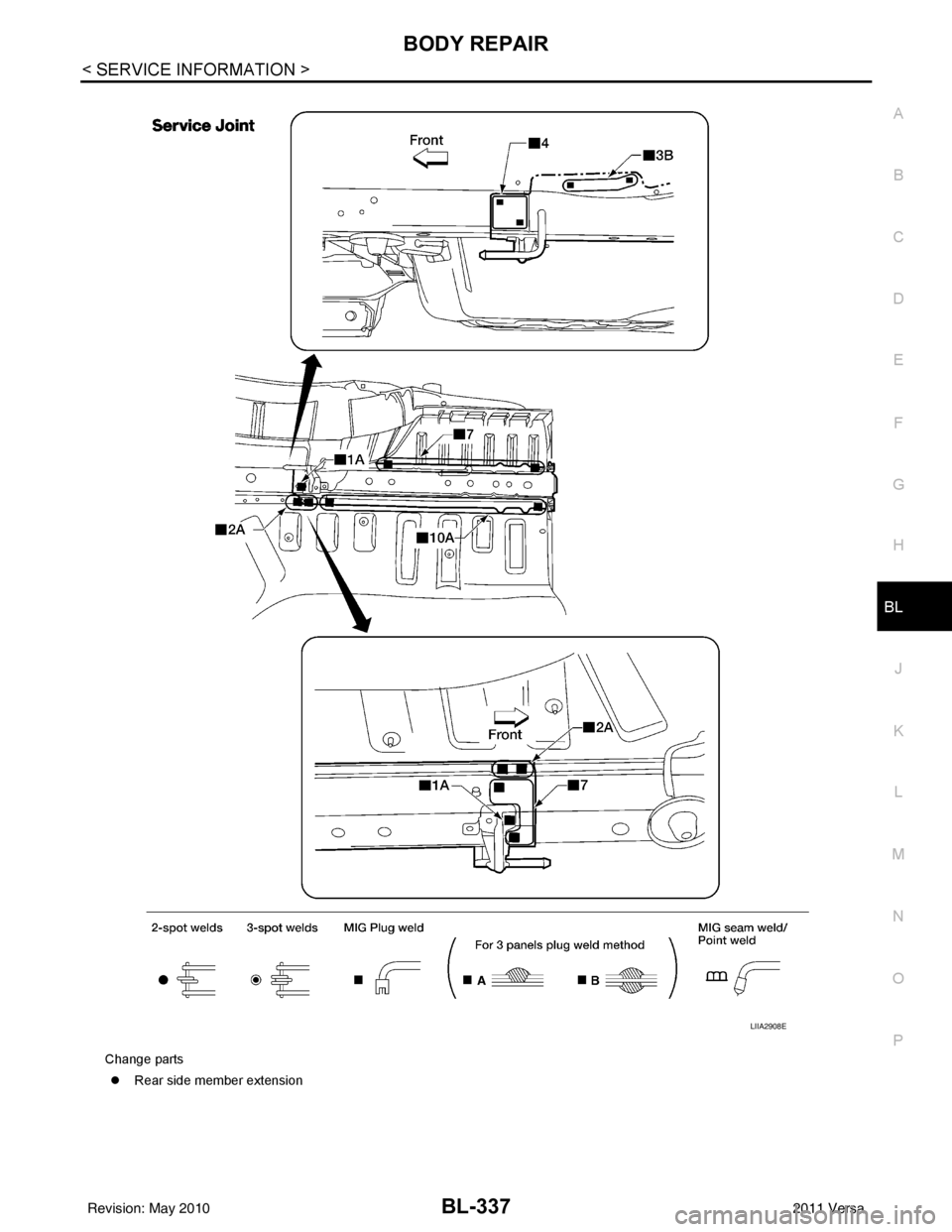

Change parts �z Rear side member extension
LIIA2908E
Revision: May 2010 2011 Versa

Page 848 of 3787

NISSAN TIIDA 2011 Service Repair Manual BR-1
BRAKES
C
DE
G H
I
J
K L
M
SECTION BR
A
B
BR
N
O P
CONTENTS
BRAKE SYSTEM
SERVICE INFORMATION .. ..........................2
PRECAUTIONS .............................................. .....2
Preca

BR-1
BRAKES
C
DE
G H
I
J
K L
M
SECTION BR
A
B
BR
N
O P
CONTENTS
BRAKE SYSTEM
SERVICE INFORMATION .. ..........................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
2
Precaution for Brake System ....................................3
PREPARATION ...................................................4
Special Service Tool ........................................... ......4
Commercial Service Tool ..........................................4
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING .............................
5
NVH Troubleshooting Chart ................................ ......5
BRAKE PEDAL .............................................. .....6
Inspection and Adjustment .................................. ......6
Removal and Installation ...........................................7
BRAKE FLUID ................................................ .....9
On Board Inspection ........................................... ......9
Drain and Refill ..........................................................9
Bleeding Brake System .............................................9
BRAKE TUBE AND HOSE ................................11
Hydraulic Circuit .................................................. ....11
Front Brake Tube and Hose ....................................12
Rear Brake Tube and Hose ....................................12
Inspection After Installation .....................................13
DUAL PROPORTIONING VALVE .....................14
Removal and Installation .........................................14
Inspection ............................................................ ....14
BRAKE MASTER CYLINDER ........................ ....15
On-Board Inspection ........................................... ....15
Removal and Installation ..................................... ....15
Disassembly and Assembly .....................................16
BRAKE BOOSTER ...........................................20
On Board Inspection ............................................ ....20
Removal and Installation .........................................21
VACUUM LINES ...............................................23
Component ..............................................................23
Removal and Installation .........................................23
Inspection ................................................................23
FRONT DISC BRAKE .......................................25
On Board Inspection ............................................ ....25
Component ..............................................................25
Removal and Installation of Brake Pad ...................26
Removal and Installation of Brake Caliper Assem-
bly ........................................................................ ....
30
Disassembly and Assembly of Brake Caliper As-
sembly .....................................................................
31
Brake Burnishing Procedure ....................................34
REAR DRUM BRAKE .......................................35
Component .......................................................... ....35
Removal and Installation of Drum Brake Assembly
....
36
Removal and Installation of Wheel Cylinder ............39
Disassembly and Assembly of Wheel Cylinder .......39
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
40
General Specification ..............................................40
Brake Pedal .............................................................41
Check Valve ............................................................41
Brake Booster ..........................................................42
Front Disc Brake ......................................................42
Rear Drum Brake .....................................................42
Revision: May 2010 2011 Versa
