Page 793 of 3787

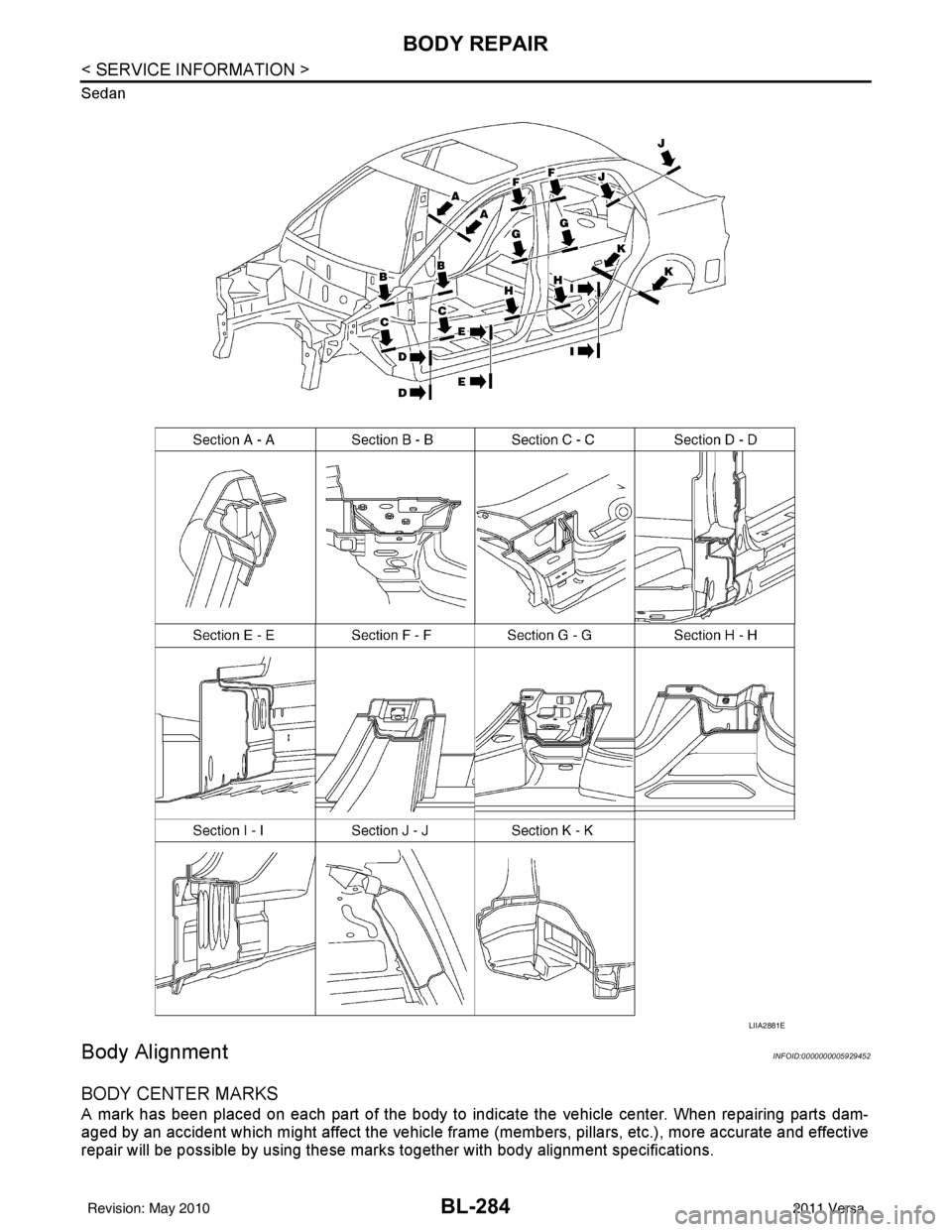

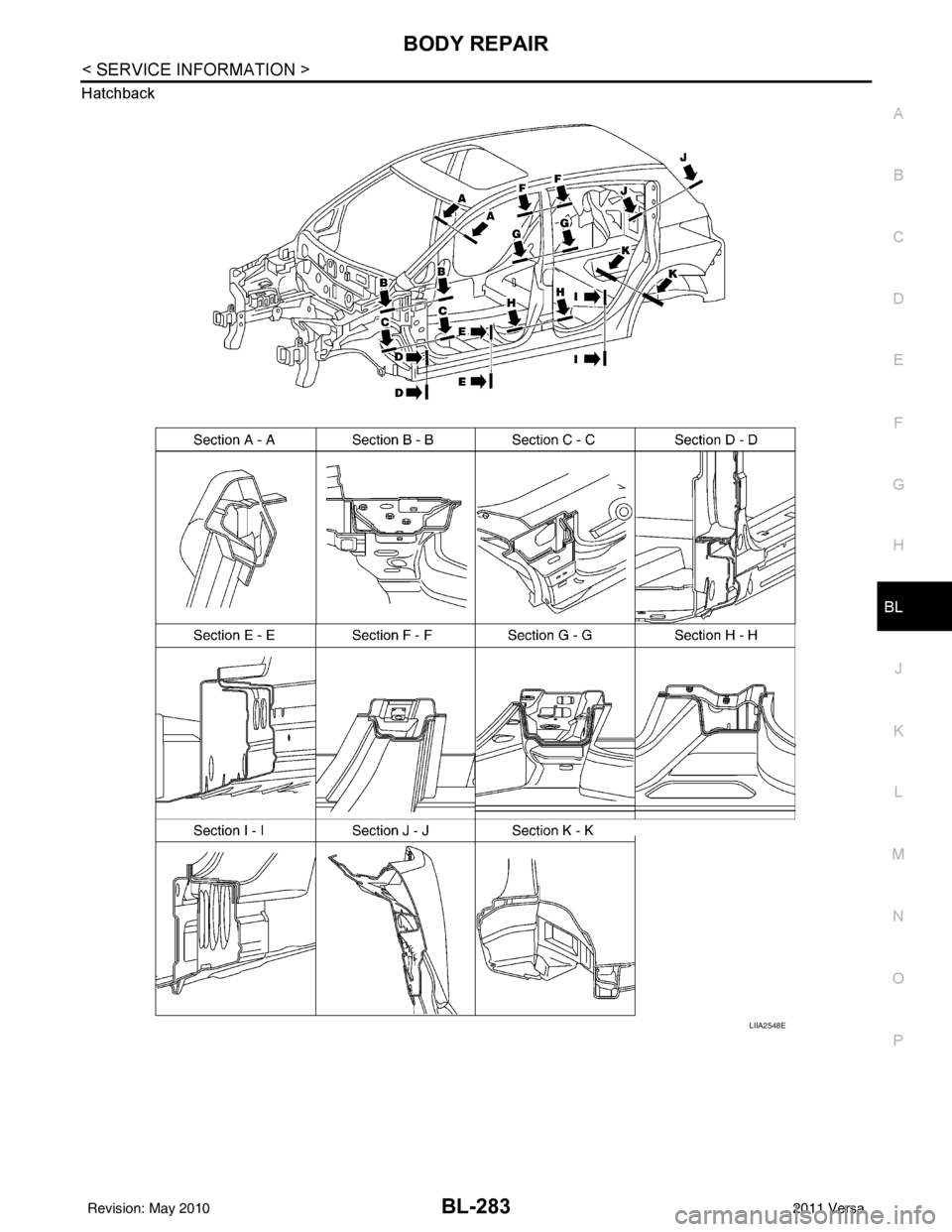

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-283 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P Hatchback LIIA2548E Revision: May 2010 2011 Versa

Page 794 of 3787

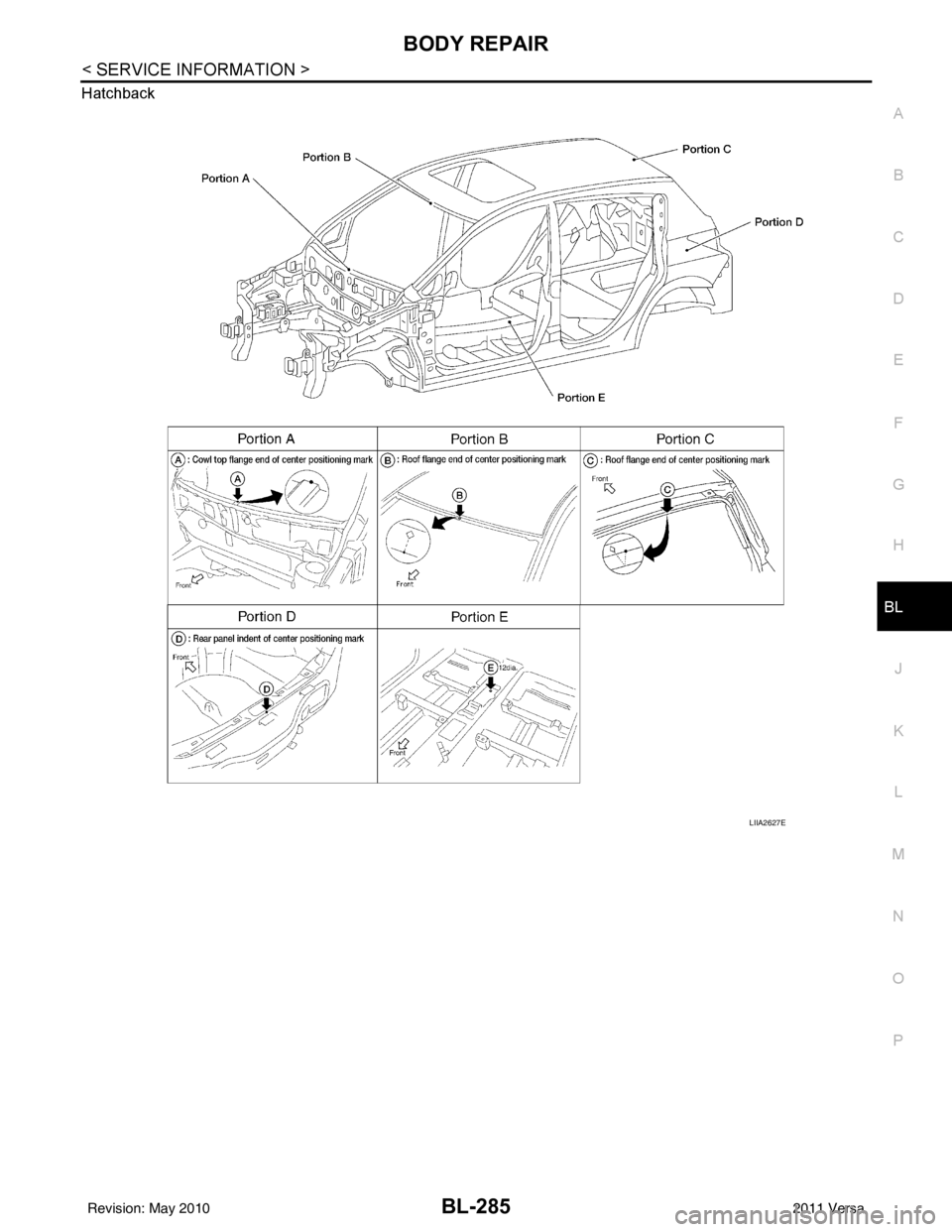

NISSAN TIIDA 2011 Service Repair Manual BL-284 < SERVICE INFORMATION > BODY REPAIR Sedan Body AlignmentINFOID:0000000005929452 BODY CENTER MARKS A mark has been placed on each part of the body to indicate the vehicle center. When repairing

Page 795 of 3787

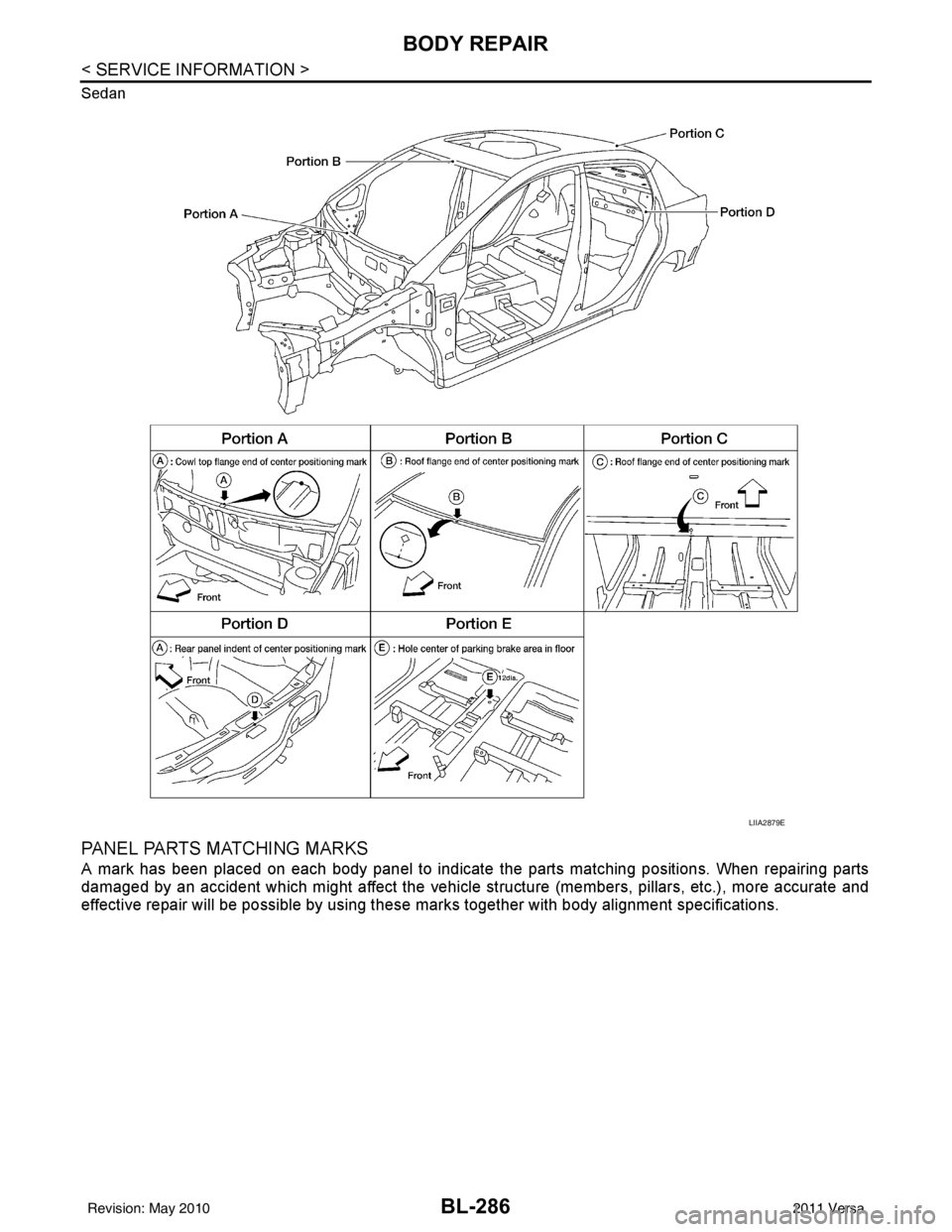

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-285 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P Hatchback LIIA2627E Revision: May 2010 2011 Versa

Page 796 of 3787

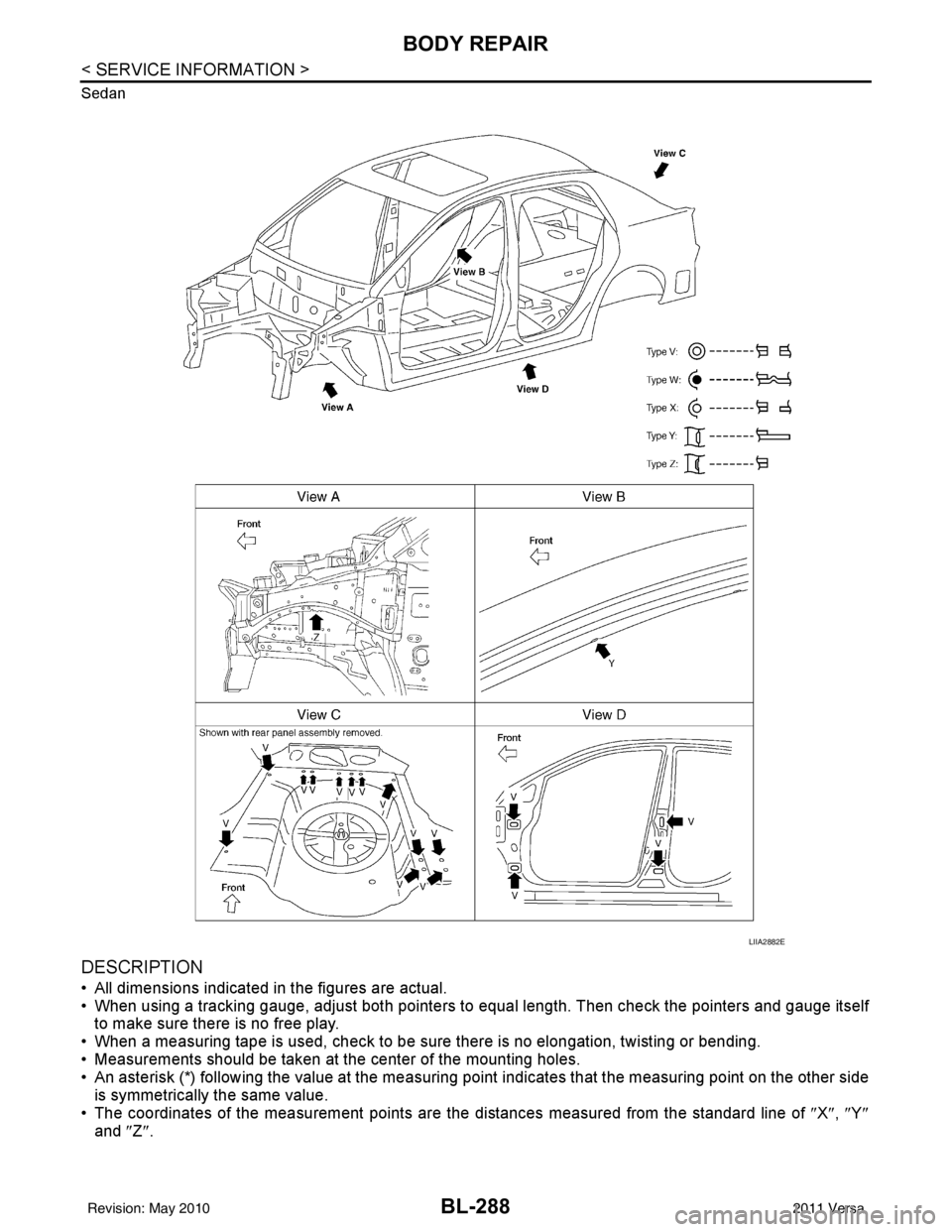

NISSAN TIIDA 2011 Service Repair Manual BL-286 < SERVICE INFORMATION > BODY REPAIR Sedan PANEL PARTS MATCHING MARKS A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts damaged by an accid

Page 797 of 3787

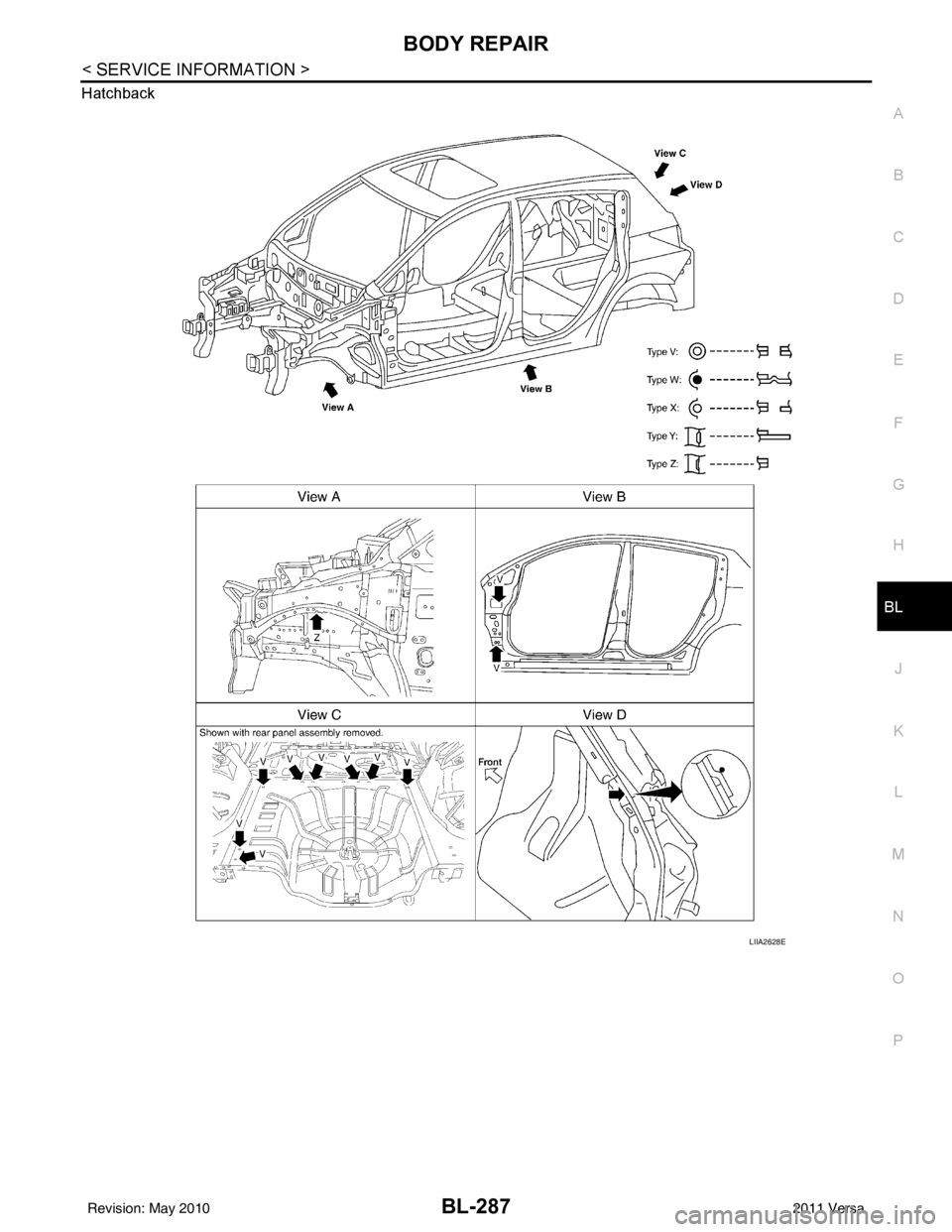

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-287 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P Hatchback LIIA2628E Revision: May 2010 2011 Versa

Page 798 of 3787

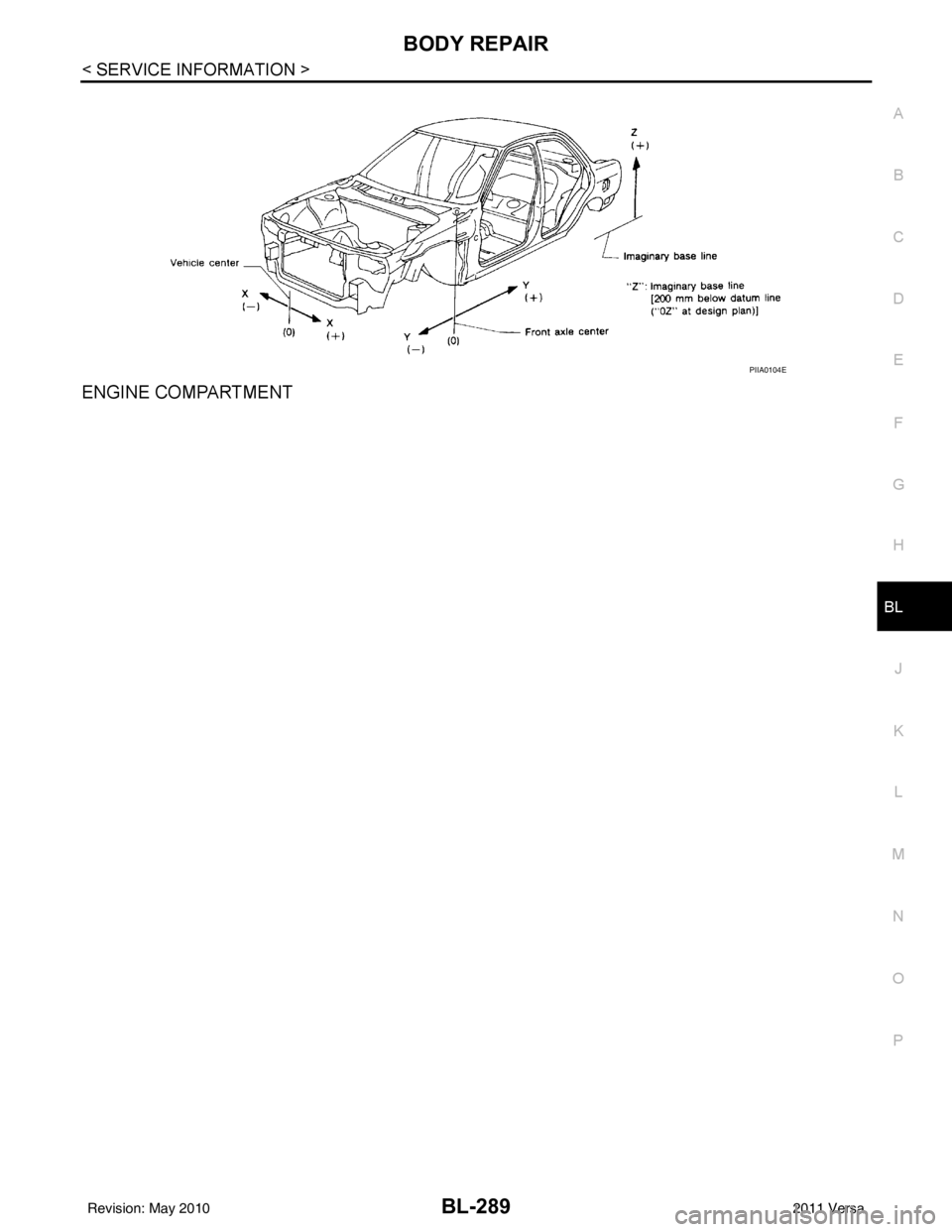

NISSAN TIIDA 2011 Service Repair Manual BL-288 < SERVICE INFORMATION > BODY REPAIR Sedan DESCRIPTION • All dimensions indicated in the figures are actual. • When using a tracking gauge, adjust both pointers to equal length. Then check t

Page 799 of 3787

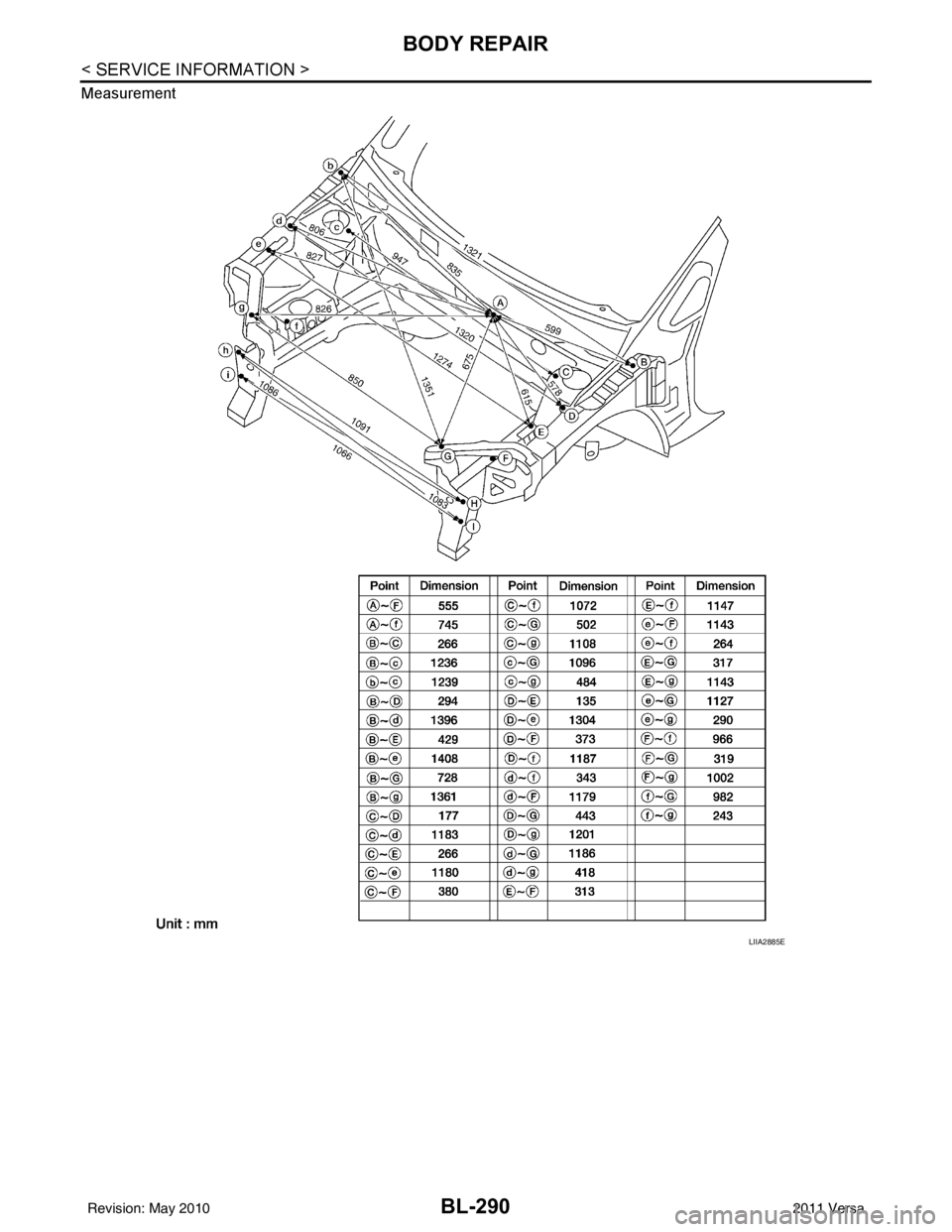

NISSAN TIIDA 2011 Service Repair Manual BODY REPAIRBL-289 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P ENGINE COMPARTMENT PIIA0104E Revision: May 2010 2011 Versa

Page 800 of 3787

NISSAN TIIDA 2011 Service Repair Manual BL-290 < SERVICE INFORMATION > BODY REPAIR Measurement LIIA2885E Revision: May 20102011 Versa
